USER MANUAL TK-4.75A-1 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
SHACKLE HITCH RECEIVER
MODEL: TK-2A / TK-4.75S-1 / TK-8S / TK-4.75A-1 / TK-4.75A-2 / TK-4.75S-2
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE

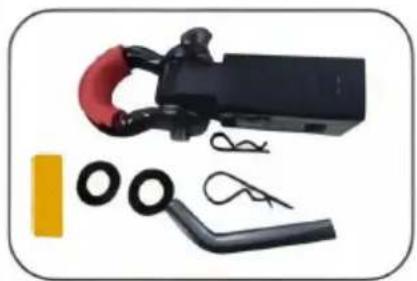

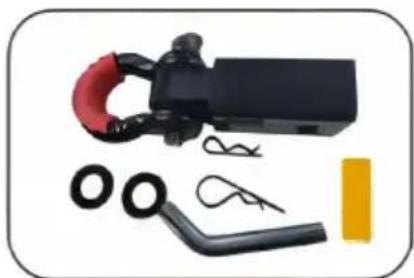

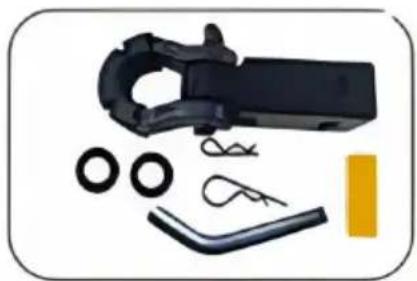

SHACKLE HITCH RECEIVER
MODEL: TK-2A/TK-4.75S-1/TK-8S/TK-4.75A-1/TK-4.75A-2/TK-4.75S-2
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
WARNING
-
Make sure your vehicle is compatible with the receiver and select receiver with the appropriate load range.
-
Follow towing procedures in the vehicle owner's manual.
-
Prior to usage, inspect all towing equipment for cracked welds, mis or worn parts and loose bolts.
-
Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of the towing system it is being used with. The consumer or operator is advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.
-
Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.
-
During their period of use, accessories must be checked for wear, cracks, and other damage.
-
Please be sure to use within the safe working Load Limit range!
MODEL AND PARAMETERS
| Model | TK-2A |
| Working Load Limit | 5 Ton (11000 Lbs Capacity) |
| Breaking Strength Limi | Receiver:24 Ton (52900 Lbs Capacity) |
| Parameter | 2"Receiver;Horizontal 2 holes+vertical 1 hole Pin Φ5/8"; Work Φ5/8" |
| Material | Aluminium alloy 6061-T6 |
| Model | TK-4.75S-1 |
| Working Load Limit | 5 Ton (11000 Lbs Capacity) |
| Breaking Strength Limi | Shackle/Receiver): 20 Ton (44100 Lbs Capa |
| Parameter | 2"Receiver;Horizontal 1 hole+vertical 1 holePin Φ5/8"; Work Φ5/8" |
| Material | Steel |
| Model | TK-8S |
| Working Load Limit | 5 Ton (11000 Lbs Capacity) |
| Breaking Strength Limi | Shackle: 29.9 Ton (65900 Lbs Capacity) |
| Parameter | 2"Receiver;Horizontal 1 hole+vertical 1 holePin Φ5/8"; Work Φ5/8" |
| Material | Steel |
| Model | TK-4.75A-1 |
| Working Load Limit | 7.25 Ton (16000 Lbs Capacity) |
| Breaking Strength Limi | Receiver: 24 Ton (52900 Lbs Capacity) |
| Parameter | 2"Receiver;Horizontal 1 hole+vertical 1 holePin Φ5/8"; Work Φ5/8" |
| Material | Aluminium alloy 6061-T6 |
| Model | TK-4.75A-2 |
| Working Load Limit | 7.25 Ton (16000 Lbs Capacity) |
| Breaking Strength Limi | Shackle: 29.9 Ton (65900 Lbs Capacity) |
| Parameter | 2"Receiver;Horizontal 2 holes+vertical 1 hole Pin Φ5/8"; Work Φ5/8" |
| Material | Aluminium alloy 6061-T6 |
| Model | TK-4.75S-2 |
| Working Load Limit | 7.7 Ton (17000 Lbs/The recommended us is13000-14000lbs.) |
| Breaking Strength Limi | Shackle: 29.9 Ton (66000 Lbs Capacity) |
| Parameter | 2"Receiver;Horizontal 1 hole+vertical 1 hole Pin Φ5/8"; Work Φ5/8" |
| Material | Steel |

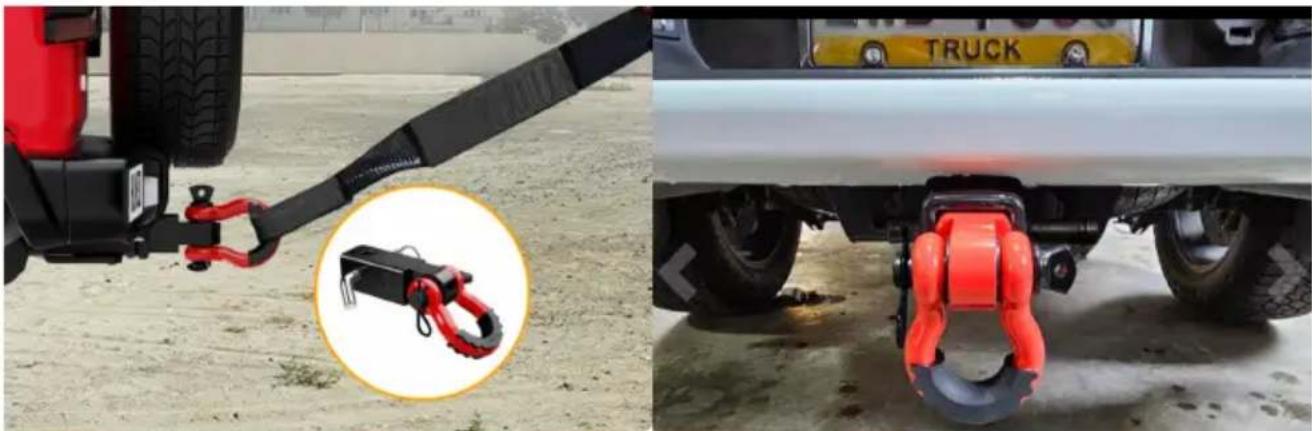

APPLICATION SCENARIOS
1) Preparation before installation: Check that the accessories are complete and verify that your vehicle is compatible with the receiver.
2) Installation: The receiver is installed in the reserved trailer tube of vehicle to ensure that it is secure and stable, usually by means of a specific accessory trailer pin or trailer lock.
3) Pre-trip inspection: After the connection is complete, check whether all the connection parts are tight. Before starting to drive, make sure trailer weight is within the maximum allowable towing weight of the ve
4) Driving precautions:
a. During driving, the speed should be kept low, especially when turn and braking, to slow down in advance to avoid instability caused by inertia.
b. When towing for a long time, stop regularly to check the status of trailer arm and the connection part to prevent loosening or wear caused long-term driving.


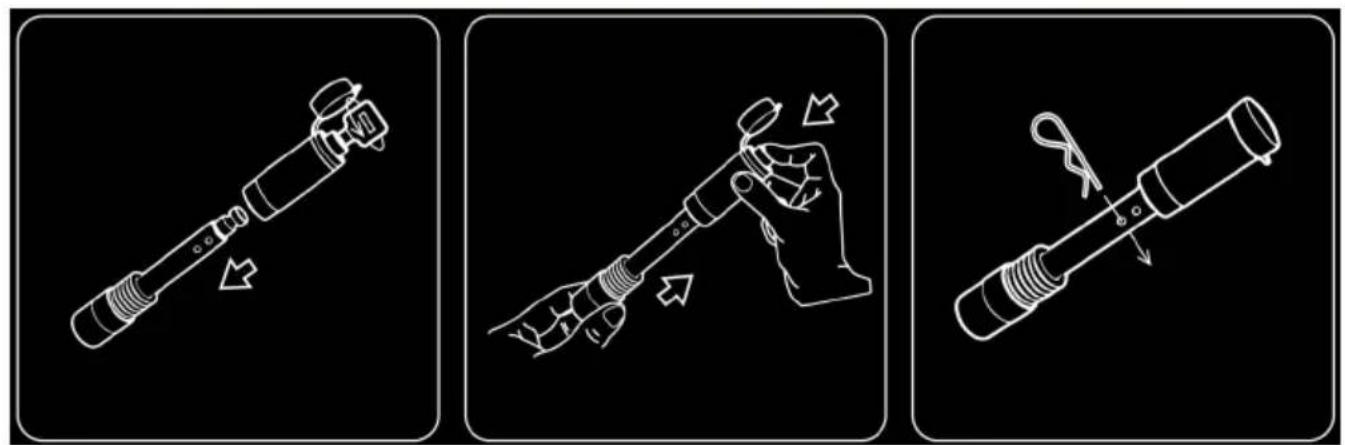

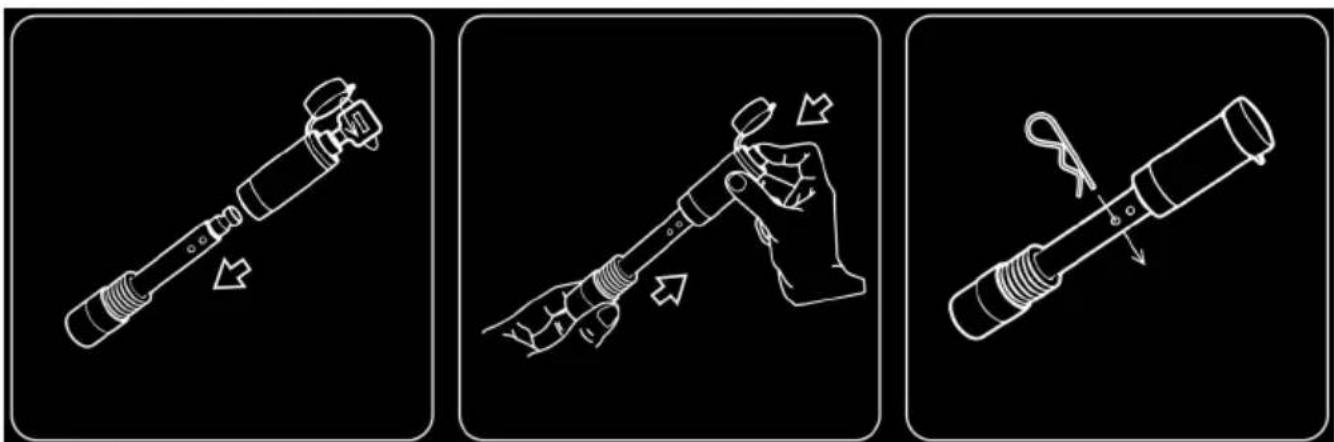

- Insert the Key and Unscrew the Lock, Separate the Pin.
- Push the Button of the Lock head to Securely Lock the Pin in P
- For Extra Safety Insert the Spring Clip into the Pin Hole.
MAINTENANCE
- Check bolts and safety pins regularly.
- Do not overload.
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H
London Road. Staines-upon-Thames. Surrey. TW18 4
