VACUUM PACKING MACHINE USER MANUAL

Model: DZ-260A-V1, DZ-260A-V2, DZ-260A-V3, DZ-260S-V1, DZ-260S-V2, DZ-260S-V3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PACKING MACHINI

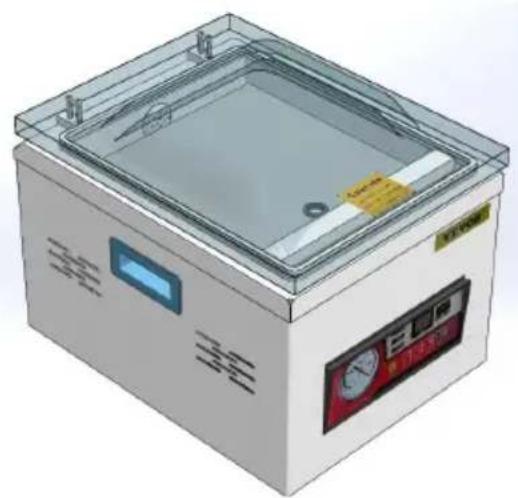

3D rendering of a laboratory appliance with a transparent lid and control panel (no visible text or symbols)

DZ-260A-V1

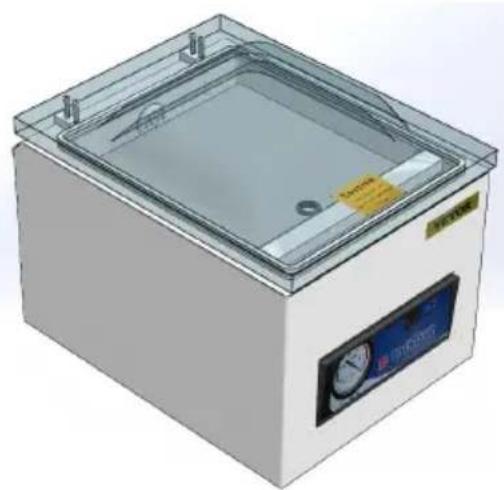

DZ-260A-V2

DZ-260A-V3

3D rendering of a laboratory incubator with control panel and display (no visible text or symbols)

DZ-260S-V1

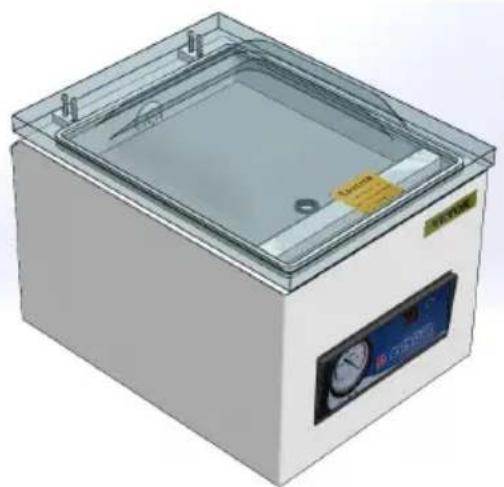

DZ-260S-V2

DZ-260S-V3

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

GENERAL SAFETY RULES

Please read the entire operating instructions before using the products the first time; They contain important information about the correct operation.

The guarantee/warranty will be void if damage is incurred resulting from non-compliance with the operating instructions. Liability for any and all consequential damage is excluded!

We do not assume any liability for damage to property or personal in caused by improper use or the failure to observe the safety instruction such cases the guarantee/warranty will be void

The unauthorized conversion, modification of disassembly of the products is inadmissible because of safety and approval reasons (CE).

The product is not a toy and must be kept out of the reach of child. Particular care must therefore be exercised if children are present.

The product must not get damp or wet, it is only intended for use in indoor locations (not bathrooms or similarly damp areas). There is a risk fatal electric shock.

Do not expose the product or its accessories to damp or extremely low temperatures.

Do not leave packing materials unattended. They may become dangerous playing material for children.

Dropping, falling, pressure or tensile forces could destroy or at least limit function of the product.

Never position the device in the vicinity of combustible or easily inflammable materials.

Always make sure that the rotary table on which the object is placed located in the center of the housing!

This machine uses plastic film or plastic aluminum film as materials to vacuum package paste foods, fruits, sauce vegetables, chemicals, pharmaceuticals, electronic components, precision instruments, rare metals, and other items. Products packaged under vacuum are not equalized or moldy. Especially suitable for industries such as tea, food, medicine.

If you have reason to assume that safe operation is no longer possible, disconnect the device immediately and secure it against inadvertent operation.

It can be assumed that safe operation is no longer possible if:

• the device shows visible signs of damage,
• the device no longer functions,
• after a longer period of storage under unfavourable conditions,
• following heavy stress during transportation.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	DZ-260A-V1	DZ-260A-V2	DZ-260A-V3	DZ-260S-V1	DZ-260S-V2	DZ-260S-V3
Seal Length	260mm	260mm	260mm	260mm	260mm	260mm
Chamber Dimensions	330×270×50mm			330×270×50mm
Vacuum Pump Type	Oil Pump	Oil Pump	Oil Pump	Oil Pump	Oil Pump	Oil Pump
Pumping Speed of Vacuum Pump	6.5m^3/h	6.5m^3/h	6.5m^3/h	4.2m^3/h	4.2m^3/h	4.2m^3/h
Voltage	AC120V60Hz	AC230V50Hz	AC230V50Hz	AC120V60Hz	AC230V50Hz	AC 230V50Hz
Max. Power	950W	950W	950W	950W	950W	950W
Vacuum Pump Power	180W	180W	180W	120W	120W	120W
Machine Material	201 Stainless Steel			201 Stainless Steel

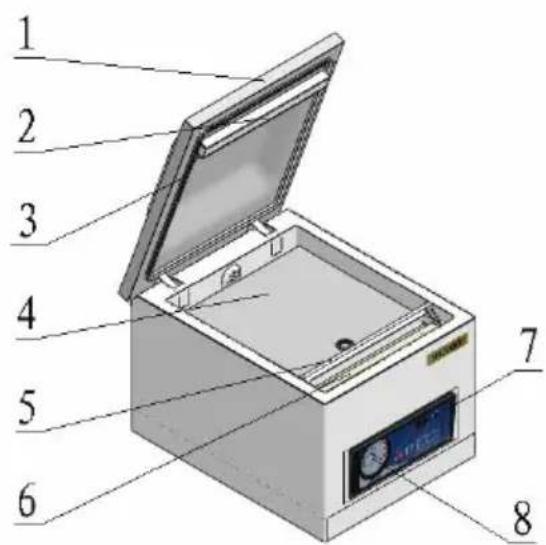

STRUCTURE DIAGRAM

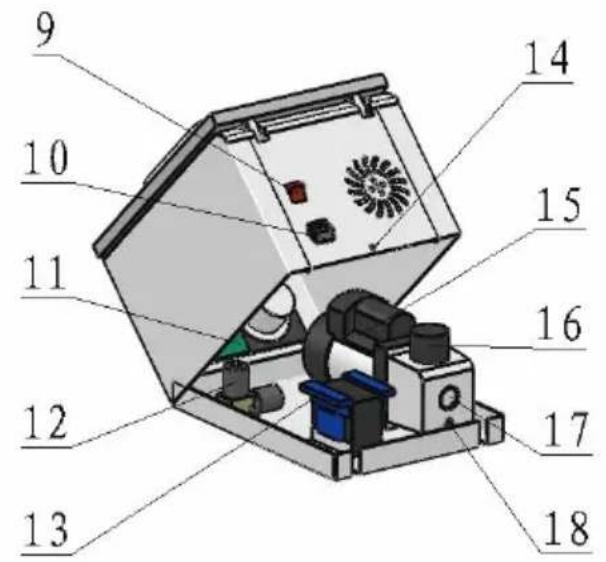

Labeled diagram of an open refrigerator with numbered parts for identification

Labeled diagram of an industrial device with numbered components for identification

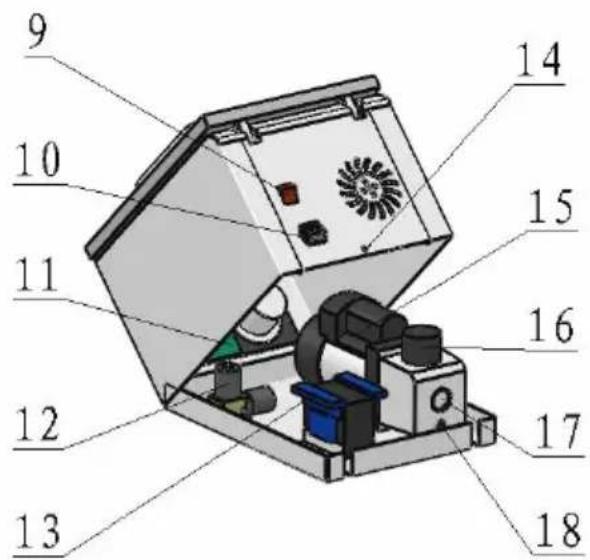

1	Vacuum cover	10	Power plug
2	Silicone strip	11	Circuit board
3	Vacuum sealing bar	12	Vacuum pump solenoid valve
4	Base plate	13	Heating transformer
5	Bag pressing rod	14	Rear cover screw hole
6	Sealing heating strip	15	Vacuum pump
7	Indicator	16	Oil injection port
8	Vacuum gauge	17	Oil level observation wind
9	Power switch	18	Oil drain screw

Parts\Model	DZ-260A-V1	DZ-260A-V2	DZ-260A-V3	DZ-260S-V1	DZ-260S-V2	DZ-260S-V3
Heating Wire	×1	×1	×1	×1	×1	×1
Teflon Cloth	×1	×1	×1	×1	×1	×1
Filler Board	×1	×1	×1	×1	×1	×1
Vacuum Pump Oil	×1	×1	×1	×1	×1	×1
Allen Key	×1	×1	×1	×1	×1	×1
Vacuum Bag	×30	×30	×30	×30	×30	×30
Chamber Sealing Strip	×1	×1	×1	×1	×1	×1
Power Cord	×1	×1	×1	×1	×1	×1
Fuse	×2	×2	×2	×2	×2	×2
User Manual	×1	×1	×1	×1	×1	×1

1.

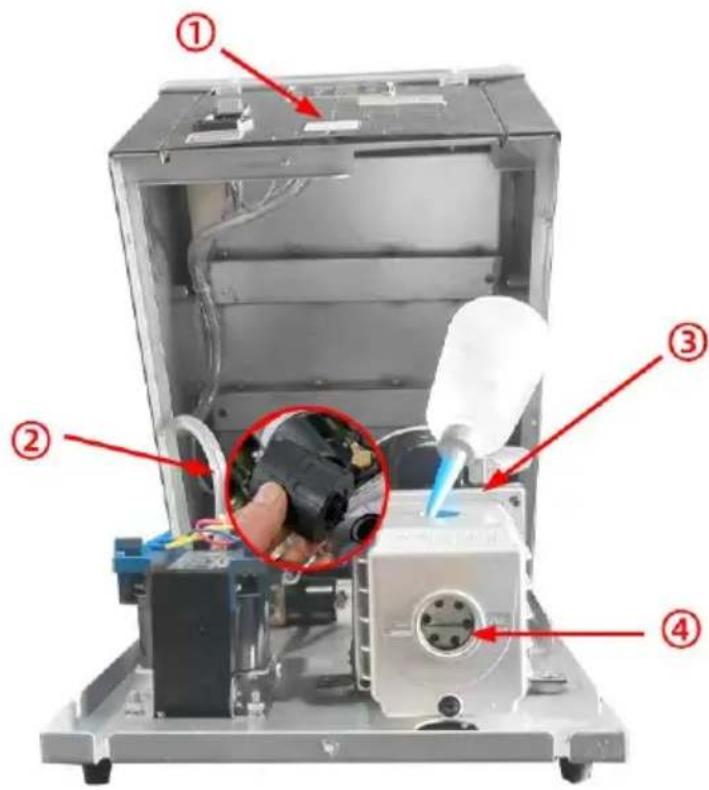

①:Unscrew back cover screw and lift back cover;
②:Take out the oil mist filter;
③:Add vacuum pump oil;
④:Oil level between 1/2-3/4 of the observation hole(do not fill);
⑤:After adding the oil,screw back the oil mist filter, close the back cov It is strictly prohibited to start the vacuum pump without oil.

Labeled diagram of an industrial machine showing internal components and a hand operating the engine, with numbered annotations.

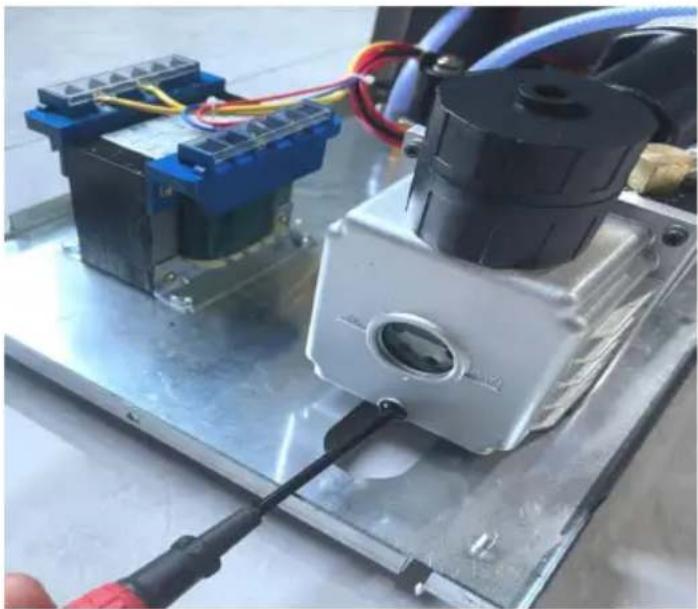

2.PANEL USAGE INSTRUCTIONS

Step 1: Connect the matching power supply

Step 2: OpenROWER SWITCH

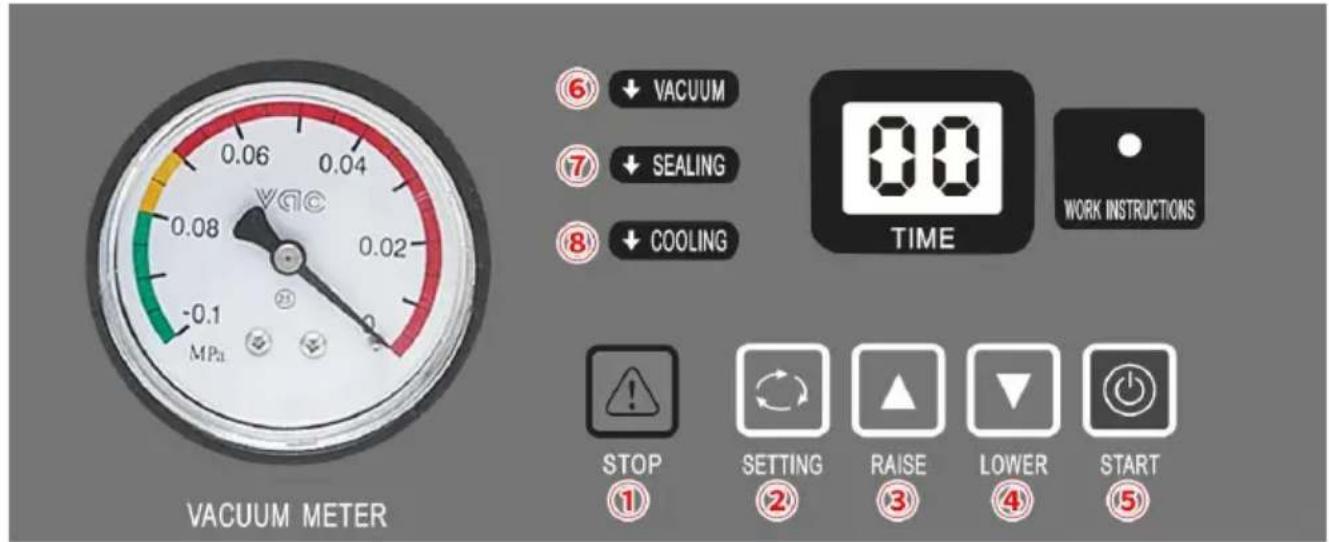

Step 3: ⑥VACUUM :Click the ②SETTING button on the control panel, select the target setting.Click the ③RAISE or ④LOWER button to set the ideal vacuum time. Vacuum time is generally set to 30-40S.

Step 4: ⑦SEALING :Click the ②SETTING button twice, and the sealing time is generally set to 1.5-2S. The sealing time is set according to the thick vacuum bag. It is strictly prohibited to set the sealing time too long or sealing heating strip.

Step 5: ⑧COOLING:After setting the sealing time, click the ②SETTING button again to set the cooling time, usually 3-5 seconds. After setting the co click the ②SETTING button and the control panel will display the letter indicating the end of the setting process.

VACUUM METER 0.06 0.04 0.08 -0.1 MPa ⑥ ↓ VACUUM ⑦ ↓ SEALING ⑧ ↓ COOLING TIME WORK INSTRUCTIONS STOP ① SETTING ② RAISE ③ LOWER ④ START

1. When the machine needs to change oil or is not used for a long time the screw under the oil window and drain the vacuum pump oil. Suggest replacing the vacuum pump oil after the machine has been working for 800 hours.

Close-up of a robotic arm with blue and black components mounted on a metal base, being adjusted by a tool (no visible text or symbols)

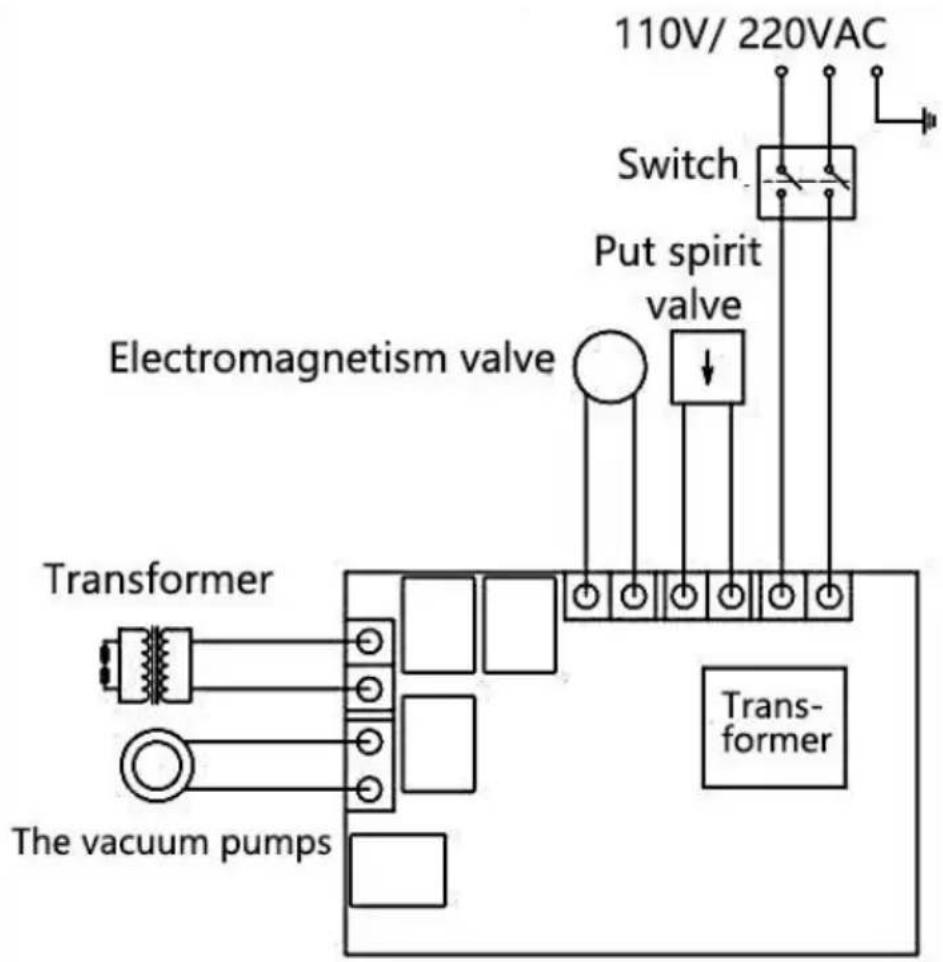

CIRCUIT DIAGRAM

MAINTENANCE

1. After using, the surface of the machine should be cleaned and re-materials inside the machine should be removed.
2. When storing, keep in a clean, dry, and safe location away from children.
3. All maintenance, service, and repairs not discussed in the manual should only be performed by qualified service technicians.

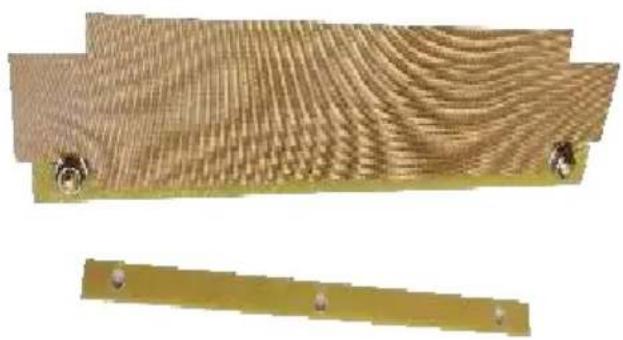

Replace the high temperature cloth(Teflon Cloth)

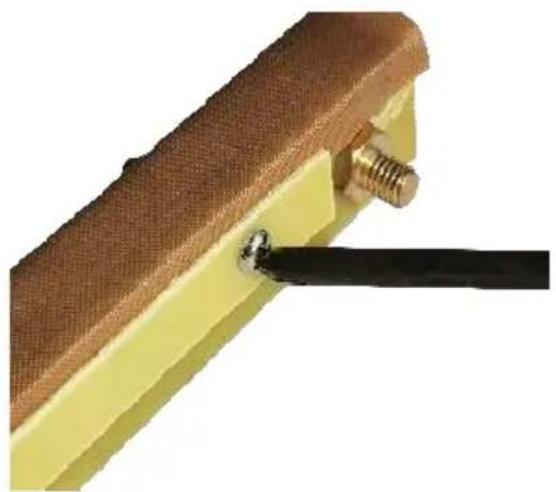

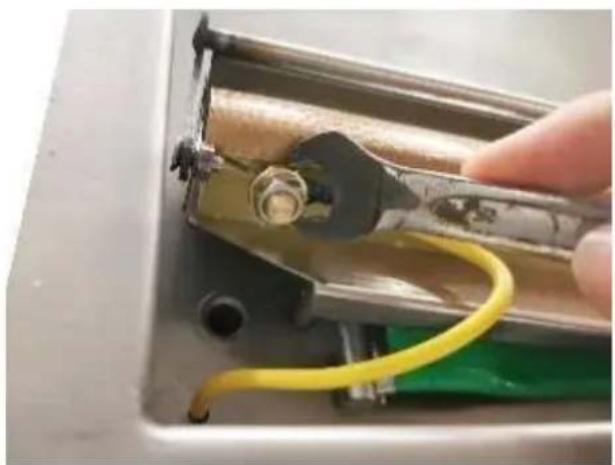

1. Remove the screws on both sides of the tray, and then pick the whole tray.

Hand holding a tool over a metal tray with a green band, no visible text or symbols

1. Remove the upper screws .

Close-up of a hand using a pliers to adjust or wire a cylindrical component, with yellow and green wires visible (no text or symbols)

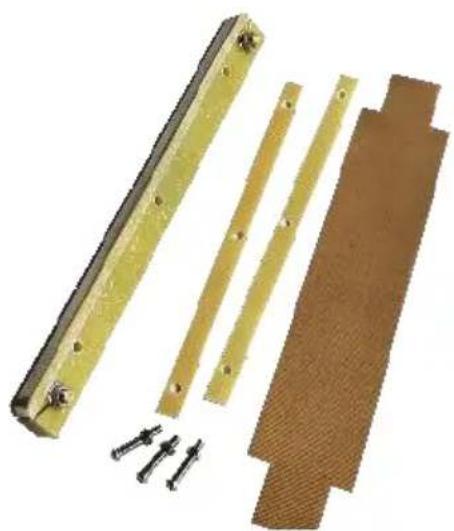

1. Remove the old high-temperature cloth.

Three types of metal clamps with different mounting holes and threaded surfaces, shown from different angles (no text or symbols visible)

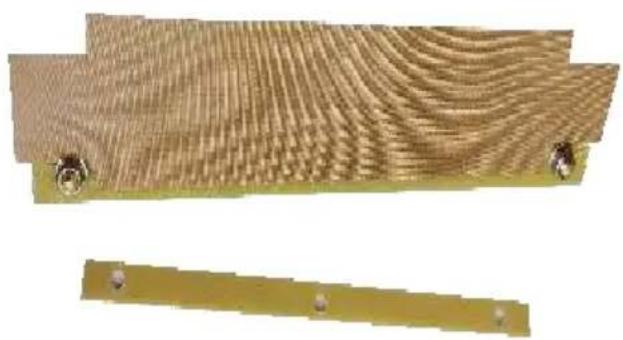

4.Apply new high temperature clo

Two metallic electronic components with ribbed top and gold contacts, no visible text or symbols

1. Reinstall the original screws

Close-up of a mechanical component with a black cable inserted, showing a yellow base and brown textured top (no text or symbols visible)

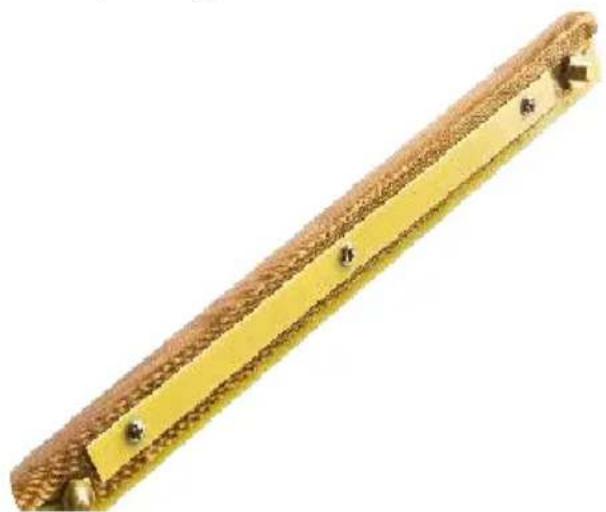

1. Completing the Installation.

Close-up of a yellow metal strip with textured surface and small black connectors (no text or symbols visible)

Replace the Chamber Sealing Strip

1. Remove the Chamber Sealing Strip.

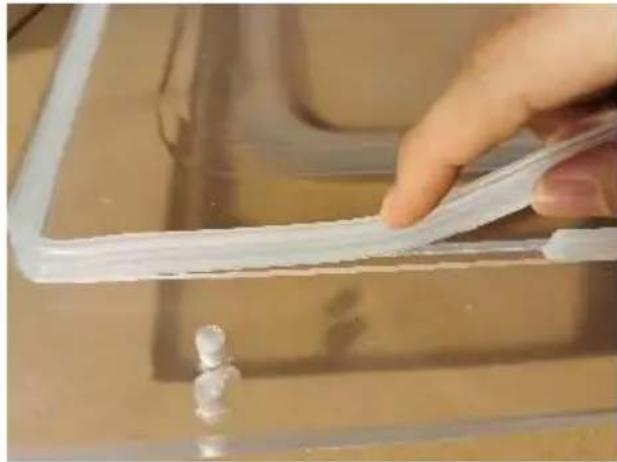

Close-up of a hand holding a transparent plastic strip over a transparent rectangular container, with a small droplet nearby (no text or symbols visible)

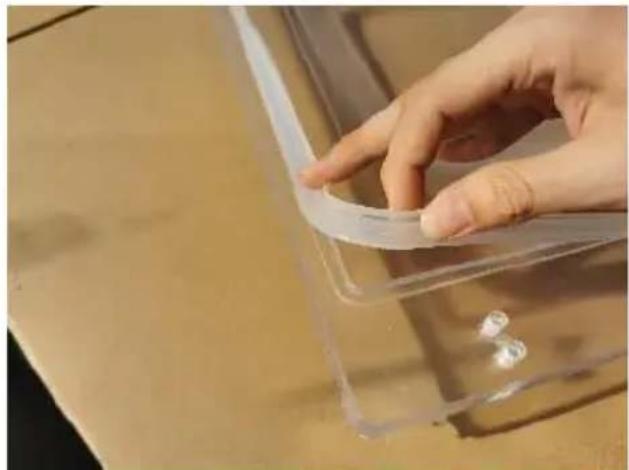

1. Replace the Chamber Sealing Strip with a new one

Close-up of a hand holding a transparent plastic clip against a wooden surface (no text or symbols visible)

1. Completing the Installation

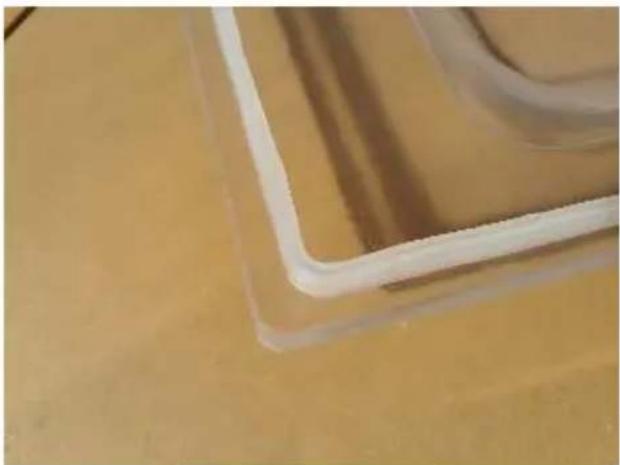

Close-up of a white plastic sheet with a thin edge, resting on a wooden surface (no text or symbols visible)

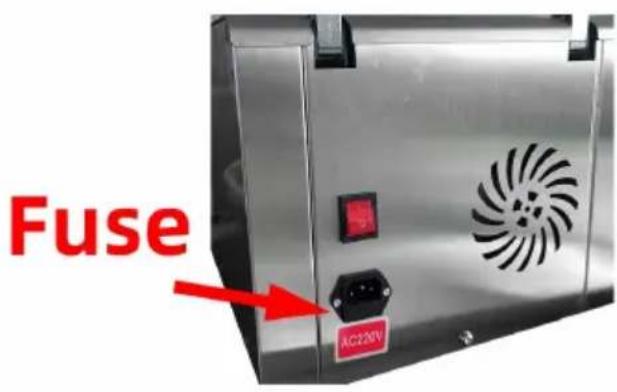

If the fuse is damaged, replace it as shown

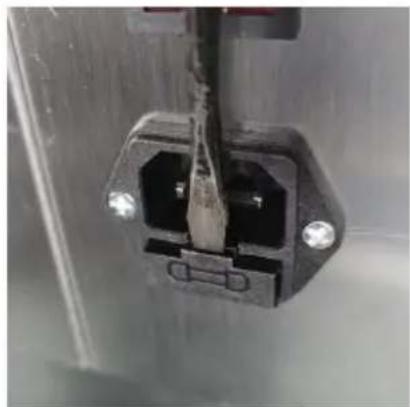

1. Find the power outlet on the

Fuse AC220V

2.Take out slot

Close-up of a metallic electrical outlet connector with mounting holes (no visible text or symbols)

1. The fuse is in the groove of card slot

Close-up of a black plastic electrical connector with two metallic pins (no text or symbols visible)

1. Take out a fuse

Close-up of a black plastic electrical connector with a metallic cylindrical shaft attached (no text or symbols visible)

TROUBLESHOOTING AND SOLUTIONS

Problem	Possible Cause	Solution
The machine doesn't work and the control panel shows nothing.	1.No connection of the power supply.2.The contact of the power switch looses.	1.Check whether the plug and socket are effectively connected.2.Check whether the wiring of the power in part inside the machine is loose or detached.
The control panel startup,but the machine doesn't work.	The parameter is being set.	Complete the parameter setting.
The best vacuum state can't be achieved.The vacuumizing speed is slow.	1.Short vacuumizing time.2.The oil in the vacuum pump is not enough of the oil is not clean.3.Air leakage and wea of the sealing ring.	1.Extend the vacuum time.2.Check the oil level, refuel or change the (pay attention to the type (vacuum oil 46#,68#) and oil quantity.3.Replace the sealing ring.
Sealing failure or poor sealing.	1.The bags are not correctly placed on the heating plates.2.Too long/short sealing time.3.Inappropriate heating temperature..4.Silicon strip damaged or with impurity.5.Damage of electric heating wire.	1.Place the bags on the plate in order.2.Shorten/prolong the sealing time.3.Choose proper temperature.4.Clean or replace the silicon rubber.5.Change electric heating wire.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may be discarded with normal domestic waste, but must be taken to a co-point for recycling electrical and electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
