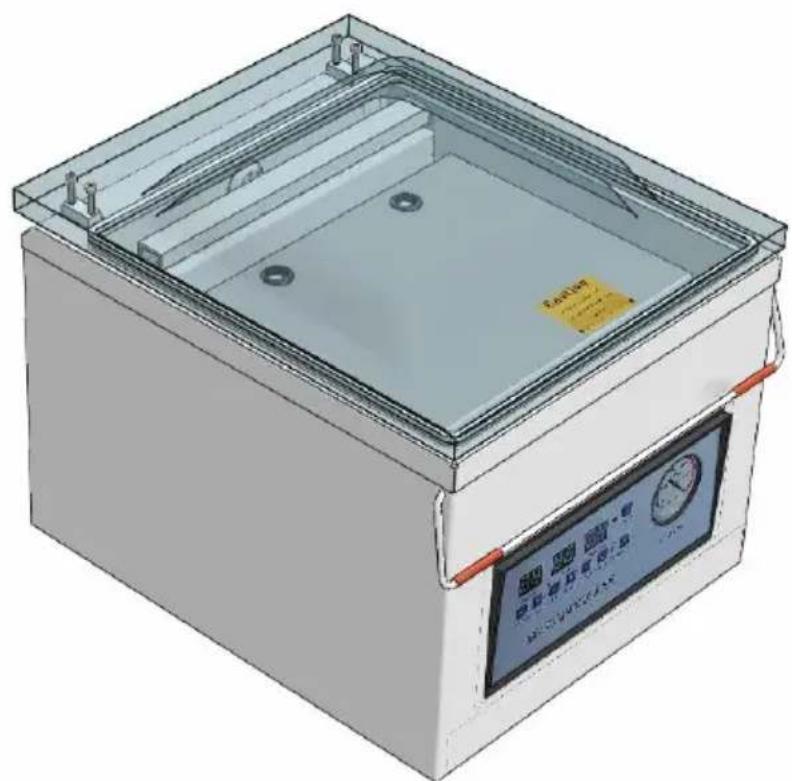

VACUUM PACKING MACHINE USER MANUAL

Model:DZ-260C-V1,DZ-260C-V2,DZ-260C-V3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model: DZ-260C-V1, DZ-260C-V2, DZ-260C-V3

3D rendering of a laboratory incubator with control panel and tray (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

GENERAL SAFETY RULES

Please read the entire operating instructions before using the products the first time; They contain important information about the correct operation.

The guarantee/warranty will be void if damage is incurred resulting from non-compliance with the operating instructions. Liability for any and all consequential damage is excluded!

We do not assume any liability for damage to property or personal in caused by improper use or the failure to observe the safety instruction such cases the guarantee/warranty will be void

The unauthorized conversion, modification of disassembly of the products is inadmissible because of safety and approval reasons (CE).

The product is not a toy and must be kept out of the reach of child. Particular care must therefore be exercised if children are present.

The product must not get damp or wet, it is only intended for use in indoor locations (not bathrooms or similarly damp areas). There is a risk fatal electric shock.

Do not expose the product or its accessories to damp or extremely low temperatures.

Do not leave packing materials unattended. They may become dangerous playing material for children.

Dropping, falling, pressure or tensile forces could destroy or at least limit function of the product.

Never position the device in the vicinity of combustible or easily inflammable materials.

Always make sure that the rotary table on which the object is placed located in the center of the housing!

This machine uses plastic film or plastic aluminum film as materials to vacuum package paste foods, fruits, sauce vegetables, chemicals, pharmaceuticals, electronic components, precision instruments, rare metals, and other items. Products packaged under vacuum are not equalized or moldy. Especially suitable for industries such as tea, food, medicine.

If you have reason to assume that safe operation is no longer possible, disconnect the device immediately and secure it against inadvertent operation.

It can be assumed that safe operation is no longer possible if:

• the device shows visible signs of damage,
• the device no longer functions,
• after a longer period of storage under unfavourable conditions,
• following heavy stress during transportation.

SAVE THESE INSTRUCTIONS

Model	DZ-260C-V1	DZ-260C-V2	DZ-260C-V3
Seal Length	320mm	320mm	320mm
Chamber Dimensions	355*340*70mm	355*340*70mm	355*340*70mm
Vacuum Pump Type	Oil Pump	Oil Pump	Oil Pump
Pumping Speed of Vacuum Pump	6.5m^3/h	6.5m^3/h	6.5m^3/h
Voltage	AC 120V 60Hz	AC 230V 50Hz	AC 230V 50Hz
Max. Power	1700W	1700W	1700W
Vacuum Pump Power	180W	180W	180W
Machine Material	201 Stainless Steel	201 Stainless Steel	201 Stainless Steel

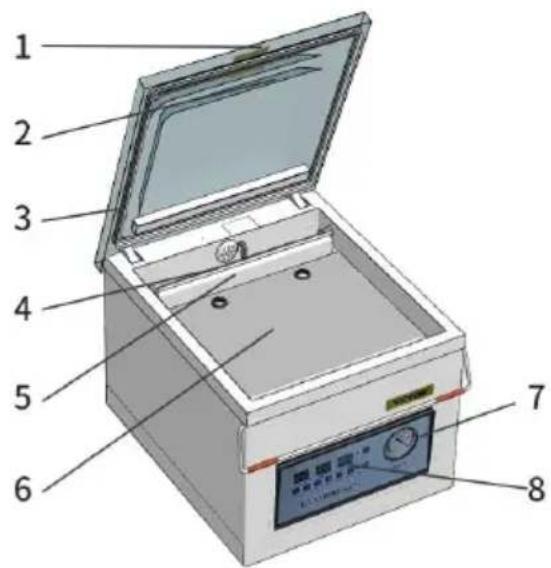

Labeled diagram of an open laboratory instrument with numbered parts for identification

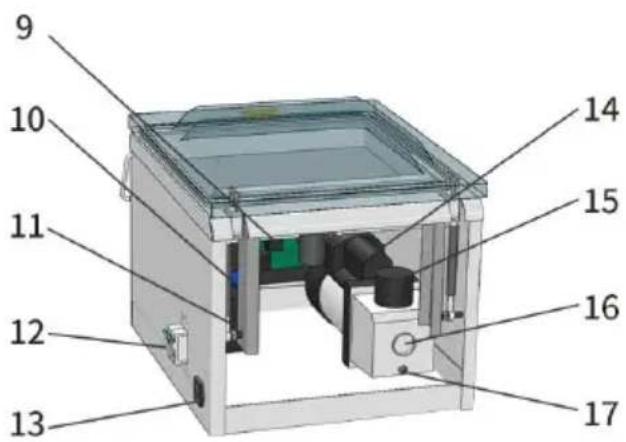

Labeled diagram of a mechanical device with numbered parts from 9 to 17

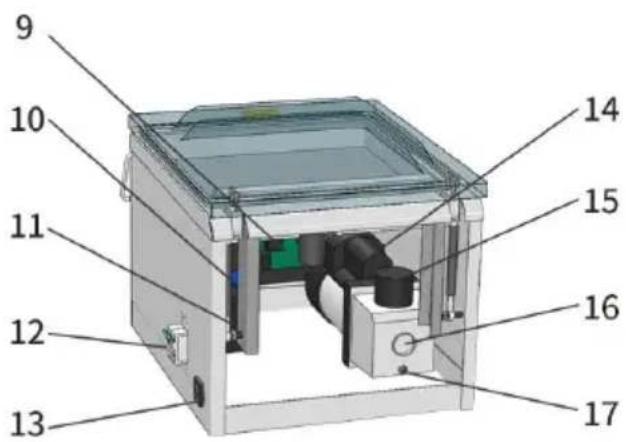

1	Vacuum cover	10	Heating transformer
2	Silicone strip	11	Vacuum pump solenoid valve
3	Vacuum sealing bar	12	Power switch
4	Sealing heating strip	13	Power plug
5	Bag pressing rod	14	Vacuum pump
6	Base plate	15	Oil injection port
7	Indicator	16	Oil level observation windo
8	Vacuum gauge	17	Oil drain screw
9	Circuit board
Parts\Model	DZ-260C-V1	DZ-260C-V2	DZ-260C-V3
Heating Wire	×2	×2	×2
Teflon Cloth	×2	×2	×2
Filler Board	×1	×1	×1
Vacuum Pump Oil	×1	×1	×1
Allen Key	×1	×1	×1
Vacuum Bag	×30	×30	×30
Chamber Sealing Strip	×1	×1	×1
Power Cord	×1	×1	×1
User Manual	×1	×1	×1

OPERATING INSTRUCTIONS

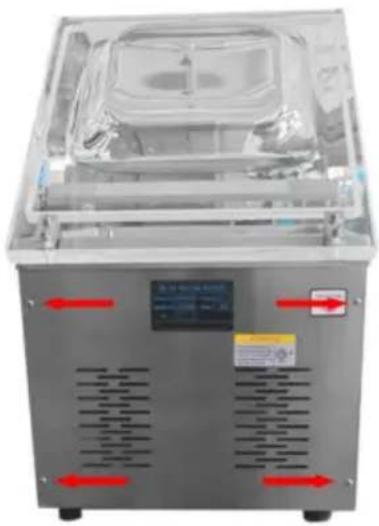

1. Unscrew the rear cover plate.

Exterior view of a stainless steel industrial machine with transparent casing and control panel (no visible text or symbols)

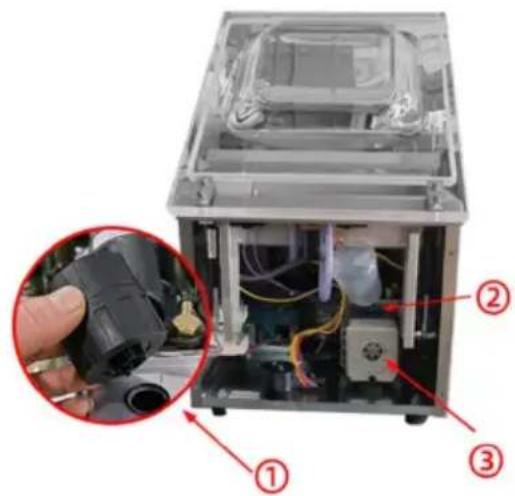

2.①.Take out the oil mist filter; ②.Add vacuum pump oil; ③.Oil level between 1/2-3/4 of the observation hole(do not fill); After adding the oil,screw back the mist filter, close the back cover.

Labeled diagram of an electronic device showing internal components and a close-up view of the device's internal structure.

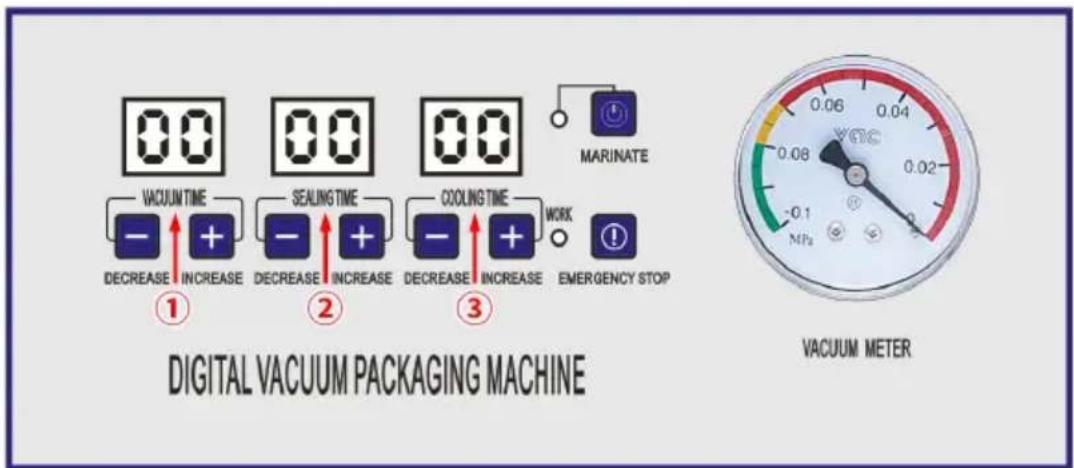

3 .PANEL USAGE INSTRUCTIONS

Step 1: Connect the matching power supply

Step 2: Open AIR SWITCH

Step 3: ①VACUUM TIME : In the standby state, click the DECREASE button to set the ideal vacuum time, general items are set for. Step 4: ②SEALING TIME: Click the DECREASE or INCREASE button to time, and the sealing time is generally set to 2-2.2s. The sealing time is according to the thickness of the vacuum bag. It is strictly prohibited to sealing time too long or burn out the sealing heating strip.

Step 5: ③COOLING TIME : In the standby state, click the DECREASE INCREASE button to set the ideal cooling time, general items are set for

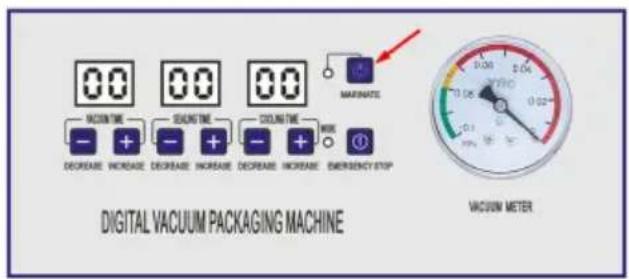

MARINATE VACUUM TIME DECREASE INCREASE SEALING TIME DECREASE INCREASE COOLING TIME DECREASE INCREASE WORK EMERGENCY STOP 1 2 3 DIGITAL VACUUM PACKAGING MACHINE VACUUM METER

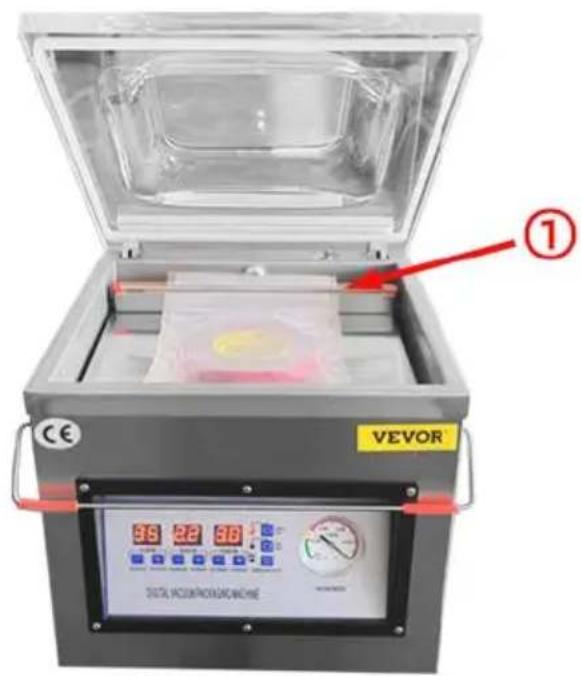

4.①Put your product in it, the vacu bag seal is placed on the heating strip. Press the bag strip to flatten t product.

VEVOR ① 35 22 30 TOTAL ACCUMPLORA CHARGE

6.MARINATE: Click the marinate button in the upper right corner of control panel, the marinate indicator light will light up, adjust the pumpkin time, and start the marinate work. This time, the machine is in a vac only state without sealing.

MACUM TIME DECREASE INCREASE DECREASE INCREASE DECREASE INCREASE MARGINATE DECAING TIME DECREASE INCREASE DECREASE INCREASE EMERGENCY STOP MARGINATE VACUUM METER DIGITAL VACUUM PACKAGING MACHINE

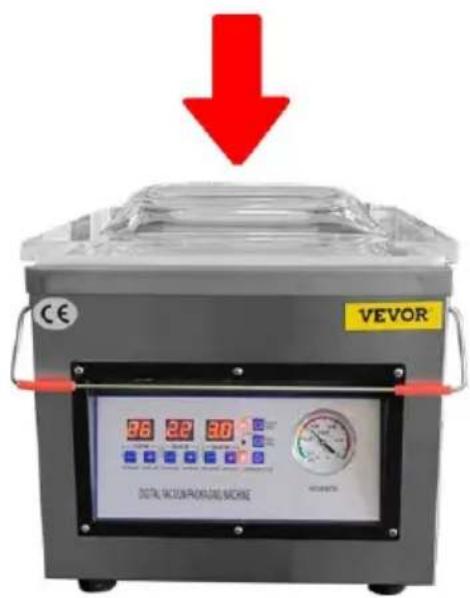

5.Hold the front of the cover with hands and firmly press down on the cover. The machine starts to work,af the vacuum meter pointer starts to loosen the hands, the machine automatically completes the packaging

CE VEVOR 36 22 30 TOTAL ACCUMPLATED MACHINE HAPPLES

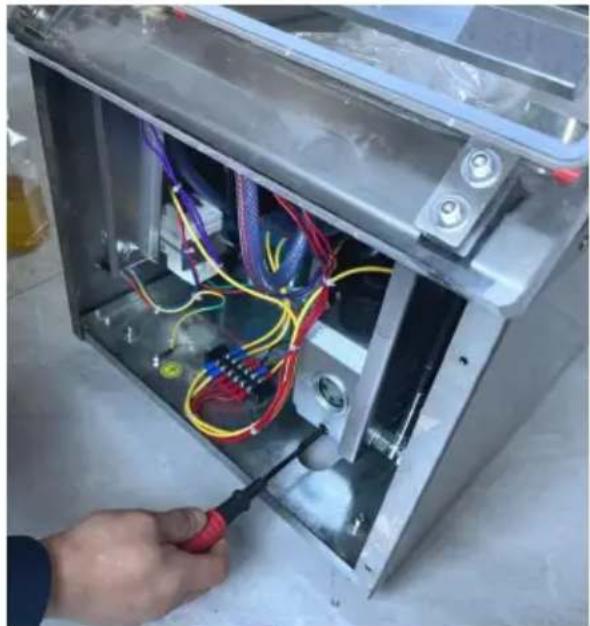

1. When the machine needs to change oil or is not used for a long time, the screw under the oil window and drain the vacuum pump oil. Suggest replacing the vacuum pump oil after machine has been working continuous for 800 hours.

Hand using a tool to switch internal wiring inside an open electrolytic cell (no text or symbols visible)

MAINTENANCE

1. After using, the surface of the machine should be cleaned and resid materials inside the machine should be removed.
2. When storing, keep in a clean, dry, and safe location away from child
3. All maintenance, service, and repairs not discussed in the manual shot only be performed by qualified service technicians.

Replace the high temperature cloth(Teflon Cloth)

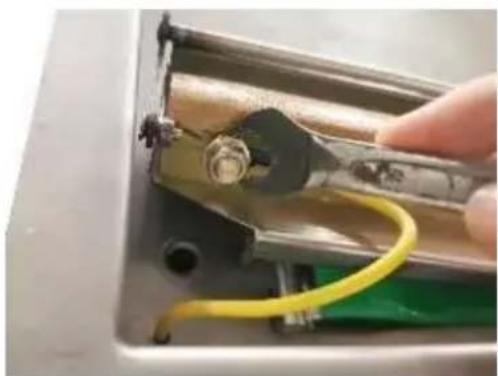

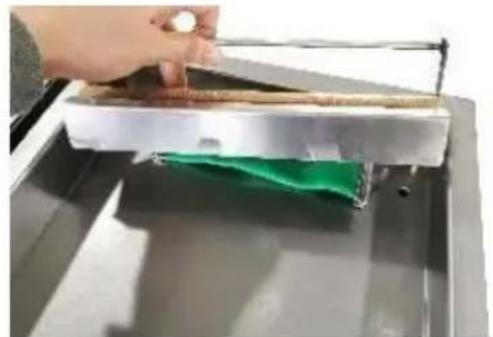

1. Remove the screws on both sides of tray, and then pick up the whole tray.

Person using a tool on a metal tray with a green cloth, no visible text or symbols

1. Remove the upper screws .

Close-up of a hand using a pliers to connect a metal pipe with yellow tubing, no visible text or symbols

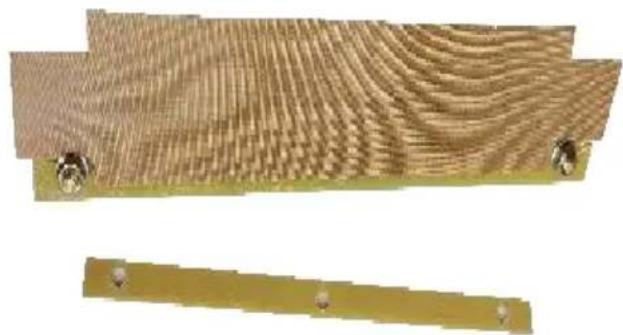

1. Remove the old high-temperature cloth

Three wooden planks with different surface textures and metal fasteners, shown from different angles (no text or symbols visible)

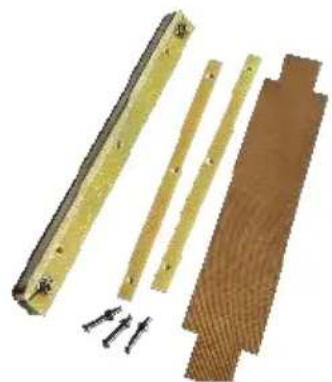

1. Apply new high temperature cloth.

Two electronic components: a wavy, textured surface on a green base and a flat gold strip with small holes (no text or symbols visible)

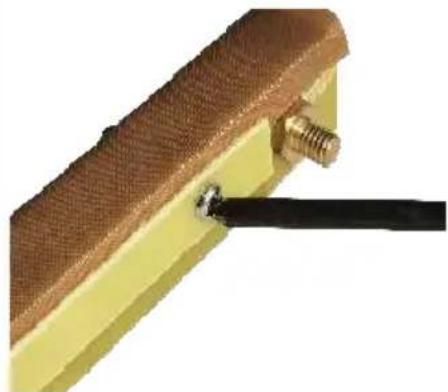

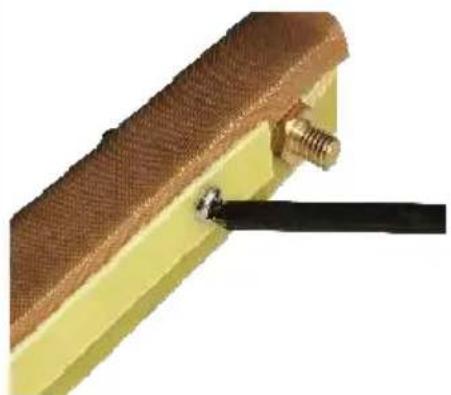

1. Reinstall the original screws

Close-up of a mechanical component with a black cable inserted, showing a yellow base and brown textured surface (no text or symbols visible)

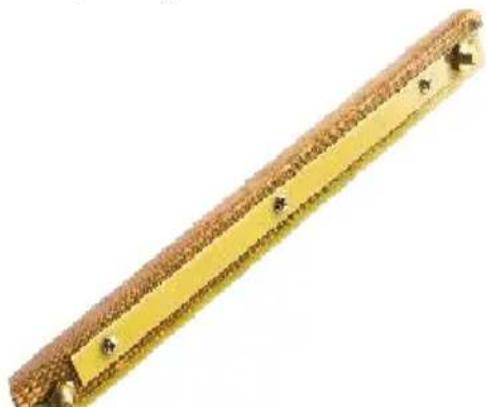

1. Completing the Installation.

Close-up of a yellow metal ruler with textured surface and small holes (no visible text or markings)

Replace the Chamber Sealing Strip

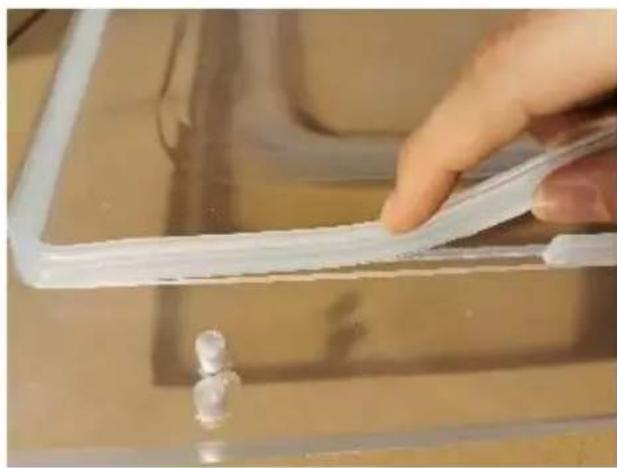

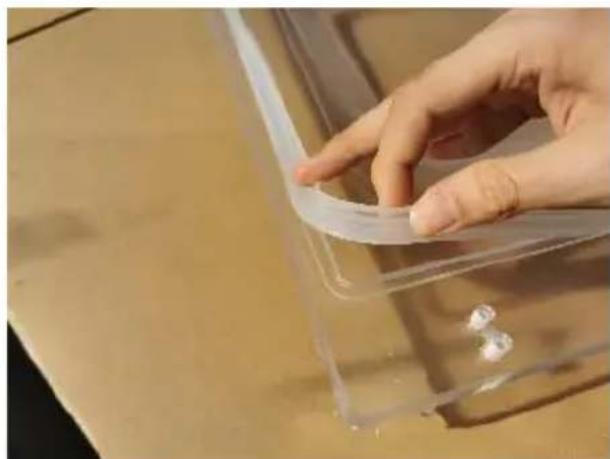

1. Remove the Chamber Sealing Strip.

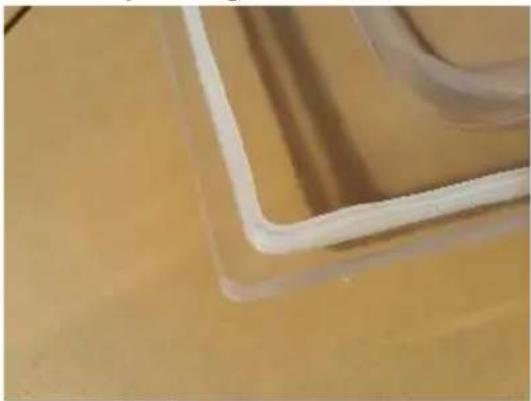

Close-up of a hand holding a transparent plastic strip over a transparent container, with small white objects nearby (no text or symbols visible)

1. Replace the Chamber Sealing Strip with a new one

Close-up of a hand holding a transparent plastic film, partially visible against a wooden surface (no text or symbols)

3.Completing the Installation

Close-up of a white plastic clip on a wooden surface (no text or symbols visible)

TROUBLESHOOTING AND SOLUTIONS

Problem	Possible Cause	Solution
The machine doesn't work and the control panel shows nothing.	1.No connection of the power supply.2.The contact of the power switch looses.	1.Check whether the plug and socket are effectively connected.2.Check whether the wirin of the power input part inside the machine is loo or detached.
The control panel startup,but the machine doesn't work.	The parameter is being set.	Complete the parameter setting.
The best vacuum state can't be achieved.The vacuum pumping speed is slow	1.Short vacuumizing time.2.The oil in the vacuum pump is not enough or oil is not clean.3.Air leakage and wear the sealing ring.	1.Extend the vacuum time.2.Check the oil level, ref or change the oil (pay attention to the oil type (vacuum oil 46#,68#) and oil quantity.3.Replace the sealing ring
Sealing failure or poor sealing.	1.The bags are not correctly placed on the heating plates.2.Too long/short sealing time.3.Inappropriate heating temperature..4.Silicon strip damaged with impurity.5.Damage of electric heating wire.	1.Place the bags on the plate in order.2.Shorten/prolong the sealing time.3.Choose proper temperature.4.Clean or replace the silicon rubber.5.Change electric heating wire.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all

accessories marked with this symbol. Products marked as such may be discarded with normal domestic waste, but must be taken to a co-point for recycling electrical and electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modèle: DZ-260C -V1, DZ-260C -V2, DZ-260C -V3

3D rendering of a laboratory incubator with control panel and display (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Labeled diagram of an open laboratory instrument with numbered parts for identification

Labeled diagram of a device interior with numbered components for identification

Exterior view of a stainless steel kitchen appliance with clear glass lid and red directional arrows indicating ventilation or flow (no text or symbols visible)

Labeled diagram of an electronic device showing internal components and a close-up view of the component being handled.

3. INSTRUCTIONS D'UTILISATION DU PANNEAU

VEVOR ① 35 22 30 TOTAL ACCONTIONS MACHINE

Close-up of a hand using a tool to inspect internal wiring and components of an open electrolytic cell (no visible text or symbols)

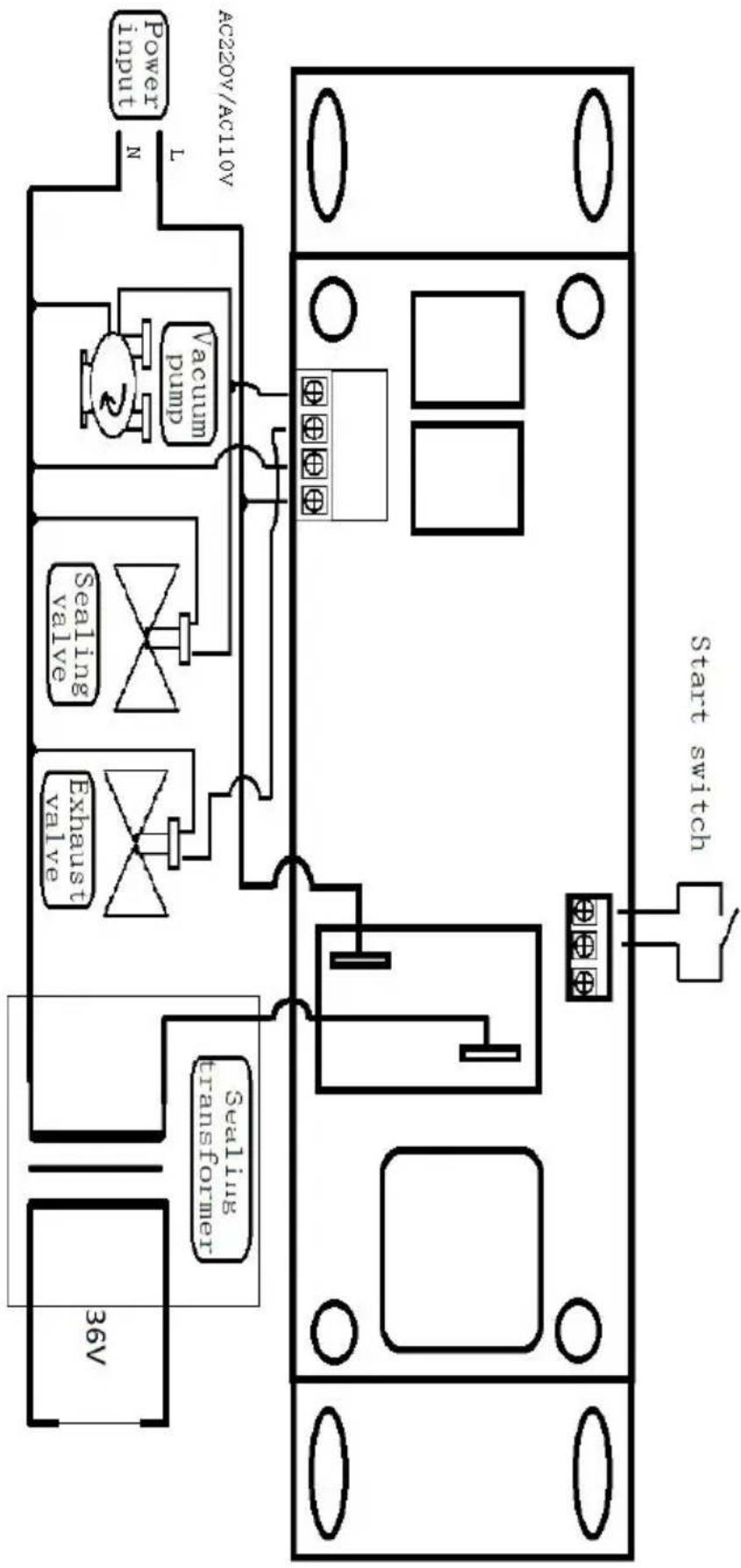

CIRCUIT DIAGRAM
