USER MANUAL ZK-8861 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

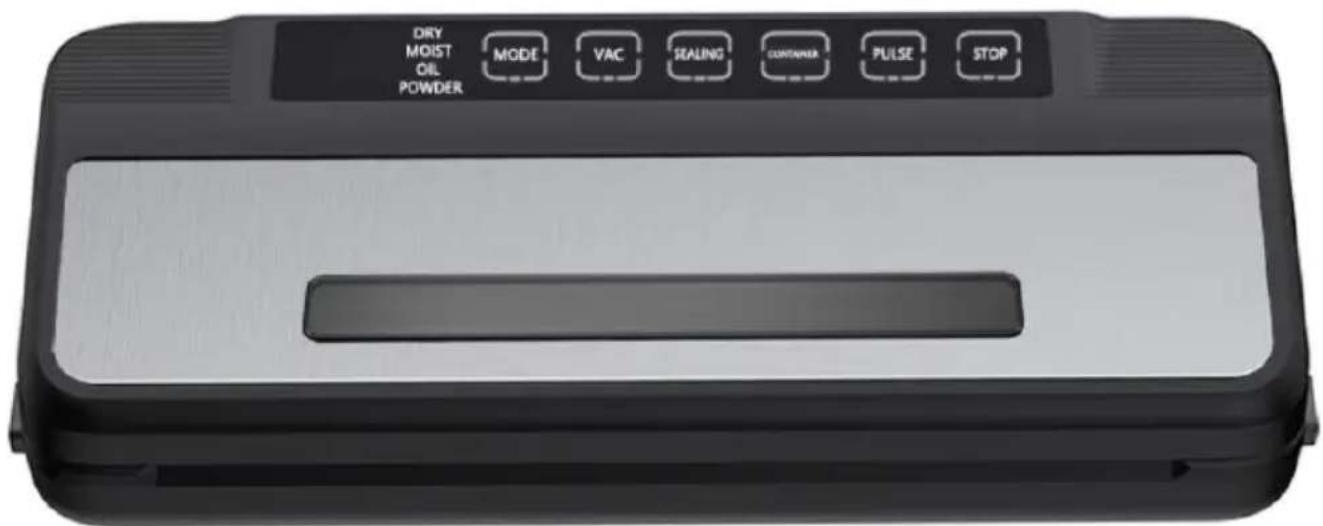

VACUUM SEALER USER MANUAL

MODEL: ZK-8861

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: ZK-8861

DRY MOIST OIL POWDER MODE VAC SEALING CONTAINER PULSE STOP

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, user must read ins manual carefully.
	Alternating current
	This symbol, placed before a safety comment, indicates a precaution, warning, or danger. Ignoring this warning may le an accident. To reduce the risk of injury, fire, or electrocut please always follow the recommendations shown below.
	Danger!Risk of personal injury or environmental damage! Risk of e shock! Risk of personal injury by electric shock!
	This product is of protection class II. That means it is eq enhanced or double insulation.
	Disposal information:This product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken collection point for recycling electrical and electronic devices

SAFETY NOTICE

Read all instructions before using this product.

1. It is not suitable for the use of children or people who do not master the operation.
2. When using, do not touch the heating sealing strip with both hands to a burns.
3. Make sure the machine is dry before use.
4. Make sure your hands are dry before plugging or unplugging the power supply. When pulling out the plug, the plug part must be grasped, do not just

the power cord.

1. When the machine is not in use, please pull out the plug.
2. When the body is cleaned, the plug must be pulled out to avoid electric
3. Do not damage, bruise, excessive bending, stretch, twist, bind, or heavily on the power cord, otherwise it may cause electric shock, short circuit, fire a other accidents.
4. If the power cord is damaged, it must be replaced by maintenance person avoid danger.
5. If abnormal use occurs, please cut off the power immediately and contact maintenance personnel.
6. This product is an electrical appliance for indoor use, please do not use outdoors or in a humid place.
7. Because the vacuum tube inside the product cannot be cleaned, please use items with a lot of oil or water or that can squeeze out a large amount when using the vacuum function to avoid damage to the product.
8. When not in use for a long time, be sure to unplug the power supply.
9. Don't put it near the gas stove to prevent fire.

PRECAUTIONS

1. This product continuously works for 20 cycles, all the indicators will flash, product can not work, wait for 5 minutes to cool down before continuing to this procedure is to protect your product and seal the best effect.
2. If the interval between two operations is more than 100 seconds, the cou be cleared to zero.
3. Please use a special textured vacuum bag when vacuum packaging.
4. Please use a single seal to seal fresh vegetables and fruits, as such foo wilproduce gas and cause flatulence.
5. If you need a crisper to vacuum red wine or other external tupperware, please insert one end of the tube into the outlet of the crisper and the other the upperware that needs to be vacuum-pumped. Press the "CONTAINER" butt for vacuum pumping.
6. The product will be pumped back before sealing, so that the vacuum and sealing effect is better.

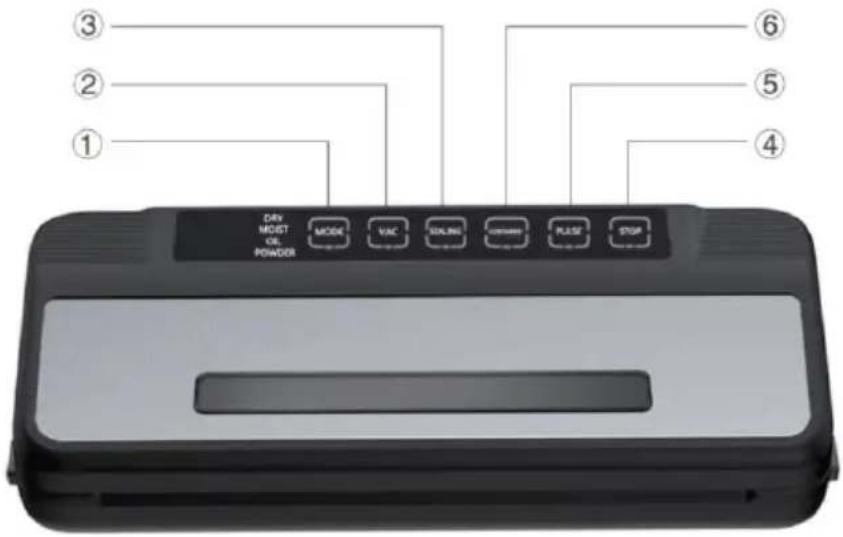

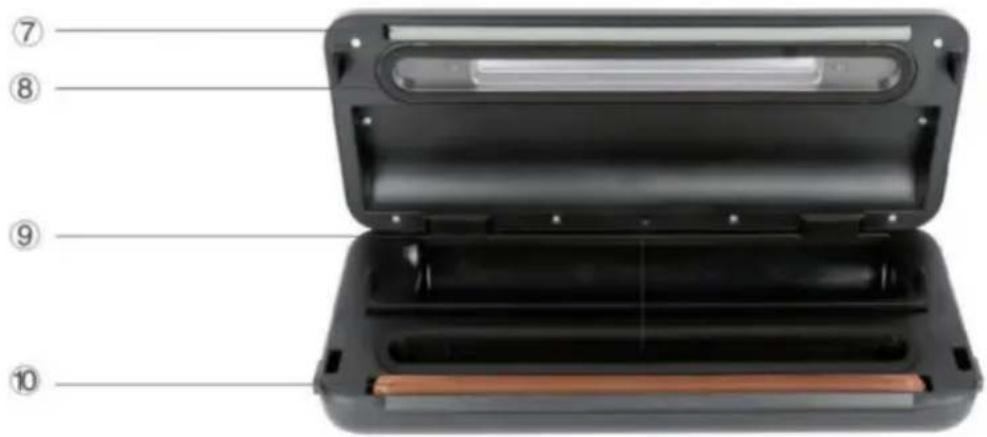

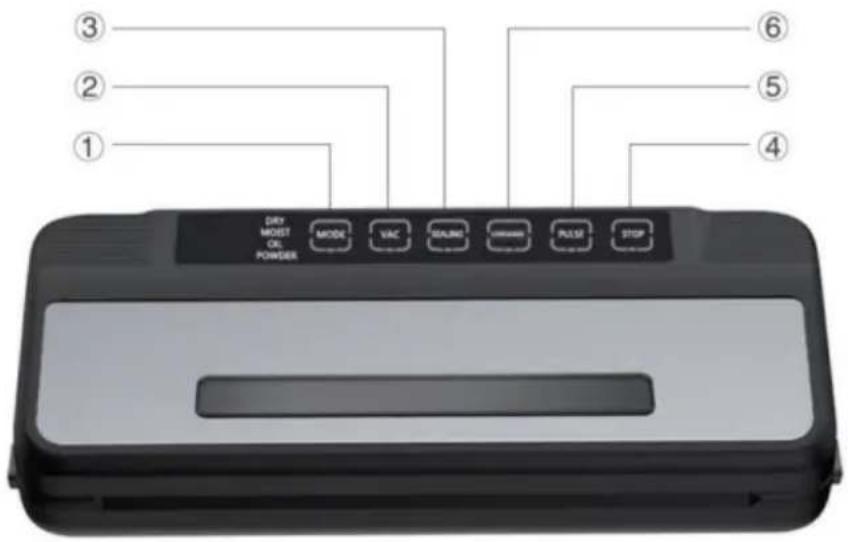

PRODUCT STRUCTURE

③ ② ① DADY MOIST ON POWDER MODE VAC RADING PUSH STOP ⑥ ⑤ ④

Labeled diagram of a device showing internal components with numbered parts from 7 to 10

1. Function Mode Choose/Indicator Light 6. Pulse Button/indicator Light
2. Vacuum & Sealing /Indicator Light 7. Silicone Sealing strip
   3.Seal button /indicator Light 8.Upper sponge strip
   4.VAC BOTTLE OR BOX/Indicator Light 9.Removable sink
3. Stop button/Indicator Light 10. Teflon-coated fabric (heating wire)

(Function is divided into dry pumping, wet pumping, oily, powder 4 modes.dry pumping is mainly for dry food and nuts, no liquid solid food vacuum

packaging; Wet pumping is for chicken, duck and fish with a little liquid vacuum packaging; Oily is for a little oily food, the modality is soft to reduce the abs of oil juice in the food; Powder is for powdered food, soft mode, to prevent 1 powder suction out.

Pulse function refers to manual vacuum, mainly used in liquid packaging)

PARAMETER

Items	Model	ZK-8861
1	Rated Power	120W
2	Rated Voltage
3	Vacuum	-80KPa
4	Sealing Length	300mm
5	Sealing Width	3mm

Note: Please purchase voltage equipment suitable for the local area

Open black rectangular device with a wrapped sheet of salmon on its side, no visible text or symbols.

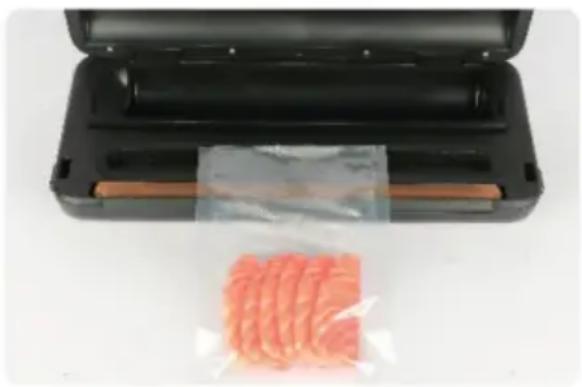

1. The bag is facing down again the buckle

Black rectangular device with a white lid and orange textured surface, emitting a clear plastic bag (no visible text or symbols)

1. Close the lid and press down on both ends

Hand pressing down on a black rectangular device with plastic wrap nearby (no visible text or symbols)

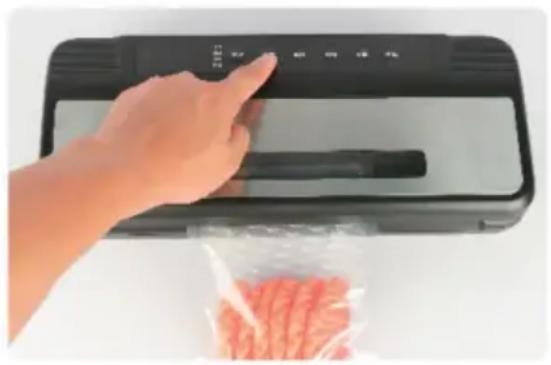

1. Press the vacuum seal key

Black rectangular device with a plastic bag wrapped around it, no visible text or symbols on the device itself.

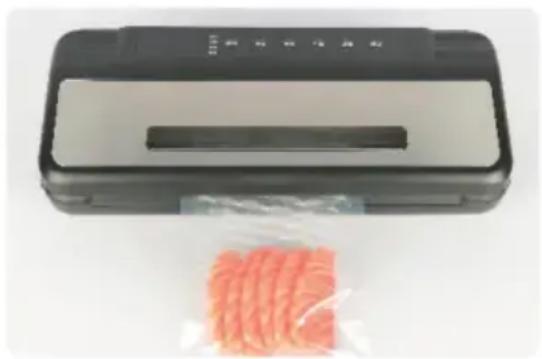

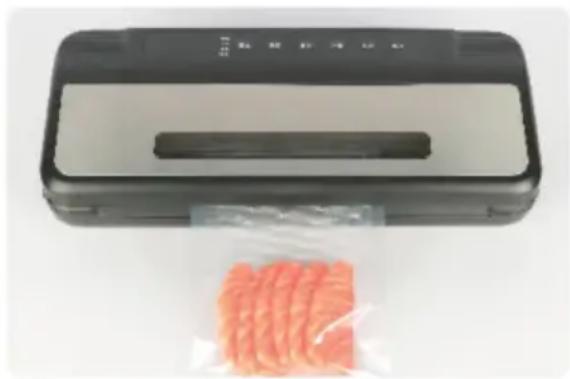

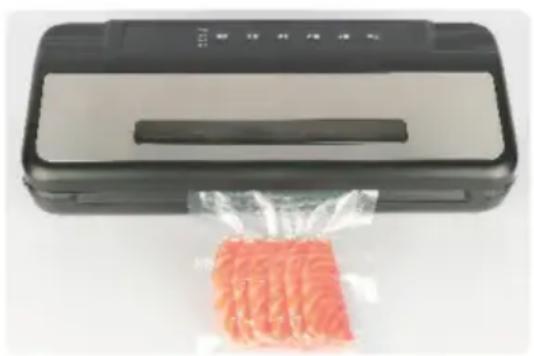

1. End of vacuum sealing

Warm reminder:

Food should not exceed 2/3 of the bag, so as not to affect the vacuum eff Liquid and non-dry food should not be sealed with vacuum seal. Powder food should be packed with disposable bags before vacuum packaging, so as not affect the vacuum effect of powder.

SEALING PACKING

Open black rectangular device with a rolled orange fish next to a transparent plastic bag (no text or symbols visible)

1. The bag is facing down again the buckle

Black rectangular device with a plastic bag wrapped around it, next to a piece of raw fish (no visible text or symbols)

1. Close the lid and press down on both ends

Hand pressing down on a black rectangular food processor with a plastic bag of raw meat in the foreground (no visible text or symbols)

VACUUM TANK

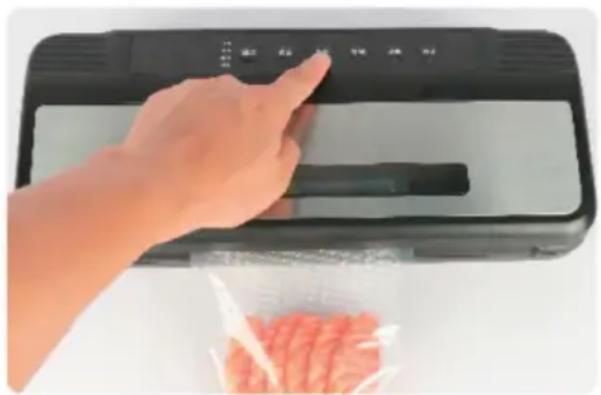

1. Press the single seal key

Two electronic devices: a black rectangular device with a circular button and a white cylindrical device with a pointer, both placed on a plain surface (no visible text or symbols)

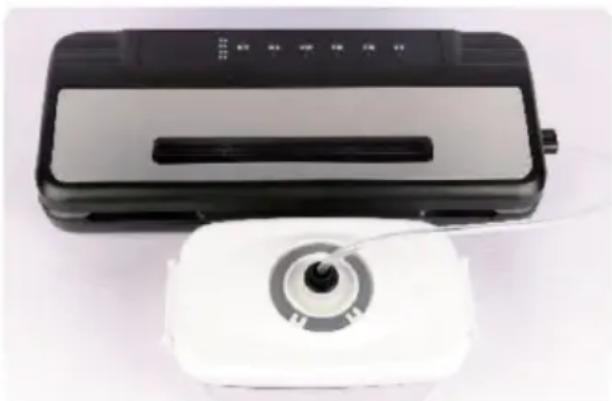

1. Connect the external connect to the vacuum tank

Hand pressing down on a black electronic device with a circular button nearby (no visible text or symbols)

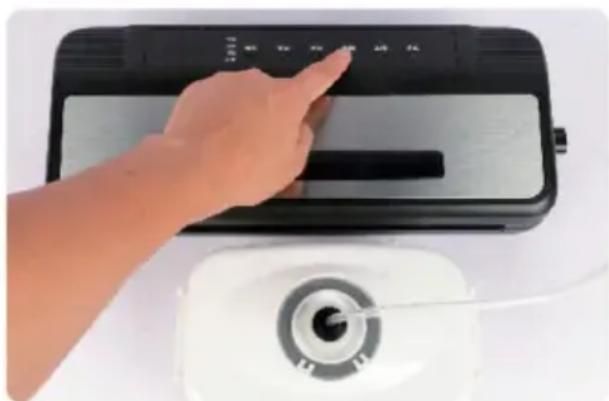

1. Press the "CONTAINER" button

Close-up of a black and white electronic device with a circular dial and attached cable, no visible text or symbols.

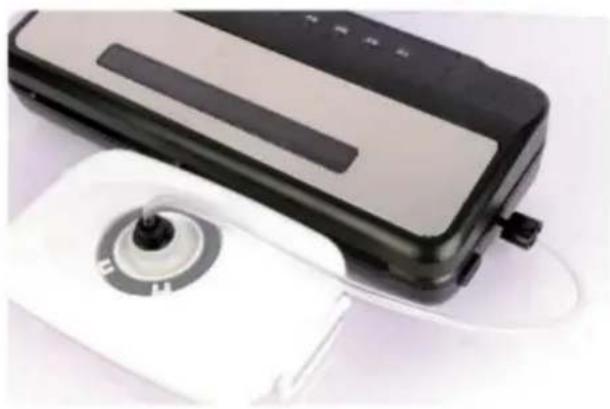

1. Operation completed, unplug the connector

PRESERVATION METHOD FOR ALL KINDS OF FOOI

Species	Name of the Product	Method	Storage	Vacuum preservation time
Raw meat	Beef,pork,chicken,etc.	Vacuum	Freezing	6-12 months
Seafood	Hairtail,crucian,saury, squid,etc.	Vacuum	Freezing	6-12 months
Fast food	Ham,sausage, dumplings,etc.	Vacuum	Refrigeration	6-12 months
Vegetables	Spinach,mushrooms,lettuce, garlic,green pepper,ginger, green vegetables,etc.	Sealed	Refrigeration	5-15 days
	Cabbage,potatoes,carrots, lotus root,corn,sweet potatoes,etc.	Vacuum	Freezing	20-35 days
Cooked mea (processed)	Beef,duck tongue,braised pork,roast duck,roast chicken,etc.	Vacuum	Refrigeration	10-20 days
Fruit	Lemon etc.	Vacuum	Refrigeration	1-3 months
	Apple,pineapple,etc.	Vacuum	Refrigeration	10-20 days
Dried fish	Apple,pineapple,etc.	Vacuum	Room Temperature	6-15 months
Seasoning	Chili powder,sesame,etc	Vacuum	Room Temperature	6-12 months
Dried produc	Dried peppers,dried persimmons,dried mushrooms, dried sweet potatoes,etc	Vacuum	Refrigeration	6-15 months
	Peanuts,almonds,walnuts, melon seeds,cashews,etc	Vacuum	Room Temperature	6-12 months
	Biscuits,noodles &pastries,etc.	Vacuum	Room Temperature	3-9 months
Daily necessities	Electronic accessories,film, commemorative coins,jade, precious metals,etc.	Vacuum	Room Temperature	Permanent
Other	Rice,soybeans,corn, tea,red beans,etc.	Vacuum	Room Temperature	12-36 months
	Donkey-hide glue cake	Vacuum	Room Temperature	3-6 months
	Bread,coffee, instant noodles	Vacuum	Room Temperature	6-18 months

REPAIR AND MAINTENANCE

To extend the service life, the machine needs to be maintained and pro

1. When the machine is not in use, the top lid of the machine must be kept covered, and the left and right locks do not need to be fastened.
2. When cleaning the machine, disconnect the power supply, wipe gently with damp flannel or damp paper towel, after the cleaning is completed, let the n dry.
3. After cleaning, cool and dry the sealing sponge, do not press hard to make deformed it must be placed in an open place or installed in the machine.
4. If the machine fails, turn off the power immediately, check the cause, and eliminate the failure.

Abnormal Situation	Solution
Product not working	1:Confirm whether there is a power failure and whether the p is properly inserted.2:Check whether the power cord,plug and the machine body a damaged,if so,please don't use it.3:Whether to use continuously for a long time(please take a s of 5 minutes)
Cannot be well sealed	1:If the entrance part of the plast ic bag on the heating strip or uneven,the seal will be incomplete.2:When sealing,if you do not press the upper lid with your pa press a part,the seal will be incomplete.Please press firmly with hands.3:After pressing the sealing button,check if the red light is on. confirm whether the heating strip has been damaged.
Insufficient pumping (cannot pump to be vacuum)	1:Please confirm whether the inlet of the vacuum bag has be the vacuum chamber (in the middle of the lower sealing belt)2:Please confirm whether a dedicated vacuum packaging bag is 3:Please confirm whether there are sharp edges or corners in contents or whether the vacuum bag is damaged.4:Whether the vacuum sponge gasket is loose.5:Please confirm whether the inserted items have passed the (the inserted items cannot exceed 3/4 of the total volume)6:Please confirm whether the exhaust hole has been blocked7:Please confirm whether the upper lid and the hook have be 8:Please confirm whether the vacuum release valve has been
Air leak after vacuum packaging	1:Items with multiple edges and corners and items with a sm of oil stains and moisture are expected to be sealed again by packaging (that is,twice the vacuum sealing operations)2:Please use dedicated plastic bags for vacuum packaging3:Items that produce water vapor on their own will release the
Sealing fold	1:Rest to cool down,it is recommended to rest at least 100s
