SAFETY INSTRUCTIONS

WARNING: Read and understand all instructions. Failure to follow instructions listed below may result in serious injury.

1. Check whether the tire has enough gas before use. If the tire gas enough, please inflate the tire before use.

2. Check whether the screw part is loose, if yes, please tighten it. 3. I overload.

CAUTION: Please read the instructions for safe operation carefully

Assembly Precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.

3. Keep assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. Weight capacity and other product capabilities apply to properly and completely assembled product only.

Use Precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. Do not sit, stand or climb on this item.

2. This product is not a toy. Do not allow children to play with or no item.

3.Do not lift while loaded.

1. To prevent tipping, push/pul using supplied handle only. 5. Use as intended only.

2. Inspect before every use. Do not use it if parts are loose or damage.

3. After use, please dry before storage to avoid rusting of bolts affecti use.

MODEL AND PARAMETERS

Model	QYC3500-YB
Max. Gross Trailer WT	3500 lbs
Trailer Ball	2"
The height of the trailer ball	18 / 22 inch
Wheels	8"
Material	Steel

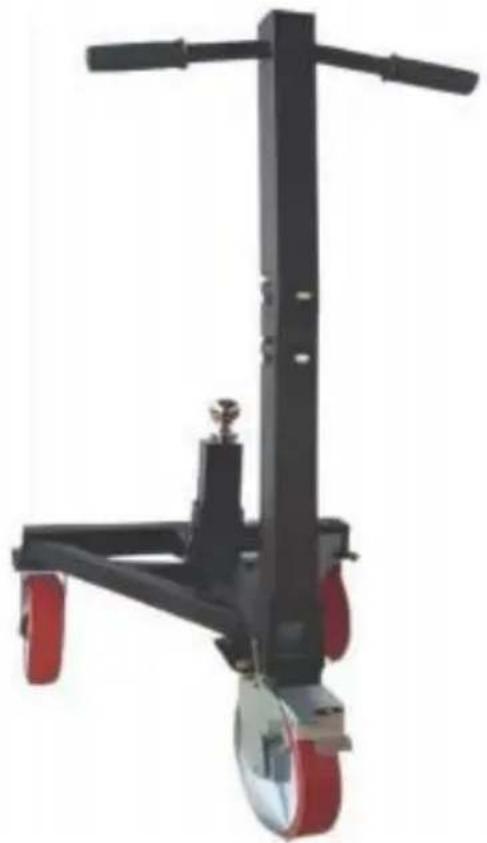

STRUCTURE DIAGRAM

1 2 3 4

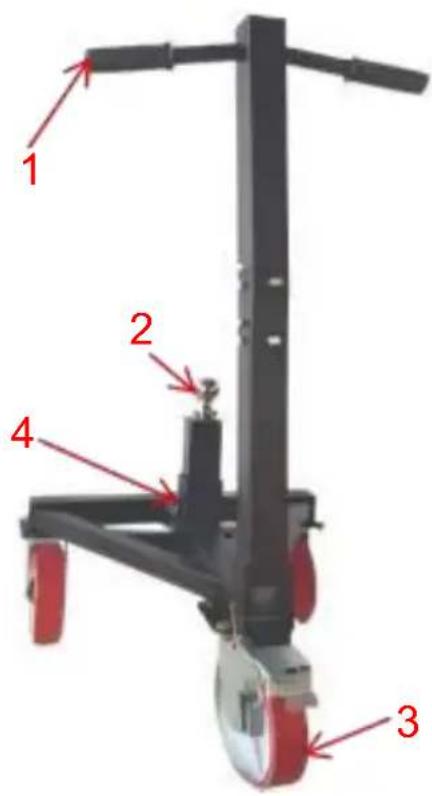

1. Handle 2. Trailer Ball 3. Wheel 4. Pin

COMPONENTS

A ×1	B ×1	C ×1
D ×1	E ×1	F ×1
G ×2	H φ10× 1	I ×4
J(M10*15)×2	K ×12	L ×12
M(φ12) ×1	N (M8) ×4	O×1

ASSEMBLY

Tools needed

Socket Wrench

Close-up of a mechanical bracket with bolts and a red arrow pointing to a red component (no visible text or symbols)

NOTE:

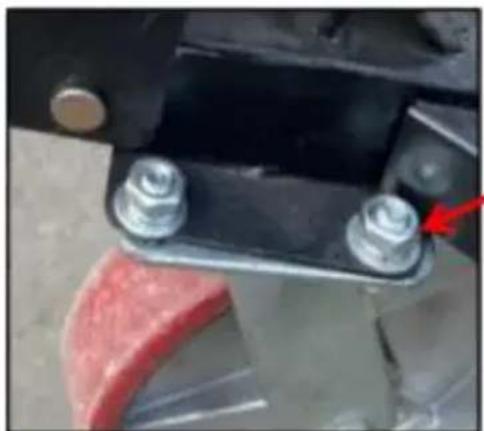

The bolt installation direction is shown.

Connect with I +N

(Height adjustable)

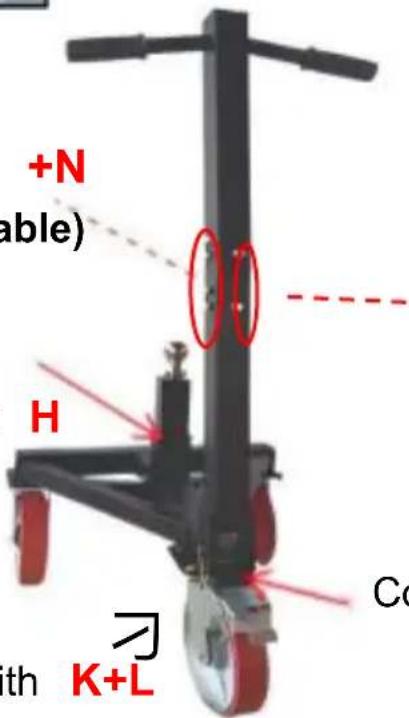

Connect with H

+N (able) H Co th K+L

Tighten the J on the handle face to make the structure more secure.

Connect with M

Connect with K+L

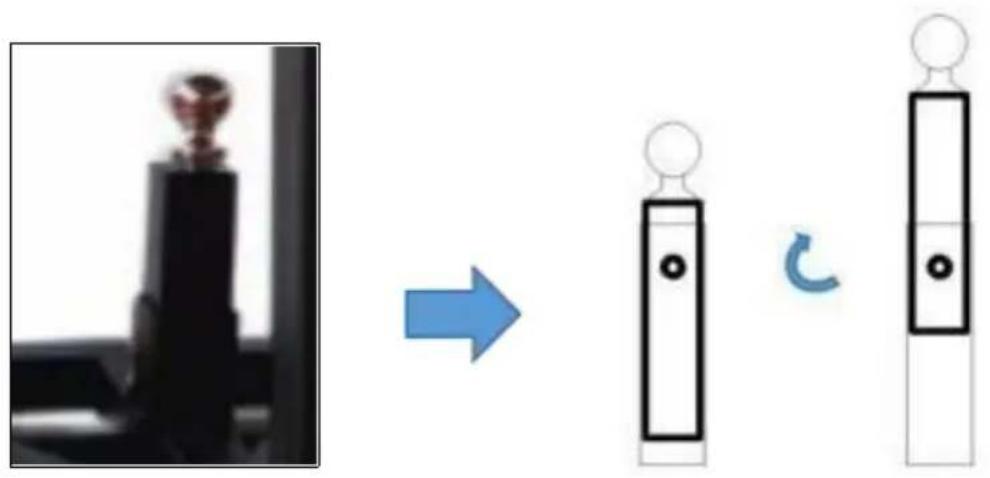

NOTE: Two kinds of ball height can be achieved by turning the mounting club.

Tighten the bolts on the handle face to make the structure more sec

Diagram showing a trophy on a podium before and after a transformation, with no visible text or symbols.

MAINTENANCE

• Do not overload.
  ● After use, please dry before storage to avoid rusting of bolts affecting use
• Check bolts regularly for looseness.
