MODEL AND PARAMETERS

Model	QYC1500
Max. Gross Trailer WT	1500 lbs
Trailer Ball	2"
The height of the trailer ba	22 / 26 inch
Wheels	15.2" x2 + 8"
Material	Steel

STRUCTURE DIAGRAM

1 2 3 4 5 6 7

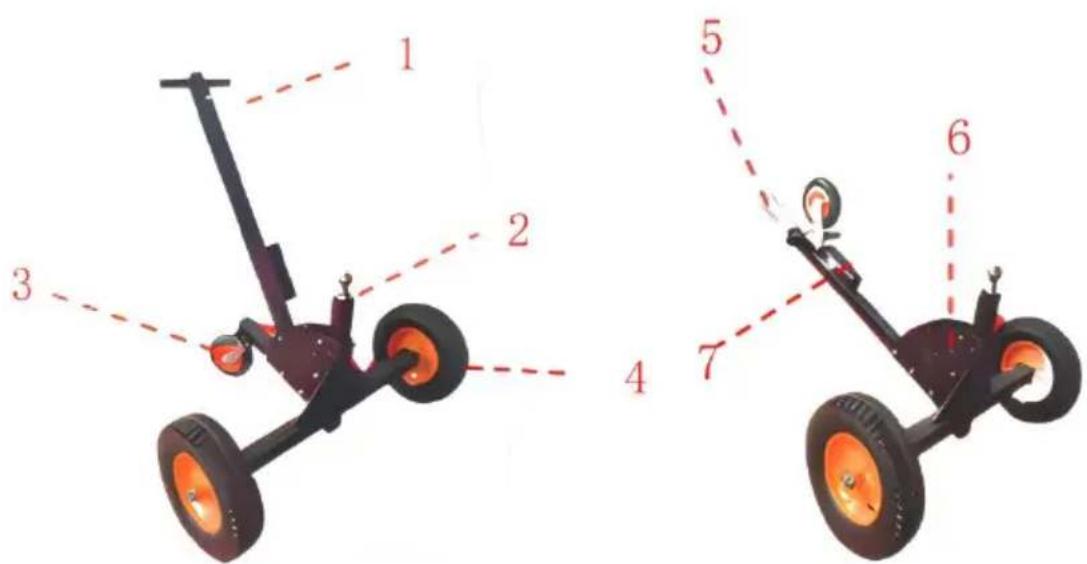

1. Handle 2. Trailer Ball 3. Wheel(8") 4. Wheel(15.2")
2. Hitch Ball Cover 6.Angle Adjustment 7.Storage tube

COMPONENTS

A ×2	B ×1	C ×1
D ×1	E ×1	F ×2
G ×1	H ×1	I ×1
J ×14	K ×1	L(Φ20) ×4
M(M20) ×2	N(M10*20)×4	O(M10) ×14
P(M10*80)×9	Q(M10*60)×1	R×1

ASSEMBLY

Tools needed

Socket Wrench

Hand Pull Mode Installation

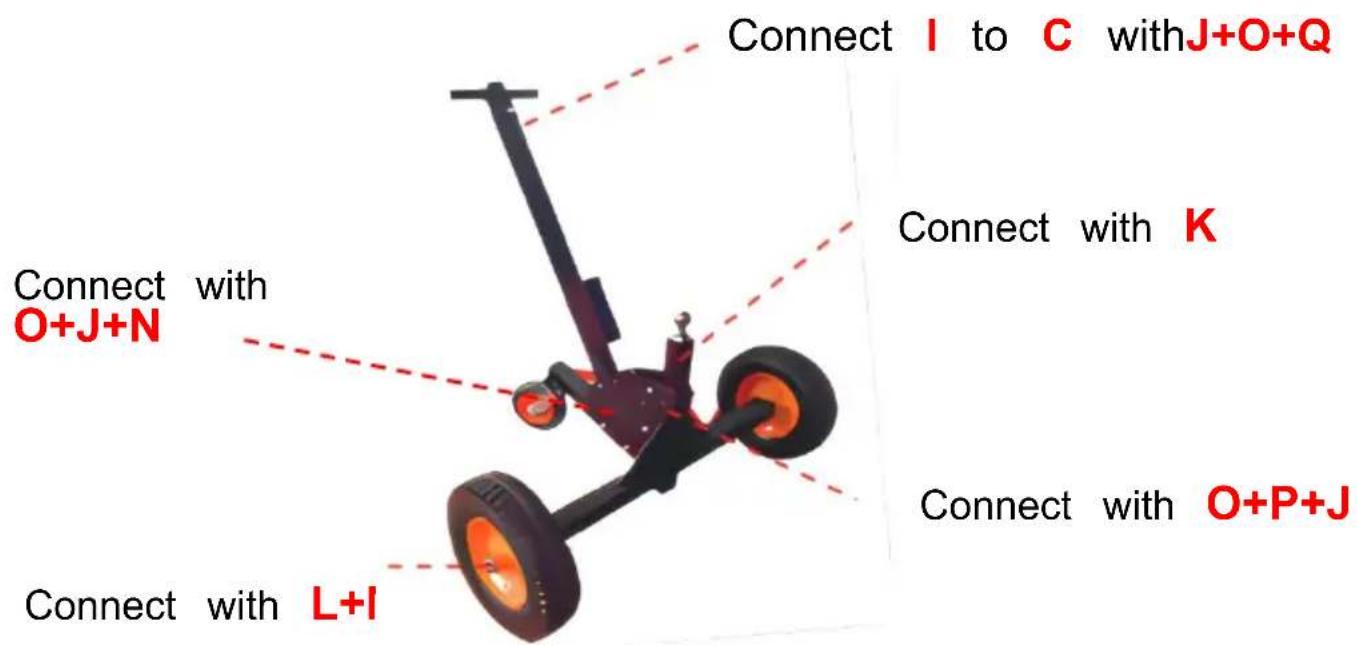

Connect I to C withJ+O+Q Connect with K Connect with O+J+N Connect with O+P+J Connect with L+I

Close-up of a black rectangular object against an orange background, no visible text or symbols.

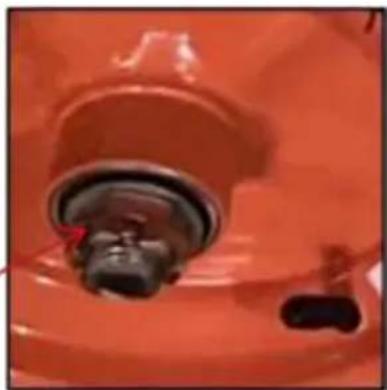

Inside the wheel:

Outside the wheel:

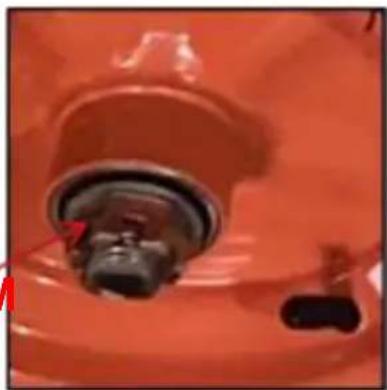

L+M

Close-up of a red automotive component with a metallic cylindrical head and mounting bracket (no visible text or symbols)

Re-confirm that all parts are locked, and then properly inflate the tires, and the maximum tire pressure should not exceed 24PSI, and it's ready to go.

NOTE that do not exceed the prescribed tire pressure to avoid bursting.

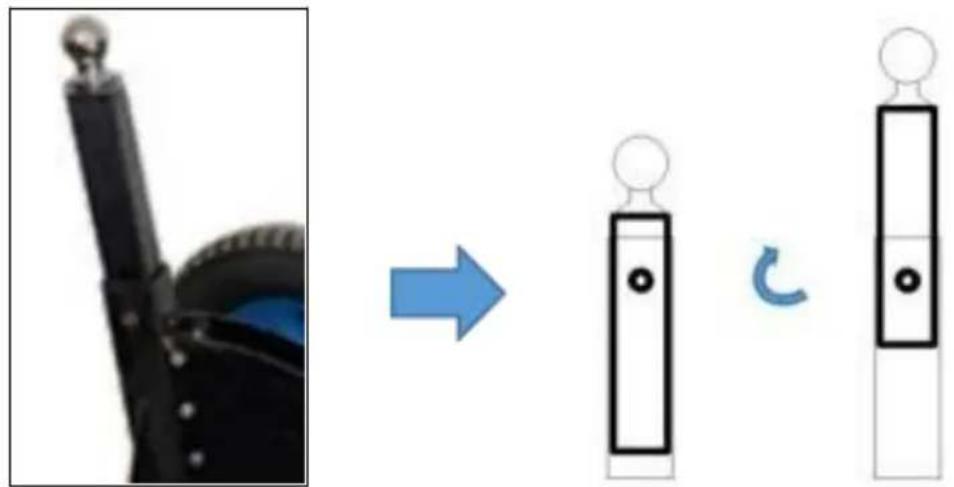

NOTE: Two kinds of ball height can be achieved by turning the mou club.

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Vehicle Mode Installation

Step 1: Remove the wheel and attach it to the storage tube.

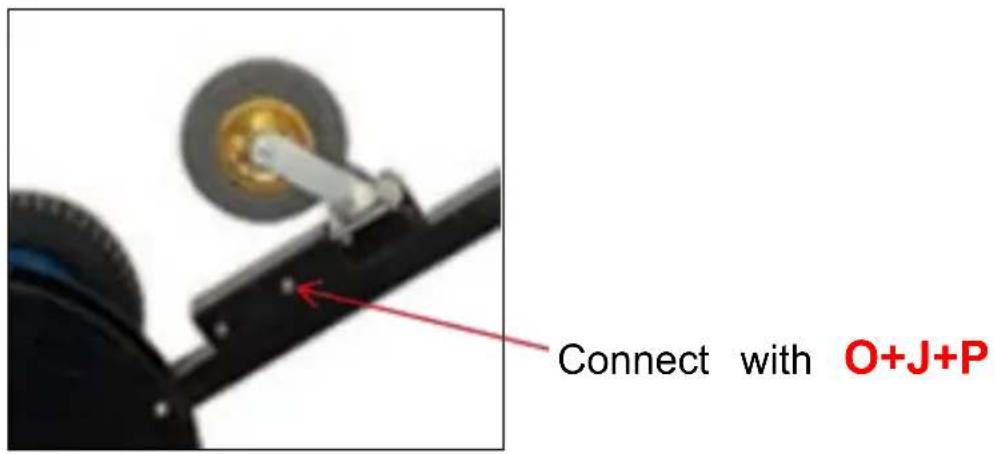

Connect with O+J+P

Step 2: Remove the handle and install the ball cover.

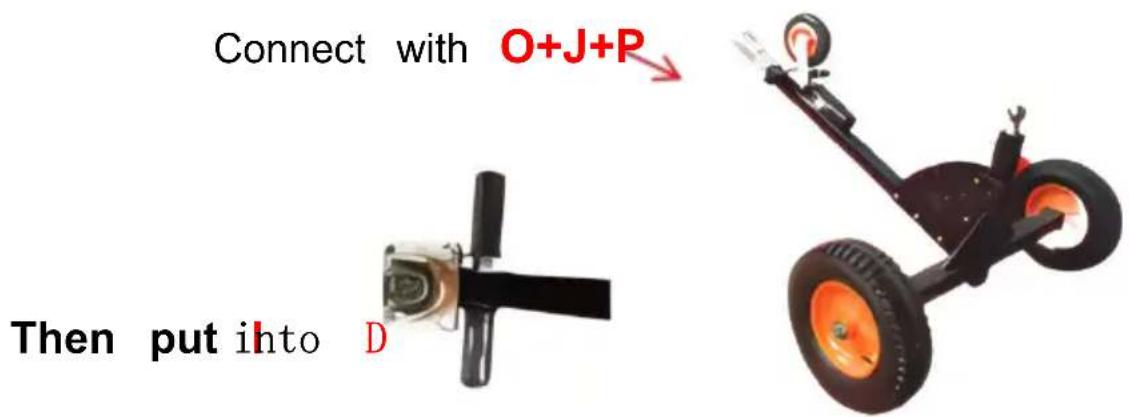

Connect with O+J+P Then put into D

Re-confirm that all parts are locked, and then properly inflate the tires, the maximum of tire pressure should not exceed 24PSI, and it's read

NOTE that do not exceed the prescribed tire pressure to avoid bursting.

MAINTENANCE

• Do not overload.
  ● After use, please dry before storage to avoid rusting of bolts affecting use.
• Check bolts regularly for looseness.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two identical black-and-orange wheeled vehicle wheels with orange wheels and a vertical support structure (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

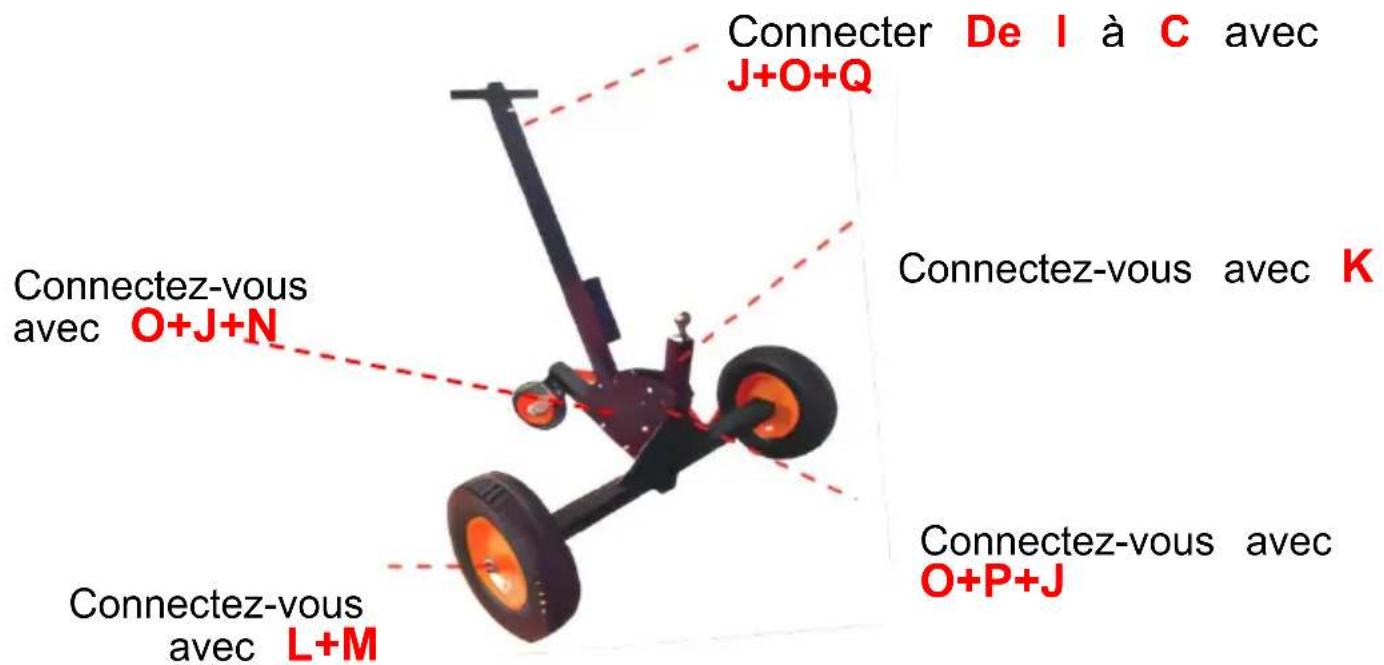

Main Mode traction Installation
