QYC600-B - Trailer mover Vevor - Free user manual and instructions

USER MANUAL QYC600-B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:QYC600-B

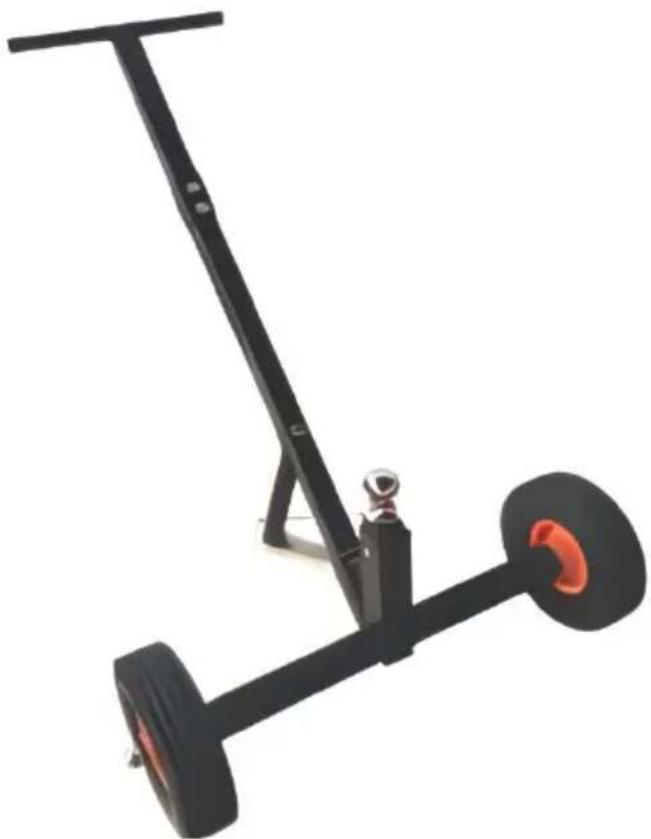

Black industrial machine tool with red wheels and a black frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

SAFETY INSTRUCTIONS

WARNING: Read and understand all instructions. Failure to follow instructions listed below may result in serious injury.

1. Check whether the tire has enough gas before use. If the tire gas enough, please inflate the tire before use.

2. Check whether the screw part is loose, if yes, please tighten it. 3. I overload.

CAUTION: Please read the instructions for safe operation carefully

Assembly Precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.

3. Keep assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when he under influence of alcohol, drugs or medication.

6. Weight capacity and other product capabilities apply to properly and completely assembled product only.

Use Precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. Do not sit, stand or climb on this item.

2. This product is not a toy. Do not allow children to play with or next item.

3.Do ot lift while loaded.

1. To prevent tipping, push/pull using supplied handle only. 5. Use as intended only.

2. Inspect before every use. Do not use it if parts are loose or dama

3. After use, please dry before storage to avoid rusting of bolts affecti use.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	QYC600-B
Max. Gross Trailer WT	600 lbs
Trailer Ball	1-7/8"
The height of the trailer ba	16.5 / 22 inch
Wheel	10"
Material	Steel

STRUCTURE DIAGRAM

1 2 3 4 5

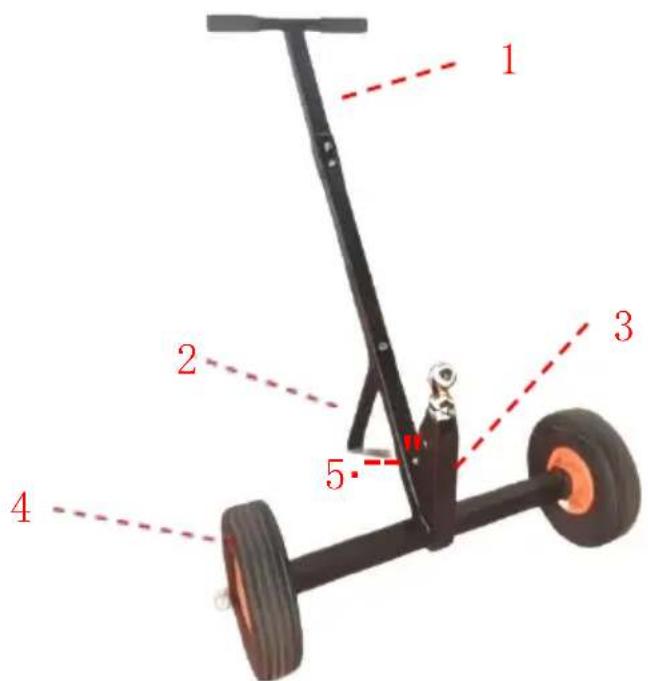

1. Handle 2. Supporting Plate 3. Trailer Ball 4. Wheel 5. Pin

COMPONENTS

A ×1	B ×1	C ×1
D ×2	E ×1	F ×1
G ×1	H(M10*50) ×5	I ×5
J(M20) ×2	K(Φ20) ×4	L ×1

ASSEMBLY

Tools needed

Socket Wrench

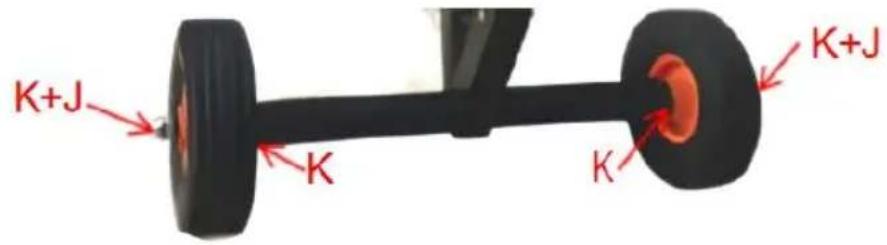

Step 1: Install wheels with K+J.

K+J K K K+J

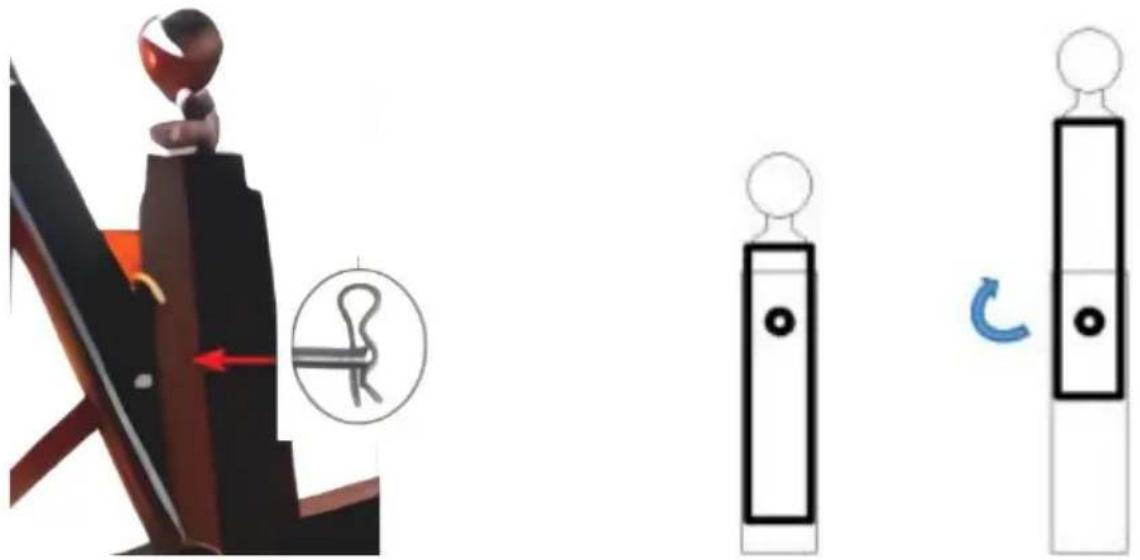

Step 2: Install ball set as required and lock it with pin.

Diagram showing three mechanical components: a person climbing stairs, a circular component with a figure, and two vertical cylindrical objects with circular ends (no text or symbols)

NOTE: The height of the trader ball can be universal over the mounting rod installation to achieve two heights.

Step 3: Install the supporting plate and handle.

NOTE: Please assemble the screws and nuts here according to our method.

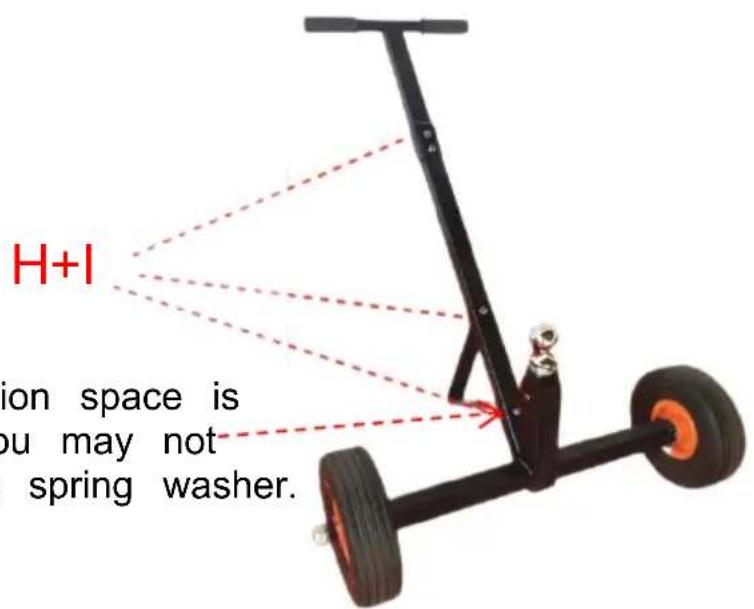

H+1 ion space is you may not spring washer.

If installation space is limited, you may not install the spring washer.

MAINTENANCE

• Do not overload.
  ● After use, please dry before storage to avoid rusting of bolts affecting
• Check bolts regularly for looseness.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black industrial machine tool with red wheels and a black frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

SAFETY INSTRUCTIONS

K+J K K K+J

Illustration of abstract geometric shapes with no visible text or symbols

H+I ion space is you may not spring washer.

Black industrial machine tool with red wheels and a black frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

SAFETY INSTRUCTIONS

K+J K K K+J

Abstract illustration of a mechanical device with a red arrow and circular symbol (no text or labels)

Simple line drawing of a cylindrical object with a circular top and central dot (no text or symbols)

Simple line drawing of a vertical cylindrical object with a circular top and a curved arrow indicating rotation (no text or symbols)

H+I tion space is you may not spring washer.

Black industrial machine tool with red wheels and a black frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

SAFETY INSTRUCTIONS

K+J K K K+J

Diagram showing three stages of a mechanical or electrical device with no visible text or symbols

H+1 ion space is you may not spring washer.

If installation space is limited, you may not install the spring washer.

MAINTENANCE

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

Black industrial machine tool with red wheels and a black frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

SAFETY INSTRUCTIONS

K+J K K K+J

Diagram showing three mechanical components: a person climbing stairs, a valve mechanism with a circular indicator, and a vertical support structure (no text or symbols)

H+I tion space is you may not spring washer.

Black industrial machine tool with red wheels and a black frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

SAFETY INSTRUCTIONS

K+J K K K+J

Illustration of abstract mechanical components including a lever mechanism and two vertical cylindrical devices with circular indicators (no text or symbols)

H+I tion space is you may not spring washer.

Black industrial machine tool with red wheels and a black frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

SAFETY INSTRUCTIONS

K+J K K K+J

Illustration of a mechanical device with a red arrow and a circular symbol, no visible text or labels

Simple line drawing of a cylindrical object with a circular top and central dot (no text or symbols)

Simple line drawing of a vertical cylindrical object with a circular top and a curved arrow indicating rotation (no text or symbols)

H+I tion space is you may not spring washer.

Stap 4: Montage voltooid.

MAINTENANCE

Black industrial machine tool with red wheels and a black frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your own or other areas.

SAFETY INSTRUCTIONS

K+J K K K+J

Illustration of three abstract mechanical components with no visible text or symbols

H+I ion space is you may not spring washer.

Centurion House, London Road, Staines - upon - Thame, Surrey, TW 18 4 AX

VEVOR®

TOUGH TOOLS, HALF PRICE
