QYC1000-B - Trailer mover Vevor - Free user manual and instructions

Product Type	Trailer Mover Tool
Brand	Vevor
Model	QYC1000-B
Maximum Load Capacity	1000 lb (454 kg)
Hitch Ball Size	2 inches
Adjustable Ball Height	16.5 to 22 inches (419 to 559 mm)
Wheels	2 x 14-inch wheels (front) + 1 x 8-inch swivel wheel (rear)
Material	Steel
Swivel Wheel Type	Universal wheel with brake
Continuous Adjustable Height	Yes, by moving the ball on the rod
Intended Use	Move a trailer using a hitch ball
Safety	Do not overload, do not step on the device, push/pull only by handle
Maintenance	Dry after use, regularly check bolt tightness, do not exceed tire pressure
Assembly Required	Yes, with a socket wrench (not included)
Included Components	Handle, support plate, trailer ball, wheels (14" x2, 8" x1), pins, bolts and nuts
Recommended Tire Pressure	Do not exceed prescribed pressure (see tires)
Warranty	Technical support and electronic warranty via www.vevor.com/support
Country of Manufacture	China (Shanghai)

Frequently Asked Questions - QYC1000-B Vevor

How to assemble the Vevor QYC1000-B trailer mover tool?

Follow the steps in the manual: install the swivel wheel with M10 bolts, connect the handle, mount the 14-inch wheels, assemble the wheel support, then install the hitch ball at the desired height. Use a socket wrench. Tighten all bolts securely.

What is the maximum load capacity of the QYC1000-B?

The maximum trailer load capacity is 1000 lb (454 kg). Never exceed this limit.

How to adjust the hitch ball height?

The height can be adjusted continuously by moving the ball on the mounting rod. Two heights are possible: 16.5 inches and 22 inches. Secure with the locking pin.

What types of trailers can I move with this device?

This tool is suitable for trailers equipped with a 2-inch hitch ball. Use only on flat, hard surfaces.

How to maintain the Vevor QYC1000-B?

After use, dry the device to prevent rust. Regularly check the tightness of all bolts. Do not exceed the indicated tire pressure.

What are the important safety instructions?

Do not sit or stand on the device. Push/pull only by the handle. Do not lift the trailer while loaded. Wear safety glasses and gloves during assembly. Keep children away.

Are the wheels included?

Yes, the kit includes two 14-inch wheels for the front axle and one 8-inch swivel wheel at the rear. Mounting bolts are provided.

Can I use this tool on gravel terrain?

The device is designed for hard, flat surfaces. On gravel or grass, the wheels may sink. Preferably use on concrete or asphalt.

What tools are needed for assembly?

A socket wrench is required to tighten the bolts. No additional tools needed.

Where to find technical support or warranty?

Technical support and warranty are available online at www.vevor.com/support. Keep your proof of purchase.

USER MANUAL QYC1000-B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:QYC1000-B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING: Read and understand all instructions. Failure to follow al

instructions listed below may result in serious injury.

1. Check whether the tire has enough gas before use. If the tire gas is enough, please inflate the tire before use.

2. Check whether the screw part is loose, if yes, please tighten it. 3.Do not overload.

CAUTION: Please read the instructions for safe operation carefully

Assembly Precautions

1.Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep assembly area clean and well-lit.
4.Keep bystanders out of the area during assembly.
5.Do not assemble when tired or when under the influence of alcohol, drug medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.

Use Precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1.Do not sit, stand or climb on this item.
2.This product is not a toy. Do not allow children to play with or near it
3.Do at lift while loaded.
4.To prevent tipping, push/pull using supplied handle only. 5.Use as intended only.
6.Inspect before every use. Do not use it if parts are loose or damaged.
7.After use, please dry before storage to avoid rusting of bolts affecting u

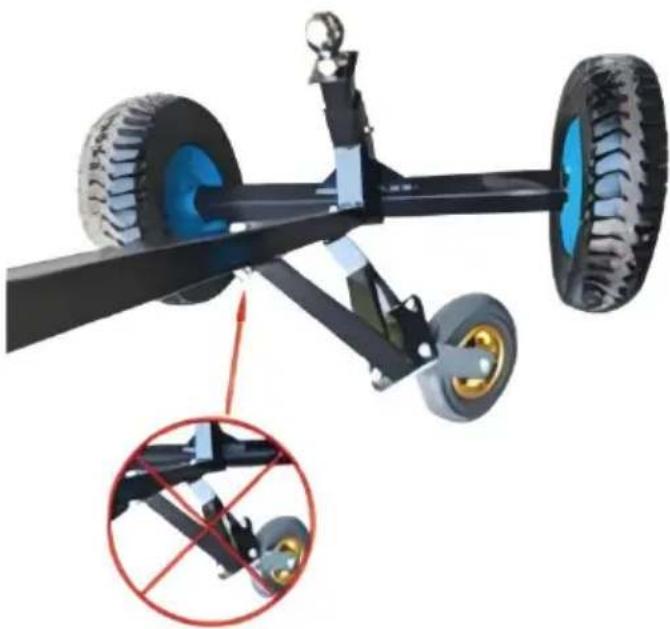

Special Attention:

The swivel caster must be straightened before use, and the accessories bend after the force is not straightened

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	QYC1000-B
Max. Gross Trailer WT	1000 lbs
Trailer Ball	2"
The height of the trailer ba	16.5/ 22 inch
Wheels	14" x2 + 8"
Material	Steel

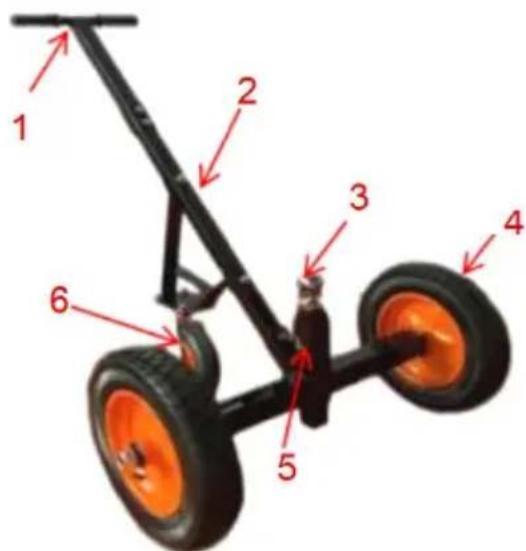

STRUCTURE DIAGRAM

1. Handle
2. Supporting Plate
3. Trailer Ball
4. Wheel(14")
5. Pin
6. Wheel(8")

COMPONENTS

A ×1	B ×1	C ×1
D ×2	E ×1	F ×1
G ×1	H ×1	I(Φ20) ×4
J(M20) ×2	K(M10*20)×4	L(M10) ×10
M(M10*50)×6	N ×1

ASSEMBLY

Tools needed

Socket Wrench

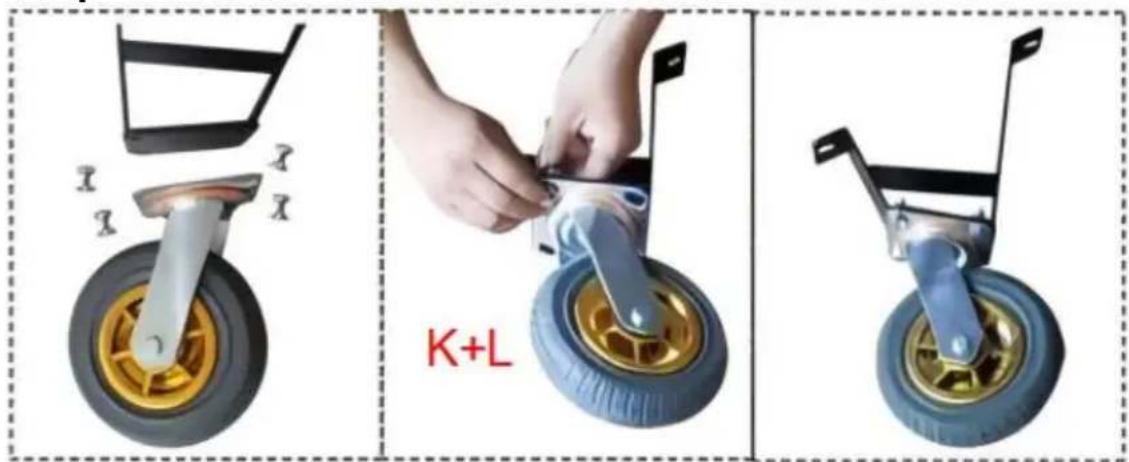

Step 1: Install the universal wheel with K + L .

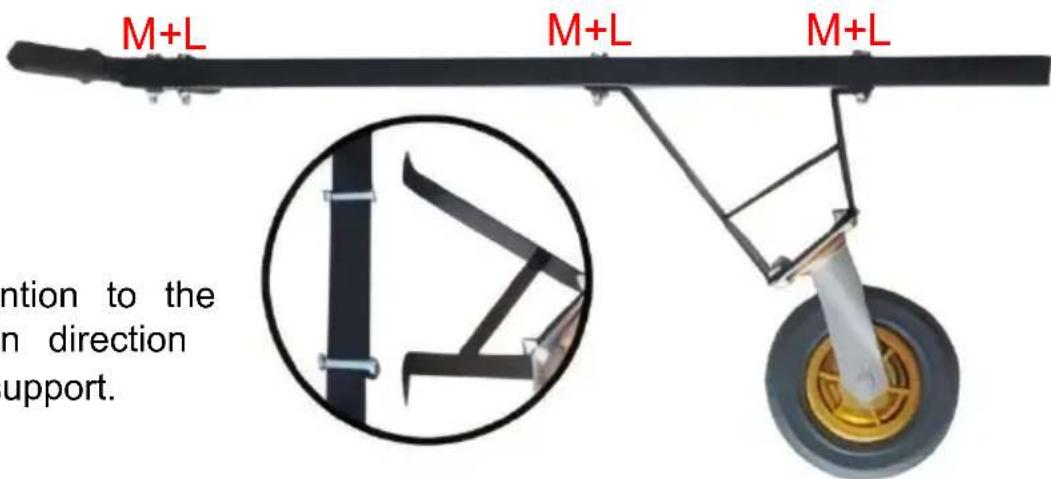

Step 2: Connect with the handle.

Pay attention to the installation direction of the support.

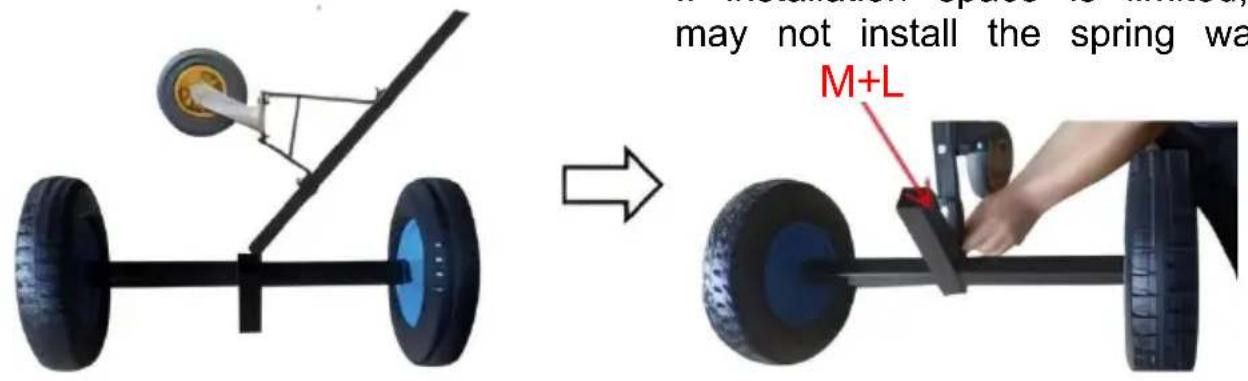

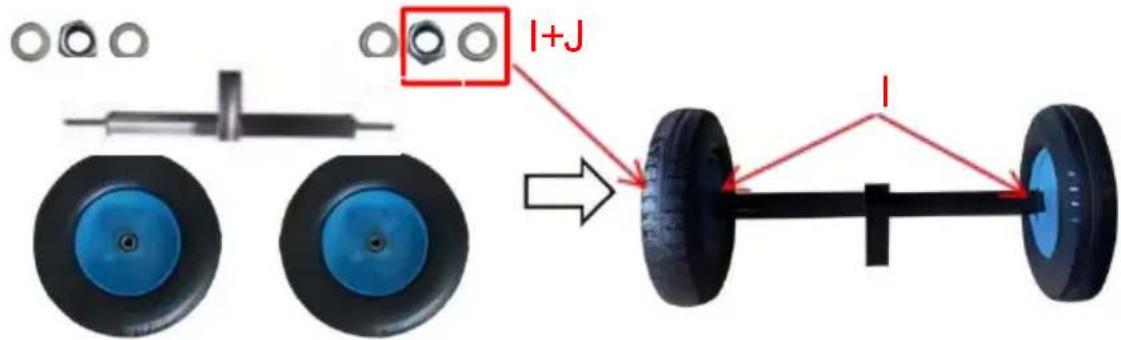

Step 3: Install the wheels.

Step 5: Combination the wheel carrier.

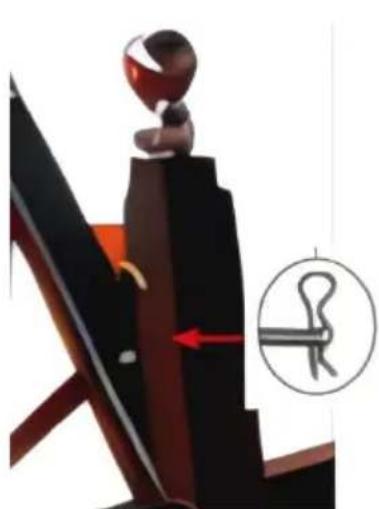

Step 6: Install ball set as required and lock it with pin.

NOTE: The height of the trailer balloon be universal over the mounting rod installation to achieve two heights.

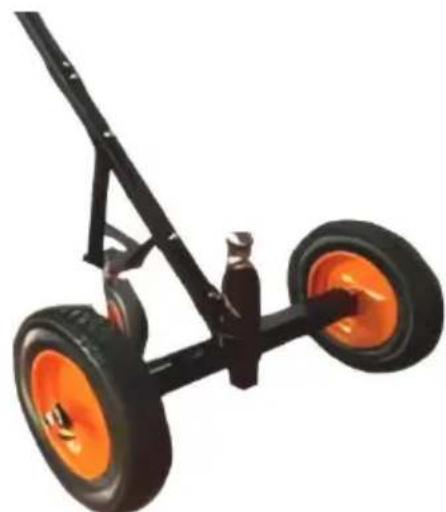

Step 7: Re-confirmed that all parts are locked, and the installation is complete.

NOTE that do not exceed the prescribed tire pressure to avoid bursti

MAINTENANCE

• Do not overload.
• After use, please dry before storage to avoid rusting of bolts affecting
• Check bolts regularly for looseness.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX
