USER MANUAL QYC300-VB Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

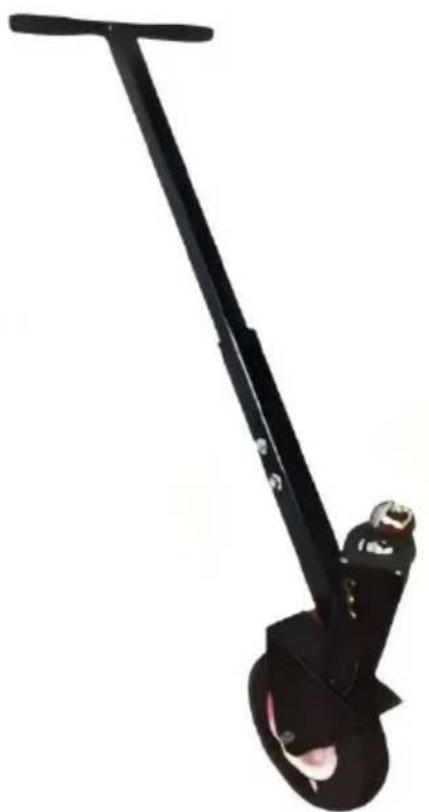

MODEL:QYC300-VB

Black metal mechanical lever with a curved head and circular base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Read and understand all instructions. Failure to follow instructions listed below may result in serious injury.

1. Check whether the tire has enough gas before use. If the tire gas enough, please inflate the tire before use.
2. Check whether the screw part is loose, if yes, please tighten it. 3. I overload.

CAUTION: Please read the instructions for safe operation carefully

Assembly Precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.

Use Precautions

TO PREVENT SERIOUS INJURY AND DEATHFROM TIPPING: 1.Do n sit, stand or climb on this item.

1. This product is not a toy. Do not allow children to play with or next item.
2. Do not lift while loaded.
3. To prevent tipping, push/pull using supplied handle only. 5. Use as intended only.
4. Inspect before every use. Do not use it if parts are loose or dama
5. After use, please dry before storage to avoid rusting of bolts affecti use.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	QYC300-VB
Max. Gross Trailer WT	300 lbs
Trailer Ball	1-7/8" / 2"
The height of the trailer ba	16.5 / 22 inch
Wheel	8.5"
Material	Steel

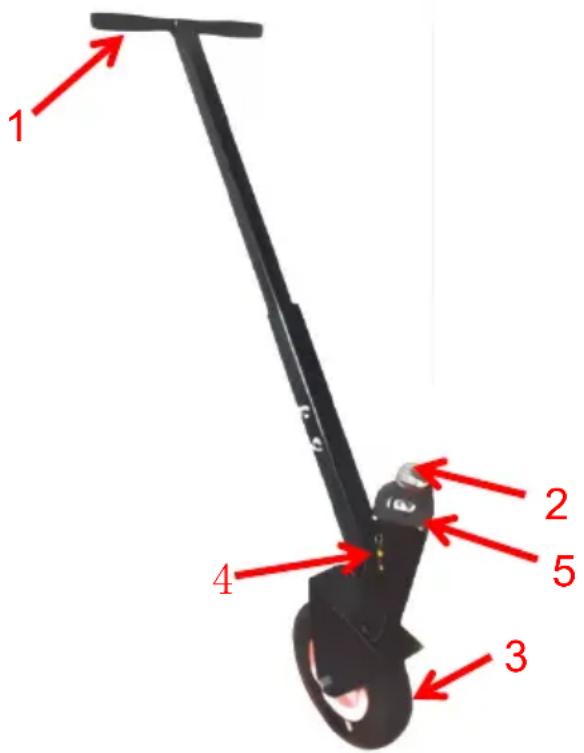

STRUCTURE DIAGRAM

1 2 3 4 5

1. Handle 2. Trailer Ball 3. Wheel 4. Pin 5. Ball head ring

COMPONENTS

A ×1	B ×1	C ×1
D ×1	E(1-7/8") ×1	F ×1
G ×1	H ×1	I ×2
J(2") ×1	K ×2	L ×1
M ×1	N ×1	O×1

ASSEMBLY

Tools needed

Socket Wrench

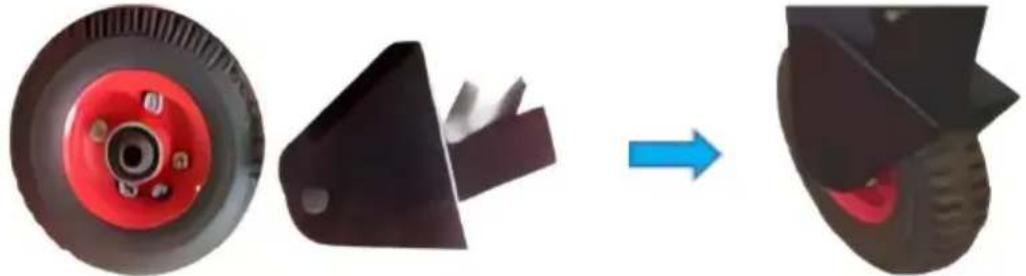

Step 1: Connect B and C with D+L.

Three-step automotive component assembly: wheel rim, blade cut, and wheel rim with highlighted section (no text or symbols)

Step 2: Connect A and C with I+K.

NOTE: Tighten the N on the handle face to make the structure more secure.

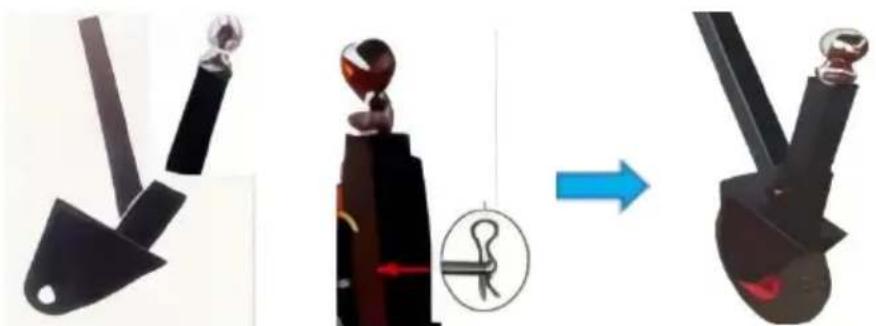

Step 3: Install ball set as required and lock it with pin.

Then install M onto the ball head

Three-step diagram showing a mechanical device with a downward arrow, a close-up of a lever mechanism, and a final view of a mechanical component (no text or symbols)

Step 4: Install the ball head ring and the assembly is completed

Close-up of a metallic spherical object with a red handle, mounted on a black base (no visible text or symbols)

NOTE that do not exceed the prescribed tire pressure to avoid

• Do not overload.
  ● After use, please dry before storage to avoid rusting of bolts affecting
• Check bolts regularly for looseness.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
