USER MANUAL QYC1200-B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

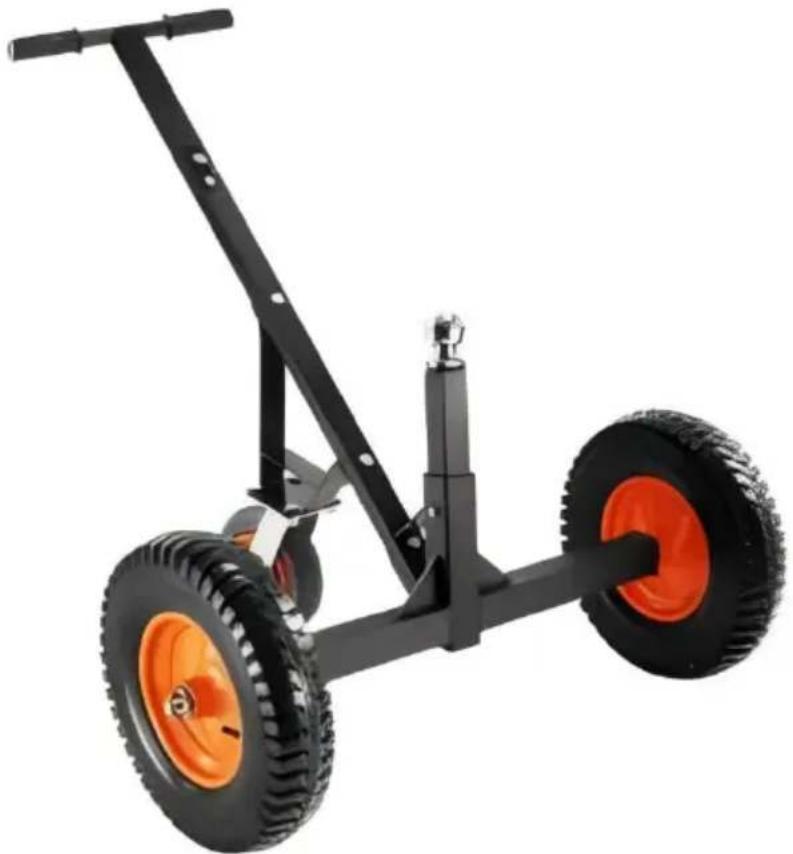

MODEL:QYC1200-B

Black and orange manual push truck with two wheels, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your product.

SAFETY INSTRUCTIONS

WARNING: Read and understand all instructions. Failure to follow al instructions listed below may result in serious injury.

1. Check whether the tire has enough gas before use. If the tire gas is enough, please inflate the tire before use.

2. Check whether the screw part is loose, if yes, please tighten it. 3. Do r overload.

CAUTION: Please read the instructions for safe operation carefully

Assembly Precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol, dr medication.

6. Weight capacity and other product capabilities apply to properly and completely assembled product only.

Use Precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. Do not sit, stand or climb on this item.

2. This product is not a toy. Do not allow children to play with or near it

3.Do not lift while loaded.

1. To prevent tipping, push/pull using supplied handle only. 5. Use as intended only.

2. Inspect before every use. Do not use it if parts are loose or damaged. use, please dry before storage to avoid rusting of bolts affecting use.

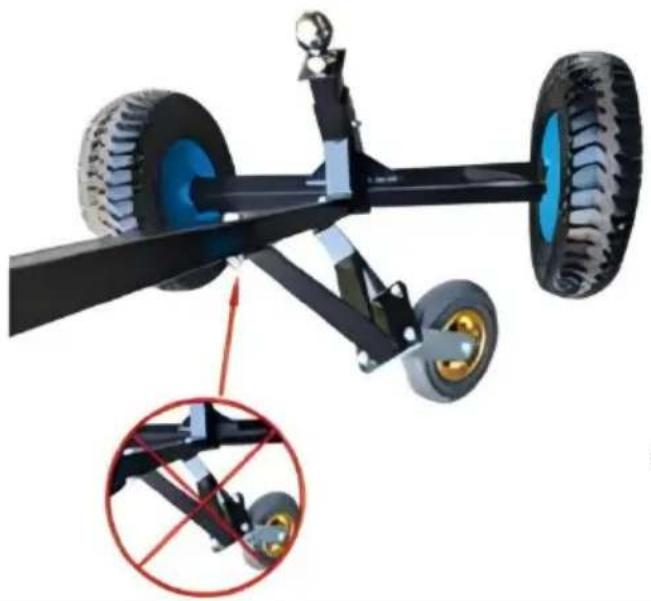

Special Attention:

The swivel caster must be straightened before use, and the accessories bend after the force is not straightened!

Mechanical assembly diagram showing a vehicle with four tires mounted on a support frame, with an inset close-up of the lower side (no text or symbols visible)

SAVE THESE INSTRUCTIONS
MODEL AND PARAMETERS

Model	QYC1200-B
Max. Gross Trailer WT	1200 lbs
Trailer Ball	2"
The height of the trailer ba	18 / 22 inch
Wheels	15.2" x2 + 8"
Material	Steel

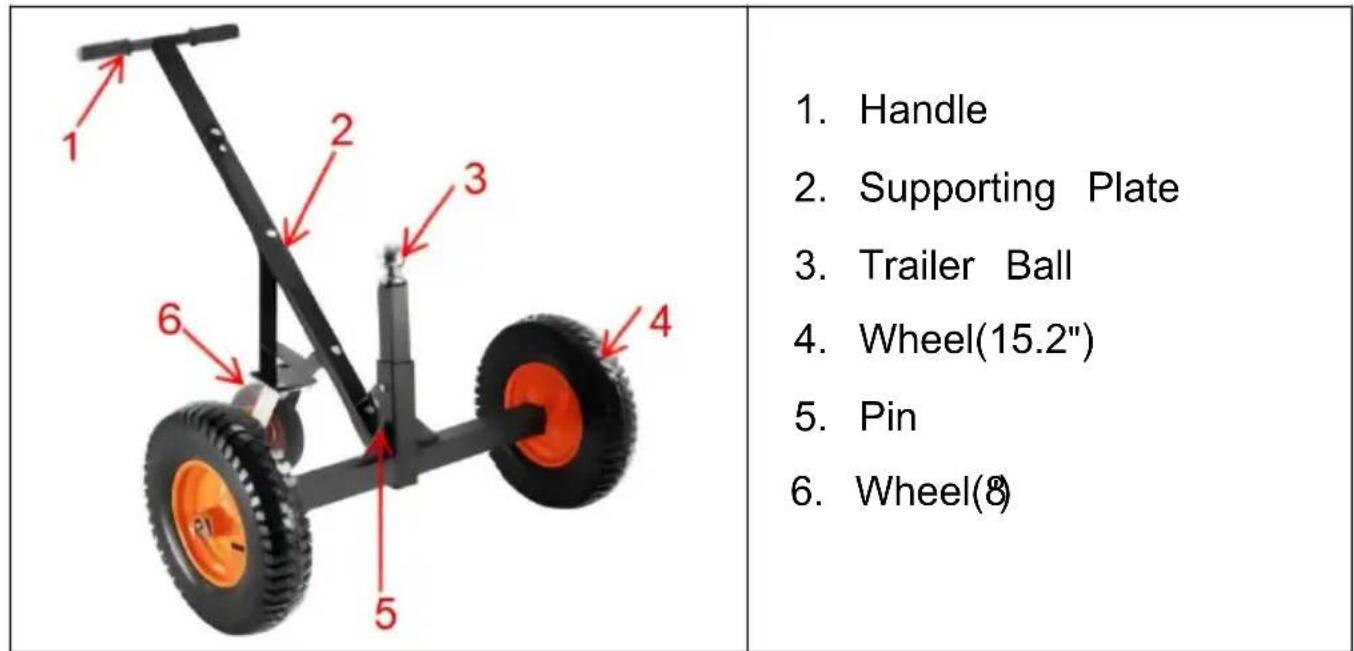

STRUCTURE DIAGRAM

1. Handle 2. Supporting Plate 3. Trailer Ball 4. Wheel(15.2") 5. Pin 6. Wheel(8)

COMPONENTS

A ×1	B ×1	C ×1
D ×2	E ×1	F ×1
G ×1	H ×1	I(Φ20) ×4
J(M20) ×2	K(M10*20)×4	L(M10) ×10
M(M10*50)×6	N ×1

Tools needed

Socket Wrench

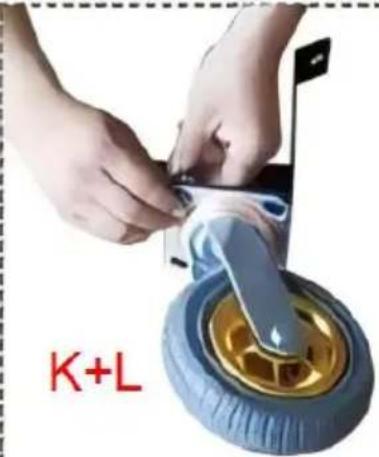

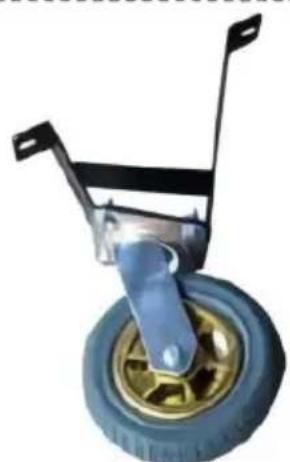

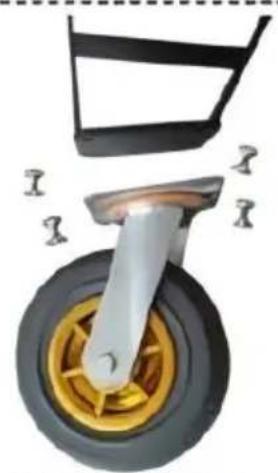

Step 1: Install the universal wheel with K+L.

Illustration of a passenger aircraft wheel with attached ladder and hub (no text or symbols)

Close-up of hands adjusting a small wheeled vehicle wheel with a blue rim (no text or symbols visible)

Close-up of a blue and gold-colored mechanical component with a circular base (no text or symbols visible)

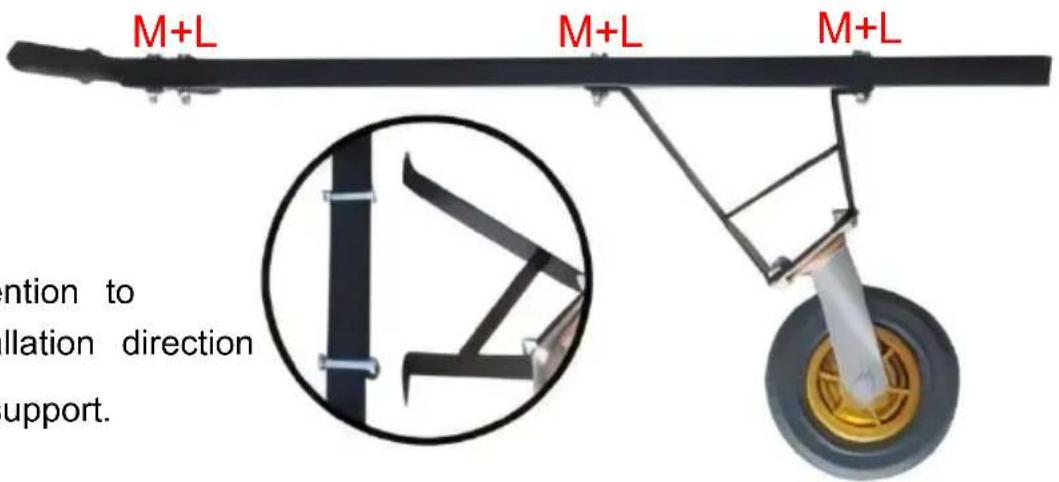

Step 2: Connect with the handle.

M+L M+L M+L ntion to lllation direction upport.

Pay attention to the installation direction of the support.

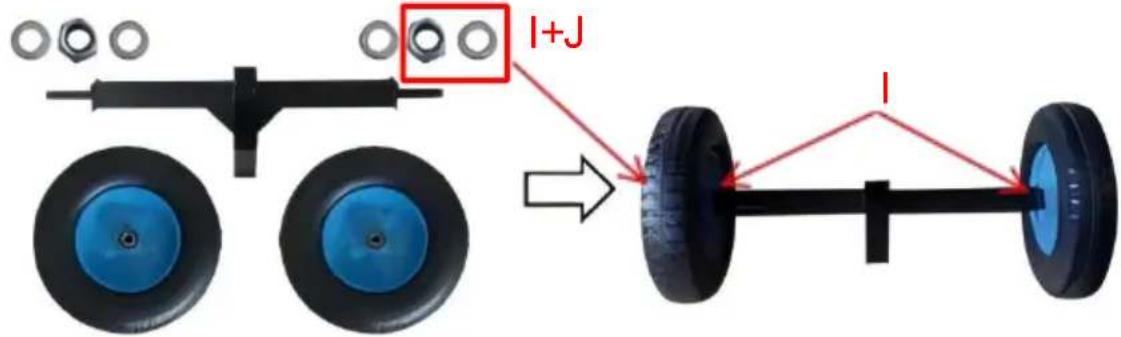

Step 3: Install the wheels.

I+J I

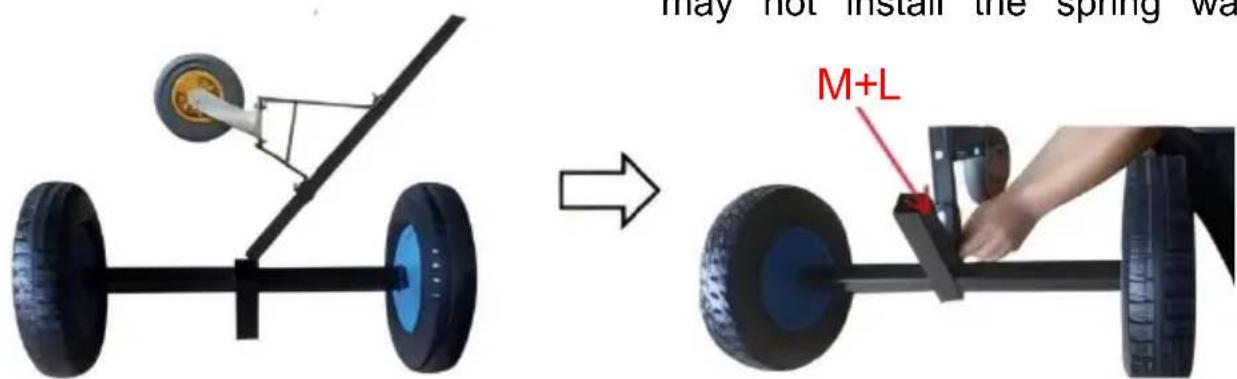

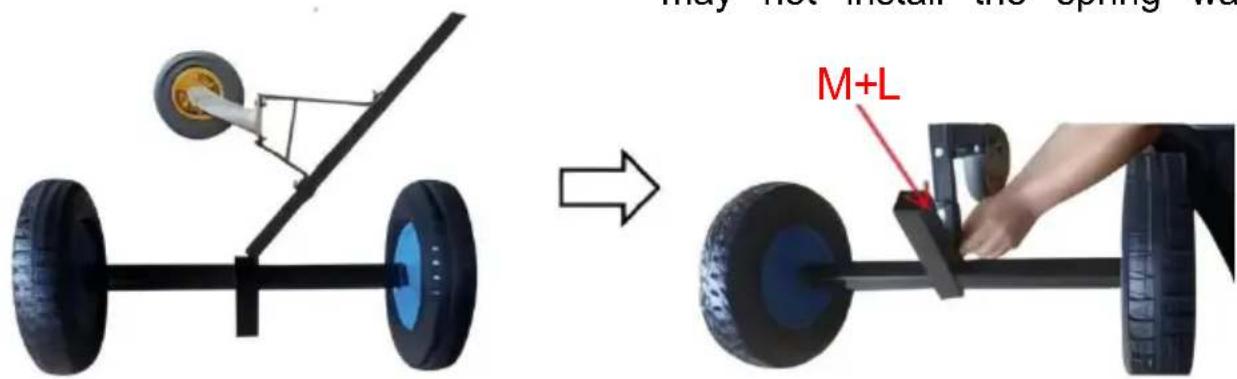

Step 5: Combination the wheel carrier.

If installation space is limited, yo may not install the spring washe

may not install the spring wa M+L

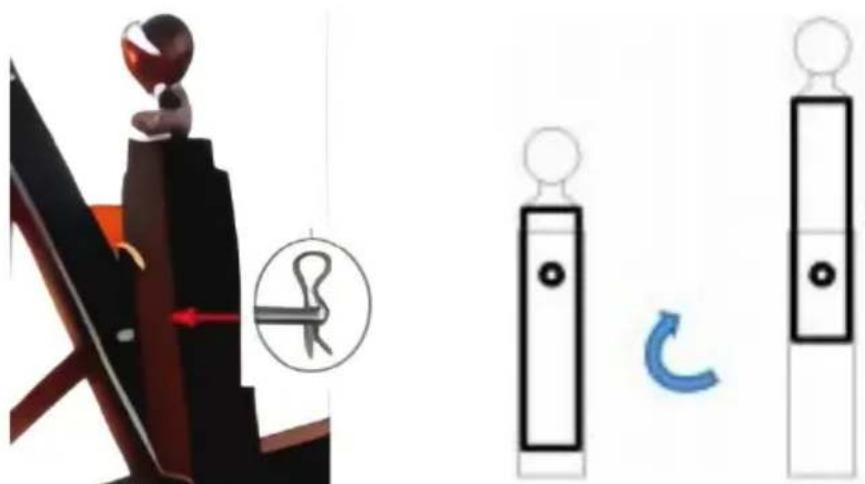

Step 6: Install ball set as required and lock it with pin.

Illustration of abstract geometric shapes and symbols including a figure, circular arrow, and vertical rectangles with a blue curved line (no text or labels)

NOTE: The height of the trailer ball can be universal over the mounting rod installation to achieve two heights.

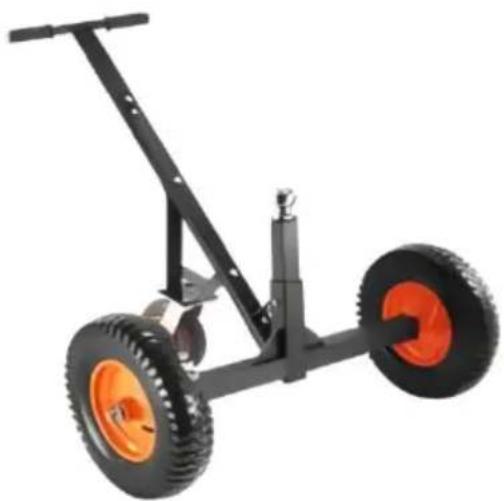

Step 3: Re-confirm that all parts are locked, and the installation is complete.

Black and orange manual push truck with two wheels and a handle (no text or symbols visible)

MAINTENANCE

• Do not overload.
  ● After use, please dry before storage to avoid rusting of bolts affecting
• Check bolts regularly for looseness.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE
