USER MANUAL CW-5200 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
INDUSTRIAL WATER CHILLER USER MANUAL
MODEL: CW-5200
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.
MODEL: CW-5200


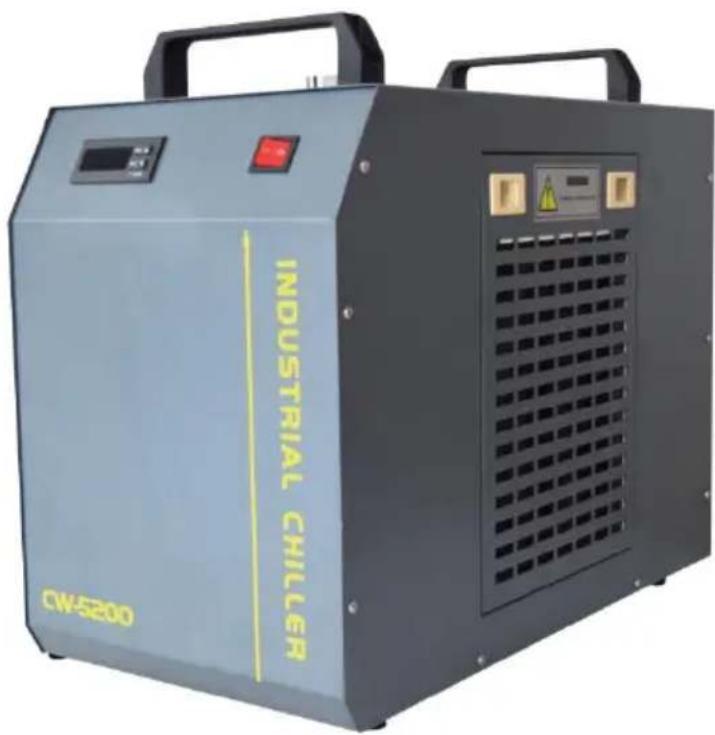

Industrial chiller machine (CW-5200) with control panel and warning symbol, no visible text or labels beyond brandingNEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must read instru manual carefully.
WARN
- PLEASE MAKE SURE THAT THE POWER SUPPLY AND THE POWER OUTLET ARE IN GOOD CONTACT AND THE GROUNDING WIRE MUST BE FIRM!
Although the average working current of the chiller is small, the instantaneous working current can sometimes reach 6\~10 amperes (the instantaneous working current of the AC110V power supply model is possible up to 10\~15 amperes)
- PLEASE MAKE SURE THAT THE WORKING CHILLER HAS A STABLE AND NORMAL VOLTAGE!
Since the refrigeration compressor is more sensitive to power supply and voltage, so the working voltage our standard product is 220^ 240V (110V model is 110 120V), if you really need a wider operating voltage range, we can customize.
- PLEASE MISMATCHED POWER FREQUENCY WILL CAUSE CHILLER DAMAGE!
Please select mode: 50Hz or 60Hz depending on the actual situation.
- TO PROTECT THE PUMP, IT IS STRICTLY FORBIDDEN TO RUN TI CHILLER WITHOUT WATER IN THE STORAGE TANK!
The new machine is packed after draining the entire water in the tank, so please make sure that the tank has enough water and there is water inside the machine before starting, otherwise it is easy to damage the pump. When the water level is below the green (normal) range of the water level gauge, the cooling capacity of our chillers will drop slightly. Therefore, make sure that the water level is in the green (normal) range. Pumps are strictly forbidden by circulating drainage!
- PLEASE MAKE SURE THE AIR INLET AND OUTLET ARE WELL VENTILATED!
The air outlet from the obstacle to the back of the cooler must be at least 30 c and it should be at least 8 cm between the obstacle and the side air intake.
6. THE FILTER MUST BE CLEANED REGULARLY!
The dust meter must be unlocked and cleaned, otherwise it will cause serious clogging failure to the cooler.
7. PAY ATTENTION TO THE EFFECT OF CONDENSATE!
As the ambient humidity increases, when the water temperature is lower than the ambient temperature, condensate will create circular pipes and cooling parts on the water surface. If this occurs, it is recommended to set a higher water temperature or keep the connected pipes and cooling components warm.
PROFESSIONAL USE ONLY!
This device must not be used by a child or a person with physical, sensory or physical, sensory, or physical impairments, or lack of experience and knowledge, unless supervision or instruction is given, and the child is not allowed to play with electrical appliances!
The circulating water of the water cooler must use a sealed container for normal use, such as laser tube cooling water. Unsealed containers cannot circulate, such as water basins, buckets cannot be used for circulating water cooling with water coolers.
SPECIFICATIONS
| Model | CW-5200 | |
| voltage | AC220-240V | AC120V |
| frequency | 50Hz | 60Hz |
| power | 550W | 600W |
| Cooling capacity | 1.45kw | 1.7kw |
| Refrigerant | R134a | |
| noises | ≤80dB | |
| Water tank capacit | 7L | |
| Maximum flow | 13L/min | |
| Pump power | 30W | |
| The main material | Iron, copper | |
| Security | Compressor overcurrent protection flow alarm overtemperature alarm | |
DEVICE ILLUSTRATION
front


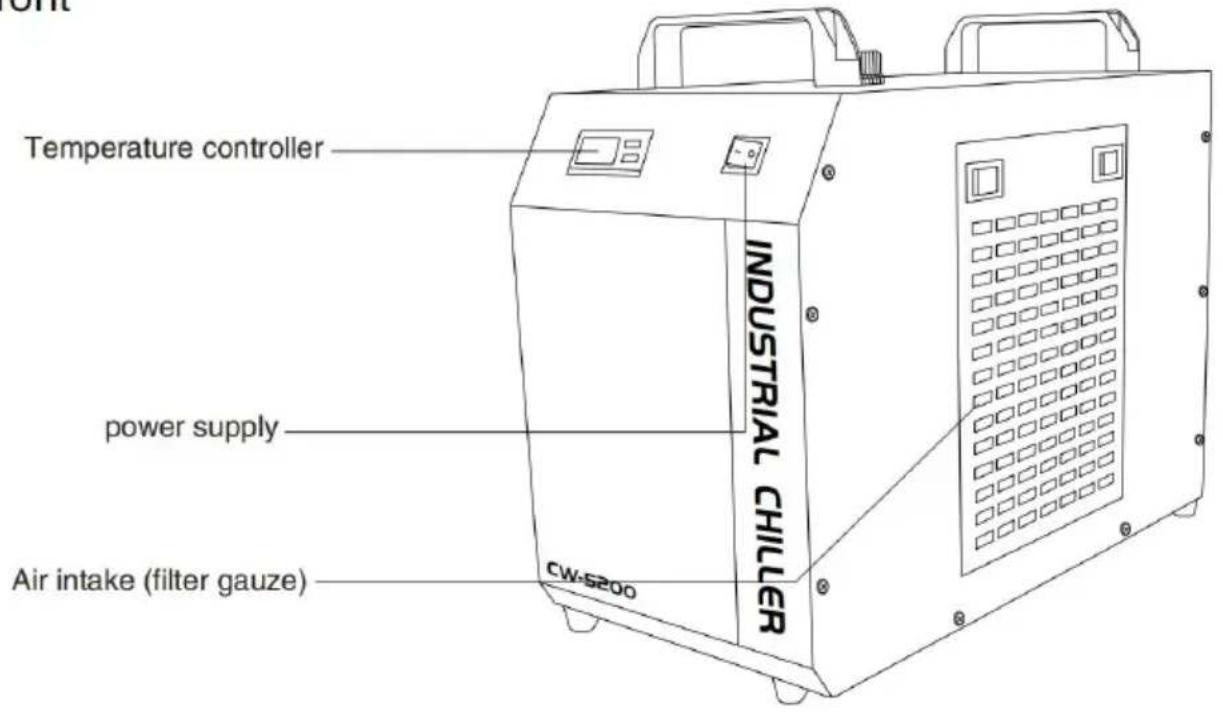

Temperature controller INDUSTRIAL CHILLER power supply CW-5200 Air intake (filter gauze)behind


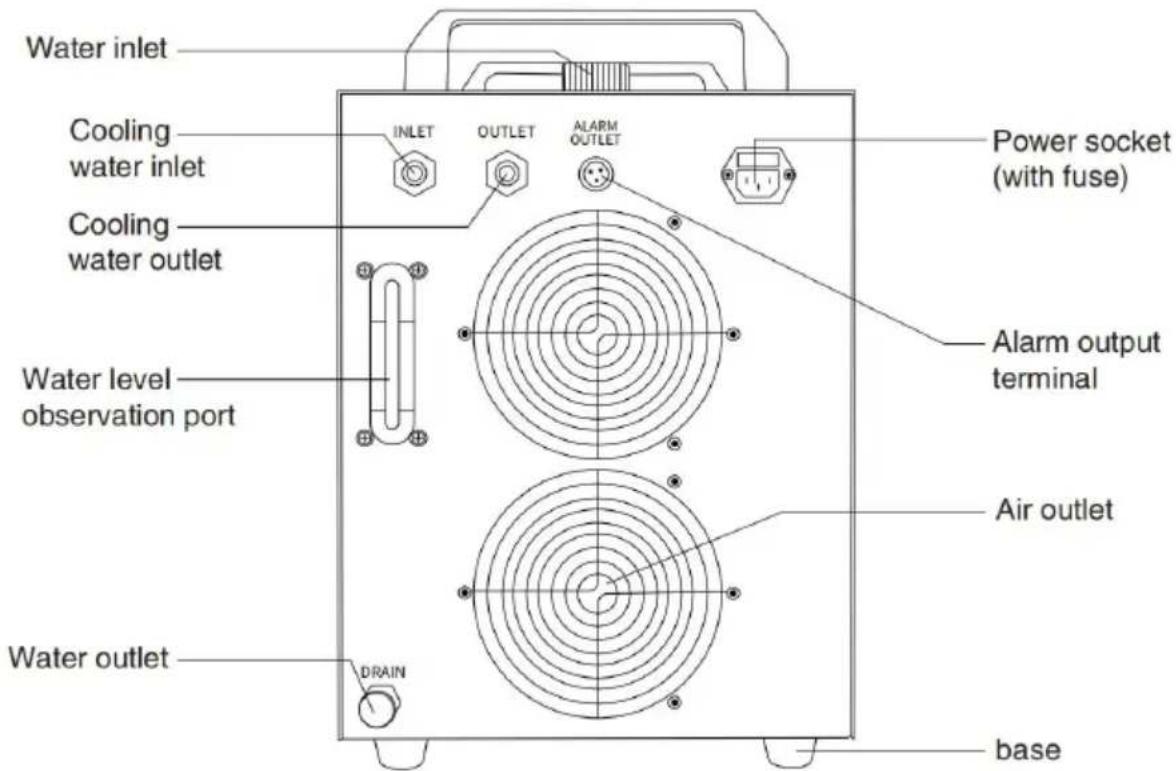

Water inlet Cooling water inlet Cooling water outlet Water level observation port Water outlet INLET OUTLET ALARM OUTLET Power socket (with fuse) Alarm output terminal Air outlet DRAIN basePROCEDURE
Installing this industrial chiller is very simple.
The first installation of a new machine can be carried out by following the steps:
 | 1.OPEN THE PACKAGE TO CHECK IF THE MACHINE IS FIXED AND ALL NECESSARY ACCESSORIES ARE COMPLETE. |
 | 2.OPEN THE WATER SUPPLY INLET TO SUPP COOLING WATER (DON'T SPILL THE WATER OUT!).Observe the water level gauge and add water slotaking care not to let the water overflow! For the cooling of carbon steel equipment, an appropriate amount of cooling water additive (anti-corrosion wa aqua) should be added to the water. Users in co regions should use non-corrosive antifreeze. |
 | 3.CONNECT THE INLET AND OUTLET PIPES ACCORDING TO THE SYSTEM CONDITIONS. |
| 4.PLUG IN THE POWER SUPPLY AND TURN ON THE POWER SWITCH. (DON'T START WITHOUT WATER IN THE TANK!) (1) The power switch is turned on and the circulating pump of the o starts to work. The first operation may cause more bubbles in the pi causing occasional alarms for traffic, but after a few minutes of open will return to normal.(2) After the first start-up, the water pipe must be checked for leaka immediately. | |
(3) The power supply is turned on, if the water temperature is lower, the set value, it is normal that the fan and other parts of the machine work. The temperature controller will automatically control the working state of compressor solenoid valves, fans and other components accerto the set control parameters.
(4) Since the restart of the compressor and other components takes time, depending on different conditions, the time varies from a few s to a few minutes, so do not turn off the power frequently and turn i again.
The first start of the new cooler drains the air in water pipe, causing a slight drop in the water level but in order to maintain the water level in the gr area, it is allowed to add enough water again. PI observe and record the current water level, check again after the chiller has been running for a per time, and if the water level drops significantly, please re-check the leakage of the water pipe.
⑥.ADJUST THE TEMPERATURE CONTROLLER PARAMETERS.
CW-5000/5200 series uses intelligent thermostats. Usually the user do not need to adjust it. If it is really necessary. See "Operating status parameter tuning".
PARAMETER ADJUSTMENT
The new T503 intelligent temperature controller requires no regulation control. Parameters under normal conditions.
The control parameters can be adjusted according to the room temperature to meet the heat dissipation requirements of the equipment.
The new T504 intelligent temperature control selects the constant temperature control mode as the factory setting,
and the water temperature is 25^ C, which can be adjusted by the user as needed.
The functions and structure of the T503 and T504 controllers are the sar
except for factory parameter settings.
DISPLAY PANEL AND BUTTONS


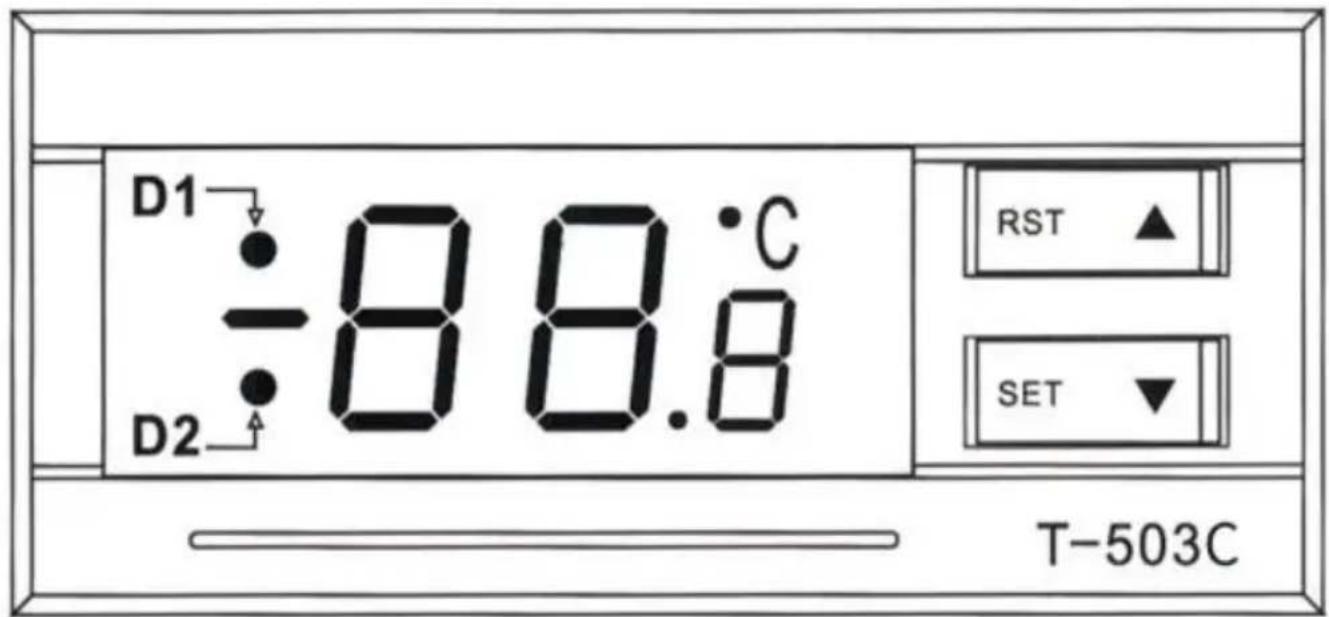

D1 -88.8°C D2 RST ▲ SET ▼ T-503C(1) Display description: the data display area of the manual exercise board displays temperature, system parameters, alarm codes and other data; The blinking period for each field is 1 second; After powering on, the full display works normally after about 5 seconds.
(2) Display symbol description:
| LIGHT | STATE | FUNCTION OR MEANING |
| Red light in upper left corner | Light up | The controller operates in intelligent control mode |
| flashing | The controller operates in constant temperature mode | |
| extinguish | The controller is in parameterization mode | |
| Red light in lower left corner | Light up | The controller is in a cooled state |
| flashing | The controller is in an uncooled state | |
| extinguish | The controller is in a microcooled state |
(3) Key definition description:
| KEYSTROKE | NAME | KEY FEATURES |
| RST key | Determine the ke | OK button to save and exit after setting data |
| SET key | Set the key | Modify the parameter settings |
| ▲key | Dial up the key | Numeric values/parameter entries are incremented |
| ▼key | Dial down the ke | Numeric value/parameter entry decrement |
KEY PRESS INSTRUCTIONS
| SORT | KEYSTROKE | FUNCTION | DESCRIPTION OF THE OPERATION |
| 1 | ▲+▼+RST | Factory parameter adjustment | Press and hold the ▲▼ key and the RST key at the time after the thermostat is powered on, display 99 after seconds, press the ▲▼ key to modify the password of factory setting (50), press the SET key to enter the mer can modify the factory setting, you can change the (F0~ parameters. Press OK (RST) to modify and save the parameters to factory settings. |
| 2 | ▲+SET | User parameter adjustment | 1. First press and hold the ▲ key, and then press the at the same time for five seconds to display 0, at this press the ▲▼ key to select the set password, and then press the OK key, if the password is correct, the display to F0 and enters the setting state. The panel indicator T flashes to indicate that the controller is now in the parameter-setting state. If the password is incorrect, the temperature display is returned.2. After entering the setting state, press the ▲ key to c the selection setting items in turn, and press the▼key cycle in the opposite direction. (Only display F0-F11) Set the set item and then press the setting key to enter the level of parameter modification, display the original set v press the ▲▼ key to modify the parameter value, and press the set key to return to the previous menu setting3. Press the OK key (RST) at any time, save the modi parameters, exit the parameter setting state, return the temperature display, and run according to the newparameters. If no key is pressed within 20 seconds, the controller will automatically exit the parameter setting state and will not save the modified parameters. (When the parameter setting state, the system runs according to the original parameters) |
| 3 | ▲+▼ | Parameter adjustment | After holding the ▲▼ key at the same time, the thermopowered on, and "rE" is displayed after three seconds, a newly adjusted manufacturer parameter value (the parameter adjusted by " ▲+▼+RST") takes effect, and returns to normal operation after three seconds. |
| 4 | ▼ | Check the room temperature flow value(red light D flashing) | 1. Press the▼key once to display t1, and then press key to display the room temperature.2. Press the▼key to display t2, and then press the▼key to display the 1 (single for liter: L).3. Press the▼key once to display then press the▼key to display flow rate 2 (single for L).4. No button is pressed, and the water temperature is restored after six seconds.Note: Live traffic L = flow frequency HZ/flow coefficient. |
| 5 | SET | Quick adjust | Press the SET key while the thermostat is working prop1. The thermostat works in the constant temperature mo the intelligent thermostat, and the panel displays the parameter value of F0 (set temperature).2. The thermostat works in intelligent mode, and the par displays the parameter value of F1 (temperature difference value). Panel D1 now flashes, indicating that t controller is now in the setting state for the parameter. Press the ▲▼ key to modify the setting, then press the key or press it without a key for 20 seconds then do not save and exit. If you press the RST key, the saved and exited,and the new parameter takes effect. |
| 6 | SET+RST | Self-test mode | During 5 minutes of powering on, press the "SET key" "RST key" at the same time for 10 seconds to enter the self-test mode, and perform the following logic in turn:1. Display the program version.2. Display -11.1 ~-22.2 All indicator lights are on, and the compressor relay is closed and disconnected once.3. Display -33.3 All indicator lights are on, and the solen valve relay is closed.4. Display 444 All indicator lights are off, and the solen valve relay is disconnected.5. Display 555~666 All indicator lights are off, and the a relay is closed and disconnected once.6. Display 777~888 All indicator lights are off, and the t rings once. 7. Exit the self-test mode. |
After power-on, the display panel should have 3 seconds flashing at the same time display indicator and digital tube (including D1, D2, — day. da when the temperature value of the displayed room temperature and water temperature is different from the actual temperature, A4, A5 can be adjusted to correct the displayed temperature value.
1. Failsafe
In the thermostat alarm state, press any key to stop the alarm buzzer sound, the display screen displays the alarm code, and when the alarm condition is eliminated, the display screen returns to normal display.
2. Alarm code and control logic:
| ALARM CODE | ALARM CONTENT | ALARM CONDITIONS |
| E1 | The room temperature is super high | Room temperature> F6 (ultra-high temperature alarm va |
| E2 | The water temperature i super high | Water temperature> water temperature setting temperatu + F4 (water temperature super high alarm) |
| E3 | The water temperature i ultra-low | Water temperature< water temperature setting temperatu -F5 (water temperature ultra-low alarm) |
| E4 | Room temperature sensor failure | The room temperature sensor is shorted or open |
| E5 | Water temperature senso failure | The water temperature sensor is shorted or open |
| E6 | Traffic 1 alarm | When A9=0, flow 1 enters to start the alarm when flow (flow 1 alarm value) is detected, and exits the alarm v flow > F10 (flow 1 alarm value); When A9=1,the flow switch is alarmed when it is open, and the exit alarm exited when the switch is turned on |
| E7 | Traffic 2 alarm | When A11=0, the flow 2 input starts the alarm when f F11 (flow 2 alarm value) is detected, and the alarm is when flow > F11 (flow 2 alarm value). When A11=1, the alarm is activated when the flow 2 i switch is open, and the alarm is exited when the switc turned on |
Concentrate:
- E2 alarm is effective only after meeting the start-up alarm delay (A1) entering the target temperature section (that is, between the set temperature and the set temperature + refrigeration return difference F2) after the thermostat is powered on
- E3 alarm is effective only after meeting the start-up alarm delay (A1) after the thermostat is powered on, the water temperature enters the target temperature section (that is, between the set temperature and the set temperature + refrigeration return difference F2).
-
When the power on alarm delay A1 is set to 0, the E2 water temperature ultra-high alarm will be triggered immediately when the water temperature is super high when the power is turned on; When the power on water temperature is ultra-low, the E3 water temperature ultra-low alarm is triggered immediately
-
Relay output status when alarming:
-
When E1, E2, E3 alarm, the compressor and refrigerant solenoid valve are controlled according to the normal control logic.
- The water temperature setting (F0) of the controller when E4 alarm run according to the factory setting. When operating in constant temperature mode, there is no E4 alarm.
- When E5 alarms, the system automatically switches to the refrigeration state.
MENU DESCRIPTION
| CODE | SET UP THE PROJECT | RANGE | DEFAULT VALUE | REMARK |
| F0 | Set the temperature | F9~F8/-20~40 | 25.0 | Smart temperature modeThermostatic mode |
| F1 | Temperature difference value | -15~5 | -2.0 | |
| F2 | Refrigeration differential bac | 0.1~3.0 | 0.3 | Accuracy 0.1 degrees |
| F3 | Control mode | 0~1 | 1 | 1 Smart, 0 Thermostat |
| F4 | Water temperature super high alarm | 1~20 | 10.0 | |
| F5 | Water temperature ultra-low alarm | 1~20 | 15.0 | |
| F6 | Alarm for high temperatures | 40~50 | 45.0 | |
| F7 | password | 00~99 | 8 | |
| F8 | Maximum set water temperature | (F9+1)~40 | 30.0 | |
| F9 | Minimum set water temperature | 1~ (F8-1) | 20.0 | |
| F10 | Traffic 1 alarm value | 0.0~10.0 | 0.5 | 0.0 = Cancel alarm |
| F11 | Traffic 2 alarm value | 0.0~10.0 | 0.0 | 0.0 = Cancel alarm |
| A0 | Heating differential back | 0.1~3.0 | 0.5 | |
| A1 | Power-on alarm delay | 0~30 | 5 | minute |
| A2 | Power-on delay | 10~99 | 30 | second |
| A3 | State transition delay | 0~99 | 20 | second |
| A4 | Room temperature correction | -5.0~5.0 | 0.0 | |
| A5 | Water temperature correction | -5.0~5.0 | 0.0 | |
| A6 | System inertia coefficient | 2~30 | 8 | |
| A7 | Compressor start-up protection | 0~99 | 30 | second |
| A8 | Temperature unit | 0~1 | 0 | 0=Celsius1=Fahrenheit (not supported |
| A9 | Traffic detection 1 input mo | 0~1 | 1 | 00 = pulse amount 01 = switching quantity |
| A10 | Flow rate 1 factor | 0.0~60.0 | 13.0 | When set to 0 or 1 the coefficient has no effect |
| A11 | Traffic detection 2 input mo | 0~1 | 0 | 00 = pulse amount 01 = switching quantity |
| A12 | Flow 2 factor | 0.0~60.0 | 13.0 | When set to 0 or 1 the coefficient has no effect |
| A13 | Traffic delay alarm | 00~60 秒 | 2 | second |
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House London Road, Staines-upon-Thames, Surrey, TW18 4A
