INDUSTRIAL WATER CHILLER USER MANUAL

MODEL: CW-3000

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CW-3000

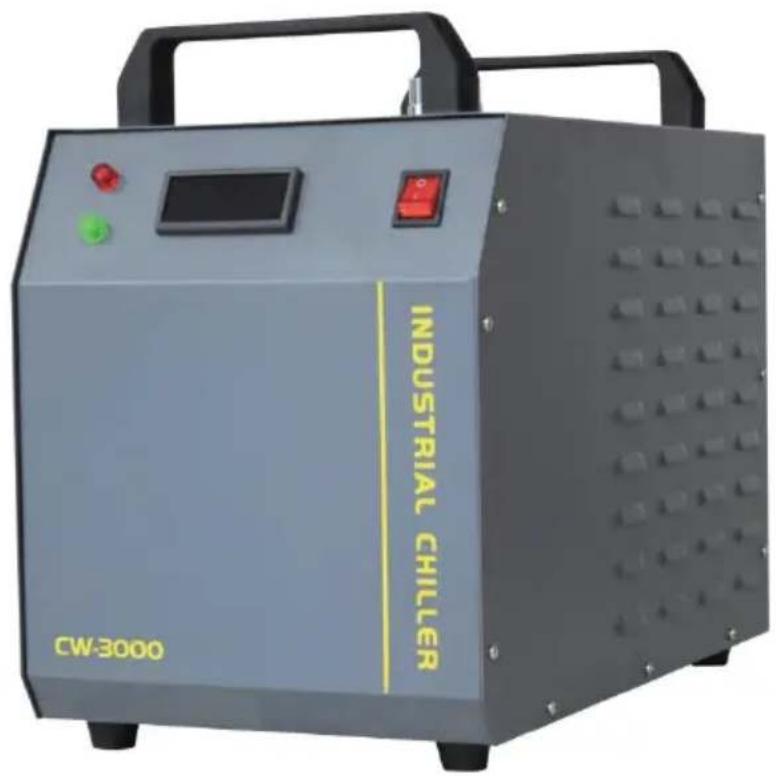

INDUSTRIAL CHILLER CW-3000

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

CW-3000 refrigerator is designed according to the international advanced coolir system, suitable for laser engraving machine, CNC engraving machine, etc.

FUNCTIONS AND FEATURES

1. The integrated water spray sealed water tank can be used without for a long time, ensuring that the pipeline does not scale, so that laser equipment!
2. The integrated water spray sealed water tank can use water for a time without dust, ensure that the pipeline is not scaled, and make operation of the laser equipment safe.
3. Real-time display of temperature, accurate grasp of laser working status.
4. The water flow error alarm function that can be output to the out protect the laser device in time.
5. Professional condenser, dual fan forced air cooling, strong heat dissipation, high efficiency, stable cooling effect.

WARN

It is strictly forbidden to plugin and operate the chiller without water supply.
The chiller should be placed in a well-ventilated, dry environment, away from heat sources.
➢ Hold the device at least 30 cm, keeping the distance between the and the air inlet at least 10 cm from the obstacle to the air outlet rear wall of the freezer.
If the chiller is to be out of service for a long time or before transportation, the water in the chiller must be drained.
To protect the laser device, when the water temperature is around degrees Celsius, the fan will be suspended, and when the water temperature rises to 20 degrees Celsius, the fan will start working.

PROFESSIONAL USE ONLY!

This device must not be used by a child or a person with physical, or physical, sensory, or physical impairments, or lack of experience and knowledge, unless supervision or instruction is given, and the child is not allowed to play with electrical appliances!

The circulating water of the water cooler must use a sealed container normal use, such as laser tube cooling water. Unsealed containers can circulate, such as water basins, buckets cannot be used for circulating water cooling with water coolers.

SPECIFICATIONS

Model	CW-3000
voltage	AC220-240V	AC120V
frequency	50Hz	60Hz
power	80W
Cooling method	Water-cooled cooling
noises	≤80dB
Water tank capacit	12L
Maximum flow	12L/min
Pump power	30W
The main material	Iron,aluminum
Security	Overcurrent protection,flow alarm

front

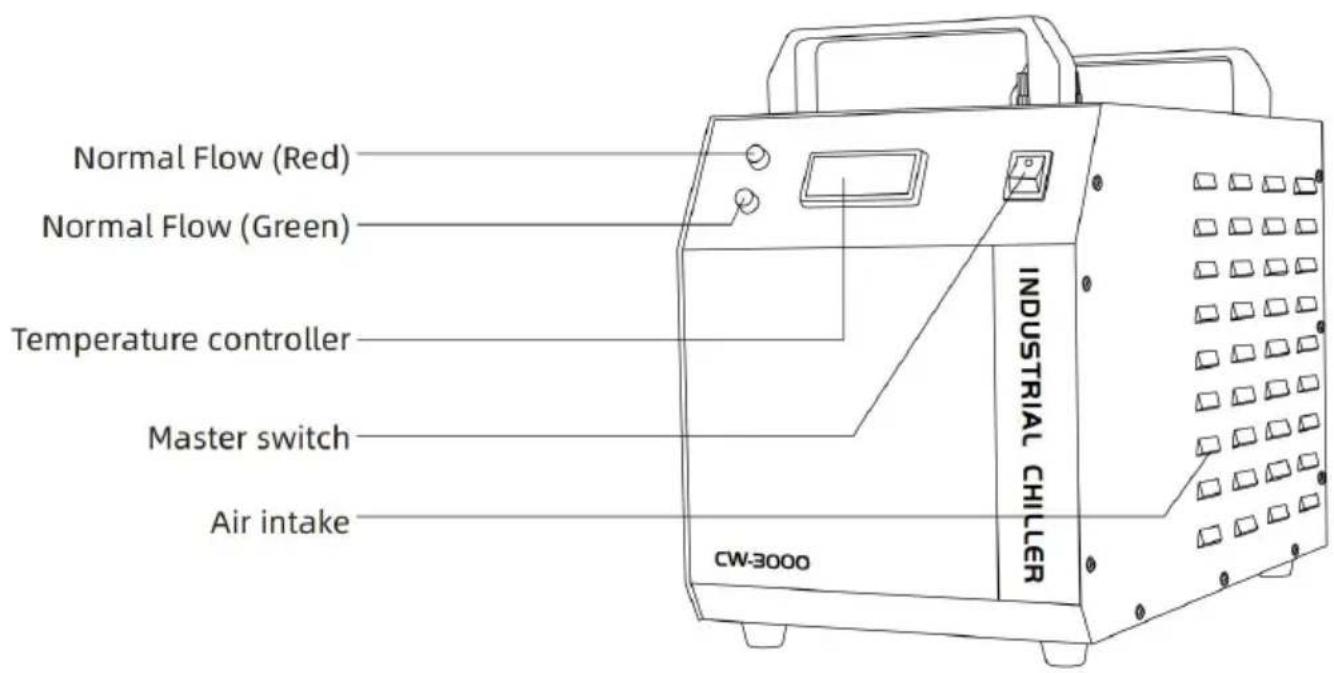

Normal Flow (Red) Normal Flow (Green) Temperature controller Master switch Air intake CW-3000 INDUSTRIAL CHILLER

behind

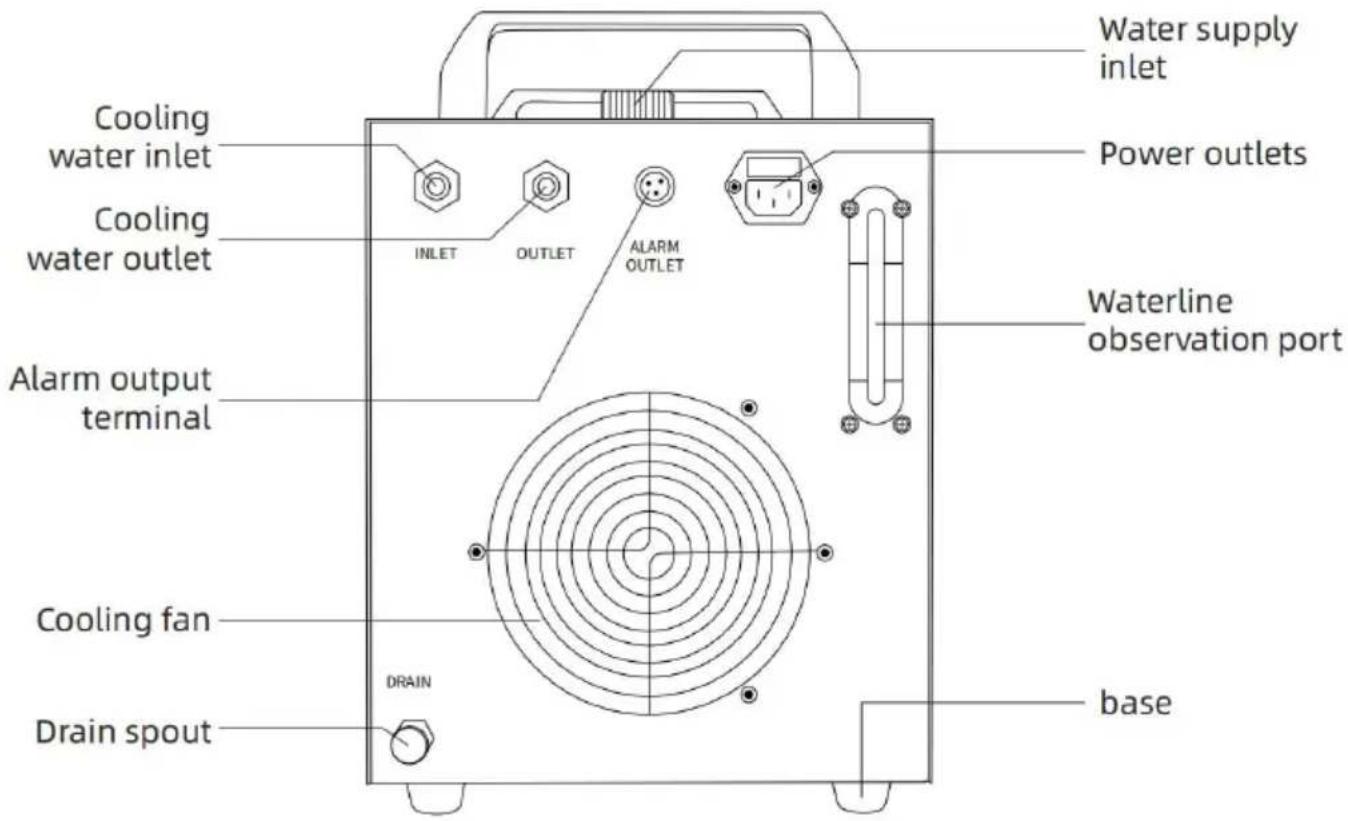

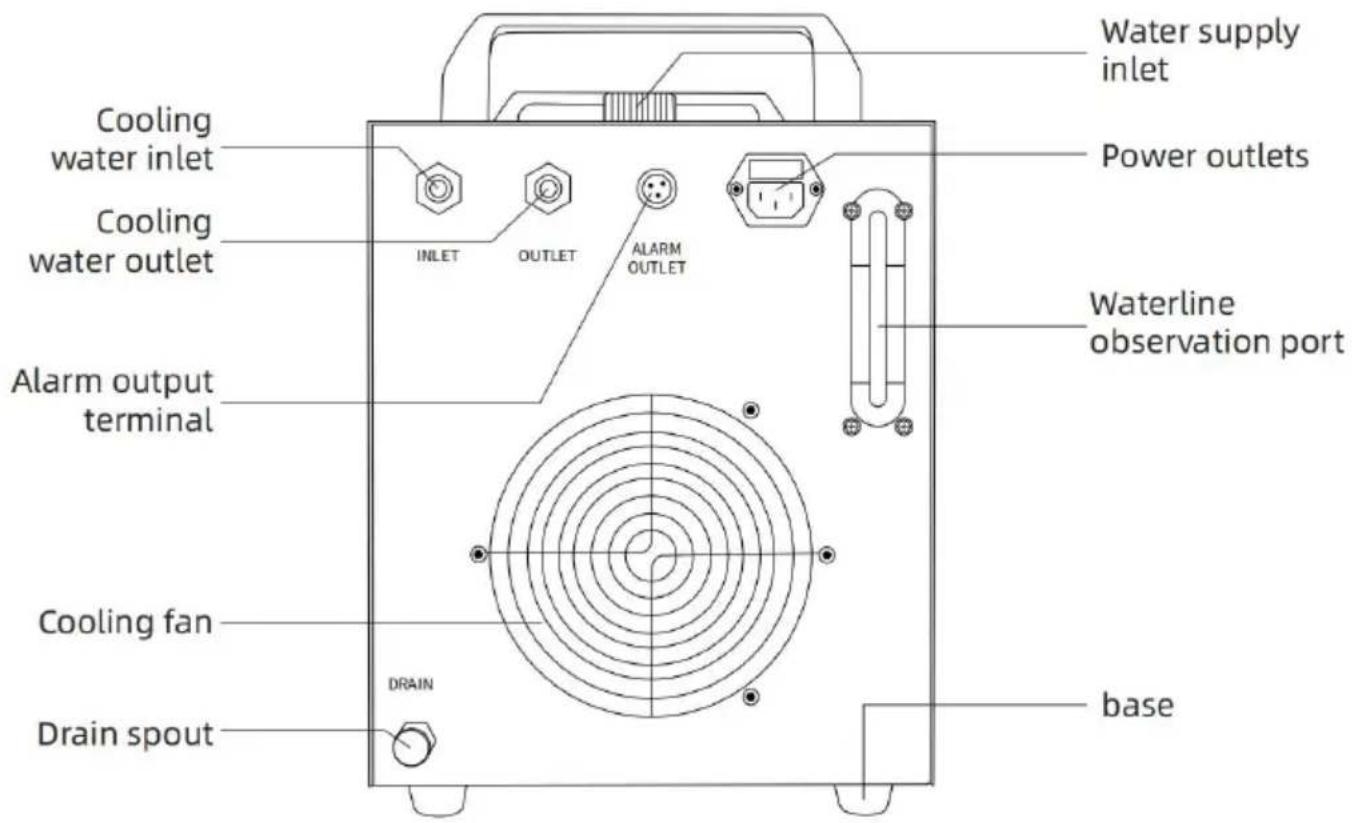

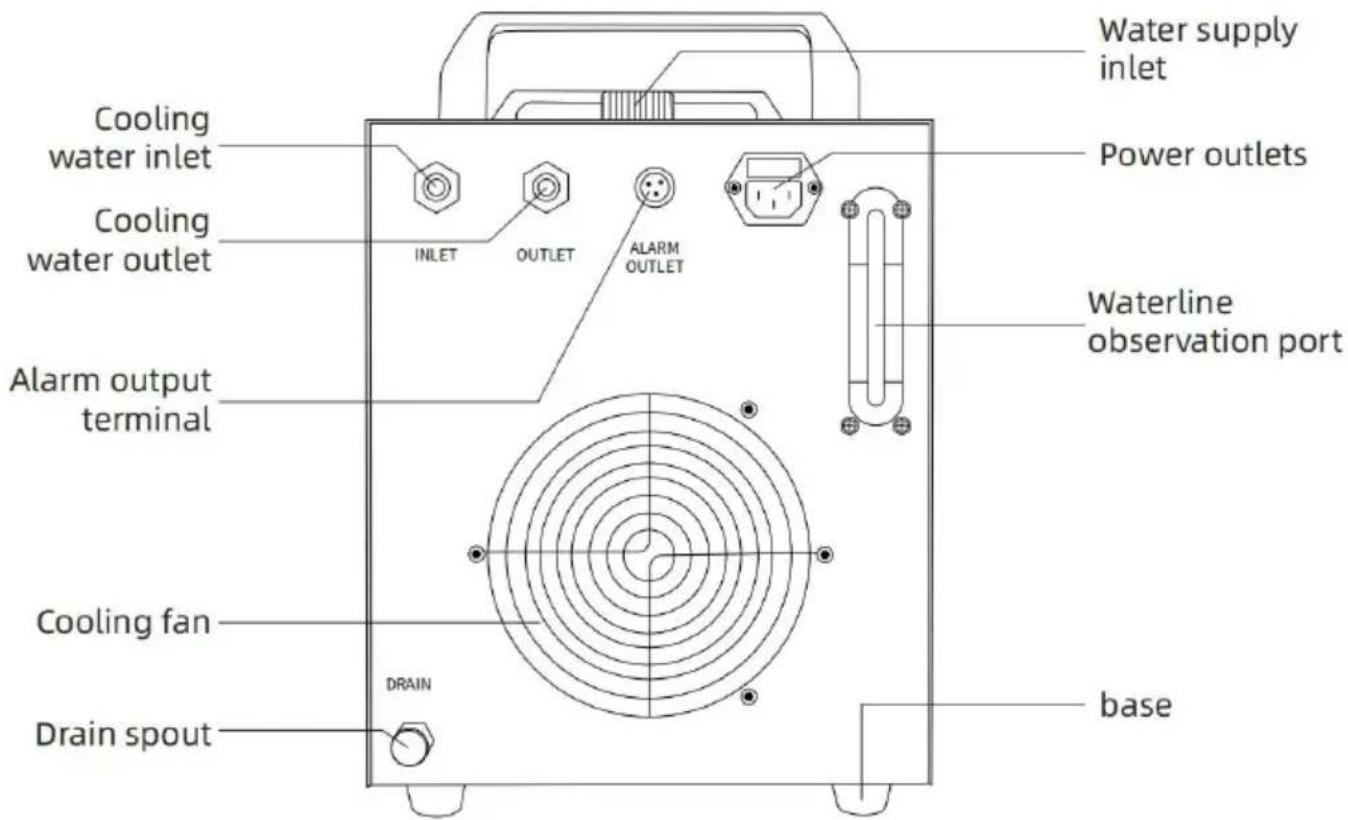

Water supply inlet Cooling water inlet Power outlets Cooling water outlet INLET OUTLET ALARM OUTLET Waterline observation port Alarm output terminal Cooling fan DRAIN drain spout base

PROCEDURE

Installing this industrial chiller is very simple.

The first installation of a new machine can be carried out by following steps:

	1.OPEN THE PACKAGE TO CHECK IF THE MACHINE IS FIXED AND ALL NECESSARY ACCESSORIES ARE COMPLETE.
	2.OPEN THE WATER SUPPLY INLET TO SUP COOLING WATER (DON'T SPILL THE WATER OUT!).Observe the water level gauge and add water taking care not to let the water overflow! For cooling of carbon steel equipment, an appropriate amount of cooling water additive (anti-corrosion aqua) should be added to the water. Users in regions should use non-corrosive antifreeze.
	3.CONNECT THE INLET AND OUTLET PIPES ACCORDING TO THE SYSTEM CONDITIONS.
4.PLUG THE POWER CORD INTO THE POWER SUPPLY AND ON THE COOLER.The pump will work after turning on the chiller for the first time. be a lot of air bubbles inside the water pipes that will occasional alarm work. After a few minutes of use, the chiller will work non Please check the water pipes and connecting joints to ensure that is not available.

80-100mm

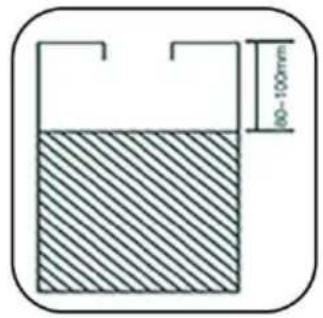

⑤.CHECK THE WATER LEVEL IN THE TANK. Please double-check the water level. It may be necessary to feed the water again after a few of use, as the air in the water pipe has been Double-check the water circulation system and the leak if the water level keeps dropping. (80mm-100mm from the surface)

FLOW ALARM AND OUTPUT PORTS

In order to ensure that the equipment will not be damaged when the cooling water circulation is out of control, the CW-3000/3000Pro series chillers have low flow alarm protection.

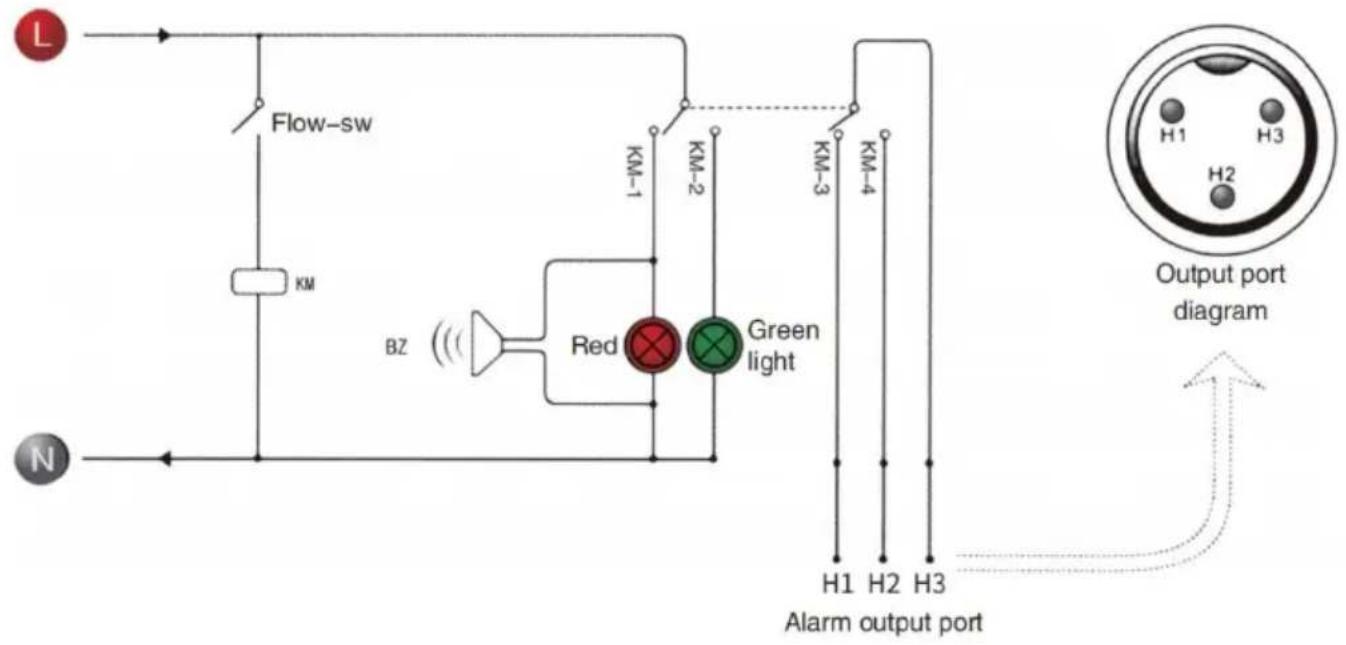

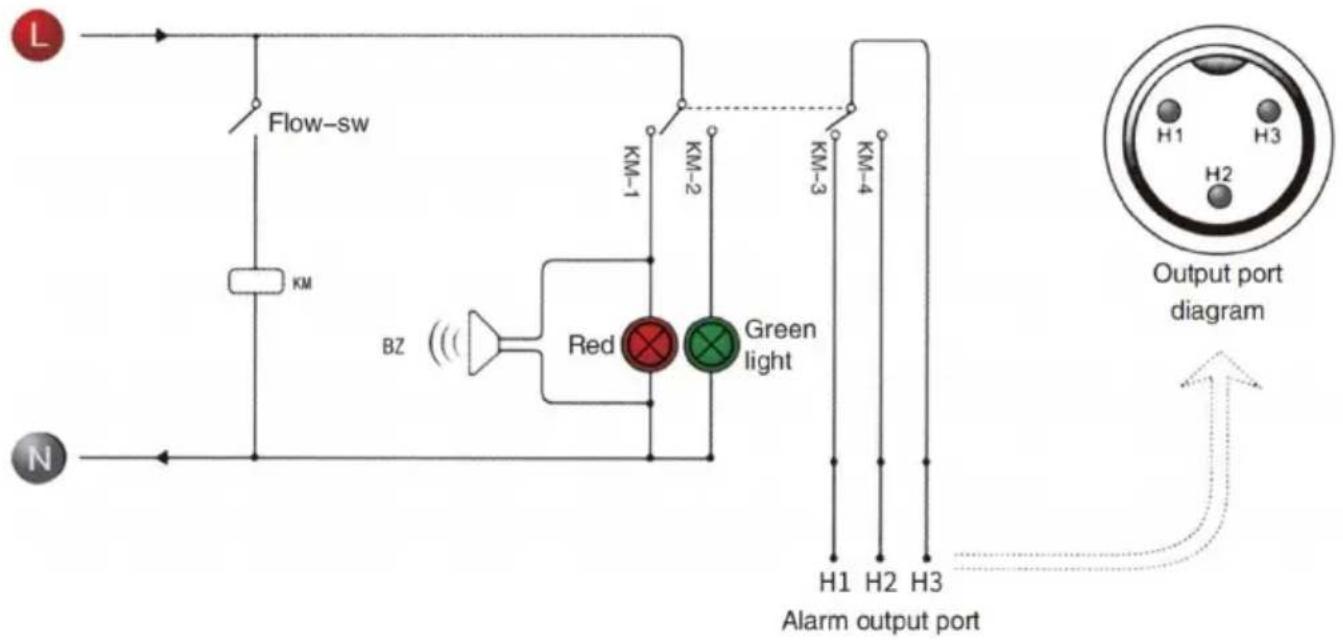

1. FLOW ALARM OUTPUT PORT AND WIRING DIAGRAM

2. THE CAUSE OF THE FLOW ALARM AND THE WORKING STATUS OF THE CIRCULATING COOLING WATER

CONDITION\DISPLAY	NORMAL TRAFFIC INDICATOR	TRAFFIC ALARMS LIGHT	BUZZE	OUT H1/H2	OUT H1/H3
The circulation pump is working properly	ON	OFF	no sound	OFF	ON
Cooling water circulation The circuit is blocked	OFF	ON	sound	ON	OFF
More than 60°C	OFF	ON	sound	ON	OFF
Circulation pump failure	OFF	ON	sound	ON	OFF
Water shortage alarm	OFF	ON	sound	ON	OFF
Faulty circuits				ON	OFF

Note: The flow alarm is connected to the normally open relay and then normally closed relay contact, and the working current is required to less than 5A and the working voltage is less than 300V.

SIMPLE TROUBLESHOOTING

FAULT	CAUSE OF THE FAILUR	RESOLUTION
The machine is turned on but not powered on	The power cord is not plugged into place	Check to make sure the power connector and power plug are plugged in place and in good cc
	The fuse is blown out	Pull the fuse box from the coole power connector. Check the fuse. Replace the spare fuse if necessary and check whether the power supply voltage is stable; Check to make sure the power connector and power plug are plugged in place and in good cc
Flow alarm (red l on the panel) Use the water pipes directly	The water level storage is too low	Check the water level gauge dis Add water to the level shown in green area: and check the water circulation pipe for leaks.
Connect to the water outlet and inlet though There is still no flow	The water circulation pipe clogged or the pipe is b and deformed	Check the water circulation pipes
Ultra-high temperature alarm	Clogging of dust gauze, poor heat dissipation	Unplug and wash the dust gauze regularly
	Poor ventilation of air ou and air intakes	Make sure the air outlets and ai intakes are well ventilated
	The voltage is extremely low or unstable	Improve the power supply circuit use a voltage regulator
Ultra-high room temperature alarm	The operating environmen temperature is too high	Ensure that the machine runs be 40°C
Drain slowly when changing water	The eject port is not op	Open the injection port

PACKING SLIP

①.Industrial chillers×1
②.User manual×1
③.Power cord×1
④.Sealing hoops×2
⑤. Alarm signal output plug×

Illustration of a portable electronic device with control panel and buttons (no visible text or symbols)
