Foldable LED Ring Light studio Box USER MANUAL

MODEL: ZK-RY-07

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ZK-RY-07

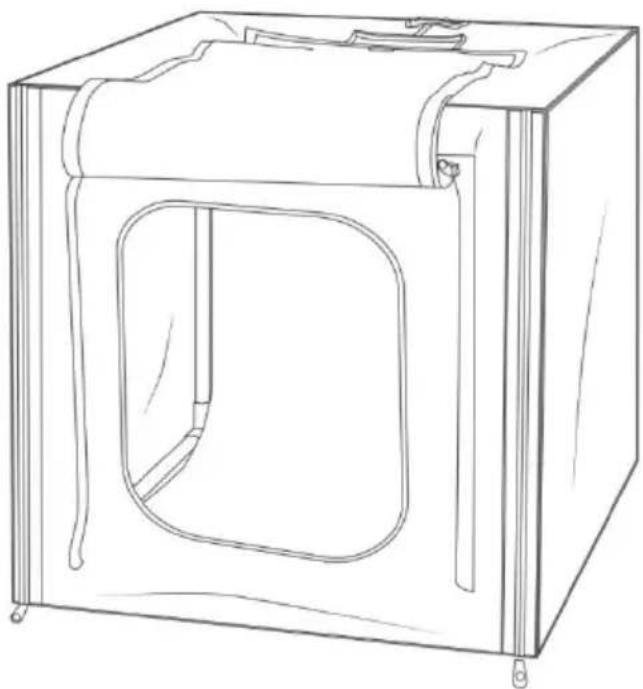

Line drawing of a simple rectangular box with a recessed opening and side supports (no text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. (1) This device is subject to the following two conditions: (1) This device cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices

Thank you very much for choosing Studio Box. Please read this m before using the product as it may contain some information you don know. If you have any questions, please feel free to send us email th amazon.

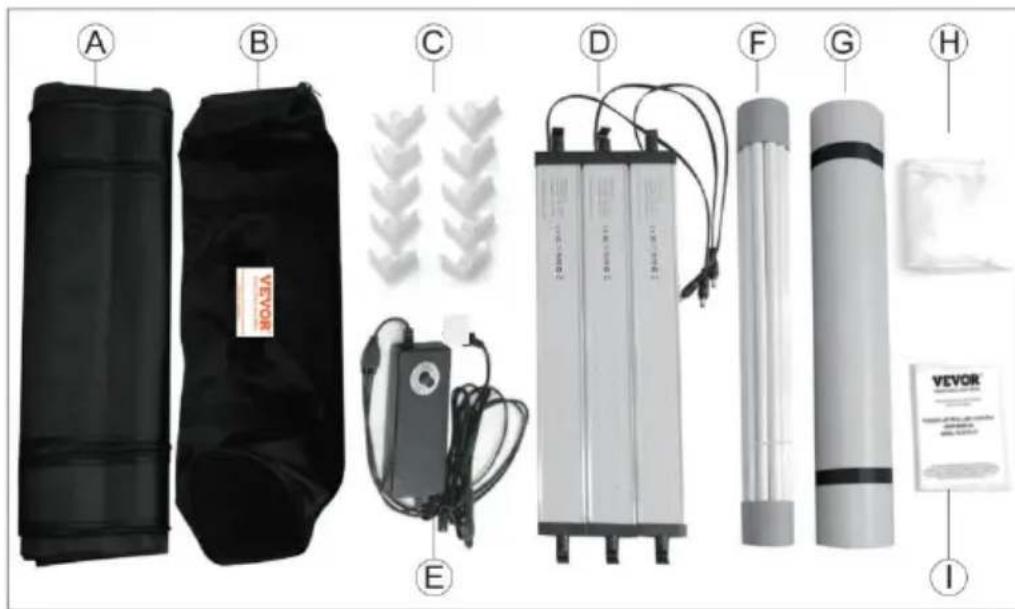

A B C D E F G H I VEVOR

A. Studio Tent *1
B. Cary Bag *1
C. Corner Pieces *10
D. LED Light Panel *3
E. Power Supply *1
F. Frame Tube *12
G. Backdrop *5
H. Soft Background *1
I. Instructions *1

STUDIO BOX ASSEMBLY

A. Frame Assembly:

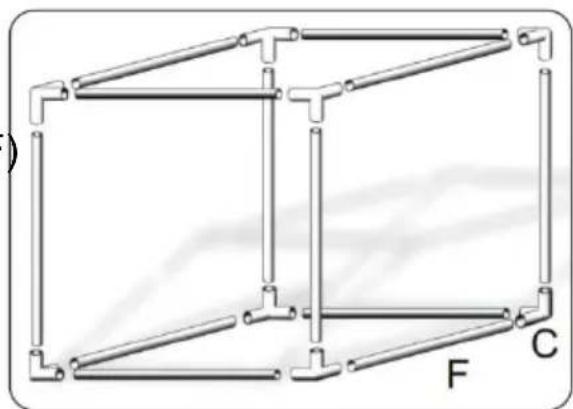

(1)Use 12 pcs frame tubes and 8corner pieces (C) as shown in Figure1 to assemble the studio box.

(F)

Pure structural diagram of a 3D frame with labeled points F and C, no text or symbols present

Figure 1

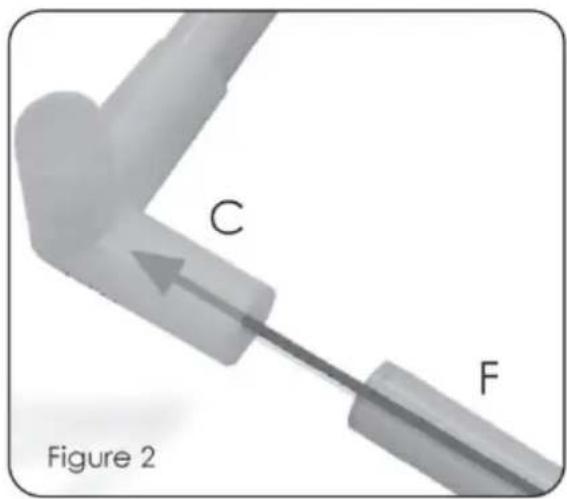

(2) Ensure all of the frame tubes are completely seated into the corne pieces as it will be critical in order for the studio tent to fit over properly. See Figure 2.

C F Figure 2

Note: F must be installed in the innermost part of the C. if the installation is not in place, the tent will not fit into the bracket assembling

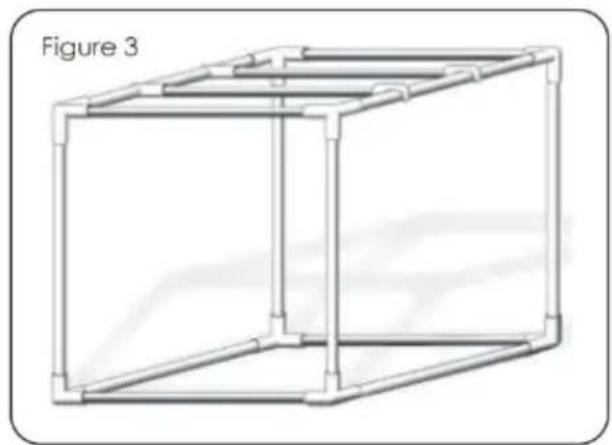

(3)When the framework is finished, it should look like figure 3. it is ready to be covered with the tent.

Line drawing of a 3D rectangular frame structure with vertical supports (no text or symbols)

B. Studio Tent Assembly.

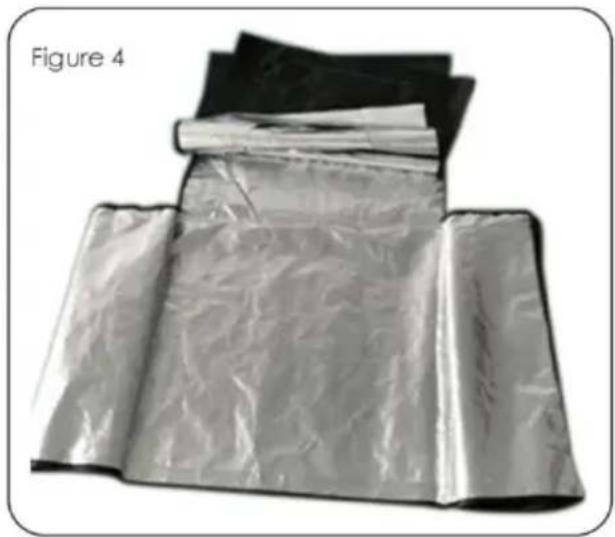

(1)Take out the tent from the bag and spread it out, then you can see and distinguish the front and back, left and right, as well as t and lower parts of the tent. But need to remind you: the inside is the outside is black. (see Figure 4).

Folded plastic sheet with crumpled material, labeled Figure 4 (no text or symbols on the sheet itself)

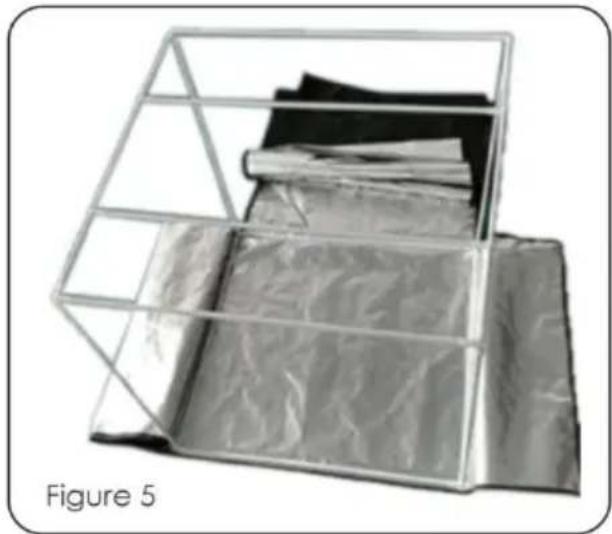

(2) Distinguish the direction of the bracket and place it in the middle tent cloth (figure 3). Notice that the bracket must be stuck in the right place, otherwise the zipper will not be pulled. (as shown in Figure below).

Metallic paper cage with folded sheets inside, labeled Figure 5 (no text or symbols on the diagram itself)

(3)Lay the material evenly and flat on the brackets (Figure 6).

3D rendering of a transparent cube with reflective surface, labeled Figure 6 (no text or symbols on the diagram itself)

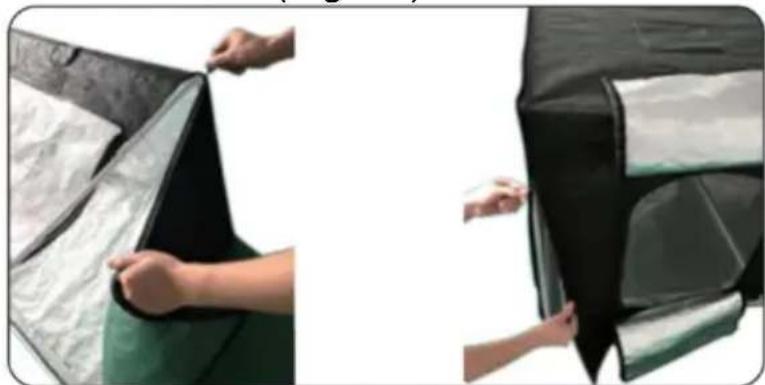

(4)Connect all the surfaces of the tent through a zipper. The zipper be separated from the left and right sides, pull the zipper complete the bottom of the back (Fig. 7).

Two-panel image showing hands installing or adjusting a black shipping container on a green vehicle (no text or symbols visible)

Figure 7

C. LED Light Panel Assemble.

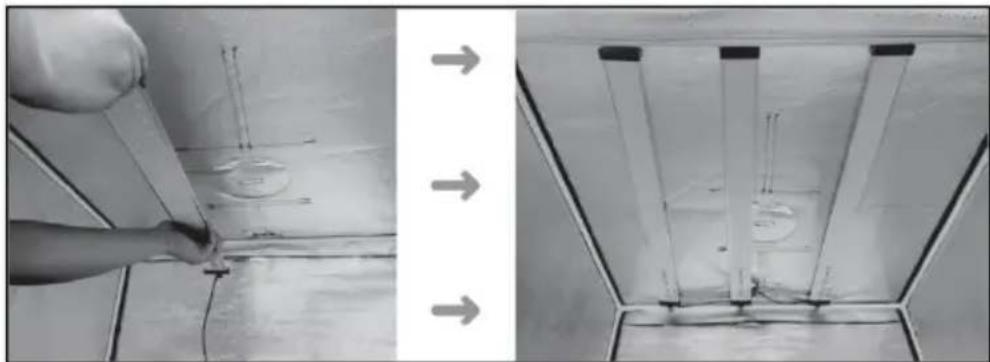

(1) Use two T-shaped (J) separately to clip onto the (D) piece, then do the appropriate position of the (F) tube, then you can adjust the a its illumination at random. See Figure 8.

Two-panel black-and-white photo showing a hand holding a small object over a wall, and a close-up of a transparent ceiling structure with vertical supports (no text or symbols visible)

Figure 8.

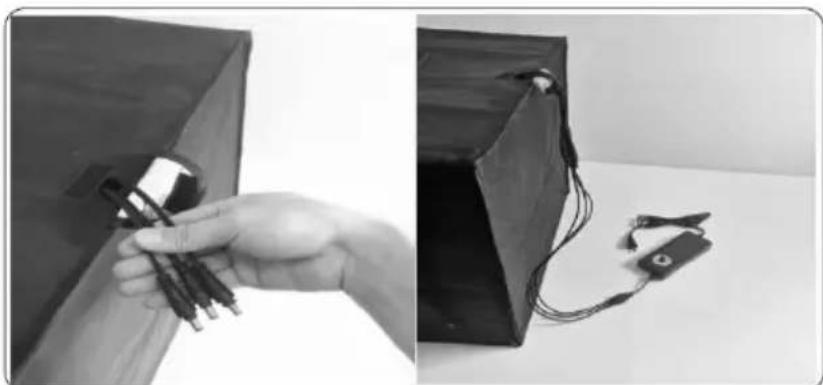

(2)Feed the power cord of the LED Light panel through the small ho the right hand top side of the tent, see Figure 9. Pull as much o power cord through the opening as possible in order to minimize th possibility of having cord visible in your pictures.

Two black-and-white photos showing a hand holding a small electronic device and a connected electrical clamp (no text or symbols visible)

Figure 9

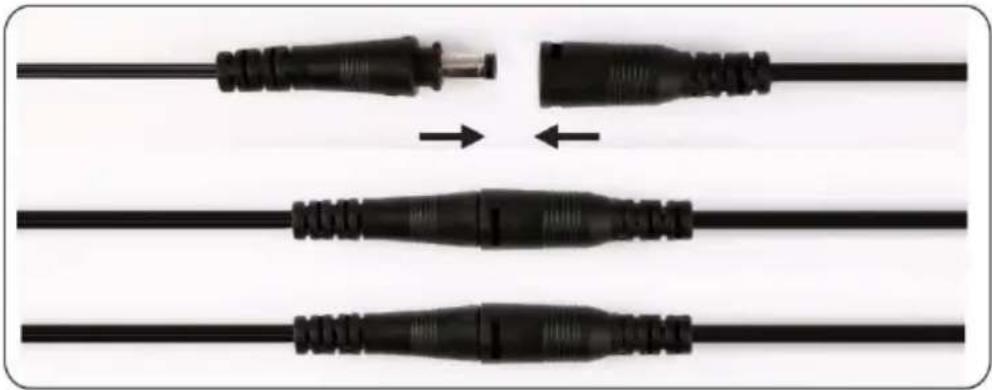

(3)Once the wires are fished through the tent's opening, it is time to connect with the power supply. Connect both LED light panels (D) to power supply (E). Ensure that the connectors are seated completely ensure proper operation. See Figure 10.

Three black electrical plug connectors with connector ends, shown in sequence from left to right (no text or symbols)

Figure 10

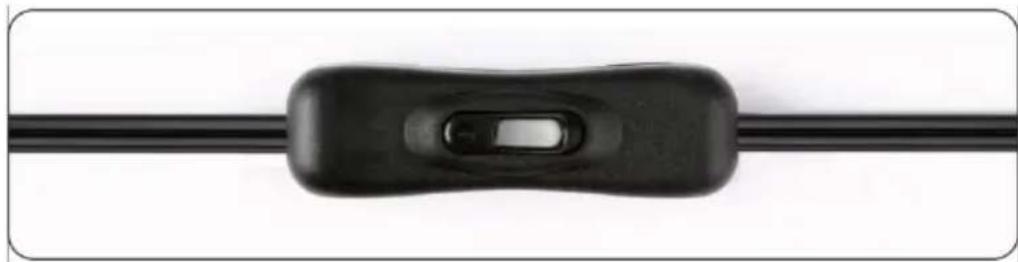

(4)You may now plug the power pack into a power outlet. The lights controlled by the ON/OFF switch on the power cord. See Figure 1'

Close-up of a black electrical plug connector with a handle and switch (no text or symbols visible)

Figure 11

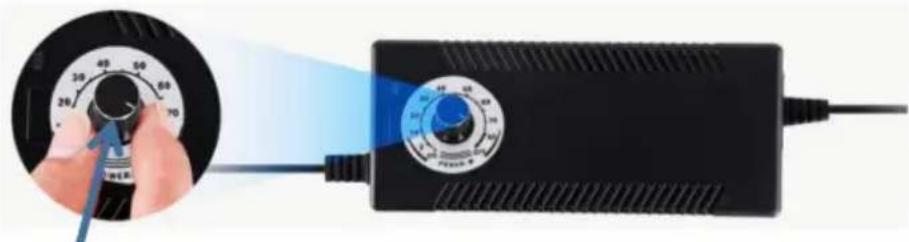

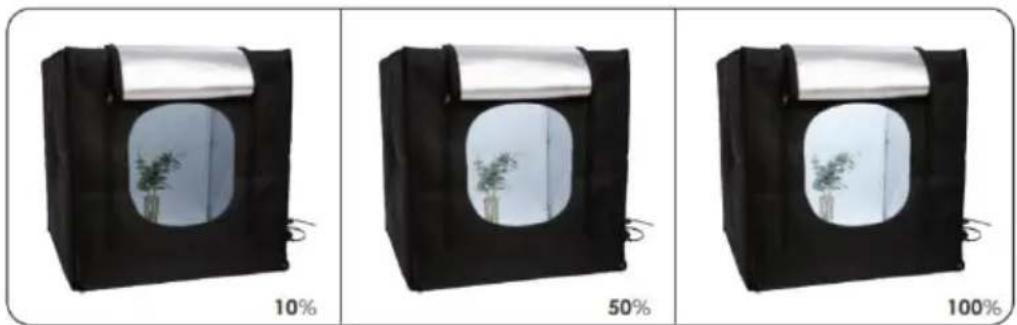

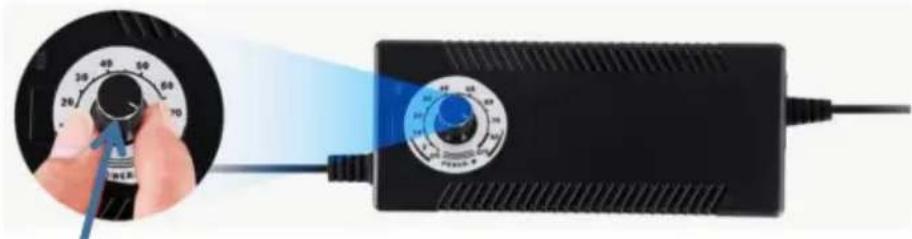

(5)Adjustable Brightness: You can adjust brightness gradually and steady with the dimmer switch, which helps you to take professional picture and photos of small to large sized objects. Figure 12

10% 50% 100%

Close-up of a handheld device emitting light from a black control panel, with an inset showing a hand adjusting the dial (no visible text or symbols)

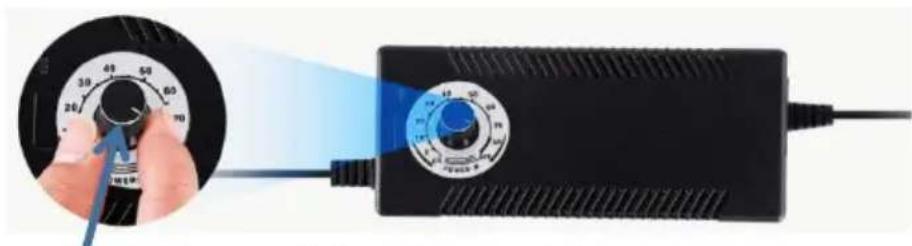

Brightness adjustable switch Figure 12

●Brightness adjustable switch: Turn off the LED light by turning it

counterclockwise to the end.

●Brightness adjustable switch: Rotate clockwise to end for maximum brightness.

Caution: The light panels are very bright. Do not look directly at illuminated light panel for long time when the light panel is lit.

Note: The factory power adapter must be used, if you use a non-factory power adapter, it will cause damage to the LED light; severe cases, it may cause a fire.

D. Install the Backdrop.

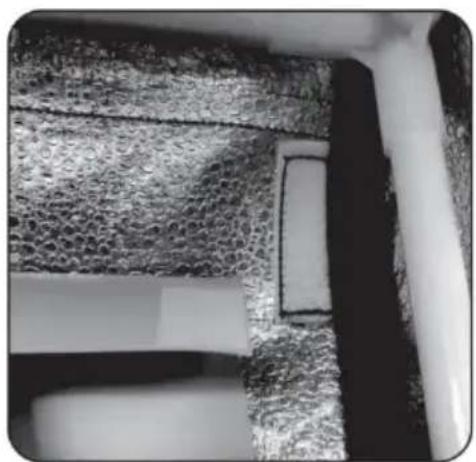

(1)The bag contains 3 kinds of color background (G). Choose a suite product background, tear the Velcro protective film. See Figure 13.

Close-up of a textured metallic surface with a rectangular cutout, possibly indicating a mechanical or architectural component (no visible text or symbols)

Figure 13

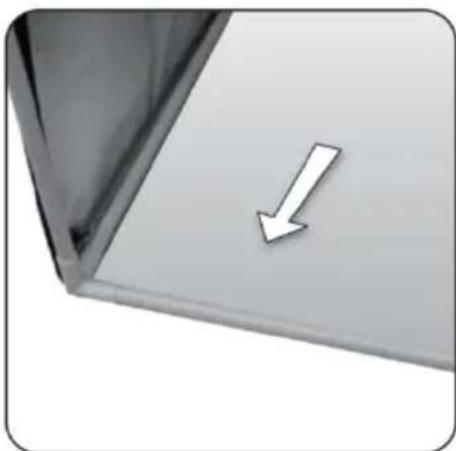

(2) Fit the backdrop under the frame tube to hold it in place (Figure

Close-up of a metallic panel edge with a white downward arrow pointing to a surface (no text or symbols)

Figure 14

E: Using Your Studio Box.

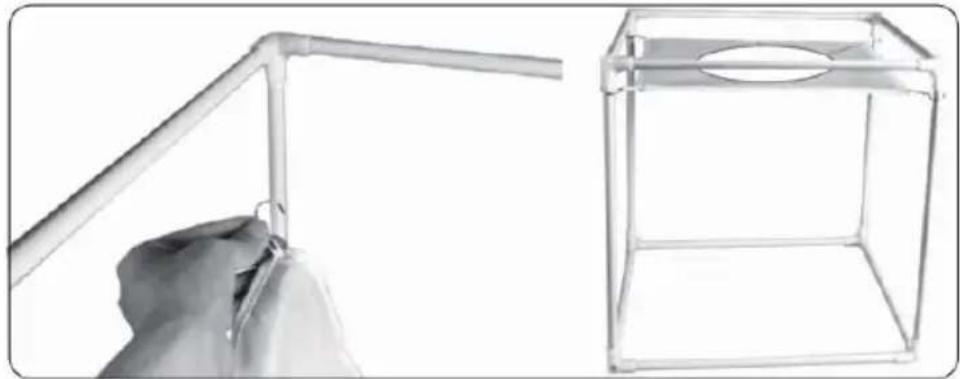

Your studio box comes with a soft background that will clip to the tube, offering you a soft background option, or if draped over the LE will diffuse the light, giving you even more lighting options. See Figur

Two technical illustrations: one showing a hand holding a pipe, the other showing a transparent wire cage with a circular cutout (no text or symbols)

Figure 15

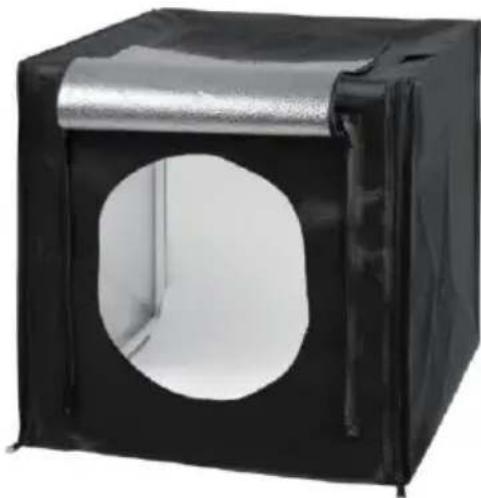

F: The studio box is now completely assembled and ready to start ta pictures!

Black cube-shaped object with a circular opening, showing interior space and metallic frame (no text or symbols visible)

Specifications

Enter the power supply	AC110-240V 50/60Hz
Actual Power	2-80W adjustable
Illuminance	50-10000 LM
Color Temperature	5600K
Color rendering index	≥95
Lightbox size	32FT(80cm)

1. What causes the flickering light?

a. Whether the power adapter is not a factory accessory.
b.Environmental temperature is too high, it may have over temperature protection.
c. Air environment is too humid.
d. There was a problem with the power adapter.

1. What may cause weak light?

a. Adjust the dimmer switch to 80% rotation.
b. Whether the power adapter is not a factory accessory.
c. If there are other light sources around.
d. There was a problem with the power adapter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a simple modular device with a rectangular frame and rounded bottom panel (no text or symbols)

Pure structural diagram of a 3D frame with labeled points F and C, no text or symbols present

Figure 1

C F Figure 2

Line drawing of a 3D rectangular frame structure labeled 'Figure 3' (no text or symbols on the diagram itself)

B. Assemblage de la tente de studio.

Folded plastic sheet with crumpled material, labeled as Figure 4 (no text or symbols on the sheet itself)

Metallic paper cage with folded sheets inside, labeled Figure 5 (no text or symbols on the diagram itself)

3D rendering of a transparent cube with metallic panels and a cut-out section, labeled 'Figure 6' (no text or symbols on the diagram itself)

Two-panel image showing hands installing or adjusting a black cover on a green vehicle (no text or symbols visible)

Figure 7

Two-panel black-and-white photo showing a hand holding a tool near a transparent panel with internal components, no visible text or symbols.

Figure 8.

Two black-and-white photos showing a hand holding a small electronic device and a connected electrical component (no visible text or symbols)

Figure 9

Three black electrical connectors with connector ends, shown in sequence from left to right (no text or symbols)

Figure 10

Close-up of a black electrical plug connector with a handle and switch (no text or symbols visible)

Figure 11

10% 50% 100%

Close-up of a textured metallic surface with a rectangular cutout, possibly indicating a repair or inspection (no text or symbols visible)

Figure 13

Close-up of a white arrow pointing downward on a gray surface, no text or symbols present

Figure 14

Two views of a metal pipe fitting: one with a hand holding a small loop, the other showing a transparent wireframe box (no text or symbols)

Figure 15

Black and silver photo of a compact studio enclosure with a circular opening (no text or symbols visible)

Caractéristiques

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Line drawing of a simple modular device with a rectangular frame and rounded bottom panel (no text or symbols)

A B C D E F G H I VEVOR

Pure structural diagram of a 3D frame with labeled corners (no text or symbols beyond labels)

Figure 1

C F Figure 2

Line drawing of a 3D cube structure with visible internal framework (no text or symbols)

Folded metal foil material with crumpled texture, labeled Figure 4 (no text or symbols on the material itself)

Metallic paper cage with folded sheets inside, labeled Figure 5 (no text or symbols on the diagram itself)

3D rendering of a transparent cube with metallic panels and a folded panel, labeled 'Figure 6' (no text or symbols on the diagram itself)

Two-panel image showing hands installing or adjusting a black shipping container on a green vehicle (no text or symbols visible)

Figure 7

Two-panel black-and-white photo showing a hand holding a small object over a wall, with arrows pointing to structural details (no text or symbols visible)

Abbildung 8.

Two black-and-white photos showing a hand holding a small electronic device and a connected electrical component (no visible text or symbols)

Abbildung 9

Three black electrical connectors with connector ends, shown in sequence from left to right (no text or symbols)

Abbildung 10

Close-up of a black electrical plug connector with a handle and switch (no text or symbols visible)

Abbildung

10% 50% 100%

Close-up of a hand holding a rotary dial next to a black device with blue light beam (no visible text or symbols)

Close-up of a textured metallic surface with a rectangular cutout and a small rectangular hole (no text or symbols visible)

Abbildung 13

Close-up of a white arrow pointing downward on a gray surface, no text or symbols present

Abbildung 14

Two views of a wire handle assembly: one with a hand holding a small object, the other showing a transparent cube with a circular hole (no text or symbols)

Abbildung 15

Black and silver photo of a compact cube with a circular opening, no text or symbols visible

Spezifikationen

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

Line drawing of a simple modular device with a rectangular frame and rounded bottom panel (no text or symbols)

Pure structural diagram of a 3D cube with labeled faces F and C, no text or symbols present

Figure 1

C F Figure 2

Line drawing of a 3D cube structure with vertical supports and horizontal edges, labeled 'Figure 3' (no text or symbols on the diagram itself)

Folded plastic sheet with crumpled material, labeled as Figure 4 (no text or symbols on the sheet itself)

Metallic paper cage with folded sheets inside, labeled Figure 5 (no text or symbols on the diagram itself)

3D rendering of a transparent cube with metallic panels and a cut-out section, labeled 'Figure 6' (no text or symbols on the diagram itself)

Two-panel image showing hands installing or adjusting a black shipping container on a green vehicle (no text or symbols visible)

Figure 7

Two-panel black-and-white photo showing a hand holding a small object over a wall, with arrows pointing to structural details (no text or symbols visible)

Figura 8.

Two black-and-white photos showing a hand holding wires next to a device and a close-up of a connected electrical component (no visible text or symbols)

Figura 9

Three black electrical connectors with connector ends, shown in sequence from left to right (no text or symbols)

Figura 10 (4)

Close-up of a black plastic electrical plug with a handle and switch, mounted on a straight wire (no text or symbols visible)

Figura 11

10% 50% 100%

Close-up of a textured metallic surface with a rectangular cutout and a small rectangular hole (no text or symbols visible)

Figura 13

Close-up of a white arrow pointing downward on a gray surface, no text or symbols present

Figura 14

Two views of a wire handle assembly: one with a hand holding a small object, the other showing a transparent wire cage (no text or symbols visible)

Figura 15

Black and silver photo enclosure with a circular opening, no visible text or symbols

Specifiche

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a simple modular device with a rectangular frame and rounded bottom panel (no text or symbols)

Pure structural diagram of a 3D frame with labeled points F and C, no text or symbols present

Figure 1

C F Figure 2

Line drawing of a 3D rectangular frame structure labeled 'Figure 3' (no text or symbols on the diagram itself)

Folded plastic sheet with crumpled material, labeled as Figure 4 (no text or symbols on the sheet itself)

Metallic paper cage with folded sheets inside, labeled Figure 5 (no text or symbols on the diagram itself)

3D rendering of a transparent cube with metallic panels and a cut-out section, labeled 'Figure 6' (no text or symbols on the diagram itself)

Two-panel image showing hands installing or adjusting a black cover on a green vehicle (no text or symbols visible)

Figure 7

Two-panel black-and-white photo showing a hand holding a tool near a transparent panel with internal components, no visible text or symbols.

Figura 8.

Two black-and-white photos showing a hand holding wires next to a device and a close-up of a connected electrical component (no visible text or symbols)

Figura 9

Three black electrical connectors with connector ends, shown in sequence from left to right (no text or symbols)

Figura 10

Close-up of a black electrical plug connector with a handle and switch (no text or symbols visible)

Figura 11

10% 50% 100%

Interruptor ajustable de brillo Figura 12

Close-up of a textured metallic surface with a rectangular cutout, possibly indicating a repair or inspection (no text or symbols visible)

Figura 13

Close-up of a white arrow pointing downward on a gray surface, no text or symbols present

Figura 14

Two views of a wire fence structure: one with a hand holding the angle, the other a transparent frame (no text or symbols visible)

Figura 15

Black and silver photo enclosure with a circular opening, no visible text or symbols

Especificaciones

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DE LA CE

E-CrossStu GmbH

C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines upon Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a simple modular device with a rectangular frame and rounded bottom panel (no text or symbols)

A B C D E F G H I VEVOR

Pure structural diagram of a 3D frame with labeled points F and C, no text or symbols present

Figure 1

C F Figure 2

Line drawing of a 3D cube structure with vertical supports and horizontal edges, labeled 'Figure 3' (no text or symbols on the diagram itself)

Folded plastic sheet with crumpled material, labeled as Figure 4 (no text or symbols on the sheet itself)

Metallic paper cage with folded sheets inside, labeled Figure 5 (no text or symbols on the diagram itself)

3D rendering of a transparent cube with metallic panels and a folded surface, labeled 'Figure 6' (no text or symbols on the diagram itself)

Two-panel image showing hands installing or adjusting a black cover on a green vehicle (no text or symbols visible)

Figure 7

Two-panel black-and-white photo showing a hand holding a tool near a transparent panel with internal components, no visible text or symbols.

Cyfra 8.

Two black-and-white photos showing a hand holding a small electronic device and a connected electrical component (no visible text or symbols)

Rysunek 9

Three black electrical connectors with connector ends, shown in sequence from left to right (no text or symbols)

Rysunek 10

Close-up of a black plastic electrical plug with a handle and switch, mounted on a straight wire (no text or symbols visible)

Rysunek 11

Three black-and-white photos of a studio lighting setup with pet plants, each labeled with a percentage value (10%, 50%, 100%) and a small scale indicator.

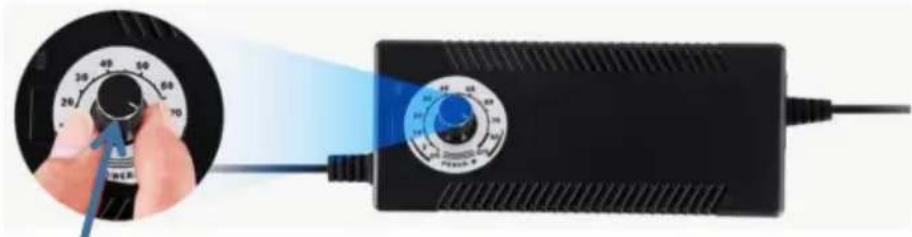

Close-up of a hand holding a rotary dial next to a black electronic device with blue light beam (no visible text or symbols)

Close-up of a textured metallic surface with a rectangular cutout, possibly indicating a repair or inspection (no text or symbols visible)

Rysunek 13

Close-up of a white arrow pointing downward on a gray surface, no text or symbols present

Rysunek 14

Two views of a wire handle assembly: one with a hand holding a small object, the other showing a transparent cube with a circular hole (no text or symbols)

Rysunek 15

Black and silver photo of a compact cube with a circular opening, no text or symbols visible

Dane techniczne

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australii

Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt nad Menem.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Opvouwbare LED-ringlichtstudiobox HANDLEIDING

MODEL: ZK-RY-07

Line drawing of a simple modular device with a rectangular frame and rounded bottom panel (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Pure structural diagram of a 3D cube with labeled faces F and C, no text or symbols present

Figure 1

C F Figure 2

Line drawing of a 3D cube structure with visible internal framework (no text or symbols)

Folded plastic sheet with crumpled material, labeled Figure 4 (no text or symbols on the sheet itself)

Metallic paper holder with folded sheets inside, labeled Figure 5 (no text or symbols on the main diagram)

3D rendering of a transparent cube with metallic panels and a folded panel, labeled 'Figure 6' (no text or symbols on the diagram itself)

Two-panel image showing hands installing or adjusting a black cover on a green vehicle (no text or symbols visible)

Figure 7

Two-panel black-and-white photo showing a hand holding a tool near a transparent panel with internal components, no visible text or symbols.

Figuur 8.

Two black-and-white photos showing a hand holding a small electronic device and a device with wires attached (no visible text or symbols)

Figuur 9

Three black electrical connectors with connector ends, shown in sequence from left to right (no text or symbols)

Figuur 10

Close-up of a black electrical plug connector with a handle and switch (no text or symbols visible)

Afbeelding

Three black-and-white photos of a studio lighting setup with pet plants, each labeled with a percentage value (10%, 50%, 100%) and a small scale indicator.

Close-up of a hand holding a rotary dial next to a black electronic device with blue light beam (no visible text or symbols)

Close-up of a textured metallic surface with a rectangular cutout, possibly indicating a repair or inspection (no text or symbols visible)

Figuur 13

Close-up of a white arrow pointing downward on a gray surface, no text or symbols present

Figuur 14

Two views of a wire handle assembly: one with a hand holding a small object, the other showing a transparent wire cage (no text or symbols visible)

Figuur 15

Black and silver photo of a compact cube with a circular opening, no text or symbols visible

Specifications

C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Vikbar LED-ringljus studiobox ANVÄNDARMANUAL

MODELL: ZK-RY-07

Line drawing of a simple modular device with a rectangular frame and rounded bottom panel (no text or symbols)

Pure structural diagram of a 3D cube with labeled faces F and C, no text or symbols present

Figure 1

C F Figure 2

Line drawing of a 3D rectangular frame structure labeled 'Figure 3' (no text or symbols on the diagram itself)

Folded plastic sheet with crumpled material, labeled as Figure 4 (no text or symbols on the sheet itself)

Metallic paper cage with folded sheets inside, labeled Figure 5 (no text or symbols on the diagram itself)

3D rendering of a transparent cube with metallic panels and a cut-out section, labeled 'Figure 6' (no text or symbols on the diagram itself)

Two-panel image showing hands installing or adjusting a black shipping container on a green vehicle (no text or symbols visible)

Figure 7

C. Montering av LED-ljuspanel.

Two-panel black-and-white photo showing a hand holding a tool near a transparent panel with internal components, no visible text or symbols.

Figur 8.

Two black-and-white photos showing a hand holding a small electronic device and a connected electrical component (no visible text or symbols)

Bild 9

Three black electrical connectors with connector ends, shown in sequence from left to right (no text or symbols)

Figur 10

Close-up of a black plastic electrical plug with a handle and switch, mounted on a straight wire (no text or symbols visible)

Figur 11

10% 50% 100%

Ljusstyrka justerbar strömbrytare Bild 12

Close-up of a textured metallic surface with a rectangular cutout, possibly indicating a repair or inspection (no text or symbols visible)

Bild 13

Close-up of a white arrow pointing downward on a gray surface, no text or symbols present

Bild 14

Two views of a wire fence structure: one with a hand holding the angle, the other with a circular opening (no text or symbols)

Bild 15

Black and silver photo of a compact cube with a circular opening, no text or symbols visible

Specifikationer

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
