USER MANUAL XC2523 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

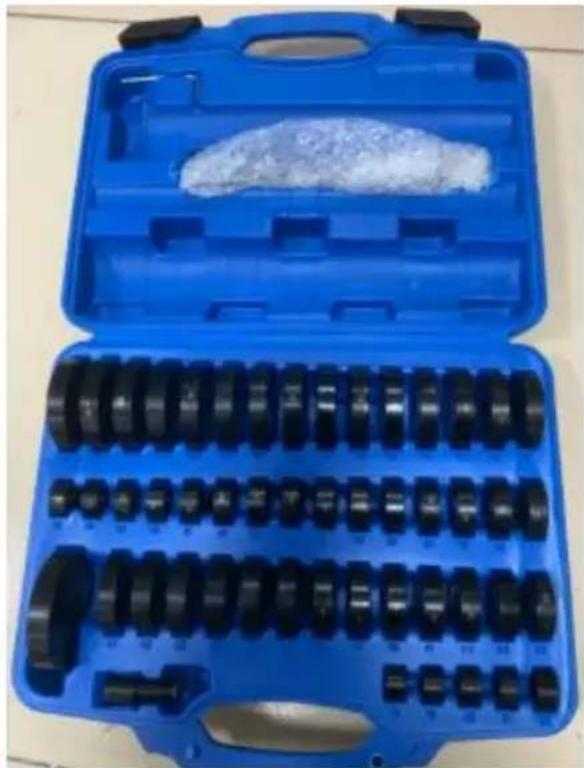

BEARING AND SEAL DRIVER SET

MODEL: XC2523

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BEARING AND SEAL DRIVER SET

Model: XC2523

Vevor XC2523 - BEARING AND SEAL DRIVER SET - 1

natural_image Blue plastic tool kit with multiple black mechanical components and a white granular substance inside (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Vevor XC2523 - NEED HELP? CONTACT US! - 1

CustomerService@vevor.com

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Vevor XC2523 - NEED HELP? CONTACT US! - 2

Safety & Warning

  • Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable proper
  • While assembling and using this product, keep the work area clean and well-lighted, and keep spectators and children out of the work area.
  • Wear ANSI-approved safety goggles, heavy-duty work gloves and safety should during use.
  • Use as intended only.
  • Before each use, inspect the general condition of the product. Check for b cracked, or bent parts, loose or missing parts, and any condition that may the proper operation of the product.
  • After every use, wipe with a clean cloth. Then, store the product in a sat location out of reach of children and other non-authorized people.
  • Ensure only genuine parts are used for replacement & repair.
  • Maintain the tools in good and clean condition for optimum and safest performance.

Specifications

Model SeriesXC2523
Max Outside Diameter (mm)74
Min Outside Diameter (mm)18
Net Weight (kg)8.05
Gross Weight (kg)8.64

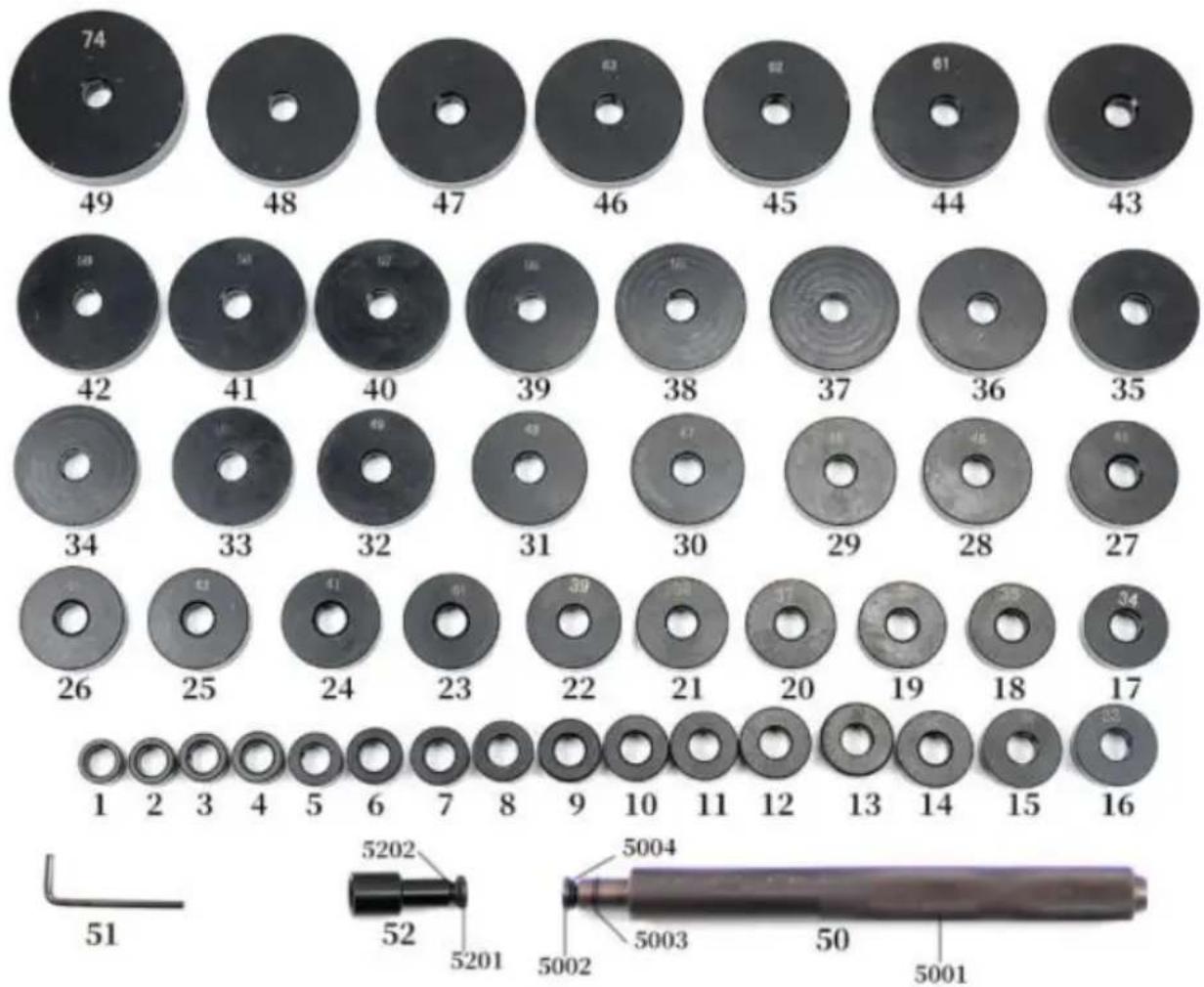

Figure of the Product
Vevor XC2523 - Safety & Warning - 1

other | Item | Value | | :--- | :--- | | 1 | 51 | | 2 | 52 | | 3 | 5202 | | 4 | 5201 | | 5 | 5202 | | 6 | 5201 | | 7 | 5202 | | 8 | 5201 | | 9 | 5202 | | 10 | 5201 | | 11 | 5202 | | 12 | 5201 | | 13 | 5202 | | 14 | 5201 | | 15 | 5202 | | 16 | 5201 | | 17 | 5202 | | 18 | 5201 | | 19 | 5202 | | 20 | 5201 | | 21 | 5202 | | 22 | 5201 | | 23 | 5202 | | 24 | 5201 | | 25 | 5202 | | 26 | 5201 | | 27 | 5202 | | 28 | 5201 | | 29 | 5202 | | 30 | 5201 | | 31 | 5202 | | 32 | 5201 | | 33 | 5202 | | 34 | 5201 | | 35 | 5202 | | 36 | 5201 | | 37 | 5202 | | 38 | 5201 | | 39 | 5202 | | 40 | 5201 | | 41 | 5202 | | 42 | 5201 | | 43 | 5202 | | 44 | 5201 | | 45 | 5202 | | 46 | 5201 | | 47 | 5202 | | 48 | 5201 | | 49 | 5202 | | 5003 | 5004 | | 5004 | 5003 | | 5001 | 5003 | | (Note: The actual values for 'Value' in the table are not explicitly provided in the image.)

Figure 1

PartDescriptionPictureQty
1Disc connectorVevor XC2523 - Safety & Warning - 21
2Handle1
3ScrewVevor XC2523 - Safety & Warning - 31
4Hex keyVevor XC2523 - Safety & Warning - 41
5O Ring(Φ9*1.9)Vevor XC2523 - Safety & Warning - 54
6O Ring(Φ11*1.5)Vevor XC2523 - Safety & Warning - 64
7Discs 18mm to 65mm (Size ste 1mm increments) and 74mm.Vevor XC2523 - Safety & Warning - 749
8Storage BoxVevor XC2523 - Safety & Warning - 81

Instructions

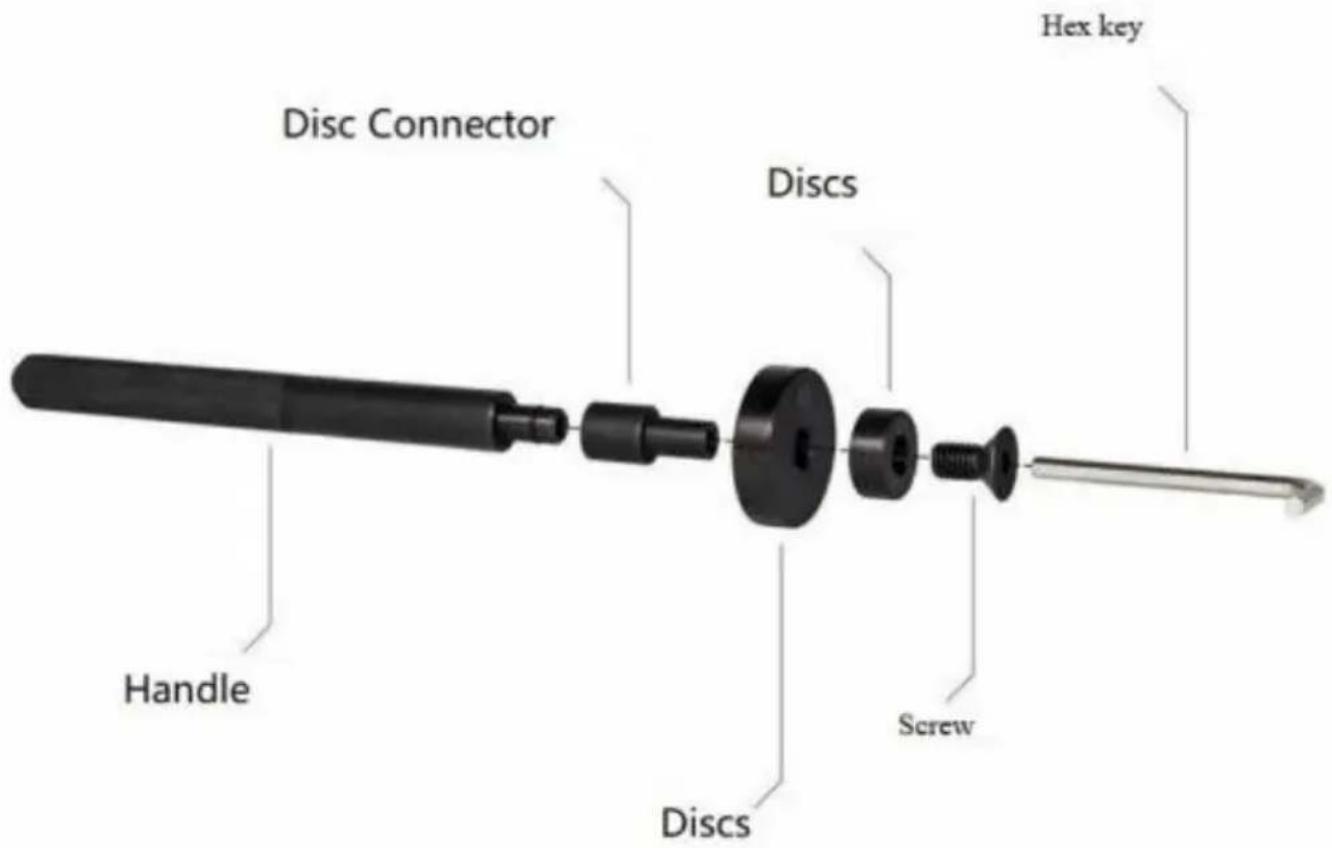

A. Put the screw out from the metal Handle or from the quick conn shaft.

Vevor XC2523 - Instructions - 1

text_image Hex key Disc Connector Discs Handle Discs Screw

Figure 2

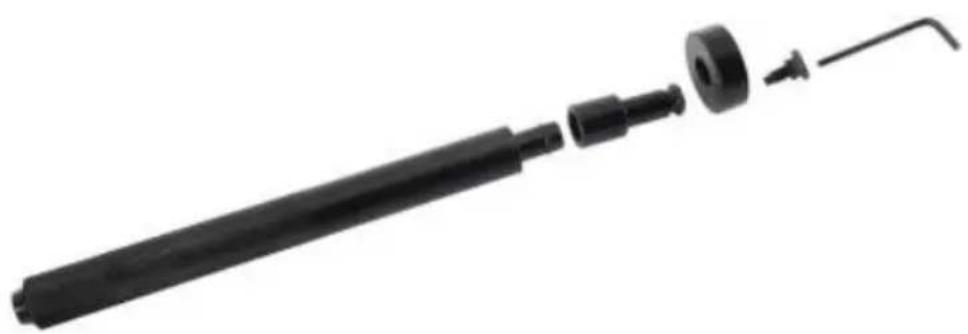

B. Choose the suitable size of the steel Discs and put them into the Handle.

Vevor XC2523 - Instructions - 2

natural_image Exploded view of a mechanical tool assembly showing shaft, housing, and end cap (no text or symbols)

Figure 3

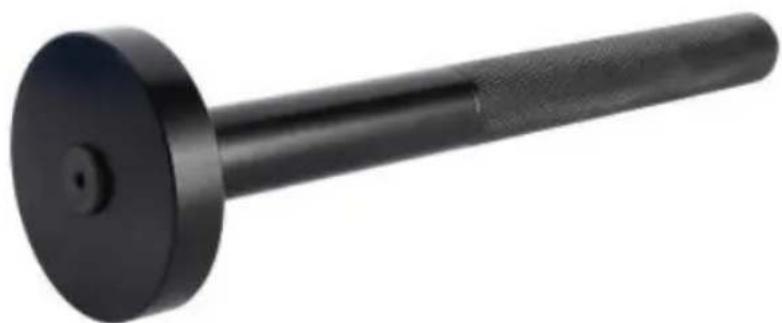

C. Locked the screw with the screw key.

Vevor XC2523 - Instructions - 3

natural_image Black cylindrical mechanical component with textured end and circular head (no text or symbols visible)

Figure 4

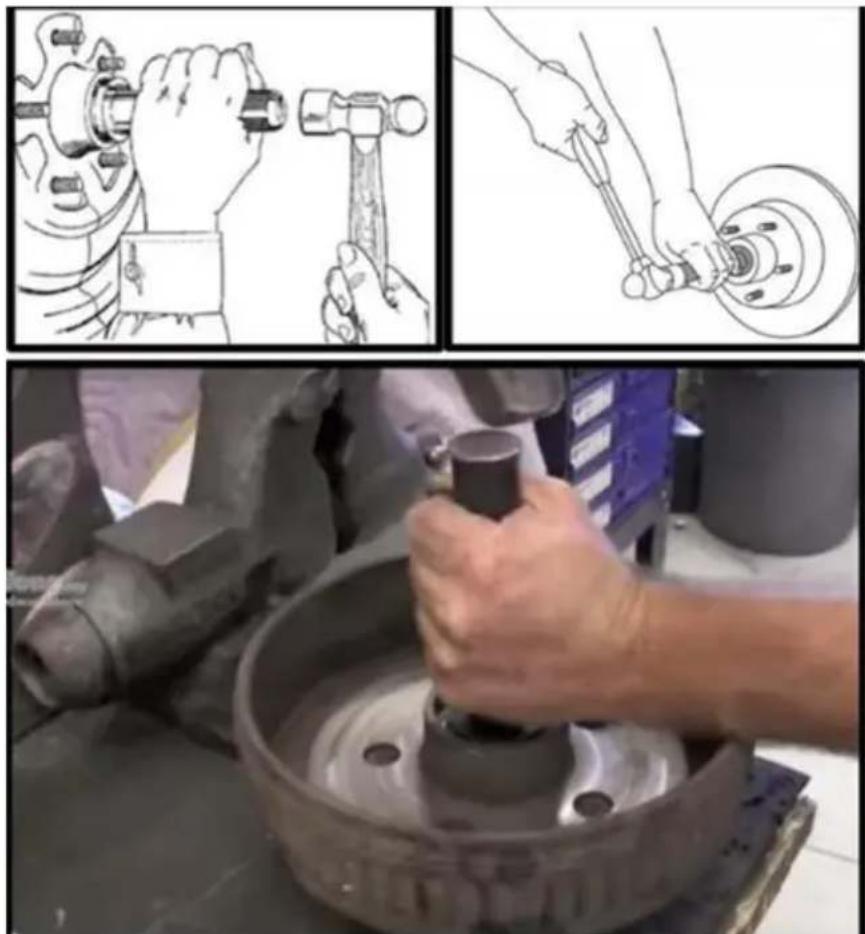

D. Mount the bearing, bushing, sealing rings, or rubber with a hammer hydraulic press.

Vevor XC2523 - Instructions - 4

natural_image Mechanical assembly diagram showing hands operating a brake caliper and inspecting a wheel (no text or symbols present)

Figure 5

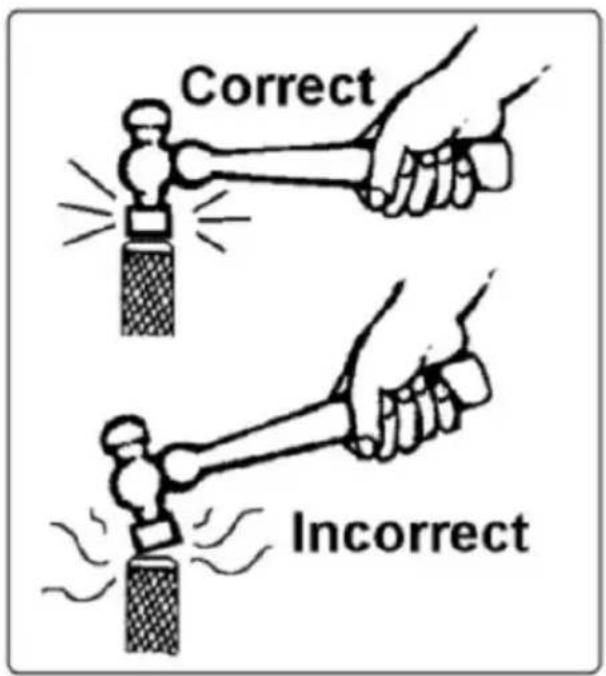

E. Strike the driver squarely on the head - DO NOT hit the tool off or at an angle.

Vevor XC2523 - Instructions - 5

text_image Correct Incorrect

Figure 6

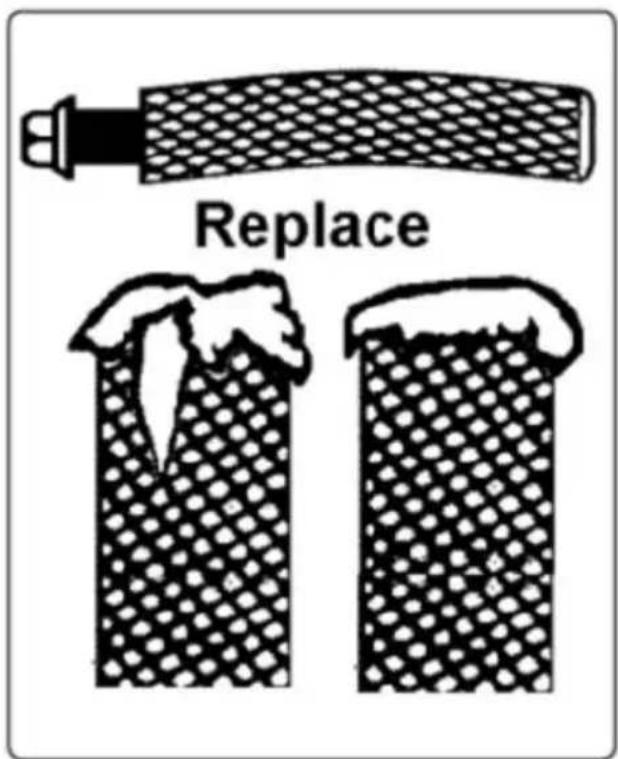

F. DO NOT use the driver if it is bent, chipped, has a mushroom h is otherwise damaged.

Vevor XC2523 - Instructions - 6

text_image Replace

Figure 7

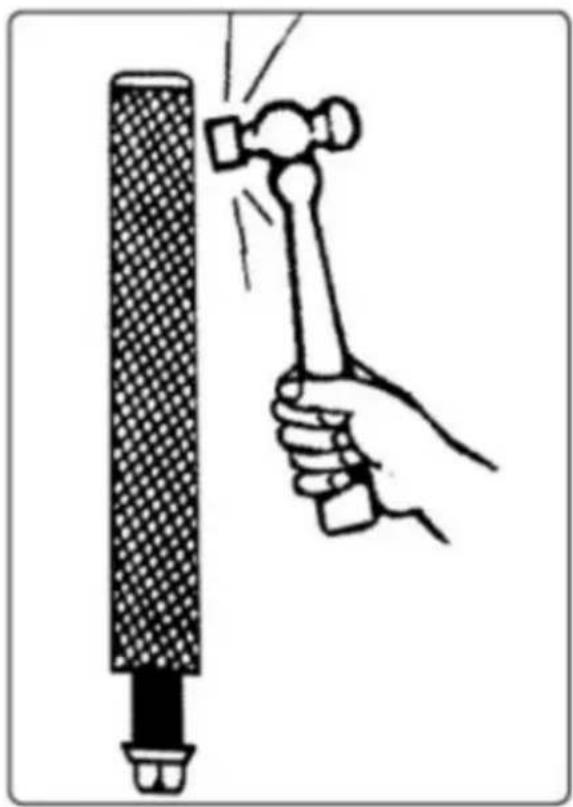

G. DO NOT strike the side of the driver's body.

Vevor XC2523 - Instructions - 7

natural_image Illustration of a hand using a hammer to tighten a textured cylindrical object (no text or symbols present)

Figure 8

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

ECREP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
