Product Type	Price wheel for price labeling or display
Brand	Vevor
Model	UPZP-24SE
Product Dimensions	200 x 600 x 690 mm (L x W x H)
Wheel Diameter	601 mm
Estimated Weight	Approximately 2 kg
Power Supply	None (manual)
Main Functions	Rotating wheel to display prices or information; writable surface with provided marker pen
Material	Plastic, metal (screws, nuts)
Package Contents	Base, pole, wheel, magnetic cover, marker pen, eraser, pointers, screws, wing nuts, washers, screw covers
Assembly	Requires simple assembly: attaching the pole to the base, mounting the wheel, fixing the pointers and magnetic cover
Maintenance and Cleaning	Clean with a damp cloth; wipe the wheel with a dry cloth
Safety	Do not let children play with it; use on a flat and stable surface; inspect before each use
Spare Parts and Repairability	Spare parts available (screws, wing nuts, etc.); contact Vevor support
Warranty	Electronic warranty certificate available at www.vevor.com/support
Intended Use	Price display in shops, stands, or presentations

Frequently Asked Questions - UPZP-24SE Vevor

How to assemble the Vevor UPZP-24SE price wheel?

Follow the steps in the manual: attach the pole to the base with screws and wing nuts (step 1), remove the plastic screws from the wheel and assemble the small screws around the wheel (steps 2-3), then attach the wheel to the pole with the wheel screw, washer and wing nut (step 4). Finally, place the magnetic cover and pointers (step 5).

What tools are needed for assembly?

No additional tools required; screws and wing nuts are hand-tightened. It is recommended to wear gloves and safety glasses.

How to clean the price wheel?

Clean the frame with a damp cloth and wipe the wheel (writable surface) with a dry cloth. Use the provided eraser to erase marker marks.

Can I use the price wheel outdoors?

It is recommended to use it indoors on a flat, hard surface. Exposure to weather may damage plastic components.

What is the load capacity of the wheel?

The product is designed to display light prices (sheets or markers). Do not place heavy objects on the wheel.

Can I get spare parts?

Yes, contact Vevor technical support via www.vevor.com/support to order screws, wing nuts, or other parts.

Does the product come with a warranty?

Yes, an electronic warranty certificate is available on the Vevor website. Keep the proof of purchase.

How to replace the marker pen?

Use a standard whiteboard marker. Any dry-erase marker works.

Does the wheel turn freely?

Yes, once properly assembled, the wheel rotates freely on its axis. Be careful not to overtighten the wing nut to avoid blocking rotation.

Can I mount the price wheel on a wall?

No, this model is designed to be placed on a flat surface (table or counter). It is not intended for wall mounting.

USER MANUAL UPZP-24SE Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PRIZE WHEELS

USER MANUAL

MODEL:UPZP-18SE,UPZP-24SE

We continue to be committed to provide you tools with competitive price. "Save Half, "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PRIZE WHEELS

MODEL: UPZP-18SE,UPZP-24SE

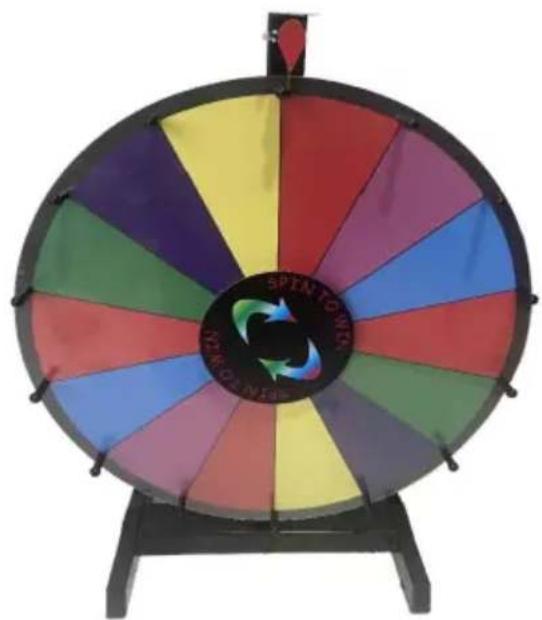

Circular prize wheel with multicolored segments and a 'SPIN TOWNING' logo at the center (no readable text beyond the emblem)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Prize Wheels.
8. Store the tabletop prize wheels in a cool dry environment.
9. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. This product is not a toy. Do not allow children to play with or near this item.
2. Clean hardware with a damp cloth and wipe dry. Clean the wheel with dry cloth.
3. Use only on a flat, level, hard and smooth surface capable of safely supporting the Prize Wheels.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PRODUCT PARAMETER

Model UPZP-18SE UPZP-24SE
Wheel Size 457mm 601mm
Product Size 200*450*550mm 200*600*690mm

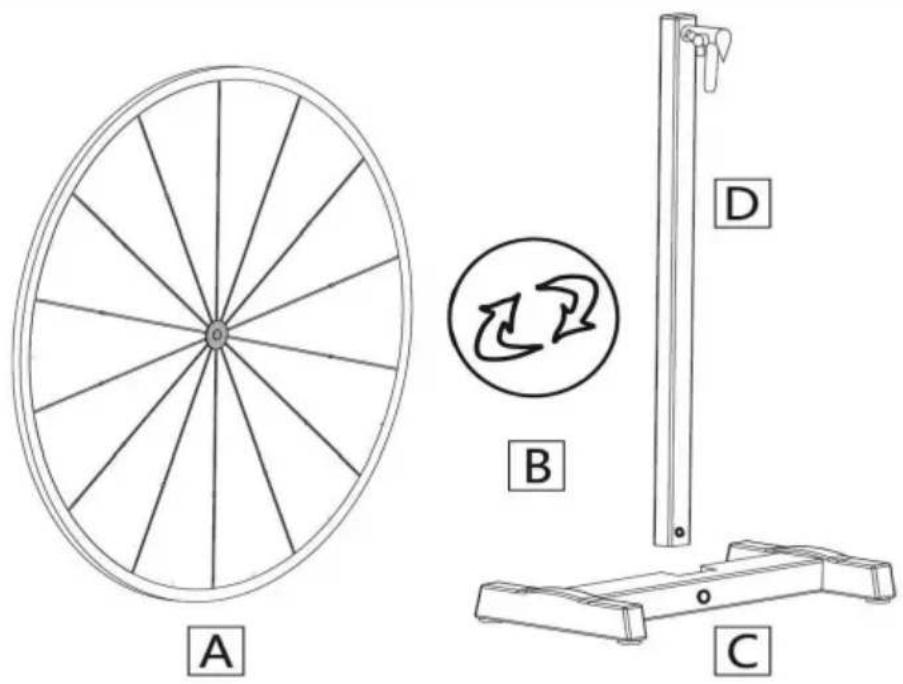

PARTS LIST

Technical line drawings of bicycle wheel components (A, B, C, D) with no text or symbols on the diagram itself

B- Magnetic Center Cover

C- Base

D- Post

E- Marker Pen

F- Whiteboard Eraser

G- Wheel Screw

H- Wheel Wing Nut

I- Wheel Washer

J- Base Screws

K- Base Wing Nuts

L- Base Washers

M- Small Screws (one replacement)

N - Small Nuts (one replacement)

O- Pointers

P-Screw Cover

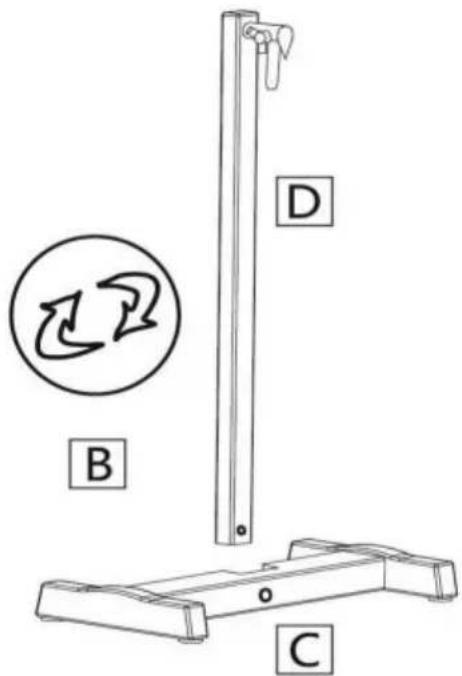

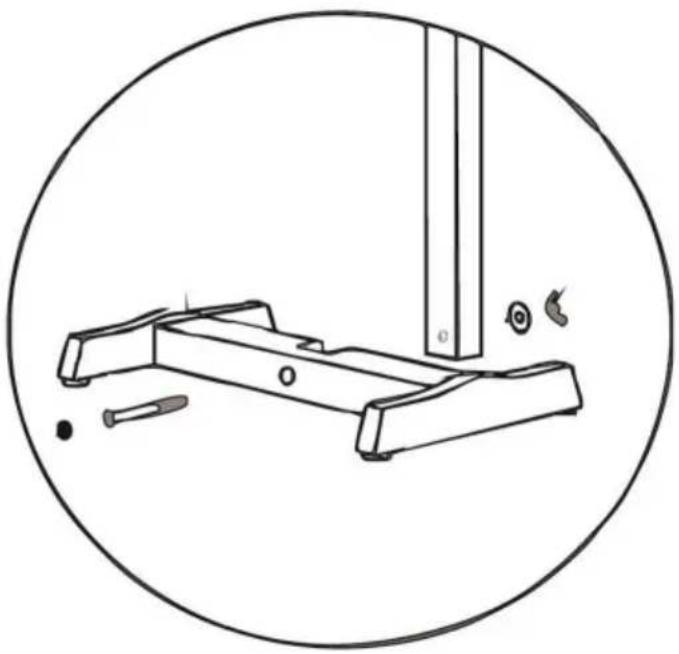

STEP 1: Assembling the Base

Align the Post into the groove of the Base, and then attach them with two Base Screws and matched Base Washers & Base Wing Nuts.

Technical line drawing of a mechanical assembly with a vertical post and two small components, enclosed in a circle (no text or symbols)

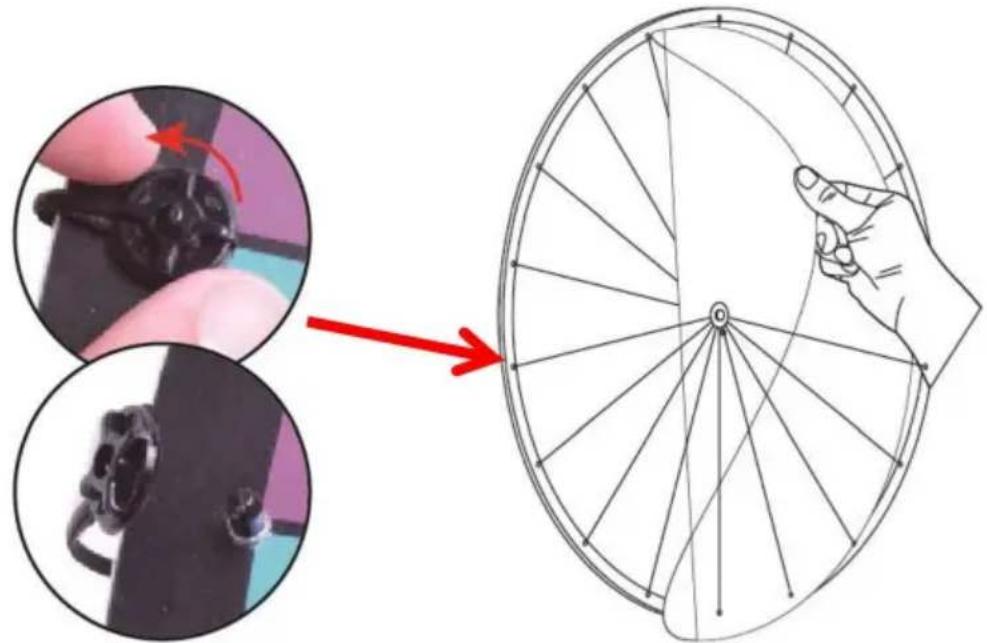

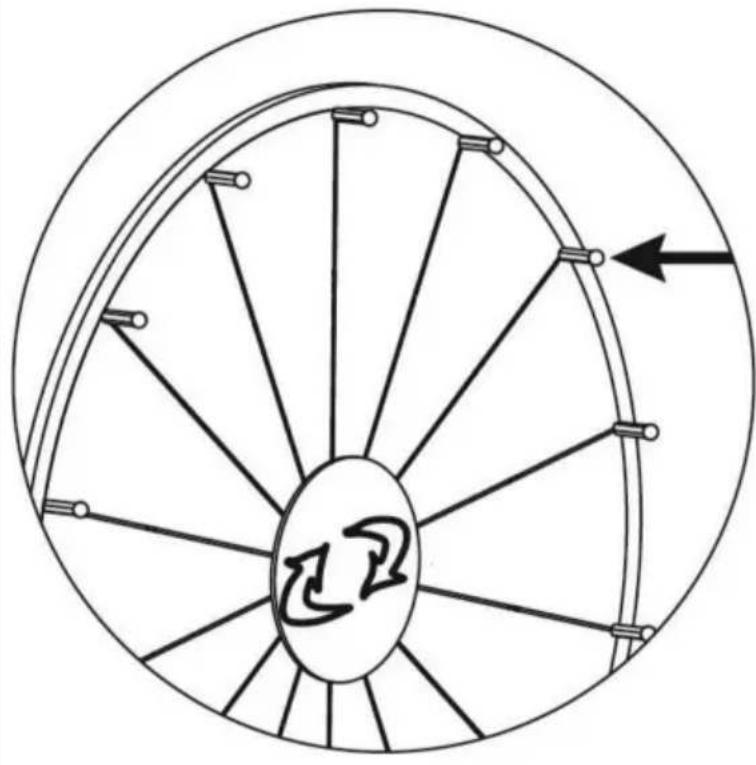

STEP 2: Assembling the Wheel

Remove the small plastic screws which are assembled on the wheel primarily at first. Then, peel off the plastic file from the wheel.

STEP 3: Assembling the Wheel


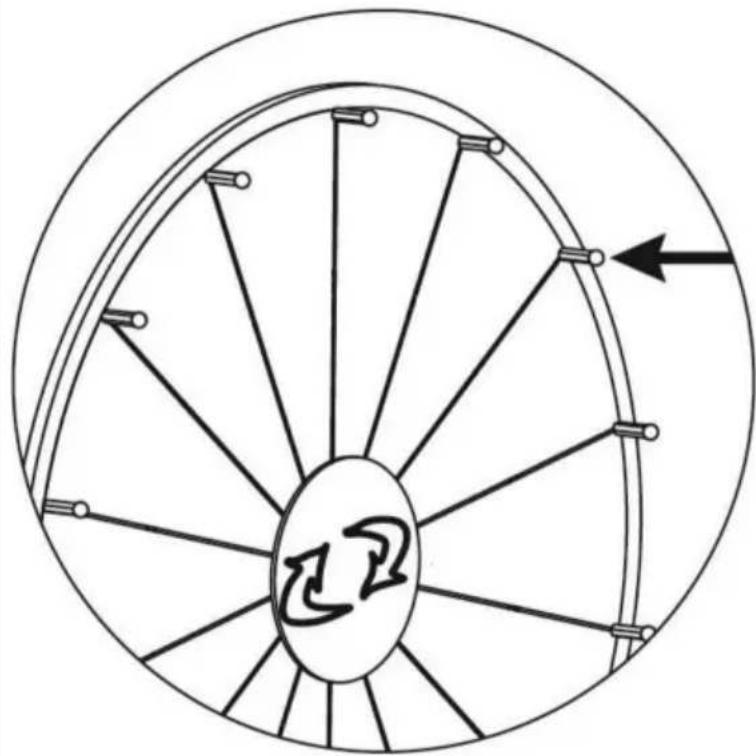

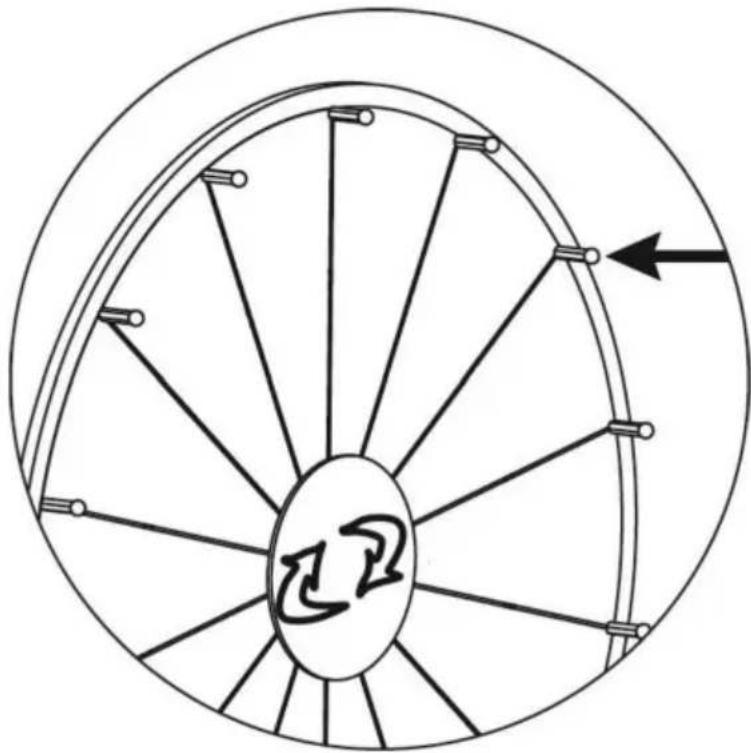

Insert the small screws into the holes around the wheel and assemble them with matched small nuts.

STEP 4: Attaching the Wheel to the Post

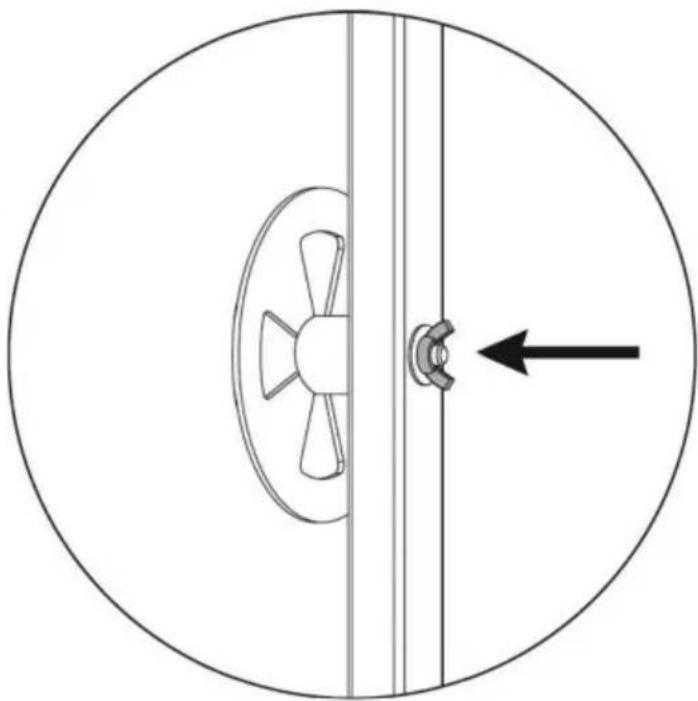

Attach the Wheel to the Post with Wheel Screw and matched Wheel Washer & Wheel Wing Nut.

Diagram of a fan or impeller with a central hub and directional arrow, enclosed in a circle (no text or symbols)

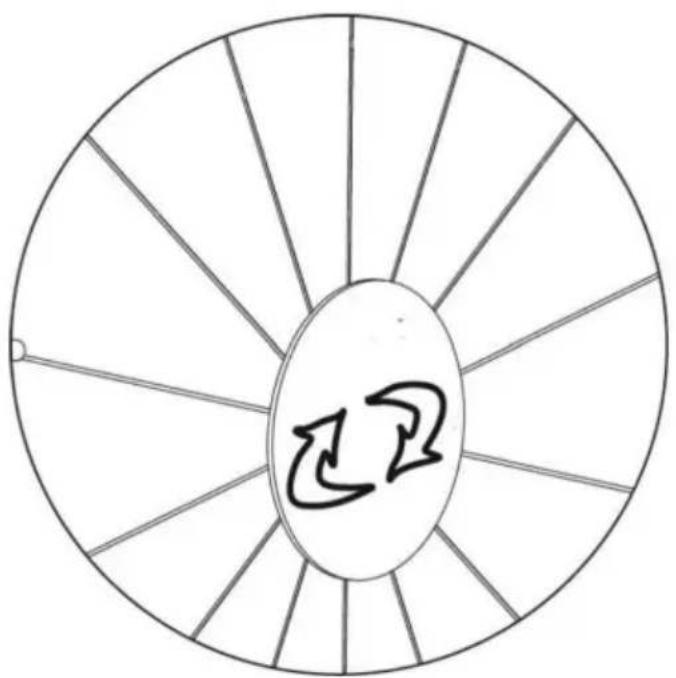

STEP 5: Attaching the Pointers

Put the Magnetic Center Cover on the front of the Wheel.
