USER MANUAL M021A-2 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
BASKETBALL HOOP STAND
MODEL:M021A-2
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and dose not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE

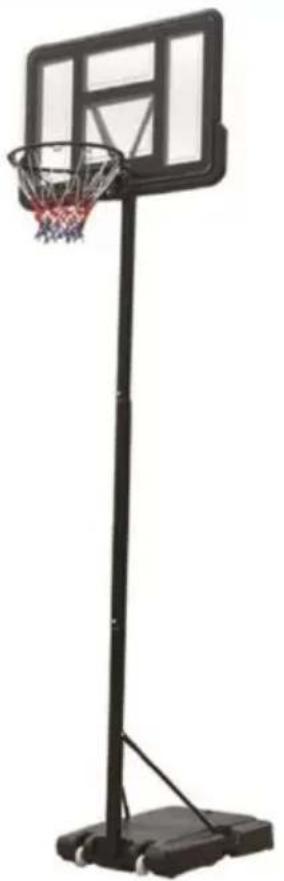

BASKETBALL HOOP STAND
MODEL:M021A-2
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
INSTRUCTIONS
Thank you very much for choosing this Basketball Hoop Stand. Please read all of the instructions before using it. The information will help you achieve the best possible results.
WARNING:
Please read this manual carefully before using the product. Failure to may result in serious injury.
ASSEMBLY PRECAUTIONS
- Assemble needs to follow these instructions. Incorrect assembly can a hazard.
- Wear safety goggles and heavy-duty work gloves during assembly.
- Do not assemble when tired or under the influence of alcohol, drug medication.
- Weight capacity and other product capabilities only apply to a who correctly assembled product.
- Keep the assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
- The weight of plate is heavy; pay attention to the installation to a hurting it, and if necessary, find someone to assist with the installation
- When installing the bracket, it is best to put some water in the ba to avoid the collapse of the backboard.
- Assembly should be done by adults only.
- Do not hang from the rim or climb on the pole. Do not climb on base or structure in general, as this could result in serious injuries.
- WARNING: This product contains small parts. If swallowed, it will a choking hazard. Keep these small parts away from children when assembling!
USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM
TIPPING:
- Use as intended only. Do not sit or stand on the product.
- Inspect before every use. Do not use it if parts are loose or dan
- Use on flat, level, and hard surfaces only.
- If any parts are missing, broken, damaged, or worn, stop using this until repairs are made and factory replacement parts are installed.
- Adjustment and moving of the basketball set must be carried out by adults.
- Always check the unit to ensure the base is full of water or sand, all fittings and hardware are tight before each use.
- Do not allow water to freeze in the base.
WARNING:
For your safety, please do not dunk or hang from the basketball hoop.
SAVE THESE INSTRUCTIONS
| Parts list | |||
| No. | Parts | Qty | Remark |
| B1,B2,B3 | Screw M8x35mm | 2 | connect board,ring and board brack |
| B4,B5,B6,B7 | Screw with spring M8x110mm | 2 | connect board,ring and board brack |
| C1,C2 | Screw M8x16mm | 2 | fix the top of the bracket and the |
| D1,D2,D3 | Screw M8x20mm | 2 | connect base and pole brace |
| E1,E2,E3 | Screw M8x90mm | 1 | connect bottom pole and pole bra |
| F1,F2,F3 | Screw M10x85mm | 6 | connect board bracket and top pole |
| connect top pole and middle pole connect middle pole and bottom pole | |||
| G | Wheel | 2 | |
| I | Base cap | 1 | |
| J | Ring | 1 | |
| K | Board Bracket | 1 | |
| L | Net | 1 | |
| M | Board | 1 | |
| U1 | Pole Brace-right | 1 | |
| U2 | Pole Brace-left | 1 | |
| 0 | Wheel Shaft | 1 | |
| W | Top Pole | 1 | |
| X | Middle Pole | 1 | |
| Y | Bottom Pole | 1 | |
| S | Base | 1 | |
Assembly Steps
-
Open the carton, find out all the parts listed on page 4, two adults uired for assembly.
-

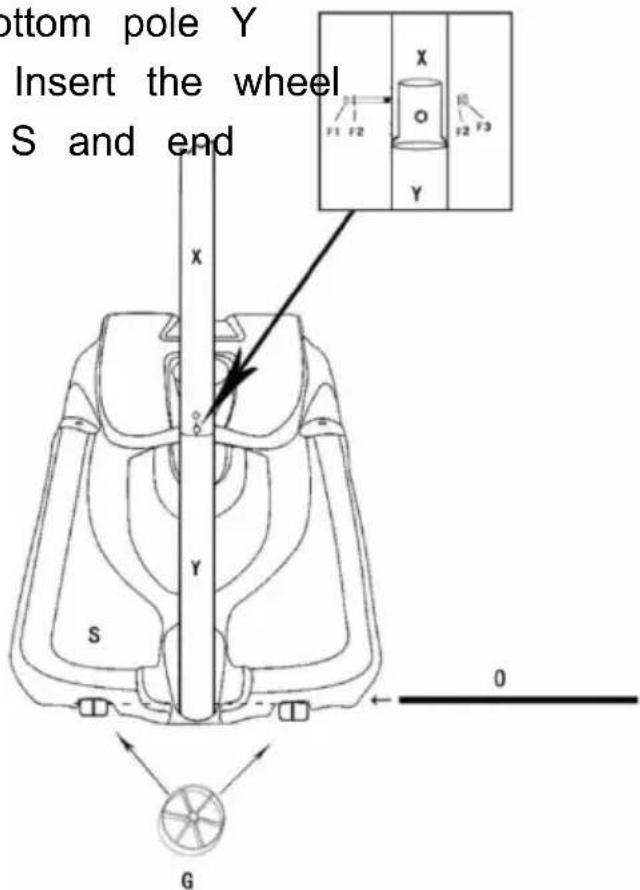

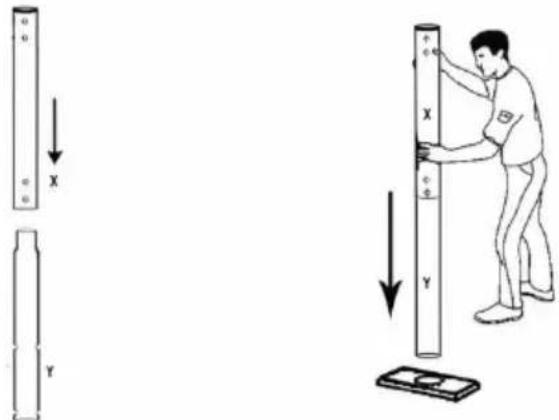

Insert the top necked part of bottom pole Y into the bottom of the pole X;
When there are burrs or deformation at the pole connection, a piece of cardboard or wooden board can be placed at the bottom of the bottom to knock the necked part of the pole into place.


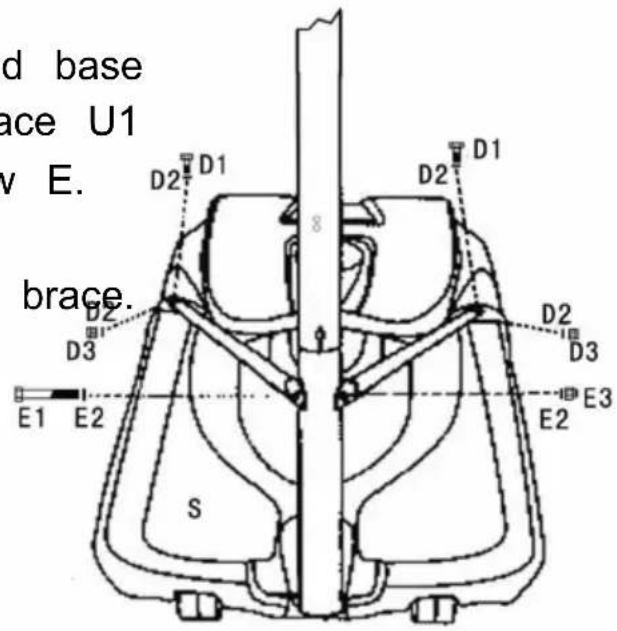

d base race U1 v E. brace. D2 D1 8 D2 D1 D2 D3 D3 E1 E2 E2 E3 S- Connect ring J, board M and board bracket K by screw B. Note that screw with spring B4-7 must be connected to the two holes on the ring.


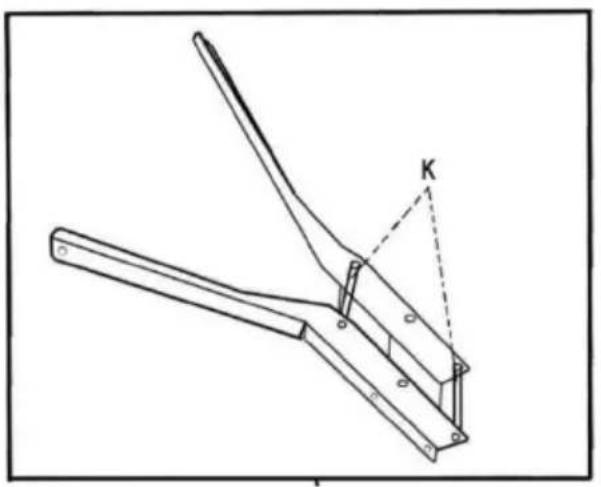

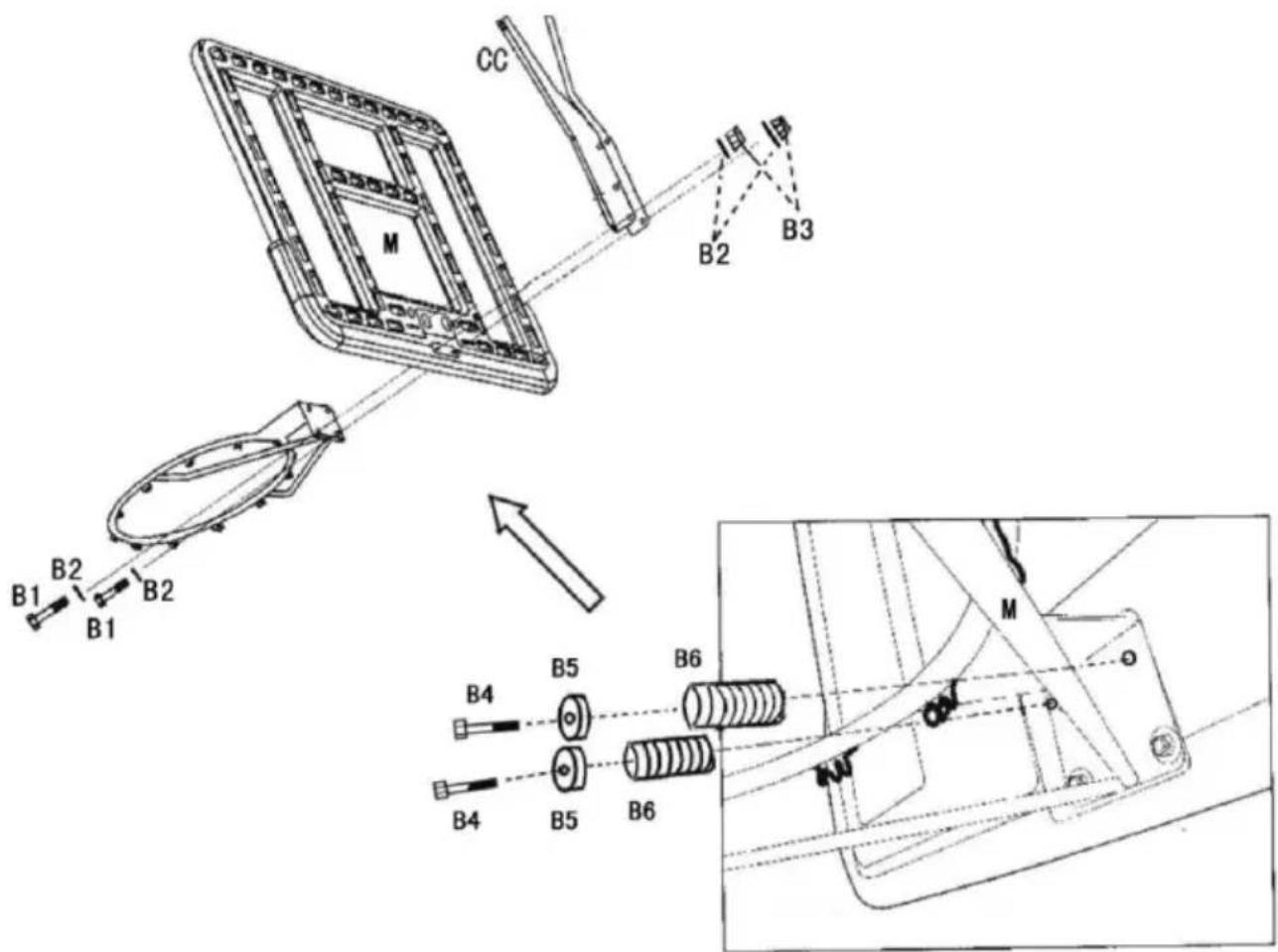

CC M B2 B3 B1 B2 B1 B2 B4 B5 B6 B4 B5 B6 M- Fix the top of board bracket K behind the board M by screw C and tigh


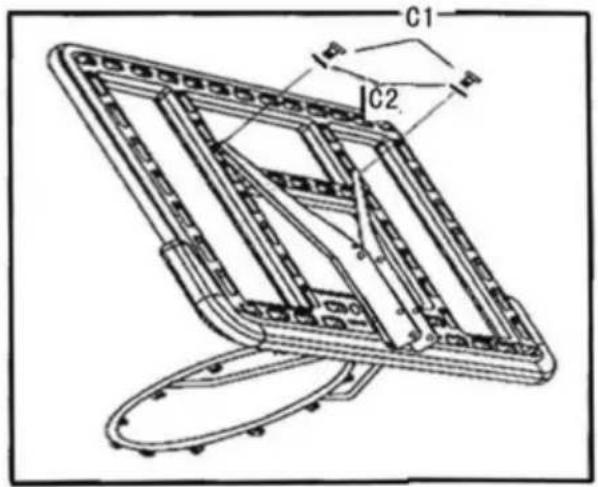

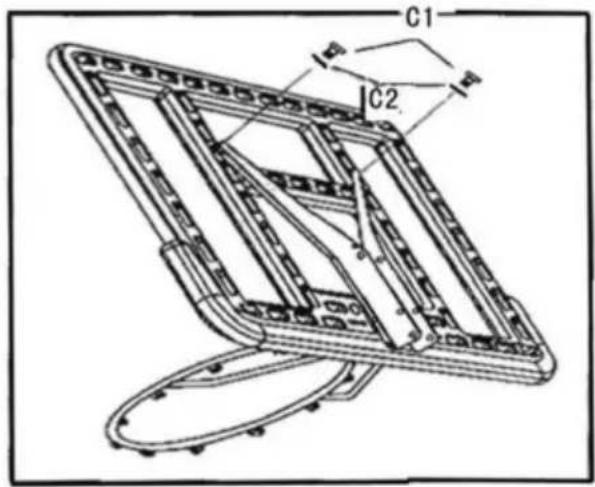

C1 C2- Fix the top of top pole W in the middle of board bracket K by so


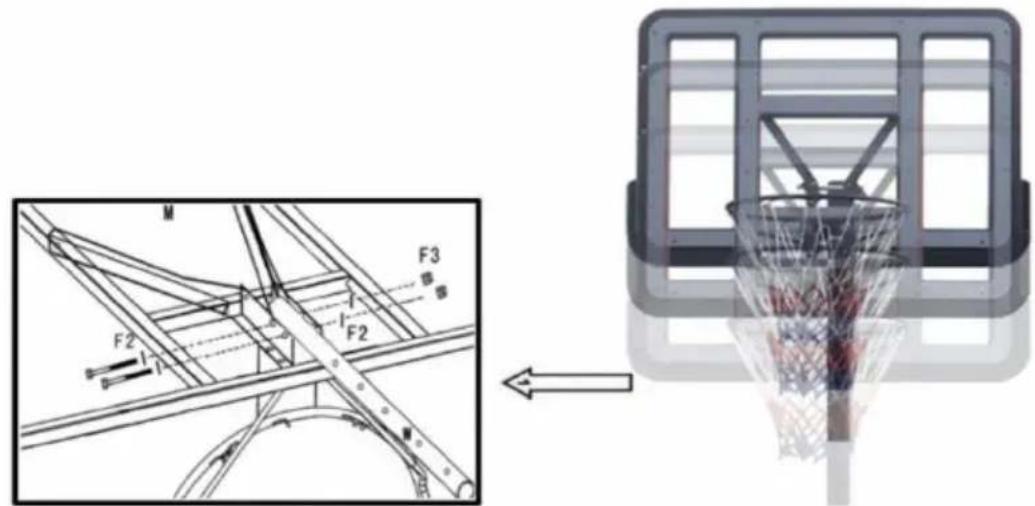

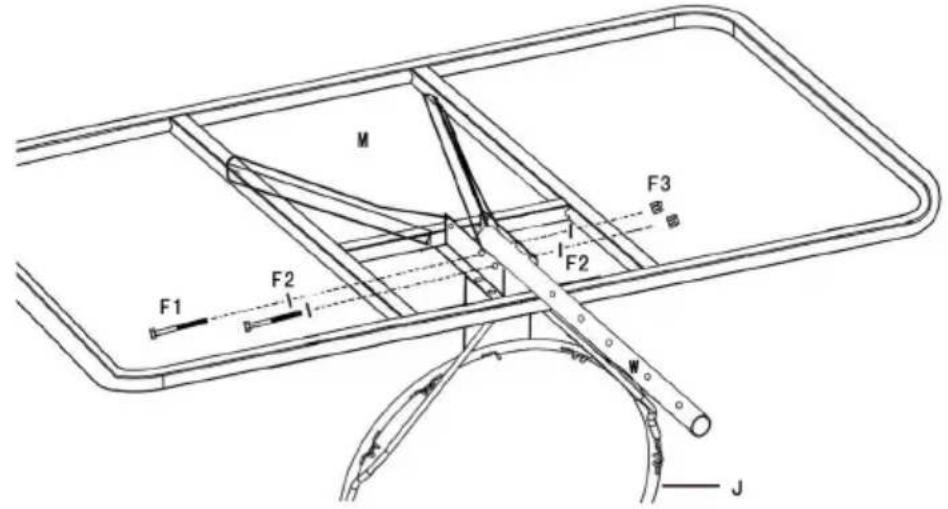

M F1 F2 F2 F3 JInsert the installed top pole W into the middle pole X, fix them by :


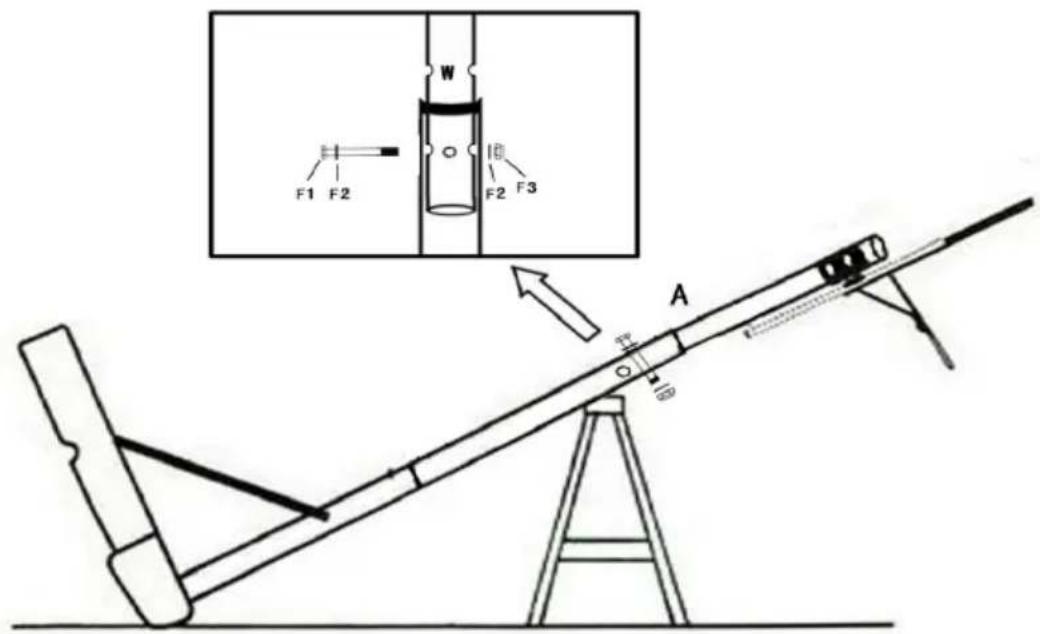

F1 F2 W F2 F3 AAdjust the product height with screw F.


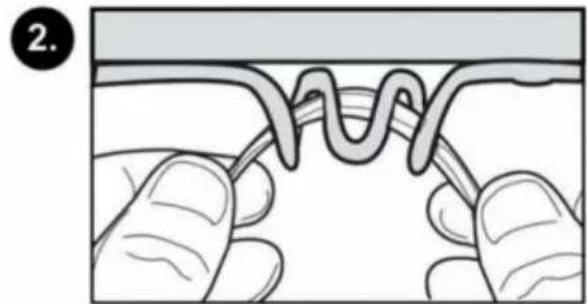

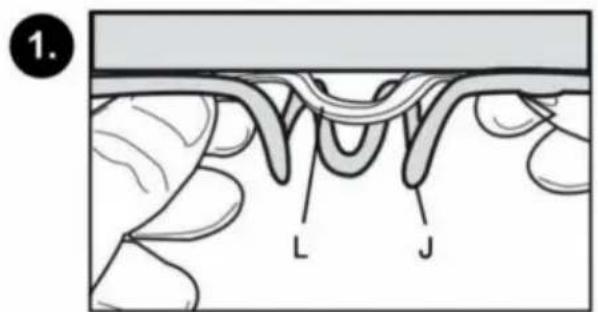

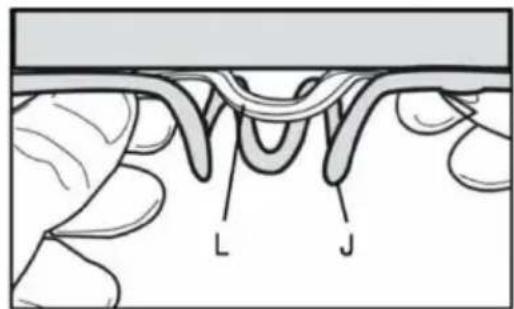

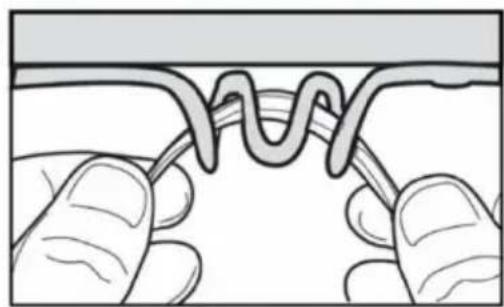

Install Nets
Illustration of hands tying a knot around a string (no text or symbols)- For safety reason, sand instead of water is recommended to fill up the base during the sub-freezing weather.

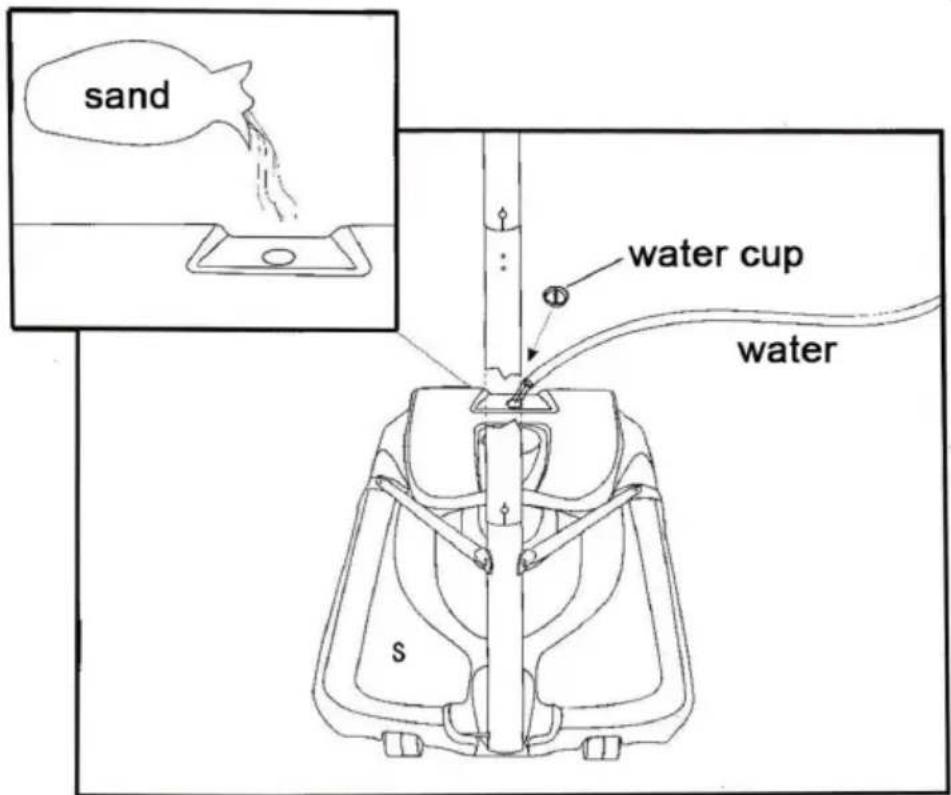

Please note that sand will not be poured out once filled in the base
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Technical Support and E-Warranty Certificate
www.vevor.com/support
Made In China
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical line drawing of a mechanical tool or bracket assembly with labeled point K (no text or symbols beyond the label)
Technical diagram showing structural components and a basketball net with force vectors F2, F3, alongside an inset schematic of the structure.8.Installer des filets


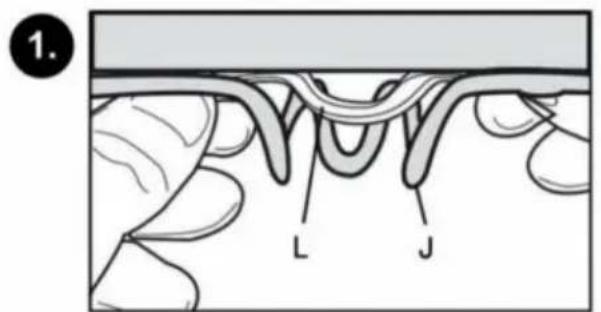

1. L J
