Product Type	Tire Clamp Lock
Brand	Vevor
Model	QS-001-B
Maximum Opening Width	15 inches / 38 cm
Total Length	29.5 inches / 75 cm
Suction Cup Diameter	12 inches / 30 cm
Applicable Tire Section Width	≤15 inches / 38 cm
Applicable Tire Section Height	≤6.3 inches / 16 cm
Number of Suction Cups (per kit)	2
Number of Keys Provided	4
Main Material	Steel
Usage	Securing tires during towing or parking
Package Contents	2 locks, 2 suction cups, 2 nuts, 2 rockers, 4 keys
Maintenance	Clean with a damp cloth; avoid corrosive products
Safety	Do not overtighten; do not use as sole brake; keep out of reach of children
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Country of Manufacture	China (Shanghai)
Repairability	Spare parts available upon request; contact technical support

Frequently Asked Questions - QS-001-B Vevor

How to install the Vevor QS-001-B Tire Clamp Lock?

Follow the steps: 1. Install the suction cup on the wheel. 2. Open the lock using the key. 3. Adjust the arm to the appropriate width. 4. Lock the suction cup onto the wheel. 5. Swing the arms to tighten. 6. Lock the cap with the key. Refer to the manual for details.

What is the maximum compatible tire size?

The product accepts tires with section width ≤ 15 inches (38 cm) and section height ≤ 6.3 inches (16 cm).

Can I use this device as a main brake?

No. This lock is not a brake. It must be used with other safety devices such as wheel chocks or blocks to immobilize the vehicle.

Is the product safe for tires?

Yes, as long as you do not overtighten the lock. Excessive tightening could damage the tire or the lock, and such damage is not covered by the warranty.

What if a part is missing or damaged?

Contact Vevor technical support at www.vevor.com/support. Provide the model number QS-001-B and a description of the part. You can also order spare parts.

How to maintain the tire clamp lock?

Clean regularly with a damp cloth to remove dirt. Avoid harsh chemicals. After use in wet conditions, dry it to prevent rust.

Is it suitable for heavy-duty vehicles?

The product is designed for tires with width ≤ 15 inches. For larger tires, use a different model. Check the specifications before use.

How many locks are included in the package?

The QS-001-B model includes two complete locking units, with two suction cups, two nuts, two rockers, and four keys.

Can I use this product as a toy?

No. This is not a toy. It is a vehicle safety tool. Keep it out of reach of children and follow all safety instructions.

What is the warranty for this product?

Vevor offers an electronic warranty. Register your product at www.vevor.com/support to activate the warranty. Technical support is also available via this site.

USER MANUAL QS-001-B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

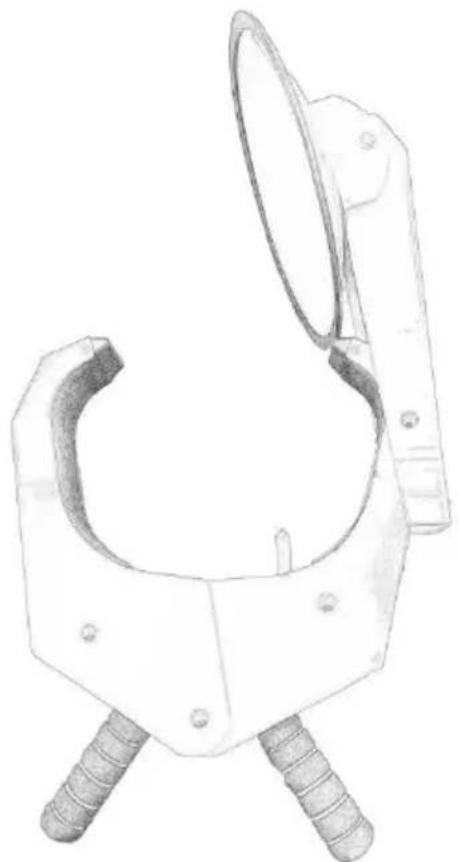

TIRE CLAMP LOCK

MODEL:QS-002/QS-001-B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. Yo are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

TOUGH TOOLS, HALF PRICE

TIRE CLAMP LOCK

MODEL:QS-002/QS-001-B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Read and understand this entire manual before operating and servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.

Base safety rules

1. Do not over tighten the tire clamp lock. Damage can be done to tire clamp lock. This damage is not covered by the warranty.
2. Do not rely on this tire clamp lock as a brake. While it will assist braking, other independent devices such as blocks or wedges should be used.
3. Adhere to all Department of Transportation (D.O.T.) requirements while using this product.
4. Use common sense when working. Stay alert and concentrate when setting up and using this product. Never work while under the influen alcohol, drugs or medications.
5. This product is not a toy. Keep it out of reach of children. While this product keeps work area clean and well lighted, keep children out of work area.
6. Dress appropriately. Never wear loose fitting clothing or jewelry when using. Contain long hair, and keep hair, clothing and gloves away from moving parts.

SAVE THESE INSTRUCTIONS

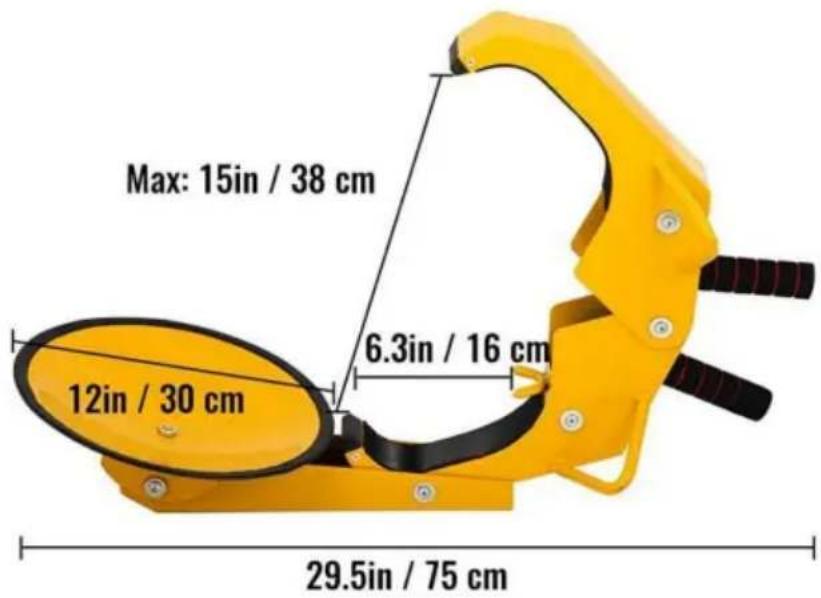

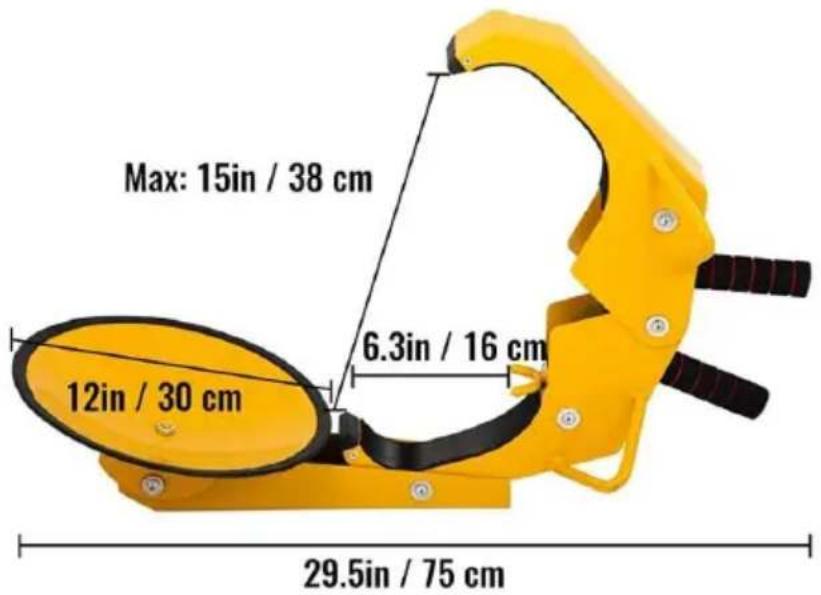

PRODUCT SPECIFICATIONS:

Tire section height

Applicable Range:

Tire section width ≤ 15.0in / 38cm

Tire section height ≤ 6.3in / 16cm

Tire section width

Max Opening Width:	15in/38cm
Entire Length	29.5in/75cm
Sucker Diameter	12in/30cm
Applicable Tire Section Width	≤15in/38cm
Applicable Tire section height	≤6.3in/16cm

SIMPLE INSTRUCTION

Step1:Install the sucker

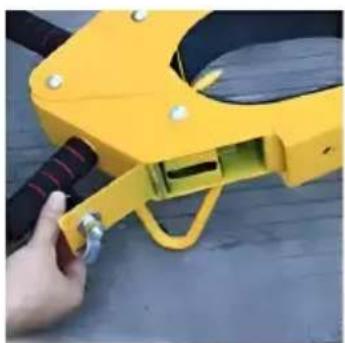

Step2: Open the lock cap by the key

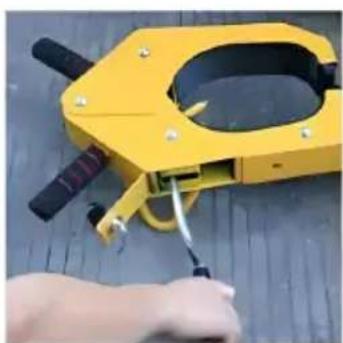

Step3: Shake the lock arm to the appropriate width with a swing

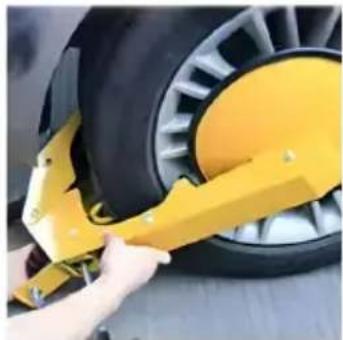

Step4: Lock the suckle lock into the whee

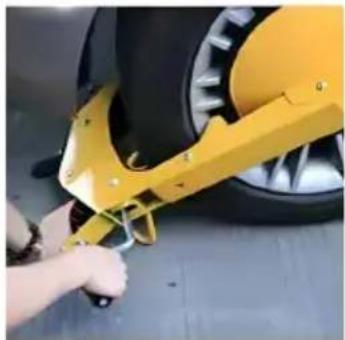

Step5: Swing your arms tightly into a tight state

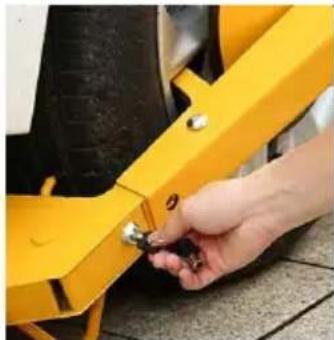

Step6: lock the cap by the key

PACKAGE INCLUDE

No	Components	Picture	Q'ty
			Fits model #
			QS-002	QS-001-B
1	Lock		1pcs	2pcs
2	Sucker		1pcs	2pcs
3	Nut		1pcs	2pcs
4	Rocker		1pcs	2pcs
5	Key		2pcs	4pcs
