USER MANUAL SUO-5529L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TABLE SOCCER

MODEL:SUO-5529L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: SUO-5529L

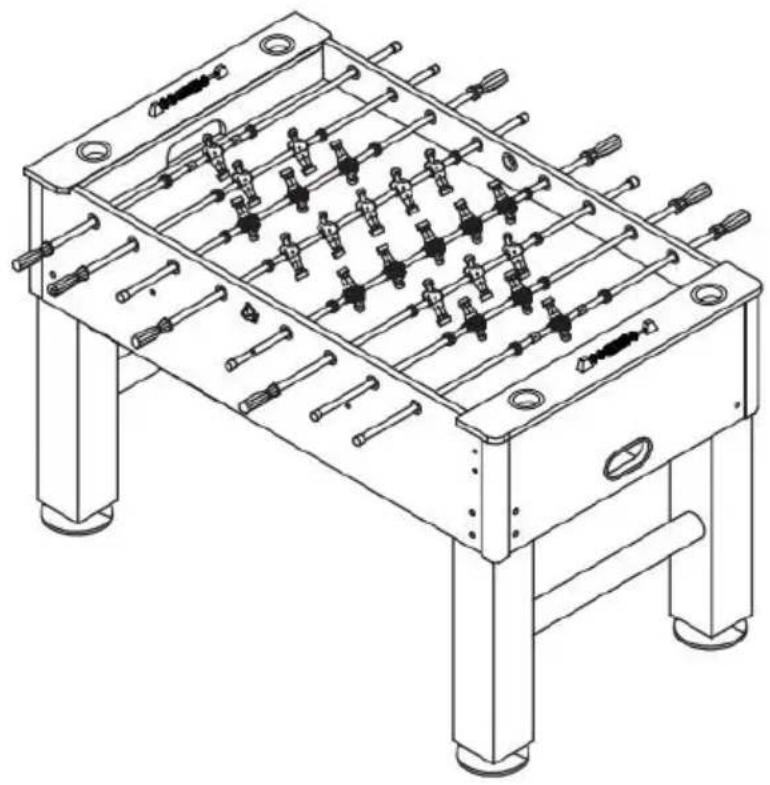

Technical line drawing of a football table with clubs and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use manual will outline safety warnings and precautions, operating, maintenance. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Can and common sense are not built into this product, since we believe uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.

2. Do not assemble when tired or when under the influence of alcohol drugs or medication.

3. Weight and elastic and other product properties are only applicable correctly and completely assembled products.

4. Keep the assembly area clean and well-lit.

5. Keep bystanders out of the area during assembly.

6. This is a equipment, not a toy, it needs to be used under the g a professional. Do not allow children and pets to play alone or appro this item.

7. Use as intended only. Do not sit or stand on the product.

8. Inspect before every use. Do not use it if parts are loose or dan

9. Do not apply this unit to any other purposes than the indicated u

10. Do not use it for commercial purposes.

11. Do not clean it with any abrasive material.

12. Never leave it unattended while in use.

13. Pet urine and feces can damage the product, please keep away.

14. Do not place the product on or near hot air, electric burners or 15. Young children should be supervised to ensure that they do not with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes falls. People or pets hanging on the product will cause injury or death

WARNING: Choking Hazard--Toy contains small balls and/or small parts. Not for children under 3 years.

IMPORTANT! Please keep your instructions. Before attempting assembly, please read through this instruction book to familiarize yourself with all the parts and assembly steps. We recommend that two adults assemble the football table. Please refer to the parts list below and be that all parts have been included.

PARTS LIST

1SIDE BOARD2EA	2GOAL ENDBOARD2EA	3SOCCERPLAYFIELD1EA	43.5X18MM FLATHEAD SCREW4EA	5SUPPORT BRACES3EA	6[Z7Z2]LEFT LEG2EA
7[7TZ2]RIGHT LEG2EA	88X35MM LEGBOLT16EA	922X8.5MMWASHER16EA	10[X047]6X65MM BOLT8EA	11[4VAT]18X6.5MM WASHER8EA	123.5 X 35MMWASHER HEADSCREW16EA
133.5X12MM WASHERHEAD SCREW16EA	143.5X14MM FLATHEAD SCREW2EA	153 PLAYER ROD4EA	162 PLAYER ROD2EA	17ALLEN WRENCH1EA	18[80HD]5 PLAYER ROD2EA
19PLAYER (WHITE)11EA	20PLAYER (BLUE)11EA	214X23MM ROUNDHEAD SCREW26EA	22[KT08]NUT26EA	23ALLEN WRENCH1EA	24STOP RING4EA
25RUBBER BUMPER16EA	26BALL ENTRY CUP2EA	27SCORER2EA	28LEG LEVELER4EA	29SOCCER BALL2EA	30HAND GRIP8EA
31END CUP8EA	32[BC44]CORNER4EA	33CHROME BAR2EA	34SUPPORT RODNUT6EA	35[27BD]SUPPORT ROD3EA	36GOAL BOX2EA
37CUP HOLDER4EA	38HAIRY BALL2EA

ASSEMBLY INSTRUCTIONS:

We recommend that two adults work together to assemble this g

STEP1: Open the 2 cartons of your new football table close to the p where you are actually going to use the table.

STEP2:Remove all the contents from inside the cartons and verify that you have all the listed parts as shown on the parts list.We suggest use the bottom carton as a clean flat working area to protect the table.Carefully cut or tear the four carton corners from the largest car that the bottom carton is now your work area.

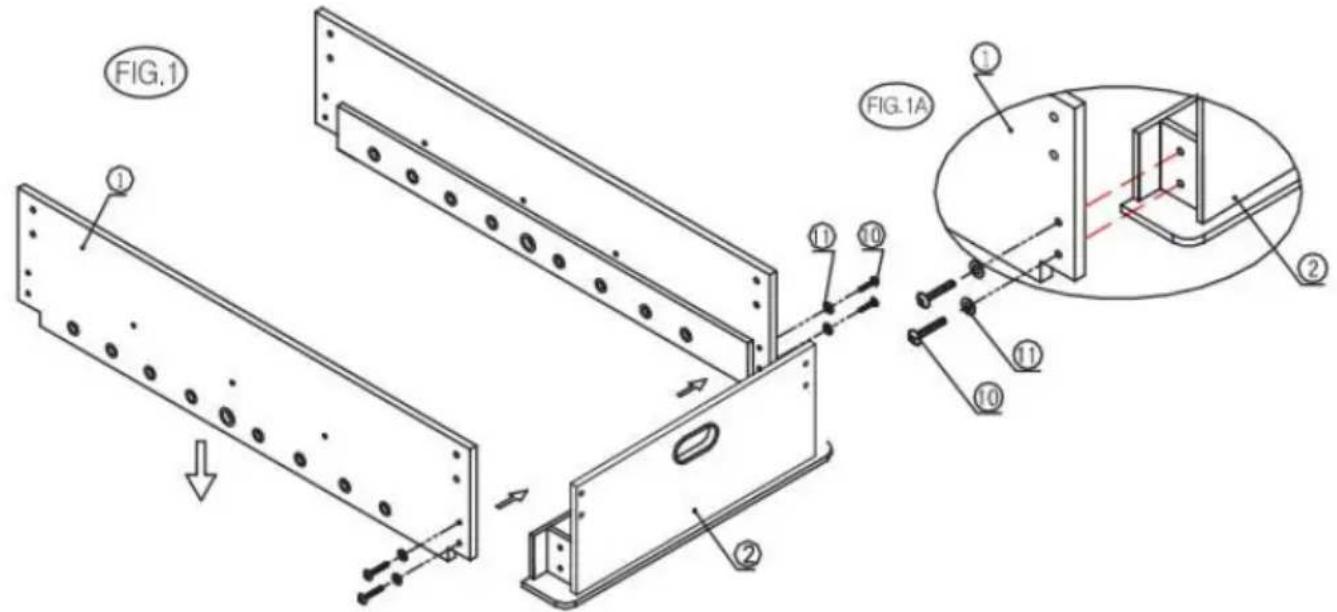

STEP3: Attach one goal end board (#2) between the side board (#1) using two bolts (#10) and two washers (#11) per side as shown in FIG 1 and NOTE: Do not tighten the screws too fast now, in a later step you will to do so.

FIG.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ FIG.1A

STEP4: Repeat the step to attach the other goal end board (#2) to side board (#1), as shown in FIG 2.

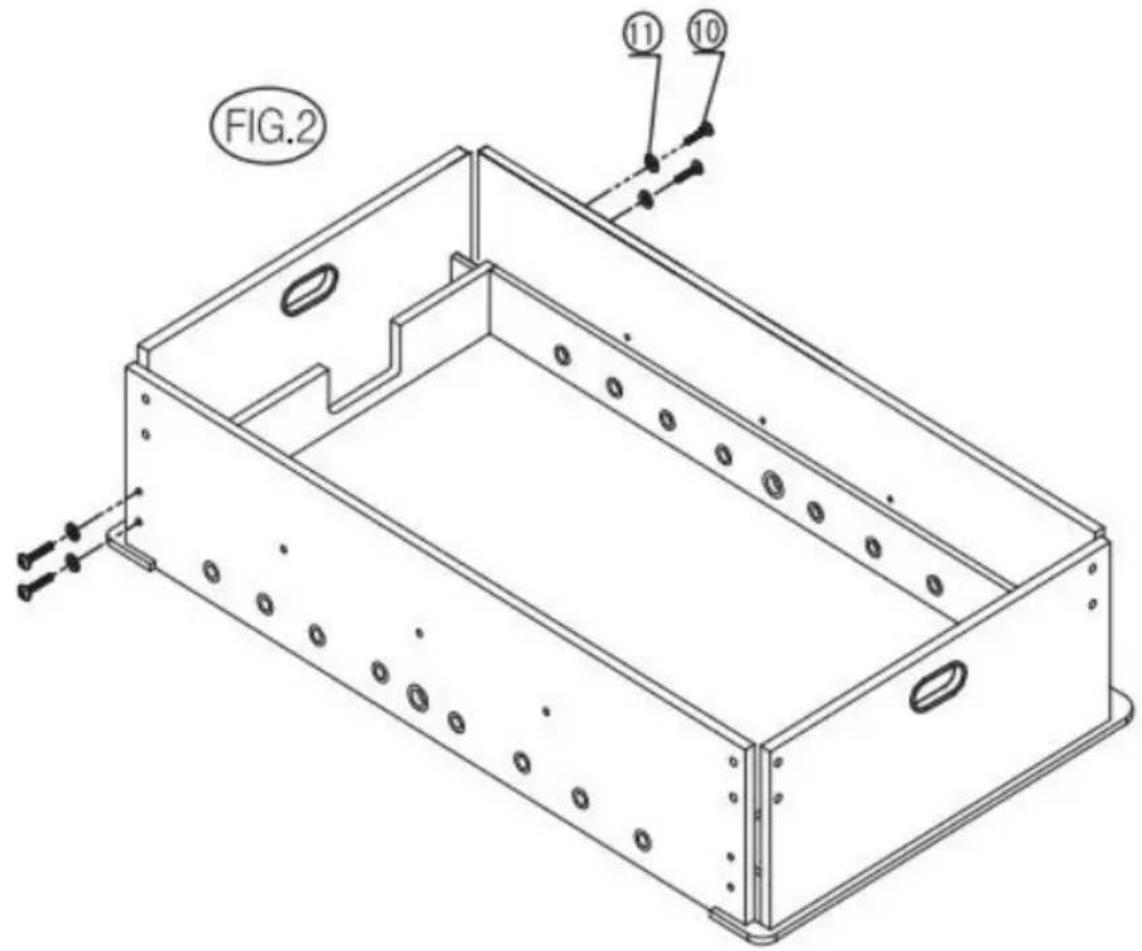

NOTE: Be sure that two side boards (#1) and goal end boards (#2) are square. Now tighten all the connections from step 3 and 4.

FIG.2 ⑪ ⑩

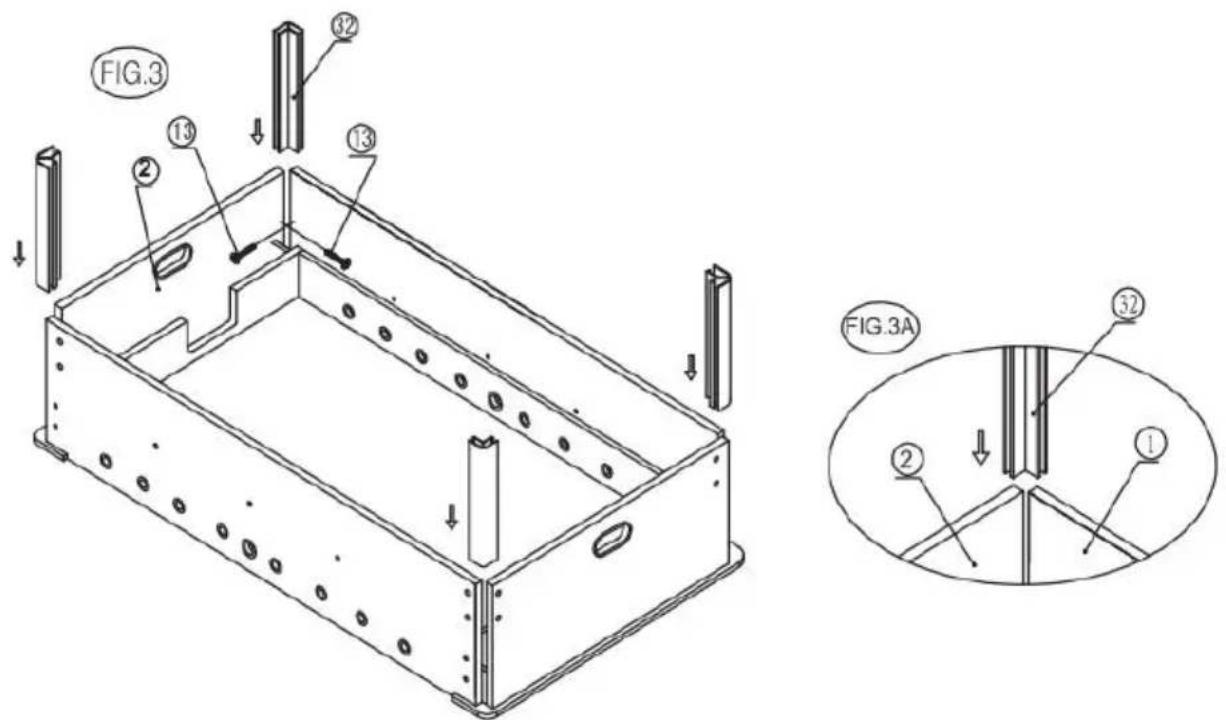

STEP5: Slide the four comers(#32) into the groove of the side Board(#1) and end Board (#2), Fix the Corners (#32) to the Boards by two Screws (#13) per Corner as shown in FIG 3A.

FIG.3 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ FIG.3A

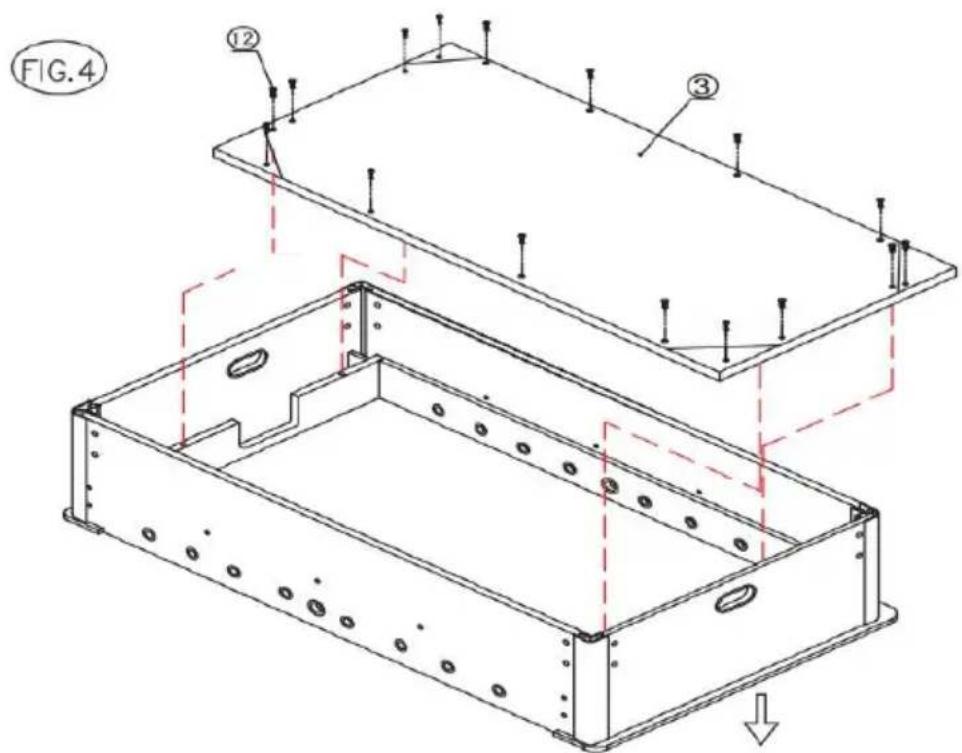

STEP6: Fix the soccer play field (#3) on the Side Board(#1) and goal e boards (#2) using Sixteen washer head screws(#12) as shown in FIG.4.

FIG.4 ⑫ ③

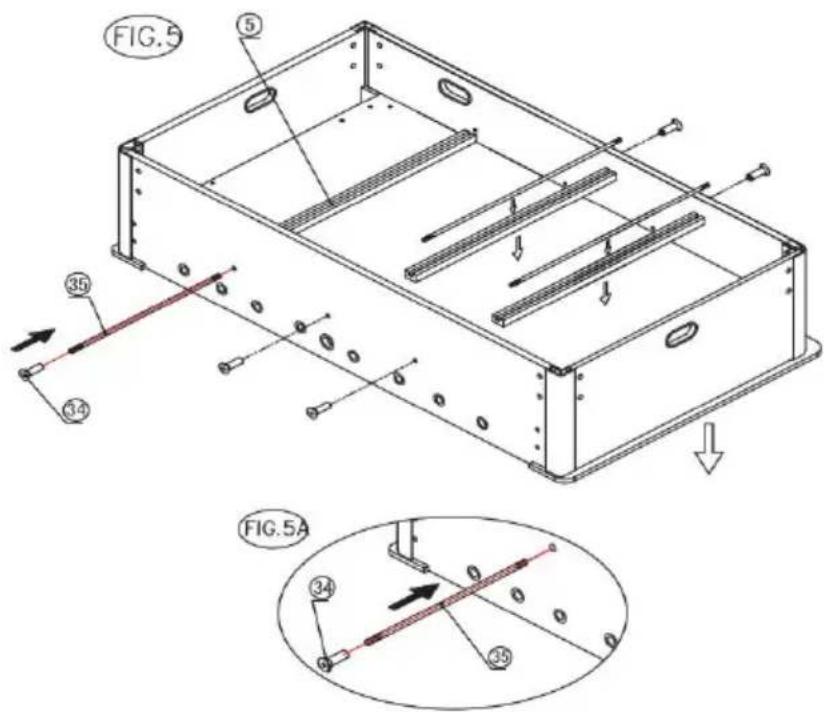

STEP7: Place the support braces (#5) on the playfield (#3) as shown in FIG.5. Then place the support rods (#35) in the groove of the support

braces (#5), attach them using six of the support rod nuts (#34) as shown. FIG 5 and 5A.

FIG.5 ⑤ ③5 ③4 FIG.5A ③4 ③3

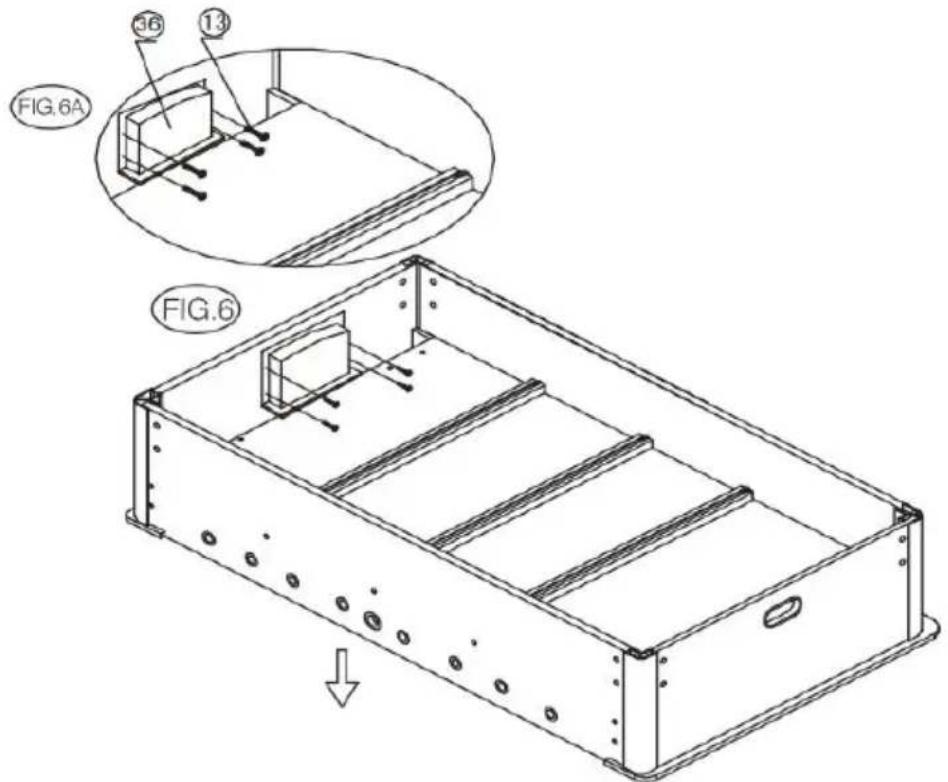

STEP8: Attach the two goal boxes (#36) to the End boards (#2) using f washer head screws (#13) per goal box (#36) as shown in FIG.6A.

FIG.6A 36 13 FIG.6

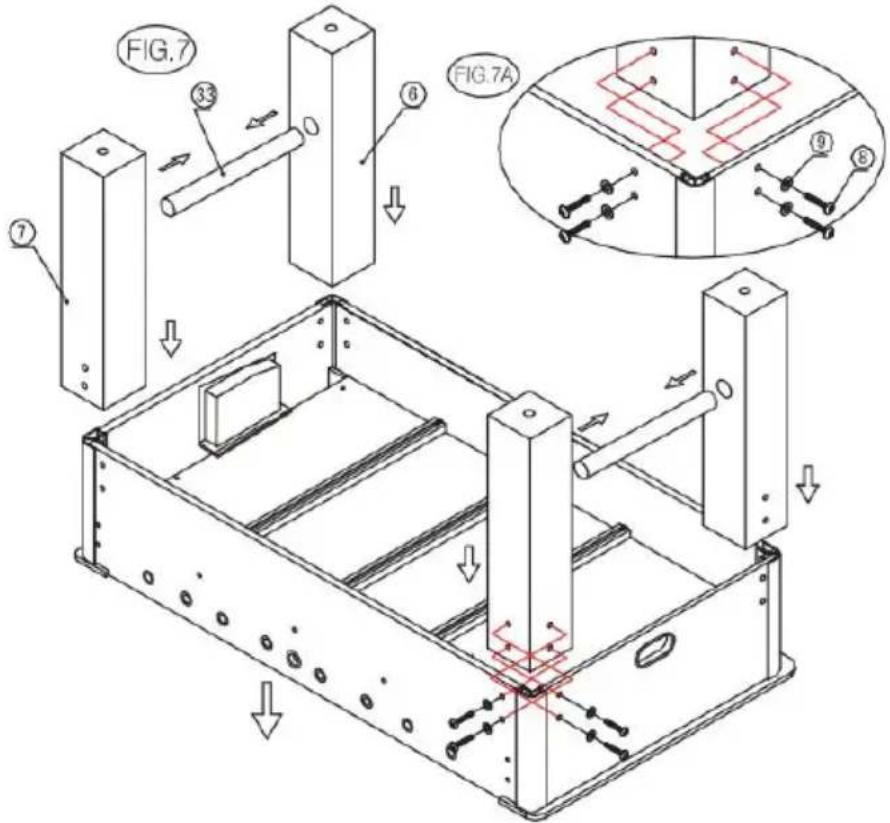

STEP9: Attach the left leg (#6) and the right leg (#7) with the chrome I (#33) between them to the football table using four leg bolts (#8) and four washers (#9) per leg as shown in FIG 7 and 7A.

NOTE: If you are having trouble inserting the leg bolts (#8), you may go back to step3 and loosen the bolts (#10)a little.

FIG.7 FIG.7A ③ ⑥ ⑦ ⑨ ⑧

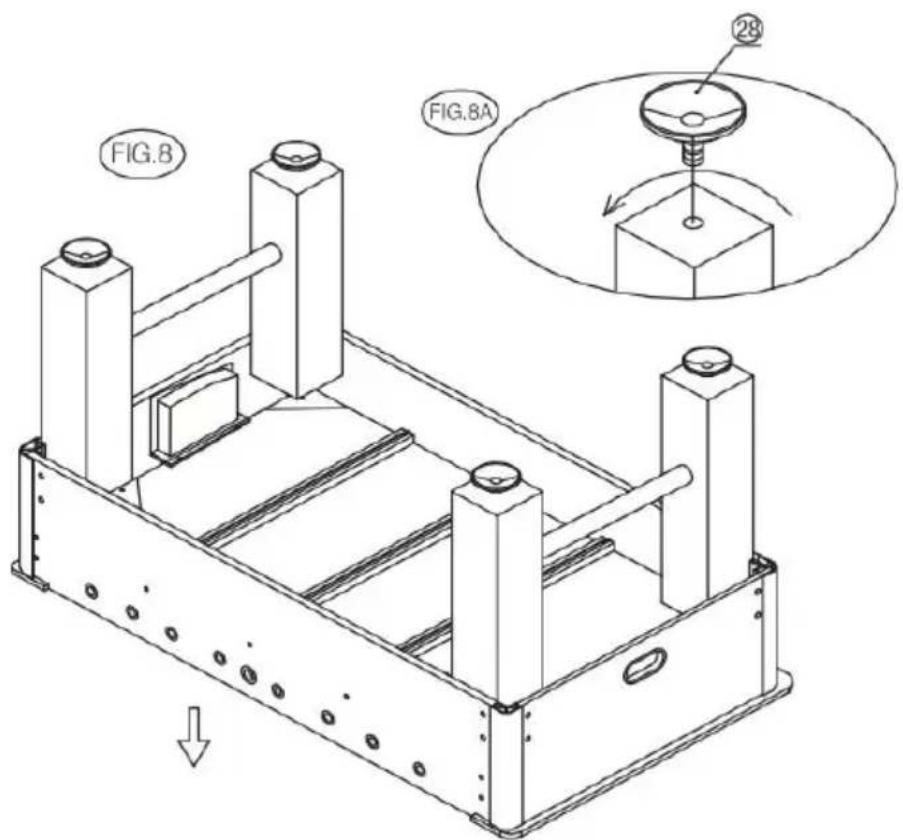

STEP10: Locate the leg levelers (#28) and screw one into each leg as shown in FIG 8 and 8A.

FIG.8 FIG.8A 28

STEP11: Lift the table assembly from the floor with two strong adults; over, and set the table on its legs in the location where you will play game.

NOTE: Do not hold the legs! You should pick up the table at the tab cabinet ! as shown in FIG 9.

Technical line drawing of a mechanical assembly with supports and a labeled section (FIG.9), showing internal components and motion arrows (no text or symbols beyond label)

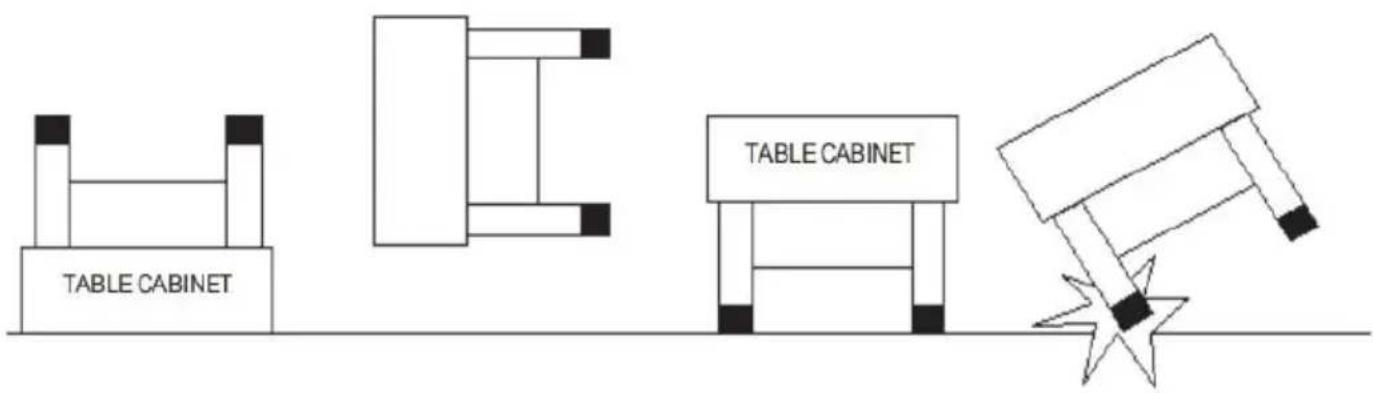

CAUTION: Two strong adults are needed to flip the table as s

1.Pick up the table,one adult on each end.Do not hold the le should pick up the table at the table cabinet !
2.Tum the table over.
3. Place it on all four feet at the same time on the ground.

TABLE CABINET TABLE CABINET

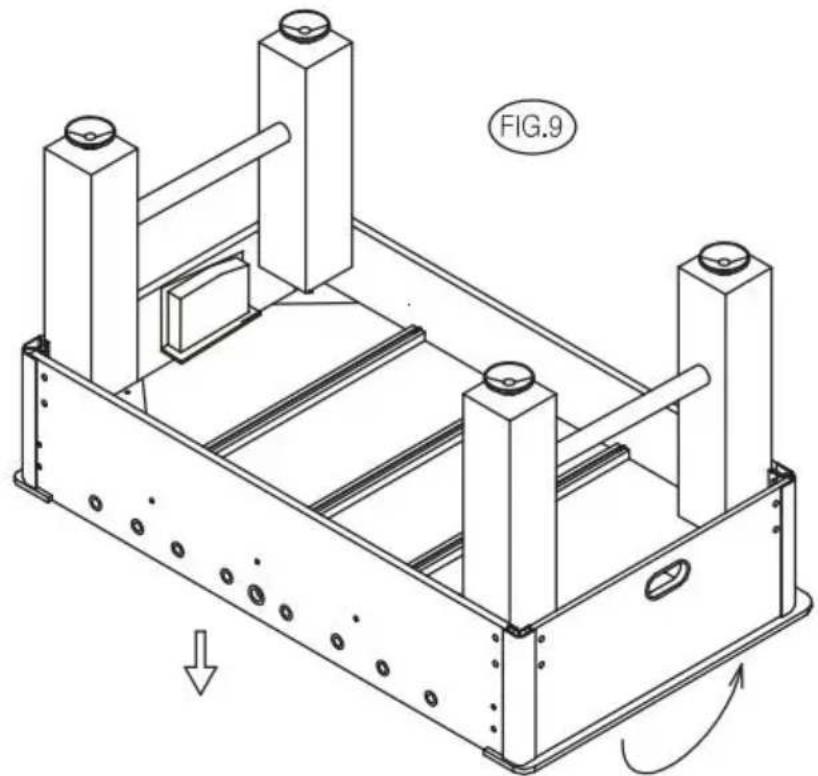

STEP12: Now check if all the connections, which are made in the previous steps, are tightened.

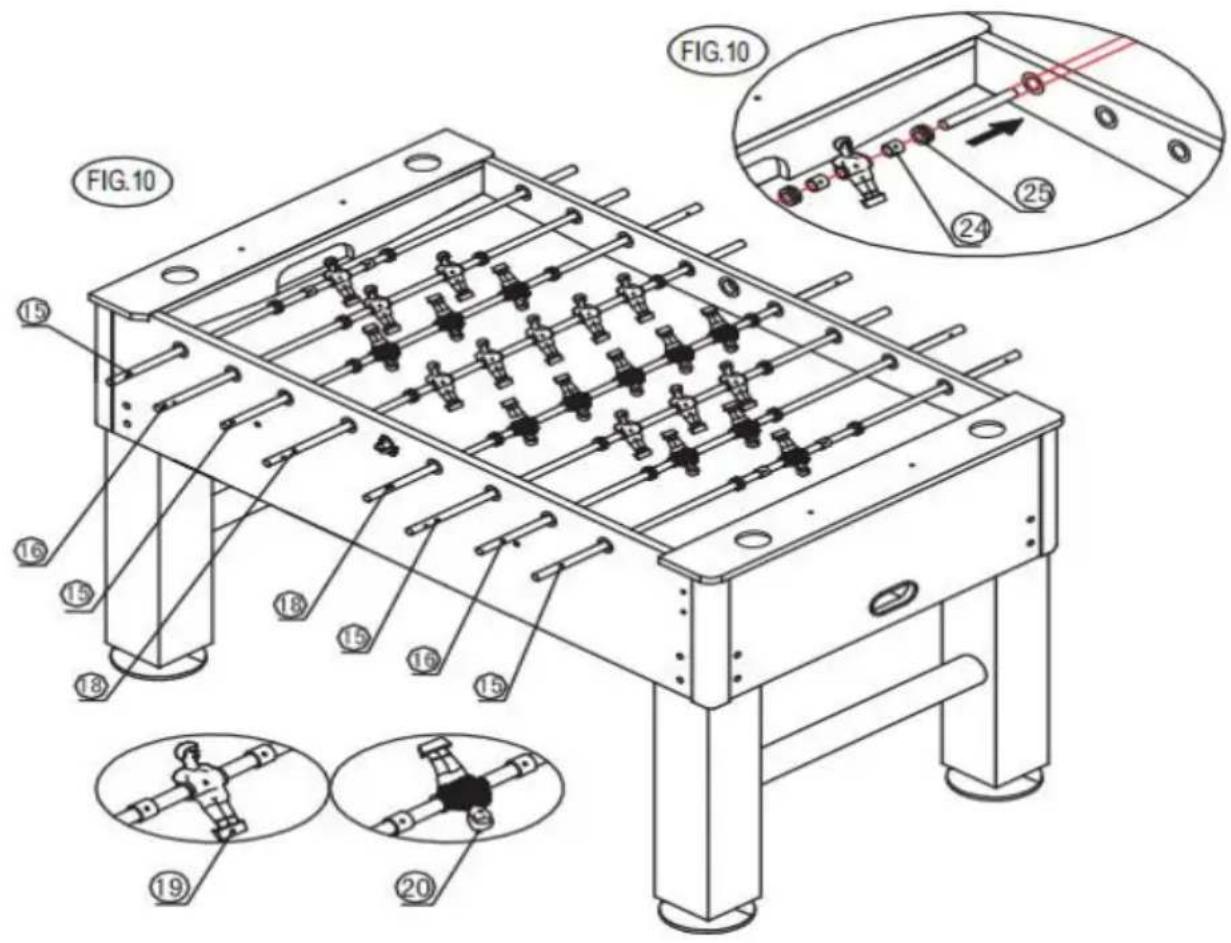

STEP13:Slide one player (#19 or #20)in the middle and one stop ring (#24)and one rubber bumper (#25)on each side of the player onto the 1 player rods (#15).See.FIG.10 and 10A.

Slide rubber bumper (#25) and players (#19 or #20) onto player rods (#16,#17 and #18) See.FIG.10 and 10A.

FIG.10 15 16 15 18 15 16 15 19 20 FIG.10 24 25

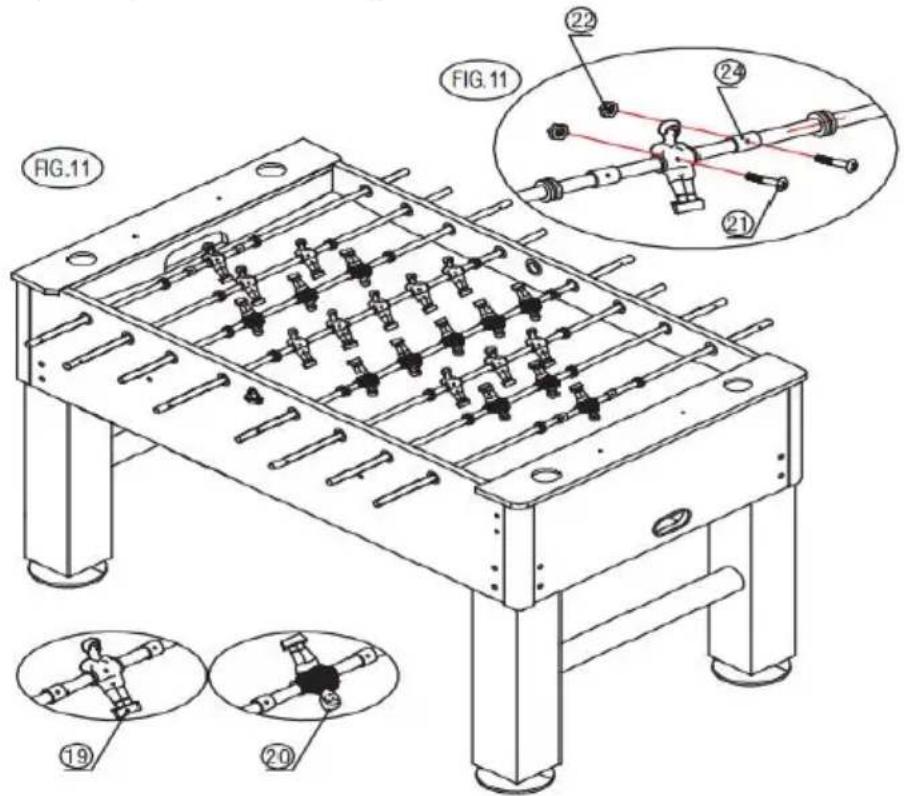

STEP14: Use one round head screw (#21) and one nut (#22) per stop (#24) and player (#19 or #20) as shown in FIG 11 and 11A.

FIG.11 FIG.11 ②2 ②4 ②1 ⑲ ⑳ ⑳

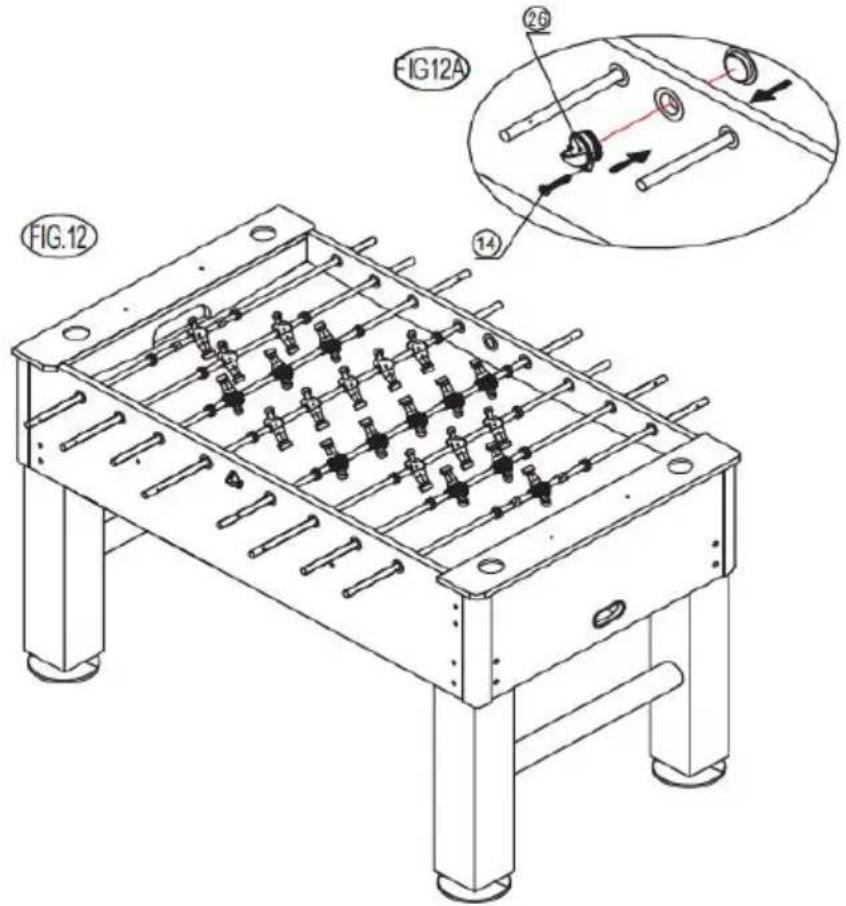

STEP15: Attach the two ball return cups (#26) to the side boards (#1) one flat head screw (#14) per side. See FIG.12 and 12A.

FIG.12 FIG12A ②6 ⑭ ⑭

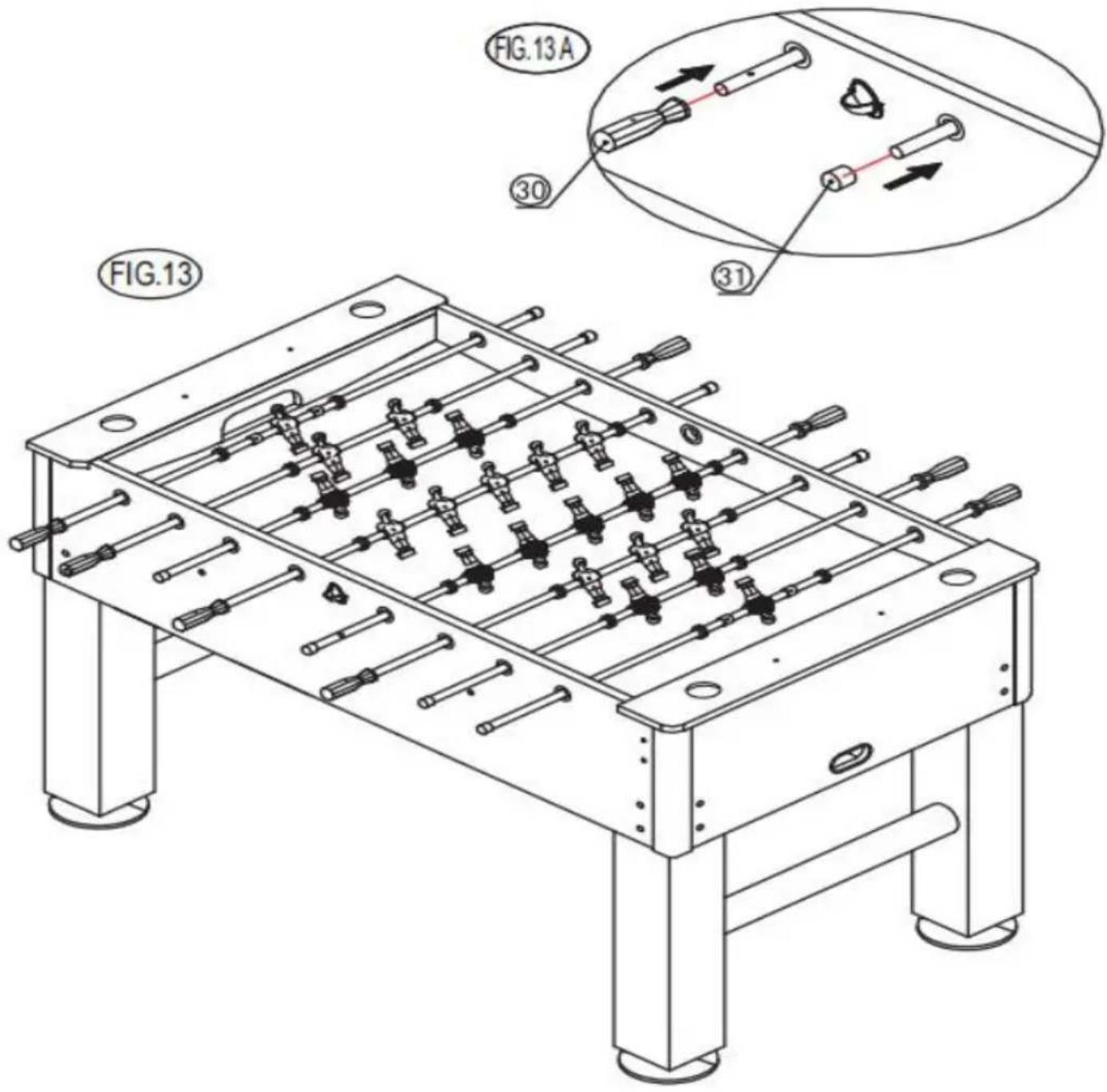

STEP16:Slide the hand grips (#30)and end caps(#31)onto the player rods.

TIP: To make the Handles easier to attach, spray a little window clean the rod ends prior to installation and gently hammer it with a wooden hammer onto the player rods. See FIG.13and 13A.

FIG.13 FIG.13 A ③0 ③1 FIG.13

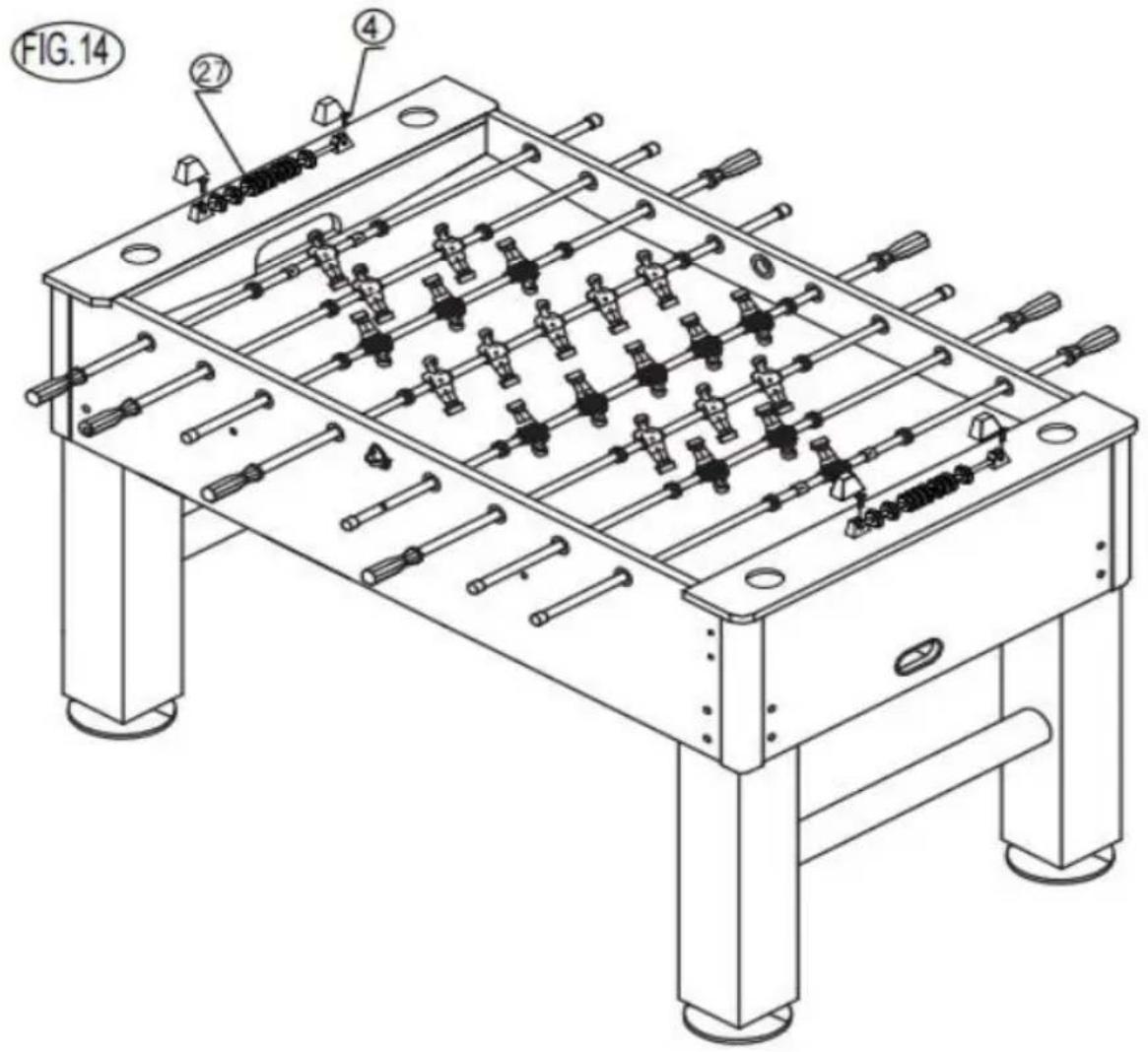

STEP17: Attach the two scorers (#27) to the end boards (#2) using two head screws (#4) per scorer. See FIG.14.

FIG.14 ② ④

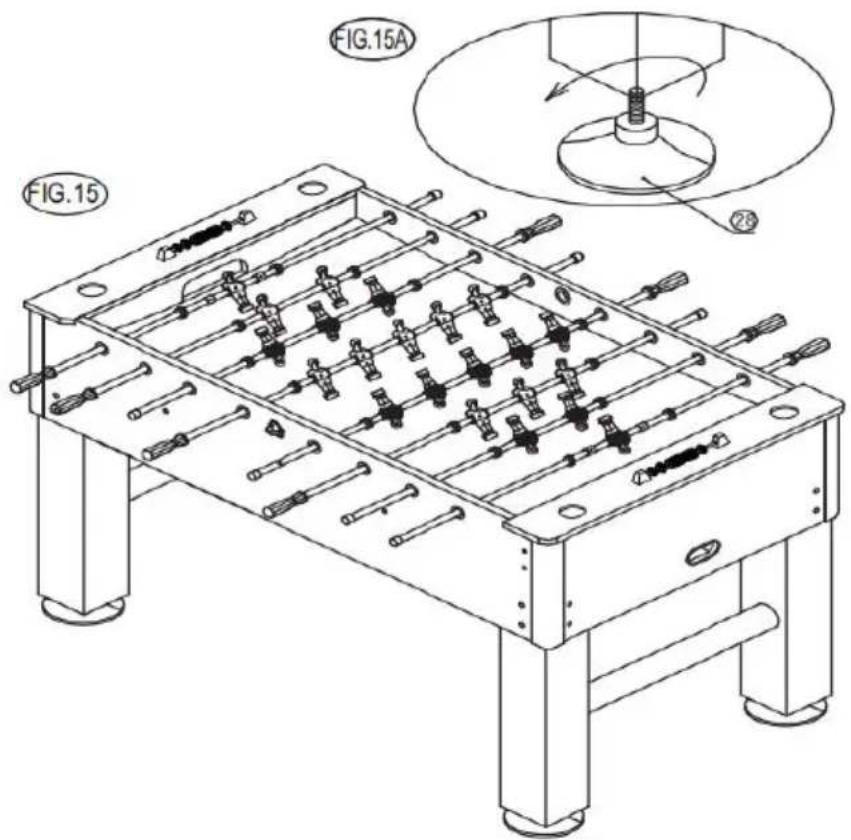

STEP18: If the table is not leveled you can adjust the leg levelers (# by one till the table is exactly level. See FIG.15 and 15A.

FIG.15 FIG.15A 28

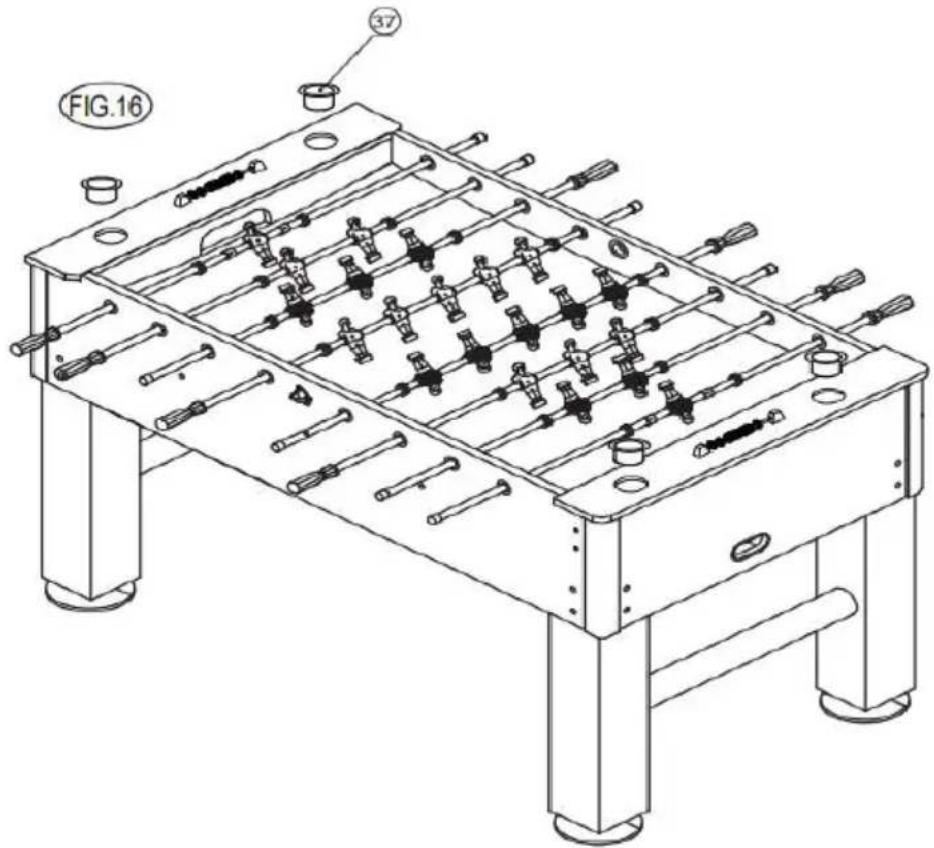

STEP19: Attach the two cup holders (#37) to place the two end boar mouth of a cave per cup holder (#37). See FIG.16.

Technical line drawing of a football table with visible clubs and legs (no text or symbols)

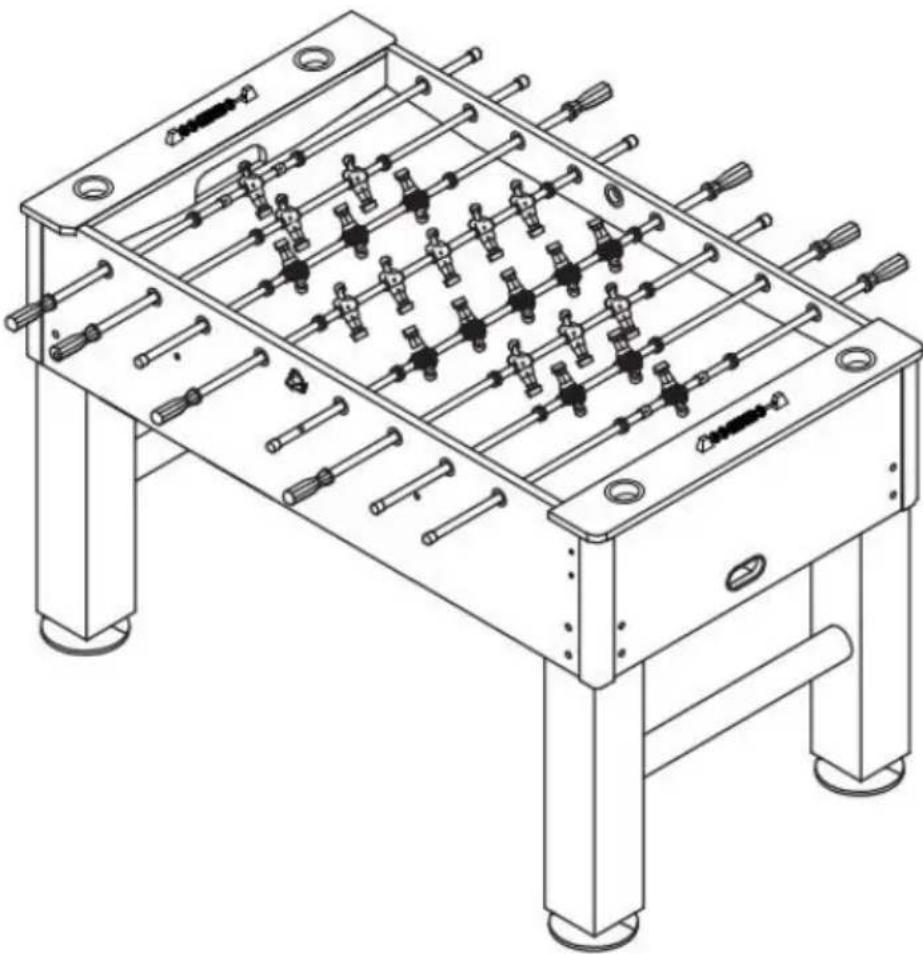

The game assembly is complete.you are now ready to play.
