USER MANUAL MS-H-ProA Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

MAGNETIC STIRRERS

USER MANUAL

MODEL NO.: MS-S, MS-H-ProA

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODEL NO.: MS-S, MS-H-ProA

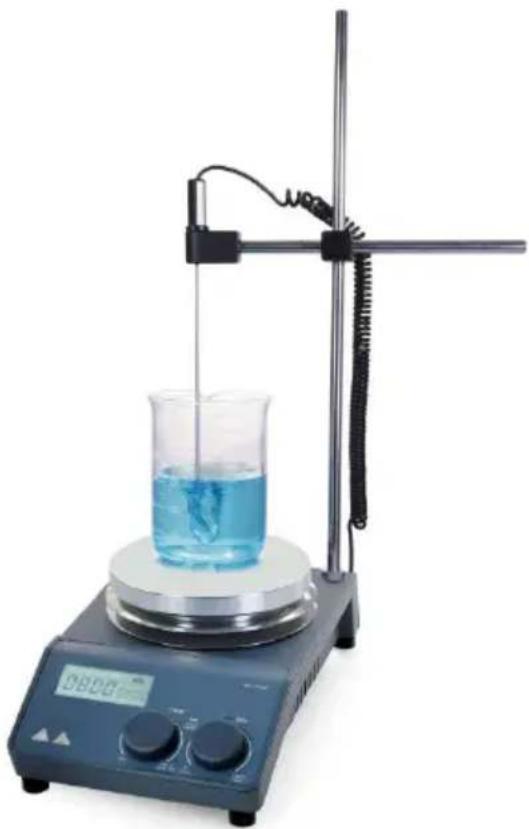

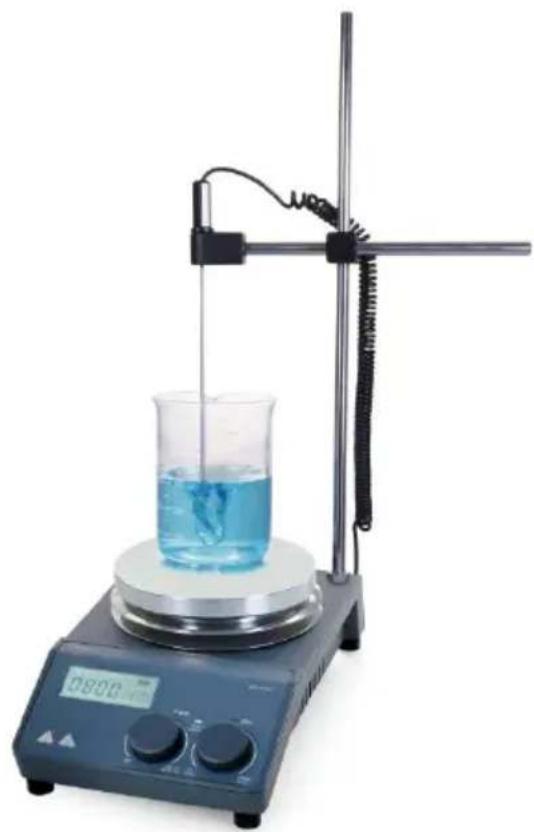

Laboratory filtration setup with beaker, digital display, and stand (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

	Warning!● Read the operating instructions carefully before use.● Ensure that only trained staff works with the instru
	Risk of burn!● Caution when touch the housing parts and the hotwhich can reach temperature of exceed 300 °C.● Pay attention to the residual heat after switching of
	Protective ground contact!● Make sure that socket must be grounded (protectivecontact) before use.

• When operating wear personal safety protection to avoid the risk of
• Splashing and evaporation of liquids
• Release of toxic or combustible gases

• Set up the instrument in a spacious area on a stable, clean, non-dry and fireproof surface. Do not operate the instrument in explos atmospheres, with hazardous substances or around water.
  ● Gradually increase the speed, reduce the speed if:

• Stirring bar breaks away due to high speed

• The instrument is not running smoothly, or the container is not centered on the plate

• Temperature must always be set to at least 50°C lower than the 1 point of the media used.

• Be aware of hazards due to:

• Flammable materials or media with a low boiling temperature

• Overfilling of media
• Unsafe container

- Process pathogenic materials only in closed vessels.

- If the case of the stirrer bar is PTFE, please note:

- Elemental fluorine, three fluoride and alkali metals will corrode the PTFE and Halogen alkanes making it expand at room tempera

- Molten alkali, alkaline earth metals or their solution, as well as powder in the second and third ethnic of the Periodic Table c. Elements will have a chemical reaction with PTFE when temperature reaches 300 \~ 400°C .

- Check the instrument and accessories prior to each use. Do not be damaged components. Safe operation is only guaranteed with the accessories listed in the “Accessories” section. Accessories must be securely attached to the device and must be removed when not Always disconnect the power before fitting accessories.

- When the external temperature sensor is needed, the tip of the measuring sensor must be at least 5-10 mm from vessel bottom wall.

- The instrument can only be fully disconnected from the main power supply by turning off the main or disconnecting the plug.

- The voltage stated on the label must correspond to the main power supply.

- Ensure that the main power supply cable does not touch the hotpl Do not cover the device.

● The instrument must only be operated by experts.

Keep away from high magnetic fields.

SAVE THIS MANUAL

Proper use

The instrument is designed for mixing and/or heating liquids in schools, laboratories or factories

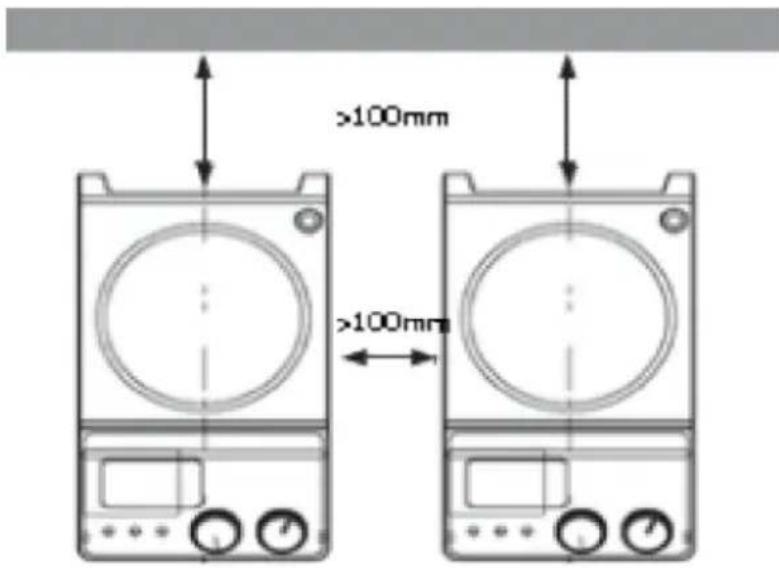

- Observe the minimum distances between multiple units, and distance to the rear wall and above the assembly (min. 100 mm).

>100mm >100mm

Figure 1

This device is not suitable for use in residential areas or other const mentioned in Safety Instructions.

TECHNICAL SPECIFICATIONS

Model MS-S	MS-H-ProA
Voltage [VAC] 120/200~240 120/200~240
Frequency [Hz] 50/60 50/60
Power [W] 30	650
Maximum stirring capacity [L]	20L 20L
Maximum heating temperature [°C]	/ 340
Product Dimensions (L*W*H) [mm]	280*160*90	280*160*510
Packing Size (L*W*H) [mm]	332*220*155	390*215*200
Net Weight [kg]	2.35	3.28
Gross Weight [kg]	2.75 3.7

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

MS-S

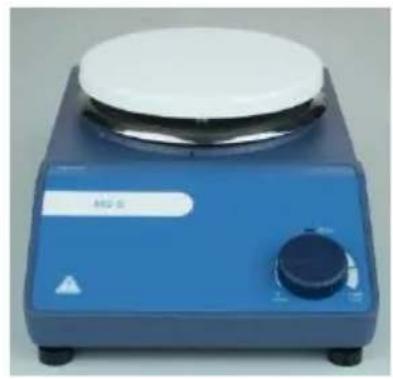

Blue laboratory elector with a white lid and control knob (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

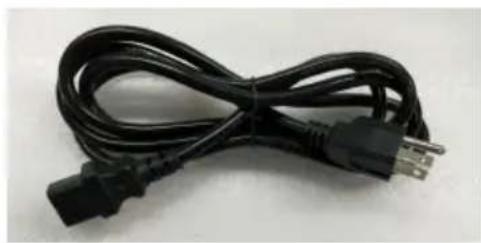

Coiled black electrical plug with three terminal connectors (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

MS-H-ProA

Digital laboratory instrument with digital display showing 9800 units (no visible text or symbols on the device itself)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical circuit breaker with three terminal ports (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

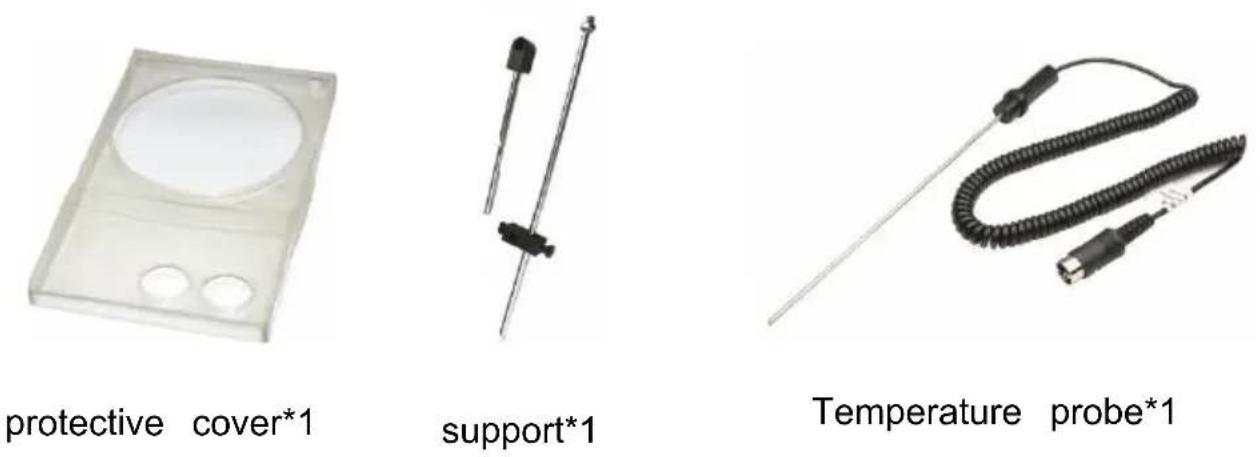

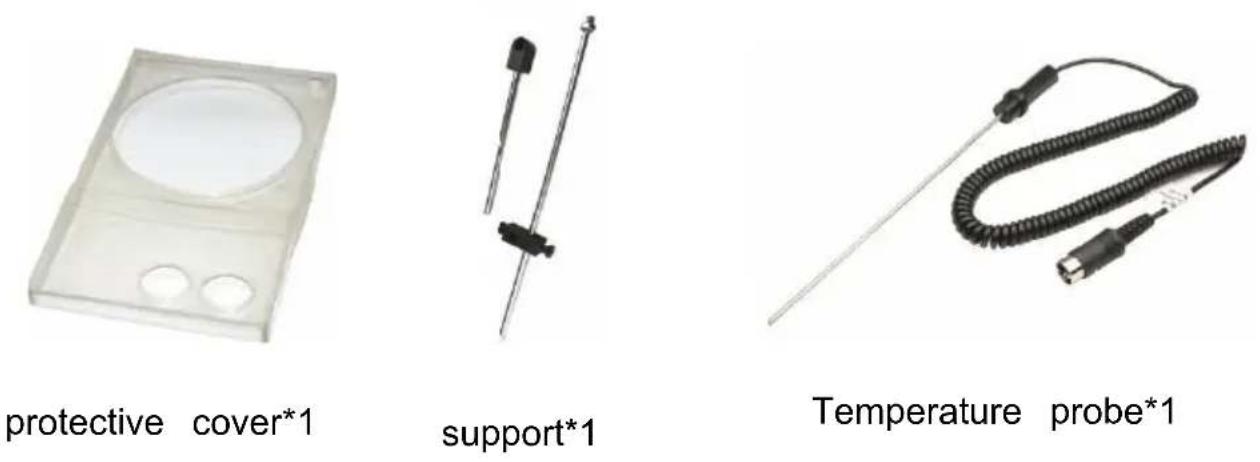

Transparent plastic tray with two circular holes, no text or symbols visible

protective cover*1

Two metallic cylindrical sensors with black connectors, no visible text or symbols

support*1

Coiled black probe with metal rod, no visible text or symbols

Temperature probe*1

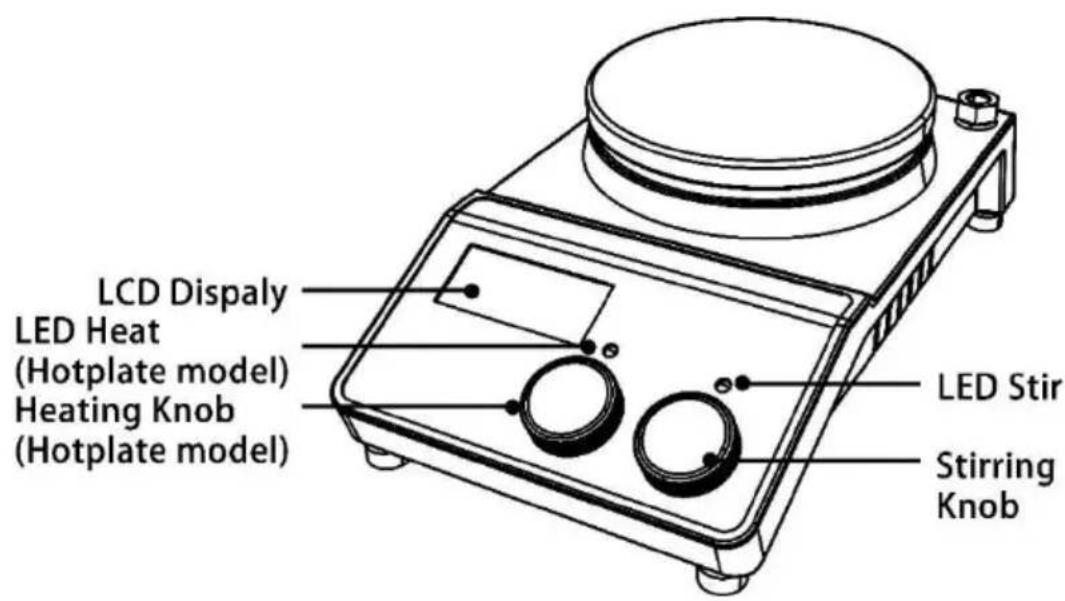

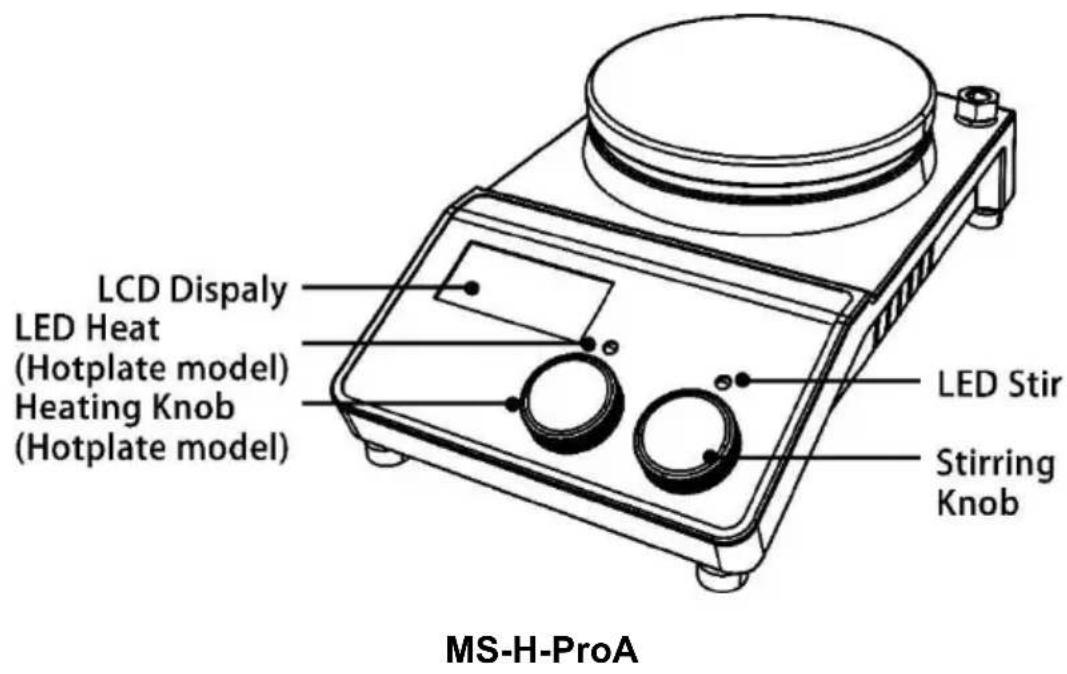

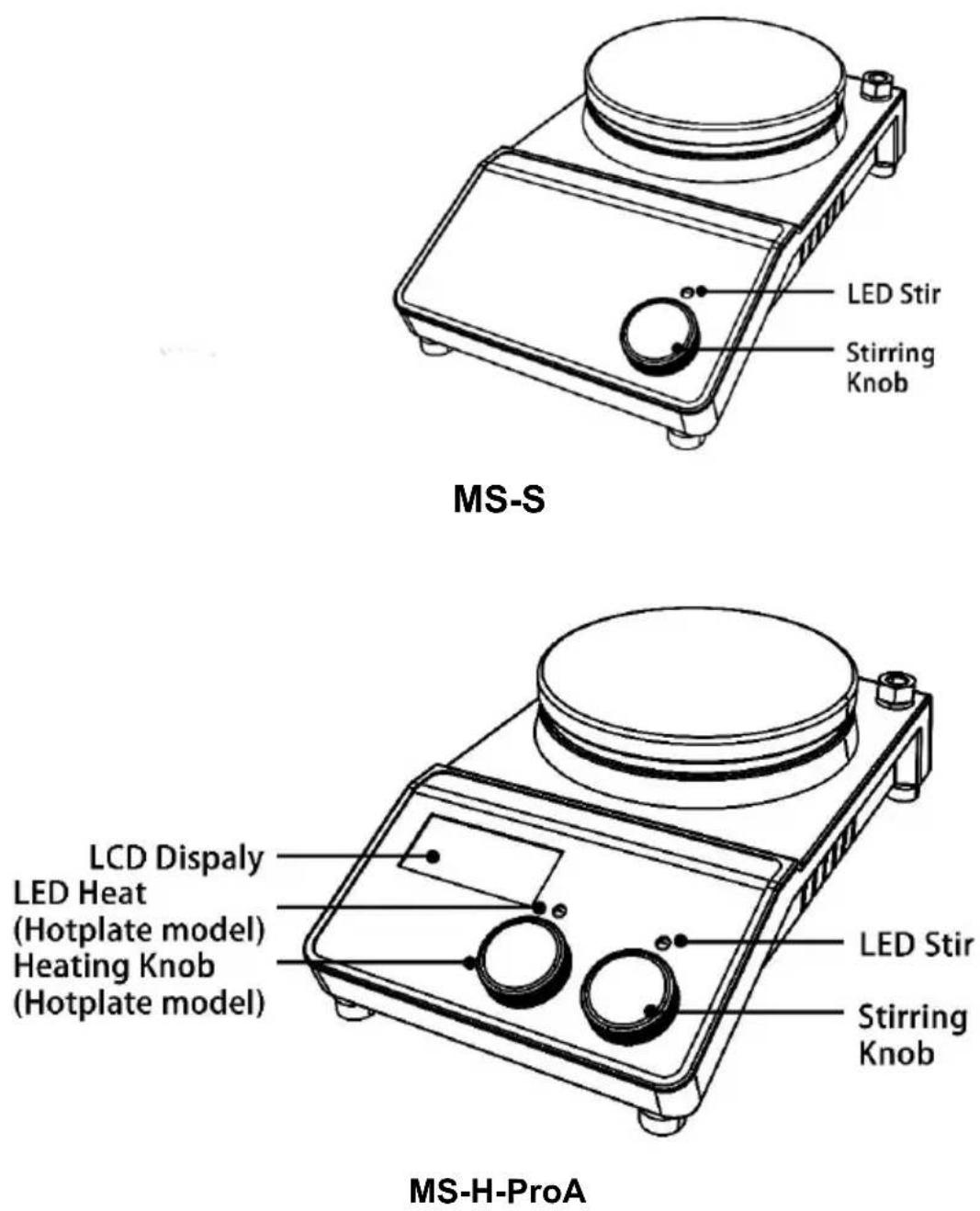

PRODUCT FUNCTIONS

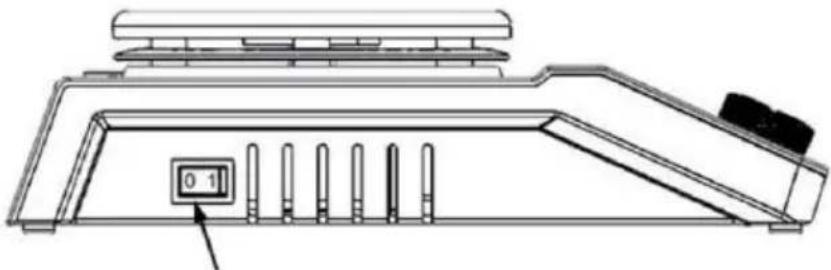

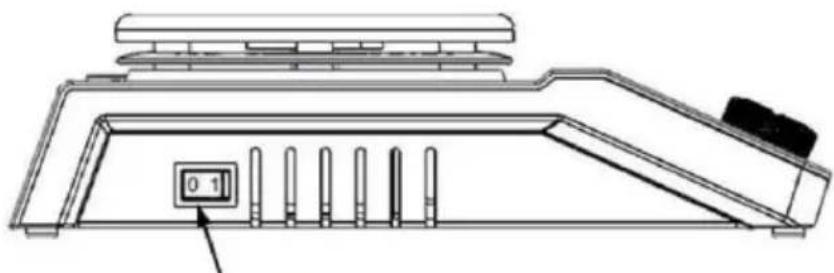

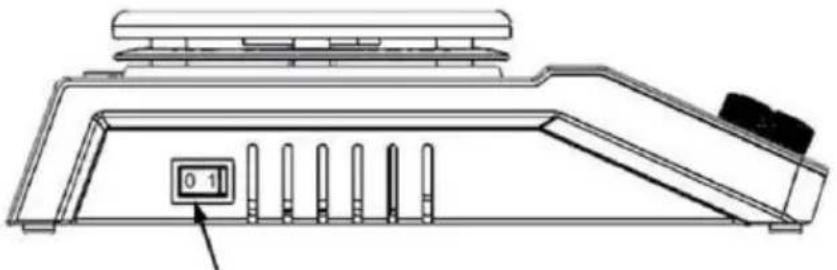

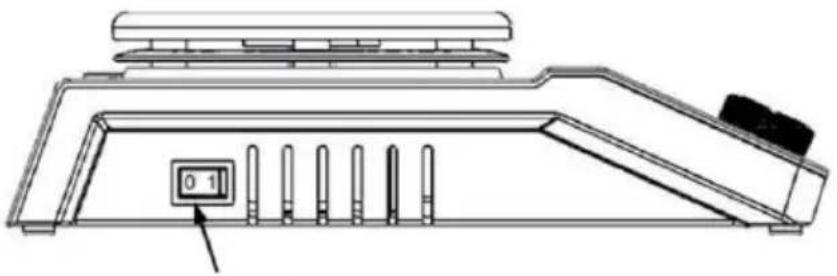

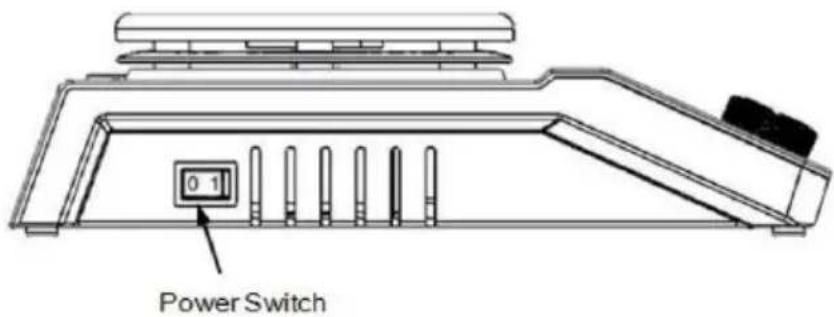

Technical line drawing of a mechanical component with a labeled pin (0, 1) and no visible text or symbols

Power Switch

Model	Items	Descriptions
MS-S	Stirring knob Stir	Set the rated rotary speed in the safe stirrin range from 0 to 1500 rpm. The function “Stir is switched ON or OFF via the knob.
	LED Stir	When the stirring function is switched ON, the LED Stir is lit.
	Power switch	Switch ON or OFF.
MS-H-ProA	Stirring knob S	Set the rated rotary speed. The function “Stir is switched ON or OFF via push ON/OFF th
	Heating knob He (Hotplate model)	Set the rated temperature. The function “heati is switched ON or OFF via push ON/OFF th Set the heating mode. startup and during the initialization, rotate the Heat knob, select amo the mode A/B/C.
	LCD	LCD displays the real working state and all settings.
	Heating indicator light (Hotplate model)	When the heating function is switched ON, th Heating indicator light is lit.
	stirring indicator light	When the stirring function is switched ON, th stirring indicator light is lit.
	Power Switch	Switch ON or OFF the instrument.

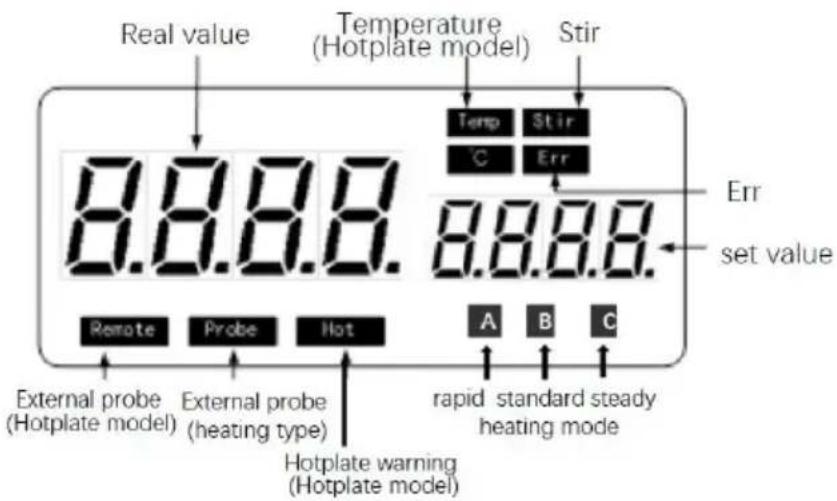

Display(MS-H-ProA)

Real value Temperature (Hotplate model) Stir Temp Stir °C Err Err Set value 8.8.8.8 8.8.8.8 External probe (Hotplate model) External probe (heating type) Hotplate warning (Hotplate model) A B C rapid standard steady heating mode

Characters	Descriptions
Temp &	Display temperature when the heating function is switched (
Stir	Display stirring state when the stirring function is switched
Hot	Displays HOT warning if the plate temperature is above 50 switching OFF the heating function.
Probe	Display when using external probe.
Remote	Display in case of remote control.
Err	Display in case of error happening.
Rated value /Real value	Display value in case of heating or stirring function switchin
A	rapid heating mode, under which the heating speed is the but there may be some overshoot
B	standard heating mode, under which the heating speed is and the overshoot is smaller
C	steady heating mode, under which the heating speed is sl but the overshoot is small or no overshootNote:If both heating and stirring functions have been started at the san heat display always has higher priority. If in this case speed is c via the stirring knob, it displays stirring speed and reverts to temp after 5 seconds.Heating mode Setting method: startup and during the initialization, the Heat knob, select among the mode A/B/C. The mode will be automatically locked after 3 seconds. If you need to adjust again, repeat the same setting operation after restarting the machine

Trial run

● Make sure the required operating voltage and power supply voltage match.
- Ensure the socket must be properly grounded.
- Plug in the power cable, ensure the power is on and begin initializing.
- Add the medium into the vessel with an appropriate stirring b
- Place vessel on the work plate.
- Set the target stirring speed and begin.
- Observe the stirring bar and LCD display (digital model).
- Set the target temperature and start heating.
- Observe the real temperature on LCD display (digital model).
- Stop the heating and stirring functions.

If these operations above are normal, the device is ready to open. If these operations are not normal, the device may be damaged during transportation, please contact manufacturer/supplier for technical support.

Warning !

Forbid to transfer the vessel when the instrument working.

Function: Heating(MS-H-ProA)

The device is controlled by digital temperature control technology which has two separate safe circuits. The hotplate is kept at a constant temperature by a digital control circuit. The hotplate temperature can also be monitored from a separate, adjustable s circuit. The two temperature sensors (PT 1000) internal for temperature control are built into the hotplate. The single external 1000 can monitor the temperature of sample.

• Plug in the external PT1000.
• Set the temperature via rotating the temperature control knob

slowly to the target value.

• When the heating function is switched on, the LED “Heat” will light up and the LCD will display the real temperature.
• The rated temperature will be displayed on the right-hand side, the LCD as well and characters.
• The heating function is switched on or off by pushing heating knob.

The instrument is turned on for the setting zone temperature setting with the last shutdown temperature, In the common case, setting the heating temperature displays the actual temperature may have the following differences:

• Hotplate center and outer edge.
• The sample container and the container.

In order to ensure the accuracy of the temperature inside the container, please use the external temperature sensor PT1000.

Working with external temperature sensor

Line drawing of a laboratory setup with a beaker, coiled tube, and two control knobs (no text or labels)

The external temperature sensor PT1000 is the manufacture's standard accessory. If the sensor is plugged in, “Probe” will be shown on the digital display to indicate the sensor is operating. setting value of external temperature sensors and actual temperature are displayed. Safe circuit controls hotplate temperature.

Compared with the temperature control of the hotplate, the exter temperature sensor can control the medium's temperature more

precisely.

Residual heat warning(HOT)

In order to prevent the risk of burns from a hotplate, digital ho has a residual heat warning function. When the heating function switched off and the heating plate temperature is still above 50°C “Hot” will flash to warn that there is a hazard of burns from the hotplate. When the hotplate temperature drops to below 50°C, the unit will automatically switch off. If users want to turn off the L immediately, just pull out the plug directly. When the plug is put out, the residual heat warning function cannot be run.

Stirring (MS-H-ProA)

The function “stirring” is switched on or off by rotating the st knob. The speed is set on the knob (100 to 1500 rpm in step rpm). When both of function heating and stirring are switched on those above operations are done, the LCD will shift to the spe value and come back to the temperature value in about 5 sec

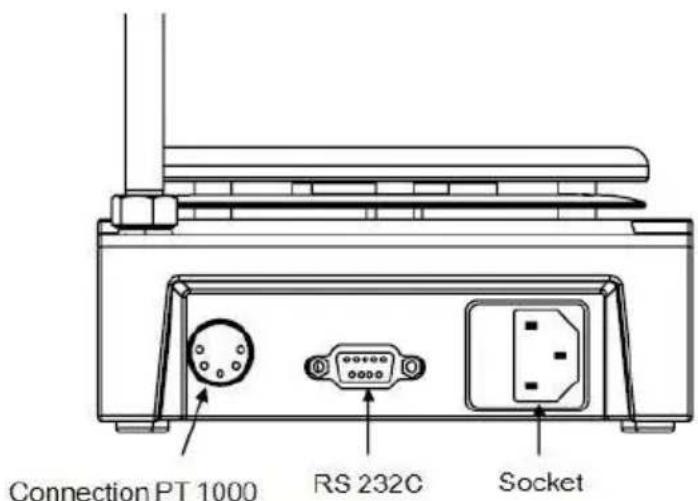

Remote Control (MS-H-ProA)

Connection PT 1000 RS 232C Socket

The unit can be controlled from an external PC (using the dedi software) via the RS232C serial interface fitted to the unit. Data communication from laboratory instrument to computer is only possible on demand of the computer.

• The functions of the interface lines between laboratory instrument and automation system are selected from the specified signals of the EIA-standard RS232C, corresponding with DIN66020 Part 1. The allotment of the bushing can be from Figure 7
  ● Transmission method: Asynchronous signal transmission in start-stop operation.
• Mode of transmission: Fully Duplex. 1 start bit; 7-character bit 1 parity bit [straight (even)); 1 stop bit.
  ● Transmission speed: 9600 bit/s
• Start remote control knob LCD display “ Remote ”.

Note:

Forbid to insert or remove the RS232C communication line when switch on!

Faults

- Instruments can't be powered ON

• Check whether the power line is unplugged
• Check whether the fuse is broken or loose

● Fault in power ON self-test

- Switch OFF the unit, then switch ON and reset the instruments to factory default setting.

- Stir speed cannot reach set point

- Excessive medium viscosity may cause abnormal speed reduction of the motor

- Unit cannot be powered off when switched off.

- Check if the residual heat warning function is still ON and hotplate temperature is above 50°C (the LED screen still wor and “Hot” flash).

- Fault error

(Applicable to machine models: MS-H-ProA)

Describe& conditions	code	conditions
The temperature sensor is incorrectly placed or not put into the container during heating.The temperature rises less than 2 °C after 7 minutes of heating.	ER9	1. The setting temperature shall be more than the initial temperature displayed on the screen +10°C2. The initial temperature displayed on the screen shall be less than 35°C . 3. The temperature shall rise within 2°C after heating for 7min.
When the temperature senso is taken out of the containe during heating, the temperature measured value drops by more than 1°C eve 3 seconds	ER3	The time of PT1000 sensor in liquid is than 1min
During the heating process, PT1000 detection temperature exceeds the target temperature by 40°C.	ER4	Set the target temperature to be higher the initial temperature

If these faults are not resolved, please contact dealer/supplier.

Maintenance and Cleaning

● Proper maintenance can keep instruments working properly and lengthen their lifetime.
- Do not spray cleanser into the instrument when cleaning.
● Unplug the power line when cleaning.
● Only use recommended cleansers:

● Dyes	● Isopropyl alcohol
● Construction materials	● Water containing tenside /Isopropyl alcohol
● Cosmetics	● Water containing tenside /Isopropyl alcohol
● Foodstuffs	● Water containing tenside
● Fuels	● Water containing tenside

• Before using other method for cleaning or decontamination, the user must ascertain with the manufacturer that this method will not harm the instrument. Wear the proper protective gloves during cleaning of the instrument.

Note:

● Electronic devices cannot be cleaned with cleanser.
- If you require maintenance service, must be cleaned the instrument in advance to avoid pollution of hazardous substances, and sent back into its original packing.
- If the instrument will not be used for a long time, please switch it off and place it in a dry, clean, no temperature, and stable location.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho

Cucamonga, CA 91730

REPE

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

K/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

NÚMERO DE MODELO: MS-S, MS-H-ProA

Laboratory filtration setup with digital display and beaker, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA:

>100mm >100mm

Figura 1

Blue laboratory electorator with a white lid and control knob (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical circuit lines with two terminal connectors (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

MS-H-ProA

Digital laboratory instrument with digital display and control knobs (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical plug with three terminal connectors (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

Transparent plastic tray with two circular cutouts, no text or symbols visible

protective cover*1

Two metallic cylindrical sensors or probes with black connectors, no visible text or symbols

support*1

Coiled black probe with metal wire, no visible text or symbols

Temperature probe*1

FUNCIONES DEL PRODUCTO

LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob MS-S

Technical line drawing of a mechanical component with a circular top and mounting bracket (no text or symbols)

MS-H-ProA

Technical line drawing of a mechanical component with no visible text or symbols

Power Switch

Line drawing of a laboratory setup with a beaker, coiled tube, and two control knobs (no text or labels)

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELLO NUMERO: MS-S, MS-H-ProA

Laboratory filtration setup with digital display and beaker, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVVERTIMENTO:

>100mm >100mm

Figura 1

Blue laboratory electorator with a white lid and control knob (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black cable with two terminal pliers, no visible text or symbols

Power cord*1
(Plugs vary from export area to export area)
MS-H-ProA

Digital laboratory instrument with digital display and control knobs (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical circuit lines with three terminal connectors (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

Transparent plastic tray with two circular cutouts, no visible text or symbols

protective cover*1

Two mechanical sensors or probes with no visible text or symbols

support*1

Close-up of a coiled black probe with a metallic tip, no visible text or symbols

Temperature probe*1

LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob MS-S

Technical line drawing of a mechanical component with a circular top and mounting bracket (no text or symbols)

MS-H-ProA

Technical line drawing of a mechanical component with a labeled control panel (no text or symbols present)

Power Switch

Line drawing of a laboratory setup with a beaker, coiled tube, and two control knobs (no text or labels)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELL NR.: MS-S, MS-H-ProA

Laboratory filtration setup with digital display and beaker (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

WARNUNG:

>100mm >100mm

Abbildung 1

Blue laboratory electric stirrer with a white lid and control knob (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Black cord with three metal pliers tied together (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

MS-H-ProA

Digital laboratory instrument with digital display and control knobs (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical plug with two terminal connectors (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

PRODUKTFUNKTIONEN

LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob MS-S

LCD Dispaly LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob

MS-H-ProA

Technical line drawing of a mechanical component with no visible text or symbols

Power Switch

Line drawing of a laboratory setup with a beaker, coiled tube, and two control knobs (no text or labels)

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

Laboratory filtration setup with digital display and beaker, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERTISSEMENT:

>100mm >100mm

Figure 1

Blue laboratory elector with a circular top and control knob (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical circuit breakers with two terminal leads (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)
MS-H-ProA

Digital laboratory instrument with digital display and control knobs (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical plug with three terminal connectors (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

Transparent plastic tray with two circular cutouts, no text or symbols visible

protective cover*1

Two metallic cylindrical sensors or probes with black connectors, no visible text or symbols

support*1

Coiled black probe with metal tip, no visible text or symbols

Temperature probe*1

FONCTIONS DU PRODUIT

LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob MS-S

Technical line drawing of a mechanical component with a circular top and mounting bracket (no text or symbols)

MS-H-ProA

Technical line drawing of a mechanical component with no visible text or symbols

Power Switch

Line drawing of a laboratory setup with a beaker, coiled tube, and two control knobs (no text or symbols)

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat https://www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELNUMMER: MS-S, MS-H-ProA

Laboratory filtration setup with digital display and beaker, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING:

>100mm >100mm

Figuur 1

Blue laboratory brushter with a circular lid and control knob (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Black cord with three metal pliers tied together (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

MS-H-ProA

Digital laboratory instrument with digital display and control knobs (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical plug with two terminal connectors (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

PRODUCTFUNCTIES

LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob MS-S

LCD Dispaly LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob

MS-H-ProA

Technical line drawing of a mechanical component with no visible text or symbols

Power Switch

Line drawing of a laboratory setup with a beaker, coiled tube, and two control knobs (no text or labels)

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELLNR: MS-S, MS-H-ProA

Laboratory filtration setup with digital display and beaker, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

>100mm - 3 -

Bild 1

Blue laboratory electorator with a white lid and control knob (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical circuit breaker with two terminal leads (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

MS-H-ProA

Digital laboratory instrument with digital display showing 0800 mm, no visible text or symbols on the device itself.

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical plug with three terminal leads (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

Transparent rectangular electronic device with two circular ports, no visible text or symbols

protective cover*1

Two black cylindrical electronic components with leads, no visible text or symbols

support*1

Close-up of a coiled black probe with a metallic tip, no visible text or symbols

Temperature probe*1

PRODUKTFUNKTIONER

LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob MS-S

LCD Dispaly LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob MS-H-ProA

0 1 Power Switch

Line drawing of a laboratory setup with a beaker, coiled tube, and two control knobs (no text or labels)

Omrörning (MS-H-ProA)

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

NR MODELU: MS-S, MS-H-ProA

Laboratory filtration setup with digital display and beaker (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OSTRZEŻENIE:

>100mm >100mm

Rysunek 1

Blue laboratory electorator with a white lid and control knob (no visible text or symbols)

Machine*1

Fuse*1

Stirrer bar*1

Black cable with two terminal connectors, no text or symbols visible

Power cord*1
(Plugs vary from export area to export area)

MS-H-ProA

Digital laboratory instrument with digital display showing 1800Ω, no visible text or symbols on the device itself.

Machine*1

Fuse*1

Stirrer bar*1

Coiled black electrical plug with three terminal connectors (no text or symbols visible)

Power cord*1
(Plugs vary from export area to export area)

Transparent plastic tray with two circular cutouts, no visible text or symbols

protective cover*1

Two metallic cylindrical sensors or probes with black connectors, no visible text or symbols

support*1

Coiled black probe with metal tip, no visible text or symbols

Temperature probe*1

FUNKCJE PRODUKTU

LED Heat (Hotplate model) Heating Knob (Hotplate model) LED Stir Stirring Knob MS-S

Technical line drawing of a mechanical component with a circular top and mounting bracket (no text or symbols)

MS-H-ProA

Technical line drawing of a mechanical component with no visible text or symbols

Power Switch

Line drawing of a laboratory setup with a beaker, coiled tube, and two control knobs (no text or symbols)

STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anar Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
