Product Type	Magnetic Stirrer
Brand	Vevor
Model	XLD-C1
Product Dimensions	143 x 149 x 47.5 mm
Net Weight	0.28 kg
Gross Weight	0.35 kg
Supply Voltage	100 - 240 VAC
Frequency	50/60 Hz
Power	5 W
Maximum Stirring Capacity	3000 mL
Stirring Speed	Variable, adjustable by rotary knob
Control Type	Rotary knob with click on/off
Magnetic Stir Bar Included	Yes, PTFE
Power Adapter Included	Yes
Functions	Magnetic stirring, soft start and stop
Safety	Recommended use with personal protective equipment; avoid explosive atmospheres
Maintenance	Clean with a soft, dry cloth; unplug before cleaning
Repairability	Spare parts available: magnetic stir bar, power adapter
Warranty	Refer to the provided warranty certificate
Standards	Compliant with WEEE directive (2012/19/EU)
Intended Use	Mixing of liquids in schools, laboratories, or factories

Frequently Asked Questions - XLD-C1 Vevor

How to use the Vevor XLD-C1 Magnetic Stirrer?

Place the device on a stable and clean surface. Connect the power adapter to the back of the machine and then to a suitable power outlet. Add the solution to be stirred in a suitable container, place the magnetic stir bar in the liquid, then position the container in the center of the plate. Turn the knob clockwise to start and increase the speed. To stop, turn counterclockwise until you hear a click.

What is the maximum stirring capacity?

The maximum stirring capacity is 3000 mL (3 liters).

Can I heat liquids with this stirrer?

No, the XLD-C1 model is a magnetic stirrer without heating function. To heat, use a model with a heating plate.

How to clean the device?

Always unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Do not use solvents or abrasive liquids and avoid water entering the interior.

What to do if the magnetic stir bar does not rotate?

Check that the container is centered on the plate. Make sure the speed is not too high (the bar may decouple). If the problem persists, check that the bar is not damaged and that the power supply is correct. Reduce the speed and try again gradually.

What types of containers can I use?

Use glass or plastic containers that are non-magnetic and stable. Ensure they are suitable for the capacity (max 3 L) and rest firmly on the plate.

Is it possible to use the device with flammable liquids?

It is not recommended to use the device with flammable liquids or in an explosive atmosphere. Follow safety instructions: wear personal protective equipment and work in a ventilated environment.

How to adjust the stirring speed?

The speed is adjusted manually via the rotary knob. Turn right to increase speed, left to decrease. Starting and stopping are done with an audible and tactile click.

Is the device suitable for viscous liquids?

For viscous liquids, use a suitably sized magnetic stir bar and increase speed gradually. However, stirring capacity may be reduced. Do not force the device if rotation becomes irregular.

Where can I find spare parts?

Spare parts (magnetic stir bar, power adapter) are available from the manufacturer Vevor. Visit the website https://www.vevor.com/support for more information.

USER MANUAL XLD-C1 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

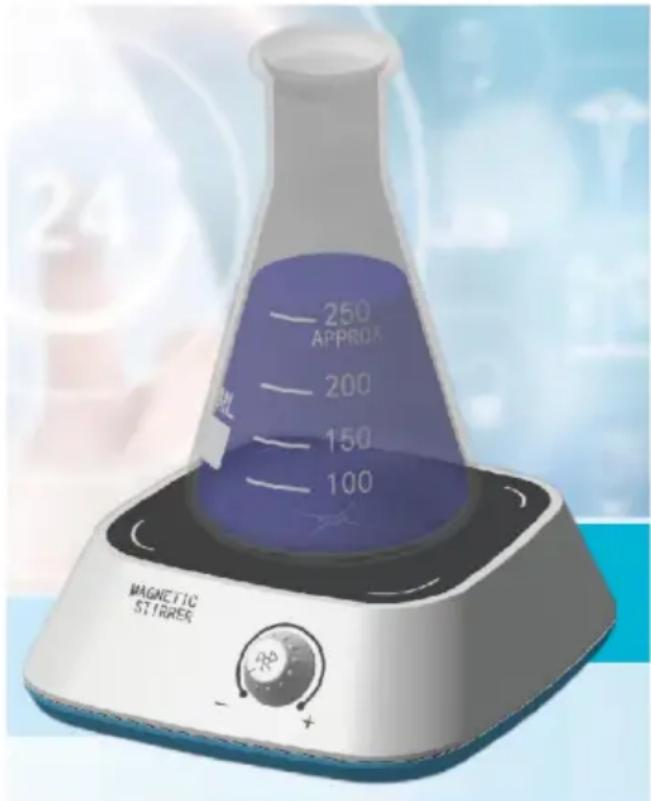

MAGNETIC STIRRERS

USER MANUAL

MODEL NO.: XLD-C1

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODEL NO.: XLD-C1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL.

Warning!

• Read the operating instructions carefully before use.
• Ensure that only trained staff works with the instrument.

When operating, wear personal safety protection to avoid the risk of:

- Splashing and evaporation of liquids - Release of toxic or combustible gases

- Splashing and evaporation of liquids - Release of toxic or combustible gases

- Splashing and evaporation of liquids - Release of toxic or combustible gases

Set up the instrument in a spacious area on a stable, clean, non-slip, dry, and fireproof surface. Do not operate the instrument in explosive atmospheres, with hazardous substances, or around water.

Set up the instrument in a spacious area on a stable, clean, non-slip, dry, and fireproof surface. Do not operate the instrument in explosive atmospheres, with hazardous substances, or around water.

Set up the instrument in a spacious area on a stable, clean, non-slip, dry, and fireproof surface. Do not operate the instrument in explosive atmospheres, with hazardous substances, or around water.

Gradually increase the speed; reduce the speed if:

- Stirring bar breaks away due to high speed - The instrument is not running smoothly, or the container is not centered on the plate

- Stirring bar breaks away due to high speed - The instrument is not running smoothly, or the container is not centered on the plate

- Stirring bar breaks away due to high speed - The instrument is not running smoothly, or the container is not centered on the plate

centered on the plate

- Be aware of hazards due to:

- Flammable materials or media with a low boiling temperature

- Overfilling of media

- Unsafe container

- Flammable materials or media with a low boiling temperature - Overfilling of media - Unsafe container

- Process pathogenic materials only in closed vessels.

- If the case of the stirrer bar is PTFE, please note:

- Elemental fluorine, three fluoride and alkali metals will corrode the

PTFE and halogen alkanes make it expand at room temperature.

- Check the instrument and accessories prior to each use. Do not use

damaged components. Safe operation is only guaranteed with the

accessories listed in the "Accessories" section. Accessories must be

securely attached to the device and must be removed when not

Always disconnect the power before fitting accessories.

- When the external temperature sensor is needed, the tip of the

measuring sensor must be at least 5-10 mm from vessel bottom

wall.

• The instrument can only be fully disconnected from the main power supply by turning off the main or disconnecting the plug.
• The voltage stated on the label must correspond to the main power supply. ● The instrument must only be operated by experts.

Keep away from high magnetic fields.

Proper use

The instrument is designed for mixing and/or heating liquids in schools: laboratories or factories

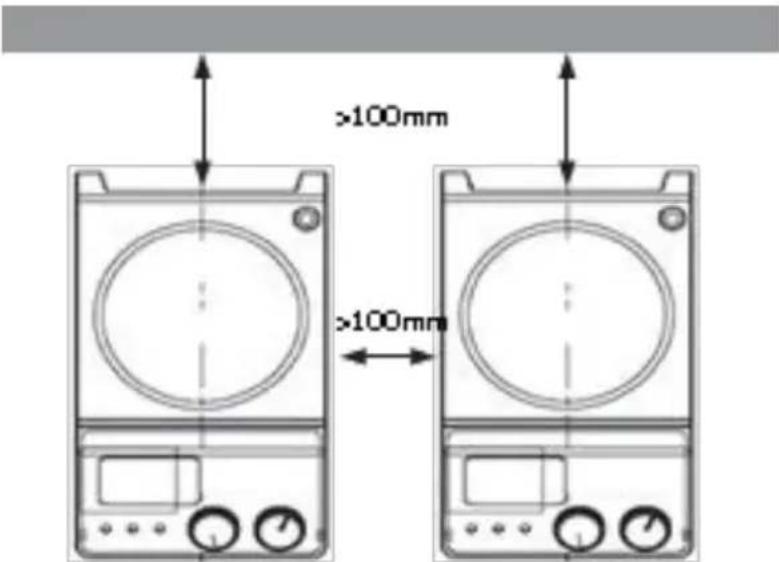

- Observe the minimum distances between multiple units, and distance to the rear wall and above the assembly (min. 100 mm).

This device is not suitable for using in residential areas or other con mentioned in Safety Instructions.

TECHNICAL SPECIFICATIONS

Model	XLD-C1
Voltage [VAC]	100~240
Frequency [Hz]	50/60
Power [W]	5
Maximum stirring capacity [mL]	3000
Product Dimensions (L*W*H)[mm]	143*149*47.5
Packing Size (L*W*H) [mm]	210*155*52
Net Weight [kg]	0.28
Gross Weight [kg]	0.35

*Products such as specifications, appearance, and design are subject to modification without prior notice.

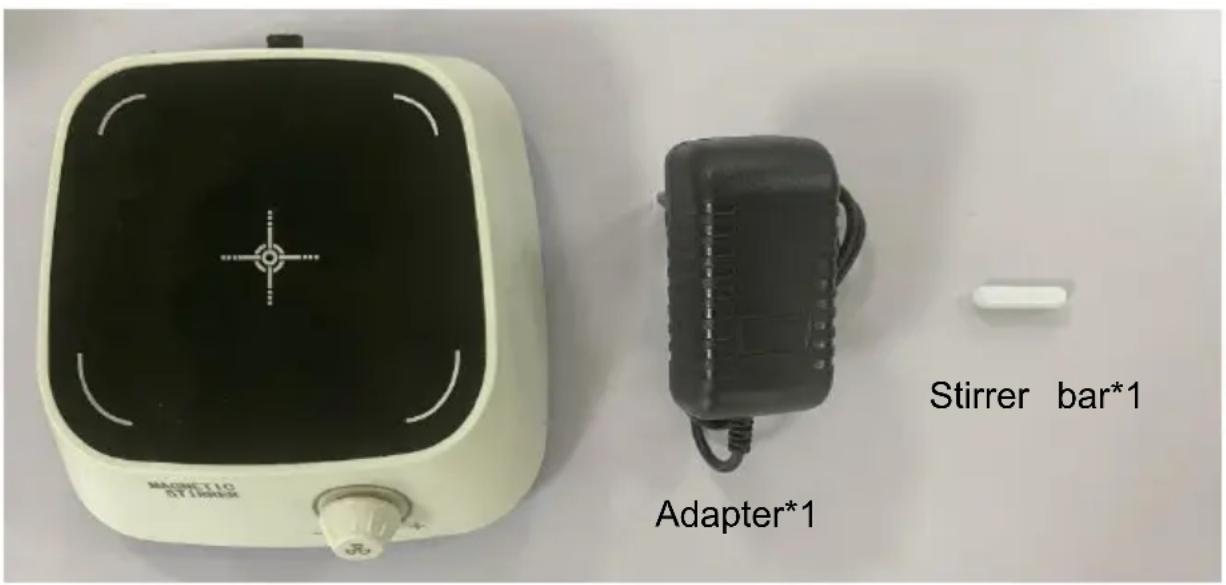

PACKAGE CONTENTS

Machine*1

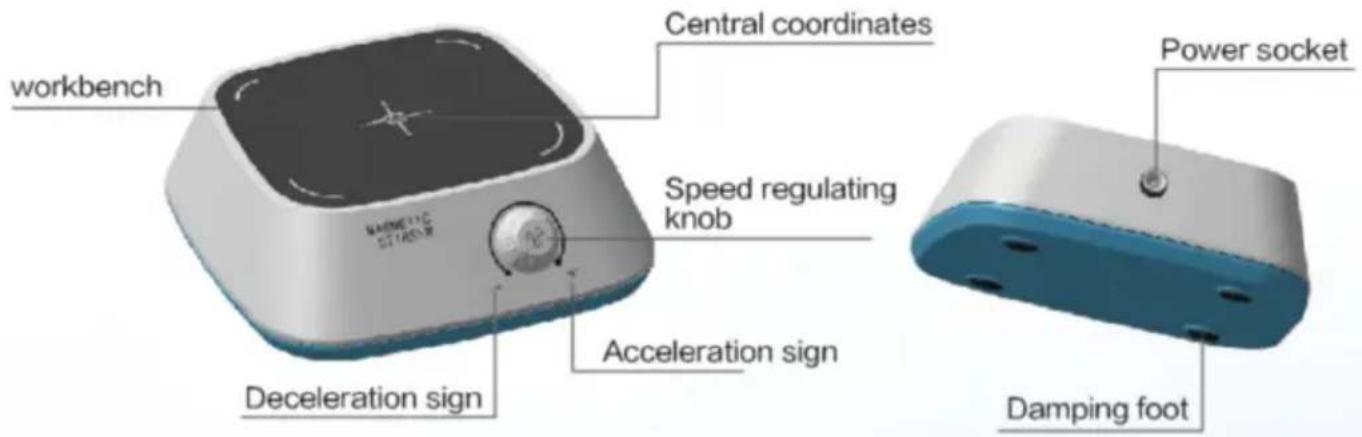

PRODUCT FUNCTIONS

Using the step

1. Place the machine stably on a flat workbench, and insert the output plug of the random power adapter into the power socket at the rear of the machine.
2. Plug the input end of the power adapter into a power socket, the voltage consistent with the voltage identified by the product.
3. Add an appropriate amount of the solution to be stirred into the experimental bottle, and gently place the stirrer in the liquid. After confirmation, place the experimental bottle stably at the central coordinate position of the machine workbench.
4. Start acceleration: the knob can rotate in the right direction (you will hear and feel its click). At this time, the motor is turned on. Continue to rotate to the right to increase the speed. After increasing to the required speed, it will run at a constant speed.
5. Deceleration closing: when the knob rotates to the left, the speed will gradually decrease. When you hear and feel it click, the motor will be closed.
6. Transfer the test bottle after the solution stirring in the test is completely prohibited.
7. When idle, pull out the power cord plug and cut off the power supply of the whole machine.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when you are placing an order with us to see if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

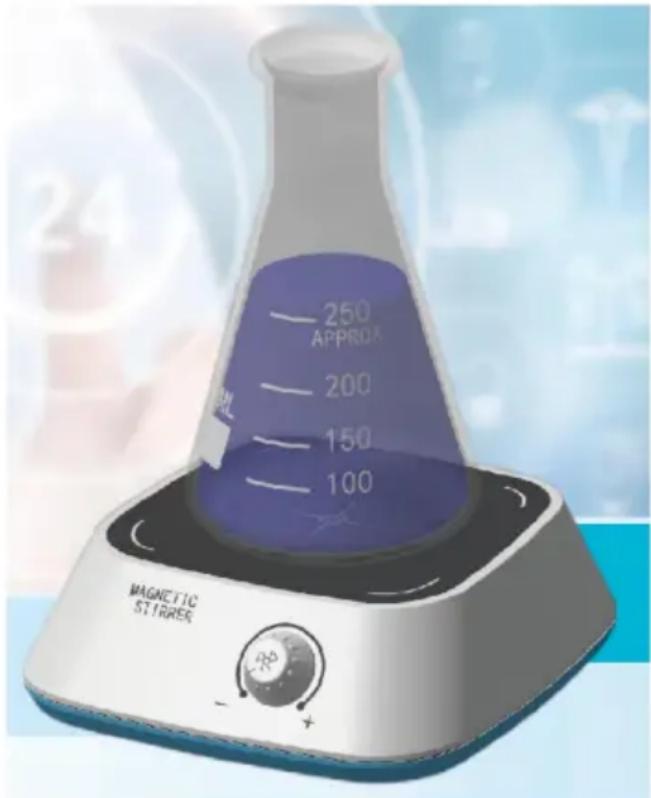

Magnetic Stirrers
