SH-3ABEI - Magnetic stirrer Vevor - Free user manual and instructions

Product Type	Magnetic Stirrer Hotplate
Brand	Vevor
Model	SH-3ABEI
Dimensions (L×W×H)	305 × 180 × 132 mm
Net Weight	3.42 kg
Power Supply	120/200-240 V ~ 50/60 Hz
Power	500 W
Max Stirring Capacity	2000 mL
Max Heating Temperature	300 °C
Stirring Speed Range	Continuously adjustable (0-2000 rpm est.)
Plate Material	Ceramic or high-temperature resistant alloy
Display	Digital (temperature and speed)
External Temperature Sensor	Yes (PT100, optional)
Main Functions	Magnetic stirring, heating, temperature control
Safety	Overheat protection, safety shutdown, grounding required
Maintenance and Cleaning	Clean the plate with a damp cloth after cooling. Do not immerse.
Spare Parts and Repairability	Magnetic stir bar, temperature sensor, stand available. Repair by professional.
Package Contents	Stirrer, power cord, magnetic stir bar, stand (depending on model), manual
Warranty	Technical support and electronic warranty certificate at vevor.com/support

Frequently Asked Questions - SH-3ABEI Vevor

What is the maximum stirring capacity of the SH-3ABEI?

The maximum capacity is 2000 mL for the SH-3ABEI model, which corresponds to a 2-liter beaker.

Can I use the SH-3ABEI without an external temperature sensor?

Yes, you can use it without an external sensor. In this case, the displayed temperature is that of the heating plate.

How to clean the heating plate of the stirrer?

Wait for the plate to cool completely, then wipe it with a damp cloth. Do not use abrasive products and never immerse the device.

What are the essential safety precautions?

Always plug the device into a grounded outlet, do not use in a humid or explosive environment, and maintain a minimum distance of 100 mm around the device.

Can the SH-3ABEI reach a temperature of 380 °C?

No, the SH-3ABEI model has a maximum temperature of 300 °C (the SH-3AB reaches 380 °C). Check the exact model.

What to do if the display shows 'pot'?

This means the external sensor is not placed in the liquid. Place the sensor in the beaker to detect the temperature.

How to adjust the stirring speed?

Turn the 'STIR' knob to set the speed. The set speed is displayed briefly, then returns to the actual speed.

Can I use the stirrer for flammable substances?

Yes, but with caution: always set the temperature at least 50 °C below the flash point of the liquid and work in a closed container.

How to install the sensor stand?

Attach the vertical pole, install the support rail, then the fixing loop. Make sure everything is tight before use.

Where can I find technical support or spare parts?

Visit vevor.com/support for technical support and the warranty certificate. Parts like magnetic stir bars are available online.

USER MANUAL SH-3ABEI Vevor

MAGNETIC STIRRERS

USER MANUAL

MODEL NO.: SH-3ABE, SH-3ABEII, SH-3AB

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODEL NO.: SH-3ABE, SH-3ABEII, SH-3AB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury.

	Warning!● Read the operating instructions carefully before use.● Ensure that only trained staff works with the instru
	Risk of burn!● Caution when touch the housing parts and the hotwhich can reach temperature of exceed 300 °C.● Pay attention to the residual heat after switching o
	Protective ground contact!● Make sure that socket must be grounded (protectivecontact) before use.

- When operating, wear personal safety protection to avoid the risk of - Splashing and evaporation of liquids - Release of toxic or combustible gases

• Set up the instrument in a spacious area on a stable, clean, non-slip, and fireproof surface. Do not operate the instrument in explosive atmospheres, with hazardous substances, or around water. ● Gradually increase the speed, reduce the speed if:
• Stirring bar breaks away due to high speed
• The instrument is not running smoothly, or the container is not centered on the plate
• Temperature must always be set to at least 50°C lower than the flash point of the media used.
• Be aware of hazards due to:
• Flammable materials or media with a low boiling temperature
• Overfilling of media
• Unsafe container

Process pathogenic materials only in closed vessels.

If the case of the stirrer bar is PTFE, please note:

Elemental fluorine, three fluoride and alkali metals will corrode the PTFE and halogen alkanes making it expand at room temperature.

Molten alkali, alkaline earth metals or their solution, as well as powder in the second and third groups of the Periodic Table elements, will have a chemical reaction with PTFE when temperature reaches 300-400°C.

Check the instrument and accessories prior to each use. Do not use damaged components. Safe operation is only guaranteed with the accessories listed in the “Accessories” section. Accessories must be securely attached to the device and must be removed when not in use. Always disconnect the power before fitting accessories.

When the external temperature sensor is needed, the tip of the measuring sensor must be at least 5-10 mm from the vessel bottom wall.

The instrument can only be fully disconnected from the main power supply by turning off the main switch or disconnecting the plug.

The voltage stated on the label must correspond to the main power supply.

Ensure that the main power supply cable does not touch the hotplate. Do not cover the device.

The instrument must only be operated by experts.

Keep away from high magnetic fields.

SAVE THIS MANUAL

Proper use

The instrument is designed for mixing and/or heating liquids in schools, laboratories or factories.

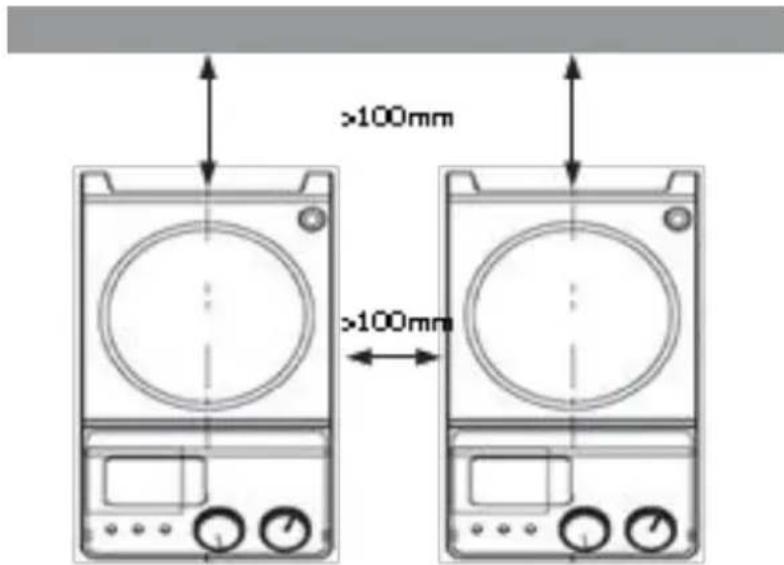

Observe the minimum distances between multiple units, and distance to the rear wall and above the assembly (min. 100 mm).

Figure 1

This device is not suitable for use in residential areas or other locations mentioned in the Safety Instructions.

TECHNICAL SPECIFICATIONS

Model	SH-3ABE	SH-3ABEII	SH-3AB
Voltage [VAC]	120/200~240	120/200~240	120/200~240
Frequency [Hz]	50/60	50/60	50/60
Power [W]	500	500	500
Maximum stirring capacity [mL]	2000	5000	3000
Maximum heating temperature [°C]	300	300	380
Product Dimensions (L*W*H)[mm]	305*180*132	305*180*132	260*177*130
Packing Size (L*W*H) [mm]	368*258*236	255*365*228	255*365*228
Net Weight [kg]	3.42	3.64	3.3
Gross Weight [kg]	4	4.14	3.76

*Products such as specifications, appearance, and design are subject to modification without prior notice.

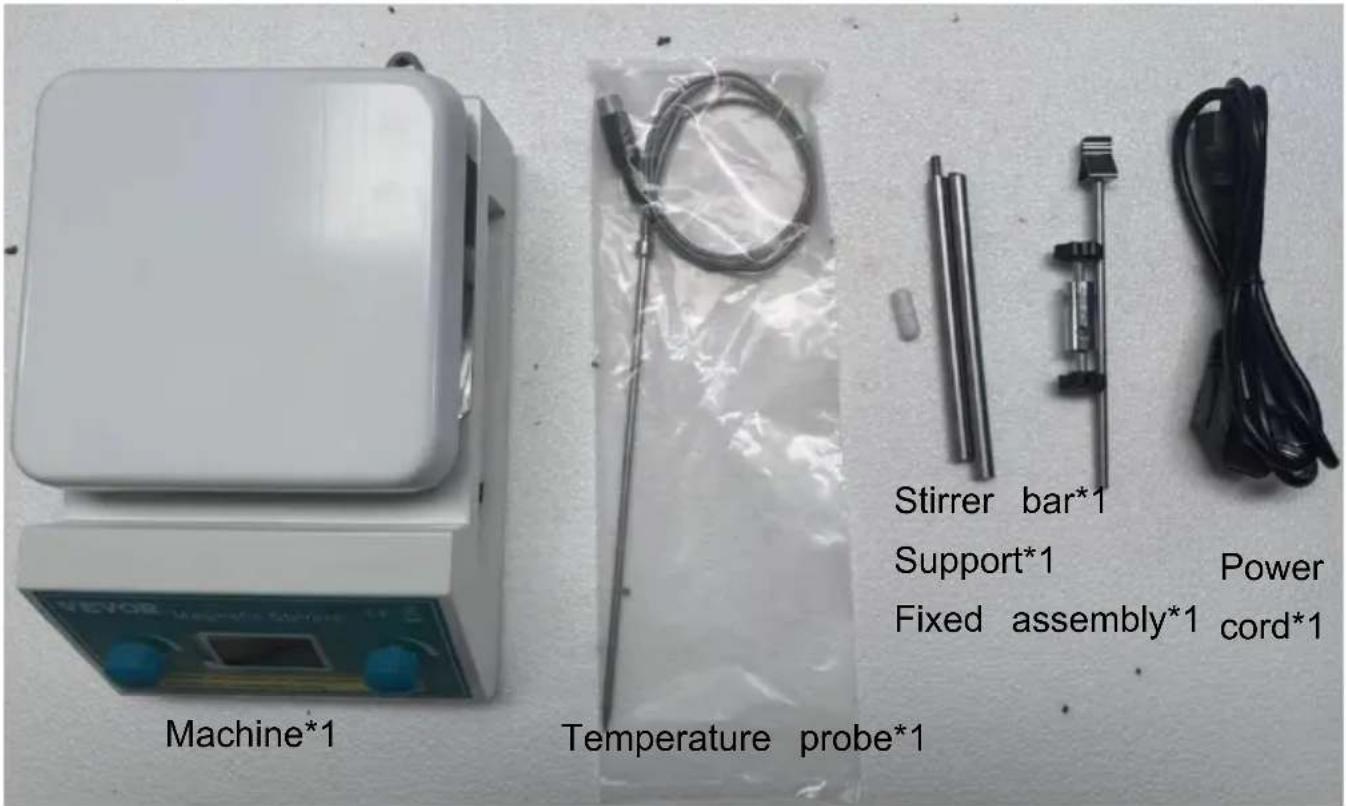

PACKAGE CONTENTS

SH-3ABE, SH-3ABEII

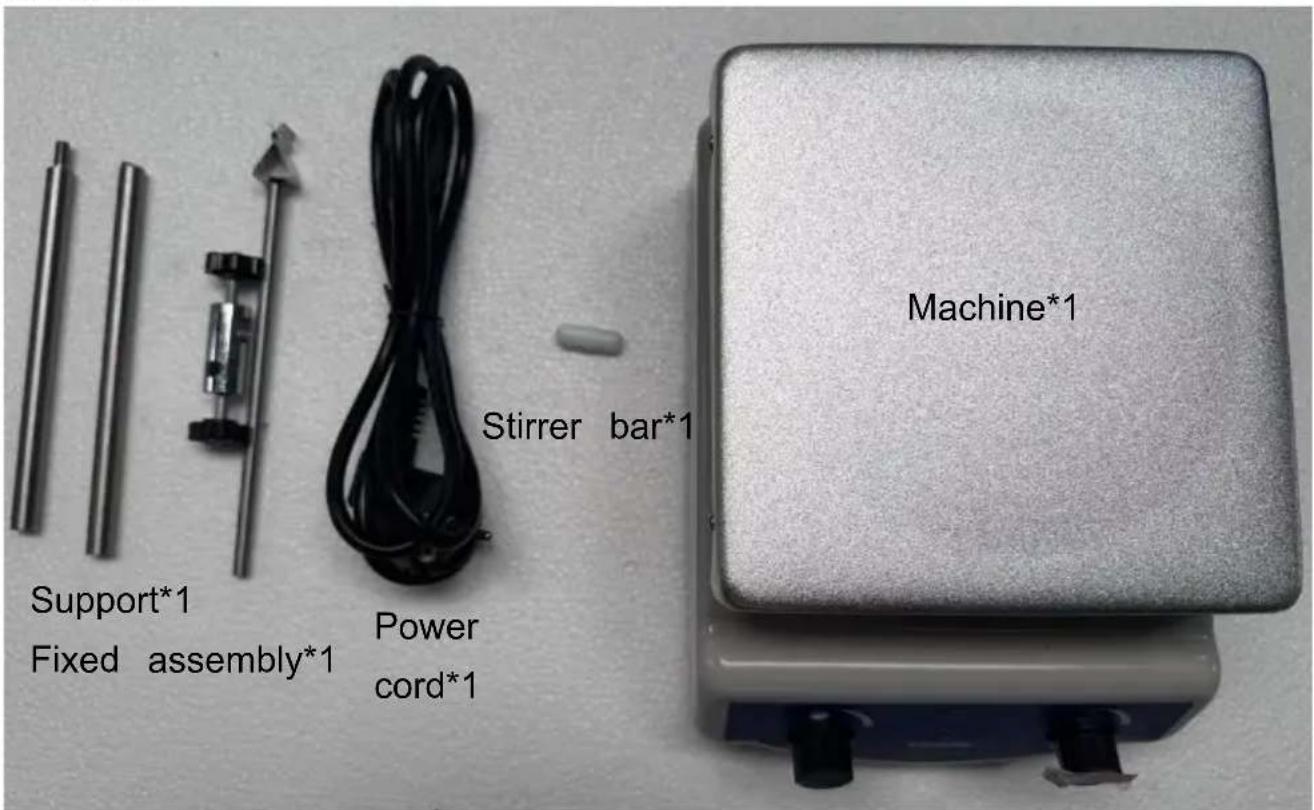

SH-3AB

ASSEMBLY STEPS

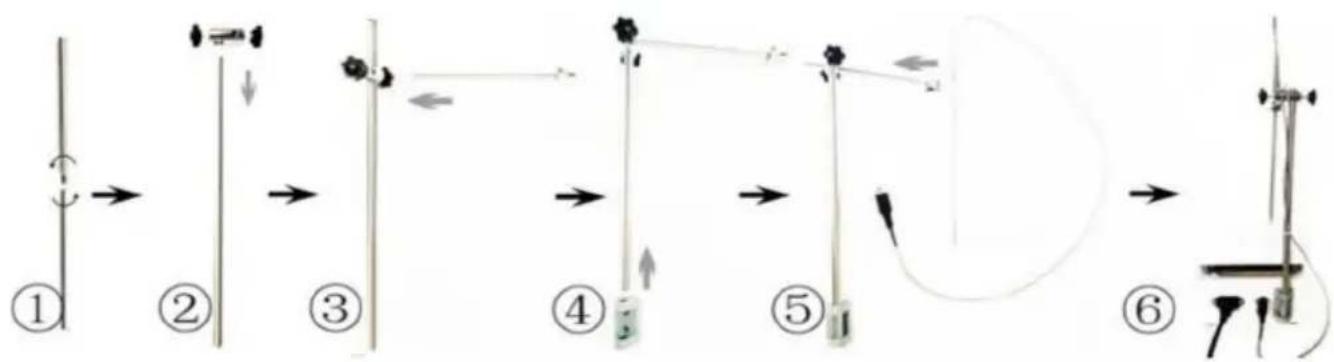

Support frame and sensor installation steps

1. Connect the upright post of the support frame (screw connection, please do not plug it directly);
2. Install the cross bar fixer of the support frame;
3. Install the support rail;
4. Install the fixing buckle between the support frame and the agitator body;
5. Install the stirring rod;

Fix the support frame and the agitator main body, and connect the power supply according to the socket of the main body.

Precautions for installation:

1. This product is a precision experimental instrument. Please operate according to the interface during installation.
2. Please install in strict accordance with the installation steps:
3. After installation, please check the verticality of the support frame and the level of the support rail.
4. Please ensure that all parts are tightly connected without looseness. If you find that the connection part is loose during use, please stop immediately and reinstall it to avoid causing parts and experiments.

The instrument is damaged.

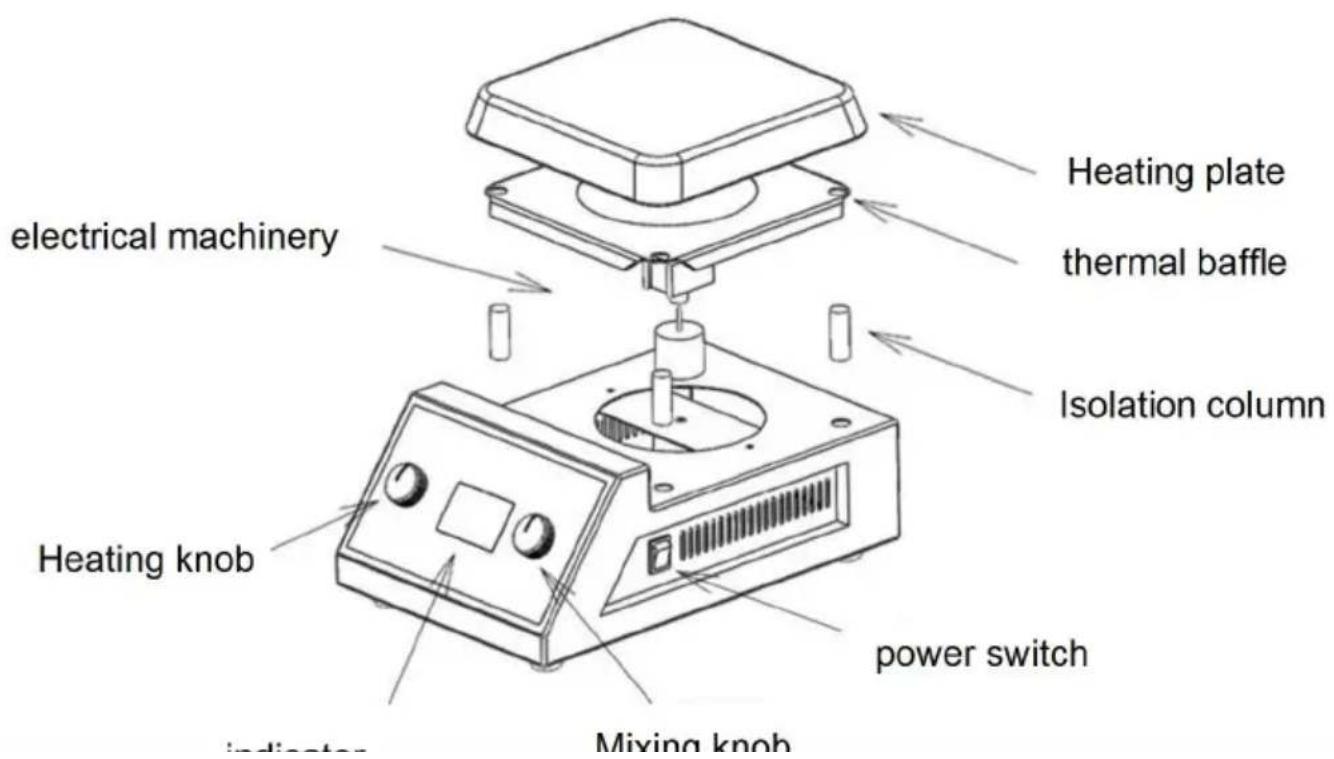

PRODUCT FUNCTIONS

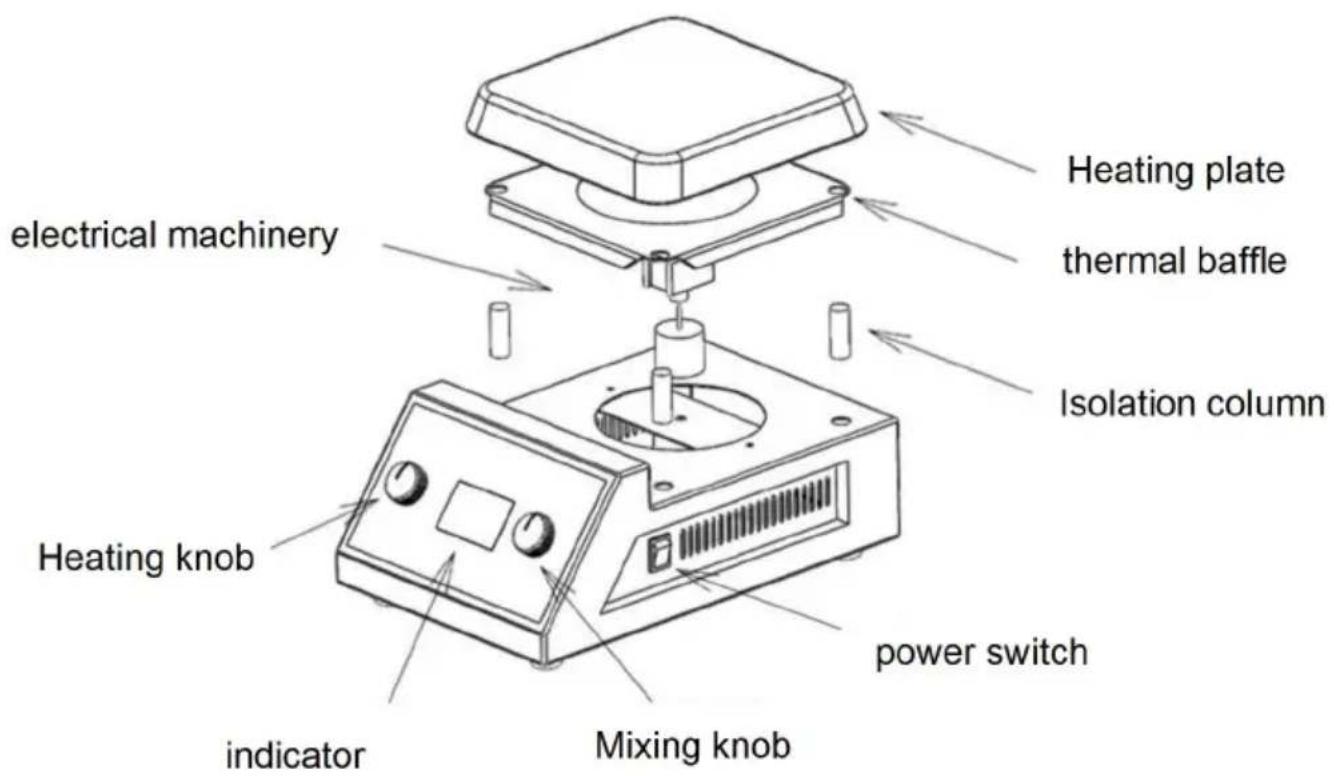

SH-3ABE, SH-3ABEII

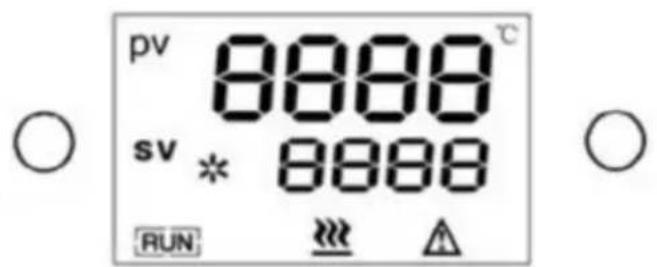

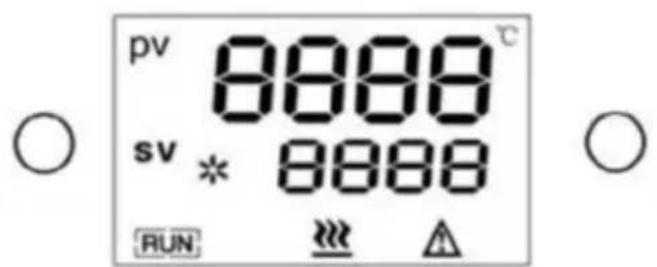

• PV represents the temperature. When there is no external sensor, it represents the temperature of the furnace plate, and when there is an external sensor, it represents the temperature of the external sensor.
• SV represents the rotational speed. The set state represents the set rotational speed, and the non-set state represents the running rotational speed.
• If the external temperature sensor is not placed in the beaker on the heating plate, the temperature change cannot be sensed within 10 minutes after the machine is powered on, and the instrument turns off heating and displays "pot".

Operation mode:

1. Place the machine on a horizontal desktop, and then connect the power cord to the power outlet on the back of the base.
2. Plug the other end of the power cord into a standard socket.
3. Pay attention to the power switch on the right side of the base. The "I" indicates on, and "O" indicates off.
4. Place the machine stably, put the beaker with the liquid medicine in the center of the working plate, put an appropriate rotor in the beaker and run it in the center of the beaker. Turn on the power supply. The upper row of the instrument displays the temperature of the furnace plate (if the sensor is connected externally, the temperature of the external sensor is displayed), and the lower row displays "Off". Press the "HEAT" button to start the machine running and heating up. Similarly, press the "STIR" knob once, and the machine starts to stir. Adjust it to the required speed by rotating the "STIR" knob (when the knob rotates, the lower row of the instrument will display the rotation speed for 2 seconds after the end of rotation, and then the lower row instrument will display the current rotation speed).
5. If you need to measure the temperature of the liquid in the beaker, connect the bracket, insert the sensor lead plug into the back of the machine, and then insert the sensor into the liquid. At this time, the temperature displayed by the instrument is the liquid temperature.

Precautions for use

1. Avoid using in a humid environment.
2. When in use, the liquid medicine in the beaker should not be too full to prevent it from overflowing when stirring.
3. Do not touch the oven plate during use to avoid burns.

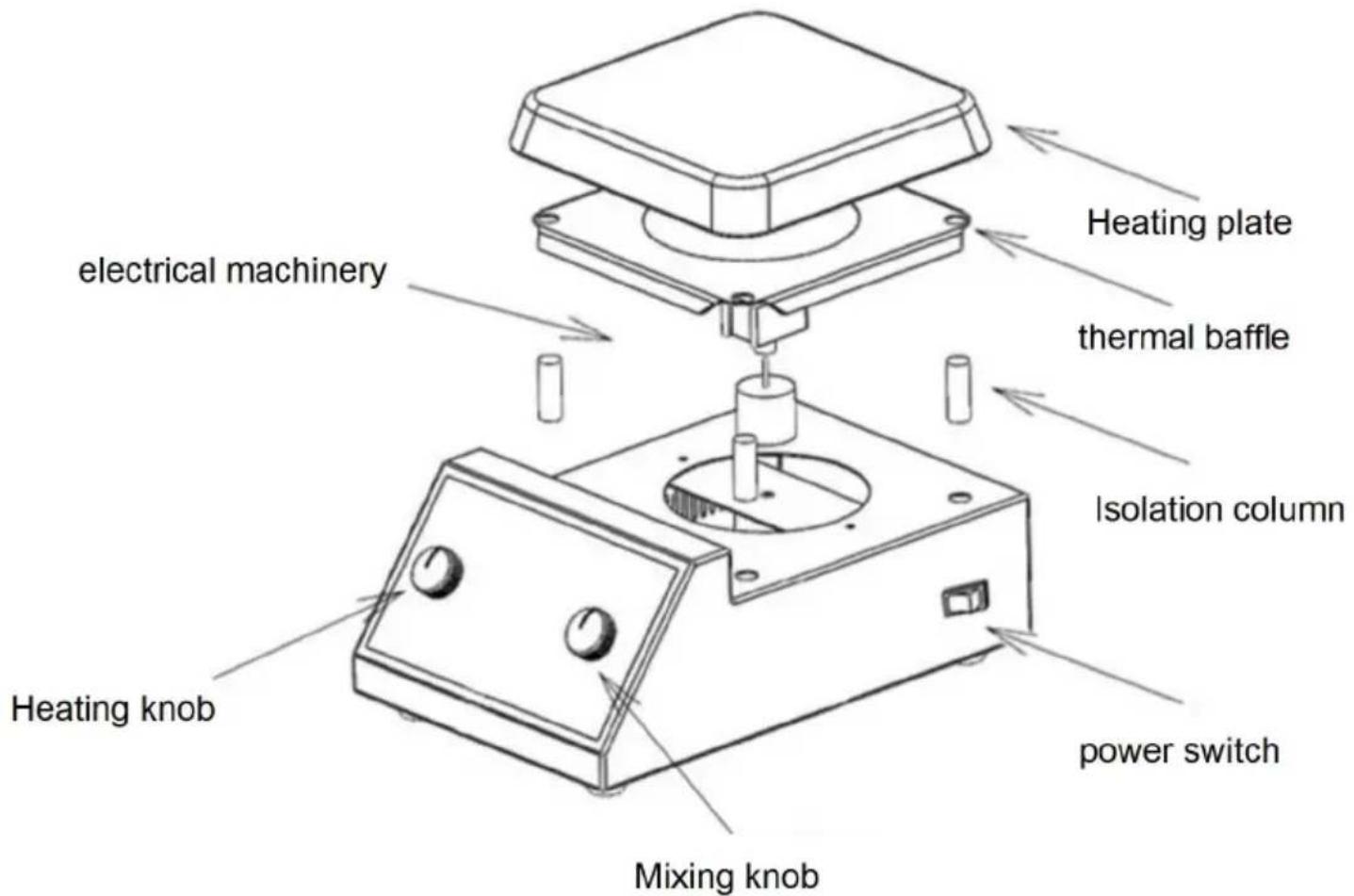

SH-3AB

Use operation mode

1. Place the machine stably, and put the beaker with the liquid medicine in the center of the working plate.
2. Put the appropriate rotor in the beaker, and make it in the center of the
3. Turn on the power supply, and adjust the temperature by turning the "HEAT" knob. When HEATING, the "HEAT" indicator lights up, and the power is adjusted by the "heat" knob. Adjust the stirring speed by turning the "STIR" knob. When STIRRING, the "stir" indicator light is on, and the stirring speed is adjusted by the "stir" knob.
4. Measure the temperature of the liquid in the beaker with a thermometer on a bracket.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODEL: SH-3ABE, SH-3ABEII, SH-3AB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Figure 1

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODEL NO.: SH-3ABE, SH-3ABEII, SH-3AB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

EC

REP

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODEL NO.: SH-3ABE, SH-3ABEII, SH-3AB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

Figure 1

PRODUCT FUNCTIONS

SH-3ABE, SH-3ABEII

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELNR.: SH-3ABE, SH-3ABEII, SH-3AB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

Figure 1

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODEL NO: SH-3ABE, SH-3ABEII, SH-3AB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

N.° DE MODELO: SH-3ABE, SH-3ABEII, SH-3AB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

ADVERTENCIA:

Figure 1

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

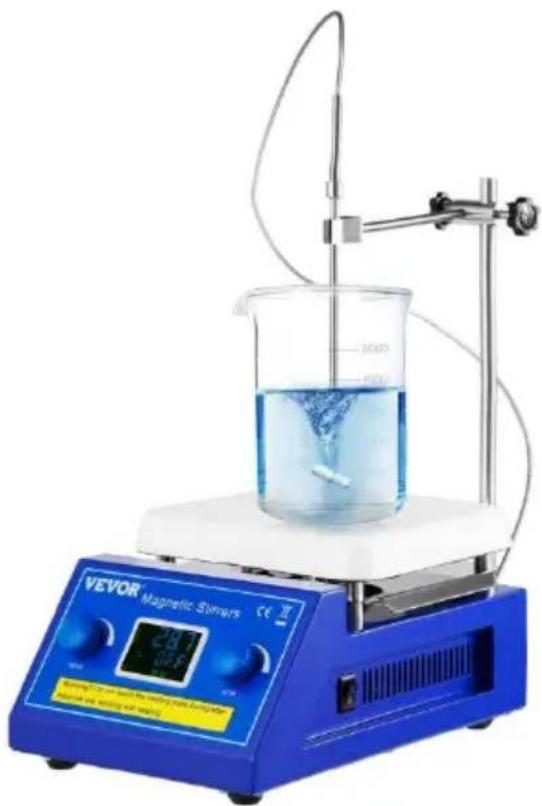

Magnetic Stirrers

MODELLO N.: SH-3ABE, SH-3ABEII, SH-3AB

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Figure 1

Imported in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported in USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE
