USER MANUAL SH-3ABE Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

MAGNETIC STIRRERS

USER MANUAL

MODEL NO.: SH-3ABE, SH-3ABEII, SH-3AB

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODEL NO.: SH-3ABE, SH-3ABEII, SH-3AB

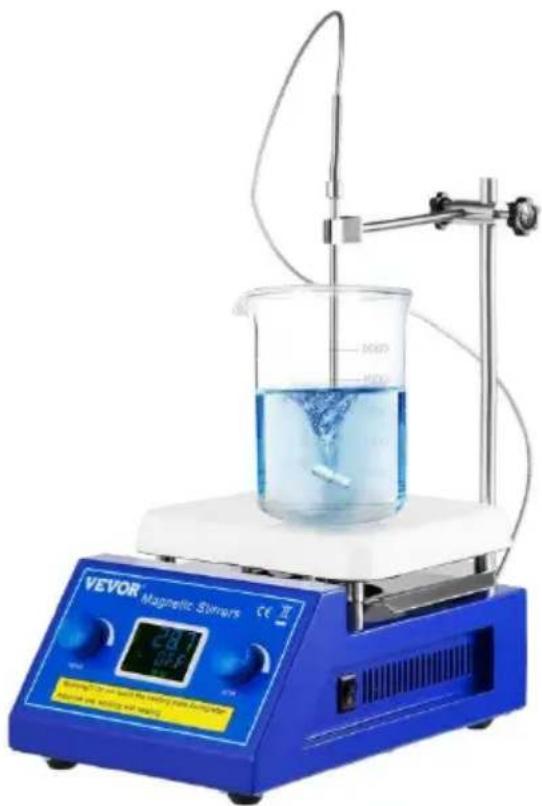

Laboratory setup with a beaker of liquid being heated by an EVO magnetic stirrer, connected to a digital display (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

	Warning!● Read the operating instructions carefully before use.● Ensure that only trained staff works with the instru
	Risk of burn!● Caution when touch the housing parts and the hotwhich can reach temperature of exceed 300 °C.● Pay attention to the residual heat after switching o
	Protective ground contact!● Make sure that socket must be grounded (protectivecontact) before use.

- When operating wear personal safety protection to avoid the risk of - Splashing and evaporation of liquids - Release of toxic or combustible gases

• Set up the instrument in a spacious area on a stable, clean, non-dry and fireproof surface. Do not operate the instrument in explos atmospheres, with hazardous substances or around water.
  ● Gradually increase the speed, reduce the speed if:

• Stirring bar breaks away due to high speed

• The instrument is not running smoothly, or the container is not centered on the plate

• Temperature must always be set to at least 50^ C lower than the 1 point of the media used.

• Be aware of hazards due to:

• Flammable materials or media with a low boiling temperature

• Overfilling of media
• Unsafe container

● Process pathogenic materials only in closed vessels.

- If the case of the stirrer bar is PTFE, please note:

- Elemental fluorine, three fluoride and alkali metals will corrode the PTFE and Halogen alkanes making it expand at room tempera

- Molten alkali, alkaline earth metals or their solution, as well as powder in the second and third ethnic of the Periodic Table c. Elements will have a chemical reaction with PTFE when temperature reaches 300 \~ 400°C .

- Check the instrument and accessories prior to each use. Do not be damaged components. Safe operation is only guaranteed with the accessories listed in the “Accessories” section. Accessories must be securely attached to the device and must be removed when not Always disconnect the power before fitting accessories.

- When the external temperature sensor is needed, the tip of the measuring sensor must be at least 5-10 mm from vessel bottom wall.

- The instrument can only be fully disconnected from the main power supply by turning off the main or disconnecting the plug.

- The voltage stated on the label must correspond to the main power supply.

- Ensure that the main power supply cable does not touch the hotpl Do not cover the device.

● The instrument must only be operated by experts.

Keep away from high magnetic fields.

SAVE THIS MANUAL

Proper use

The instrument is designed for mixing and/or heating liquids in schools, laboratories or factories

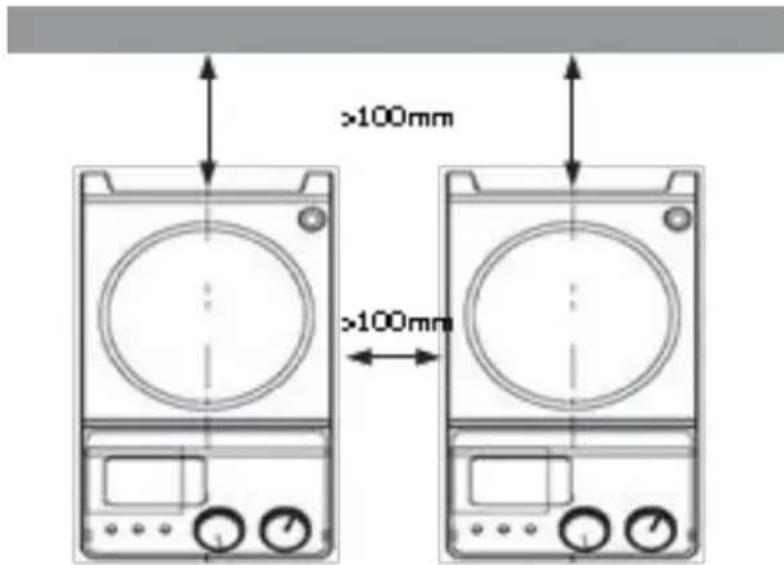

- Observe the minimum distances between multiple units, and distance to the rear wall and above the assembly (min. 100 mm).

>100mm >100mm

Figure 1

This device is not suitable for use in residential areas or other const mentioned in Safety Instructions.

TECHNICAL SPECIFICATIONS

Model	SH-3ABE	SH-3ABEII	SH-3AB
Voltage [VAC]	120/200~240	120/200~240	120/200~240
Frequency [Hz]	50/60	50/60	50/60
Power [W]	500	500	500
Maximum stirring capacity [mL]	2000	5000	3000
Maximum heating temperature [°C]	300	300	380
Product Dimensions (L*W*H)[mm]	305*180*132	305*180*132	260*177*130
Packing Size (L*W*H) [mm]	368*258*236	255*365*228	255*365*228
Net Weight [kg]	3.42	3.64	3.3
Gross Weight [kg]	4	4.14	3.76

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

SH-3ABE, SH-3ABEII

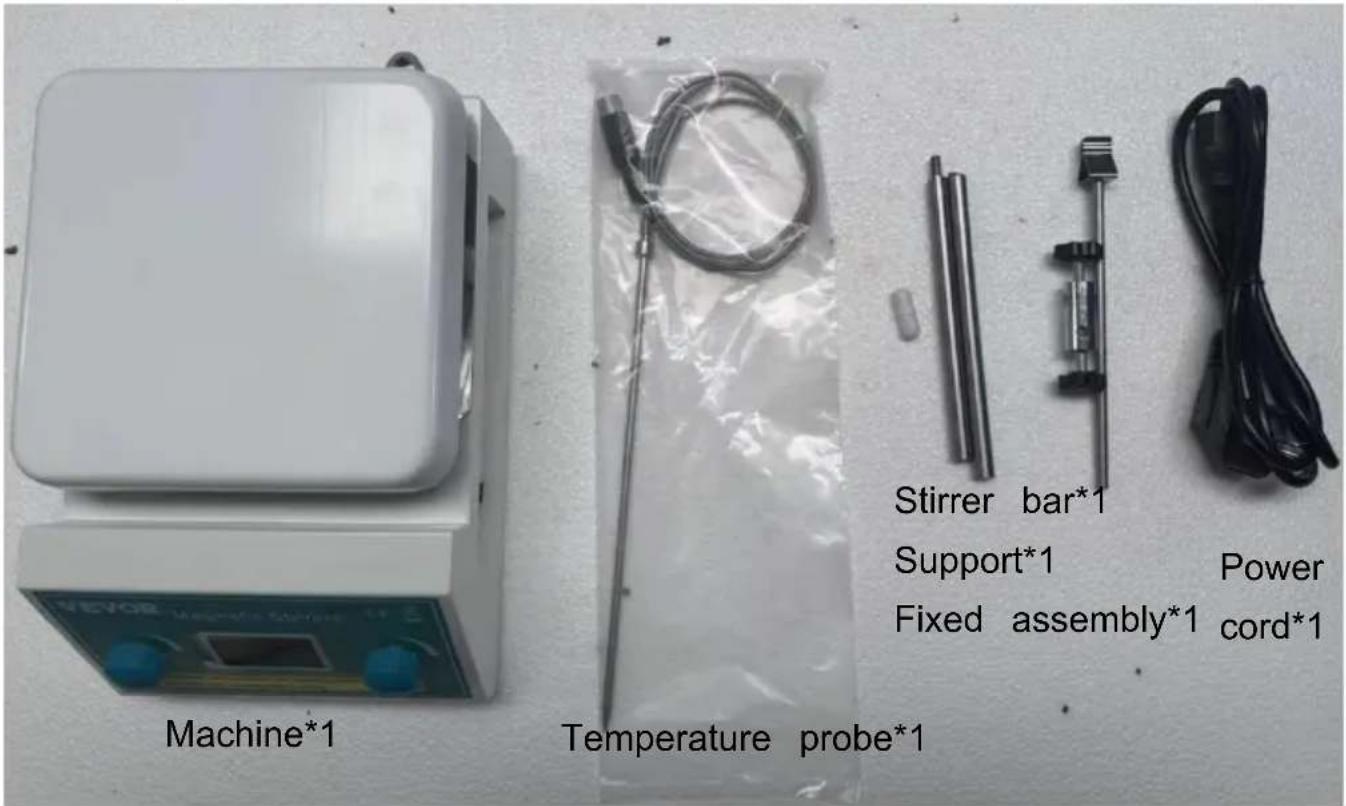

Machine*1 Temperature probe*1 Stirrer bar*1 Support*1 Power Fixed assembly*1 cord*1

SH-3AB

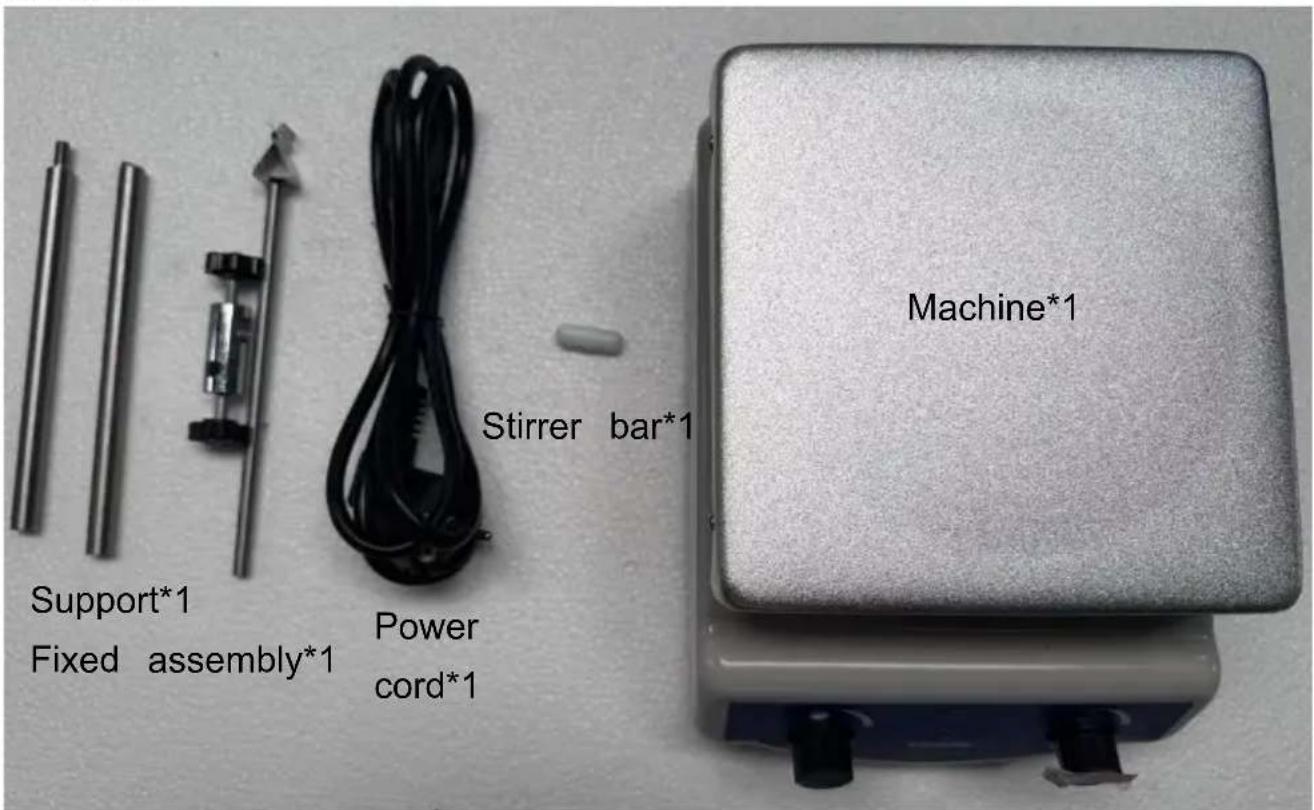

Machine*1 Stirrer bar*1 Support*1 Fixed assembly*1 Power cord*1

ASSEMBLY STEPS

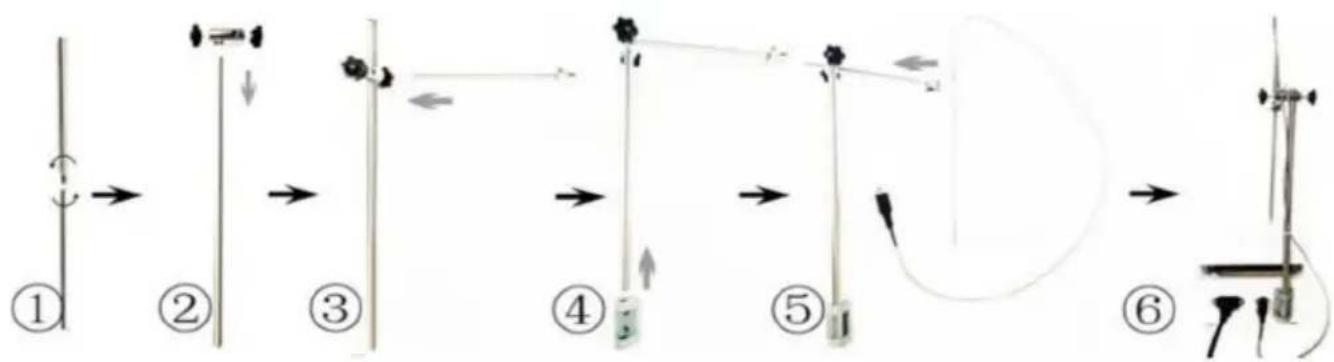

Support frame and sensor installation steps

1. Connect the upright post of the support frame (screw connection, please do not plug it directly);
2. Install the cross bar fixer of the support frame;
3. install the support rail;
4. Install the fixing buckle between the support frame and the agitato body;
5. Install the stirring rod;

Fix the support frame and the agitator main body, and connect the a bar power supply according to the socket of the main body.

Precautions for installation:

1. This product is a precision experimental instrument. Please operate according to the interface during installation.
2. Please install in strict accordance with the installation steps:
3. After installation, please check the verticality of the support frame the level of the support rail.
4. Please ensure that all parts are tightly connected without looseness. If you find that the connection part is loose during use, please stop immediately and reinstall it to avoid causing parts and experiments.

The instrument is damaged.

PRODUCT FUNCTIONS

SH-3ABE, SH-3ABEII

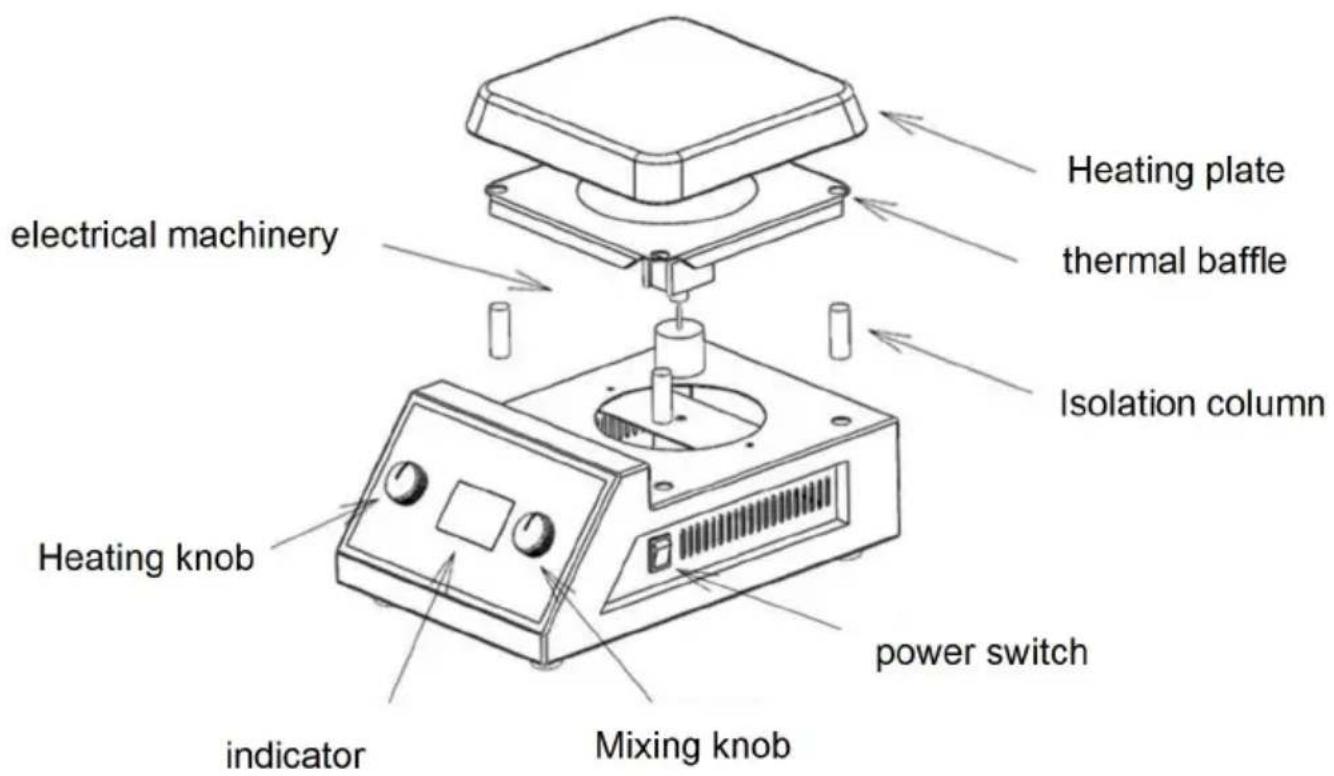

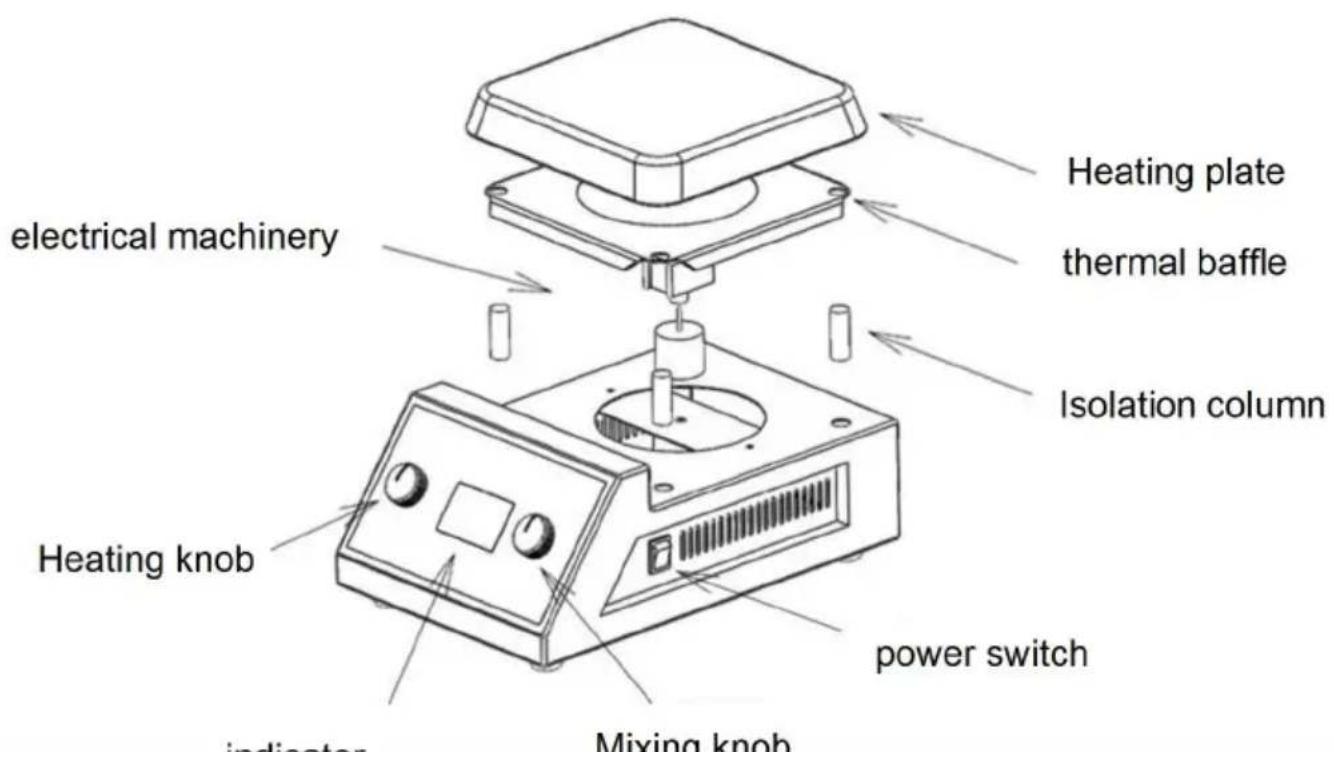

electrical machinery Heating plate thermal baffle Isolation column Heating knob power switch indicator Mixing knob

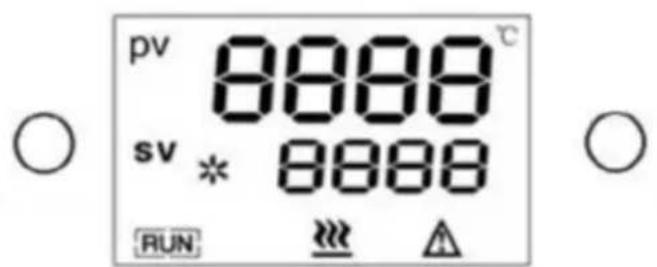

pv 8888 °C sv * 8888 RUN 热 ▲

• PV represents the temperature, when there is no external sensor, it represents the temperature of the furnace plate, and when there is an external sensor, it represents the temperature of the external sensor.
• SV represents the rotational speed, the set state represents the set rotational speed, and the non-set state represents the running rotational speed.
• If the external temperature sensor is not placed in the beaker on the heating plate, the temperature change cannot be sensed within 10 minutes after the machine is powered on, and the instrument turns of heating and displays "pot".

Operation mode:

1. Place the machine on a horizontal desktop, and then connect the power cord to the power outlet on the back of the base.

2. Plug the other end of the power cord into a standard socket.

3. Pay attention to the power switch on the right side of the base. The indicates on, and (o) indicates OFF.

4. Place the machine stably, put the beaker with the liquid medicine in the center of the working plate, put an appropriate rotor in the beaker and run in the center of the beaker, turn on the power supply, and the upper row instrument displays the temperature of the furnace plate (if the sensor is connected externally, the temperature of the external sensor is displayed), the lower row displays "Off". Press the "HEAT" button to start the machine run and HEAT up. Similarly, press the "STIR" knob once, and the machine start to STIR, and adjust it to the required speed by rotating the "stir" knob (When the knob rotates, the lower row of the instrument will display the rotation speed for 2 seconds after the end of rotation, and the lower row instrument will display the current rotation speed).

5. If you need to measure the temperature of the liquid in the beaker, y connect the bracket, insert the sensor lead plug into the back of the ma and then insert the sensor into the liquid. At this time, the temperature displayed by the instrument is the liquid temperature.

Precautions for use

1. should avoid using in a humid environment.

2. When in use, the liquid medicine in the beaker should not be too full prevent it from overflowing when stirring.

3. Don't touch the oven plate during use to avoid burns.

SH-3AB

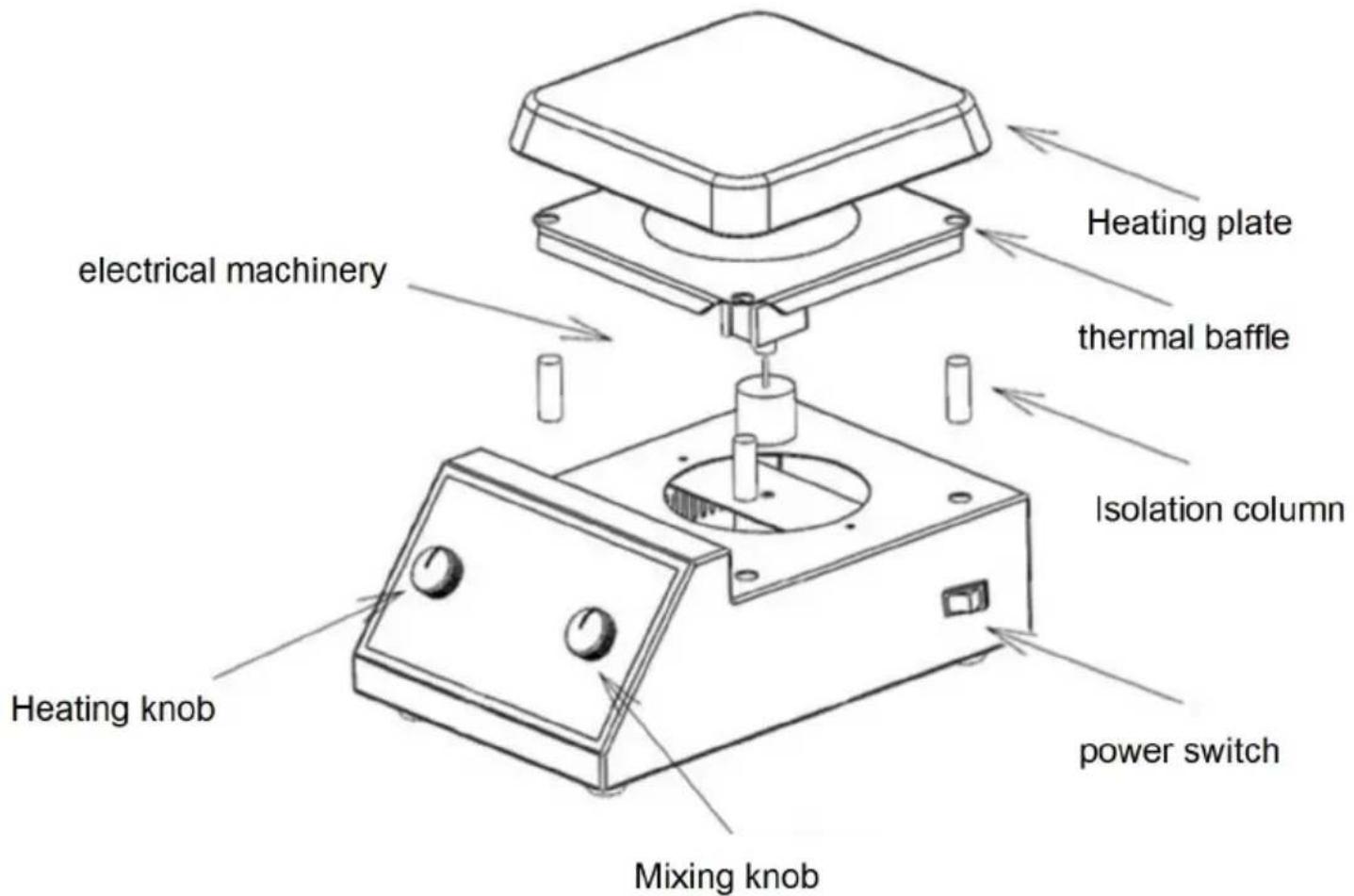

electrical machinery heating plate thermal baffle isolation column heating knob power switch Mixing knob

Use operation mode

1. Place the machine stably, and put the beaker with the liquid medicine in center of the working plate.
2. put the appropriate rotor in the beaker, and make it in the center of the
3. Turn on the power supply, and adjust the temperature by turning the open the "HEAT" knob. When HEATING, the "HEAT" indicator lights up, and the he power is adjusted by the "heat" knob. Adjust the STIRring speed by turning opening of the "STIR" knob. When STIRring, the "stir" indicator light is on, a stirring speed is adjusted by the "stir" knob.
4. Measure the temperature of the liquid in the beaker with a thermometer for a bracket.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

NR MODELU: SH-3ABE, SH-3ABEII, SH-3AB

Laboratory setup with a beaker of liquid being heated by an electric stirrer, connected to a digital display (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OSTRZEŻENIE:

>100mm >100mm

Rysunek 1

electrical machinery Heating plate thermal baffle Isolation column Heating knob power switch indicator Mixing knob

pv 8888 °C sv * 8888 RUN ≈ ≈ ≈

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELL-NR.: SH-3ABE, SH-3ABEII, SH-3AB

Laboratory setup with a beaker of liquid being heated by an EVO magnetic stirrer, connected to a digital display (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNUNG:

>100mm >100mm

Abbildung 1

electrical machinery Heating plate thermal baffle Isolation column Heating knob power switch mixing knob indicate

pv 8888 °C sv * 8888 RUN ≈ ≈ ≈

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

N° DE MODÈLE : SH-3ABE, SH-3ABEII, SH-3AB

Laboratory setup with a beaker of liquid being heated by an electric stirrer, connected to a digital display (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERTISSEMENT:

>100mm >100mm

Figure 1

FONCTIONS DU PRODUIT

SH-3ABE, SH-3ABEII

electrical machinery Heating plate thermal baffle Isolation column Heating knob power switch Mixing knob indicate

pv 8888 °C sv * 8888 RUN ≈ ≈ ≈

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELNR.: SH-3ABE, SH-3ABEII, SH-3AB

Laboratory setup with a beaker of liquid being heated by an electric stirrer, connected to a digital display (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

WAARSCHUWING:

>100mm >100mm

Figuur 1

electrical machinery Heating plate thermal baffle Isolation column Heating knob power switch indicator Mixing knob

pv 8888 °C sv * 8888 RUN ≈ ≈ ≈

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELLNR: SH-3ABE, SH-3ABEII, SH-3AB

Laboratory setup with a beaker of liquid being heated by an electric stirrer, connected to a digital display (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

>100mm 3 >100mm

Bild 1

electrical machinery Heating plate thermal baffle Isolation column Heating knob power switch indicator Mixing knob

pv 8888 °C sv * 8888 RUN ≈ ≈ ≈

electrical machinery heating plate thermal baffle isolation column heating knob power switch Mixing knob

Använd driftläge

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

N.° DE MODELO: SH-3ABE, SH-3ABEII, SH-3AB

Laboratory setup with a beaker of liquid being heated by an EVO magnetic stirrer, connected to a digital display (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

ADVERTENCIA:

>100mm >100mm

Figura 1

electrical machinery Heating plate thermal baffle Isolation column Heating knob power switch indicator Mixing knob

pv 8888 °C sv * 8888 RUN ≈ ≈ ≈

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Magnetic Stirrers

MODELLO N.: SH-3ABE, SH-3ABEII, SH-3AB

Laboratory setup with a beaker of liquid being heated by an electric stirrer, connected to a digital display (no visible text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

AVVERTIMENTO:

>100mm >100mm

Figura 1

electrical machinery Heating plate thermal baffle Isolation column Heating knob power switch indicator Mixing knob

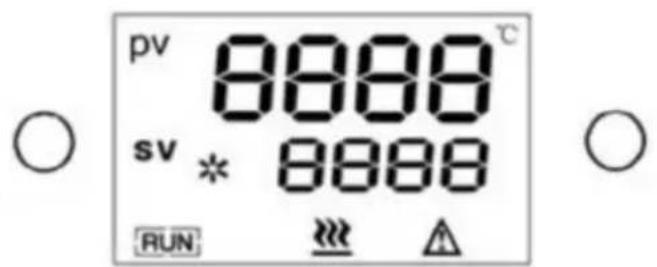

pv 8888 °C sv * 8888 RUN ≈ ≈ ≈

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE
