Product Type Flat top outdoor storage cabinet
Brand Vevor
Model HL-002
Approximate dimensions (H x W x D) 90 x 60 x 40 cm
Approximate weight 18 kg
Power None (non-electric furniture)
Maximum load capacity 30 kg (estimate)
Main material Composite wood panels (MDF or similar)
Main functions Secure outdoor storage, flat top usable as work surface, lockable door
Care and cleaning Clean with a damp cloth and mild detergent; avoid excessive moisture
Safety Keep door closed and locked in rainy weather; do not use in dangerous areas; keep out of reach of children
Spare parts and repairability Hardware kit included; spare parts available on request via Vevor support
Package contents Wood panels, hardware, hinges, handle, assembly instructions
Technical support and warranty Online support at www.vevor.com/support; electronic warranty certificate
Country of origin China (imported by Sanven Technology Ltd.)

Frequently Asked Questions - HL-002 Vevor

How to assemble the HL-002 cabinet?
Follow the steps illustrated in the manual. First assemble the door panels, then the base, side panels, inner frame, and finally the doors. Use the provided screws and dowels and align the positioning holes.
What are the exact dimensions of the cabinet?
The approximate dimensions are 90 cm height, 60 cm width, and 40 cm depth. Consult the manual for precise measurements.
What material is the cabinet made of?
The cabinet is made of composite wood panels (MDF type) with a weather-resistant finish for outdoor use.
Is the cabinet rain-resistant?
Yes, it is designed for outdoor use but it is recommended to keep the door closed and locked to prevent water from entering. Avoid prolonged exposure to moisture.
What is the maximum weight supported by the flat top?
The flat top can support approximately 30 kg. Do not place overly heavy objects to avoid damaging the cabinet.
Can I lock the cabinet?
Yes, the door is equipped with a locking latch. Use a padlock (not included) to secure the contents.
How to clean the outdoor cabinet?
Clean with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents. Dry after cleaning.
What is the Vevor warranty for this model?
Vevor offers an electronic warranty. Register your product at www.vevor.com/support for details. The warranty covers manufacturing defects.
Can I get spare parts?
Yes, contact Vevor support via the website to order spare parts such as hinges, handles, or screws.
Is the cabinet difficult to assemble?
Assembly takes about 2 hours with two people. All instructions are illustrated in the manual. Make sure you have a screwdriver and a hammer.

User questions about HL-002 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Outdoor storage furniture in PDF format for free! Find your manual HL-002 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HL-002 by Vevor.

USER MANUAL HL-002 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

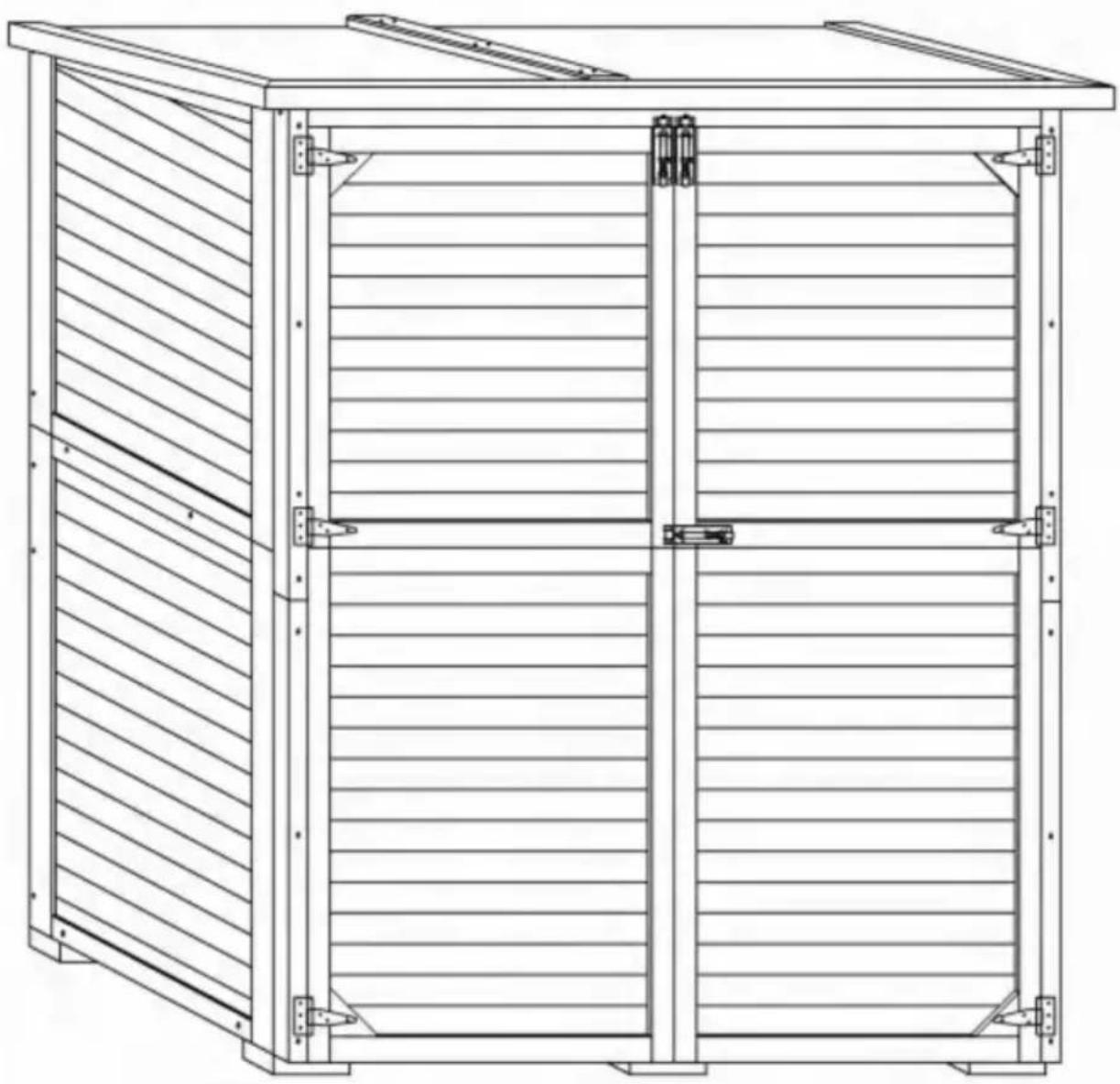

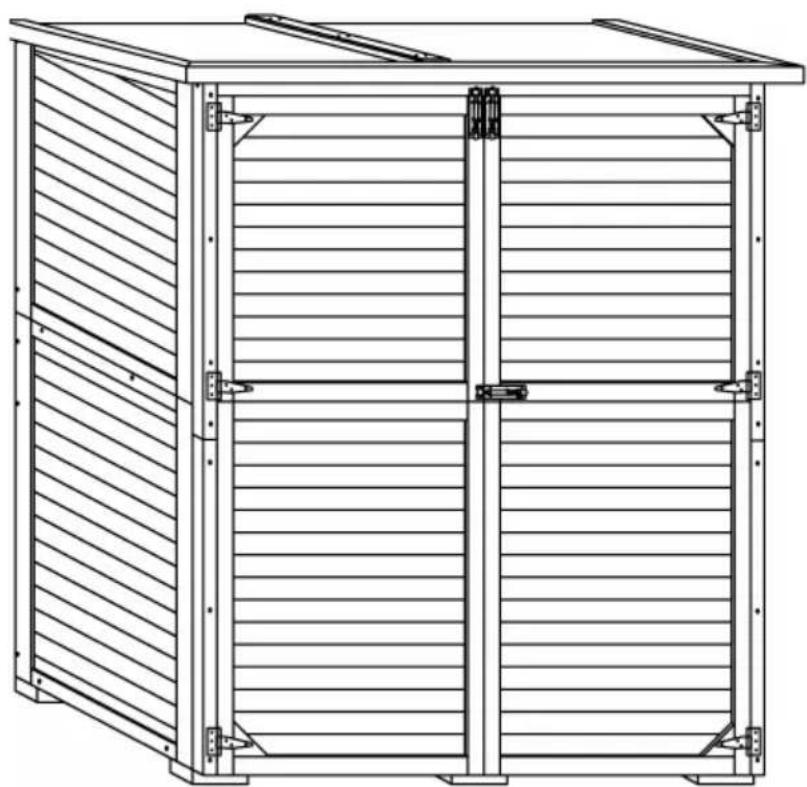

FLAT-TOP OUTDOOR CABINET

USER MANUAL

MODEL: HL-002

We continue to be committed to provide you tools with competitive price. "Save Half,"Half Price" or any other similar expressions used by us only repre estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

HL-002

Vevor HL-002 - USER MANUAL - 1

natural_image Technical line drawing of a mechanical enclosure or enclosure with vertical slats and mounting brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Safety precautions

WARNING:

Read this instructions before using this product. Failure to do so can result serious injury. the basic precautions should always be followed, including the following:

  1. The flat-top outdoor cabinet may not be used or stored in hazardous areas not allowed to use the appliance in hazardous locations.
  2. The flat-top outdoor cabinet must be checked to ensure that it is in proper working order and is operating safely prior to use. Otherwise, the appliance must not be used.
  3. Please keep the cabinet door closed and locked to prevent rain from ente
  4. The operator must use the flat-top outdoor cabinet properly. He must consider the local conditions and must pay attention to third parties, in particular children, when working with the flat-top outdoor cabinet.
  5. This flat-top outdoor cabinet is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are super- vised by a person responsible for the safety or are instructed by these persons on the use of the device. Children be supervised, to ensure that they do not play with the flat-top outdoor cabine

SAVE THESE INSTRUCTIONS

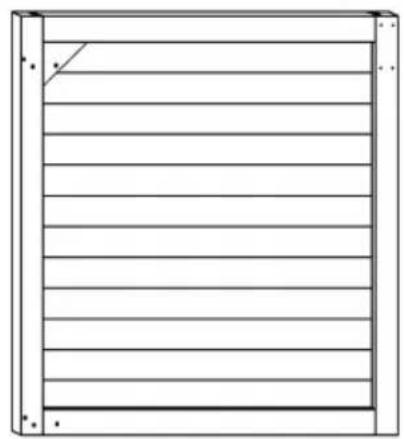

① × 1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 1

natural_image Pure architectural line drawing of a vertical window frame with horizontal slats and corner markers (no text or symbols)

③ × 1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 2

natural_image Pure architectural line drawing of a vertical window frame with horizontal slats and a diagonal edge (no text or symbols)

⑤ × 4
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 3
⑥ × 2

Vevor HL-002 - SAVE THESE INSTRUCTIONS - 4

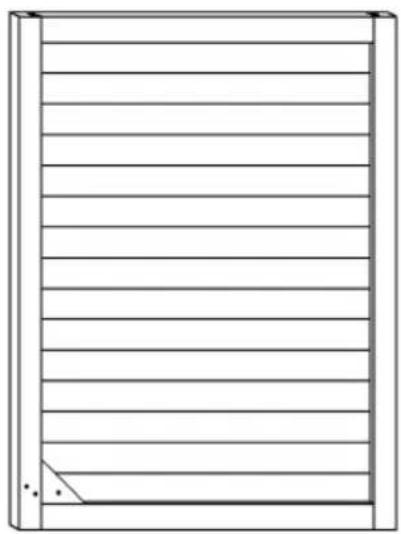

② × 1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 5

natural_image Simple line drawing of a vertical panel with horizontal lines and a small triangular cutout at the bottom right corner (no text or symbols)

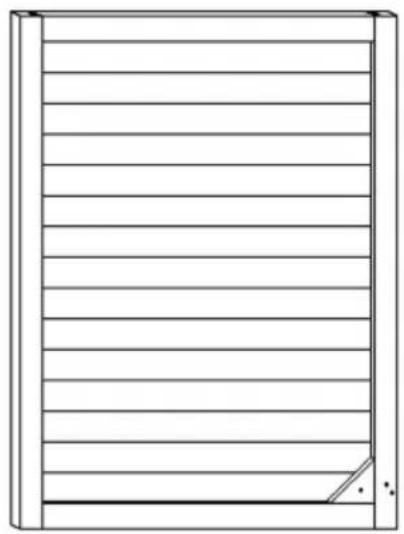

④×1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 6

natural_image Simple line drawing of a vertical shelf with horizontal bars and a small corner detail (no text or symbols)

⑦ × 2

Vevor HL-002 - SAVE THESE INSTRUCTIONS - 7

⑧ × 2
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 8

⑨ × 1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 9

natural_image Simple line drawing of a rectangular frame with mounting holes (no text or symbols)

⑩ × 1

Vevor HL-002 - SAVE THESE INSTRUCTIONS - 10

natural_image Simple line drawing of a rectangular frame with mounting holes and no text or symbols

⑪ ×2
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 11

12 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 1213 X2Vevor HL-002 - SAVE THESE INSTRUCTIONS - 1314 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 14
15 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 1516 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 16
19 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 1720 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 18
23 X4Vevor HL-002 - SAVE THESE INSTRUCTIONS - 1928 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 2031 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 21
X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 22Auxiliary mounting strips(non-product components)

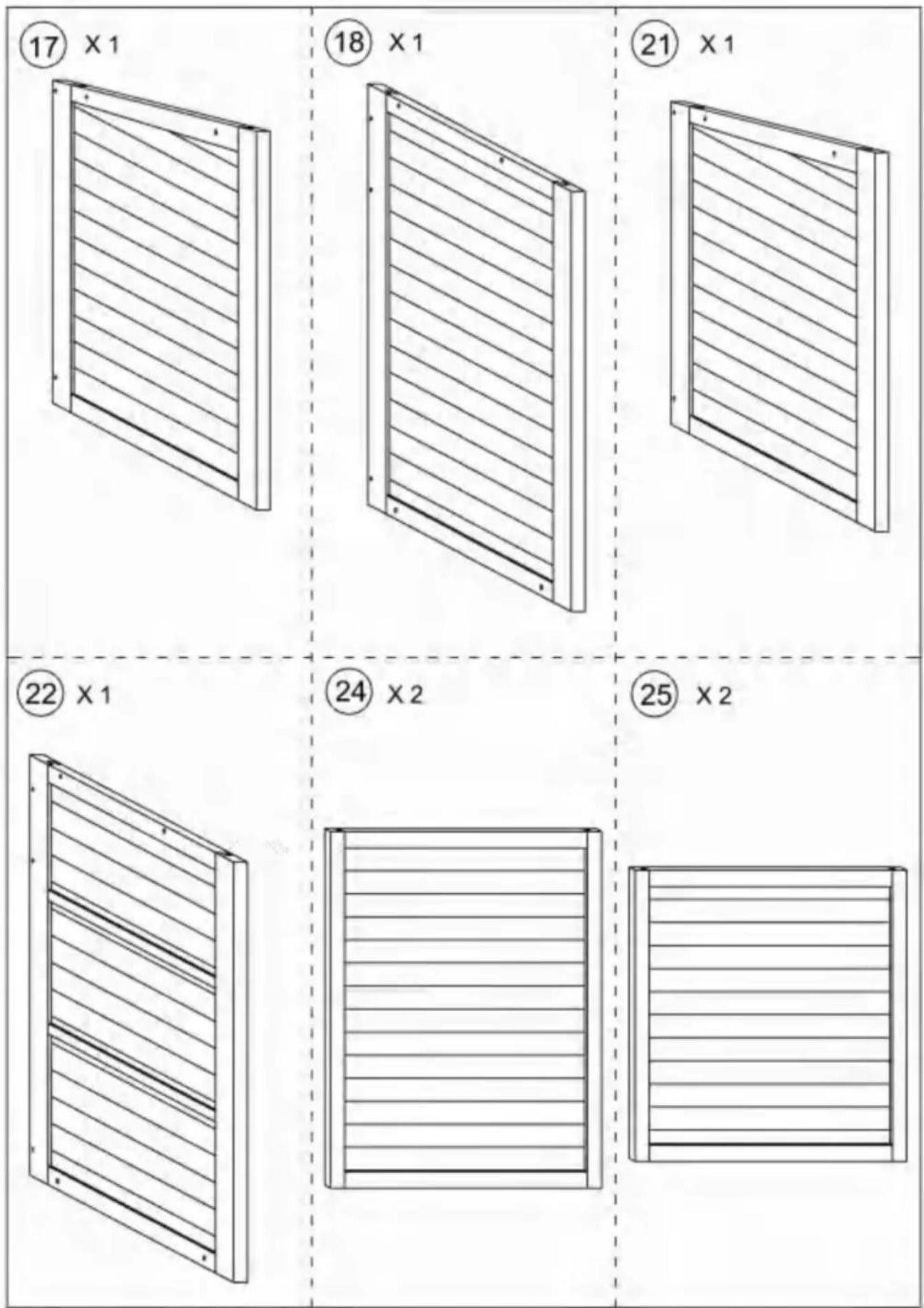

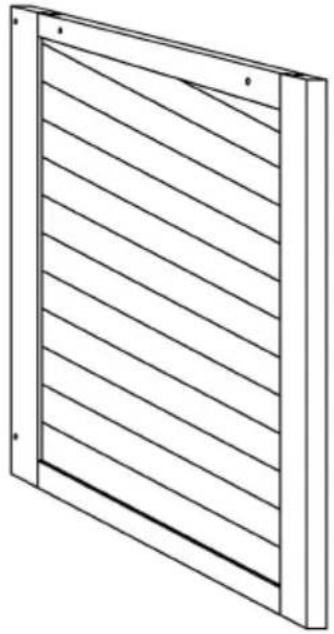

⑰ × 1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 23

natural_image Simple line drawing of a window frame with diagonal slats and a central horizontal bar (no text or symbols)

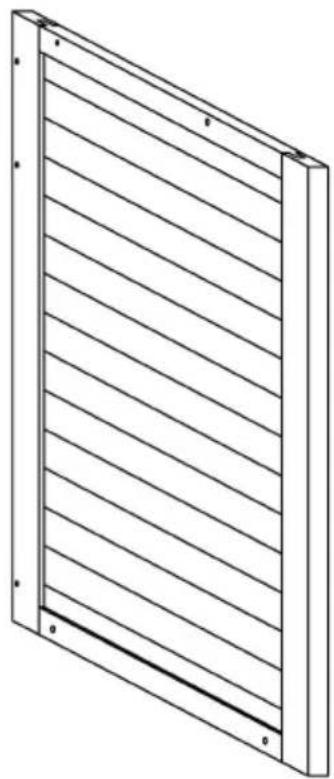

⑱ × 1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 24

natural_image Technical line drawing of a vertical panel with horizontal slats and mounting holes (no text or symbols)

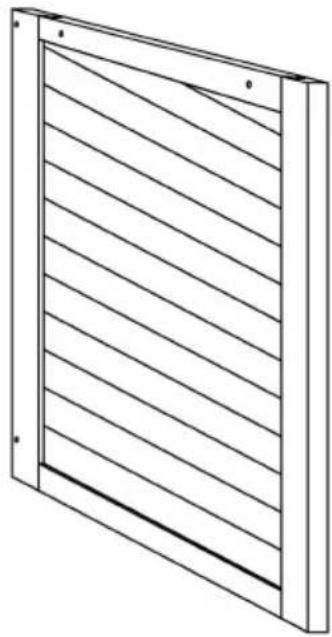

②1 × 1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 25

natural_image Simple line drawing of a window frame with diagonal slats and vertical supports (no text or symbols)

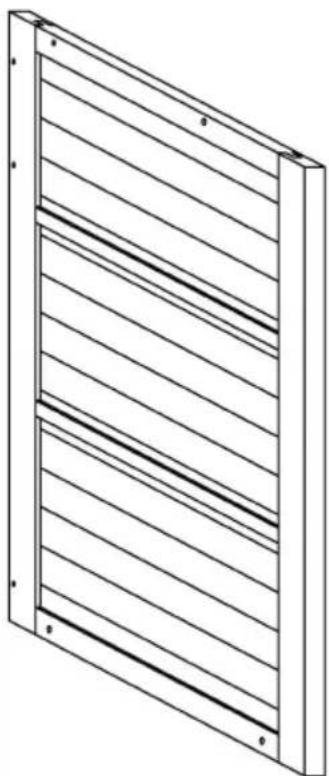

22 × 1
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 26

natural_image Isometric line drawing of a vertical slatted panel or guardrail with mounting holes (no text or symbols)

24 × 2

Vevor HL-002 - SAVE THESE INSTRUCTIONS - 27

natural_image Blank rectangular frame with horizontal lines inside, no text or symbols present

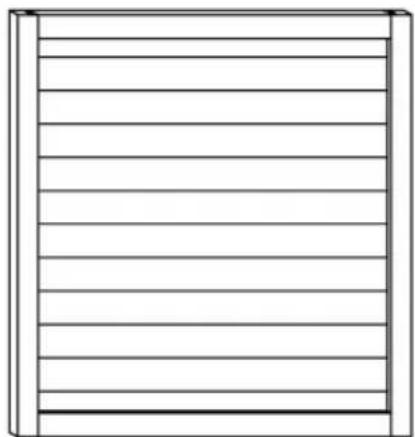

25 × 2

Vevor HL-002 - SAVE THESE INSTRUCTIONS - 28

natural_image Simple line drawing of a rectangular frame with horizontal lines inside, no text or symbols present.

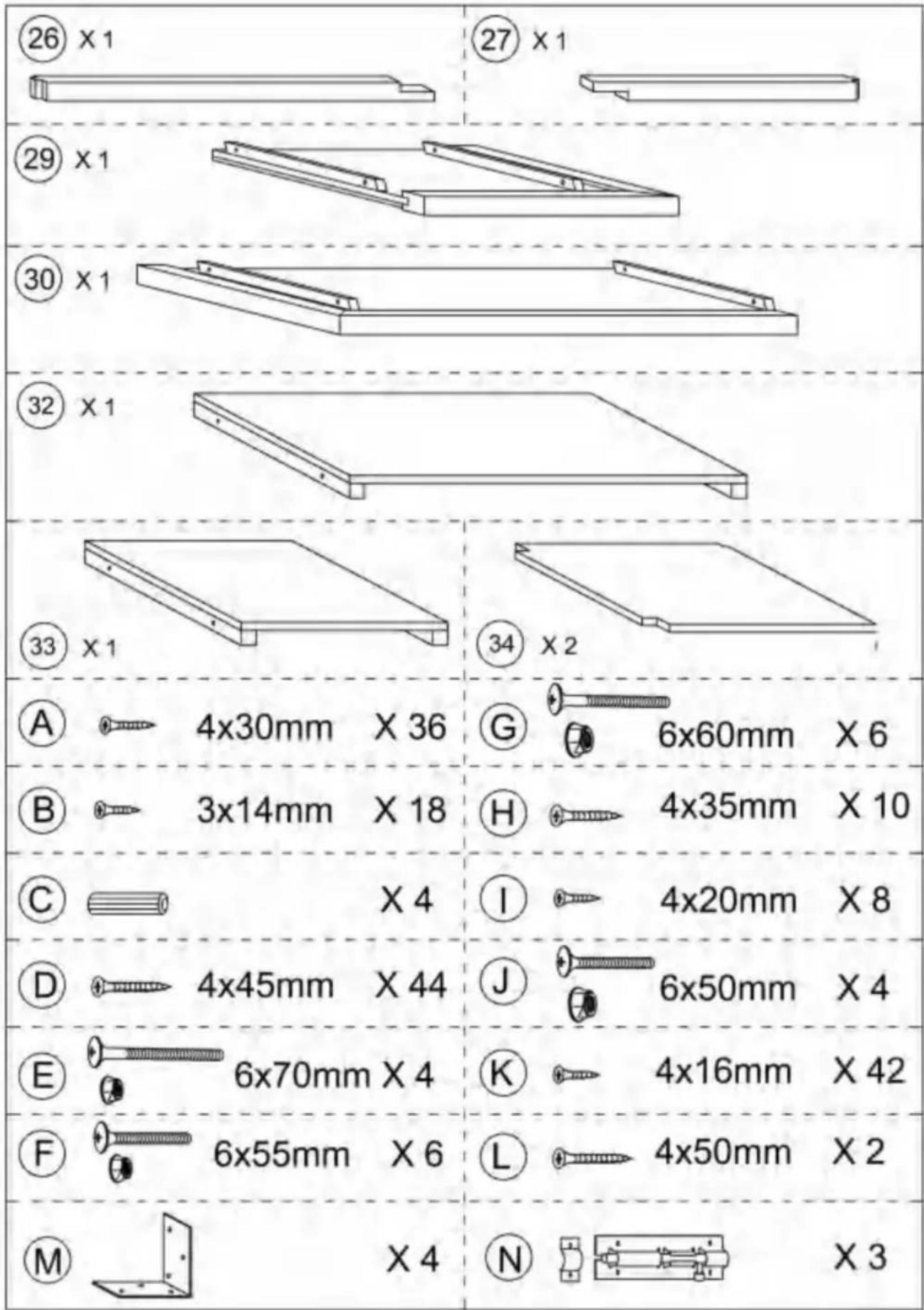

26 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 2927 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 30
29 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 31
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 32
32 X1Vevor HL-002 - SAVE THESE INSTRUCTIONS - 33
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 34Vevor HL-002 - SAVE THESE INSTRUCTIONS - 35
A Vevor HL-002 - SAVE THESE INSTRUCTIONS - 36 4x30mm X 36G Vevor HL-002 - SAVE THESE INSTRUCTIONS - 37 x60mm X 6
B Vevor HL-002 - SAVE THESE INSTRUCTIONS - 38 3x14mm X 18H Vevor HL-002 - SAVE THESE INSTRUCTIONS - 39 4x35mm X 10
C Vevor HL-002 - SAVE THESE INSTRUCTIONS - 40 X 4I Vevor HL-002 - SAVE THESE INSTRUCTIONS - 41 4x20mm X 8
D Vevor HL-002 - SAVE THESE INSTRUCTIONS - 42 4x45mm X 44J Vevor HL-002 - SAVE THESE INSTRUCTIONS - 43 6x50mm X 4
E Vevor HL-002 - SAVE THESE INSTRUCTIONS - 44 6x70mm X 4K Vevor HL-002 - SAVE THESE INSTRUCTIONS - 45 4x16mm X 42
F Vevor HL-002 - SAVE THESE INSTRUCTIONS - 46 6x55mm X 6L Vevor HL-002 - SAVE THESE INSTRUCTIONS - 47 4x50mm X 2
M Vevor HL-002 - SAVE THESE INSTRUCTIONS - 48 X 4N Vevor HL-002 - SAVE THESE INSTRUCTIONS - 49 X 3

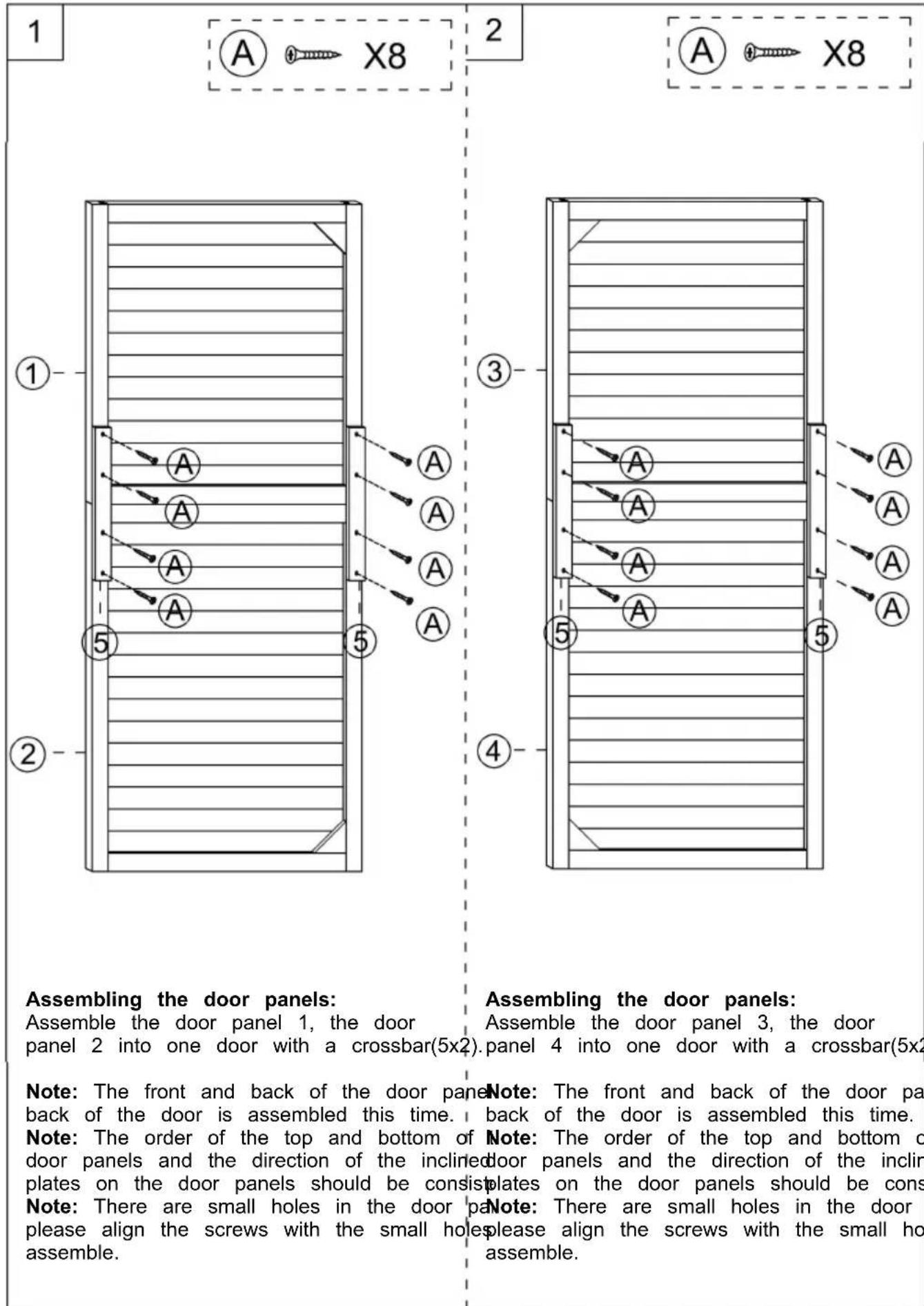

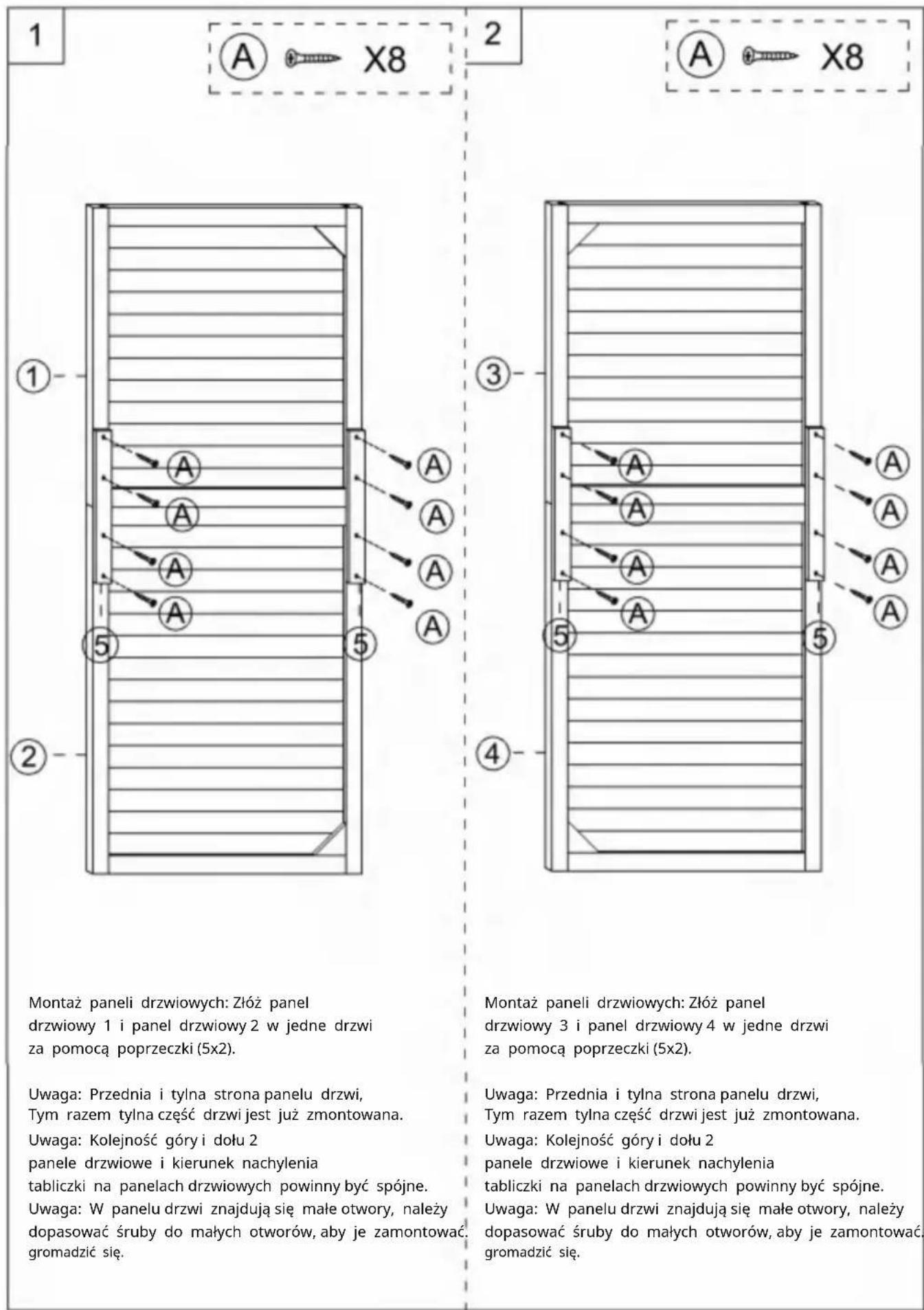

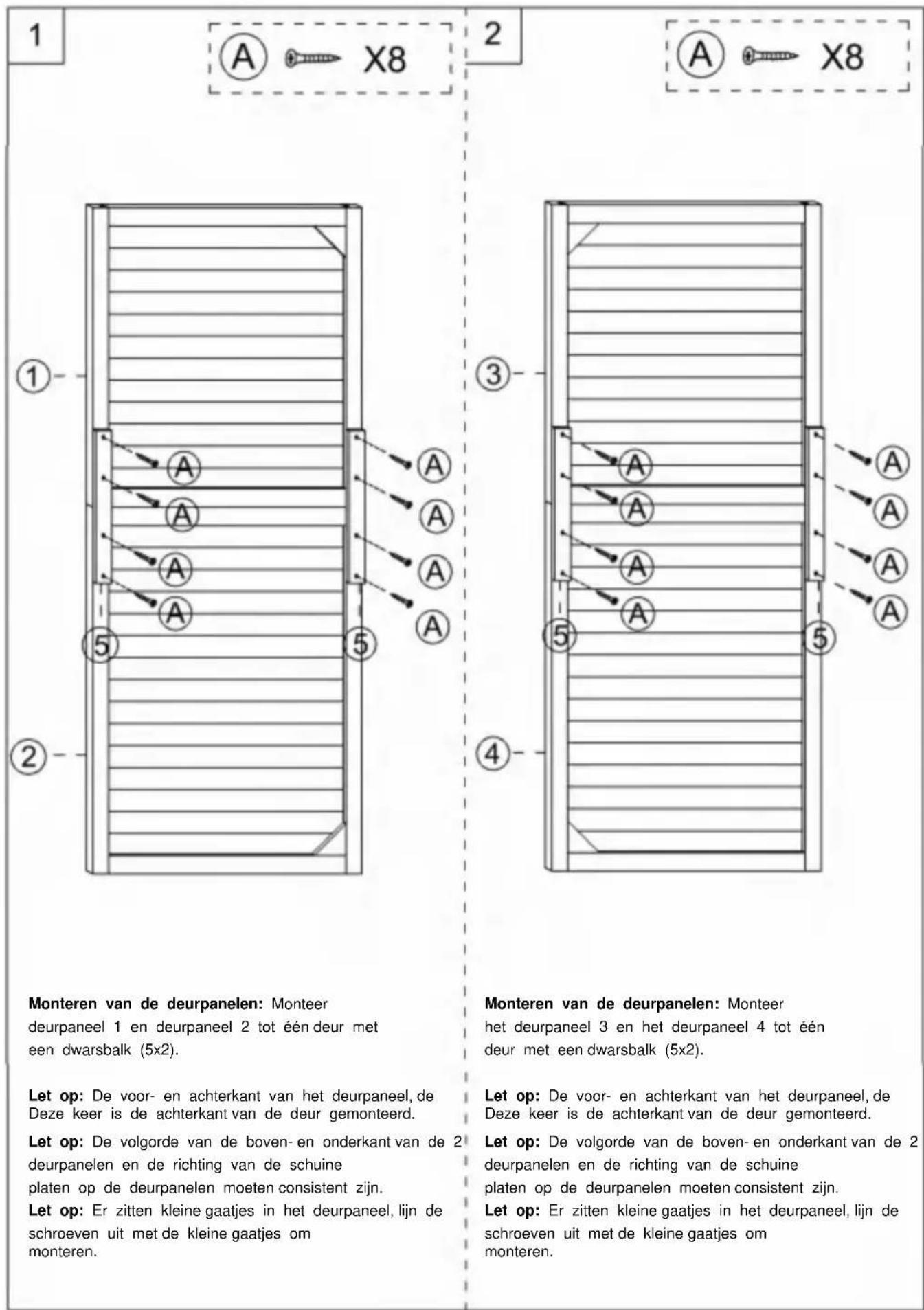

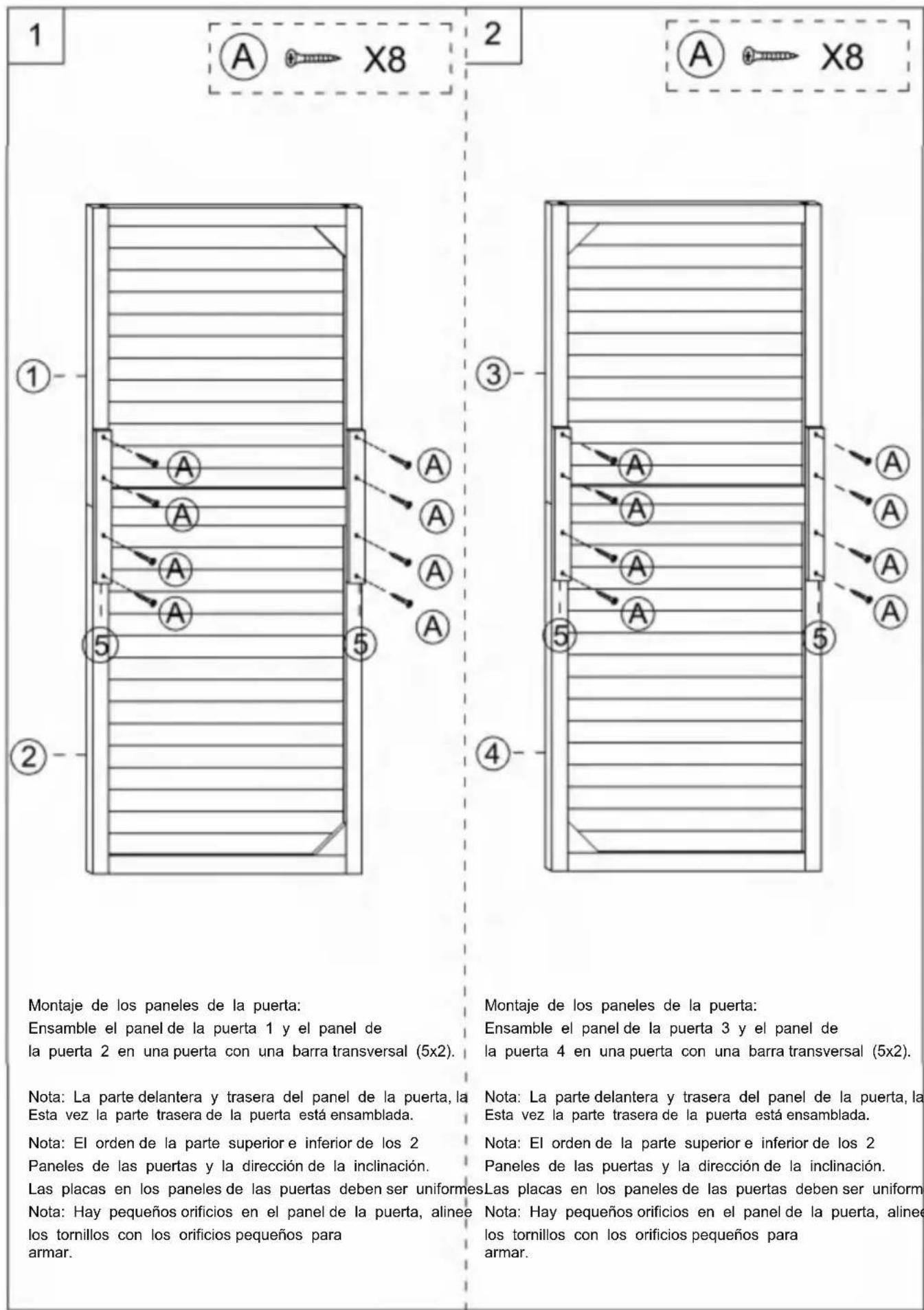

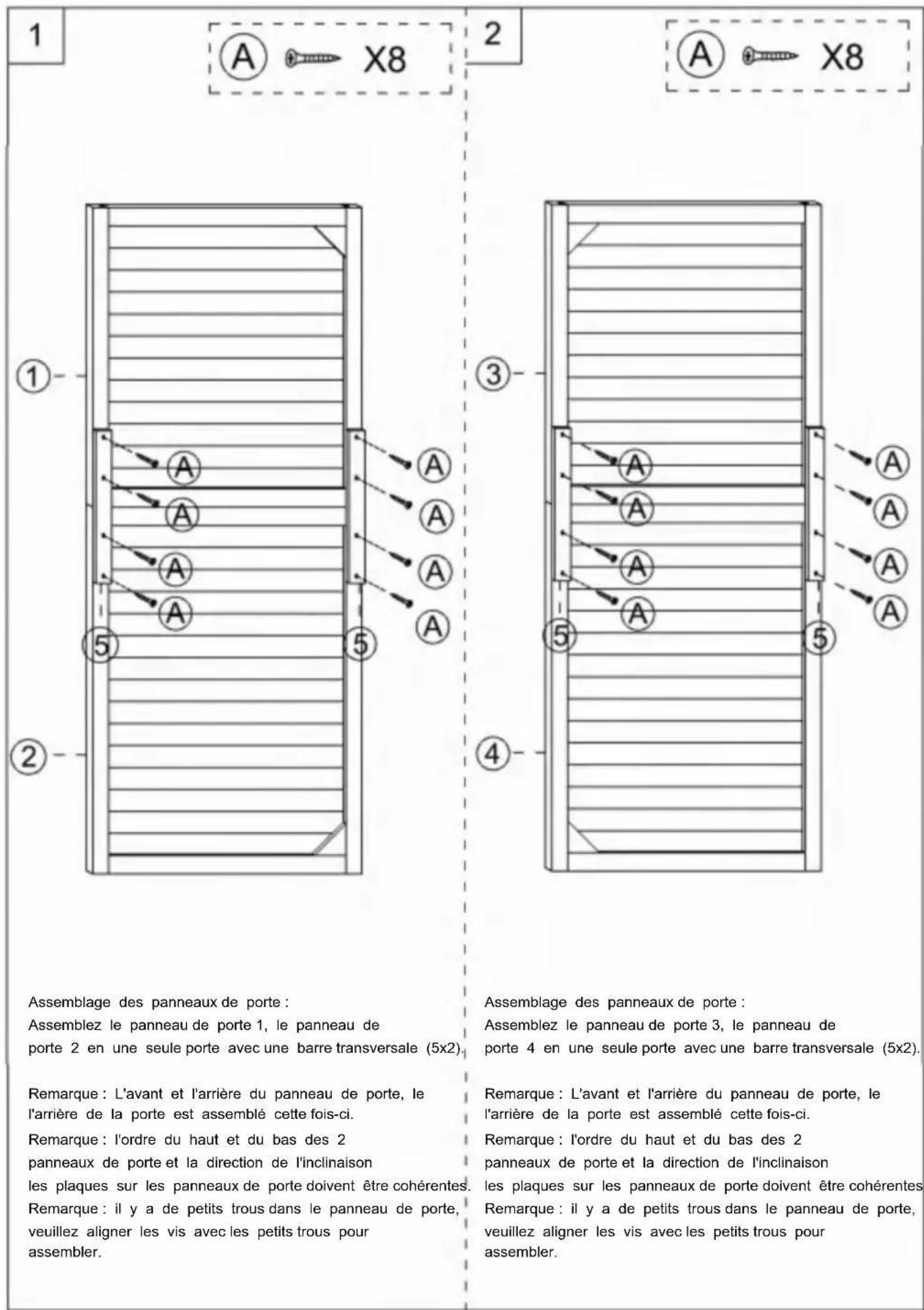

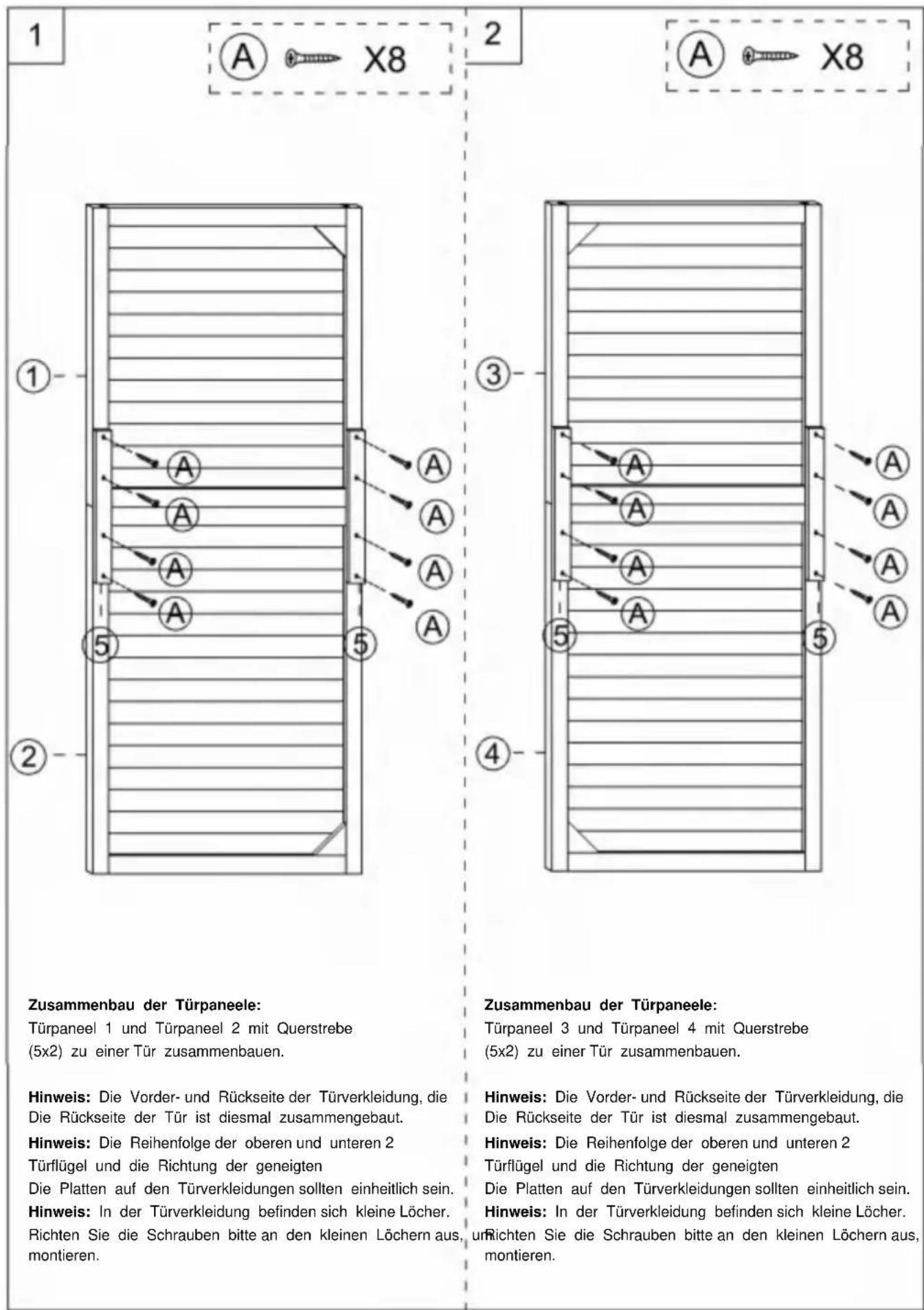

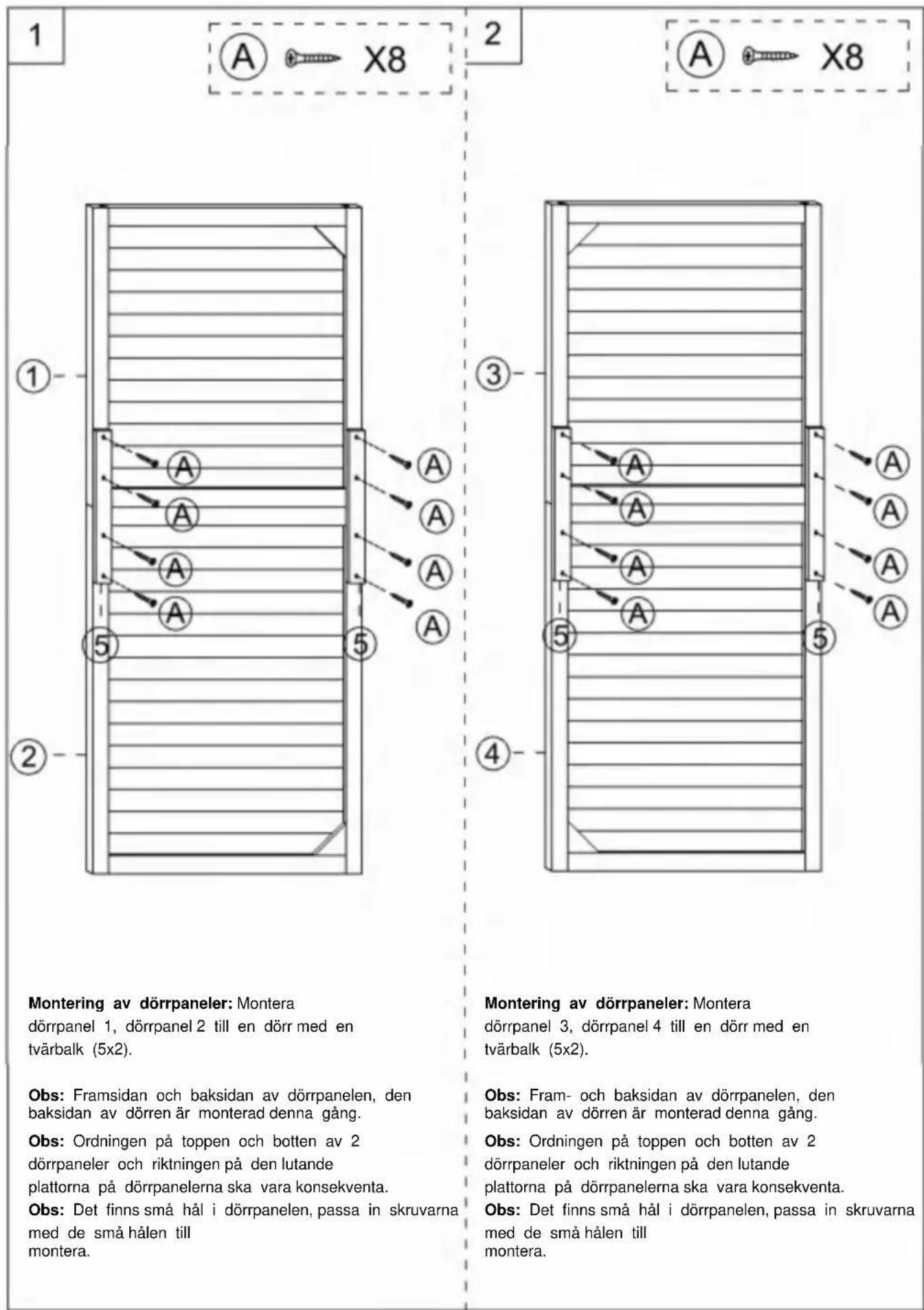

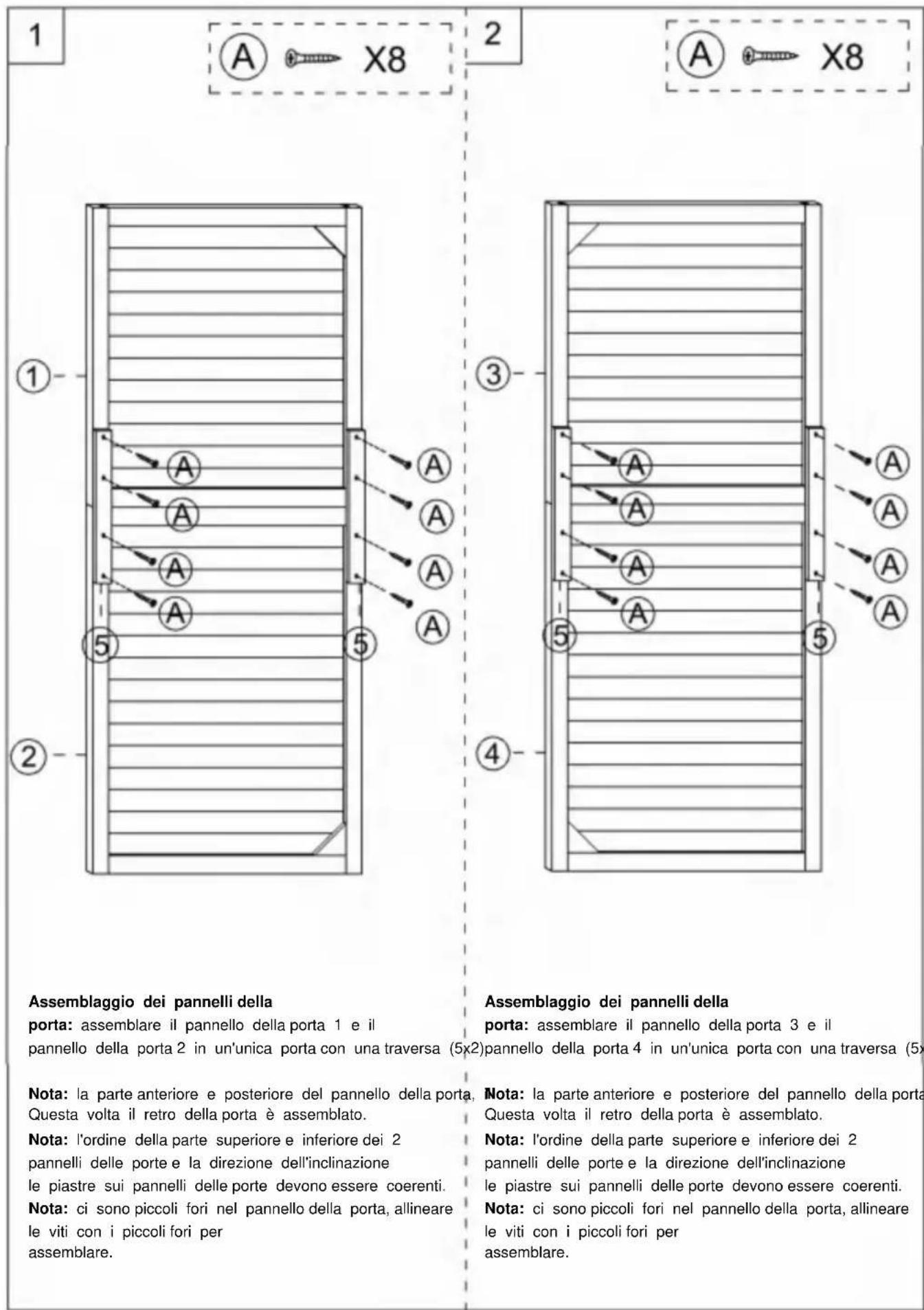

1 A X8 2 A X8 ① ② ③ ④ ⑤ ⑥ Assembling the door panels: Assemble the door panel 1, the door panel 2 into one door with a crossbar(5x2) Panel 4 into one door with a crossbar(5x2) Assembling the door panels: Assemble the door panel 3, the door panel 4 into one door with a crossbar(5x2) Note: The front and back of the door panel back of the door is assembled this time. Note: The order of the top and bottom of door panels and the direction of the inclined door panels and the direction of the inclin plates on the door panels should be consist plates on the door panels should be cons Note: There are small holes in the door panel please align the screws with the small holes please align the screws with the small ho assemble.

3
Vevor HL-002 - SAVE THESE INSTRUCTIONS - 51
4

Vevor HL-002 - SAVE THESE INSTRUCTIONS - 52

N

Vevor HL-002 - SAVE THESE INSTRUCTIONS - 54

natural_image Diagram of screw installation with a mechanical component and three screws, enclosed in an oval frame (no text or symbols)

Technical diagram of a window frame structure with labeled components and directional arrows

Vevor HL-002 - SAVE THESE INSTRUCTIONS - 56

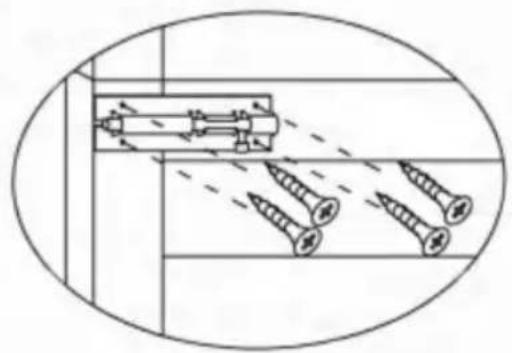

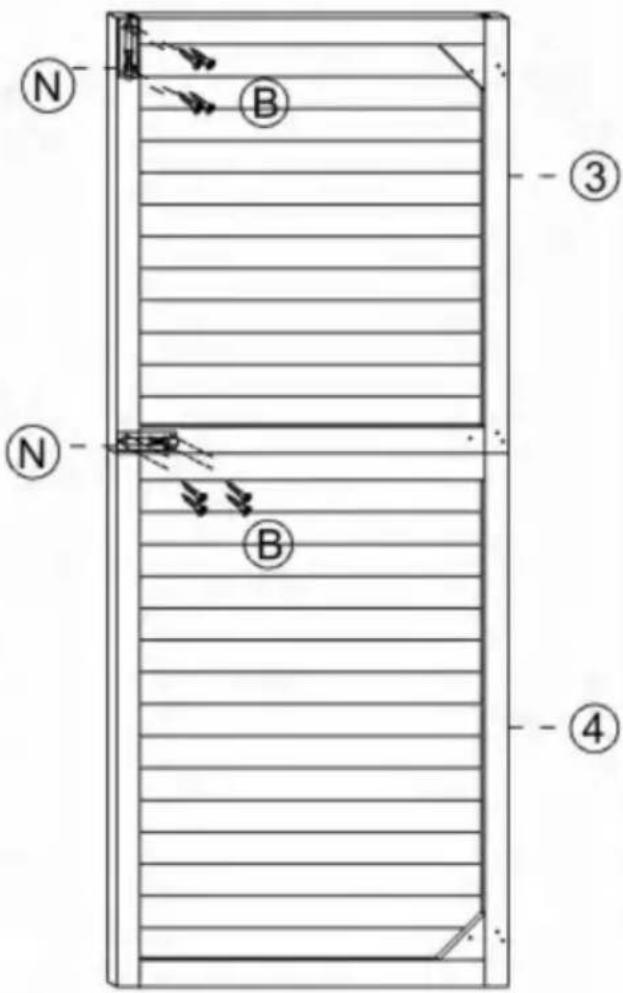

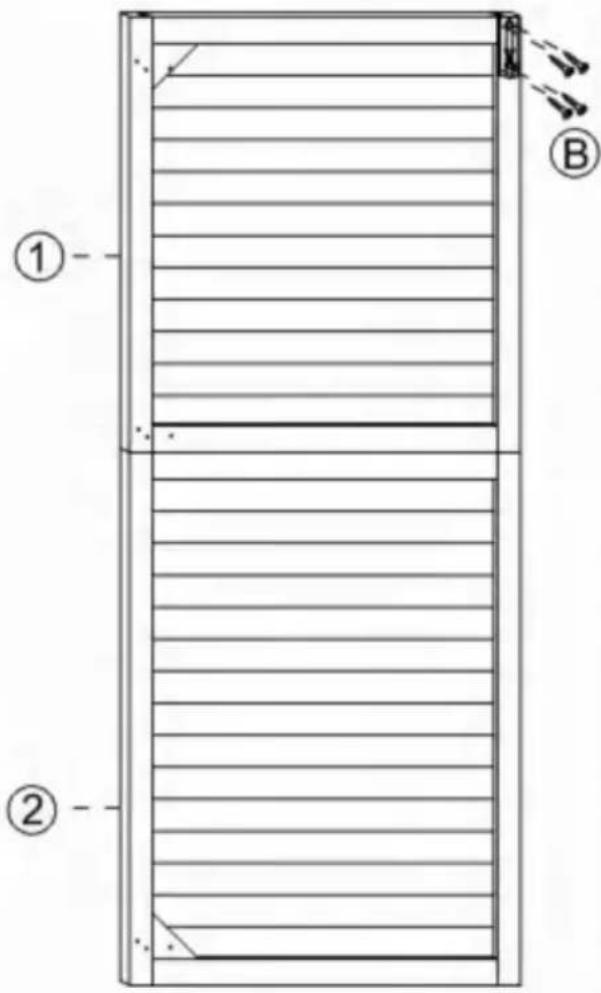

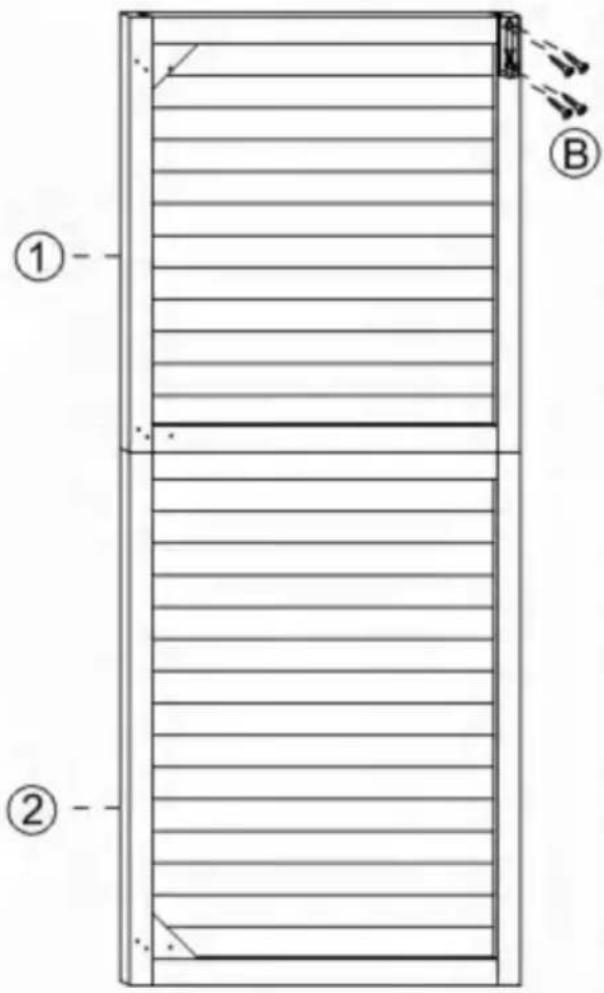

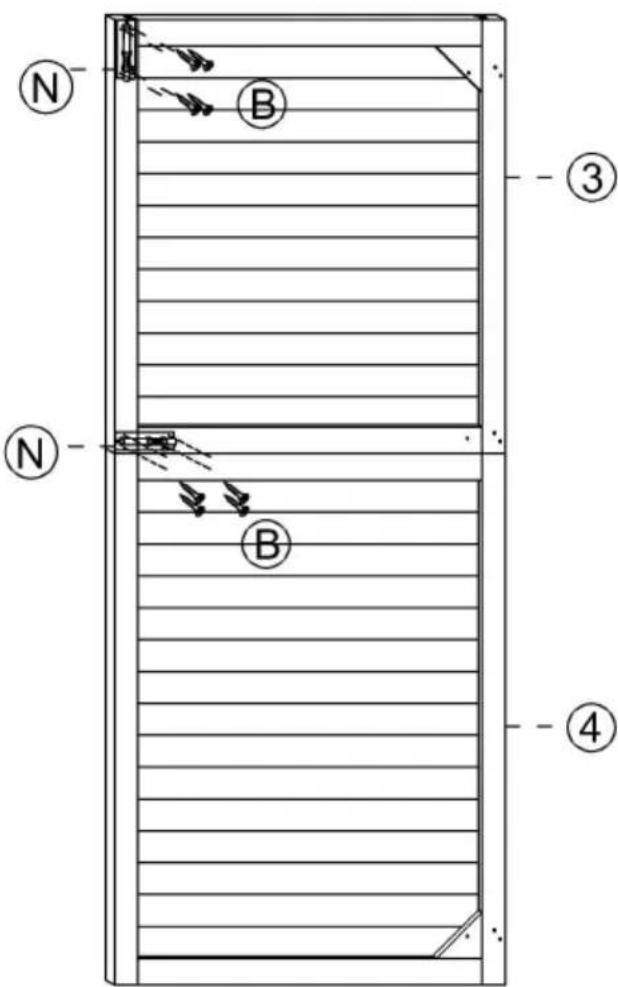

Assembling the door panels:

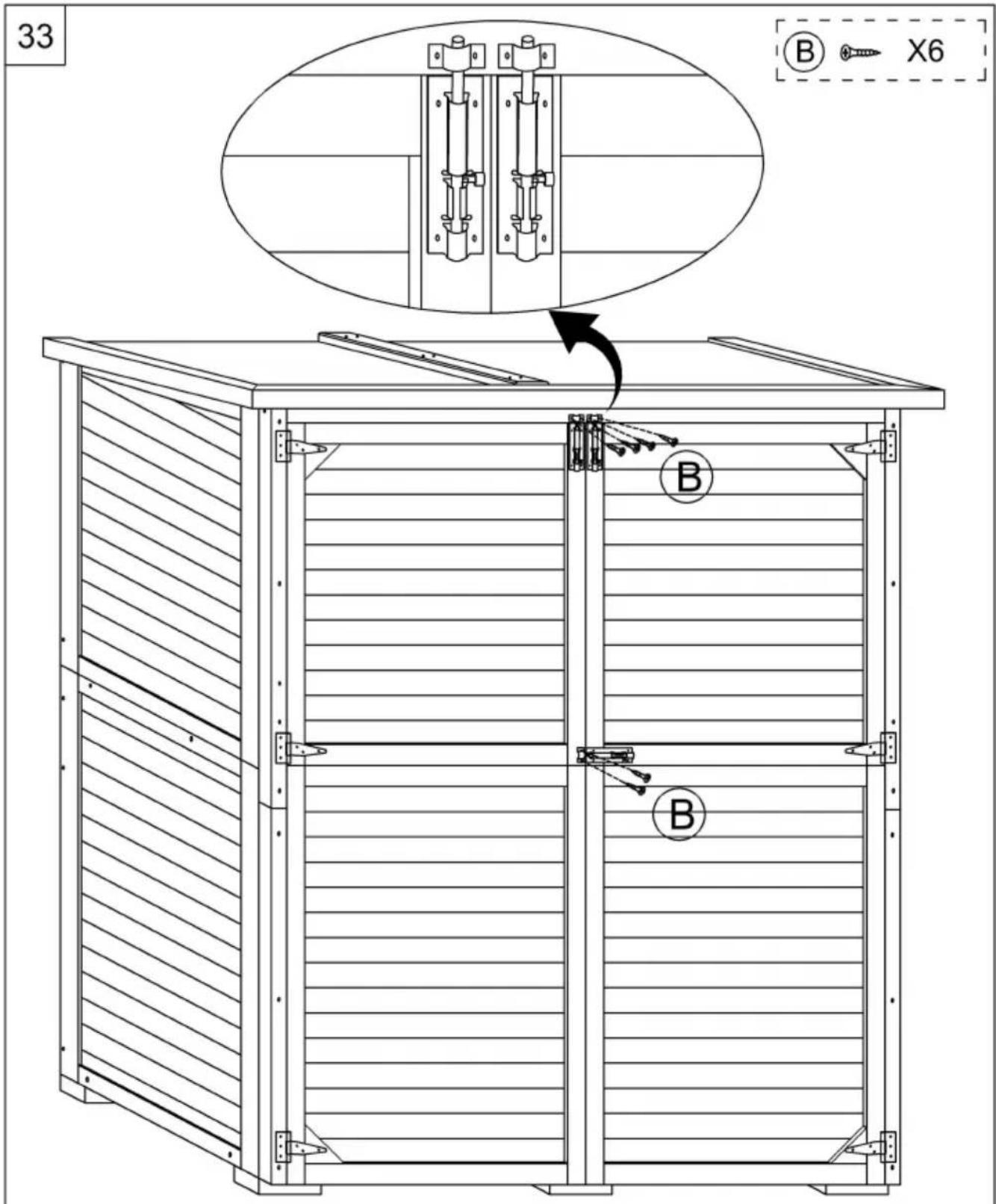

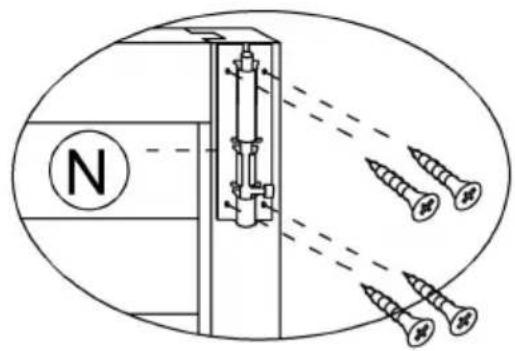

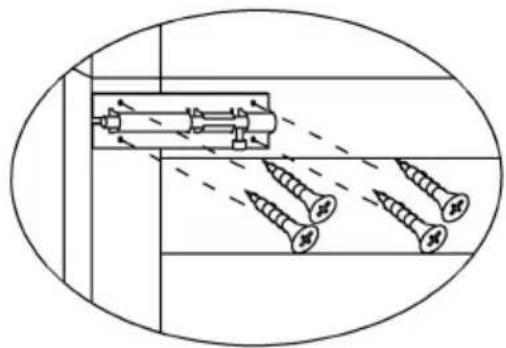

Flip the assembled door over. Assemble the door bolt(Nx2) on the fr

Note: There are positioning holes on a door panel, please align the screws with the small holes to assemble.

Assembling the door panels:

Flip the assembled door over. Assemble the door bolt(Nx2) on the fr

Note: There are positioning holes on 1 door panel, please align the screws with the small holes to assemble.

Vevor HL-002 - Assembling the door panels: - 1

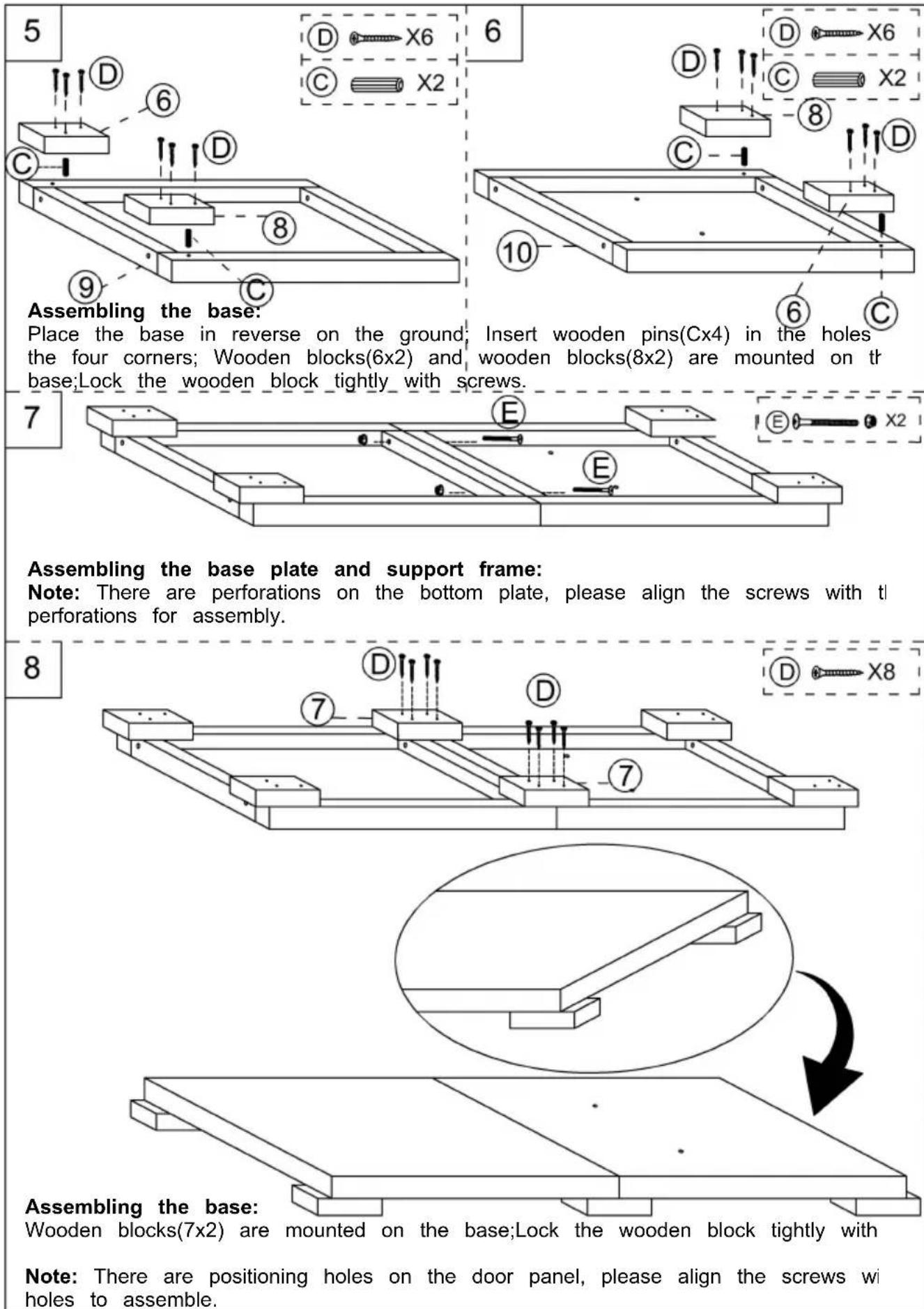

Place the base in reverse on the ground; Insert wooden pins(Cx4) in the holes the four corners; Wooden blocks(6x2) and wooden blocks(8x2) are mounted on the base; Lock the wooden block tightly with screws.
Note: There are perforations on the bottom plate, please align the screws with the perforations for assembly.
Wooden blocks(7x2) are mounted on the base;Lock the wooden block tightly with
Note: There are positioning holes on the door panel, please align the screws with holes to assemble.

9
D 12 11 13 13 14 D D D

Vevor HL-002 - Assembling the door panels: - 3

Vevor HL-002 - Assembling the door panels: - 4

Vevor HL-002 - Assembling the door panels: - 5

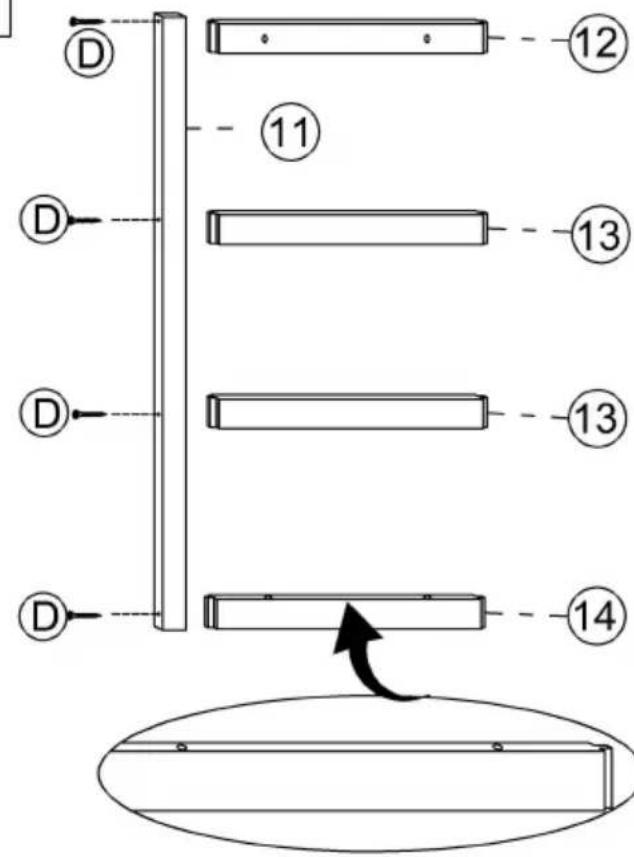

Assembling the inner support frame:

Assemble the short crossbar (12) & (13*2) (13) on top of the long cross (11).

Note: The order in which the cross are up and down.

Note: There are positioning holes of the crossbar, please align the screw with the holes to assemble.

10
Vevor HL-002 - Assembling the inner support frame: - 1

Vevor HL-002 - Assembling the inner support frame: - 2

Vevor HL-002 - Assembling the inner support frame: - 3

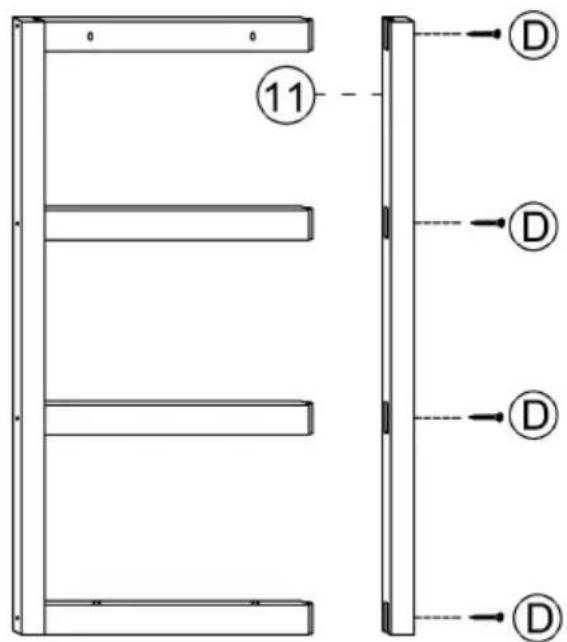

0 0 ⑪ D D D D

Note: The order in which the crossbars are up and down.
Note: There are positioning holes on the crossbar, please align the screws with to assemble.

11
I D D D D X3 15 17

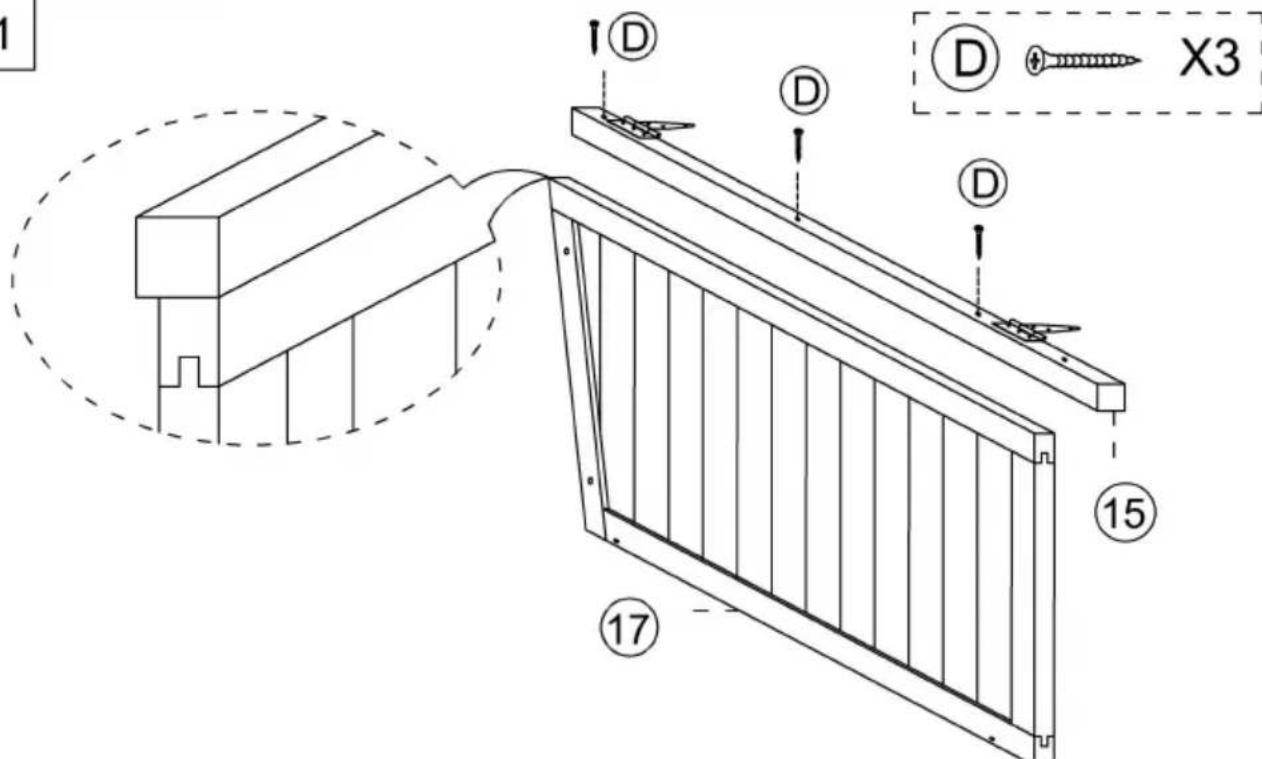

Assembling the side panels:

Note: The crossbar(15) should be flush with the edge of the side plate(17).

Note: There are positioning holes on the crossbar, please align the screws with assemble.

12
D D D 16 X3 18

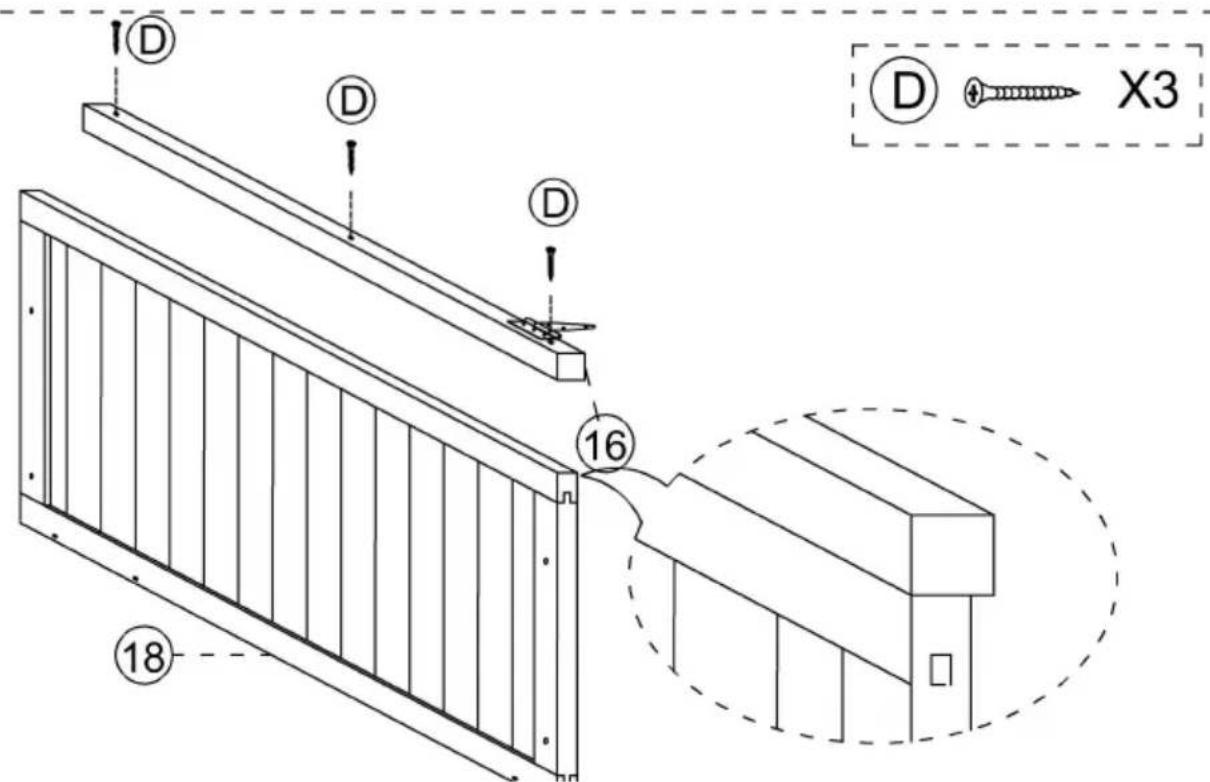

Assembling the side panels:

Note: The crossbar(16) should be flush with the edge of the side plate(18).

Note: There are positioning holes on the crossbar, please align the screws with assemble.

13
Technical diagram showing assembly of a door frame with labeled parts and a magnified detail view.

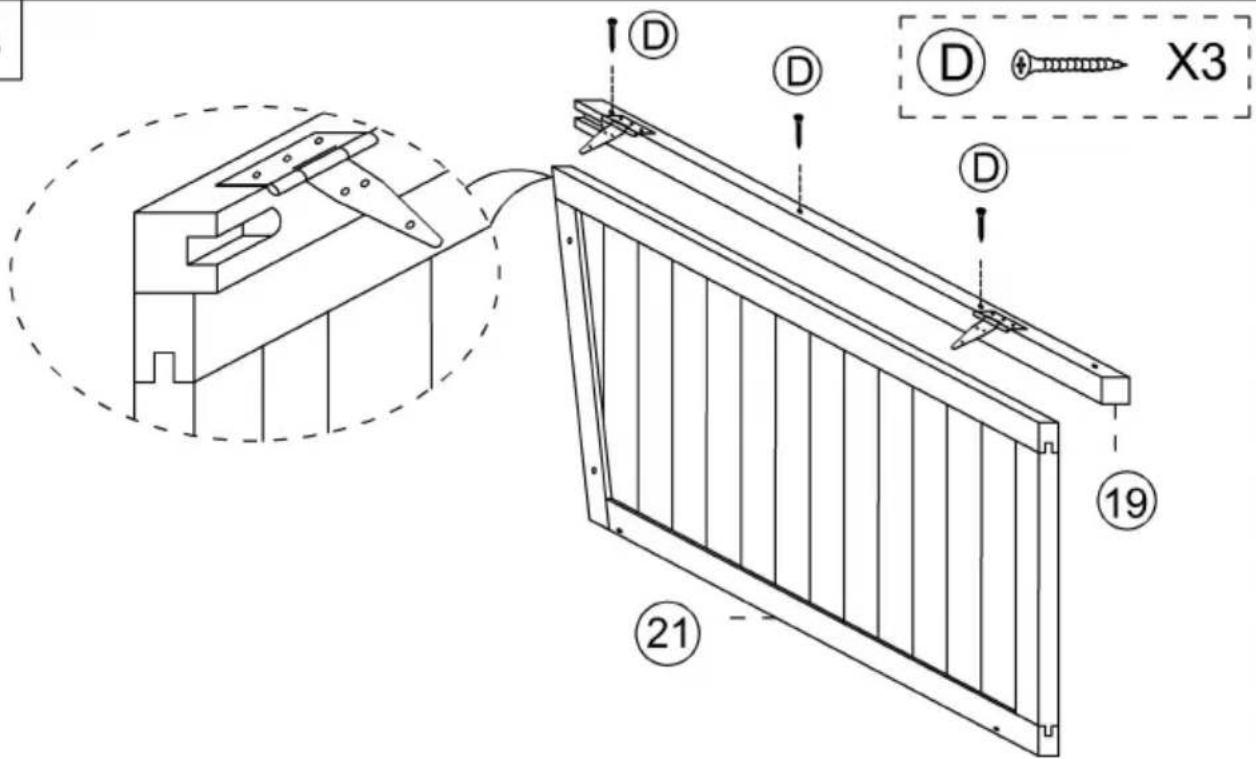

Assembling the side panels:
Note: The crossbar(19) should be flush with the edge of the side plate(21).
Note: There are positioning holes on the crossbar, please align the screws with assemble.

14
D D D 20 22 D X3

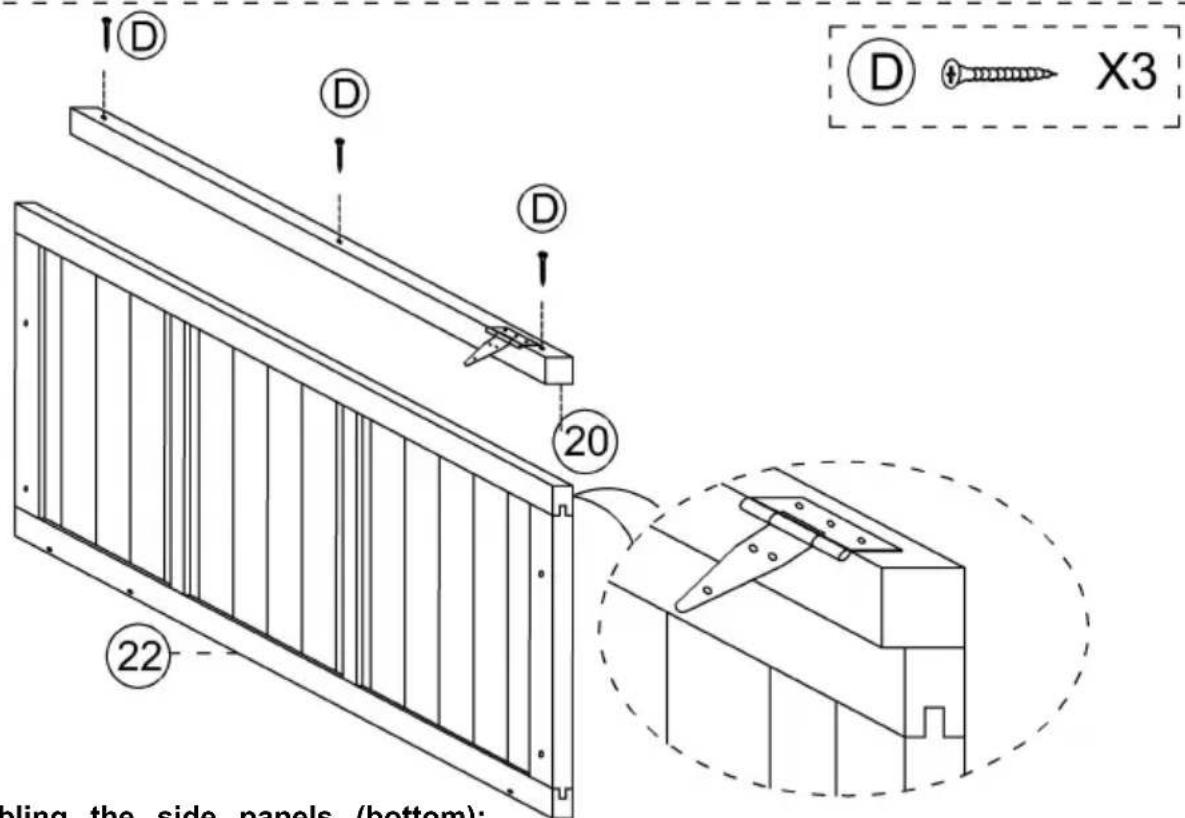

Assembling the side panels (bottom):
Note: The crossbar(20) should be flush with the edge of the side plate(22).
Note: There are positioning holes on the crossbar, please align the screws with assemble.

15 F X2 F

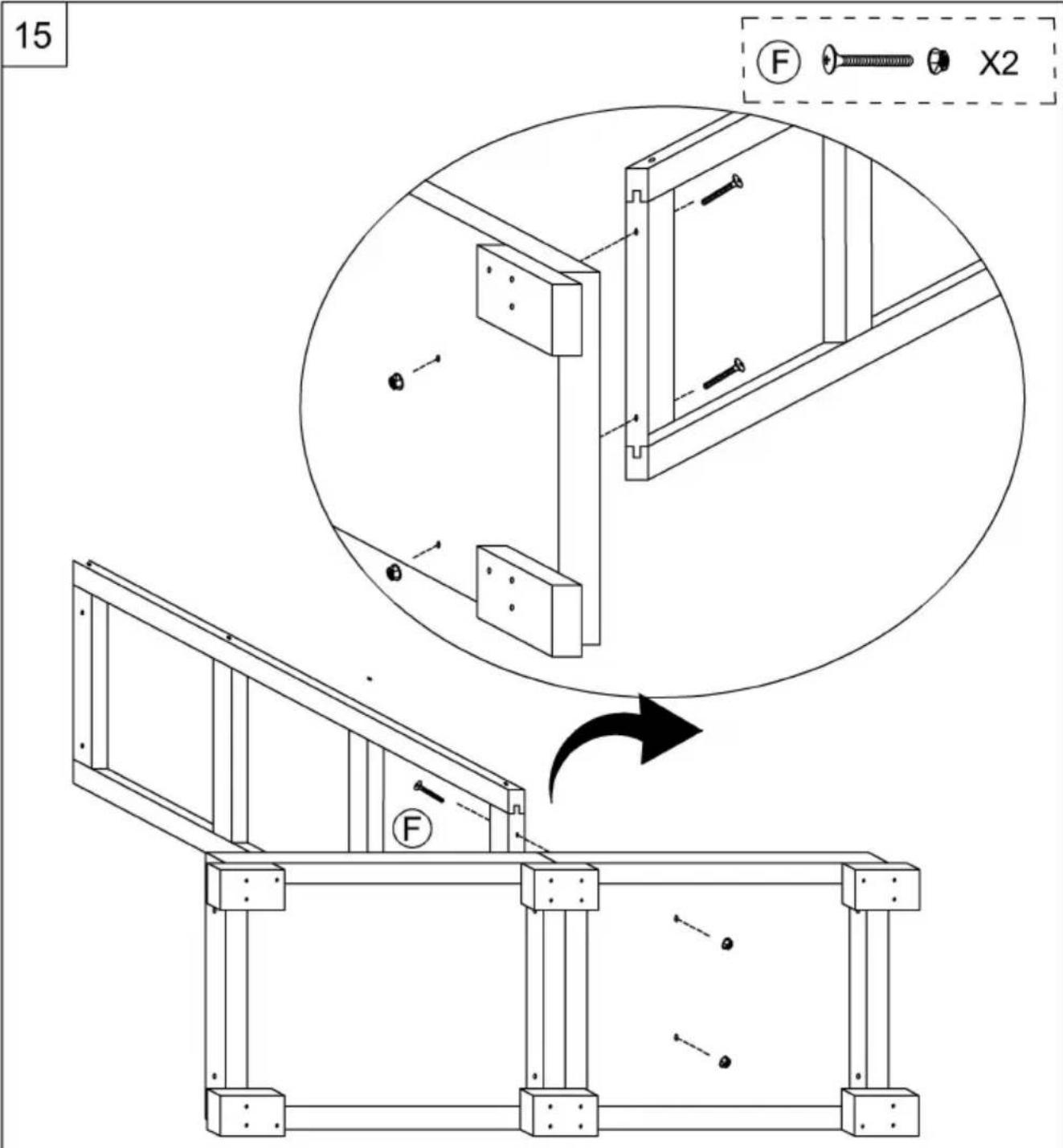

Assembling the base plate and support frame:

Note: There are perforations on the bottom plate and the support frame, please screws with the perforations for assembly.

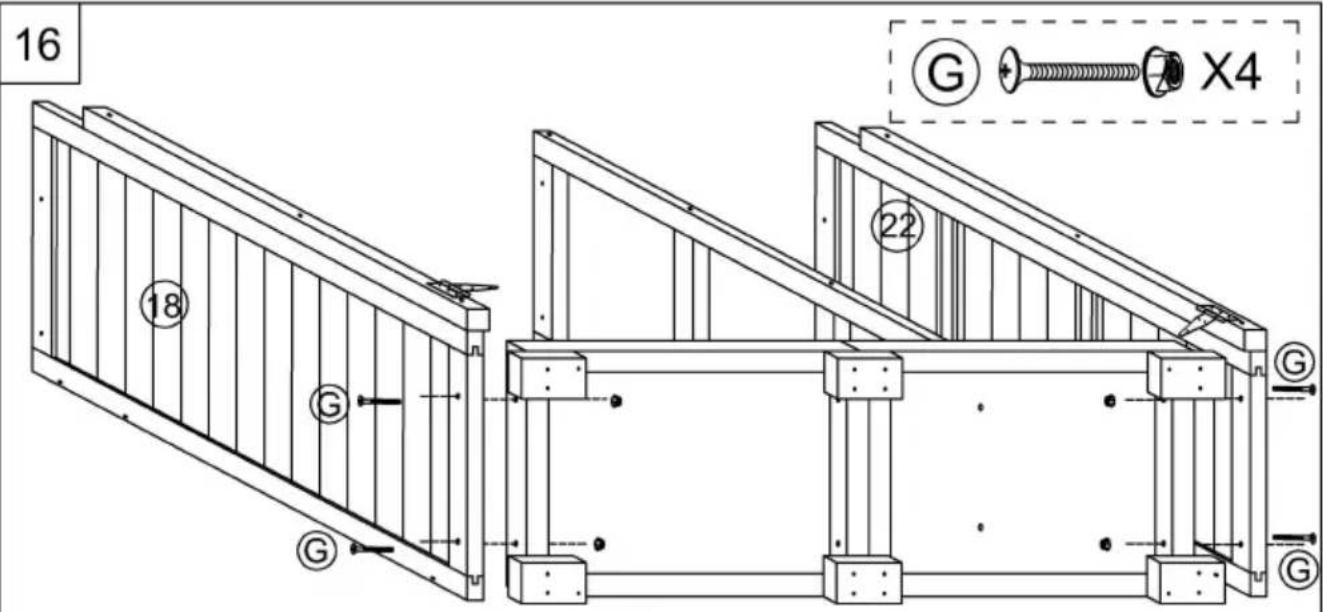

16 G X4 22 18 G G G

Assembling the base plate and side panels:

Note: There are perforations on the bottom plate and side panels, please align with the perforations to assemble.

17

23

A + X8

24 A 24 23 A

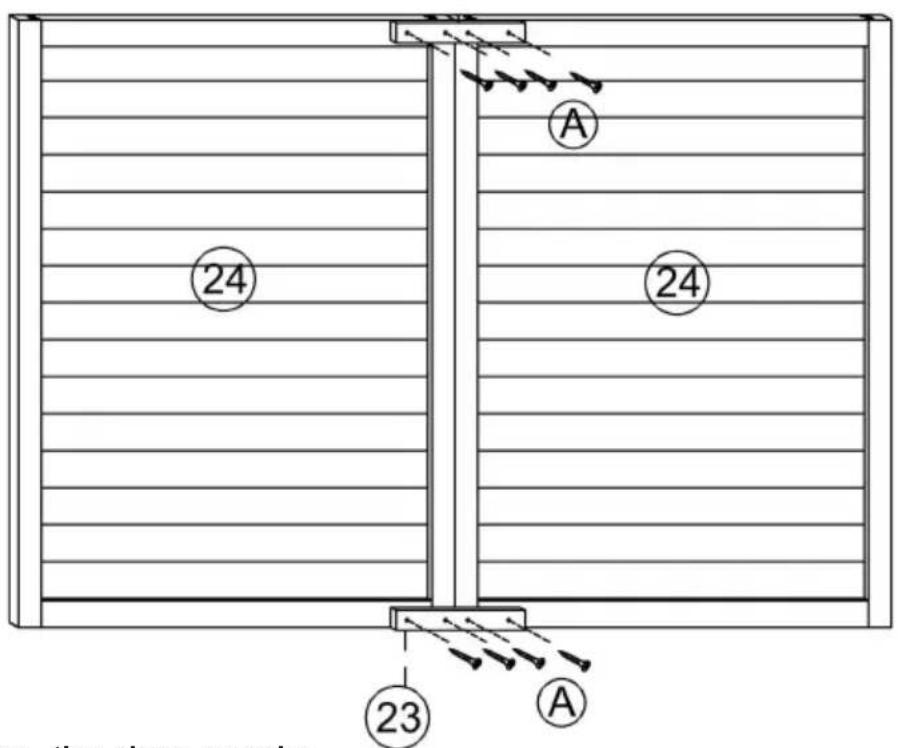

Assembling the door panels:

Assemble the Wooden blocks(23x2) on the back.

Note: There are positioning holes on the door panel, please align the screws with holes to assemble.

18

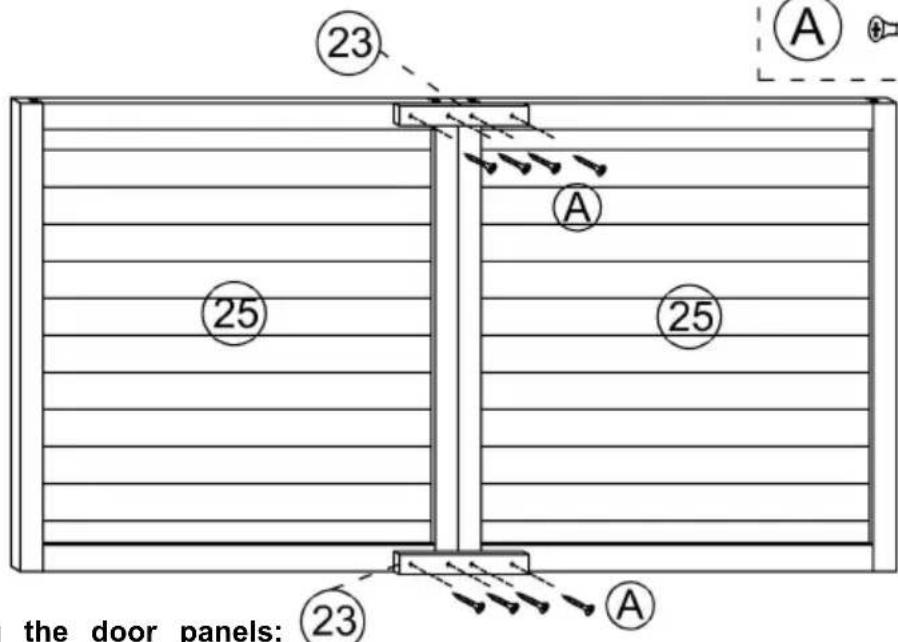

23 A 25 25 the door panels: 23 A

Assembling the door panels:

Assemble the Wooden blocks(23x2) on the back.

Note: There are positioning holes on the door panel, please align the screws with holes to assemble.

19

H 25 25 H H X4

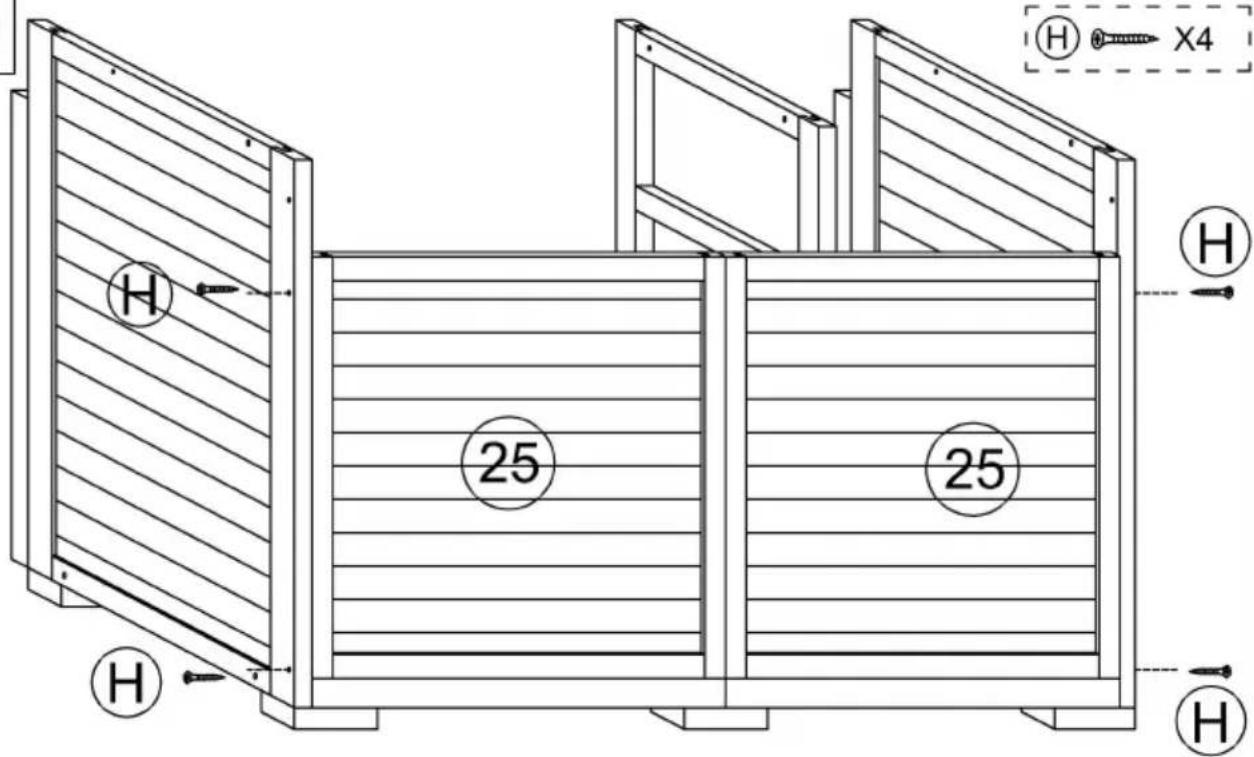

Assembling the door panel (back):

Note: There are positioning holes on the side panels, please align the screws w for assembly.

20

Vevor HL-002 - Assembling the door panels: - 3

Vevor HL-002 - Assembling the door panels: - 4

X2

17 18 D 21 22 D

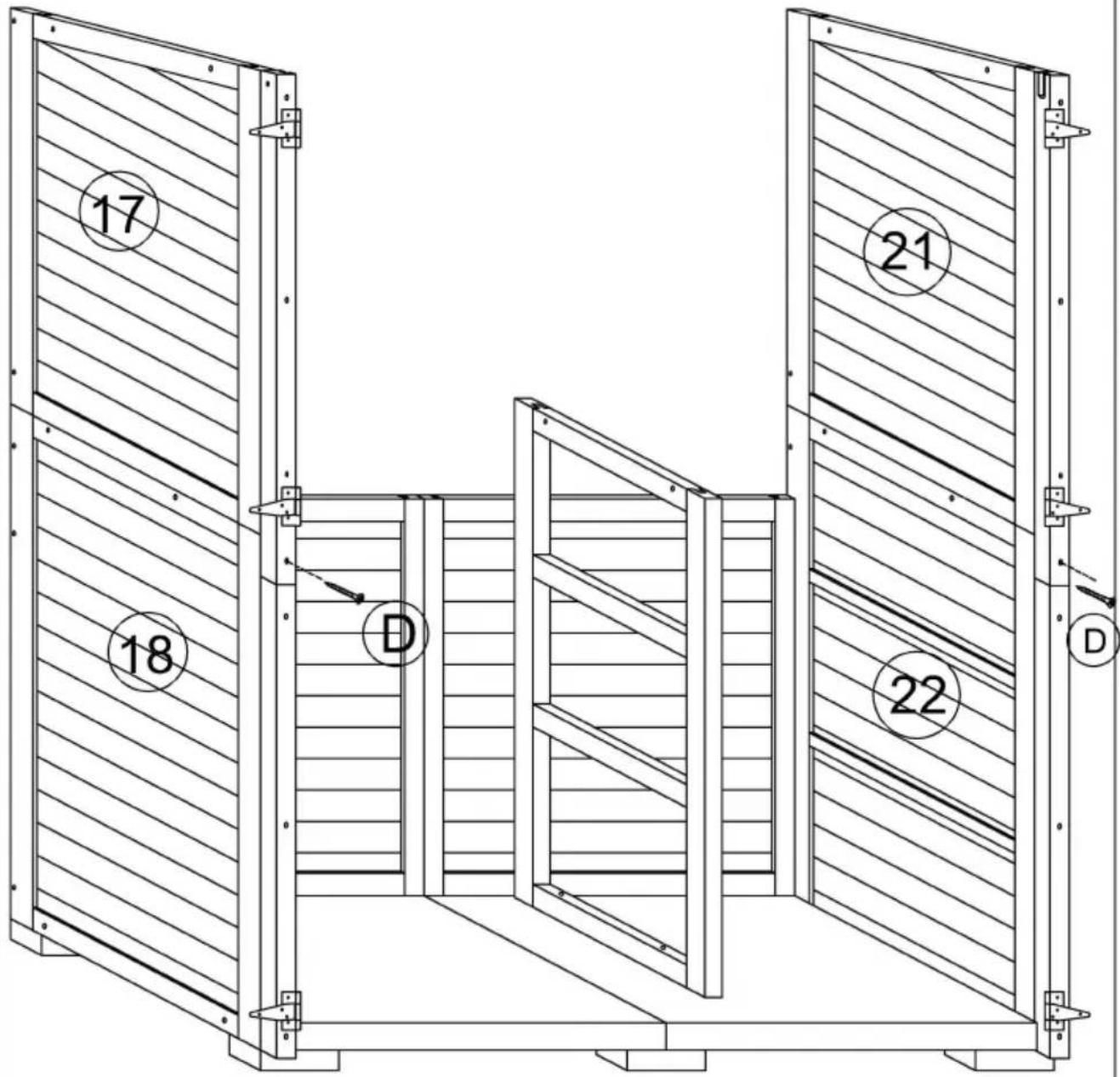

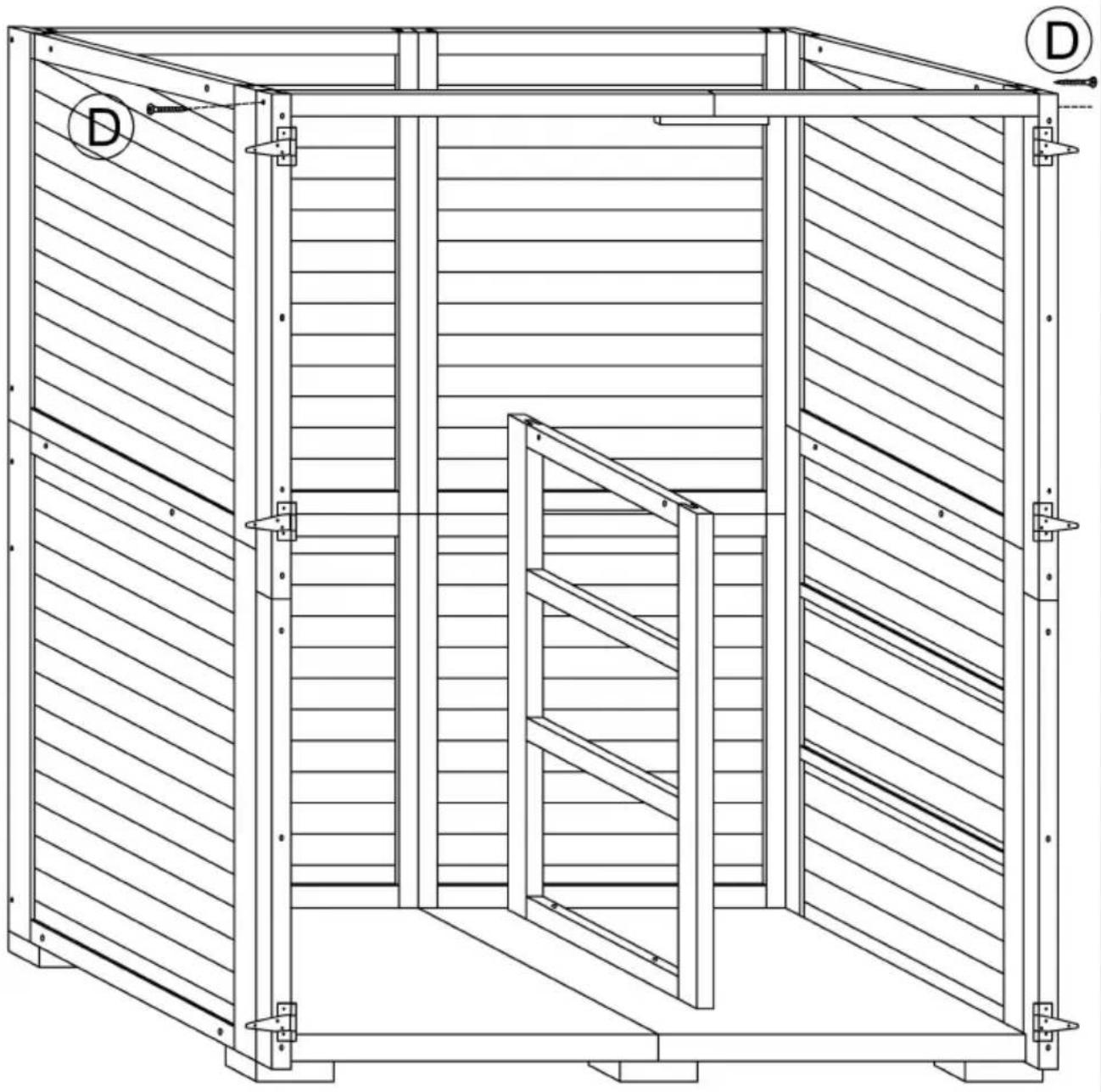

Assembling the side panels (top):

Note: There are positioning holes on the side panels, please align the screw holes for assembly.

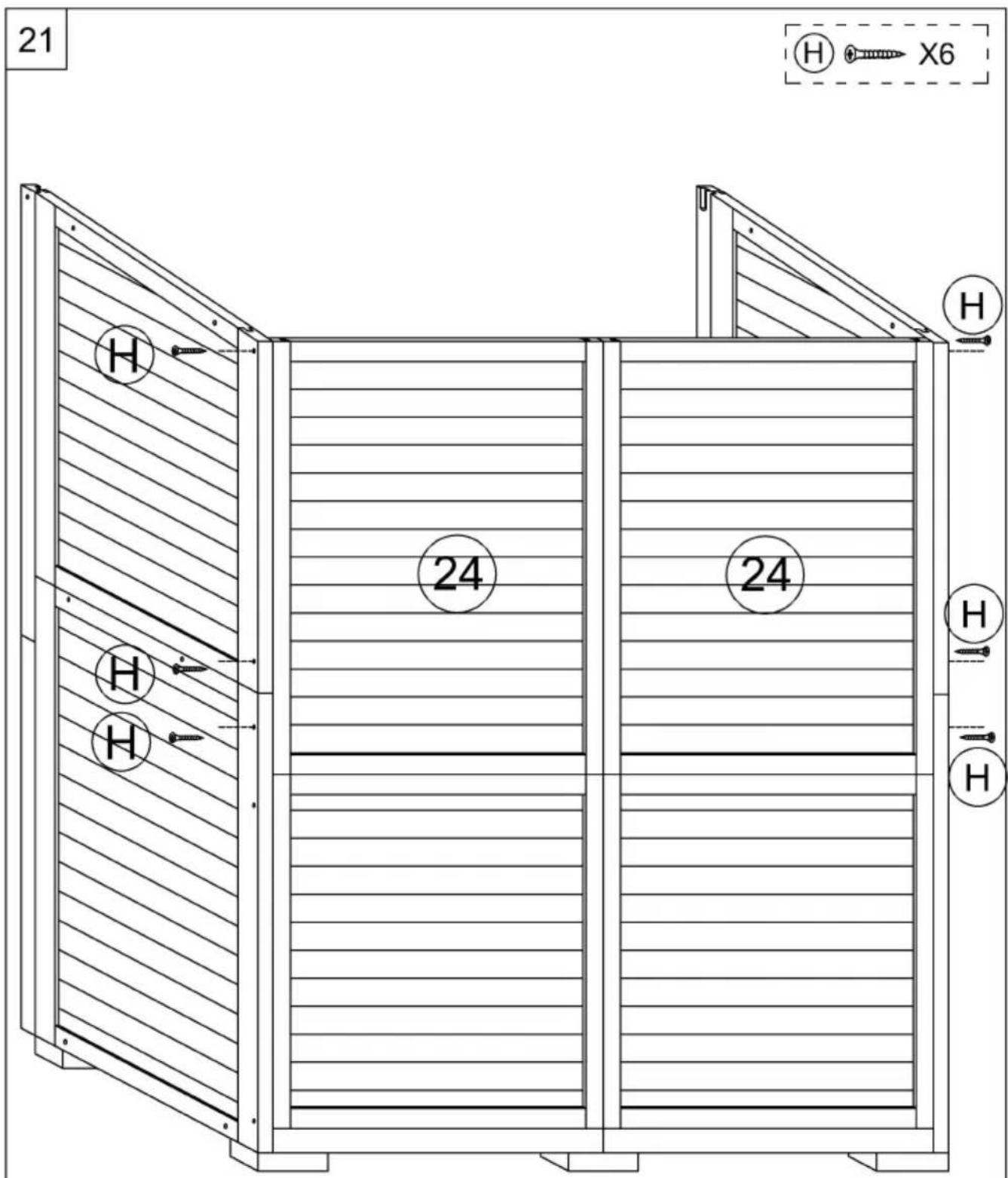

21 H X6 H 24 24 H H H H

Assembling the side panels (back):
Note: There are positioning holes on the side panels, please align the screw holes for assembly.

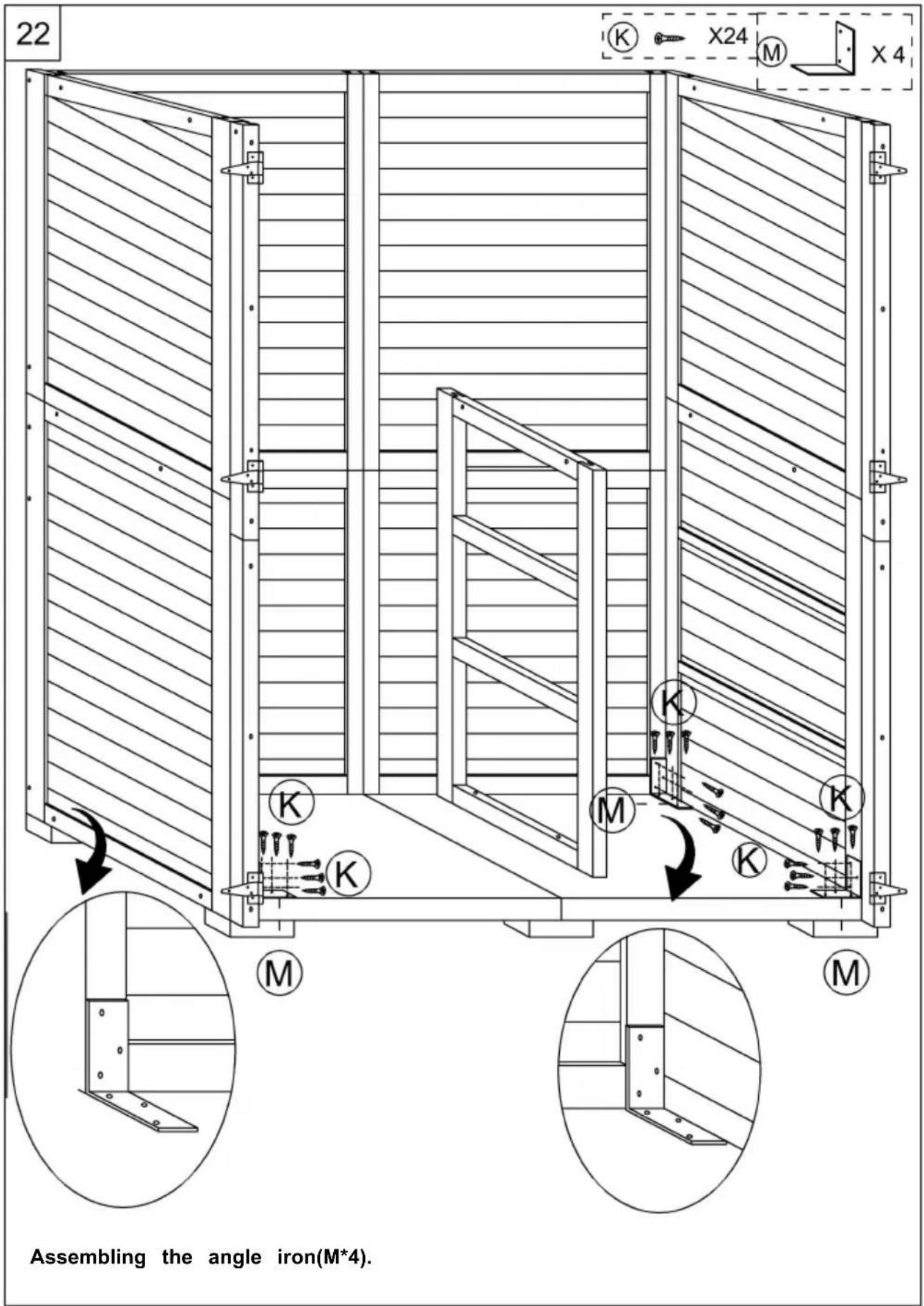

22 K X24 M X 4 Assembling the angle iron(M*4). M M K K K M M

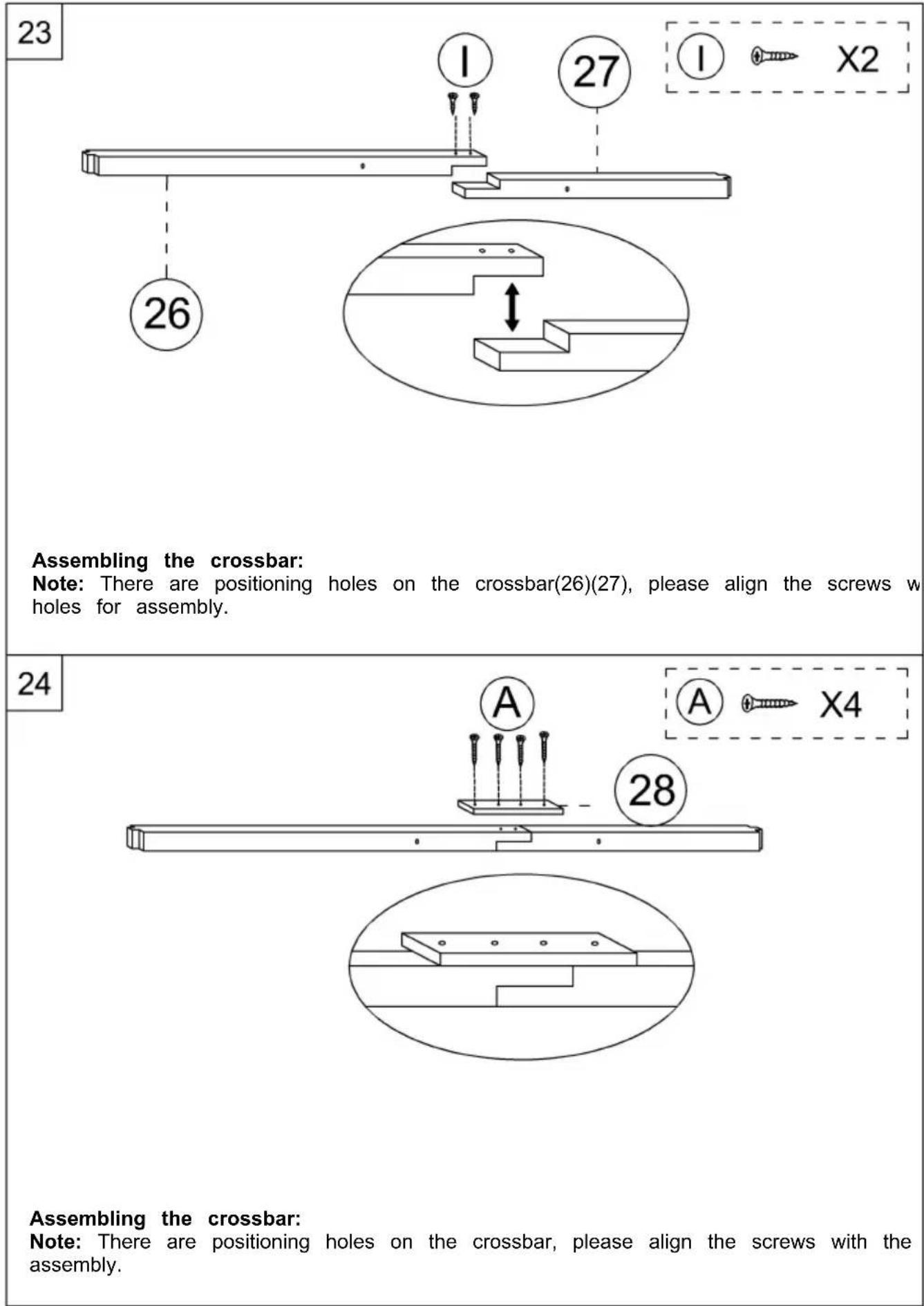

23 Assembling the crossbar: Note: There are positioning holes on the crossbar(26)(27), please align the screws w holes for assembly. 24 Assembling the crossbar: Note: There are positioning holes on the crossbar, please align the screws with the assembly.

25

Vevor HL-002 - Assembling the side panels (top): - 4

Vevor HL-002 - Assembling the side panels (top): - 5

natural_image Technical line drawing of a modular staircase structure with diagonal hatching and labeled components (no text or symbols beyond labels)

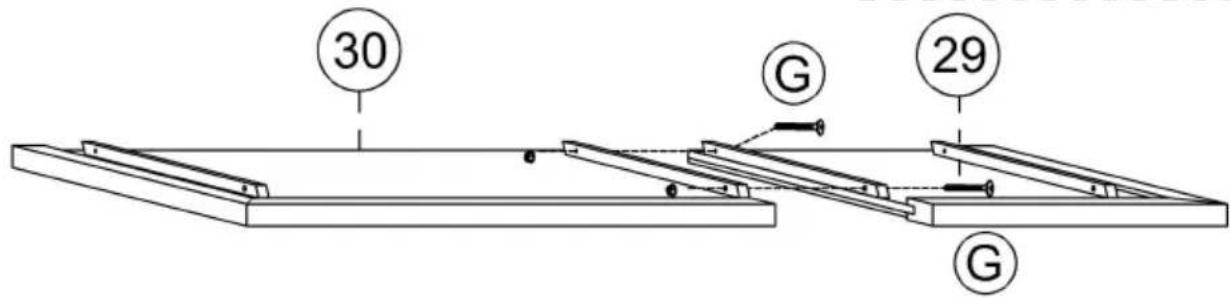

Assembling the crossbar:

Note: There are positioning holes on the side panels, please align the screws with the holes for assembly.

26

Vevor HL-002 - Assembling the crossbar: - 1

Vevor HL-002 - Assembling the crossbar: - 2

X2

30 G 29 G

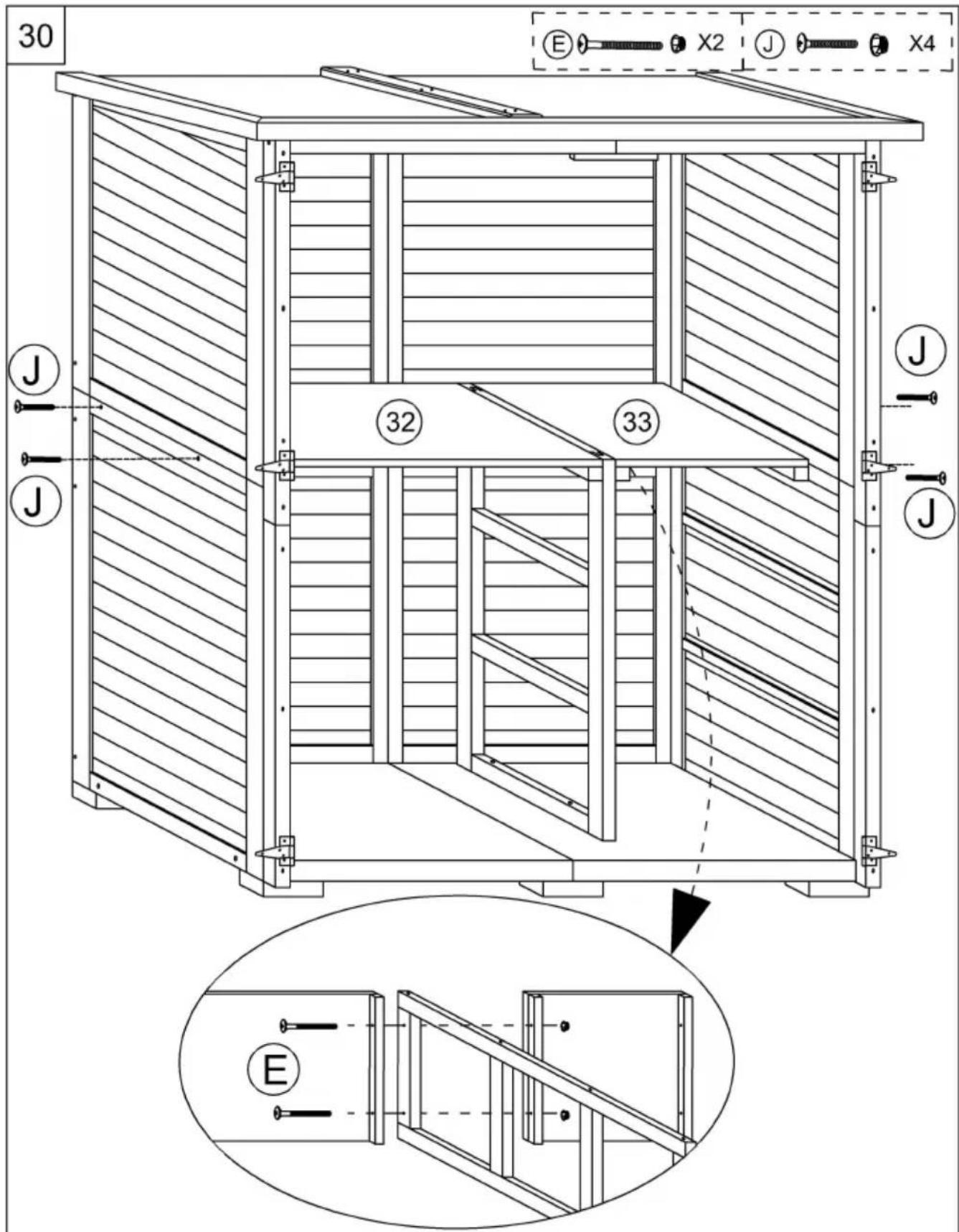

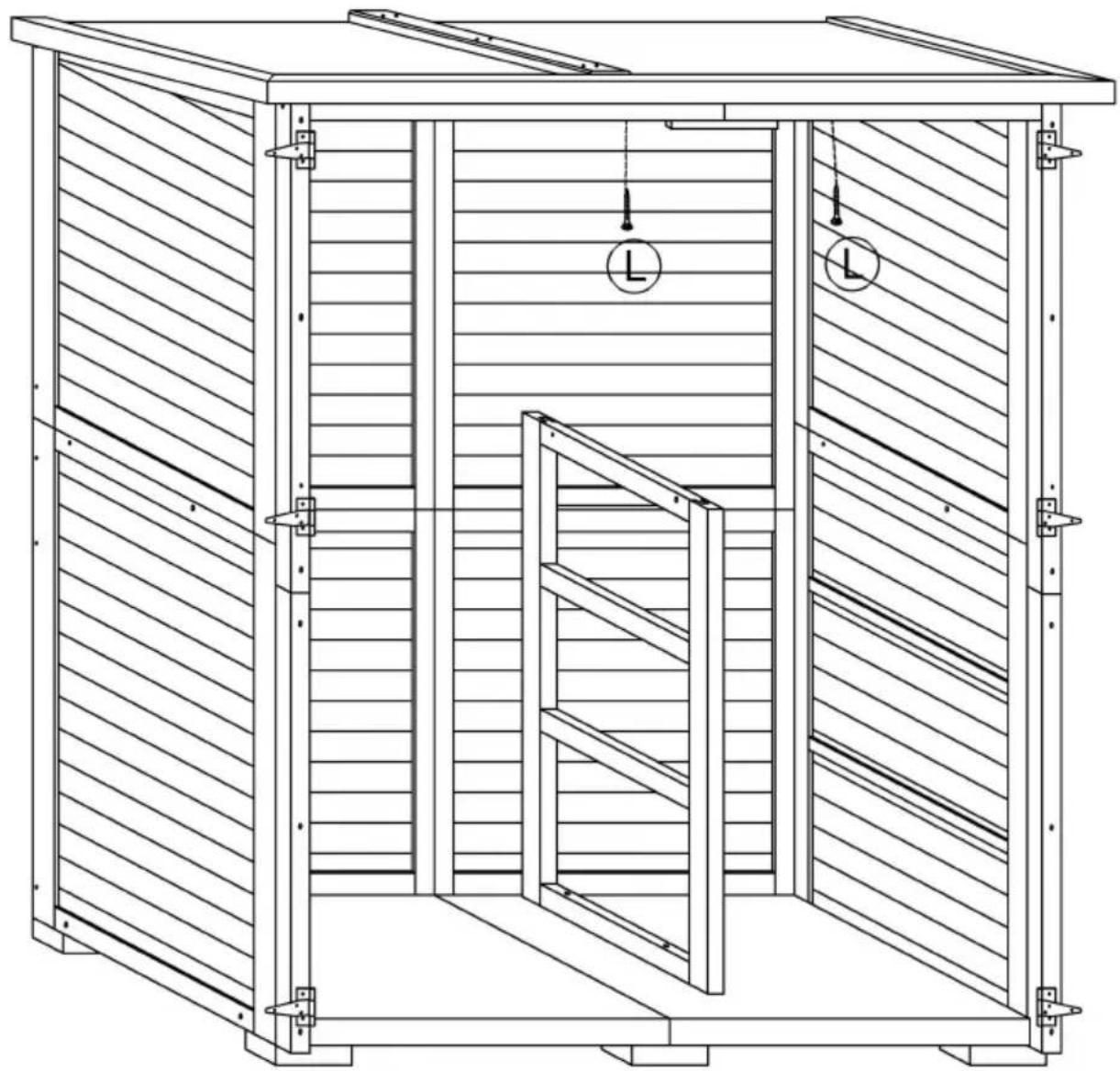

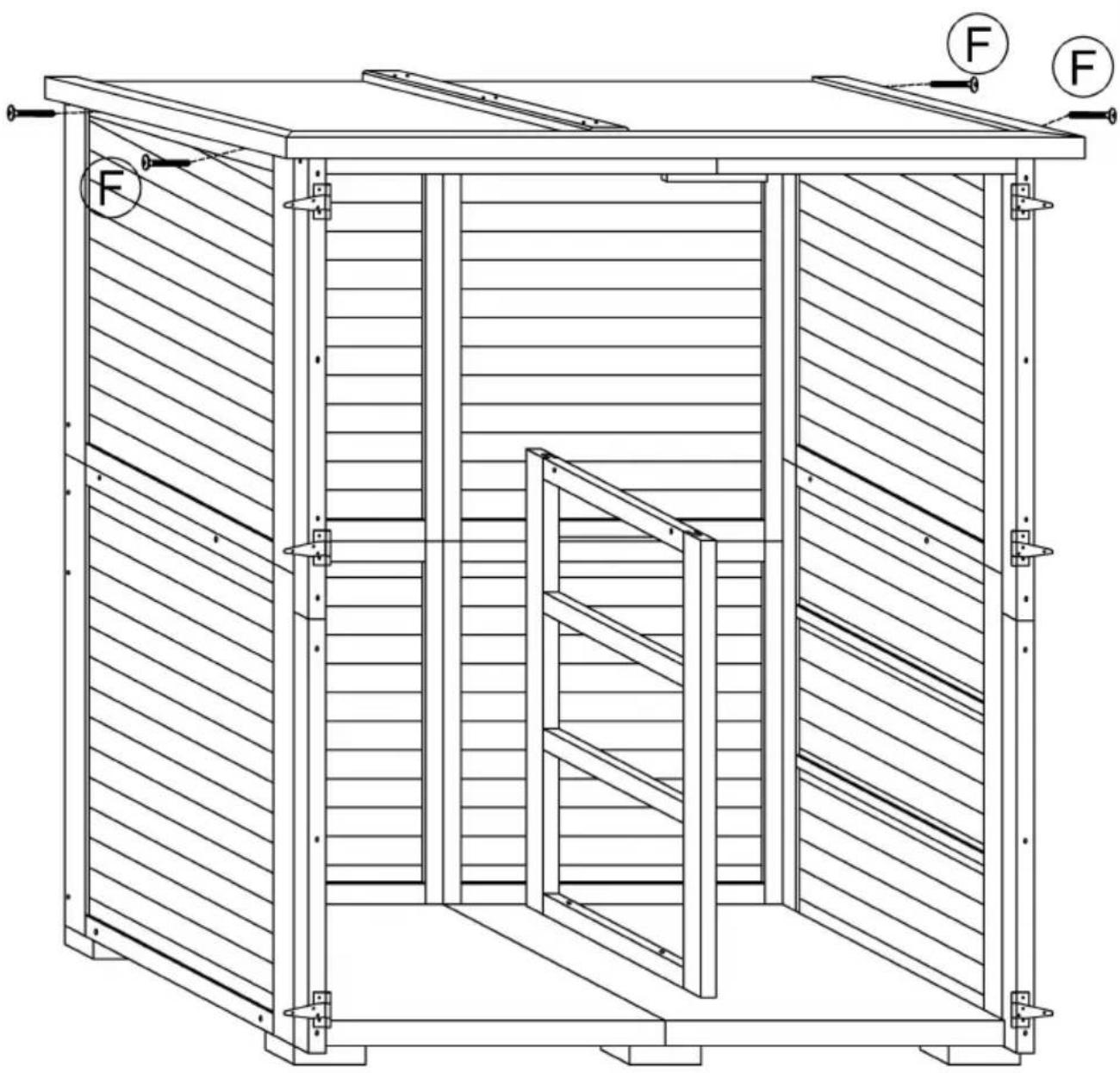

Assembling the top panels:

Note: There are perforations holes on the side panels, please align the screws with the holes for assembly.

27

Vevor HL-002 - Assembling the top panels: - 1

Vevor HL-002 - Assembling the top panels: - 2

X6

I I I 31

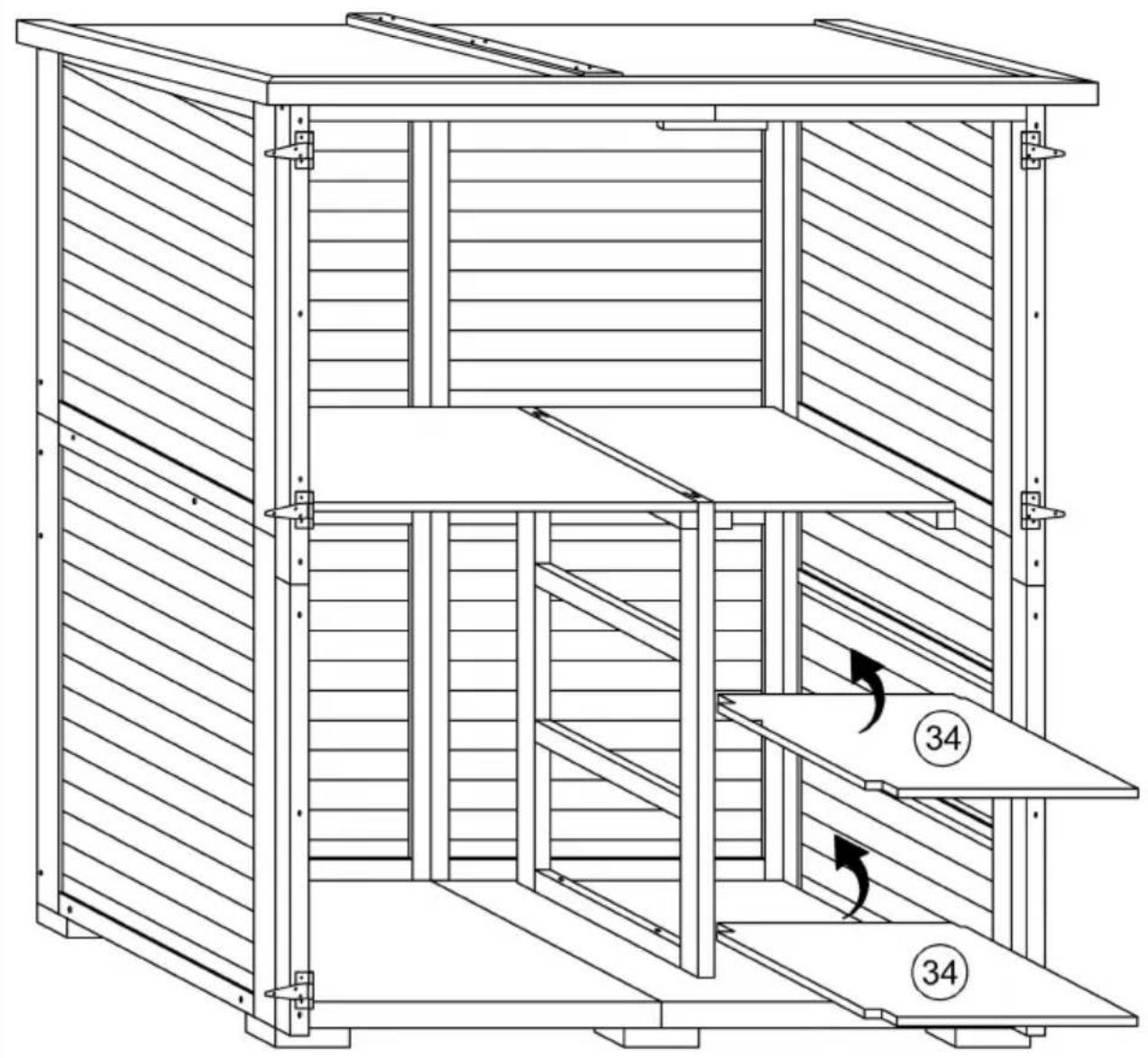

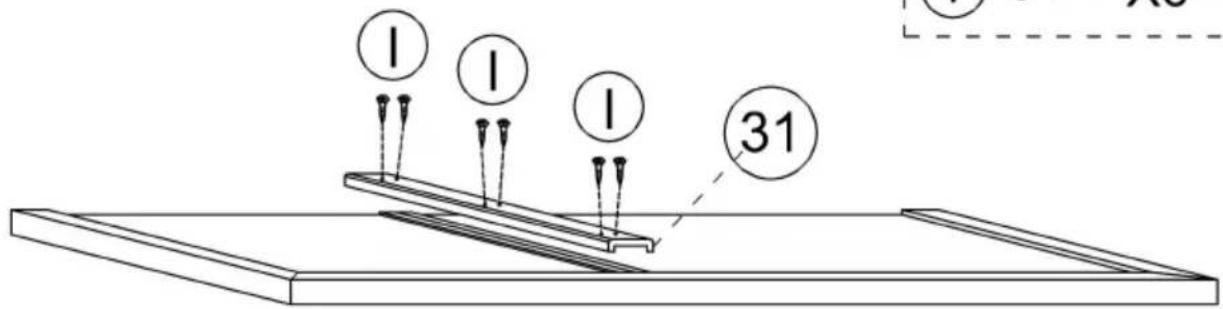

Assembling the top panels:

Note: There are positioning holes on the side panels, please align the screws with the holes for assembly.

28
Vevor HL-002 - Assembling the top panels: - 1

Vevor HL-002 - Assembling the top panels: - 2

Vevor HL-002 - Assembling the top panels: - 3

Vevor HL-002 - Assembling the top panels: - 4

Vevor HL-002 - Assembling the top panels: - 5

natural_image Technical line drawing of a multi-level industrial structure with hatched walls and structural beams, no text or symbols present.

Assembling the top panels:
Note: There are perforations holes on the side panels, please align the screws with the holes for assembly.

29

Vevor HL-002 - Assembling the top panels: - 6

Vevor HL-002 - Assembling the top panels: - 7

natural_image Technical line drawing of a modular cabinet or enclosure with hatched walls and internal compartments, no text or symbols present.

Assembling the top panels:

Note: There are positioning holes on the side panels, please align the screws with the holes for assembly.

30 E X2 J X4 J 32 33 J J E

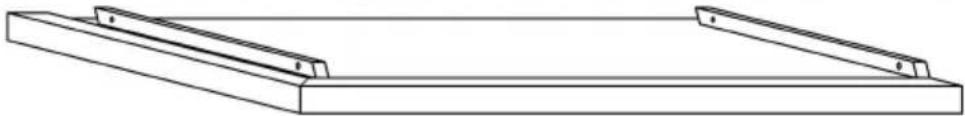

Assembling the flat:
Note: There are perforations holes on the side panels, please align the screws with the holes for assembly.

31
Technical diagram of a multi-level industrial structure with labeled components and directional arrows indicating flow or movement.

Assembling the flat.

32 K X18 K K K K 辅助档

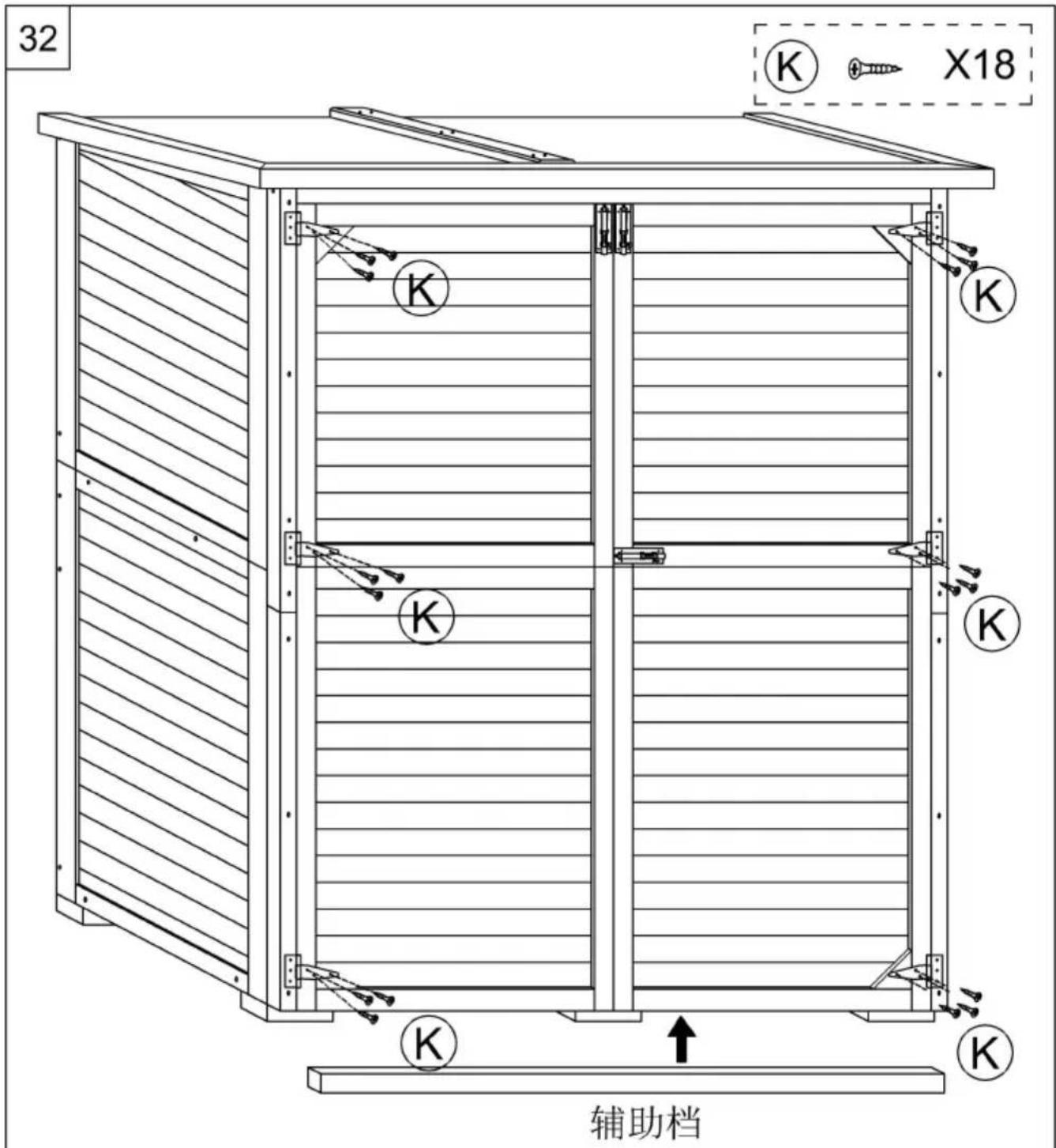

Assembling Doors:

Place the auxiliary mounting strip on the ground first; The door is then placed on the auxiliary mounting strip; Secure the door with the hinges with screws.

Note: There are positioning holes on the door, please align the screws with the assemble.

Vevor HL-002 - Assembling Doors: - 1

Assembling the latch:
Note: There are positioning holes on the side panels, please align the screws with the holes for assembly.

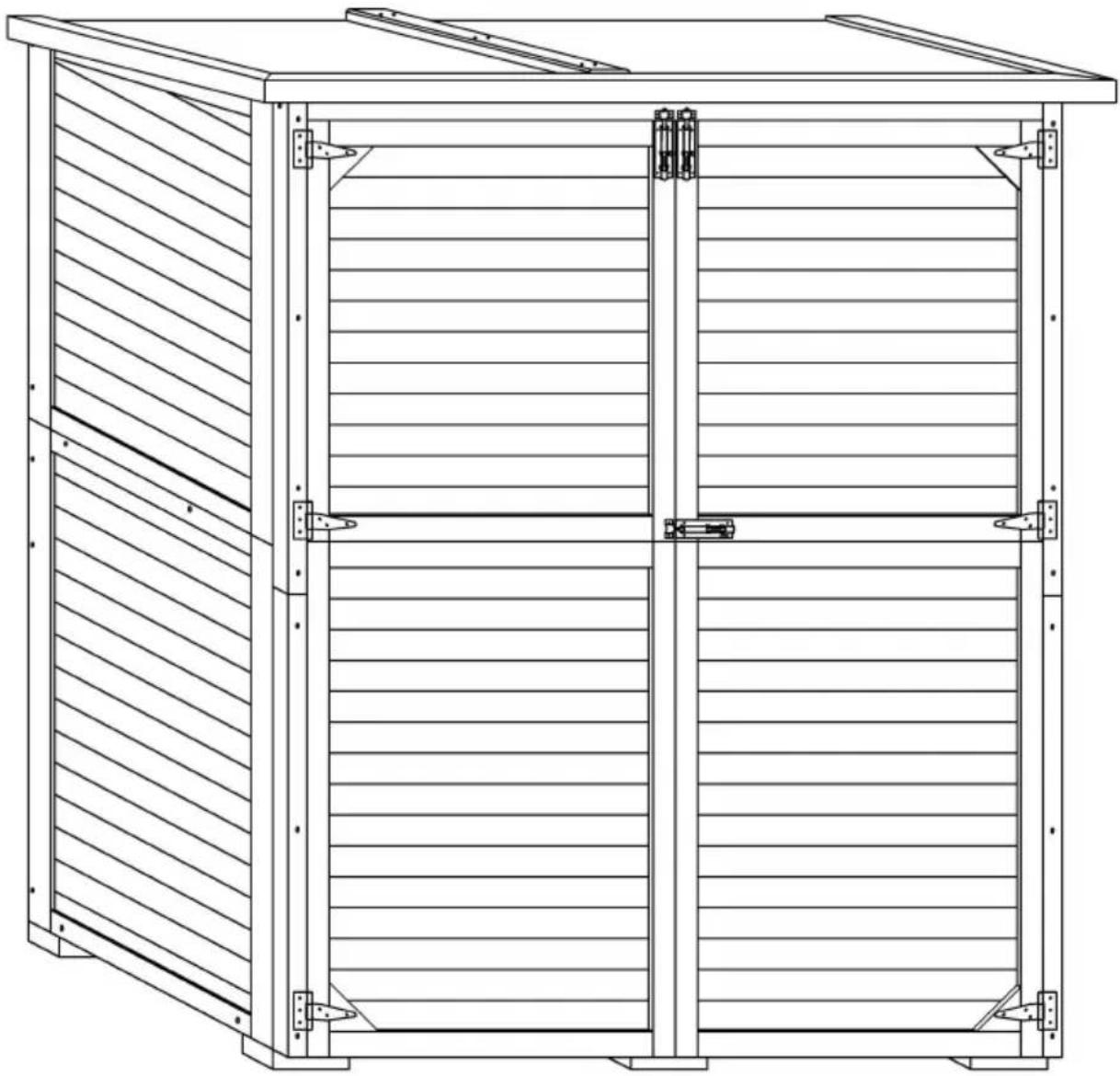

The assembly is complete.

Vevor HL-002 - Assembling Doors: - 2

natural_image Technical line drawing of a mechanical cabinet or enclosure with hatched panels on both sides (no text or symbols)

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a cabinet or enclosure with hatched walls and vertical panels (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Vevor HL-002 - TOUGH TOOLS, HALF PRICE - 1

26 X1 27 X1 29 X1 30 X1 32 X1 33 X1 34 X2 A 4x30mm X 36 G 6x60mm X 6 B 3x14mm X 18 H 4x35mm X 10 C X 4 I 4x20mm X 8 D 4x45mm X 44 J 6x50mm X 4 E 6x70mm X 4 K 4x16mm X 42 F 6x55mm X 6 L 4x50mm X 2 M X 4 N X 3

Diagram illustrating a physics experiment with a magnet, screw rack, and force vectors, showing motion direction.

Vevor HL-002 - TOUGH TOOLS, HALF PRICE - 4

natural_image Diagram showing screw installation with three screws inside a storage cabinet (no text or labels)

Technical diagram of a vertical structure with labeled components and directional arrows, marked as ① and ②.

⑪ D D D D

natural_image Technical line drawing of a modular storage unit with slatted walls and two hanging control panels (no text or symbols)

Montaż mieszkania.

32 K X18 K K K K 辅助档

The assembly is complete.

Vevor HL-002 - TOUGH TOOLS, HALF PRICE - 8

natural_image Technical line drawing of a modular industrial cabinet or enclosure with slatted walls and mounting brackets (no text or symbols)

Producent:Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Biuro 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a cabinet or enclosure with hatched walls and vertical panels (no text or symbols)

Vevor HL-002 - VEVOR® - 1

26 X1 27 X1 29 X1 30 X1 32 X1 33 X1 34 X2 A 4x30mm X 36 G 6x60mm X 6 B 3x14mm X 18 H 4x35mm X 10 C X 4 I 4x20mm X 8 D 4x45mm X 44 J 6x50mm X 4 E 6x70mm X 4 K 4x16mm X 42 F 6x55mm X 6 L 4x50mm X 2 M X 4 N X 3

Diagram illustrating a physics experiment with a magnet, screw rack, and force vectors, showing motion direction.

Vevor HL-002 - VEVOR® - 4

natural_image Diagram showing screw installation with three screws inside a storage cabinet (no text or labels)

Technical diagram of a vertical structure with labeled components and directional arrows, marked as ① and ②.

16 G X4 22 18 G G G

natural_image Technical line drawing of a modular storage unit with slatted walls and control panels, no text or symbols present

The assembly is complete.

Vevor HL-002 - VEVOR® - 7

natural_image Technical line drawing of a cabinet or enclosure with hatched panels on both sides (no text or symbols)

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Ort, Rancho Cucamonga, CA 91730

Vevor HL-002 - VEVOR® - 8

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a cabinet or enclosure with hatched panels and vertical supports (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Vevor HL-002 - BESOIN D'AIDE? CONTACTEZ-NOUS! - 1

26 X1 27 X1 29 X1 30 X1 32 X1 33 X1 34 X2 A 4x30mm X 36 G 6x60mm X 6 B 3x14mm X 18 H 4x35mm X 10 C X 4 I 4x20mm X 8 D 4x45mm X 44 J 6x50mm X 4 E 6x70mm X 4 K 4x16mm X 42 F 6x55mm X 6 L 4x50mm X 2 M X 4 N X 3

Diagram illustrating a physics experiment with a magnet, screw rack, and force vectors, showing motion paths.

Vevor HL-002 - BESOIN D'AIDE? CONTACTEZ-NOUS! - 4

natural_image Diagram showing screw installation with three screws inside a storage cabinet (no text or labels)

Technical diagram of a window frame structure with labeled components and directional arrows

⑪ D D D D

natural_image Technical line drawing of a modular storage unit with slatted walls and control panels (no text or symbols)

The assembly is complete.

Vevor HL-002 - BESOIN D'AIDE? CONTACTEZ-NOUS! - 7

natural_image Technical line drawing of a cabinet or enclosure with hatched panels on both sides (no text or symbols)

Fabricant:Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a cabinet or enclosure with hatched walls and vertical panels (no text or symbols)

HULP NODIG? NEEM CONTACT METONS OP!

Vevor HL-002 - VEVOR® - 1

26 X1 27 X1 29 X1 30 X1 32 X1 33 X1 34 X2 A 4x30mm X 36 G 6x60mm X 6 B 3x14mm X 18 H 4x35mm X 10 C X 4 I 4x20mm X 8 D 4x45mm X 44 J 6x50mm X 4 E 6x70mm X 4 K 4x16mm X 42 F 6x55mm X 6 L 4x50mm X 2 M X 4 N X 3

Diagram illustrating a physics experiment with a magnet, screw rack, and force vectors, showing motion direction.

Vevor HL-002 - VEVOR® - 4

natural_image Diagram showing screw installation with three screws inside a storage cabinet (no text or labels)

Technical diagram of a window frame structure with labeled components and directional arrows

⑪ D D D D

natural_image Technical line drawing of a modular storage unit with slatted walls and two hanging circular components (no text or symbols)

The assembly is complete.

Vevor HL-002 - VEVOR® - 7

natural_image Technical line drawing of a modular industrial cabinet or enclosure with slatted walls and mounting brackets (no text or symbols)

Fabrikant: Shanghaiimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Kantoor 147, Centurion House,

Londen Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a cabinet or enclosure with hatched panels and vertical supports (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Vevor HL-002 - BEHÖVER HJÄLP? KONTAKTA OSS! - 1

26 X1 27 X1 29 X1 30 X1 32 X1 33 X1 34 X2 A 4x30mm X 36 G 6x60mm X 6 B 3x14mm X 18 H 4x35mm X 10 C X 4 I 4x20mm X 8 D 4x45mm X 44 J 6x50mm X 4 E 6x70mm X 4 K 4x16mm X 42 F 6x55mm X 6 L 4x50mm X 2 M X 4 N X 3

Diagram illustrating a physics experiment with a magnet, screw rack, and force vectors, showing motion paths.

Vevor HL-002 - BEHÖVER HJÄLP? KONTAKTA OSS! - 4

natural_image Diagram showing screw installation with three screws inside a storage cabinet (no text or labels)

Technical diagram of a window frame structure with labeled components and directional arrows

⑪ D D D D

natural_image Technical line drawing of a multi-level industrial or warehouse structure with slatted walls and central doorways (no text or symbols)

The assembly is complete.

Vevor HL-002 - BEHÖVER HJÄLP? KONTAKTA OSS! - 7

natural_image Technical line drawing of a modular industrial cabinet or enclosure with slatted walls and mounting brackets (no text or symbols)

Tillverkare:Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200 000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a cabinet or enclosure with hatched walls and vertical panels (no text or symbols)

Vevor HL-002 - TOUGH TOOLS, HALF PRICE - 1

26 X1 27 X1 29 X1 30 X1 32 X1 33 X1 34 X2 A 4x30mm X 36 G 6x60mm X 6 B 3x14mm X 18 H 4x35mm X 10 C X 4 I 4x20mm X 8 D 4x45mm X 44 J 6x50mm X 4 E 6x70mm X 4 K 4x16mm X 42 F 6x55mm X 6 L 4x50mm X 2 M X 4 N X 3

Diagram illustrating a physics experiment with a magnet, screw rack, and force vectors, showing motion paths.

Vevor HL-002 - TOUGH TOOLS, HALF PRICE - 4

natural_image Diagram showing screw installation with three screws inside a storage cabinet (no text or labels)

Technical diagram of a vertical structure with labeled components and directional arrows, marked as ① and ②.

⑪ D D D D

natural_image Technical line drawing of a modular storage unit with slatted walls and two hanging control panels (no text or symbols)

Montaje del piso.

32 K X18 K K K K 辅助档

The assembly is complete.

Vevor HL-002 - TOUGH TOOLS, HALF PRICE - 8

natural_image Technical line drawing of a modular industrial cabinet or enclosure with slatted walls and mounting brackets (no text or symbols)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 MN.

Importado a Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anaheim Lugar, Rancho Cucamonga, CA 91730

REPRESENTANTE CE

E-CrossStu GmbH

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

natural_image Technical line drawing of a cabinet or enclosure with hatched walls and vertical panels (no text or symbols)

Vevor HL-002 - VEVOR® - 1

26 X1 27 X1 29 X1 30 X1 32 X1 33 X1 34 X2 A 4x30mm X 36 G 6x60mm X 6 B 3x14mm X 18 H 4x35mm X 10 C X 4 I 4x20mm X 8 D 4x45mm X 44 J 6x50mm X 4 E 6x70mm X 4 K 4x16mm X 42 F 6x55mm X 6 L 4x50mm X 2 M X 4 N X 3

Diagram illustrating a physics experiment with a magnet, screw rack, and force vectors, showing motion paths.

Vevor HL-002 - VEVOR® - 4

natural_image Diagram showing screw installation with three screws inside a storage cabinet (no text or labels)

Technical diagram of a window frame structure with labeled components and directional arrows

⑪ D D D D

natural_image Technical line drawing of a modular storage unit with slatted walls and two hanging control panels (no text or symbols)

The assembly is complete.

Vevor HL-002 - VEVOR® - 7

natural_image Technical line drawing of a modular industrial cabinet or enclosure with slatted walls and mounting brackets (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : HL-002

Category : Outdoor storage furniture
