FLAT-TOP OUTDOOR CABINET

USER MANUAL

MODEL: HL-001

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

HL-001

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Safety precautions

WARNING:

Read this instructions before using this product. Failure to do so can result serious injury. the basic precautions should always be followed, including the following:

1. The flat-top outdoor cabinet may not be used or stored in hazardous area not allowed to use the appliance in hazardous locations.

2. The flat-top outdoor cabinet must be checked to ensure that it is in proper working order and is operating safely prior to use. Otherwise, the appliance may not be used.

3. Please keep the cabinet door closed and locked to prevent rain from ente

4. The operator must use the flat-top outdoor cabinet properly. He must consthe local conditions and must pay attention to third parties,in particularchildren,when working with the flat-top outdoor cabinet.

5. This flat-top outdoor cabinet is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for the safety or are instructed by these persons on the use of the device. Children be supervised, to ensure that they do not play with the flat-top outdoor cabinet

SAVE THESE INSTRUCTIONS

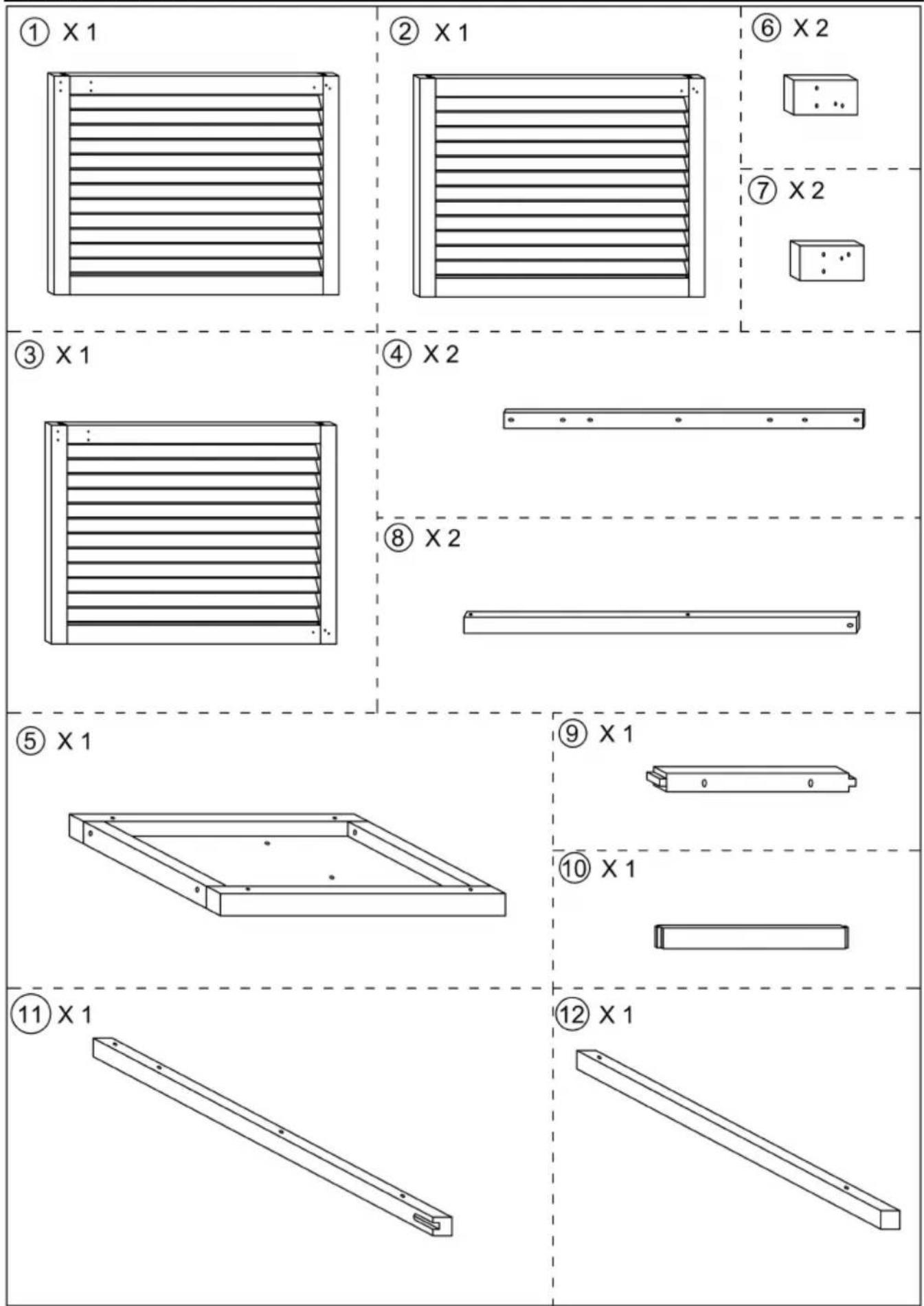

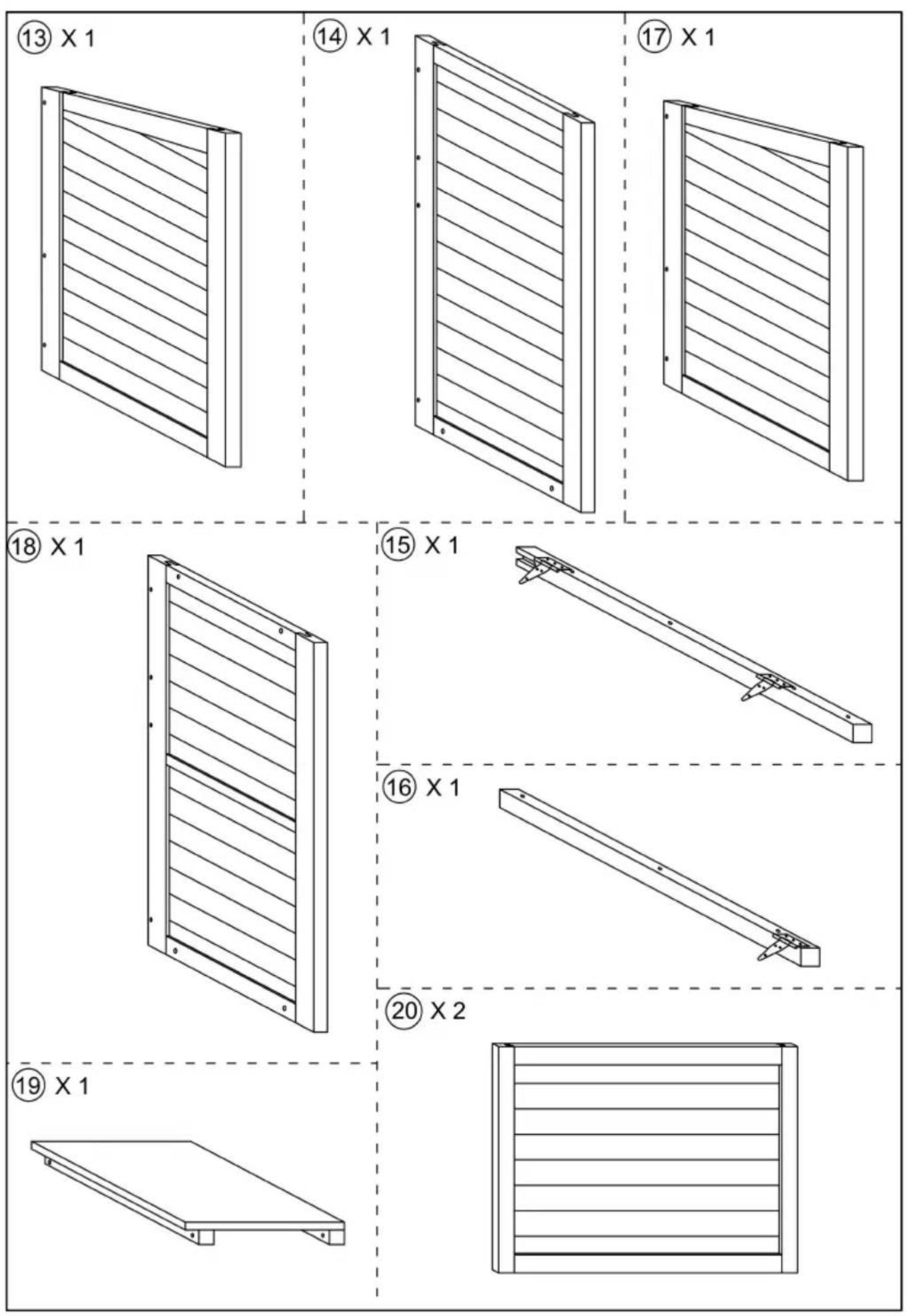

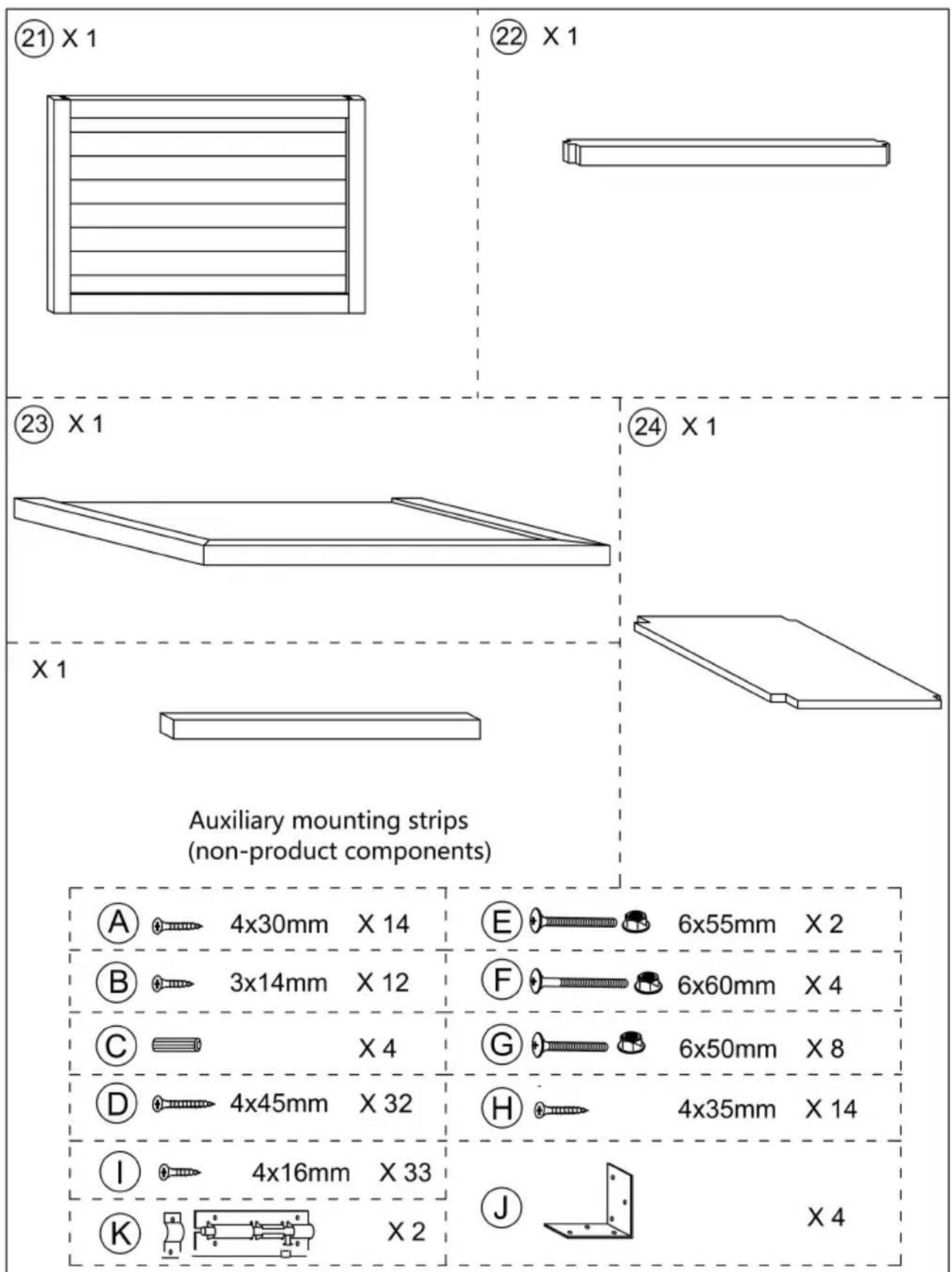

Product List

1

X14

2

4

X8

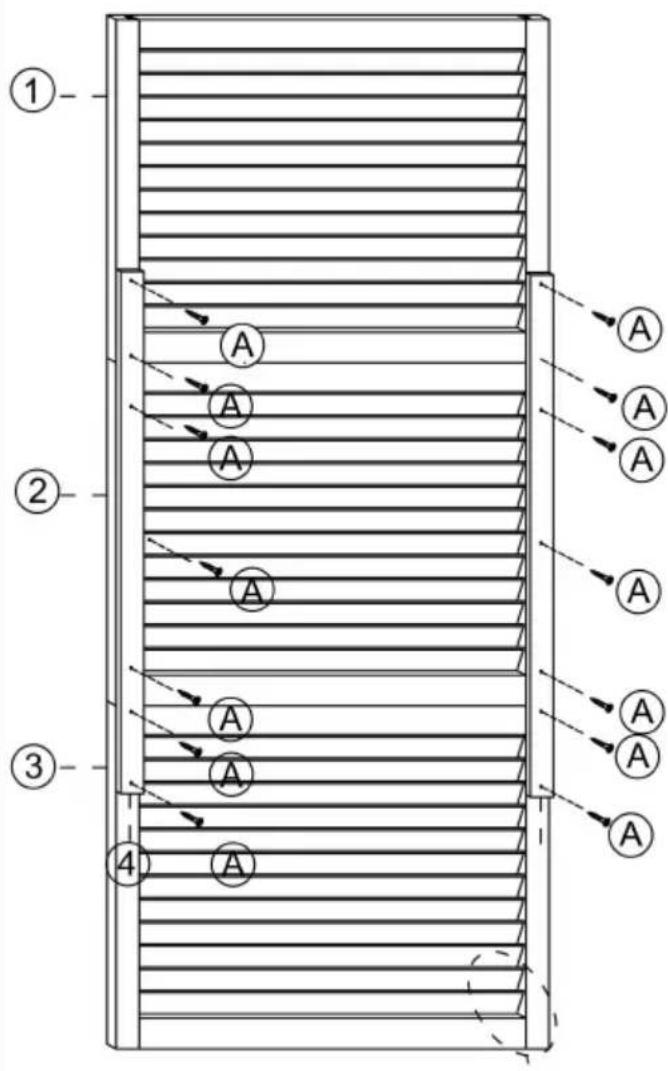

Assembling the door panels:

Assemble the door panel 1, the door panel 2, and the door panel 3 into one door with a crossbar(4x2).

Note: The front and back of the door panel back of the door is assembled this time.

Note: The order of the top and bottom of t door panels and the direction of the inclined plates on the door panels should be consist

Note: There are small holes in the door pal please align the screws with the small holes, assemble.

Assembling the door panels:

Flip the assembled door over.

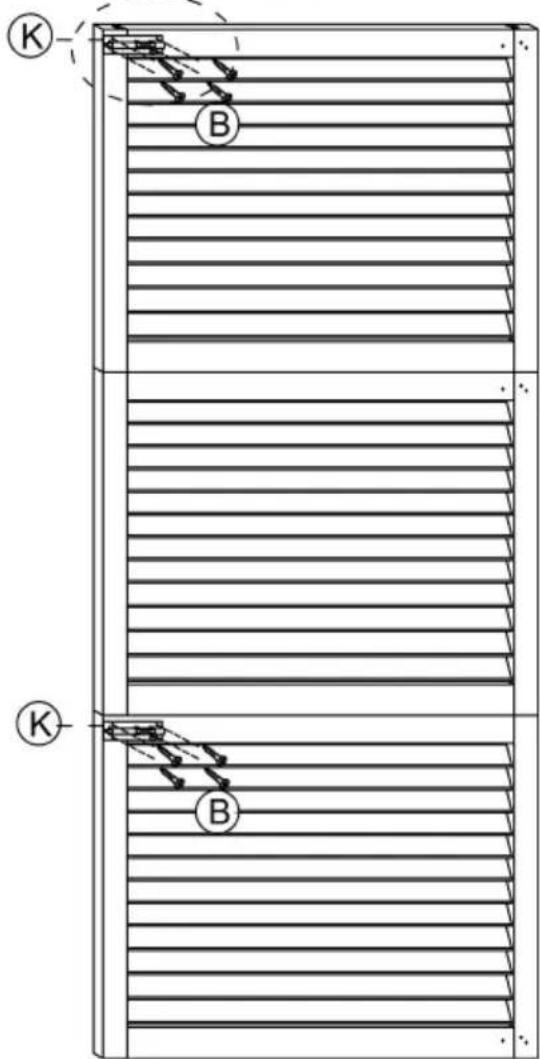

Assemble the door bolt(Kx2) on the front

Note: There are positioning holes on door panel, please align the screws with the small holes to assemble.

6
The edges should be flush.

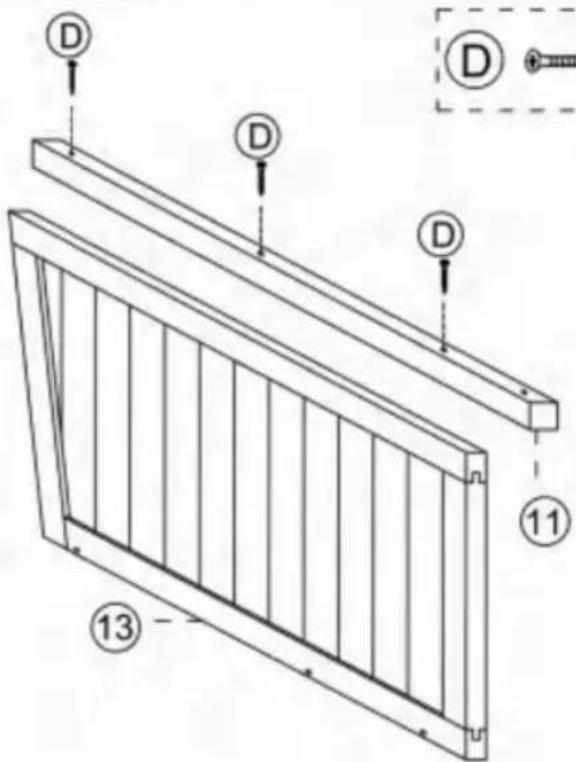

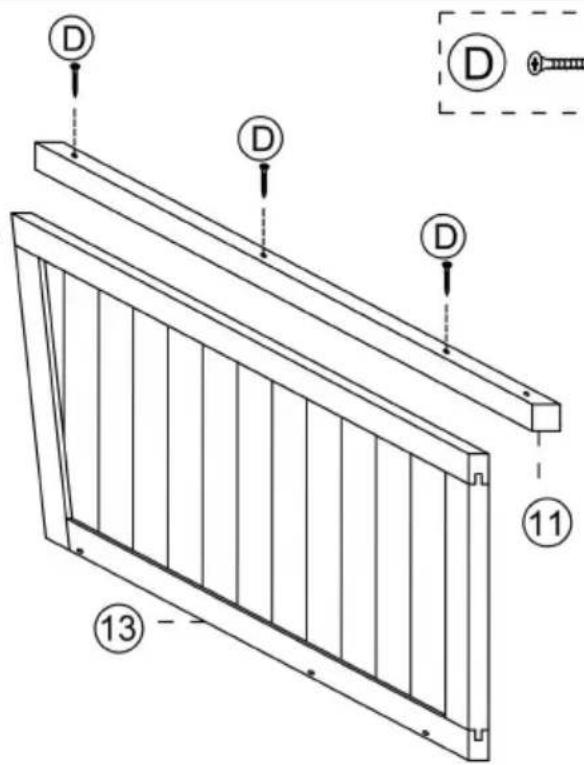

Assembling the side panels (top):

Note: The crossbar(11) should be flush with the edge of the side plate(13).

Note: There are positioning holes on the crossbar, please align the screws with assemble.

7

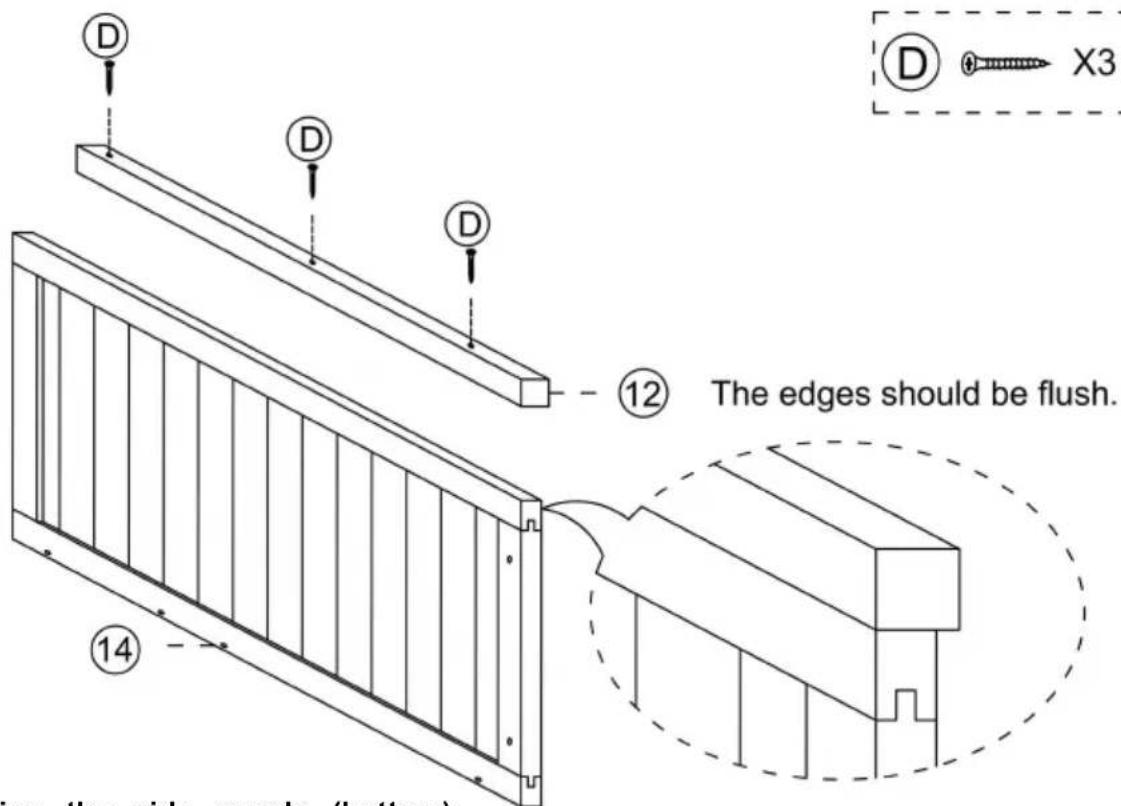

Assembling the side panels (bottom):

Note: The crossbar(12) should be flush with the edge of the side plate(14).

Note: There are positioning holes on the crossbar, please align the screws with assemble.

The edges should be flush.

8

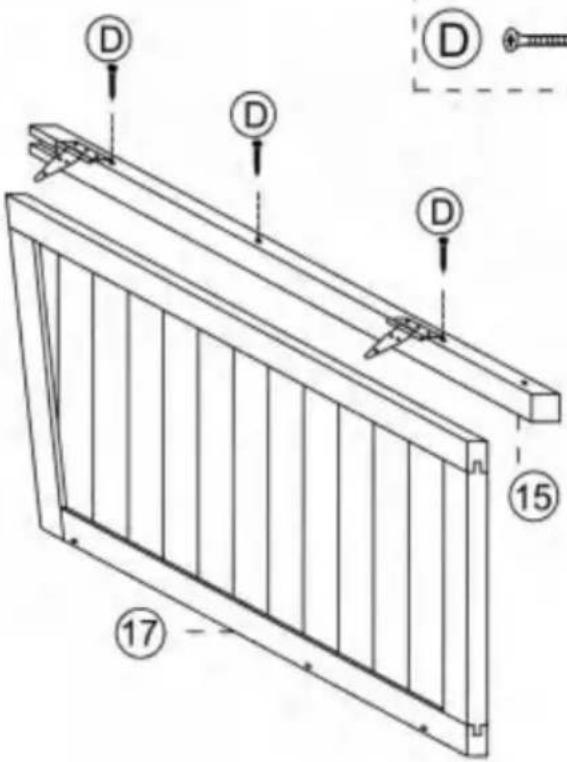

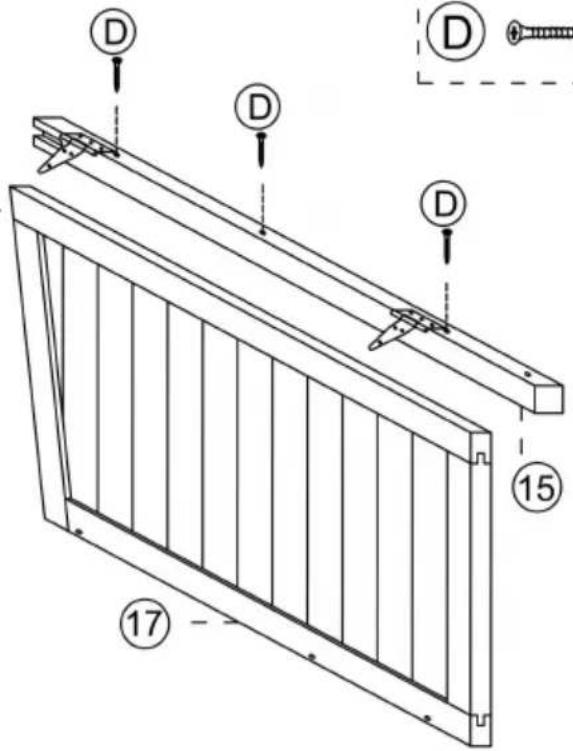

Assembling the side panels (bottom):

Note: The crossbar(15) should be flush with the edge of the side plate(17).

Note: There are positioning holes on the crossbar, please align the screws with assembly.

9

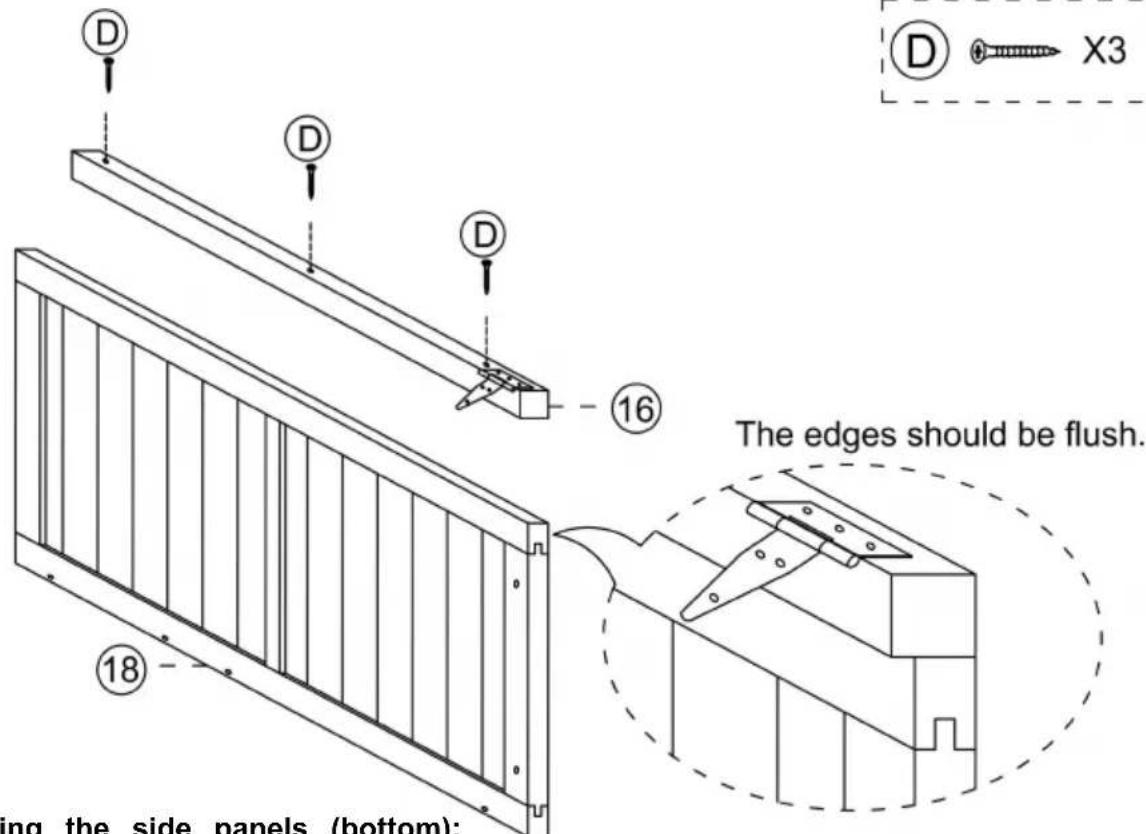

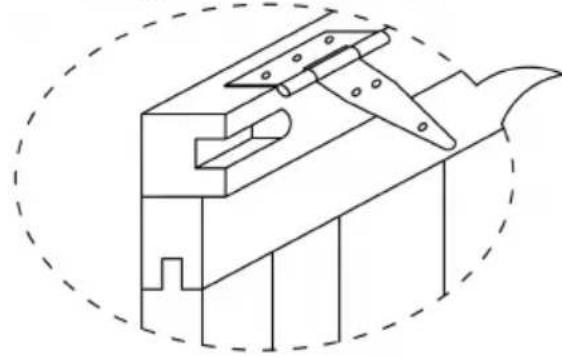

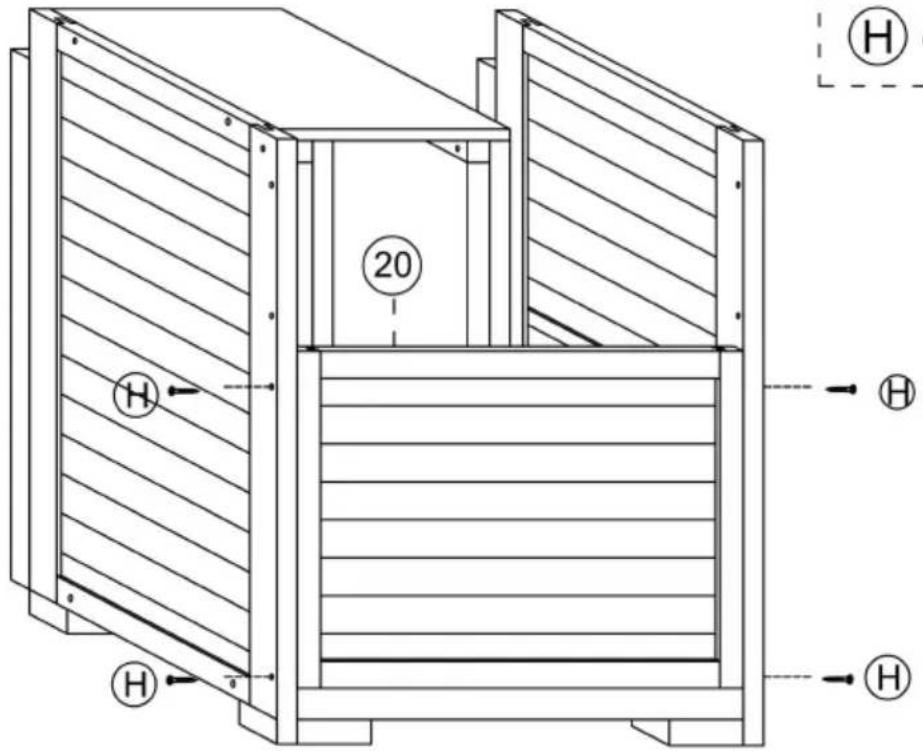

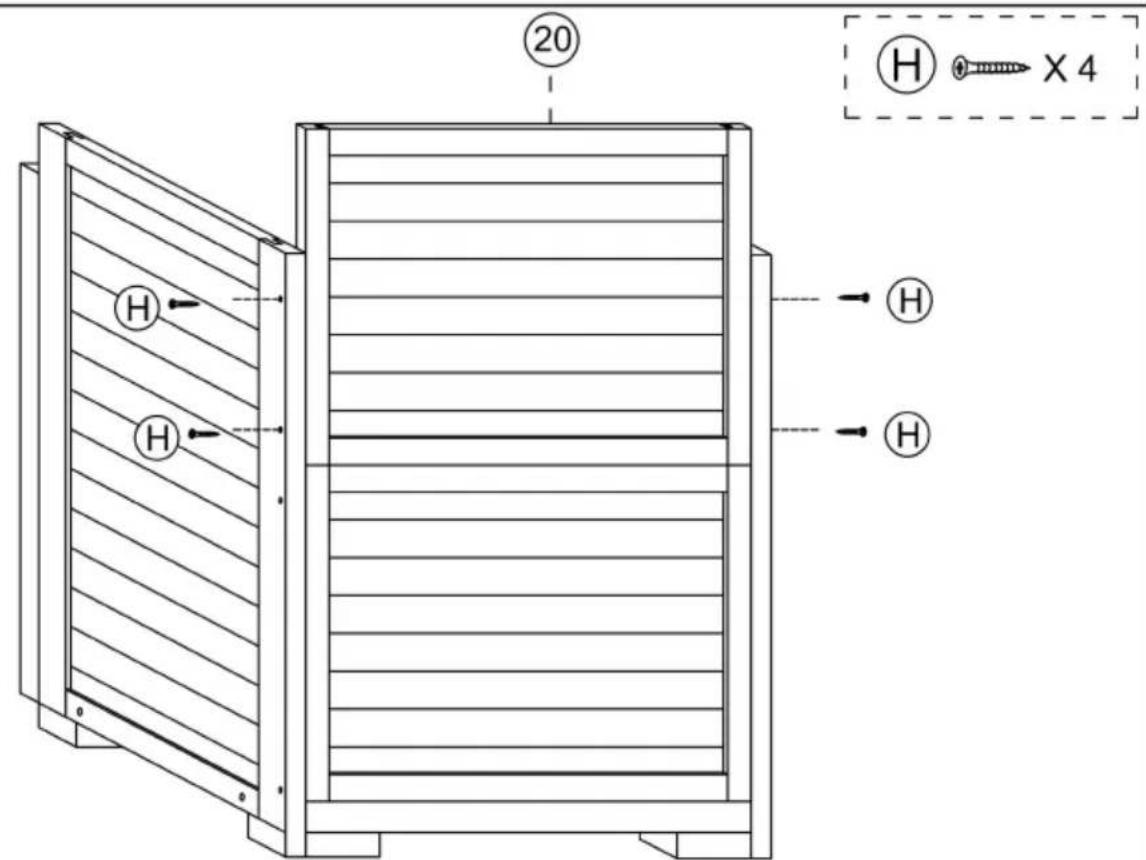

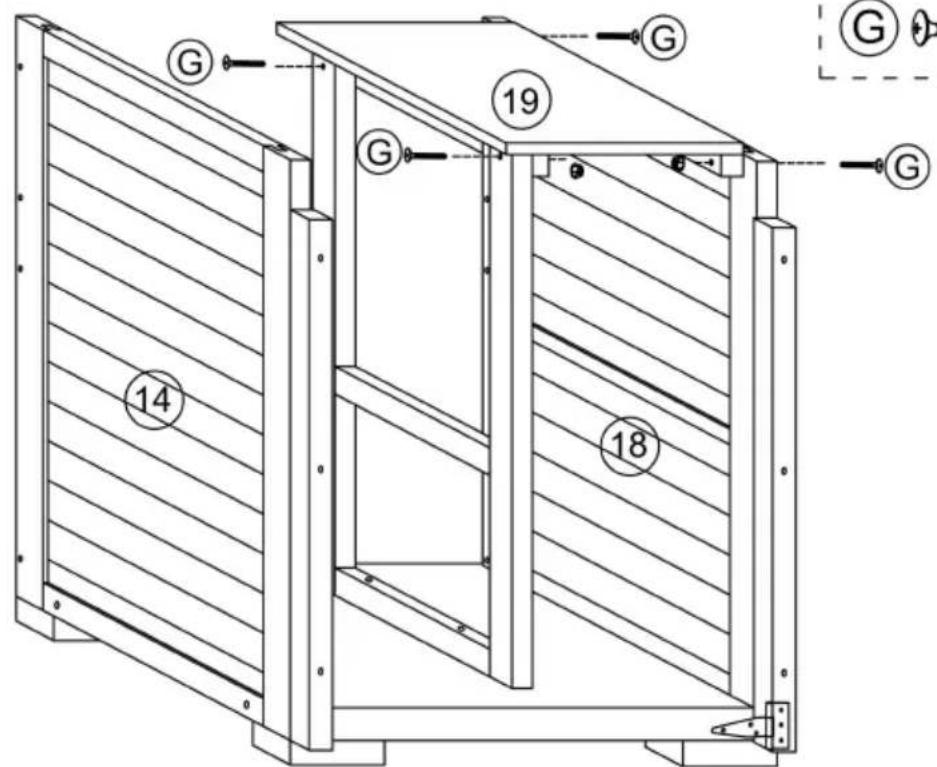

Assembling the side panels (bottom):

Note: The crossbar(16) should be flush with the edge of the side plate(18).

Note: That there are positioning holes on the crossbar, please align the screws holes for assembly.

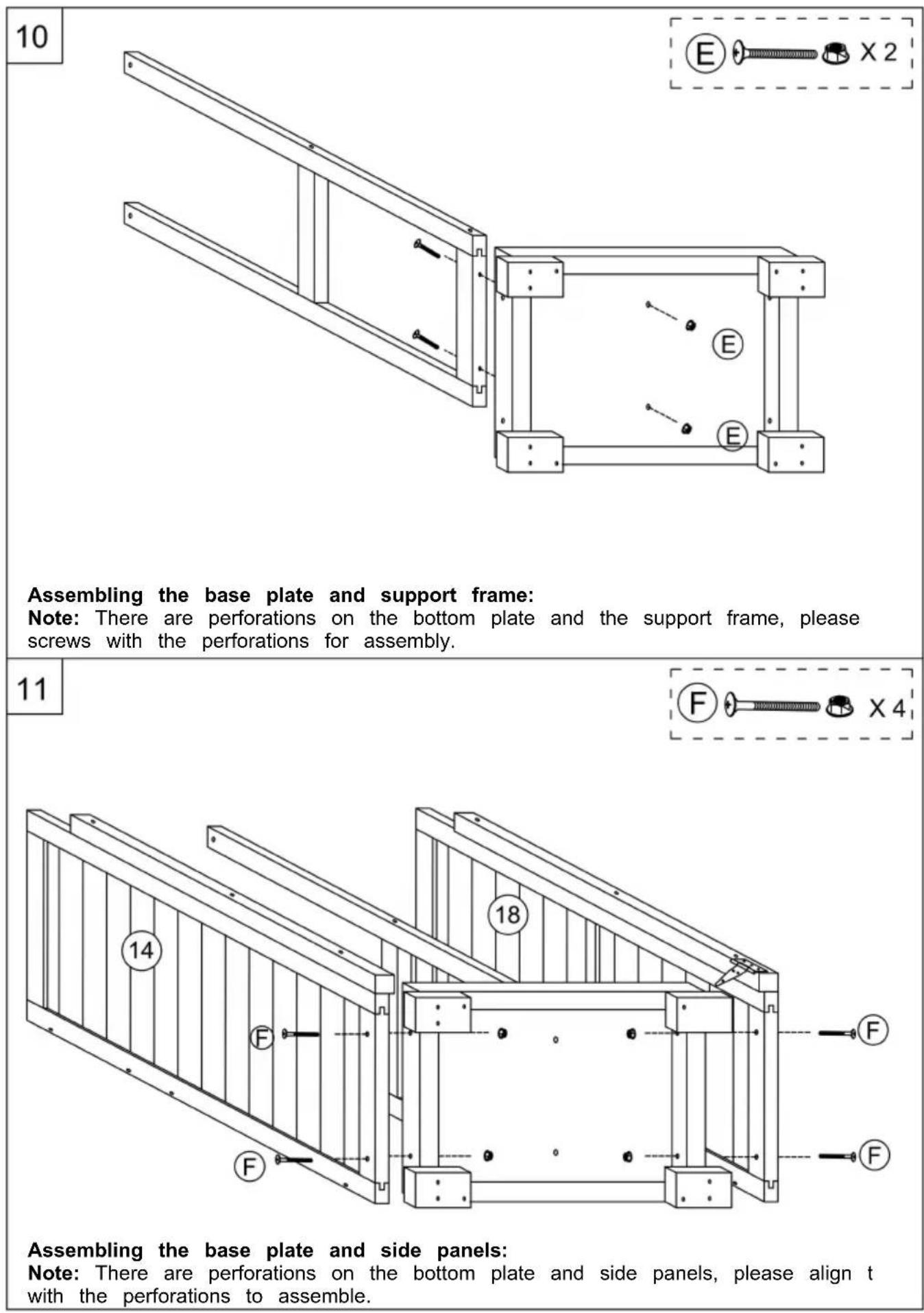

12

X4

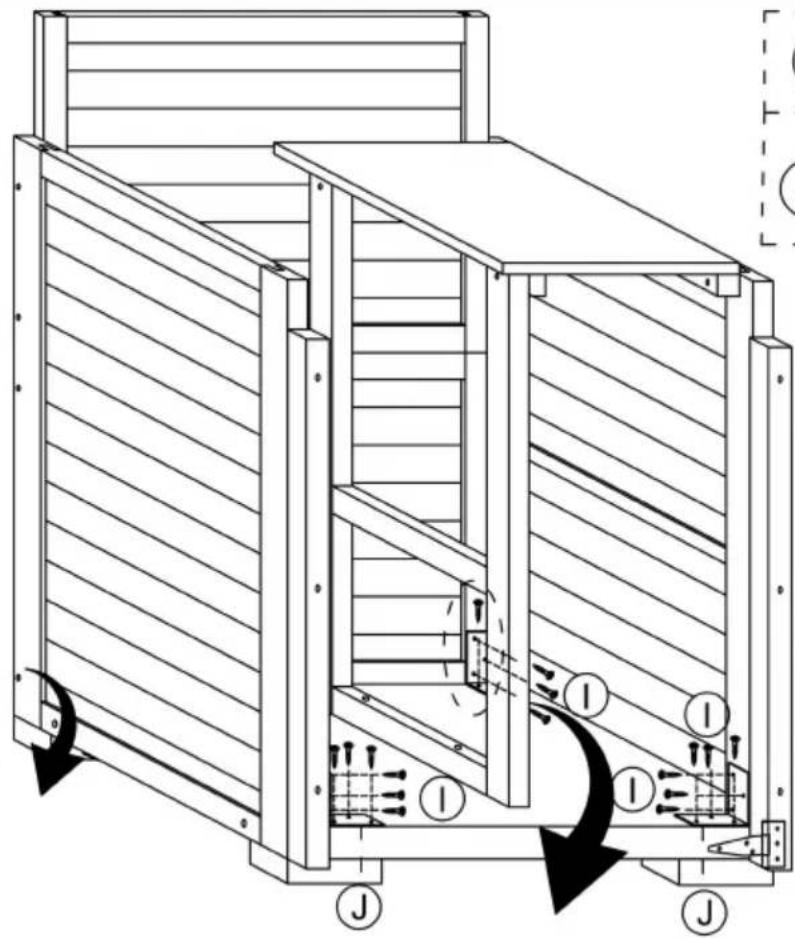

Assembling small partitions:

Note: There are perforations on the small partition and side panels, please align with the perforations for assembly.

13

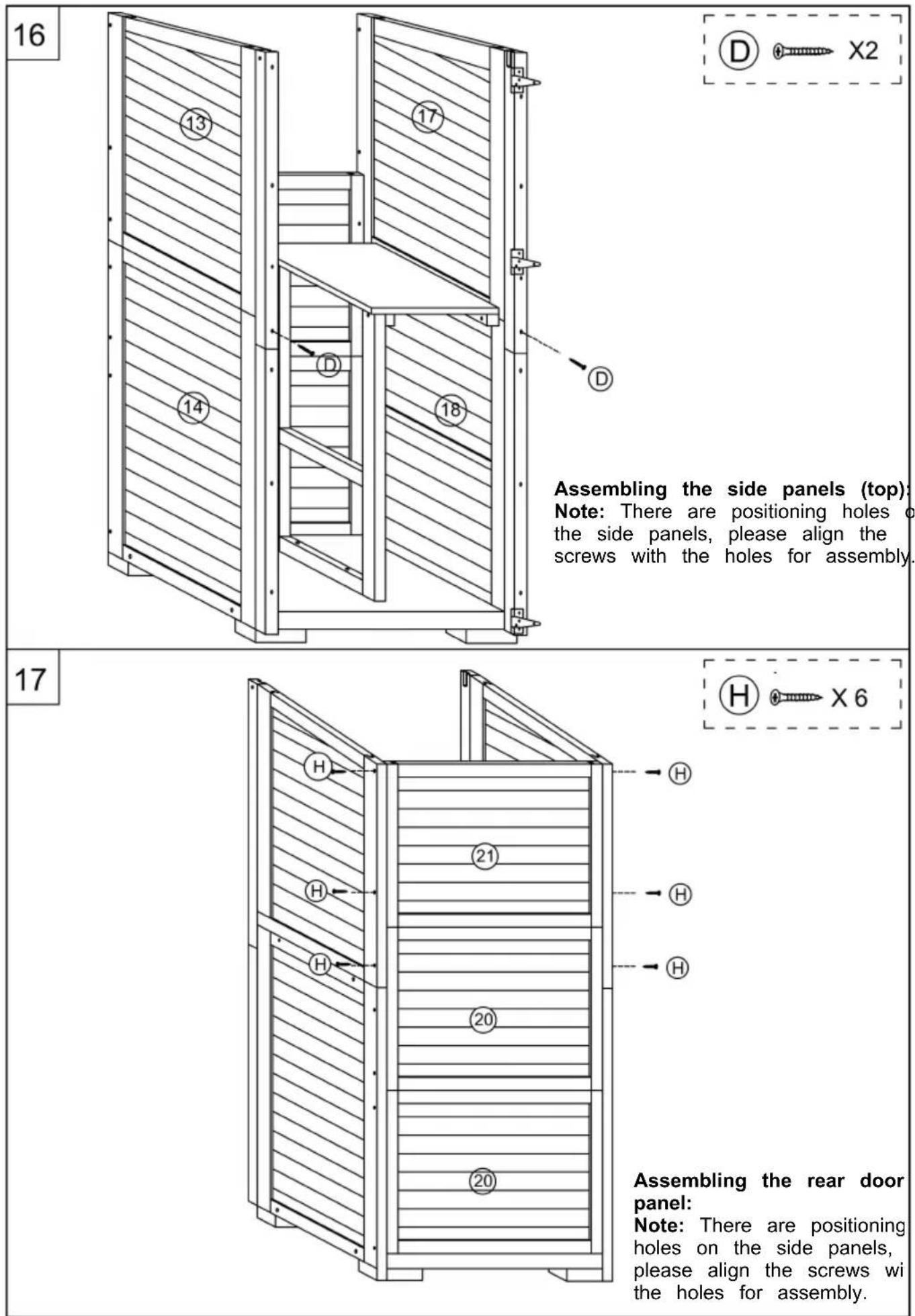

Assembling the rear door panel:

Note: There are positioning holes on the side panels, please align the screws w for assembly.

14

Assembling the rear door panel:
Note: There are positioning holes on the side panels, please align the screws w for assembly.

15

22

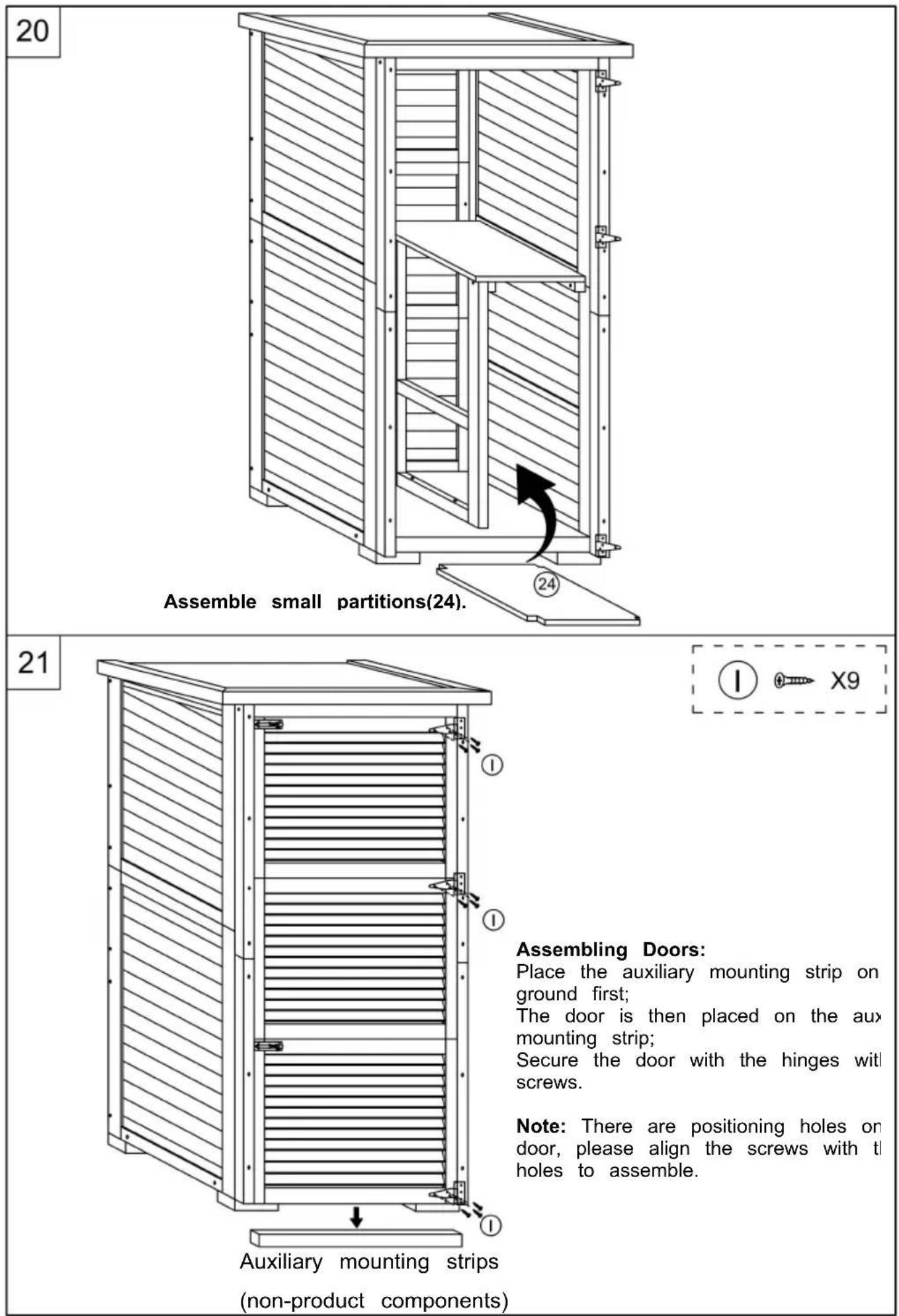

Assembling the latch:

Note: There are positioning holes on the side panels, please align the screws with for assembly.

The assembly is complete.
