Product Type	Heat Press
Brand	Vevor
Model	TL4060 (TL4060-1)
Heating Plate Size	40 x 60 cm (16 x 24 inches)
Temperature Range	0-250 °C (32-480 °F)
Time Range	0-999 seconds
Power Supply	120 V~60 Hz or 220-240 V~50 Hz depending on version
Power	1700 W (120 V) / 2650 W (220-240 V)
Digital Display	Yes, with temperature and time settings
Settings	Adjustable temperature and time via buttons
Plate Material	Metal heating plate
Supported Transfer Types	Sublimation, film, foam, heat-fixable rhinestones
Safety Functions	Overheating protection (thermal cut-off)
Maintenance	Clean with a damp cloth after cooling, do not use abrasive products
Warranty	Electronic warranty certificate available at www.vevor.com/support
Country of Origin	China (manufactured by Shanghai Muxin Muye Youxiangongsi)

Frequently Asked Questions - TL4060 Vevor

How to set the temperature and time on the Vevor TL4060 heat press?

Press the TEMP button to set the temperature, then use the up/down arrows. Press TIME to set the duration. The temperature and time are displayed digitally.

What settings should I use for a sublimation t-shirt?

For sublimation, set the temperature between 170°C and 190°C and the time between 15 and 20 seconds. Make sure the t-shirt is flat and use sublimation paper.

Why are my prints too light or faded?

This may be due to too low temperature, insufficient pressure, or too short transfer time. Check your settings and adjust the pressure if necessary.

How to clean the heat press?

Unplug the machine and let it cool down completely. Clean the plate with a non-abrasive damp cloth. Do not use chemicals or solvents.

Can I use this press for materials other than t-shirts?

Yes, it is suitable for transfer on mug, cap, plate, etc. Use the appropriate settings: film (110-150°C, 8-15s), foam (120-160°C, 8-15s), rhinestones (160-180°C, 10-15s).

What to do if the heating plate does not heat up?

Check that the machine is plugged in and the power switch is on. If the indicator does not light up, contact technical support at www.vevor.com/support.

Is it safe to leave the press on unattended?

No, it is imperative to unplug the machine after use and not leave it on unattended to avoid any fire risk.

How to replace a damaged power cord?

Replacement must be done by the manufacturer, its after-sales service, or a qualified professional due to the risk of electric shock.

What to do in case of smoke or abnormal odor?

Immediately stop the machine, unplug it, and cease all use. Contact technical support for assistance.

Where to find the warranty certificate?

The electronic warranty certificate is available on the website www.vevor.com/support. Keep your proof of purchase.

USER MANUAL TL4060 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HEAT PRESS MACHINE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

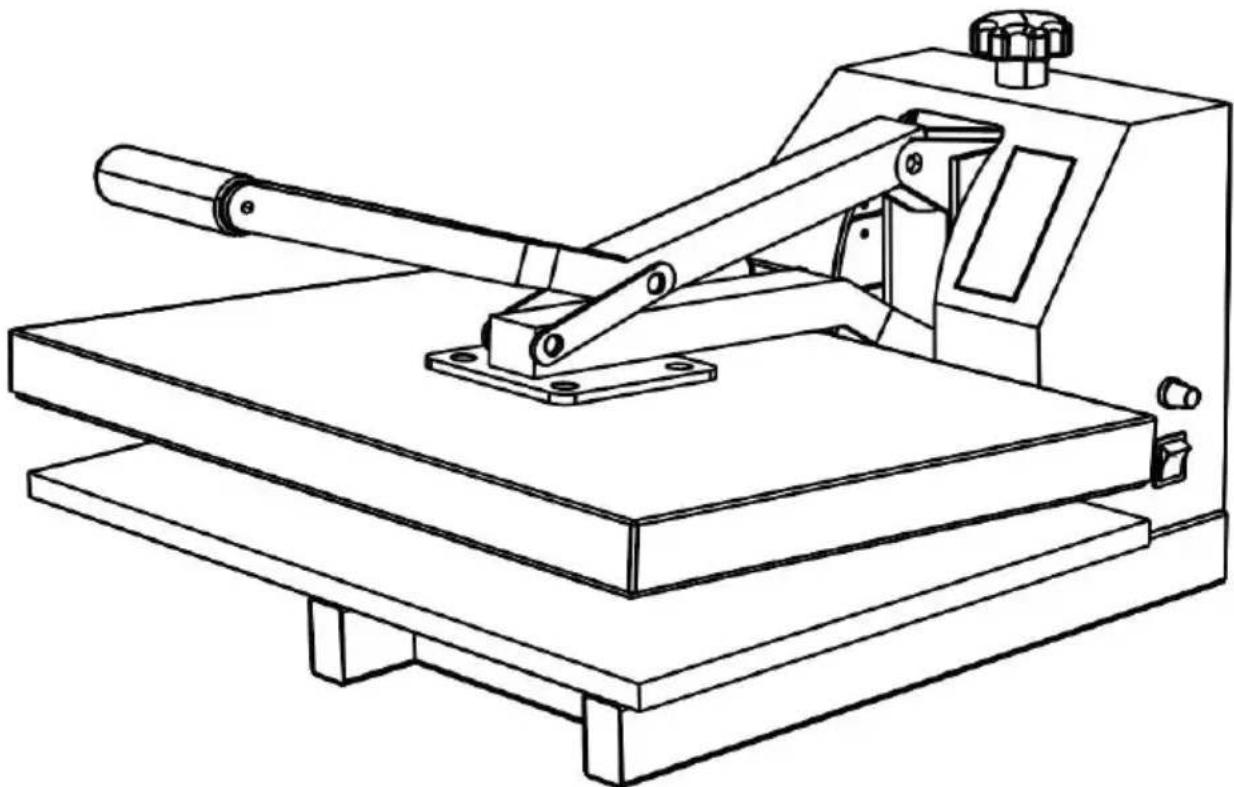

HEAT PRESS MACHINE

MODEL: TL4050-1 / TL4060-1 / YF-10

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates a kir precaution, warning, or danger. Ignoring this warning may lea an accident. To reduce the risk of injury, fire, or electrocutio please always follow the recommendations shown below.
	CORRECT DISPOSAL: This product is subject to the provision of European Directive 2012/ 19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

WARNING

1. Warnings must be followed carefully to avoid body injury. Improper use may result in electric shock, fire, personal injury, and other damage:

1) Keep unplugged when moving the machine.

2) Keep unplugged when installing accessories.

3) Place on a flat and stable platform and operate under ventilated conditions

4) Wear special protective equipment when operating the machine.

5) Do not use this machine in a hazardous-location.

6) Do not use when the machine is not working properly.

7) Do not disassemble and repair this machine.

8) Do not use an unsuitable AC Outlet.

9) Do not touch the heating plate when the machine is heating

10) Do not use in humid environment or contact with water. Do not infiltrate

liquid in the machine to prevent fire or electric shock caused by short circuit

11) Do not use the power supply that does not meet the rated voltage. The supply that does not meet the specified voltage may cause fire or electric shock.

12) Ensure that the machine is grounded so as not to cause harm to body.

13) Do not touch the rotating rod or bearing part with your fingers during use case of injuries.

14) If the machine is not in use for a long time, please unplug the power from the socket.

15) Do not use the machine during thunderstorms or lighting to avoid damage to the machine.

16) Place the machine smoothly on the flame-retardant table and keep away from flammable and explosive items.

17) Please stop using it if the machine smokes, emits a peculiar smell, or becomes noisy and other abnormal conditions.

18) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

19) Type Y attachment: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

20) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Please turn off the power when plugging or unplugging the connector.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

SPECIFICATION

Model	YF-10		TL4050-1		TL4060-1
Heat Size	15x15inch(38×38cm)		16x20inch(40×50cm)		16x24inch(40×60cm)
Temperature Range	32-480°F(0-250°C)		32-480°F(0-250°C)		32-480°F(0-250°C)
Time Range	0-999 Seconds		0-999 Seconds		0-999 Seconds
Voltage	120V~60Hz	220-240V~50Hz	120V~60Hz	220-240V~50Hz	120V~60Hz	220-240V~50Hz
Power	1200W	1250W	1700W	2500W	1700W	2650W

SETTING TEMPERATURE & TIME

Number	Part name	Number	Part name

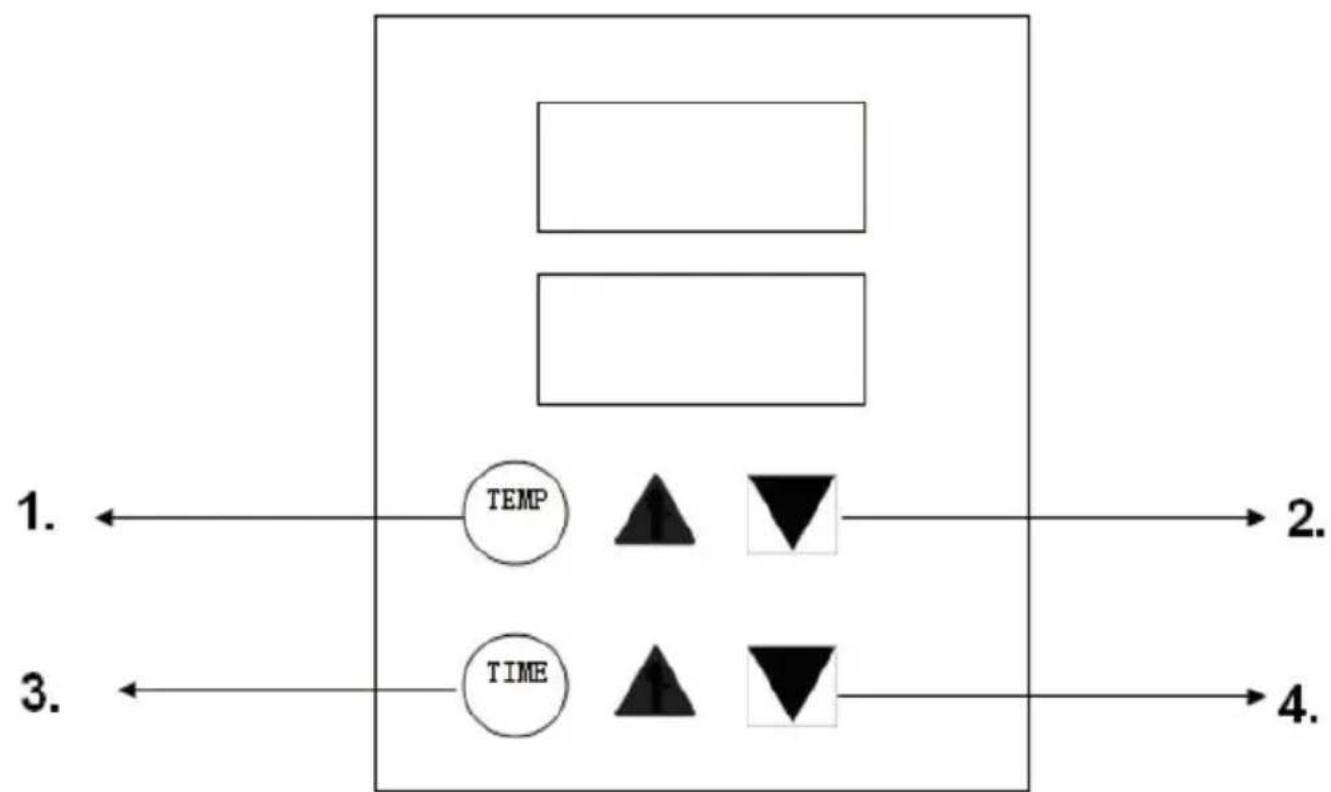

1	“TEMP”temperature setting button	2	Temperature UP Arrow Key & Down Arrow Key
3	“TIME”time setting button	4	Time up arrow Key & down arrow Key

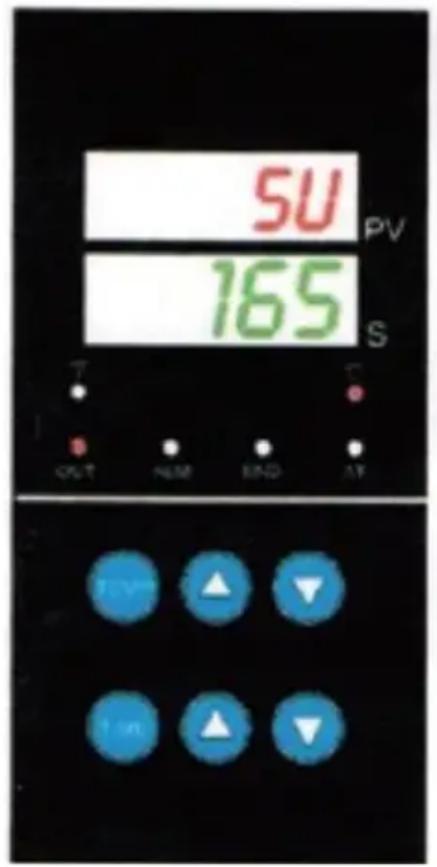

No. 1: Turn power switch on, and press the power button, then the power indicator is lightened.

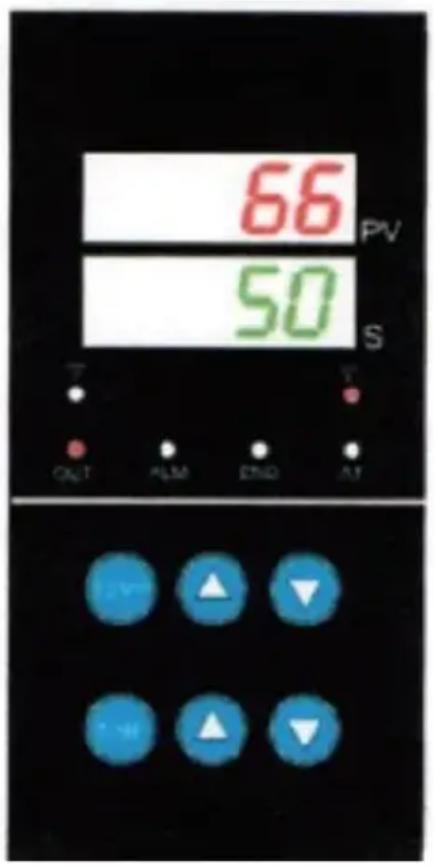

No. 2: Setting temperature, press "TEMP" key, then, press the Up arrow key or down arrow key, set the right temperature. (for T-shirt: 180°C) when the temperature reaches.

No. 3: Setting time, press "TIME" key, then, press the UP arrow key or down arrow key, set the right time. (For T-shirt: 15~20 sec.)

No. 4: Flatly place the cloth on the lower printing plate, then cover the paper (please note the working surface of the paper), push the handle down to specified point. Please note that the force should not be more than 25 kg at a time, or otherwise, the handle will be transformed.

a. Sublimation Heat Transfer: Temperature 170~190°C, Time: 15~20 sec. b. Film Heat Transfer: Temperature 110-150°C, Time: 8~15 sec. c. Foam Heat Transfer: Temperature 120-160°C, Time: 8~15 sec. d. Hot-fix Rhinestone: Temperature 160-180°C, Time: 10~15 sec.

A. Take a digital photo. Print it out on sublimation paper with sublimation ink in your printer (mirror image printing). Cut the piece to the size you want, then put it on your t-shirt and fix with adhesive tapes. B. Put a t-shirt in the machine. (Put the printed sublimation paper on the t-shirt properly.)

1. Get ready on the power, press the power button, the indicator lights up!
2. Adjust the temperature (170°C~180°C) and time (about 15~20 seconds). When the temperature reaches the right degree, the top temperature indicator will go out.
3. Put the heating flat down (Note the right surface of the paper). Please note that the pressure should not be too much, or too little.
4. When the temperature gets to the set time, the buzzer rings (off the button).

THE QUESTION PROMPT FOR THE PRINTING

A. The color is lighter: The temperature is too low, or the pressure is not even, or the time is too short. B. The design is indistinct: The time is too long and leads to ink diffusing. C. The design has no luster: The pressure is too high or the temperature is too high. D. Part of design is indistinct: Heat printing zone or the heating is not even. E. Scar on design: Heat printing time is too long.

F. Color is not the same: Pressure is not even or the coating is not even.

G. Paper sticks to the object: The temperature is too high, or the coating of the object is not good.

PRINT YOUR OWN CUSTOMIZED PRODUCT YOU

NEED

1. One ink jet printer / six colors printer (For example: Epson R-230/R270/R290/T50/L805) 2. One CISS (Continuous ink supply system) Different models of printer will need different CISS 3. Sublimation ink;
2. High-temperature resistant tape;
3. Sublimation paper or Heat transfer fabric paper.

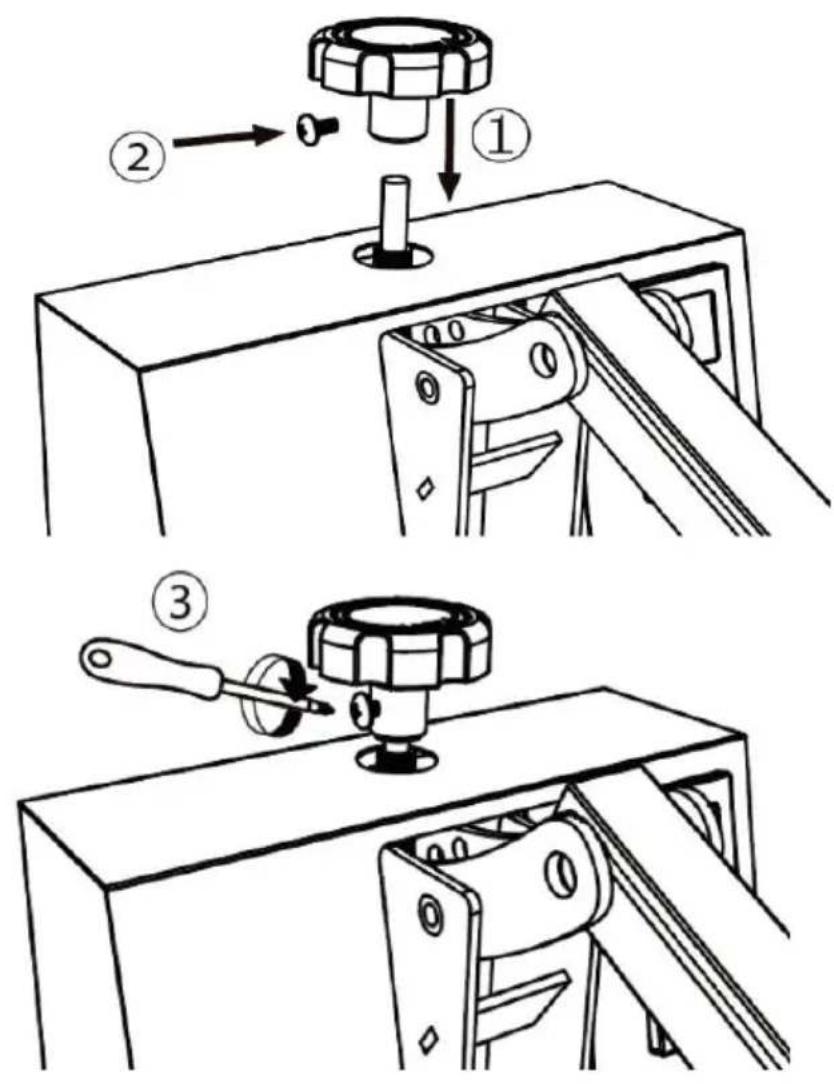

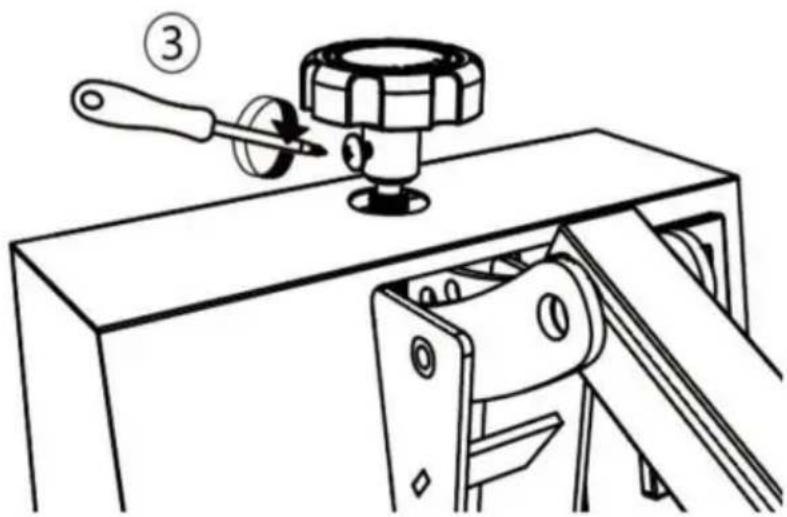

HOW TO ADJUST THE HAND WHEEL?

TREATMENT OF QUALITY DEFECTS IN TRANSFER

1. Light Color or Faded Image: Insufficient Temperature / Incorrect Pressure / Insufficient Time.
2. Fuzzy Image: Pressing time is too long.
3. Part of the Pattern Blurred: The heat is not being distributed correctly through the heating plate, so the working time can be increased appropriately. It may be the cause of uneven pressure distribution, which can be set on four board regulators. Please note that the four board regulators have been set up before they leave the factory and should not need to be adjusted normally.
4. Dim Pattern: Too much pressure or temperature.
5. Scarred Pattern: Transfer time is too long.
6. Different Pattern Colors: incorrect pressure or poor quality of transfer paper.
7. Scorched Pattern: High temperature or poor ink.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
