TLM12001 - Heat press Vevor - Free user manual and instructions

Product Type	Heat Press
Brand	Vevor
Model	TLM12001 (SJYHPM230)
Heating Plate Size	25 x 30 cm (10 x 12 inches)
Temperature Range	0-250 °C (32-480 °F)
Time Range	0-999 seconds
Power Supply	120 V ~ 60 Hz or 220-240 V ~ 50 Hz depending on version
Power	750 W (120 V) / 720 W (220-240 V)
Display	Dual Digital Display (temperature and time)
Control	SET, ▲, ▼ buttons
Indicator Lights	OUT (heating), WORK (countdown), °F/°C
Pressure Adjustment	Manual Adjustment Knob
Plate Material	Aluminum
Approximate Weight	10 kg
Approximate Dimensions	35 x 30 x 30 cm
Main Functions	Preheating, countdown, pressure calibration, °C/°F switching
Safety	Grounding, thermal cutout, automatic shutdown
Maintenance and Cleaning	Clean with a damp cloth, do not use abrasive products
Included Accessories	Silicone mat, heat-resistant gloves (suggestion)
Recommended Uses	Heat transfer on fabrics, cups, plates (with appropriate accessories)

Frequently Asked Questions - TLM12001 Vevor

How to set the temperature on the Vevor TLM12001 heat press?

Press the SET button once. The upper display shows SP and the lower display shows the last temperature. Use ▲ to increase or ▼ to decrease the value. Press SET again to confirm.

How to set the pressing time?

After setting the temperature, press SET a second time. The upper display shows ST and the lower display shows the last time. Use ▲ or ▼ to adjust (0-999 seconds). Press SET to save.

How to calibrate the press pressure?

Turn the pressure knob counterclockwise to reduce pressure. Place a sheet of paper between the plates, close the press, and pull the paper. If the paper moves, turn the knob clockwise until it no longer moves. This setting corresponds to medium pressure.

What to do if the heating plate does not heat up?

Check that the press is plugged in and the power switch is set to ON. Make sure the set temperature is above room temperature. If the OUT indicator does not light up, contact customer service.

How to prevent the design from burning?

Use the recommended temperature and time for your substrate. Do not exceed 200 °C for delicate fabrics. Perform a test on a sample. Use a protective cloth between the plate and the design.

Can I use the press for cups?

Yes, with an appropriate accessory (cup press). The standard base plate is flat, ideal for fabrics. For cups, use a curved heating element sold separately.

How to clean the heating plate?

Let the plate cool completely. Clean it with a damp cloth without abrasive products. Never use water directly on the plate to avoid electric shock.

What to do if the design is blurry?

A blurry design may be due to too low temperature or insufficient pressing time. Also check the pressure distribution. If the blur is partial, the plate may not be perfectly flat – contact customer service.

How to change the temperature unit from °C to °F?

Press SET three times to access the CF parameter. Use ▲ or ▼ to toggle between C (Celsius) and F (Fahrenheit). Press SET to save.

What safety precautions should I take?

Always unplug the press when moving or installing accessories. Use on a stable, fireproof surface. Do not touch the hot plate. Wear heat-resistant gloves. Do not use in a humid environment.

USER MANUAL TLM12001 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HEAT PRESS MACHINE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order who are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

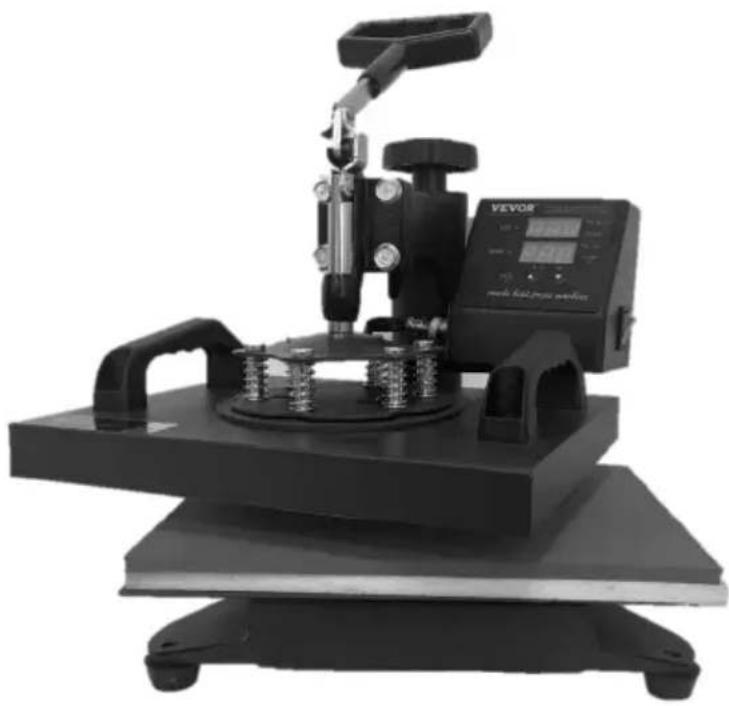

HEAT PRESS MACHINE

Model: SJYHPM230

Mechanical testing machine with articulated joints and a digital display (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must the instructions manual carefully.
	This symbol, placed before a safety comment, indicate kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the rise injury, fire, or electrocution, please always follow the recommendations shown below.
	CORRECT DISPOSAL:This product is subject to the provision of European Directive 2012/ 19/EC. The symbol showing a wheel crossed through indicates that the product requires separate refuse collection in the European Union. That applies to the product and all accessories marked with symbol. Products marked as such may not be discawith normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

WARNING

1. Warnings must be followed carefully to avoid body injury, improper use may result in electric shock, fire, personal injury and other damage:

1) Keep unplug when moving the machine.

2) Keep unplug when installing accessories.

3) Place on a f at and stable platform and operate under ventilated conditions

4) Wear special protective equipment when operating the machine.

5) Do not use this machine in a hazardous-location.

6) Do not use when the machine is not working properly.

7) Do not disassemble and repair this machine.

8) Do not use an unsuitable AC Outlet.

9) Do not touch the heating plate when the machine is heating

10) Do not use in humid environment or contact with water. Do not infiltrate liquid in the machine to prevent fire or electric shock caused by short circuit

11) Do not use the power supply that does not meet the rated voltage. The power supply that does not meet the specified voltage may cause fire or ele shock.
12) Ensure that the machine is grounded so as not to cause harm to body.
13) Do not touch the rotating rod or bearing part with your fingers during use case of injuries.
14) If the machine is not in use for a long time, please unplug the power from the socket.
15) Do not use the machine during thunderstorms or lighting to avoid damage the machine.
16) Place the machine smoothly on the flame-retardant table and keep away from flammable and explosive items.
17) Please stop using it if the machine smokes, emits a peculiar smell, or becomes noisy and other abnormal conditions.
18) This appliance can be used by children aged from 8 years and above ar persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall play with the appliance.Cleaning and user maintenance shall not be made by children without supervision

19) Type X attachment: If the supply cord is damaged, it must be replaced special cord or assembly available from the manufacturer or its service agent.
20) In order to avoid a hazard due to inadvertent resetting of the thermal control device, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.

Warning

Please turn off the power when plug or unplug the connectc

Close-up of a metallic connector with black cap and flange (no text or symbols visible)

Close-up of a metallic connector inserted into a black socket, held by a hand (no visible text or symbols)

FCC INFORMATION

CAU TION : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to open the product.

Not e: This product has been tested and found to comply with the limits for Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Contents

1. SPECIFICATION.... 6
2. PRODUCT DIAGRAM....7
3. CONTROL PANEL....8
4. ASSEMBLY&USE STEPS....9
5. TEMPERATURE CONTROLLER OPERATION METHOD......10
6. PRINTING METHODS....13
7. RECOMMENDED PARAMETER....15
8. TROUBLE SHOOTING FOR TRANSFER QUALITY......16

1. SPECIFICATION

Model	SJYHPM230
Heat Size	10x12 inch (25×30cm)
Product
Temperature Range	32-480°F(0-250°C)
Time Range	0-999 Seconds
Voltage	120V~ 60Hz	220-240V~ 50Hz
Power	750W	720W

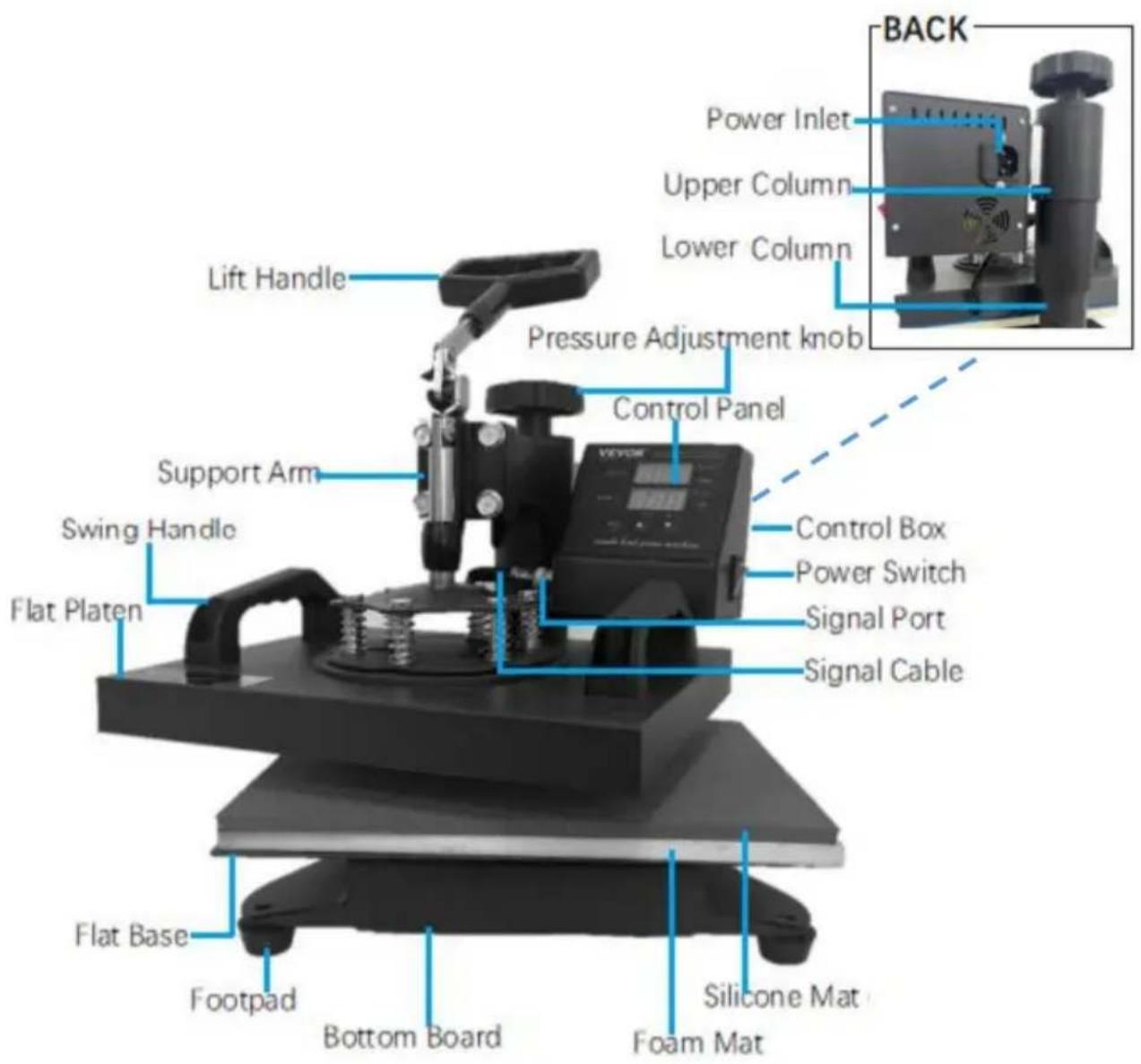

2. PRODUCT DIAGRAM

3. CONTROL PANEL

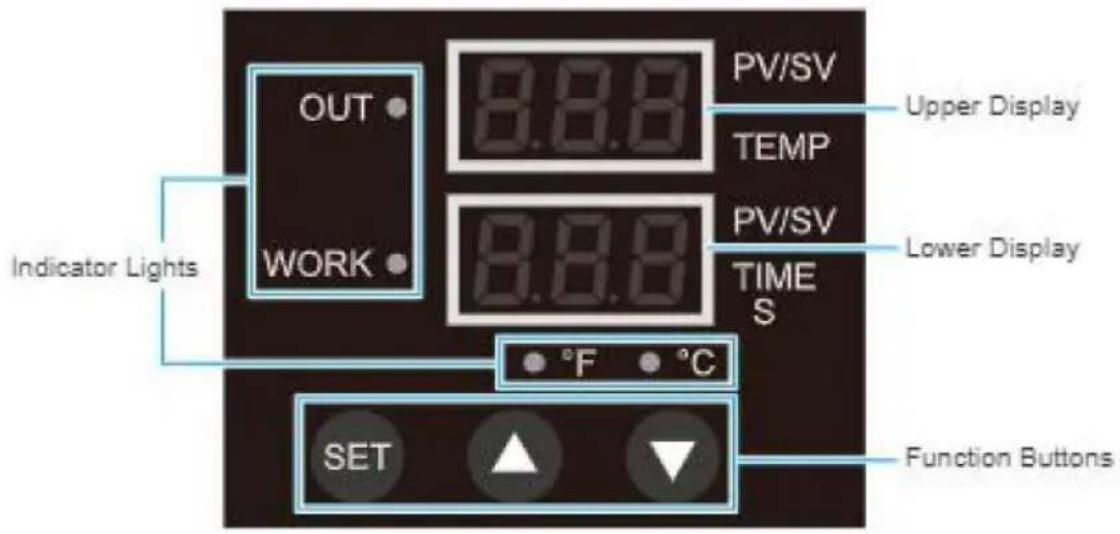

Display Areas	Upper	Displays temperature values or parameter names.
	Lower	Displays timer values or parameter settings.
Indicator Lights	OUT	Indicates heating is operating.
	WORK	Indicates countdown is operating.
	°F	Indicates temperature values in Fahrenheit.
	°C	Indicates temperature values in Celsius.
Function Buttons	SET	Enters/Exits primary parameter menus or confirms settings when pressed.
		Enters/Exits secondary parameter menus or confirms settings when held.
	▲	Increases values or converts settings in parameter menus.
	▼	Starts/Stops/Resets countdown
		Decreases values or converts settings in parameter menus

4. ASSEMBLY&USE STEPS

1

Technical line drawing of a mechanical device with articulated arm and control panel (no text or symbols)

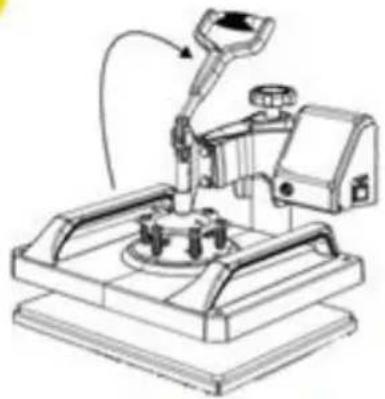

Lift the handle

2

Diagram of a mechanical component with a circular outline and an arrow indicating direction (no text or symbols)

Plug in Port

Illustration of a robotic arm operating on a platform with an arrow indicating rotation (no text or symbols present)

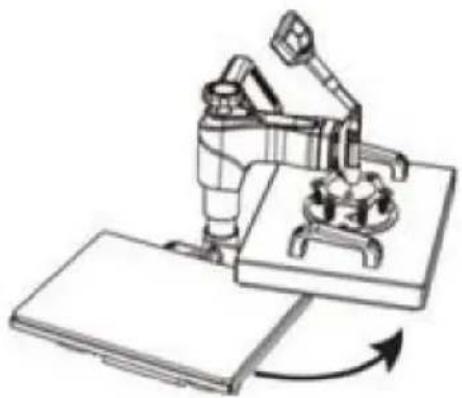

Rotate the heat transfer board to the side

3

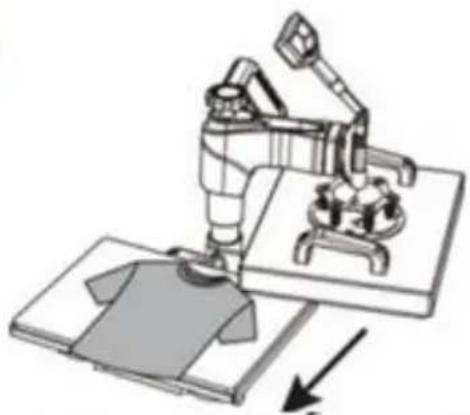

Illustration of a robotic arm operating on a workbench with a T-shirt, showing motion direction (no text or symbols)

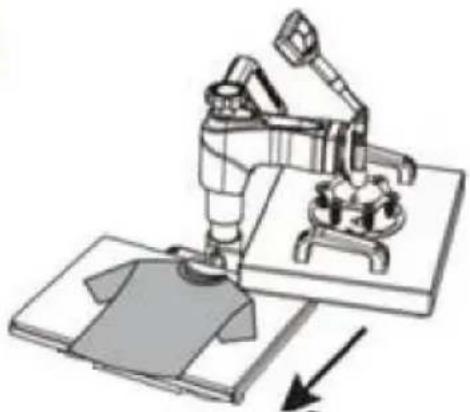

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

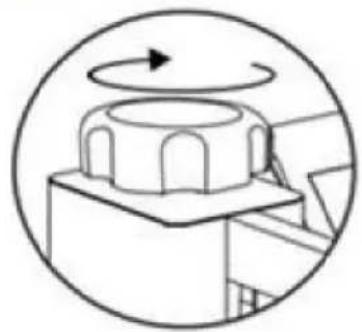

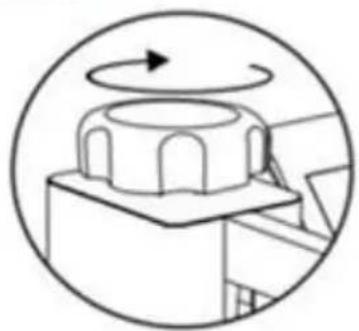

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

Technical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

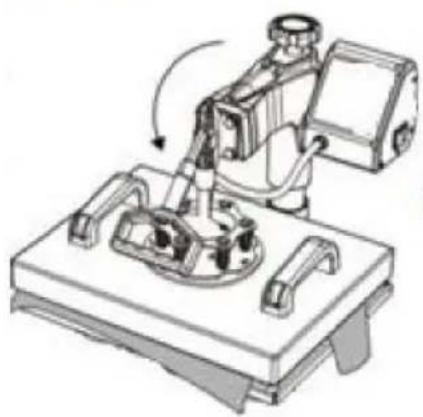

Pull down the handle

1. Turn on the power switch, it shows present temperature, and are increasing.
2. Parameter setting guide:

●Temperature setting:

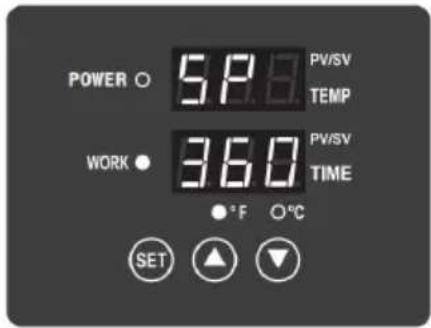

Press "SET" one time, the digital display on the upper screen will show "SP", the bottom screen will show your last set temperature value, press "▲" to increase the temperature value, press "▼" to decrease the temperature value.

For example, you can set the temperature value into 300 Fahrenheit, that value is to check whether your control box is in good condition.

Kindly note: Long press"▲" and "▼", the temperature value will change fast.

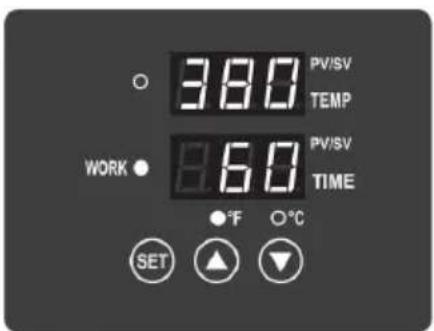

Press the power switch to turn on the machine. Press the "SET" button once.

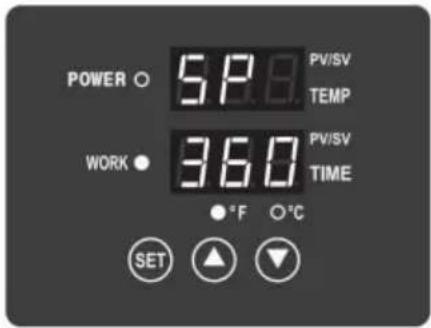

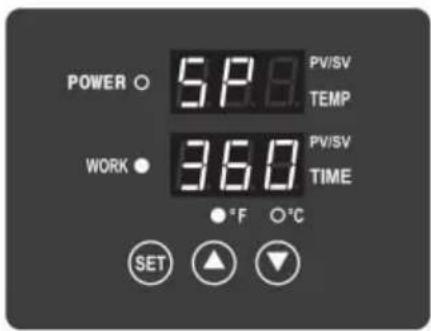

Then the digital controller will show the word "SP"

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

● Working Time setting:

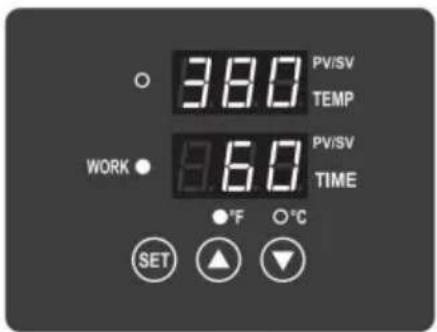

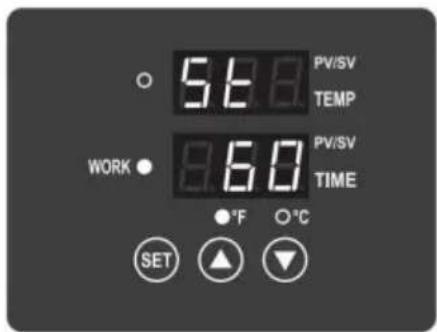

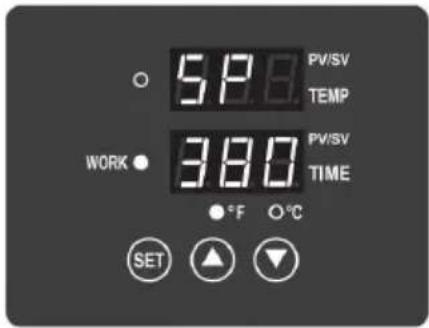

Press "SET" once again, the digital display on the upper screen will show "ST", the bottom screen will show your last press time value, press "▲" to increase the press time value, press▼"to decrease the press time value.

Press the "SET" button for the 2nd time, the display screen will show "St".

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

● Degrees Celsius and Fahrenheit transfer

Press the "SET" button for 3th time, the digital display on the upper screen will show "C-F",

Situation1: If the bottom screen shows "C", the current temperature unit is Celsius, please press "▲" or "▼" to transfer the unit into "F"(F is Fahrenheit). Press "SET"

one more time to save your setting.

Situation 2: If the bottom screen shows "F", press "SET" to save your setting.

● Countdown time setting

1. When pressing the heating plate down, begin printing, then press"▼" the set working time will automatically countdown.
2. When the timing is over, the buzzer will beep. Lift up the handle a then retrieve the object and finish DIY gift printing.(If the handle is due to lift up, you can anticlockwise the pressure regulator to decrease the pressure.
3. Once the heat press finished one printing countdown, the counter w count one time.

It is normal for the silicone pad to generate a small amount of smoke when the product is used, and it will disappear on its own after being heated for a few times.

● Before Use Suggestion

The Pressure Adjustment Knob controls the amount of force that will used to push the transferred image into the fibers of the garment.

Clockwise increases pressure. Counterclockwise decreases it.

The Control Panel on the right upper face of the casing is where you set heat and times requirements of your project. These will vary depending on the vinyl or transfer paper used.

The handle opens & closes the top & bottom Heated Platens of the revolve press.

- How to calibrate your heat press machine

1. Turn the pressure knob counterclockwise a few times to lower the pressure on the platens.
2. Place a piece of paper onto the bottom of the platen.

3. Close the revolve press using the handle.

4. Pull on the paper.

5. If the paper moves at all, turn the knob clockwise and try again.
6. Try again and repeat until the paper doesn't move at all. This is y "Medium" pressure. From the "Medium" setting, high pressure will be clockwise one to two turns. Low pressure will be counterclockwise one two turns. (The number of turns will depend on the thickness of the garment.

6. PRINTING METHODS

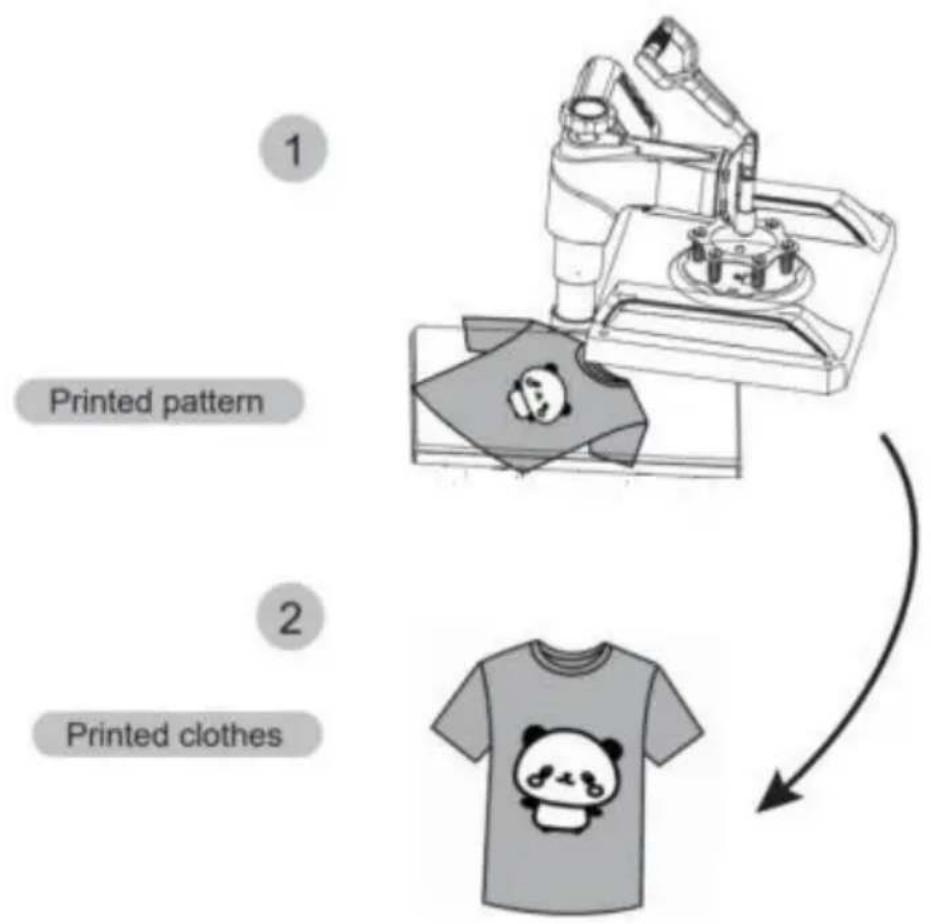

1. Adjust pressure to your requirement(Please refer to “how to calibrate your heat press machine” suggestion). Plug in the power cord and tu the power switch ON.
2. The temperature will auto starts to rise. In this time you can set tl transfer temperature and press time.
3. Once the temperature rises to the set temperature, the buzzer will out abshot "BEEF" sound.
4. Place the object (i.e.T-shirt) on press bed. Pull down the handle to press the object. Then press the "▼" button start countdown time.
5. Wait for the time ends up with a long buzzer sound.(Note: There will about 5s time for the long buzzer to notify you it has finished; after for the short buzzer will appear to notify you whether you still go or next work.)
6. Work finish and take out object.
7. Turn off the power switch.

Turn off the power and pull out the mat. It is recommended to wear heat-resistant gloves when removing clothes or remove them after 2-3 minutes. Be careful of hot heat.

Precautions: The area 5cm from the edge of the heating plate is and stamping area.

If use heating transfer paper, bast cover a protective cover sheet on avoid pattern residue.

Tips:

.1. If it's for a T-shirt, please flat it by preheating it for 3-5 sec remove wrinkles and moisture, ironing clothes likewise.

1. It's better if you put a white cloth on the transfer paper to an unnecessary marks when setting the temperature too high.

7. RECOMMENDED PARAMETER

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

8. TROUBLE SHOOTING FOR TRANSFER QUALITY

Pale color:

The temperature is too low/the pressure is not correct/or not pressed long enough.

Blurring Patter: Too much transfer time causes proliferation.

Part Blurring of Pattern: Heat was incorrectly

distributed through the heat plate.

Allow more time between press operations.

Pressure distribution can also be the cause,

which can be set on the four plate surface adjusters.

Please note that it has been factory set,

and there should be no need to adjust them.

Dull Surface of Pattern: The pressure is too large,

or the temperature is too high.

Scarred Pattern transfer time is too long.

Different Pattern Color: The pressure is incorrect,

or the transfer paper is poor quality.

Adhesive Paper: the temperature is too high or poor printing ink.

Ps. Partten material always uses heat transfer paper and DTF film

Please check the DTF film suggested removing time to avoid that the

remove time is incorrect cause failure.

Tutorial Video

Temperature controller operation method

Temperature sensor replace tutorial

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with VEVOR control panel and digital display (no visible text or symbols on main body)

Close-up of a metallic connector with black cap and flange (no text or symbols visible)

Close-up of a metallic connector with a circular port, mounted on a black cable (no visible text or symbols)

INFORMAZIONI FCC

3. PANNELLO DI CONTROLLO

Technical line drawing of a mechanical device with articulated arm and control panel (no text or symbols)

Lift the handle

2

Mechanical component diagram showing a cylindrical assembly with a rotating shaft and housing (no text or symbols)

Plug in Port

Mechanical assembly diagram showing a robotic arm operating on a base with rotating arrows indicating motion (no text or symbols)

Rotate the heat transfer board to the side

3

Illustration of a robotic arm operating on a machine with a T-shirt, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

Technical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

Pull down the handle

Press the power switch to turn on the machine. Press the "SET" button once.

Then the digital controller will show the word "SP"

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

8. RISOLUZIONE DEI PROBLEMI PER LA QUALITÀ DEL TRASFERIMENTO

Colore pallido:

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Mechanical testing machine with VEVOR control panel and digital display (no visible text or symbols on main body)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Close-up of a metallic connector with black cap and flange (no text or symbols visible)

Close-up of a metallic connector with a circular port, mounted on a black cable (no visible text or symbols)

INFORMACJE FCC

3. PANEL STEROWANIA

Technical line drawing of a mechanical device with articulated arm and control panel (no text or symbols)

Lift the handle

2

Mechanical component diagram showing a cylindrical assembly with a rotating shaft and housing (no text or symbols)

Plug in Port

Mechanical assembly diagram showing a robotic arm operating on a base with rotating arrows indicating motion (no text or symbols)

Rotate the heat transfer board to the side

3

Illustration of a robotic arm operating on a workbench with a T-shirt, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

Technical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

Pull down the handle

5. SPOSÓ B DZIAŁANIA REGULATORA TEMPERATURY

Press the power switch to turn on the machine. Press the "SET" button once.

Then the digital controller will show the word "SP"

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

8. ROZWIĄZYWANIE PROBLEMÓW Z JAKOŚCIĄ TRANSFERU

Kolor blady:

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with VEVOR control panel and digital display (no visible text or symbols on main body)

Close-up of a metallic connector with black cap and flange (no text or symbols visible)

Close-up of a metallic connector with a circular port, mounted on a black cable (no visible text or symbols)

FCC-INFORMATIONEN

3. BEDIENFELD

Technical line drawing of a mechanical device with articulated arm and control panel (no text or symbols)

Lift the handle

2

Mechanical component diagram showing a cylindrical assembly with a rotating shaft and housing (no text or symbols)

Plug in Port

Mechanical assembly diagram showing a robotic arm operating on a base with rotating arrows indicating motion (no text or symbols)

Rotate the heat transfer board to the side

3

Illustration of a robotic arm operating on a machine with a T-shirt, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

Mechanical device with rotating arm and base mount (no text or symbols visible)

Pull down the handle

5. FUNKTION DES TEMPERATURREGLERS

Press the power switch to turn on the machine. Press the "SET" button once.

Then the digital controller will show the word "SP"

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with VEVOR control panel and digital display (no visible text or symbols on main body)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of a metallic connector with black cap and flange (no text or symbols visible)

Close-up of a metallic connector with a circular port, mounted on a black cable (no visible text or symbols)

INFORMATIONS FCC

2. DIAGRAMME DU PRODUIT

3. PANNEAU DE CONTRÔLE

Technical line drawing of a mechanical device with articulated arm and control panel (no text or symbols)

Lift the handle

2

Mechanical component diagram showing a cylindrical assembly with a rotating shaft and housing (no text or symbols)

Plug in Port

Mechanical assembly diagram showing a robotic arm operating on a base with rotating arrows indicating motion (no text or symbols)

Rotate the heat transfer board to the side

3

Illustration of a robotic arm operating on a machine with a T-shirt, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

Technical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

Pull down the handle

5. MODE DE FONCTIONNEMENT DU CONTRÔLEUR DE TEMPÉRATURE

Press the power switch to turn on the machine. Press the "SET" button once.

Then the digital controller will show the word "SP"

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

8. DÉPANNAGE POUR LA QUALITÉ DU TRANSFERT

Couleur pâle :

C/O YH Consulting Limited Bureau 147, Centurion House,

Route de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with VEVOR control panel and digital display (no visible text or symbols on main body)

HULP NODIG? NEEM CONTACT MET ONS OP!

Close-up of a metallic connector with black cap and flange (no text or symbols visible)

Close-up of a metallic connector with four pins, mounted on a black cable (no visible text or symbols)

FCC-INFORMATIE

3. BEDIENINGSPANEEEL

Technical line drawing of a mechanical device with articulated arm and control panel (no text or symbols)

Lift the handle

2

Mechanical component diagram showing a cylindrical assembly with a rotating shaft and housing (no text or symbols)

Plug in Port

Mechanical assembly diagram showing a robotic arm operating on a base with rotating arrows indicating motion (no text or symbols)

Rotate the heat transfer board to the side

3

Illustration of a robotic arm operating on a machine with a T-shirt, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

Technical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

Pull down the handle

Press the power switch to turn on the machine. Press the "SET" button once.

Then the digital controller will show the word "SP"

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

- Graden Celsius en Fahrenheit overdracht

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

8. PROBLEMEN OPLOSSEN VOOR OVERDRACHTKWALITEIT

Lichte kleur:

C/O YH Consulting Limited Kantoor 147, Centurion House, Londen Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with VEVOR control panel and digital display (no visible text or symbols on main body)

BEHÖVER HJÄLP? KONTAKTA OSS!

Close-up of a metallic connector with black cap and flange (no text or symbols visible)

Close-up of a metallic connector with a circular port, mounted on a black cable (no visible text or symbols)

FCC-INFORMATION

3. KONTROLLPANEL

Technical line drawing of a mechanical device with articulated arm and control panel (no text or symbols)

Lift the handle

2

Mechanical component diagram showing a cylindrical assembly with a rotating shaft and housing (no text or symbols)

Plug in Port

Mechanical assembly diagram showing a robotic arm operating on a base with rotating arrows indicating motion (no text or symbols)

Rotate the heat transfer board to the side

3

Illustration of a robotic arm operating on a machine with a T-shirt, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

Technical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

Pull down the handle

5. FUNKTIONSMETOD FÖR TEMPERATURREGULATORN

Press the power switch to turn on the machine. Press the "SET" button once.

Then the digital controller will show the word "SP"

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

8. FELSÖKNING FÖR ÖVERFÖRINGSKVALITET

Blek färg:

Temperaturregulators driftmetod

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Mechanical testing machine with VEVOR control panel and digital display (no visible text or symbols on main body)

Close-up of a metallic connector with black cap and flange (no text or symbols visible)

Close-up of a metallic connector with a circular port, mounted on a black cable (no visible text or symbols)

2. DIAGRAMA DEL PRODUCTO

3. PANEL DE CONTROL

Technical line drawing of a mechanical device with articulated arm and control panel (no text or symbols)

Lift the handle

2

Mechanical component diagram showing a cylindrical assembly with a rotating shaft and housing (no text or symbols)

Plug in Port

Mechanical assembly diagram showing a robotic arm operating on a base with rotating arrows indicating motion (no text or symbols)

Rotate the heat transfer board to the side

3

Illustration of a robotic arm operating on a machine with a T-shirt, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

Technical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

Pull down the handle

5. MÉTODO DE FUNCIONAMIENTO DEL CONTROLADOR DE TEMPERATURA

Press the power switch to turn on the machine. Press the "SET" button once.

Then the digital controller will show the word "SP"

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

• Transferencia de grados Celsius y Fahrenheit

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
