BICYCLE CARGO TRAILER

MODEL: CT906

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CT906

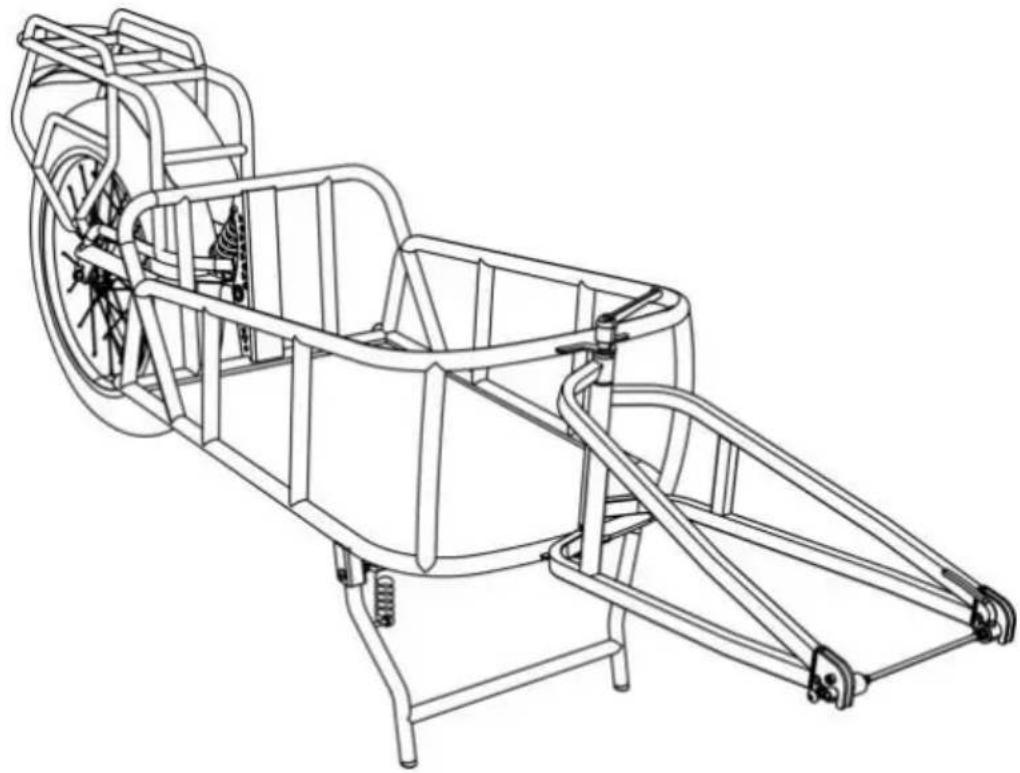

Line drawing of a wheeled cart with visible wheels and structural brackets (no text or symbols)

Important: Keep these instructions for future reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Failure to comply with the instructions and warnings in this man could result in serious injury or death of the rider.

• Ensure that all locking devices are engaged before use
  ● Maximum load: 32 kg (70 lbs.) as trailer.
• This product is not suitable for running or skating.
• Any load attached to the handle and/or on the back of the back and/or on the sides of the vehicle will affect the stability of the
• Accessories which are not approved by the manufacturer shall not used.
• Only use replacement parts supplied or recommended by the manufacturer.
• Do NOT use it with a total load that exceeds the weight limits. If recommended load is exceeded, the unit may become unstable.
  ● DO NOT make modifications to the product.
• DO NOT over-inflate the tires. Failure to comply with the rated tire sidewall pressure may lead to explosion of the tire and possible
• It is recommended that a qualified bicycle mechanic does a safety check of the towing bicycle before attaching the trailer.
• Before each ride, be sure the trailer does not interfere with braking pedaling or steering of the bicycle.
• Always comply with local regulations when using the trailer on publ roadways.
• Never ride a bicycle at night without adequate lighting.
• Obey all local legal requirements for lighting.
• If you need to come to a stop for any reason, such as to make adjustments or to address a flat tire, be sure to pull off the road completely.
• When using your trailer, you are towing extra weight and a bigger vehicle. You must allow more time for braking, slowing, stopping a starting, and allow more room for turns and passageways. Experim with the loaded trailer in an uncongested area until you become

familiar with how your bike handles towing a trailer.

• Avoid rocks, curbs, hard braking and sudden swerving. Avoid riding over obstacles with one wheel, as this may cause the trailer to 1
  ● Always ride with the cover down to secure the cargo.
  ● The rider of the bicycle must be at least 16 years old.
• Recommended speed limits: - 16 km/h (10 MPH) on smooth, straig roads - 8 km/h (5 MPH) when turning or on uneven roads.
• Trailer weight must be properly distributed for safe handling. The weight on the hitch connector should be between 30 N (≈6.6 lbs. 80 N (≈17.6 lbs.). To measure this, load your trailer and place it bathroom scale. Step on scale and make a note of your weight. Standing on scale, lift up the end of the front fork one foot (approximately 25cm) off the ground. The weight shown should be – 17.6 lbs. more than your own weight. If the weight is too low, wheel of the bicycle could lose traction. If it is too high the hitch overloaded.

MODEL AND PARAMETERS

Model	CT906
Max. Load	70lbs
Storage Bin Size	27.2*16.9*11inch
Wheels	Steel, 20*4inch
Material	Steel

CONTENTS

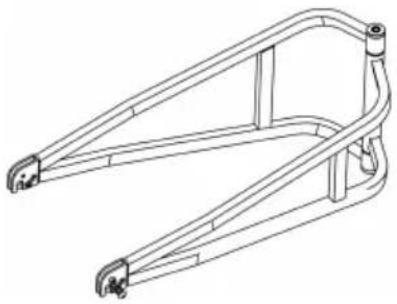

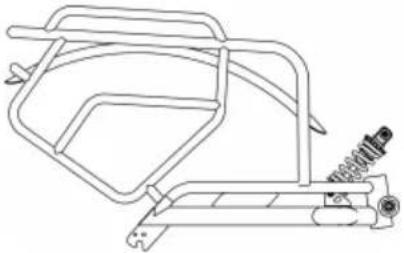

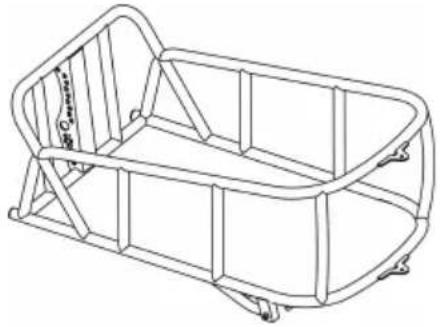

1 x Main frame	1 x Front folk
1 x Wheel	1 x Rear folk
1 x Axle
1 x Front folk pin
2 x 5mm Hex key+1 x 6mm Hex key+1 x 10mm Hex
8 x Reflective stickers+1 x User Manual

NOTE: The reflective stickers can be attached to the desired loca as you needed.

How to Assemble

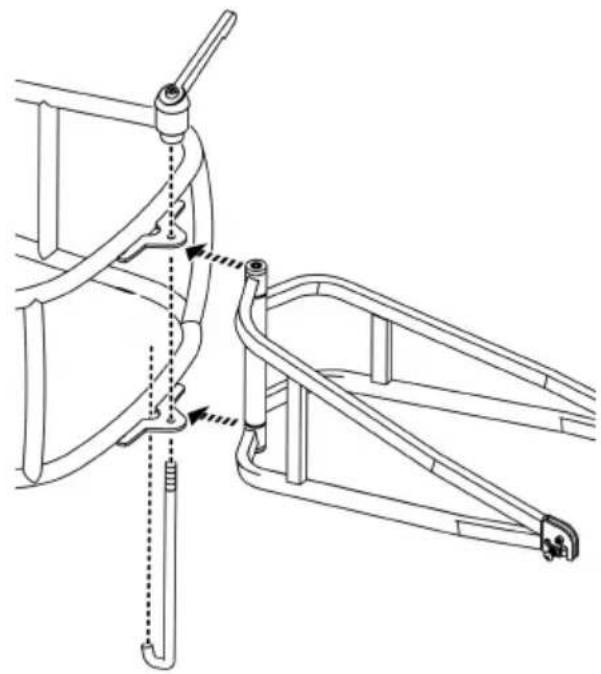

1. Attaching the Front Folk

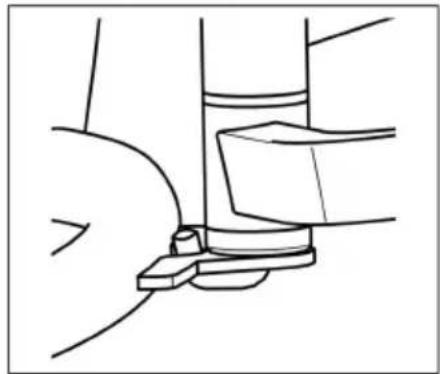

Take out the main frame and all other components from the c Place the front folk between tubes of the main frame, and pa pin through the front folk and main frame (Figure 1). Make sure the pin hooks into the hole on the main frame. Fa front folk by rotating the handle (Figure 2).

Technical line drawing of a mechanical linkage assembly (no text or symbols)

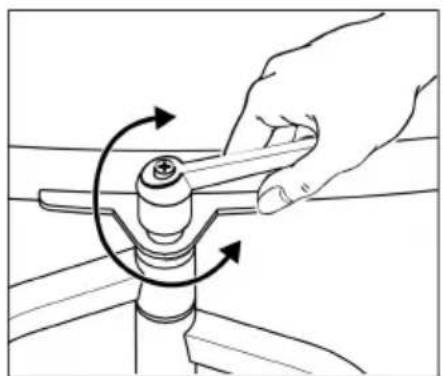

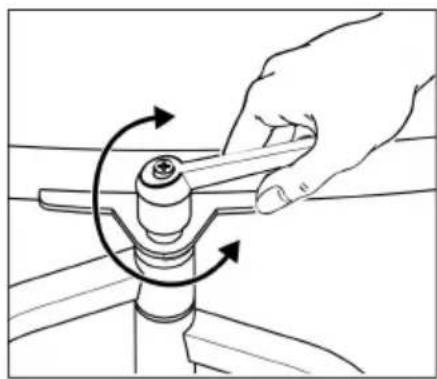

Figure 1

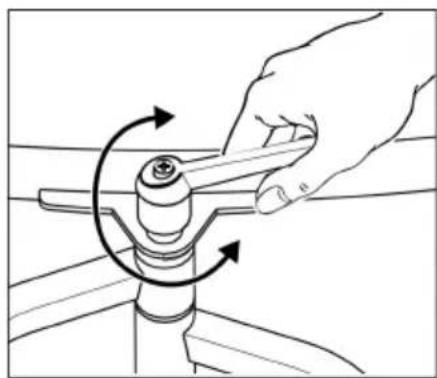

Hand turning a mechanical component with rotational arrows (no text or symbols)

Technical line drawing of a mechanical assembly or clamp mechanism (no text or symbols)

Figure 2

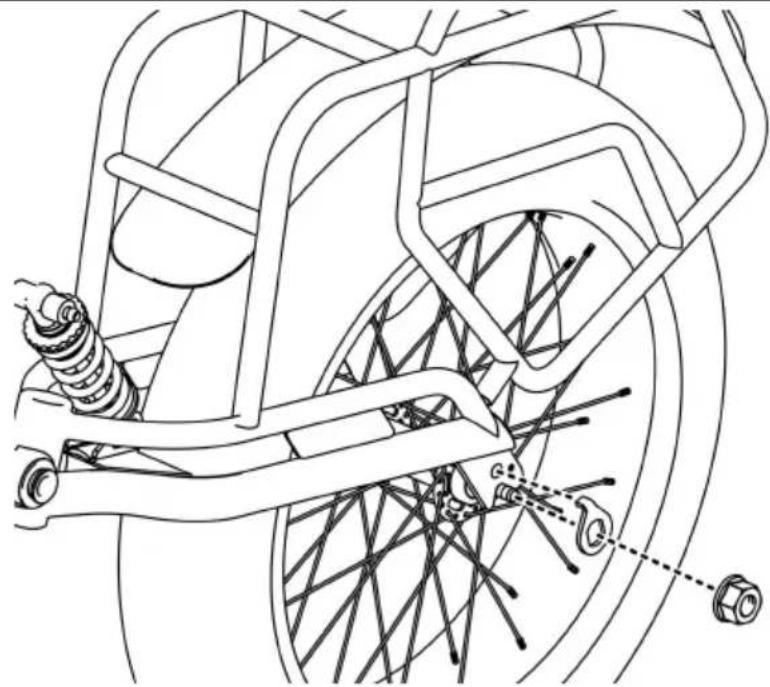

2. Attaching the Wheel

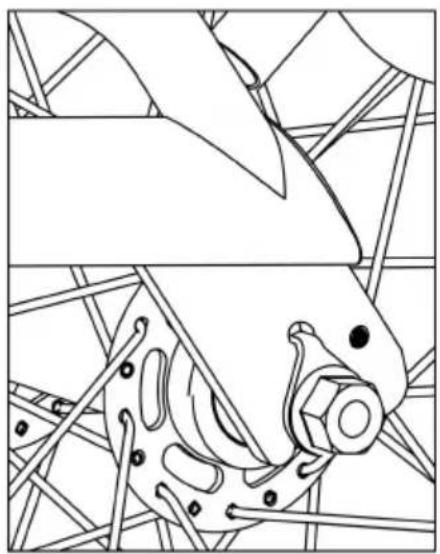

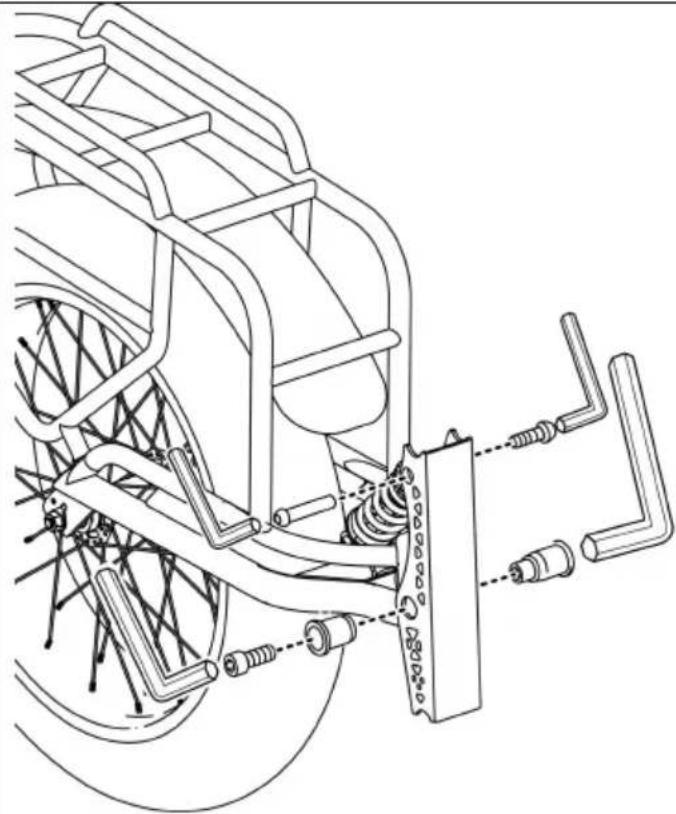

Take off screws and washers with hooks on both sides of the Place the wheel between grooves of the rear folk. Hook washer holes on the rear folk. Put back screws to the axle and fasten

Technical line drawing of a bicycle suspension system with visible springs and wheel (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 3

Install the pipe sleeve and combine two parts of tow bar together. Fix two parts with 34 mm screws in the accessory pack (Figure 1). Insert the support leg into the U-shape bracket. Fix the support 43 mm screw and safety pin in the accessory pack (Figure 7).

Technical line drawing of a bicycle suspension system with mechanical components and wiring (no text or labels)

Figure 4

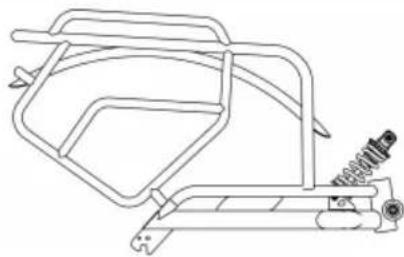

Take off butt lock screws on rear folk. Put shock absorbing spring and the tube into groov the back side of the main fra Put back butt lock screws and secure them with 5 mm, 6 m and 10 mm hex keys (Figure

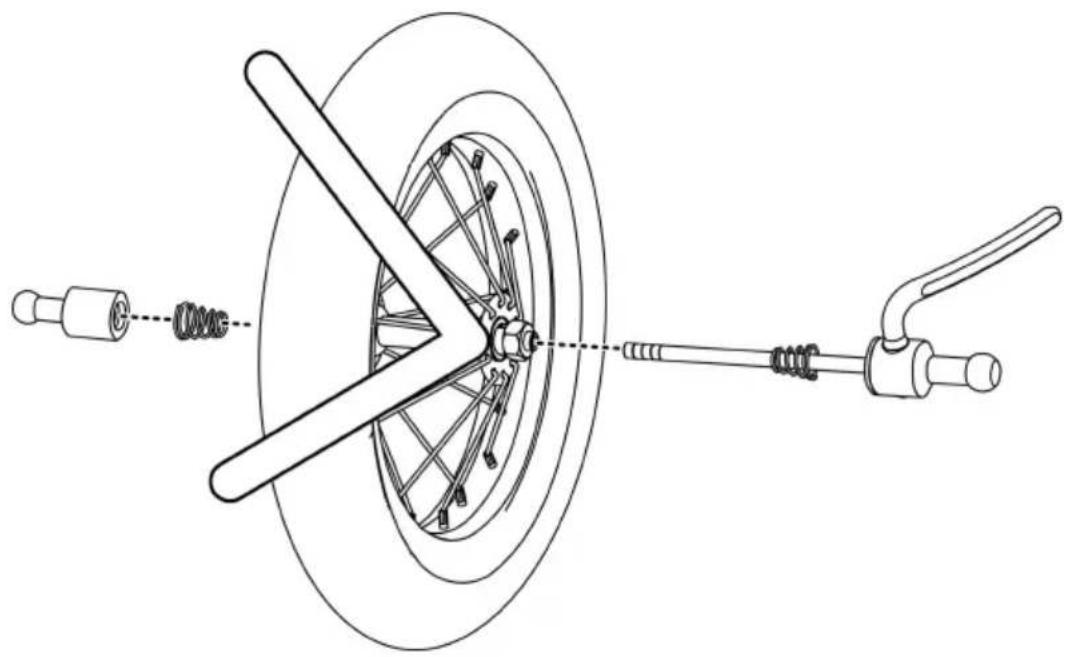

3. Installing the Axle

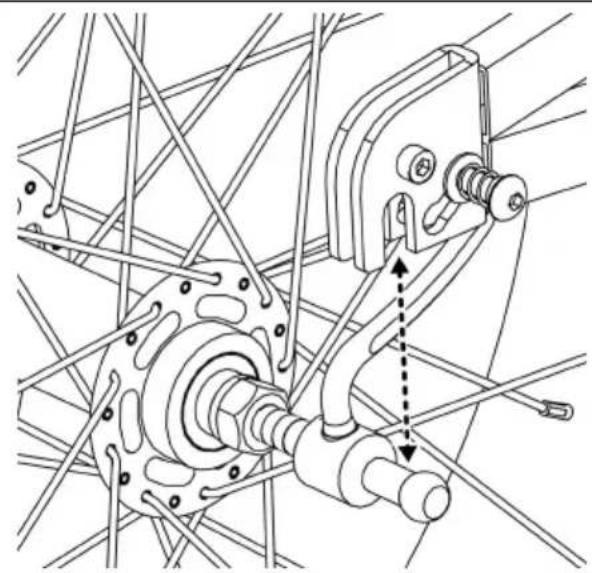

Replace the axle of your bike with the axle provided. Remem take off cap and spring of the axle before inserting (Figure 5

Technical line drawing of a bicycle wheel assembly with attached sensors and spring components (no text or labels)

Figure 5

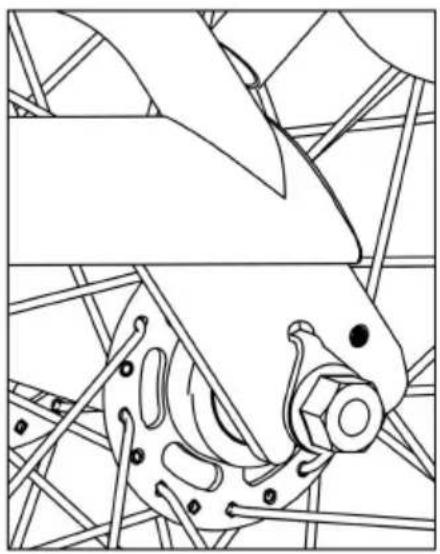

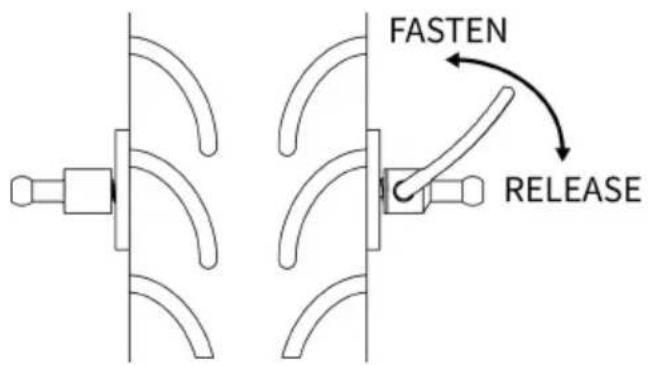

After putting back the cap and spring, turn the quick-release lock the axle (Figure 6).

FASTEN RELEASE

Figure 6

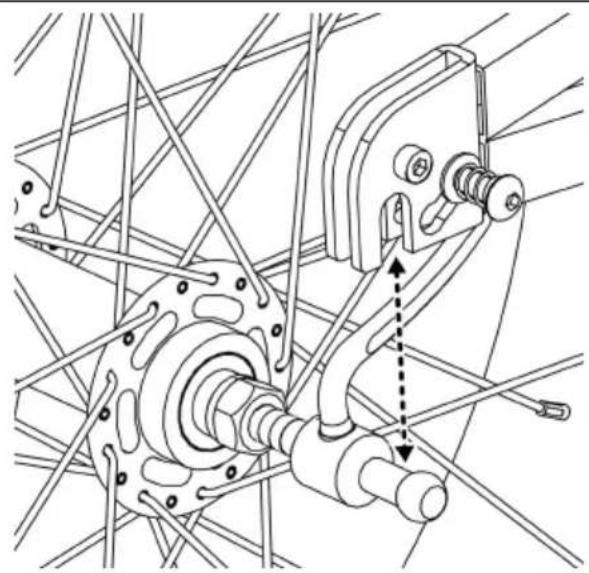

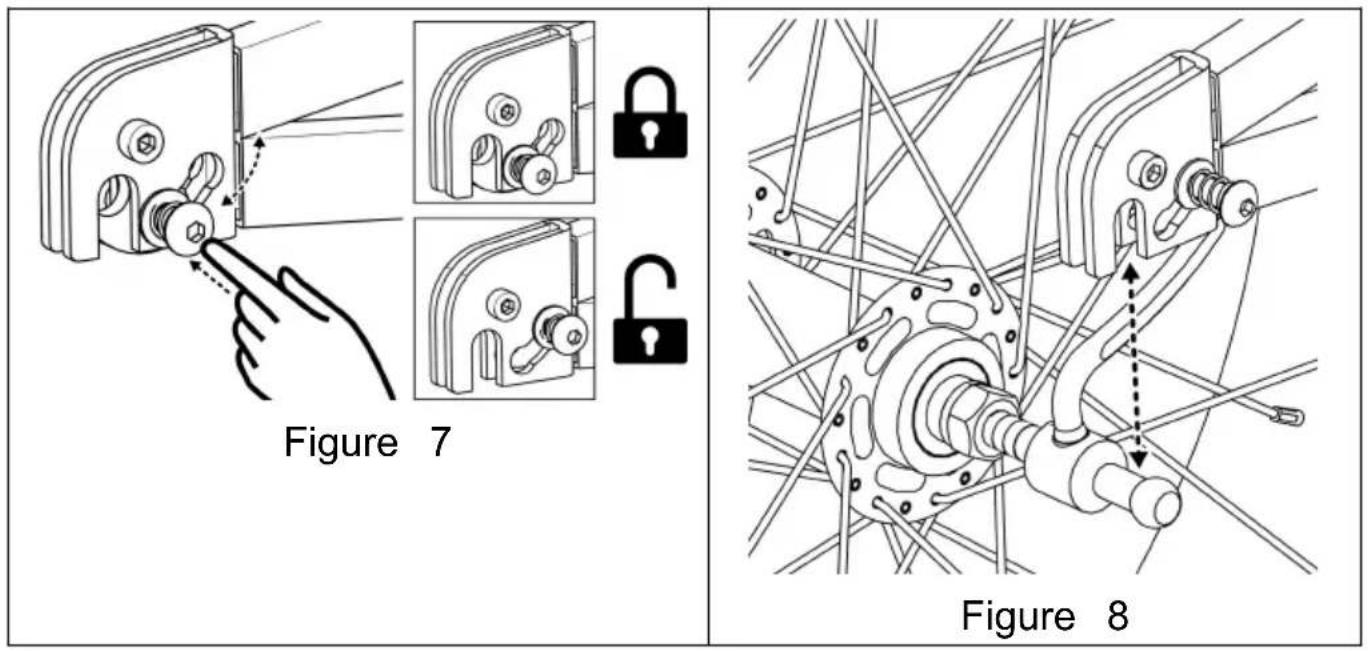

4. Attaching the Trailer to Bicycle

Press down and move the button on the front fork to release (Figure 7). Put the axle into the gap on the front fork and clo (Figure 8). To detach the trailer, repeat all steps in reverse.

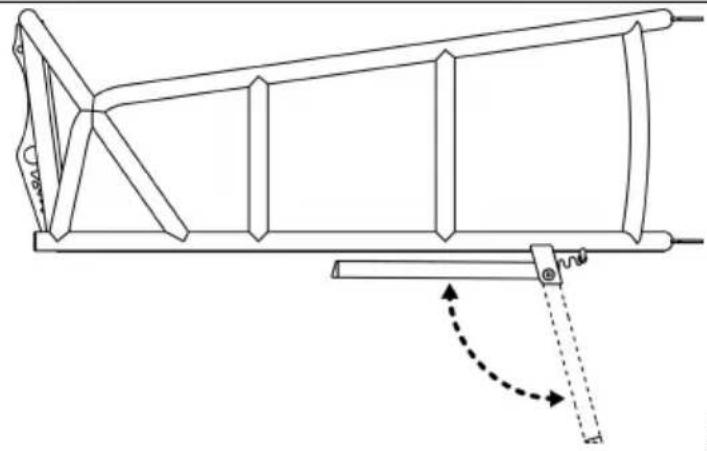

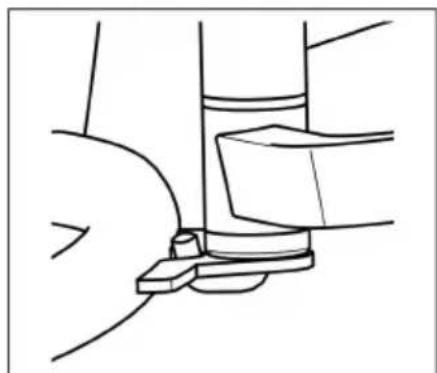

5. Opening the Support Leg When Not Moving

You can pull out the support leg when the trailer is not mov

Technical line drawing of a mechanical structure with no visible text or symbols

Figure 9

Before You Ride

Check before each use:

● Wheels are properly secured to the trailer.
● Tires are inflated to recommended pressure on the tire side wall.
● Tow bar is properly secured to the trailer.
- Coupler is properly secured to the bicycle.
- Coupler and safety pins are secured.
- Load does not exceed 32kg(70lbs).
- Weight of tow bar at coupler is greater than 2 kg but does not be kg with fully loaded trailer.
- Make sure that bicycle is in proper working order, especially brakes and tires (refer to bicycle manufacturer's instructions).
- Rider is wearing a helmet.
- Cargo is properly secured.

MAINTENANCE

Storage: For longer product life, store trailer indoors. The trailer should be stored at temperatures less than -10^ F ( -23^ C) or greater than 15^ C ( 65^ C).

Fabric Care: Hand wash fabric parts with warm water and mild soap NOT use bleach or solvents. Wipe dry and store out of direct sunlight dry, well-ventilated area. Clean windows with a damp, soft cloth.

Check:

• Inspect tow bar, hitch, frame tubing, flex connector and hardware for damage.
• Flex Connectors need to be serviced every 3-5 years for safe operation - Check that bolts are tight.
• Inspect tires and wheels for wear and cracks - Inspect wheels for trueness and cracks.
• Inspect fabric parts for rips, abrasions, and missing or damaged hardware.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

Tel: [phone] [e-mail]

UK REP: Pooledas Group Ltd.

Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Tel: [phone] [e-mail]

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BICYCLE CARGO TRAILEF

MODÈLE : CT90 6

Line drawing of a wheeled cart with visible wheels and structural brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ AVERTISSEMENT

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 1
	Figure 2

Technical line drawing of a bicycle suspension system with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

figure 3

Technical line drawing of a mechanical assembly with springs, gears, and linkages (no text or symbols)

Figure 4

Technical line drawing of a bicycle wheel assembly with attached sensors and suspension components (no text or labels)

Figure 5

Diagram illustrating door lock mechanism with hand and inset views showing lock states and lock positions

Figure 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 9

Before You Ride

Bureau 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

FAHRRAD-LASTENANHÄNGER

MODELL: CT90 6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: CT90 6

Line drawing of a wheeled cart with visible wheels and structural brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

⚠️ WARNING

Technical line drawing of a mechanical assembly with no visible text or symbols

Abbildung 1

Hand using a tool to adjust or rotate a mechanical component with rotational arrows (no text or symbols)

Line drawing of a mechanical assembly with a curved component and a rectangular block (no text or symbols)

Figur 2

Technical line drawing of a mechanical assembly with no visible text or symbols

Figur 3

Technical line drawing of a mechanical assembly with springs and linkages (no text or symbols)

Figur 4

Diagram illustrating lock mechanism with hand and three views of a door handle assembly, showing lock states and lock state outlines.

Abbildung 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Abbildung 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Abbildung 9

Before You Ride

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BICYCLE CARGO TRAILEF

MODELLO: CT906

Line drawing of a wheeled cart with visible wheels and structural brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ATTENZIONE

Technical line drawing of a mechanical assembly with no visible text or symbols

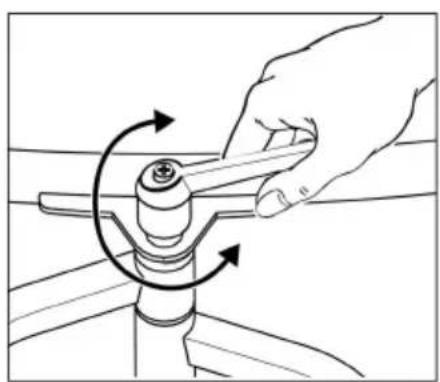

Figura 1

Illustration of a hand using a tool to adjust or install a mechanical component, showing rotational motion (no text or symbols)

Line drawing of a mechanical assembly with a clamped component (no text or symbols)

figura 2

Technical line drawing of a bicycle suspension system with mechanical components and structural details (no text or symbols)

Figura 3

Technical line drawing of a mechanical assembly with springs and linkages (no text or symbols)

Figura 4

Technical line drawing of a bicycle wheel assembly with attached sensors and levers (no text or symbols)

Diagram illustrating door lock mechanism with hand and inset views showing lock states and lock positions

Figura 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 9

Before You Ride

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BICYCLE CARGO TRAILEF

MODELO: CT90 6

Line drawing of a wheeled cart with visible wheels and structural brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ ADVERTENCIA

Line drawing of a wireframe cargo basket structure (no text or symbols)

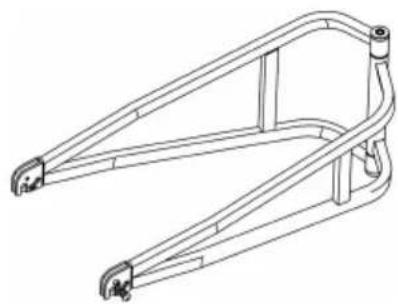

1 marco principal.

Technical line drawing of a mechanical frame structure (no text or symbols)

1 x gente delantera

Circular diagram with a bicycle wheel and spokes, no text or symbols present

1 rueda .

Line drawing of a mechanical device with no visible text or symbols

1 x gente trasera

Pure mechanical linkage diagram without any text, numbers, or symbols

1 eje.

Line drawing of a mechanical lever with a handle and leverhead (no text or symbols)

1 x pin popular frontal

Three identical L-shaped metal bars arranged horizontally, each with a plus sign between them (no text or symbols on the bars)

2x5mm _ _ _ Llave H ex +1 x 6 mm Llave H ex +1 x hexagonal

VEVOR® TRAVEL CABBEG TRAVELER MASCALTY BRINCE & CABBEG TRAVELER MASCALTY

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 1

Illustration of a hand using a tool to adjust or install a mechanical component with rotational arrows (no text or symbols)

Line drawing of a mechanical assembly with a clamped component (no text or symbols)

Figura 2

22. A colocar la rueda

Technical line drawing of a bicycle suspension system with mechanical components and structural details (no text or symbols)

figura 3

Technical line drawing of a mechanical assembly with springs and linkages (no text or symbols)

Figura 4

Technical line drawing of a bicycle wheel assembly with attached sensors and levers (no text or symbols)

Diagram illustrating door lock mechanism with hand and inset views showing lock states and lock positions

Figura 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 9

Before You Ride

1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PRZYCZEPKA ROWEROWA

MODEL: CT90 6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BICYCLE CARGO TRAILEF

MODEL: CT90 6

Line drawing of a wheeled cart with visible wheels and structural brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ OSTRZEŻENIE

Technical line drawing of a mechanical linkage assembly (no text or symbols)

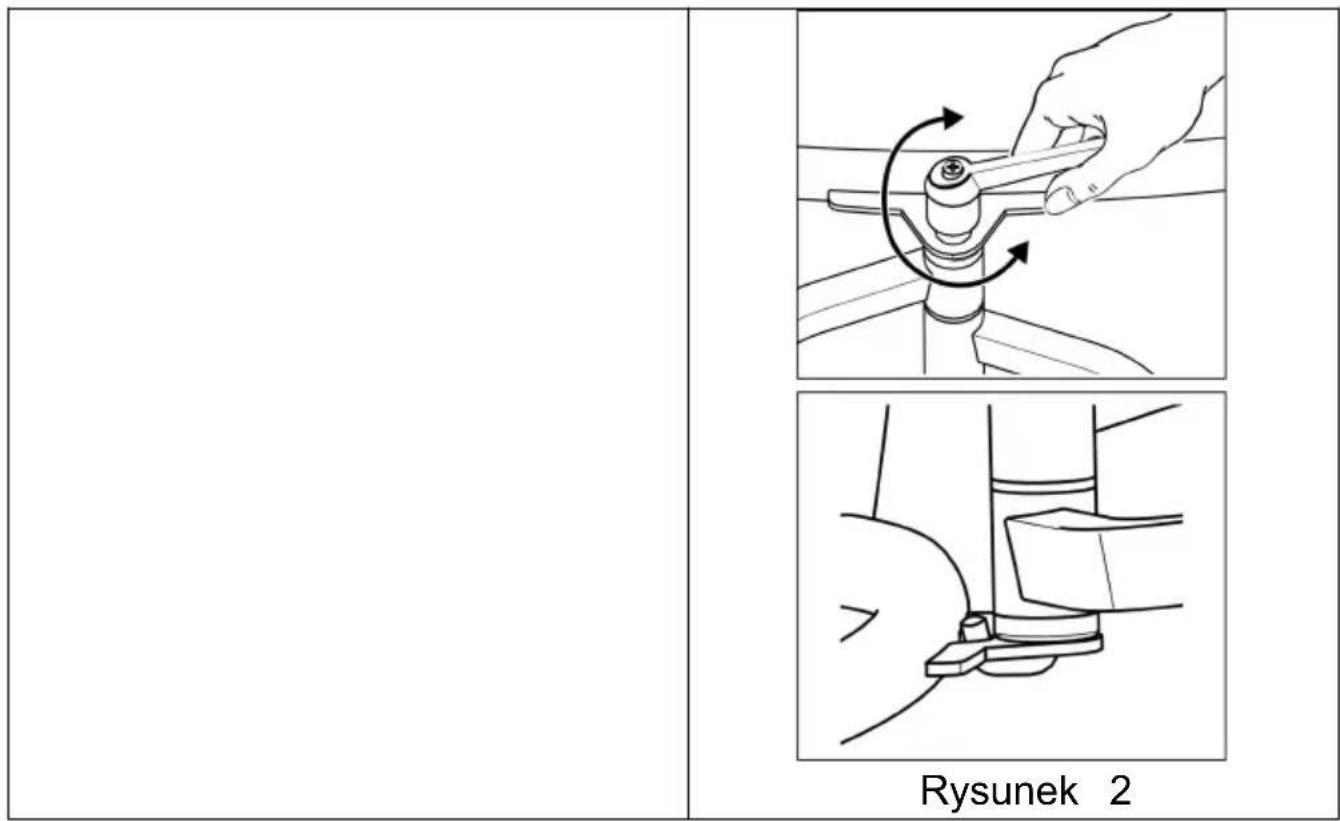

Rysunek 1

Technical line drawing of a bicycle suspension system with no visible text or symbols

Technical line drawing of a robotic arm joint with grippers and a handle (no text or symbols)

Rysunek 3

Technical line drawing of a bicycle suspension system with springs, frame, and linkages (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Rysunek 9

Before You Ride

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BICYCLE CARGO TRAILEF

MODEL: CT90 6

Line drawing of a wheeled cart with visible wheels and structural brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ WAARSCHUWING

Technical line drawing of a mechanical linkage assembly (no text or symbols)

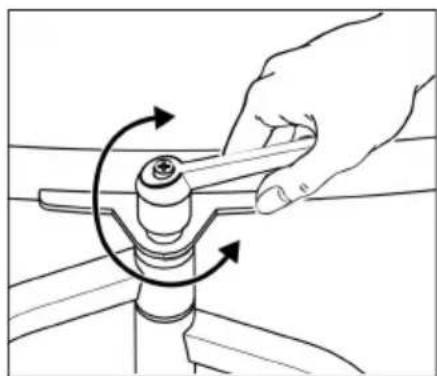

Figuur 1

Line drawing of a hand using a tool to adjust or rotate a mechanical component, showing rotational motion arrows (no text or symbols)

Line drawing of a mechanical assembly with a clamped component (no text or symbols)

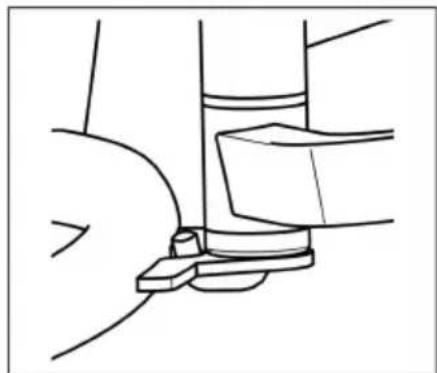

Figuur 2

Technical line drawing of a bicycle suspension system with mechanical components and structural details (no text or symbols)

figuur 3

Technical line drawing of a mechanical assembly with springs and linkages (no text or symbols)

Figuur 4

33. De as installeren

Technical line drawing of a bicycle wheel assembly with attached components (no text or symbols)

Figuur 5

Diagram illustrating door lock mechanism with hand and inset views showing lock states and lock positions

Figuur 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figuur 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figuur 9

Before You Ride

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CYKEL CARGO TRAILER

MODELL: CT90 6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BICYCLE CARGO TRAILEF

MODELL: CT90 6

Line drawing of a wheeled cart with visible wheels and structural brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figur 1

Hand turning a mechanical component with rotational arrows (no text or symbols)

Line drawing of a mechanical assembly with a clamped component (no text or symbols)

figur 2

Technical line drawing of a bicycle suspension system with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Figur 3

Technical line drawing of a bicycle suspension system with levers and suspension components (no text or labels)

Figur 4

Technical line drawing of a bicycle wheel assembly with attached sensors and suspension components (no text or labels)

Figur 5

Technical line drawing of a mechanical assembly with no visible text or symbols

Figur 9

Before You Ride

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE
