BICYCLE CARGO TRAILER

MODEL: CT903L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CT903L

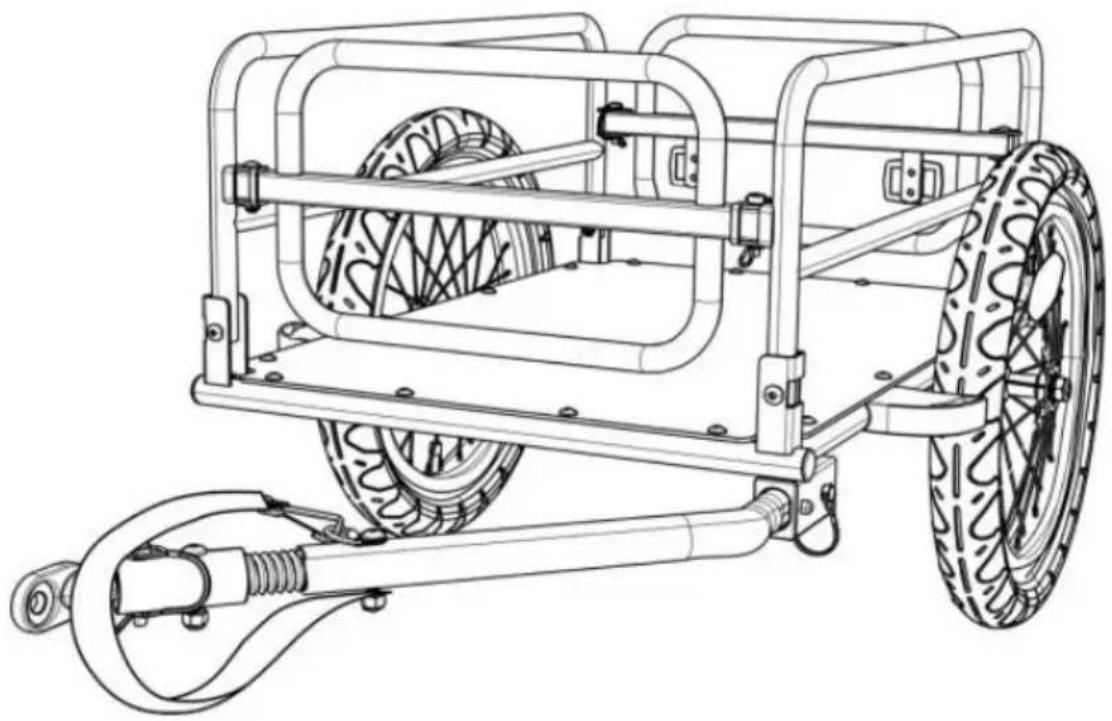

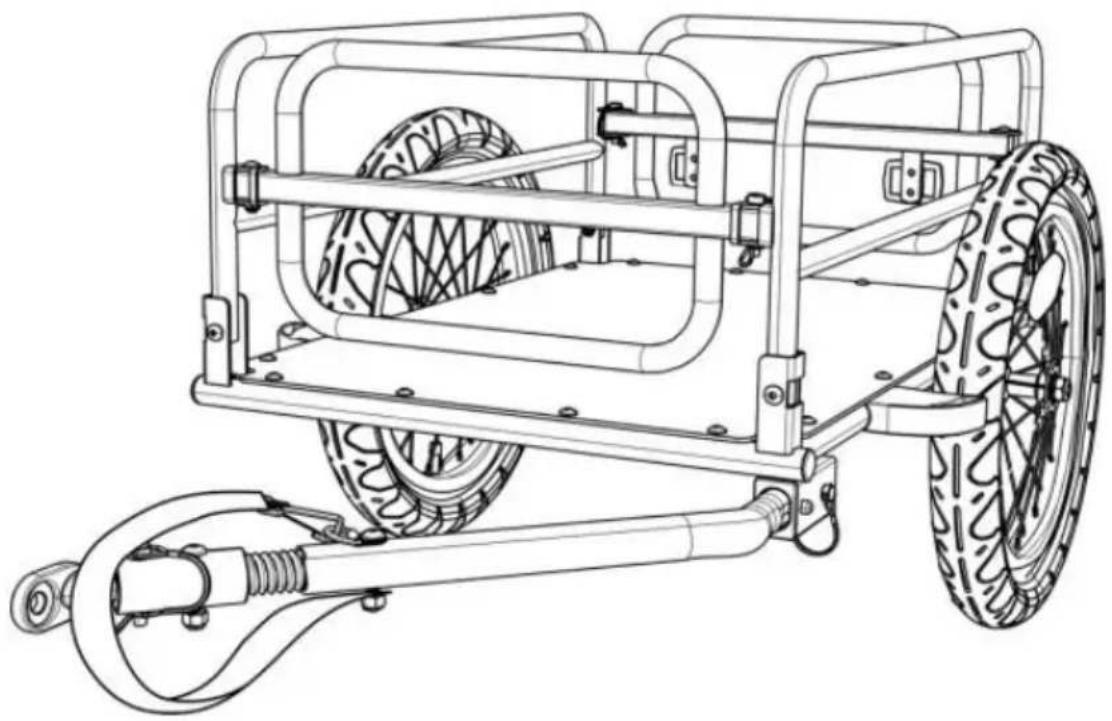

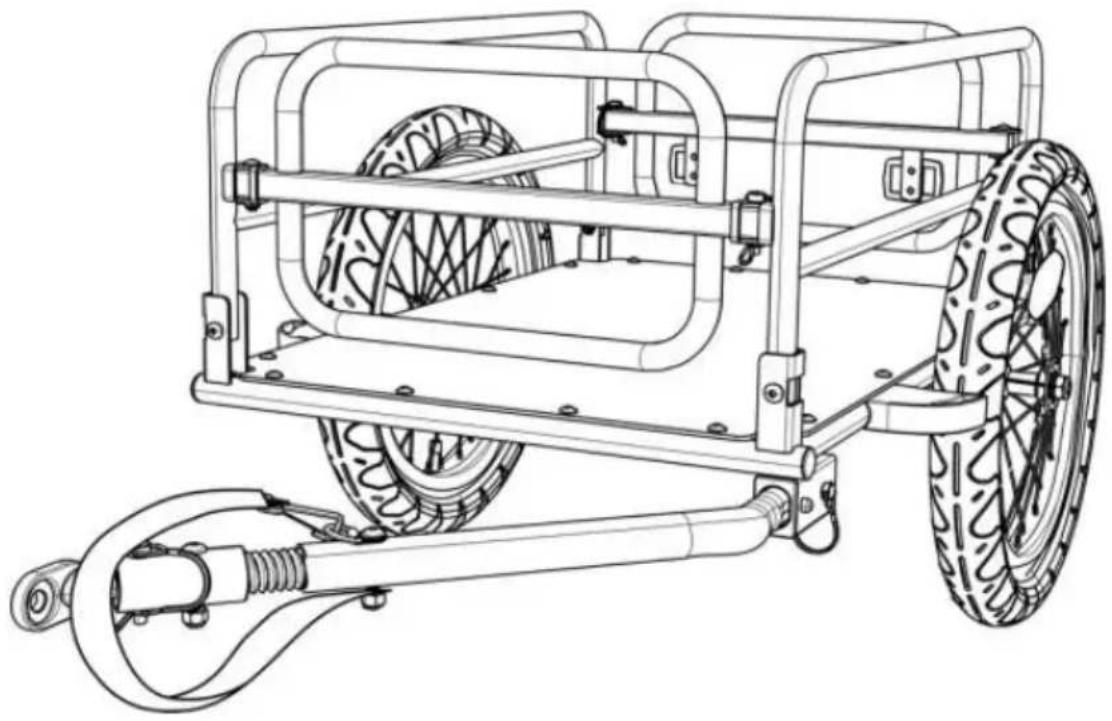

Technical line drawing of a vehicle chassis with wheels, springs, and suspension components (no text or symbols)

Important: Keep these instructions for future reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Failure to comply with the instructions and warnings in this man could result in serious injury or death of the rider.

• DO NOT use the trailer to transport child or pet. DO NOT use a trailer as a toy.
  ● DO NOT use the trailer without connecting to a bicycle.
• Ensure that all locking devices are engaged before use.
  ● Maximum load: 72.5 kg (160 lbs.)
  ● This product is not suitable for running or skating
• Any load attached to the handle and/or on the back of the back, and/or on the sides of the vehicle will affect the stability of the
• Accessories which are not approved by the manufacturer shall not used.
• Only use replacement parts supplied or recommended by the manufacturer.
• Do NOT use it with a total load that exceeds the weight limits. recommended load is exceeded, the unit may become unstable.
  ● DO NOT make modifications to the product.
• DO NOT over-inflate the tires. Failure to comply with the rated tire sidewall pressure may lead to explosion of the tire and possible
• It is recommended that a qualified bicycle mechanic does a safety check of the towing bicycle before attaching the trailer.
• Before each ride, be sure the trailer does not interfere with braking pedaling or steering of the bicycle.
• Always comply with local regulations when using the trailer on pull roadways.
• Never ride a bicycle at night without adequate lighting.
• Obey all local legal requirements for lighting.
• If you need to come to a stop for any reason, such as to make adjustments or to address a flat tire, be sure to pull off the road completely.
• When using your trailer, you are towing extra weight and a bigger vehicle. You must allow more time for braking, slowing, stopping a starting, and allow more room for turns and passageways. Experim

with the loaded trailer in an uncongested area until you become familiar with how your bike handles towing a trailer.

• Avoid rocks, curbs, hard braking and sudden swerving. Avoid riding over obstacles with one wheel, as this may cause the trailer to
  ● Always ride with the cover down to secure the cargo.
  ● The rider of the bicycle must be at least 16 years old.
• Recommended speed limits: - 16 km/h (10 mph.) on smooth, stra roads - 8 km/h (5 mph.) when turning or on uneven roads
• Trailer weight must be properly distributed for safe handling. The weight on the hitch connector should be between 30 N (≈3 kg / and 80 N (≈8 kg / 17.6 lbs.). To measure this, load your trailer place it next to bathroom scale. Step on scale and make a note weight. Standing on scale, lift up the end of the tow bar one for (approximately 25cm) off the ground. The weight shown should be – 17.6 lbs. more than your own weight. If the weight is too low, wheel of the bicycle could lose traction. If it is too high the hitch overloaded.

MODEL AND PARAMETERS

Model	CT903L
Type	Tow
Max. Load	160lbs
Storage Bin Size	28*20.3*11.8inch
Wheels	Steel, 16*1.75inch
Material	Steel

CONTENTS

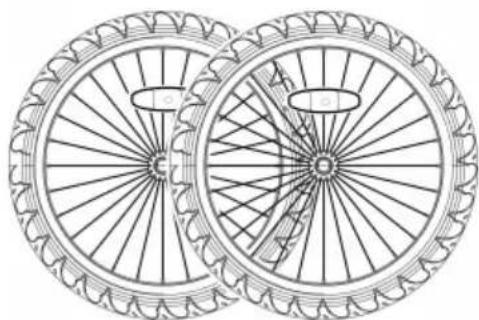

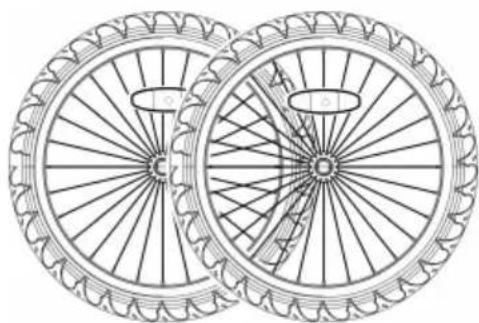

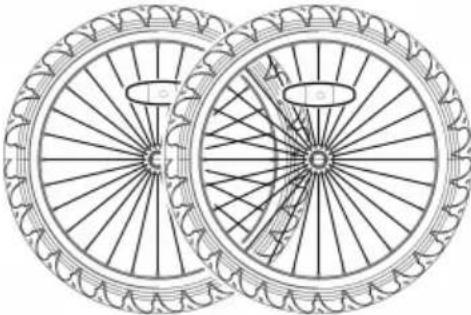

1 x Main frame	2 x Wheels
2 x Wheel axle	1 x Universal hitch
1 x Tow bar	2 x Wheel guards
Tools
1 x 19mm Wrench +1 x 4mm Hex key+1 x User Manu

How to Assemble

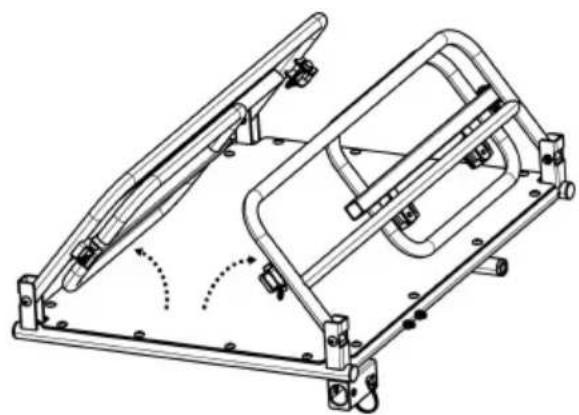

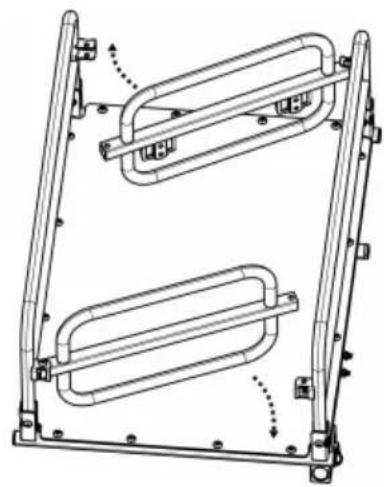

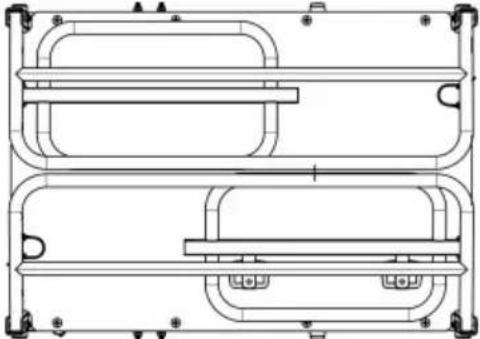

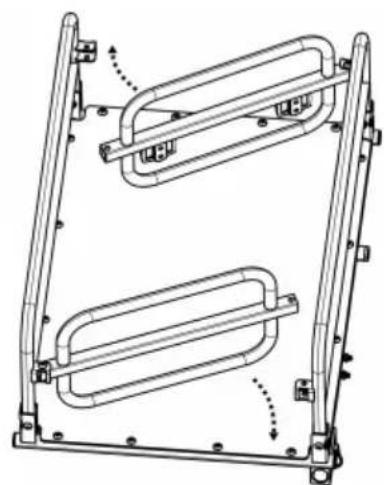

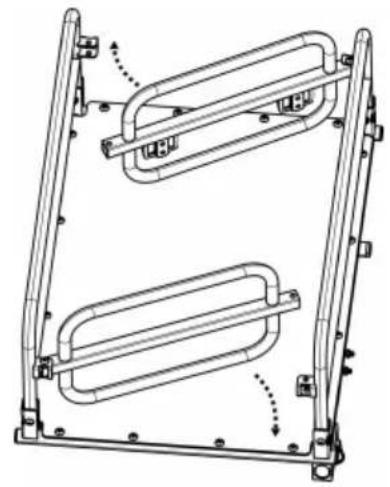

1. Opening the Main Frame

Take out the trailer's main frame and all other components fro carton. Raise all side frames to an upright position (Figure 1,

Technical line drawing of a mechanical frame assembly (no text or symbols)

Figure 1

Technical line drawing of a mechanical frame assembly with no visible text or symbols

Figure 2

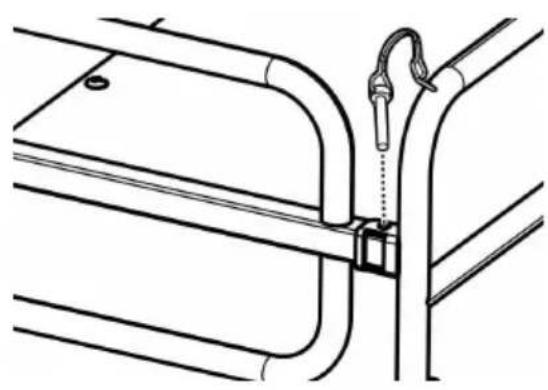

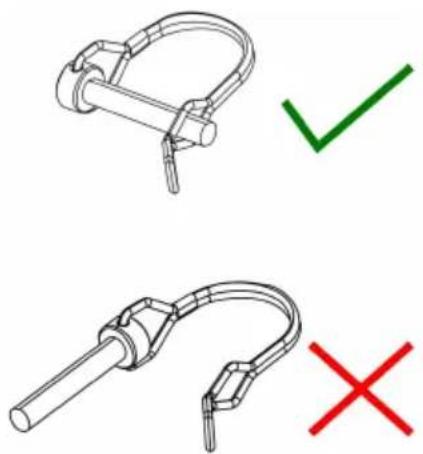

Lock front and rear crossbars using the safety pin attached to (Figure 3). Make sure that safety pins are properly locked in shown (Figure 4).

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 3

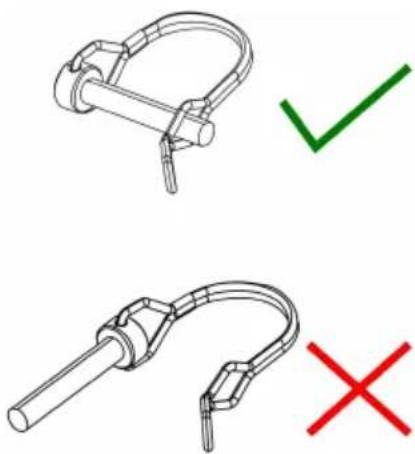

Simple line drawing of a mechanical clamp or bracket with a green checkmark (no text or symbols)

Technical line drawing of a mechanical clamp or connector with a red X mark indicating cancellation (no text or symbols present)

Figure 4

2. Attaching the Wheels

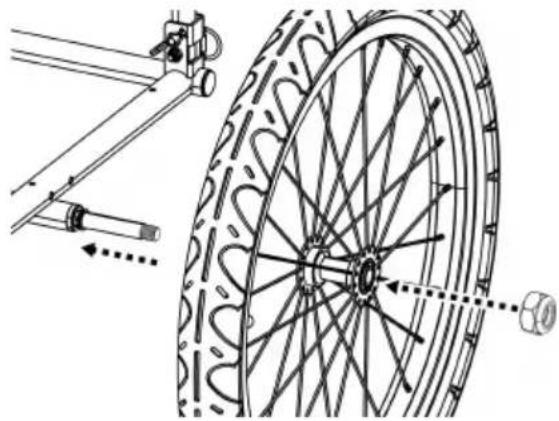

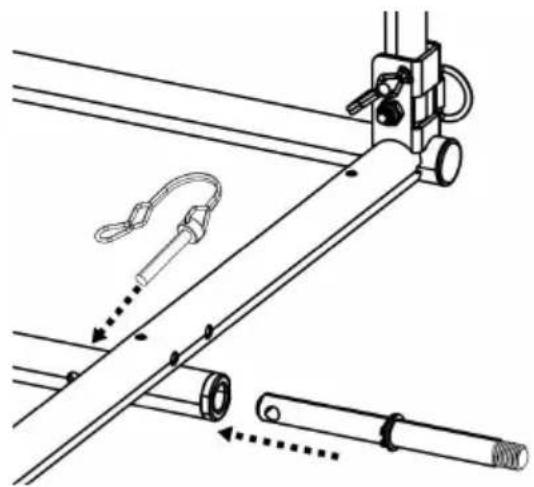

Figure 5	Insert wheel axle into axle receiver underneath the trailer frame and lock the safety pin

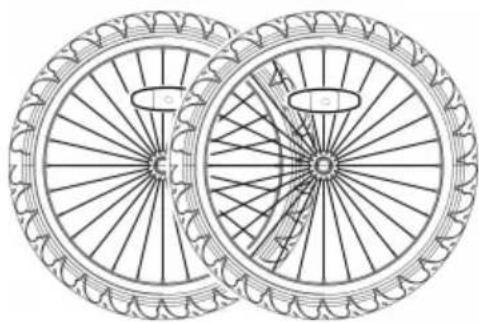

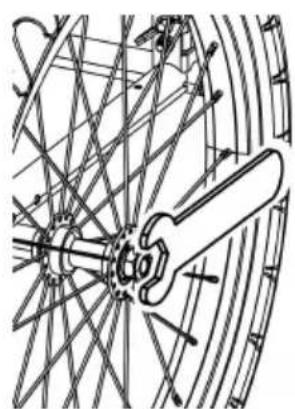

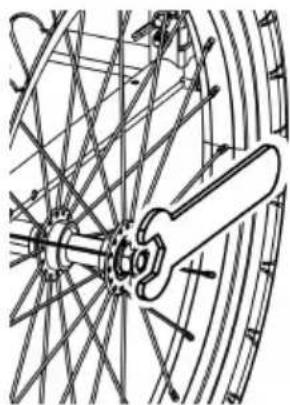

Put the wheel and the screw nut on the axle (Figure 6). Fa screw nut with 19mm wrench (Figure 7).
Figure 6	Figure 7

3. Installing the Wheel Guards

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 8

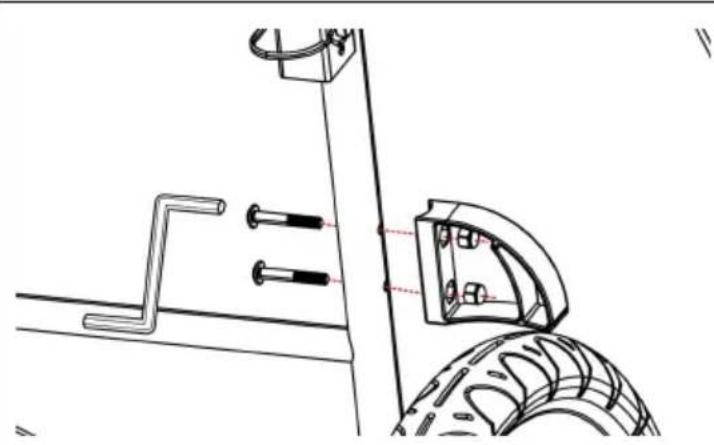

Insert wheel guard bolts through frame tube. Match holes in wheel guards to bolts. Tighten securely with hex key (Figure 8). Repeat for wheel guard on other of trailer.

4. Installing the Tow Bar

Technical diagram showing mechanical assembly with labeled parts A and B, including directional arrows and structural elements.

Figure 9

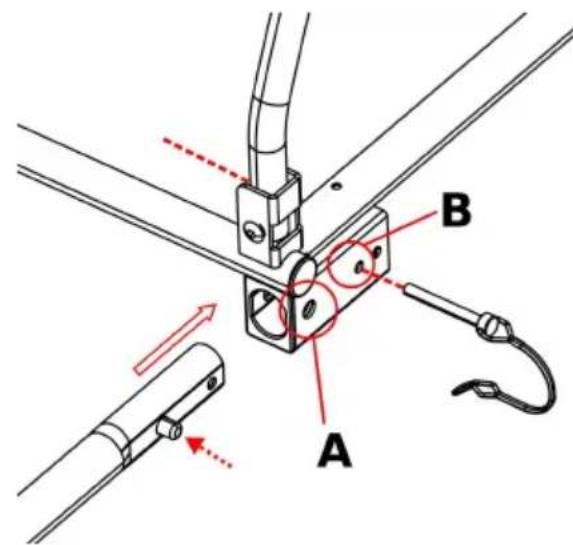

Pressing the spring button, slid the tow bar into the tow bar receiver until the spring button comes out of the hole A. Inse safety pin from the hole B th the other side. Make sure the safety pin is properly locked in place as shown (Figure 9).

5. Attaching Trailer to Bicycle

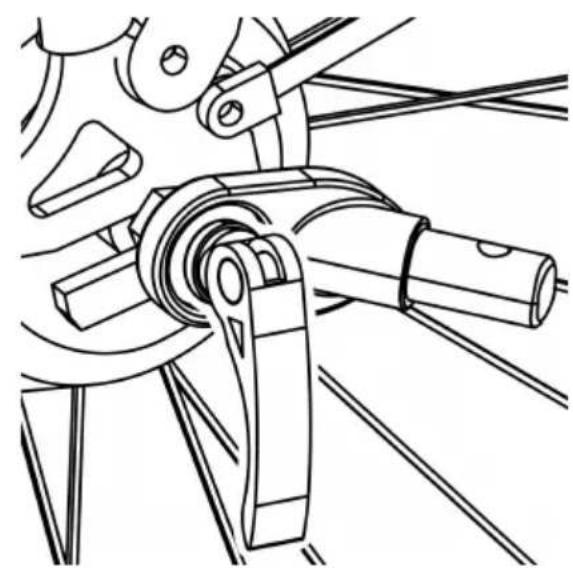

1. Quick-release Axle: Remove the quick-release from the left bike's rear axle. Install the hitch between the quick-release an Tighten the quick-release following the bike manufacturer's man Hitch can remain on the bike when the trailer is removed (Fi

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 10

WARNING

The tension-adjusting nut must engage the threads for at least five full turns in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the tension-adjusting nut fully may result in accidents with serious injury or death. If the quick-release skewer is too much it must be replaced. Consult a professional bicycle mechanic for the appropriate parts and assistance.

1. Nutted Axle: Unscrew the nut with washer from the left s bike's rear axle. Install the hitch onto the axle and screw the on with the washer(Figure 11).

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figure 11

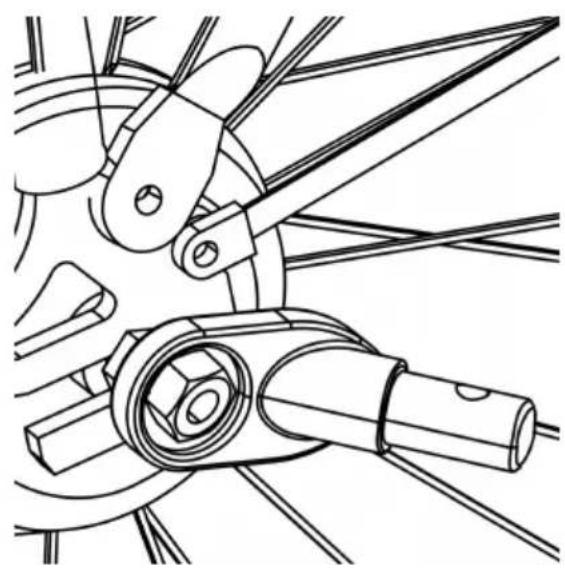

WARNING

The axle nut must engage the threads for at least five full tu in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the nut fully may result accidents with serious injury or death. If the axle is too short Universal Hitch cannot be used Consult a professional bicycle mechanic for the appropriate parts and assistance.

1. Thru Axle: The universal hitch doesn't fit a bike with thru Please consult the retailer for possible solution.

Mechanical assembly diagram showing a lever mechanism and spring-loaded actuator (no text or labels)

Mechanical assembly diagram showing gear and shaft components with motion arrows (no text or labels)

Figure 12

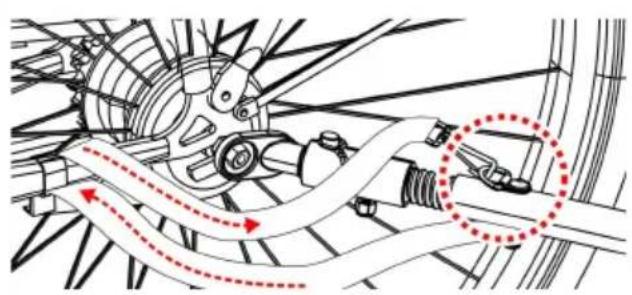

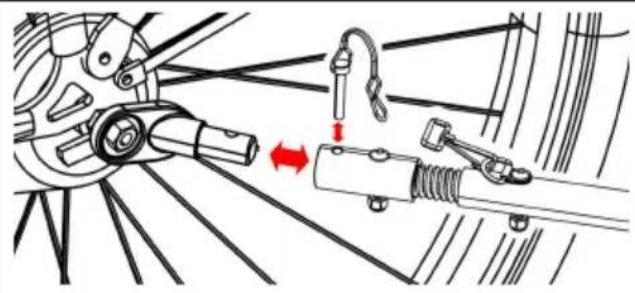

Connect the coupler on the bar and secure the safety pi (Figure 12). Once the tow bar attached, wrap safety belt arou the frame of the bike and hoo onto the D-ring on the tow ba

Before You Ride

Check before each use:

● Wheels are properly secured to the trailer.
● Tires are inflated to recommended pressure on the tire side wall.
● Tow bar is properly secured to the trailer.
- Coupler is properly secured to the bicycle.
- Coupler and safety pins are secured.
- Load does not exceed 72.5kg(160lbs).
- Weight of tow bar at coupler is greater than 2 kg but does not be kg with fully loaded trailer.
- Make sure that bicycle is in proper working order, especially brakes and tires (refer to bicycle manufacturer's instructions).
- Rider is wearing a helmet.
- Cargo is properly secured.
- Cover is installed and closed.

MAINTENANCE

Storage: For longer product life, store trailer indoors. The trailer should be stored at temperatures less than -10^ F ( -23^ C) or greater than 15^ C ( 65^ C).

Fabric Care: Hand wash fabric parts with warm water and mild soap NOT use bleach or solvents. Wipe dry and store out of direct sunlight dry, well-ventilated area. Clean windows with a damp, soft cloth.

Check:

• Inspect tow bar, hitch, frame tubing, flex connector and hardware for damage.
• Flex Connectors need to be serviced every 3-5 years for safe operation - Check that bolts are tight.
• Inspect tires and wheels for wear and cracks - Inspect wheels for trueness and cracks.
• Inspect fabric parts for rips, abrasions, and missing or damaged hardware.

PART LIST

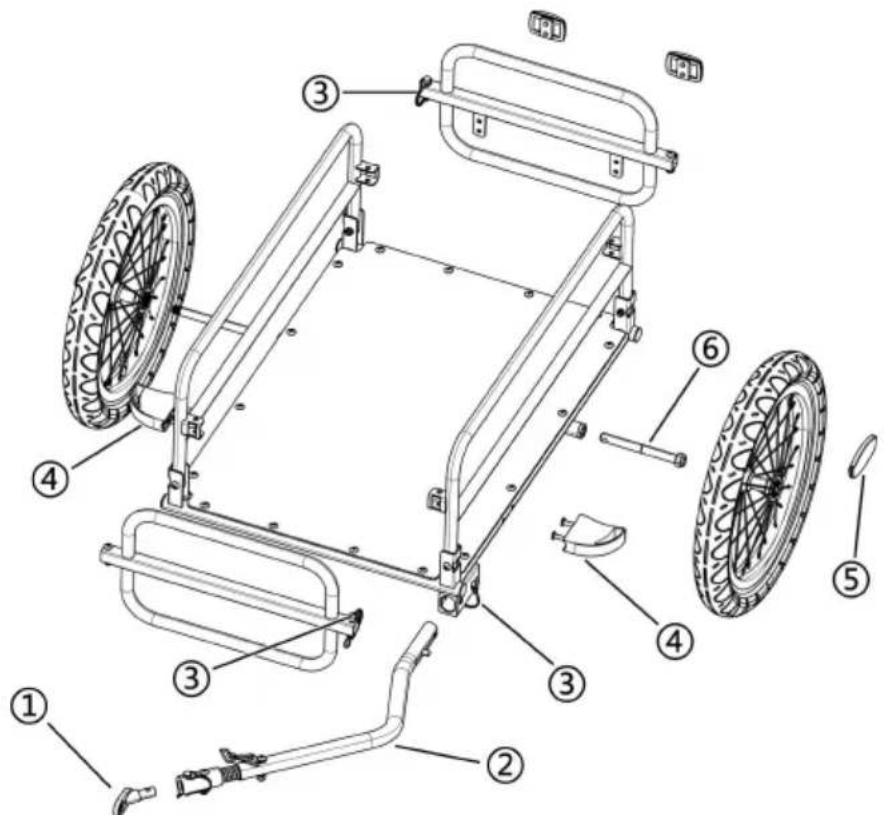

Technical diagram of a bicycle chassis with numbered parts for identification and assembly reference.

① Coupler ② Tow bar ③ Safety pin
④ Wheel guards ⑤ Wheel reflector ⑥ Wheel axle

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

Tel: [phone] [e-mail]

UK REP: Pooledas Group Ltd.

Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Tel: [phone] [e-mail]

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE : CT90 3L

Technical line drawing of a wheeled vehicle chassis with visible wheels, springs, and suspension components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ AVERTISSEMENT

Simple line drawing of a wrench (no text or symbols)

VEVOR®
RECEIVED ITEMS BILL (75)
[Non-Text]

1 clé de 19 mm + 1 x 4 mm Clé hexagonale + 1 x manu

How to Assemble

Technical line drawing of a mechanical frame assembly (no text or symbols)

Figure 1

Technical line drawing of a mechanical frame assembly with no visible text or symbols

Figure 2

Technical line drawing of a mechanical assembly with no visible text or symbols

figure 3

Two technical line drawings of mechanical components with check and cross symbols (no text or labels)

Figure 4

Technical line drawing of a mechanical assembly with rods, clamps, and a hanging hook (no text or symbols)

Figure 5

Technical line drawing of a bicycle wheel assembly with mounting bracket and wheel rim (no text or symbols)

Figure 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Figure 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 10

⚠ AVERTISSEMENT

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figure 11

⚠ AVERTISSEMENT

Technical diagram illustrating mechanical assembly and component alignment, with labeled parts and directional arrows indicating motion or movement.

Figure 12

Technical diagram of a vehicle chassis with numbered parts for identification and assembly reference.

Bureau 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

FAHRRAD-LASTENANHÄNGER

MODELL: CT90 3L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: CT90 3L

Technical line drawing of a wheeled vehicle chassis with visible wheels, springs, and suspension components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ WARNING

Technical line drawing of a dual-chamber electronic device casing with mounting holes and internal components (no text or symbols)

Line drawing of two bicycle wheels with spokes and wheel rim (no text or symbols)

1 x Hauptrahmen

Technical illustration of two cylindrical mechanical components with threaded ends and separate hexagonal nuts (no text or symbols)

2 x Räder

Technical line drawing of a mechanical component with cylindrical and flanged sections (no text or symbols)

2 x Radachse

Line drawing of a handheld tool or device with a curved handle and connector (no text or symbols)

1 x Universalkupplung

Two identical mechanical components with curved ends and side connectors (no text or symbols)

Technical line drawing of a mechanical frame assembly (no text or symbols)

Abbildung 1

Technical line drawing of a mechanical frame assembly with no visible text or symbols

Figur 2

Technical line drawing of a mechanical assembly with rods, clamps, and a hanging clamp (no text or symbols)

Technical line drawing of a bicycle wheel assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with two bolts and a bracket (no text or symbols)

Abbildung 8

Technical diagram showing mechanical assembly with labeled components A and B, including directional arrows and dotted lines indicating motion or movement.

Abbildung 9

Technical line drawing of a mechanical assembly with no visible text or symbols

Abbildung 10

⚠️ WARNING

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Abbildung 11

⚠️ WARNING

Technical diagram of a vehicle chassis with numbered parts for identification and assembly reference.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: CT90 3L

Technical line drawing of a wheeled vehicle chassis with visible wheels, springs, and suspension components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ATTENZIONE

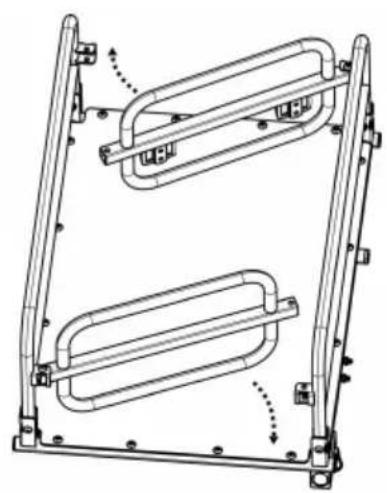

Technical line drawing of a mechanical frame assembly (no text or symbols)

Figura 1

Technical line drawing of a mechanical frame assembly with two parallel plates and mounting holes (no text or symbols)

figura 2

Technical line drawing of a mechanical assembly with curved components and a hanging hook (no text or symbols)

Figura 3

Simple line drawing of a mechanical clamp or bracket with a green checkmark (no text or symbols)

Pure diagram of a curved mechanical component with a red X mark, no text or symbols present

Figura 4

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 10

ATTENZIONE

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figura 11

ATTENZIONE

Technical diagram illustrating mechanical assembly and component alignment, with labeled parts and directional arrows indicating motion or movement.

Figura 12

Technical diagram of a vehicle chassis with numbered parts for identification and assembly reference.

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: CT90 3L

Technical line drawing of a wheeled vehicle chassis with visible wheels, springs, and suspension components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ ADVERTENCIA

Technical line drawing of a dual-chamber electronic device casing (no text or symbols)

1 marco principal.

Two bicycle wheel rim designs with spokes and wheels, no text or symbols present

Technical illustration of two cylindrical mechanical components with threaded ends and separate hexagonal nuts (no text or symbols)

2 x eje de rueda

Technical line drawing of a mechanical component with no visible text or symbols

1 x enganche universal

Line drawing of a mechanical tool or device with a curved handle and internal components (no text or symbols)

1 x barra de remolque

Two identical mechanical components with side connectors, no text or symbols visible

+ VEVOR® FULLER, PARTS FULLER, PARTS WELL (70%)

1 llave de 19 mm + 1 de 4 mm Tecla H ex + 1 x Manu

How to Assemble

Technical line drawing of a mechanical frame assembly (no text or symbols)

Figura 1

Technical line drawing of a mechanical frame assembly with no visible text or symbols

Figura 2

Technical line drawing of a mechanical assembly with curved components and a hanging hook (no text or symbols)

figura 3

Technical line drawings of mechanical components with check and cross symbols (no text or labels)

Figura 4

Technical line drawing of a mechanical assembly with rods, clamps, and a hanging hook (no text or symbols)

Figura 5

Technical line drawing of a bicycle wheel assembly with mounting bracket and wheel rim (no text or symbols)

Figura 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Figura 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 10

ADVERTENCIA

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figura 11

ADVERTENCIA

Technical diagram illustrating mechanical assembly and component alignment, with Chinese annotations highlighting motion paths and highlighted detail.

Figura 12

Technical diagram of a vehicle chassis with numbered parts for identification and assembly reference.

1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PRZYCZEPKA ROWEROWA

MODEL: CT90 3L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BICYCLE CARGO TRAILER

MODEL: CT90 3L

Technical line drawing of a wheeled vehicle chassis with visible wheels, springs, and suspension components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ OSTRZEŻENIE

Simple line drawing of a wrench (no text or symbols)

VEVOR®
RECEIVED ITEMS BILL (75)
[Non-Text]

Klucz 1 x 19 mm +1 x 4 mm Klucz H ex + 1 x instruk

How to Assemble

Technical line drawing of a mechanical frame assembly (no text or symbols)

Rysunek 1

Technical line drawing of a mechanical frame assembly with no visible text or symbols

Rysunek 2

Technical line drawing of a mechanical assembly with curved components and a hanging hook (no text or symbols)

Rysunek 3

Two technical line drawings of mechanical components with check and cross symbols (no text or labels)

Rysunek 4

27. Mocowanie kół

Technical line drawing of a mechanical assembly with rods, clamps, and a hanging hook (no text or symbols)

Rysunek 5

Technical line drawing of a bicycle wheel assembly with mounting bracket and wheel rim (no text or symbols)

Rysunek 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Rysunek 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Rysunek 10

⚠ OSTRZEŻENIE

Technical diagram of a vehicle chassis with numbered parts for identification and assembly reference.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CT90 3L

Technical line drawing of a wheeled vehicle chassis with visible wheels, springs, and suspension components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ WAARSCHUWING

Technical line drawing of a dual-chamber electronic device casing (no text or symbols)

1 x hoofdframe

Line drawing of two bicycle wheels with spokes and wheel rim (no text or symbols)

2 x wielen

Technical illustration of two mechanical components with threaded ends and separate bolts (no text or symbols)

2 x Wielas

Technical line drawing of a mechanical component with cylindrical and flanged sections (no text or symbols)

1 x Universele trekhaak

Line drawing of a handheld tool or device with a curved handle and handlehead (no text or symbols)

1x Trekhaak

Two identical mechanical components with flanges and threaded pins, shown side by side (no text or symbols)

2 x wielbeschermers

Hulpmiddelen

Simple line drawing of a wrench (no text or symbols)

VEVOR

1 x 19 mm sleutel + 1 x 4 mm H ex-sleutel + 1 x gebruik

How to Assemble

Technical line drawing of a mechanical frame assembly (no text or symbols)

Figuur 1

Technical line drawing of a mechanical frame assembly with no visible text or symbols

Figuur 2

Pure technical line drawing of a mechanical assembly with no text or symbols

figuur 3

Two technical line drawings of mechanical components with check and cross symbols (no text or labels)

Figuur 4

Technical line drawing of a mechanical assembly with rods, clamps, and a hanging hook (no text or symbols)

Figuur 5

Technical line drawing of a bicycle wheel assembly with mounting bracket and wheel rim (no text or symbols)

Figuur 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Figuur 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figuur 8

Technical line drawing of a mechanical assembly with no visible text or symbols

Figuur 10

⚠ WAARSCHUWING

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figuur 11

⚠ WAARSCHUWING

Mechanical assembly diagram showing a motor, suspension rod, and linkage mechanism (no text or labels)

Mechanical assembly diagram showing gear and shaft components with red dotted arrows indicating motion paths (no text or labels)

Figuur 12

Technical diagram of a bicycle chassis with numbered parts for identification and assembly reference.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CYKEL CARGO TRAILER

MODELL: CT90 3L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: CT90 3L

Technical line drawing of a wheeled vehicle chassis with visible wheels, springs, and suspension components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Technical line drawing of a mechanical frame assembly (no text or symbols)

Figur 1

Technical line drawing of a mechanical frame assembly with no visible text or symbols

figur 2

Technical line drawing of a mechanical assembly with curved components and a hook (no text or symbols)

Figur 3

Simple line drawing of a mechanical clamp or bracket with a green checkmark (no text or symbols)

Technical line drawing of a mechanical clamp or connector with a red X mark indicating cancellation (no text or symbols present)

Figur 4

37. Fästa hjulen

Technical line drawing of a mechanical assembly with no visible text or symbols

Figur 8

Technical diagram showing mechanical assembly with labeled parts A and B, including directional arrows and structural elements.

Figur 9

Technical line drawing of a mechanical assembly with no visible text or symbols

Bild 10

WARNING

Technical diagram of a vehicle chassis with numbered parts for identification and assembly reference.

① Kopplare ② Dragkrok ③ Säkerhetsnål
④ Hjulskydd ⑤ Hjulreflektor ⑥ Hjulaxel

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Tyskland

Tel: [phone] [e-mail]

UK REP: Pooledas Group Ltd.

Enhet 5 Albert Edward House, The Pavilions Preston, Storbritannien

Tel: [phone] [e-mail]

Importerad till AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE
