USER MANUAL 20315 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

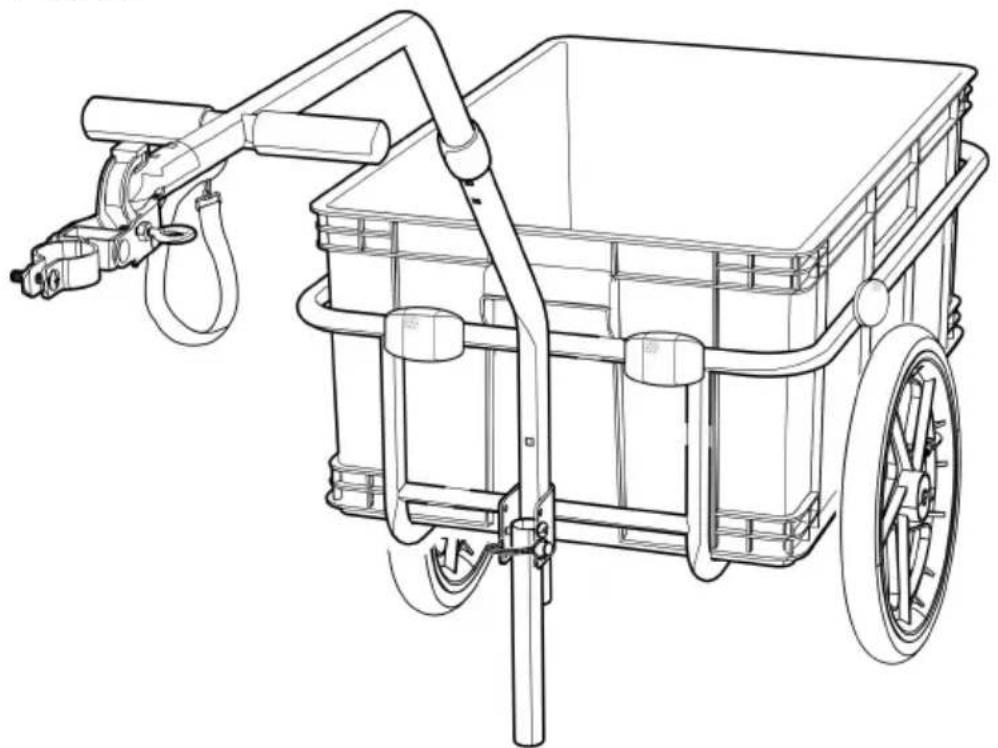

BICYCLE CARGO TRAILER

MODEL: 20315

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 20315

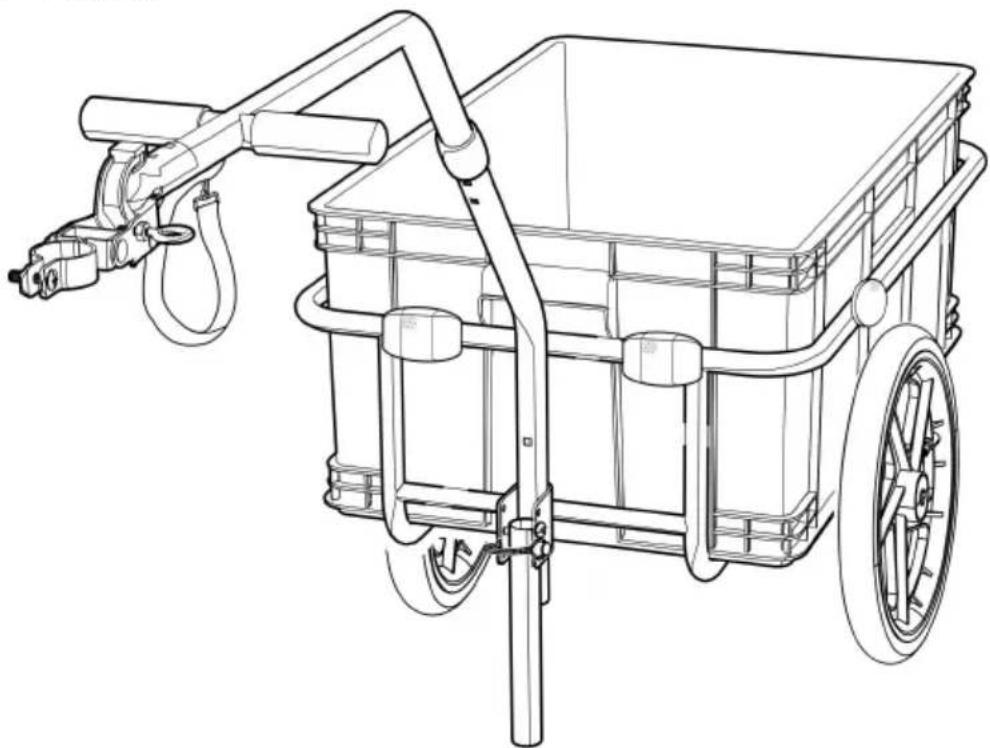

Line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

Important: Keep these instructions for future reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Failure to comply with the instructions and warnings in this man could result in serious injury or death of the rider.

- The trailer is designed exclusively for transporting cargo on road with standard bicycle. It is intended for personal use only. Only use the trailer as described in the instructions. Any other use is considered improper and may result in serious injury or death.

- DO NOT use the trailer to transport child or pet. DO NOT use the trailer as a toy. DO NOT use the trailer with E-bike or motorcycl

- Ensure that all locking devices are engaged before use.

● Maximum load: 40 kg (88 lbs.).

● This product is not suitable for running or skating.

- Do NOT use it with a total load that exceeds the weight limits for the vehicle has been designed. If recommended load is exceeded, unit may become unstable.

● DO NOT make modifications to the product.

- DO NOT over-inflate the tires. Failure to comply with the rated tire sidewall pressure may lead to explosion of the tire and possible

- It is recommended that a qualified bicycle mechanic does a safety check of the towing bicycle before attaching the trailer.

- Before each ride, be sure the trailer does not interfere with braking pedaling or steering of the bicycle.

- Always comply with local regulations when using the trailer on publ roadways.

- Never ride a bicycle at night without adequate lighting.

- Obey all local legal requirements for lighting.

- If you need to come to a stop for any reason, such as to make adjustments or to address a flat tire, be sure to pull off the road completely.

- When using your trailer, you are towing extra weight and a bigger vehicle. You must allow more time for braking, slowing, stopping a starting, and allow more room for turns and passageways. Experim

with the loaded trailer in an uncongested area until you become familiar with how your bike handles towing a trailer.

• Avoid rocks, curbs, hard braking and sudden swerving. Avoid riding over obstacles with one wheel, as this may cause the trailer to 1
  ● Always ride with the cover down to secure the cargo.
  ● The rider of the bicycle must be at least 16 years old.
• Recommended speed limits: - 16 km/h on smooth, straight roads - km/h when turning or on uneven roads.
• Trailer weight must be properly distributed for safe handling. The downward force at the end of the tow bar, where it meets the b should be between 2kg and 9kg (4.4 – 22 lbs.). To measure this your trailer and place it next to bathroom scale. Step on scale a your weight. While on scale, lift up the end of the tow bar one (approximately 25cm) off the ground and note weight again. The weight difference is the downward force on the tow bar. If the w too low, the rear wheel of the bicycle could lose traction. If it is the hitch may be overloaded.

MODEL AND PARAMETERS

Model	20315
Max. Load	88lbs
Storage Bin Size	24*15.7*10.6inch (Plastic Box)
Wheels	Plastic, 16*1.75inch
Material	Steel,PVC,PP,Oxford cloth

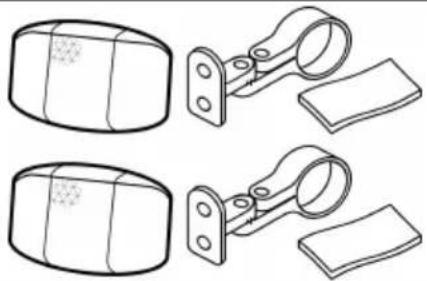

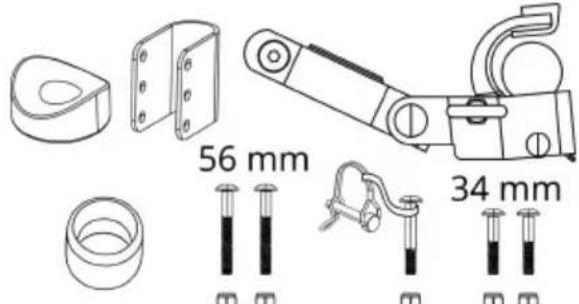

CONTENTS

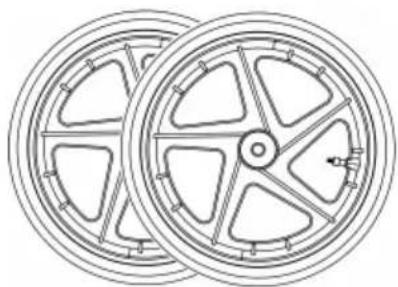

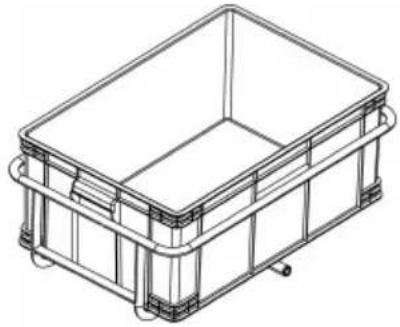

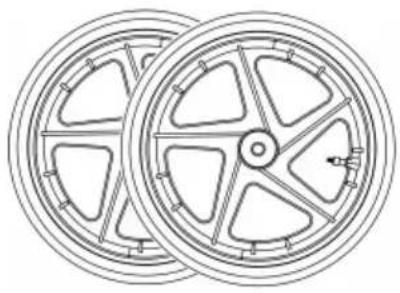

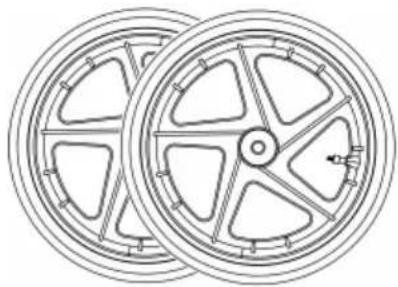

1 x Main frame	2 x Wheels

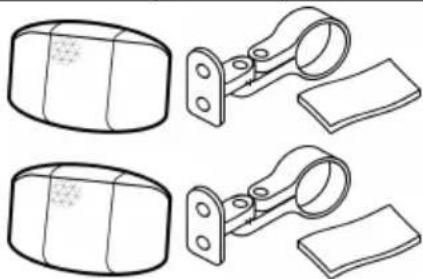

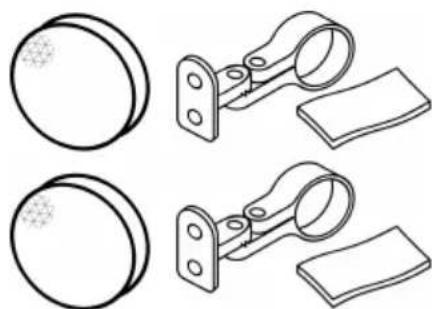

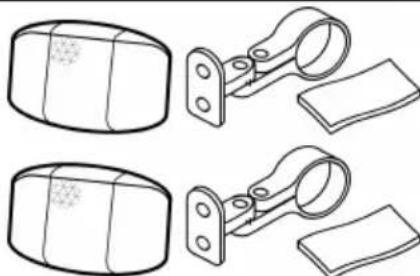

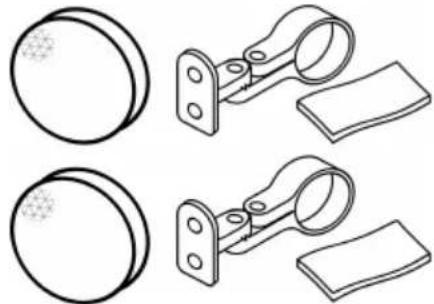

1 x Cover	2 x Front reflector kits (whit)

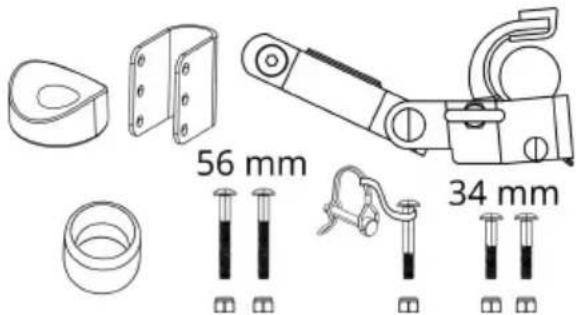

1 x Tow bar	2 x Rear reflector kits (red)
2 x Side reflector kits (yellow)	1 x Accessory pack

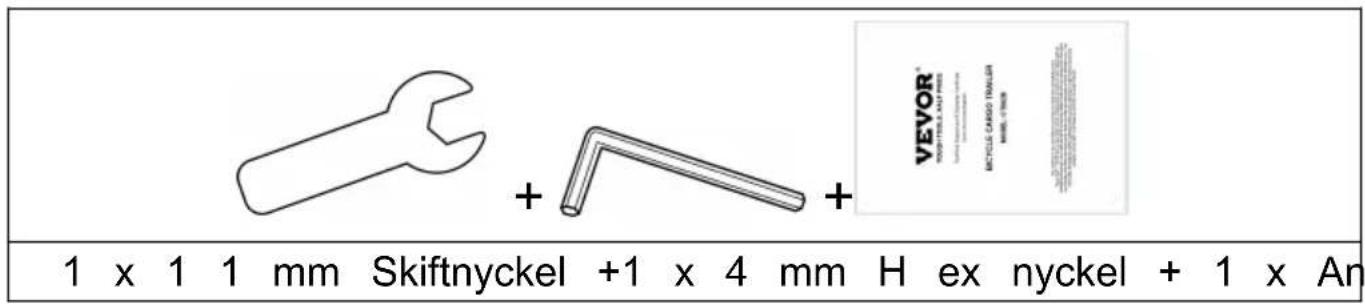

1 x 11mm Wrench +1 x 4mm Hex key+1 x User Manu

How to Assemble

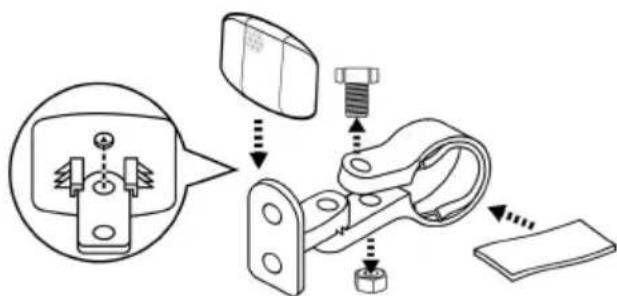

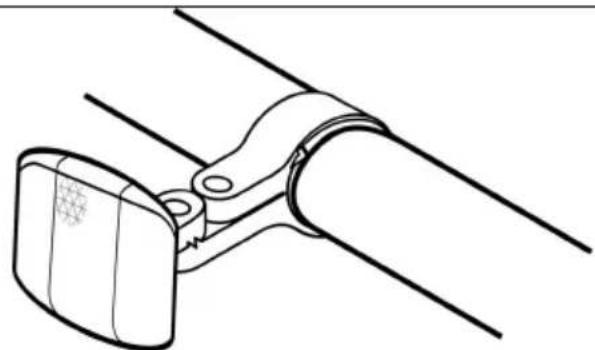

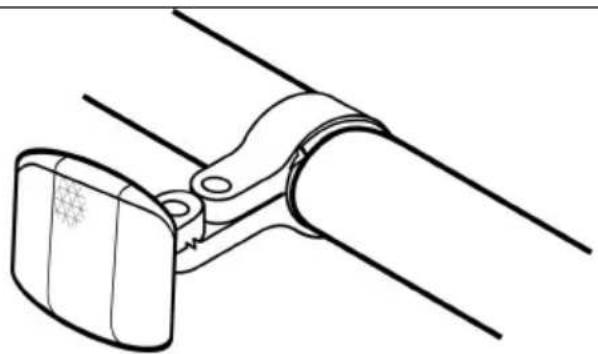

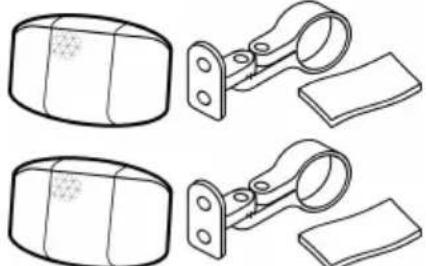

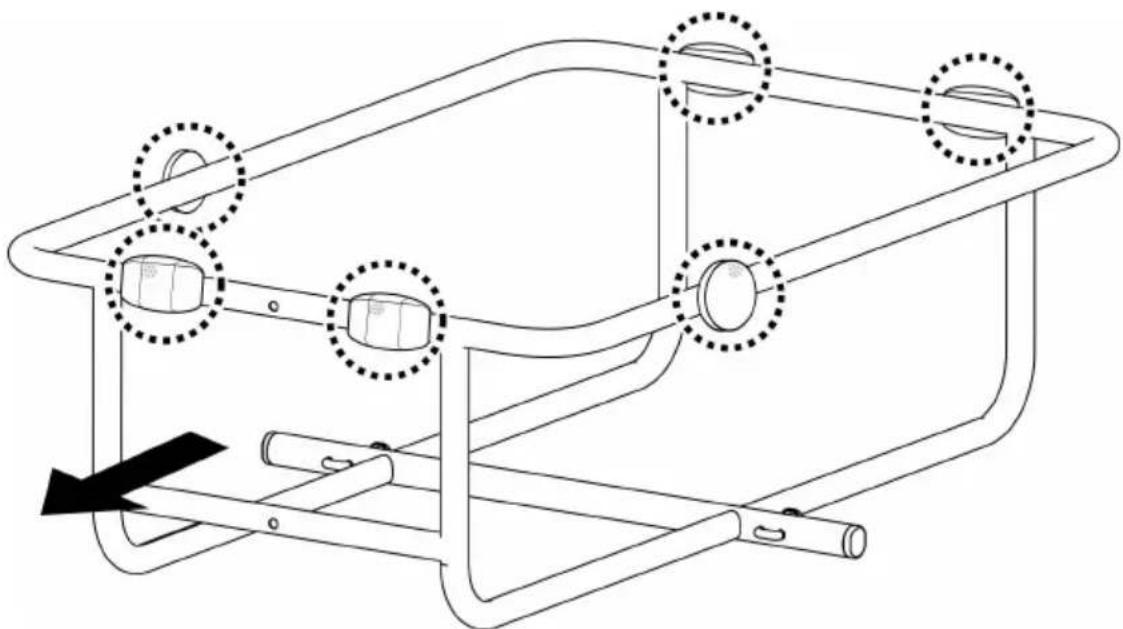

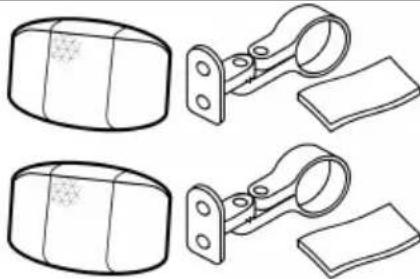

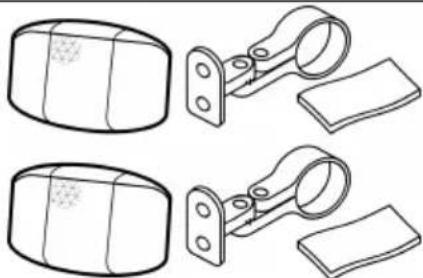

1. Installing the reflectors

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Figure 1

Push to mount the reflector or clamp. Insert the anti-slip rubber into the hole of the clamp (Fi 1).

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Figure 2

Open the clamp and mount the clamp on the trailer (Figure 2)

Please be careful not to confuse different positions (Figure 3).

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 3

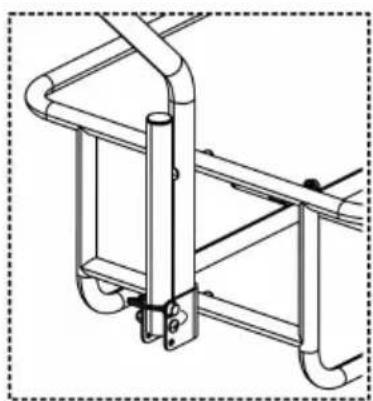

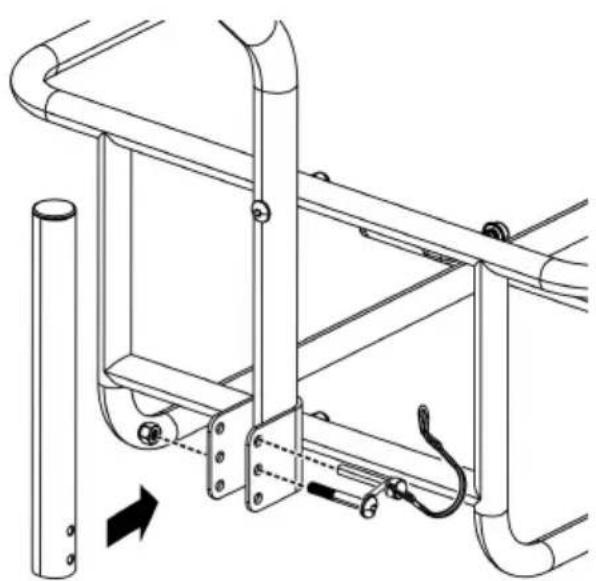

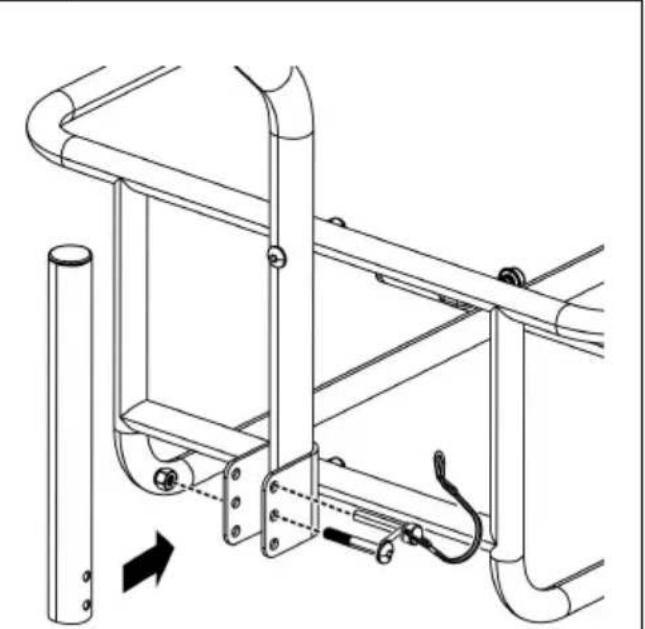

2. Installing the Tow Bar

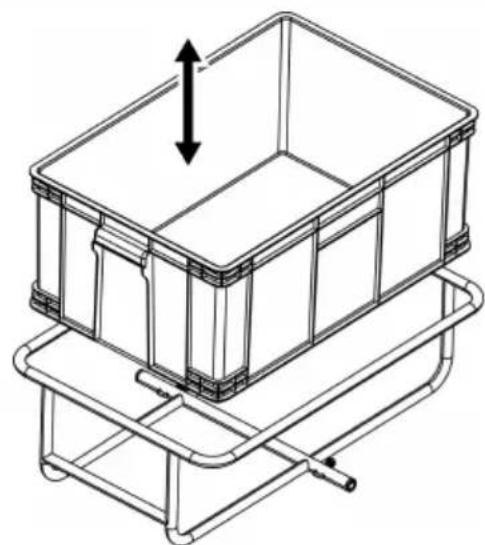

Take out the crate (Figure 4).

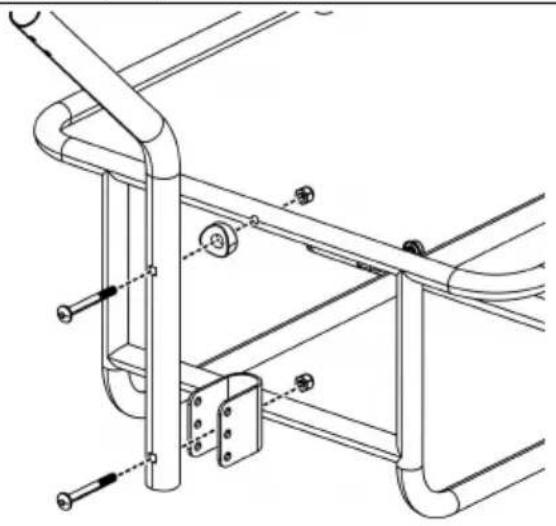

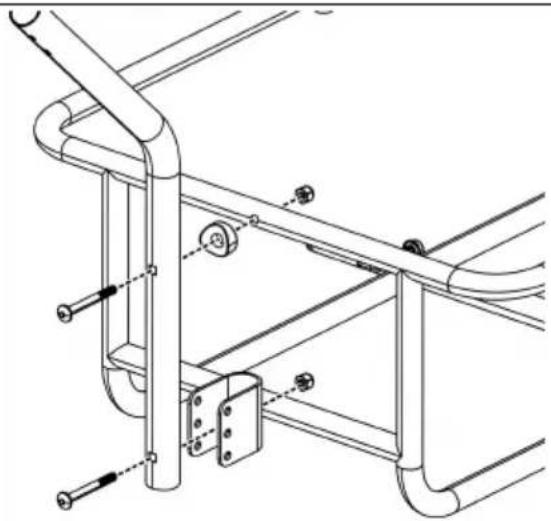

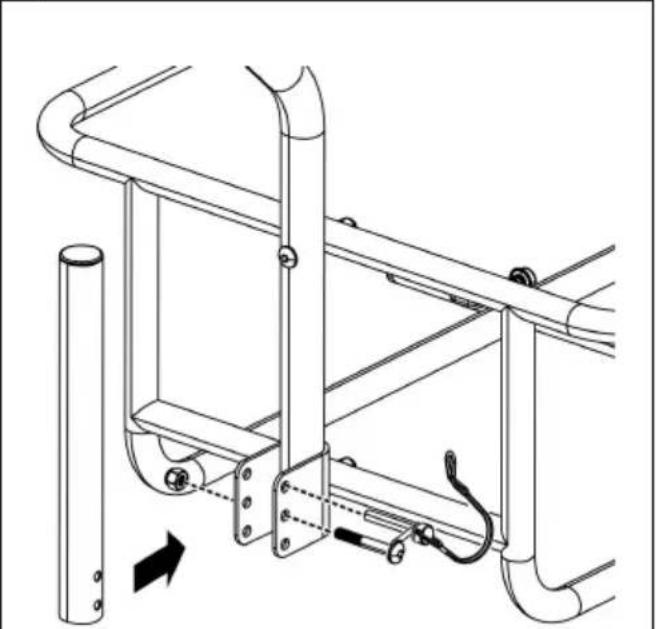

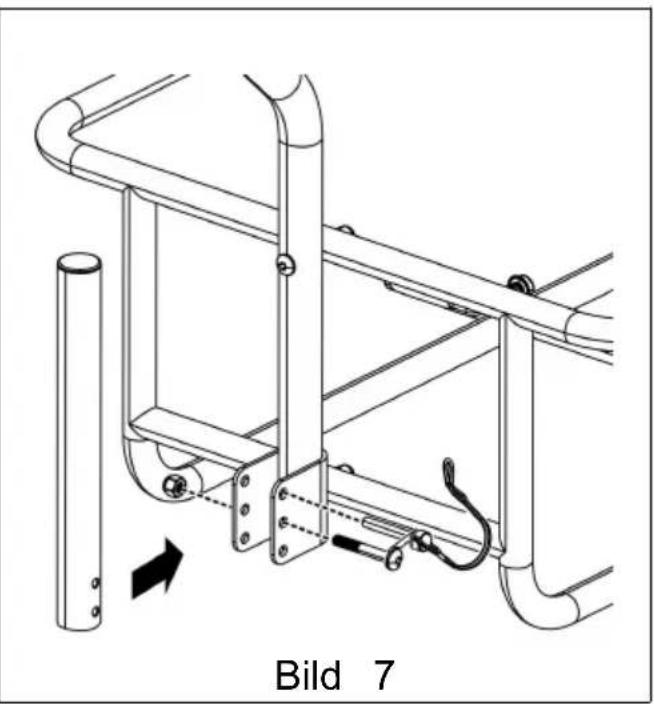

Fix the lower part of tow bar to main frame with 56 mm so gasket in the accessory pack (Figure 5).

Technical line drawing of a multi-tiered plastic storage unit with an upward arrow indicating vertical motion (no text or symbols)

Figure 4

Technical line drawing of a mechanical assembly with pipes, bolts, and mounting brackets (no text or symbols)

Figure 5

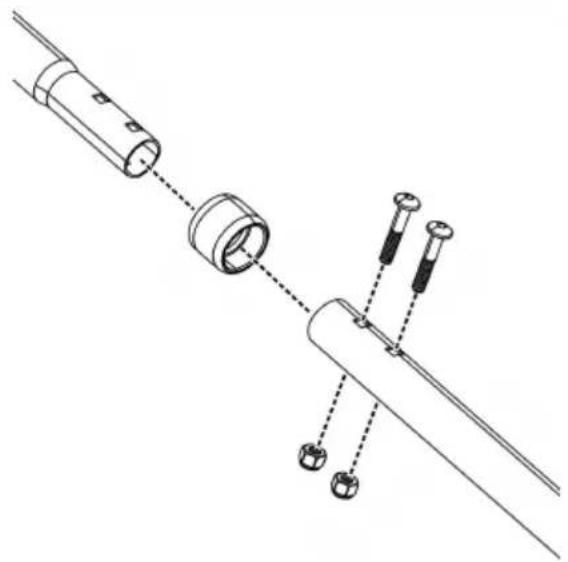

Install the pipe sleeve and combine two parts of tow bar tog Fix two parts with 34 mm screws in the accessory pack (Fig Insert the support leg into the U-shape bracket. Fix the supp with 43 mm screw and safety pin in the accessory pack (Fig

Technical line drawing of a mechanical assembly with cylindrical components and threaded fasteners (no text or symbols)

Figure 6

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 7

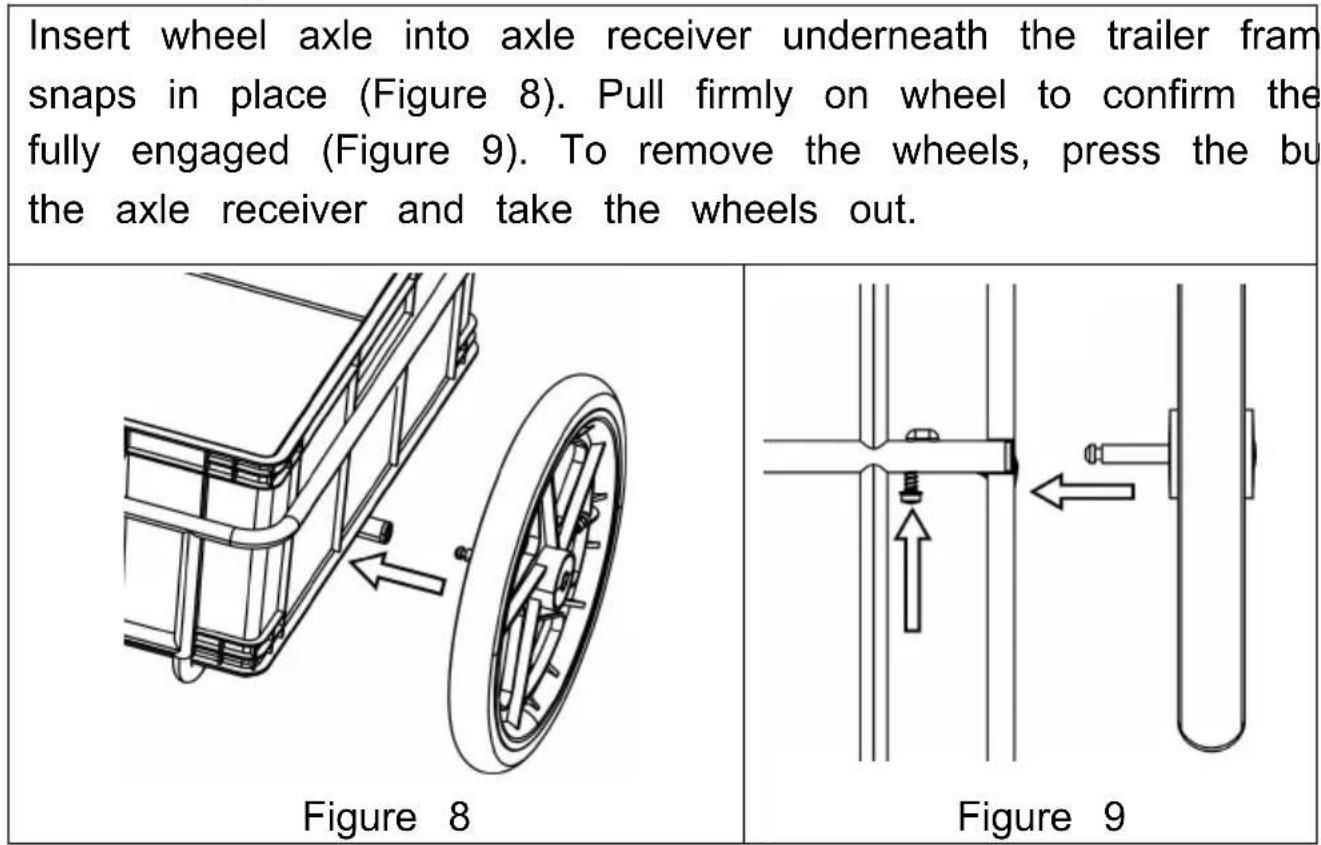

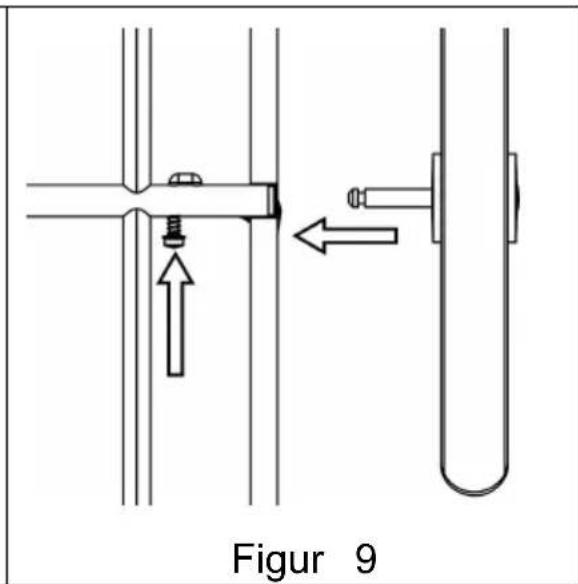

3. Attaching the Wheels

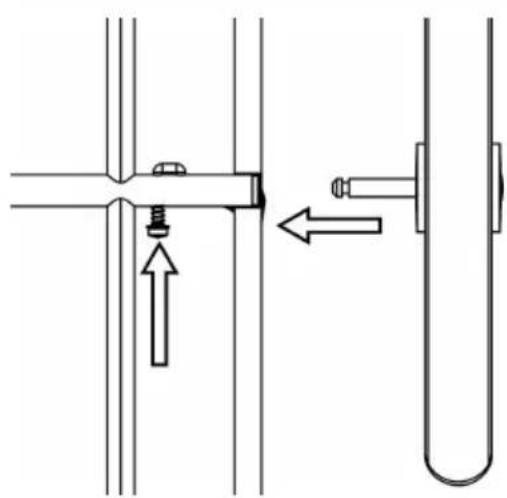

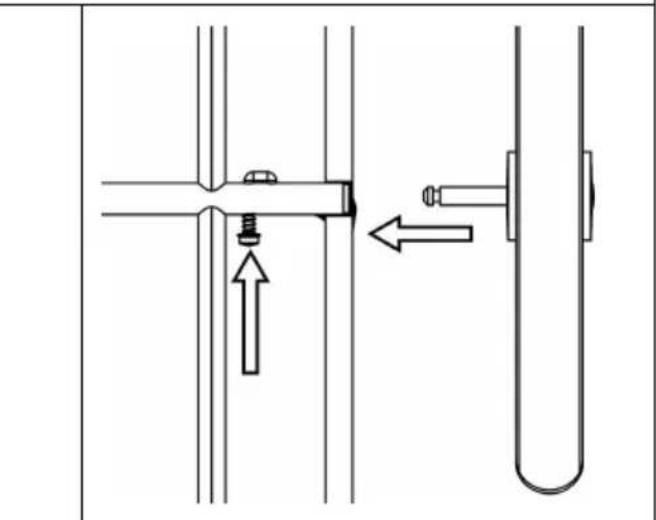

Insert wheel axle into axle receiver underneath the trailer fram snaps in place (Figure 8). Pull firmly on wheel to confirm the fully engaged (Figure 9). To remove the wheels, press the but the axle receiver and take the wheels out.

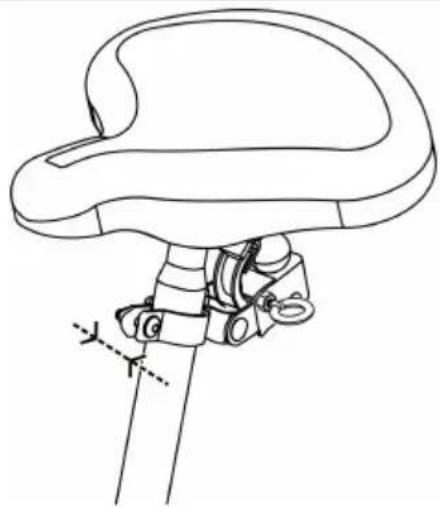

4. Attaching the Trailer to Bicycle

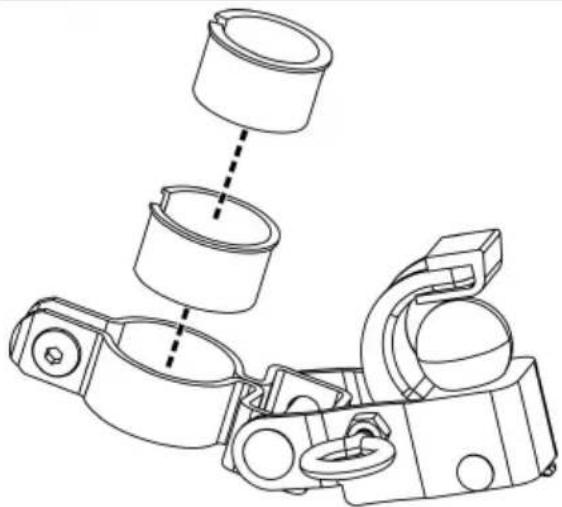

Insert the seat tube of your bicycle into the coupler. Tighten to fix the coupler on desired height (Figure 10). Please use adapters in the accessory pack, if the seat tube does not make (Figure 11).

Technical line drawing of a mechanical component with no visible text or symbols

Figure 10

Technical line drawing of mechanical components with no visible text or symbols

Figure 11

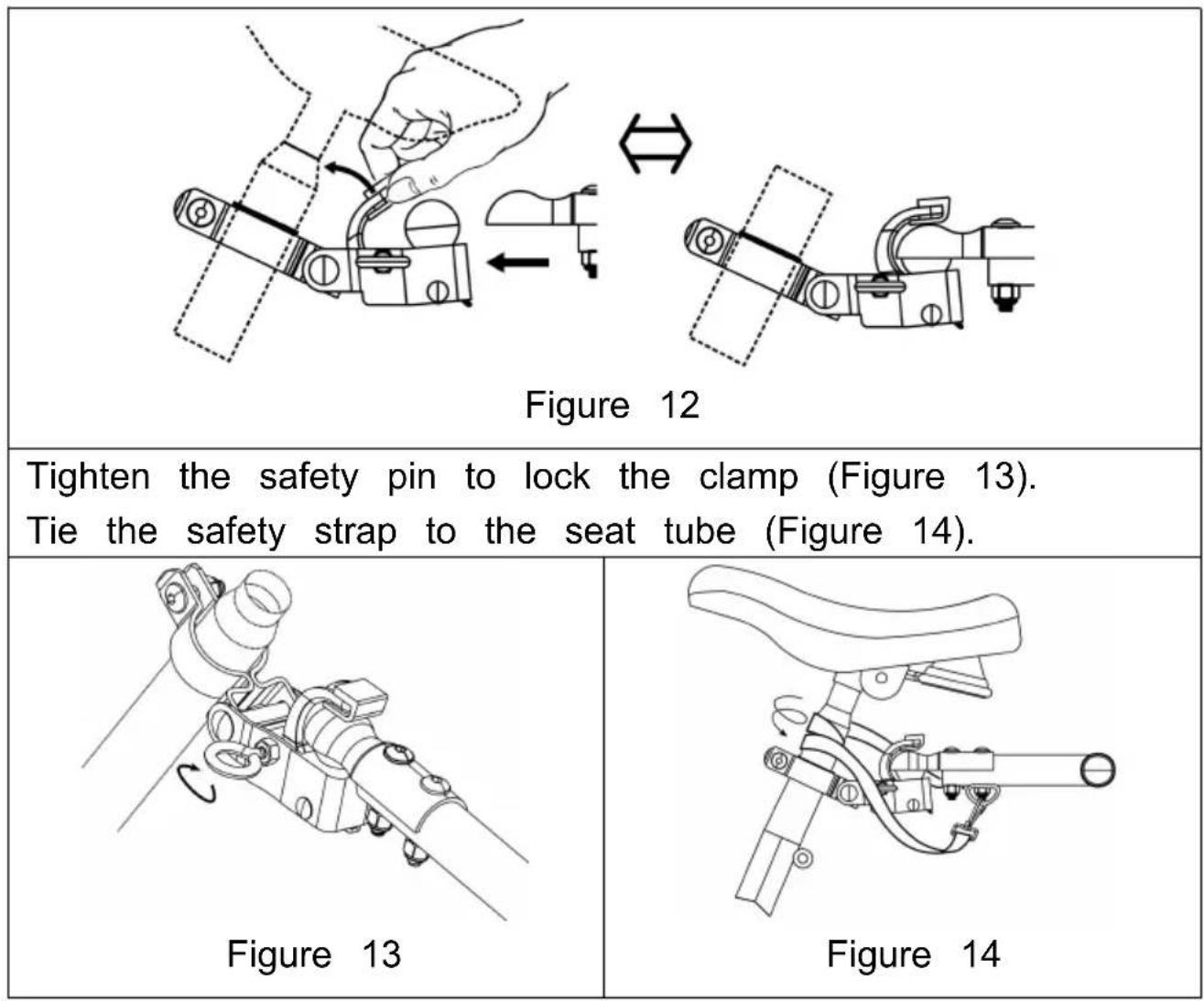

Release the safety pin on the coupler. Open the clamp of the and install it on the tow bar (Figure 12).

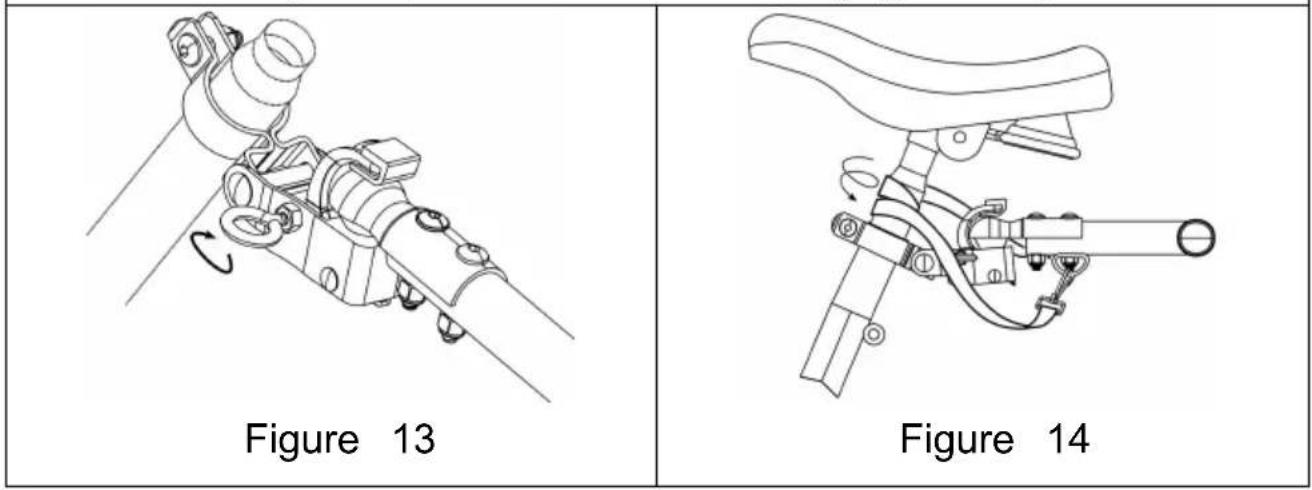

Tighten the safety pin to lock the clamp (Figure 13).

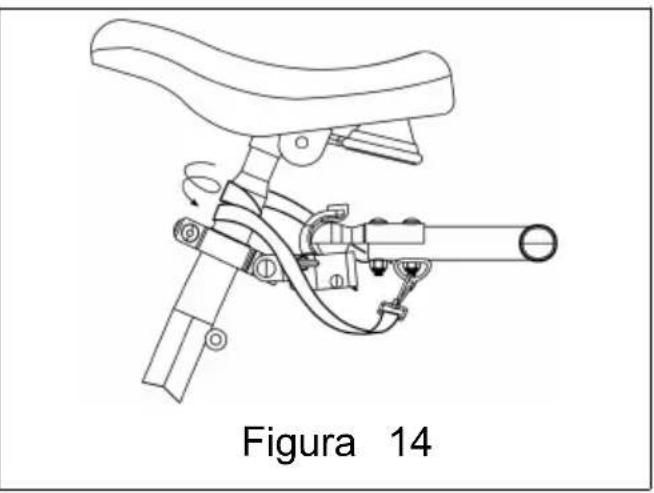

Tie the safety strap to the seat tube (Figure 14).

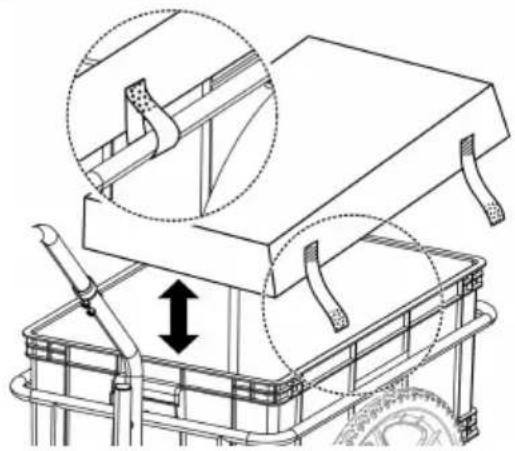

5. Attaching the Cover

Put the cover on the crate.

Tie the hook-and-loop fasteners on both sides to the base fra (Figure 15).

Technical line drawing of a mechanical assembly with a roller and frame structure (no text or symbols)

Figure 15

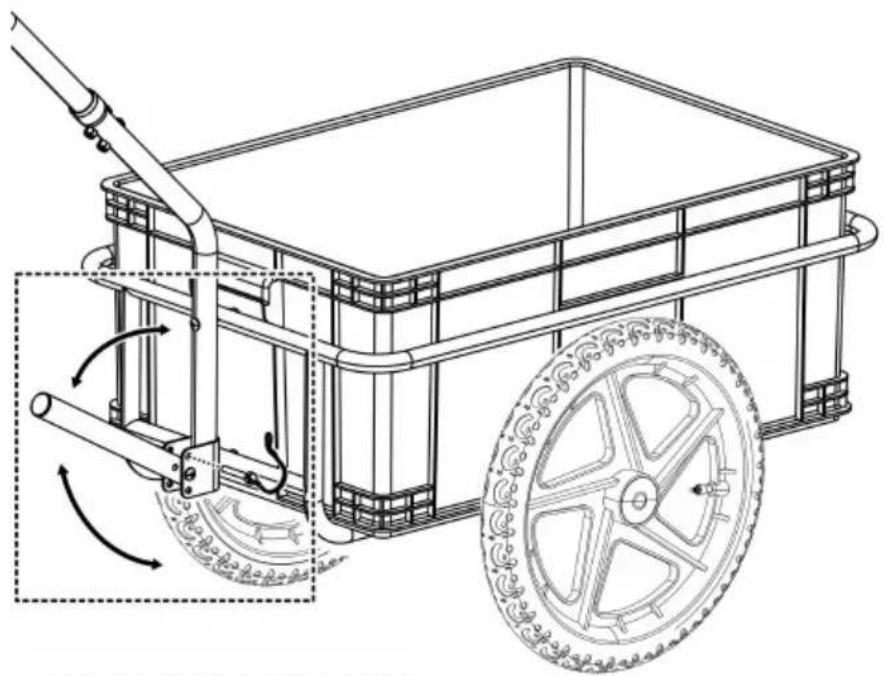

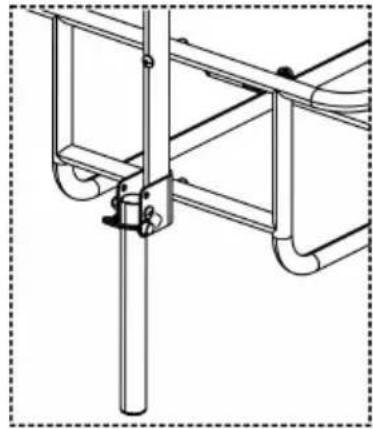

6. Releasing the Support leg

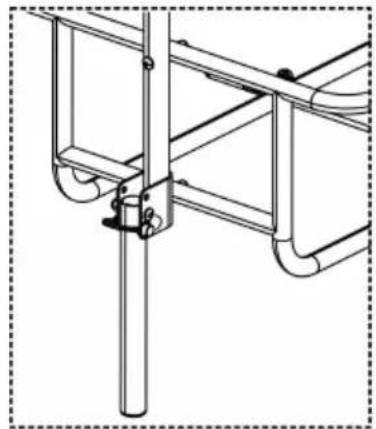

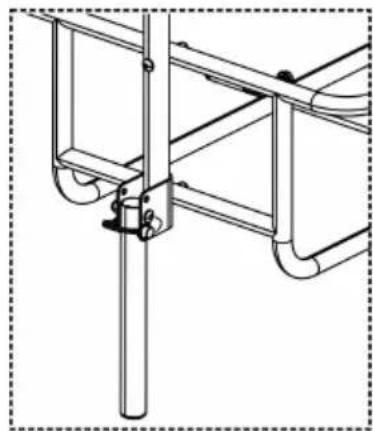

Release the safety pin. Put down the support leg. Fix the sa the lower hole (Figure 16).

The support leg is available only when the trailer is used as Please lock back the support leg before the trailer is attached bicycle.

Technical line drawing of a two-wheeled cart with a handle and wheel, showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical rod (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Figure 16

Before You Ride

Check before each use:

● Wheels are properly secured to the trailer.
● Tires are inflated to recommended pressure on the tire side wall.
● Tow bar is properly secured to the trailer.
- Coupler is properly secured to the bicycle.
- Coupler and safety pins are secured.
- Load does not exceed 40kg(88lbs).
- Weight of tow bar at coupler is greater than 2 kg but does not be kg with fully loaded trailer.
- Make sure that bicycle is in proper working order, especially brakes and tires (refer to bicycle manufacturer's instructions).
- Rider is wearing a helmet.
- Cargo is properly secured.
- Cover is installed and closed.

MAINTENANCE

Storage: For longer product life, store trailer indoors. The trailer should be stored at temperatures less than -10^ F ( -23^ C) or greater than 15^ C ( 65^ C).

Fabric Care: Hand wash fabric parts with warm water and mild soap NOT use bleach or solvents. Wipe dry and store out of direct sunlight dry, well-ventilated area. Clean windows with a damp, soft cloth.

Check:

• Inspect tow bar, hitch, frame tubing, flex connector and hardware for damage.
• Flex Connectors need to be serviced every 3-5 years for safe operation - Check that bolts are tight.
• Inspect tires and wheels for wear and cracks - Inspect wheels for trueness and cracks.
• Inspect fabric parts for rips, abrasions, and missing or damaged hardware.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

Tel: [phone] [e-mail]

UK REP: Pooledas Group Ltd.

Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Tel: [phone] [e-mail]

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE : 20315

Line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ AVERTISSEMENT

Line drawing of a rectangular plastic crate with metal frame structure (no text or symbols)

Line drawing of two overlapping wheel rim components (no text or symbols)

Simple line drawing of a rectangular electronic component with two leads (no text or symbols)

Technical line drawings of two mechanical components with clamps and fasteners (no text or symbols)

Technical line drawing of a mechanical lever system with three different components (no text or symbols)

Technical line drawings of two mechanical components with clamps and fasteners (no text or symbols)

1 x barre de remorquage

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating assembly steps

Figure 1

Technical line drawing of a mechanical clamp or bracket assembly with diagonal lines (no text or symbols)

Figure 2

Technical line drawing of a mechanical assembly with mounting brackets and a directional arrow (no text or symbols)

figure 3

Technical line drawing of a multi-tiered plastic storage unit with an upward arrow indicating compression or lifting (no text or symbols present)

Figure 4

Technical line drawing of a mechanical assembly with pipes, bolts, and mounting brackets (no text or symbols)

Figure 5

Technical line drawing of mechanical components with no visible text or symbols

Figure 6

Technical line drawing of a mechanical assembly with pipes and a vertical rod, showing no text or symbols

Figure 7

Technical line drawing of a vehicle chassis with a wheel rim and structural frame (no text or symbols)

Figure 8

Technical diagram showing a mechanical assembly with arrows indicating direction of movement or force (no text or symbols present)

Figure 9

Line drawing of a mechanical device with a curved top and attached lever (no text or symbols)

Figure 10

Technical line drawing of mechanical components with no visible text or symbols

Figure 11

Technical diagram showing mechanical assembly steps with hand and tool, including transformation and alignment instructions

Figure 12

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with lever and actuator components (no text or symbols)

11. A attacher la couverture

Technical line drawing of a two-wheeled cart with a handle and wheel, showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical rod (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Figure 16

Before You Ride

Bureau 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

FAHRRAD-LASTENANHÄNGER

MODELL: 20315

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: 20315

Line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ WARNING

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Abbildung 1

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Figur 2

Technical line drawing of a mechanical assembly with mounting brackets and cylindrical components (no text or symbols)

Figur 3

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

Abbildung 15

Technical line drawing of a two-wheeled cart with a handle and wheel, showing mechanical components and rotation arrows (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical rod (no text or symbols)

Technical line drawing of a metal frame structure with pipes and connectors (no text or symbols)

Abbildung 16

Before You Ride

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: 20315

Line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ATTENZIONE

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating assembly steps

Figura 1

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

figura 2

Aprire la fascetta e montarla s rimorchio ( Figura 2 ).

Technical line drawing of a mechanical device with four circular components and an arrow indicating motion (no text or symbols)

Figura 3

Technical line drawing of a multi-tiered storage unit with a central box and support frame (no text or symbols)

Figura 4

Technical line drawing of a mechanical assembly with pipes, bolts, and a bracket (no text or symbols)

Figura 5

Technical line drawing of a mechanical assembly with cylindrical components and threaded fasteners (no text or symbols)

Figura 6

Technical line drawing of a mechanical assembly with pipes and brackets, showing no text or symbols

Figura 7

Technical line drawing of a vehicle chassis with a wheel rim and structural components (no text or symbols)

Figura 8

Technical diagram showing mechanical assembly with arrows indicating force or movement (no text or symbols)

Figura 9

Line drawing of a mechanical device with no visible text or symbols

Figura 10

Technical line drawing of mechanical components with no visible text or symbols

Figura 11

Technical diagram illustrating mechanical assembly steps with hand and tool, showing transformation from disassembly to assembly.

Figura 12

Technical line drawing of a two-wheeled cart with a handle and wheel, showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical rod (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Figura 16

Before You Ride

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: 20315

Line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ ADVERTENCIA

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Figura 1

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Figura 2

Technical line drawing of a mechanical device with four circular components and an arrow indicating motion (no text or symbols)

figura 3

Technical line drawing of a multi-tiered storage unit with an upward arrow indicating vertical motion (no text or symbols)

Figura 4

Technical line drawing of a mechanical assembly with pipes, bolts, and a bracket (no text or symbols)

Figura 5

Technical line drawing of a mechanical assembly with cylindrical components and threaded fasteners (no text or symbols)

Figura 6

Technical line drawing of a mechanical assembly with pipes and a pull rod (no text or symbols)

Figura 7

Technical line drawing of a vehicle chassis with a wheel rim and structural components (no text or symbols)

Figura 8

Technical diagram showing a mechanical assembly with arrows indicating direction of movement (no text or symbols present)

Figura 9

Line drawing of a mechanical device with a curved top and attached lever (no text or symbols)

Figura 10

Technical line drawing of mechanical components with no visible text or symbols

Figura 11

Technical diagram illustrating mechanical assembly steps with hand and tool, showing transformation from disassembly to assembly.

Figura 12

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with lever and actuator components (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction, labeled 'Figura 15' (no text or symbols on the diagram itself)

30. Soltar la pata de soporte

Technical line drawing of a two-wheeled cart with a handle and wheel, showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical rod (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Figura 16

Before You Ride

1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PRZYCZEPKA ROWEROWA

MODEL: 20315

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 20315

Line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ OSTRZEŻENIE

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Rysunek 1

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Rysunek 2

Technical line drawing of a mechanical device with mounting brackets and a lever mechanism (no text or symbols)

Rysunek 3

Technical line drawing of a multi-tiered storage unit with an upward arrow indicating compression or displacement (no text or symbols)

Rysunek 4

Technical line drawing of a mechanical assembly with pipes, bolts, and a bracket (no text or symbols)

Rysunek 5

Technical line drawing of mechanical components with no visible text or symbols

Rysunek 6

Technical line drawing of a mechanical assembly with pipes and a vertical rod, showing no text or symbols

Rysunek 7

33. Mocowanie kół

Technical line drawing of a vehicle chassis with a wheel rim and directional arrow indicating assembly (no text or symbols)

Cyfra 8

Technical diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Rysunek 9

Line drawing of a mechanical device with a curved top and attached lever (no text or symbols)

Rysunek 10

Technical line drawing of mechanical components with no visible text or symbols

Rysunek 11

Technical diagram showing mechanical assembly steps with hand and tool, including alignment instructions

Rysunek 12

Technical line drawing of a two-wheeled cart with a handle and wheel, showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical rod (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Rysunek 16

Before You Ride

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

FIETSVRACHTWAGEN

MODEL: 20315

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 20315

Line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ WAARSCHUWING

Technical diagram showing mechanical assembly with labeled parts and a magnified inset view of a bracket component.

Figuur 1

Technical line drawing of a mechanical clamp or bracket with diagonal lines (no text or symbols)

Figuur 2

Technical line drawing of a mechanical assembly with mounting brackets and a directional arrow (no text or symbols)

figuur 3

38. De trekhaak monteren

Haal de krat eruit ( Figuur 4 ) .

Technical line drawing of a multi-tiered plastic storage unit with an upward arrow indicating compression or lifting (no text or symbols present)

Figuur 4

Technical line drawing of a mechanical assembly with pipes, bolts, and mounting brackets (no text or symbols)

Figuur 5

Technical line drawing of a vehicle chassis with a wheel rim and directional arrow indicating motion (no text or symbols)

Figuur 8

Technical diagram showing mechanical assembly with arrows indicating direction of movement (no text or symbols)

Figuur 9

Line drawing of a mechanical device with a curved top and attached lever (no text or symbols)

Figuur 10

Technical line drawing of mechanical components with no visible text or symbols

Figuur 11

Technical diagram showing mechanical assembly steps with hand and tool, including transformation and alignment instructions

Figuur 12

Technical line drawing of a two-wheeled cart with a handle and wheel, showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical rod (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Figuur 16

Before You Ride

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CYKEL CARGO TRAILER

MODELL: 20315

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: 20315

Line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Line drawing of a rectangular metal crate with side supports and wheels (no text or symbols)

1 x Huvudram

Technical line drawing of two interlocking wheel rim components (no text or symbols)

2 x hjul

Simple line drawing of a rectangular electronic component with two leads (no text or symbols)

1 x lock

Technical line drawings of two mechanical components with clamps and fasteners (no text or symbols)

2 x främre reflektorsatser (vit

Technical line drawing of a mechanical tool or bracket assembly (no text or symbols)

1 x Dragkrok

Technical line drawings of two mechanical components with clamps and plates (no text or symbols)

2 x Bakre reflektorsatser ( rö

Technical line drawings of mechanical clamps and clips (no text or symbols)

2 x Sidoreflektorsatser ( gul

56 mm 34 mm

1 x tillbehörspaket

1 x 1 1 mm Skiftnyckel +1 x 4 mm H ex nyckel + 1 x An VEVOR® TOP-TRIL & ANT PRESS BICYCULE CARGO TRAVELAR METH: 0.7mm

How to Assemble

Technical line drawing of a mechanical assembly with mounting holes and a directional arrow (no text or symbols)

Figur 3

Technical line drawing of a multi-tiered storage unit with an upward arrow indicating vertical motion (no text or symbols)

Figur 4

Technical line drawing of a mechanical assembly with pipes, bolts, and a bracket (no text or symbols)

Figur 5

Technical diagram of a mechanical assembly with labeled section 'Bild 6' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a wheel and frame structure, labeled as Figur 8 (no text or symbols on the diagram itself)

Figur 9

Technical line drawing of a mechanical assembly with a bracket and mounting base, showing internal components and motion direction (no text or symbols)

Bild 15

Technical line drawing of a two-wheeled cart with a handle and wheel, showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical rod (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Bild 16

Before You Ride

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
