BICYCLE CARGO TRAILER

MODEL: CT901M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CT901M

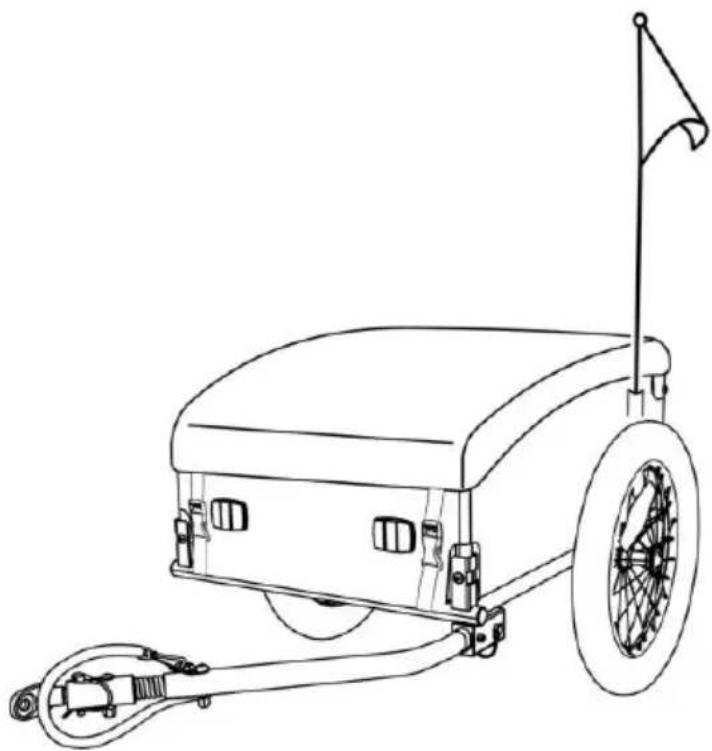

Line drawing of a wheeled robotic vehicle with a flagpole and connecting hoses (no text or symbols)

Important: Keep these instructions for future reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Failure to comply with the instructions and warnings in this man could result in serious injury or death of the rider.

• The trailer is designed exclusively for transporting cargo on road bicycle. It is intended for personal use only. Only use the trailer described in the instructions. Any other use is considered improper and may result in serious injury or death.
• The bike trailer can be used with any standard adult bicycle. DO use the trailer with E-bike or motorcycle.
• DO NOT use the trailer to transport child or pet. DO NOT use a trailer as a toy.
• DO NOT use the trailer off road. DO NOT use the trailer without connecting to a bicycle.
• Ensure that all locking devices are engaged before use.
  ● Maximum load: 45 kg (100 lbs.)
  ● This product is not suitable for running or skating
• Any load attached to the handle and/or on the back of the back and/or on the sides of the vehicle will affect the stability of the
• Accessories which are not approved by the manufacturer shall not used.
• Only use replacement parts supplied or recommended by the manufacturer.
• Do NOT use it with a total load that exceeds the weight limits. recommended load is exceeded, the unit may become unstable.
• DO NOT make modifications to the product.
• DO NOT over-inflate the tires. Failure to comply with the rated tire sidewall pressure may lead to explosion of the tire and possible
• It is recommended that a qualified bicycle mechanic does a safety check of the towing bicycle before attaching the trailer.
• Before each ride, be sure the trailer does not interfere with braking pedaling or steering of the bicycle.
  ● Always comply with local regulations when using the trailer on pul roadways.

• Never ride a bicycle at night without adequate lighting.

• Obey all local legal requirements for lighting.

• If you need to come to a stop for any reason, such as to make adjustments or to address a flat tire, be sure to pull off the road completely.
• When using your trailer, you are towing extra weight and a bigger vehicle. You must allow more time for braking, slowing, stopping a starting, and allow more room for turns and passageways. Experiments with the loaded trailer in an uncongested area until you become familiar with how your bike handles towing a trailer.
• Avoid rocks, curbs, hard braking and sudden swerving. Avoid riding over obstacles with one wheel, as this may cause the trailer to 1
  ● Always ride with the cover down to secure the cargo.
  ● The rider of the bicycle must be at least 16 years old.
• Recommended speed limits: - 16 km/h (10 mph.) on smooth, straig roads - 8 km/h (5 mph.) when turning or on uneven roads.
• Trailer weight must be properly distributed for safe handling. The weight on the hitch connector should be between 30 N (≈3 kg / and 80 N (≈8 kg / 17.6 lbs.). To measure this, load your trailer place it next to bathroom scale. Step on scale and make a note weight. Standing on scale, lift up the end of the tow bar one for (approximately 25cm) off the ground. The weight shown should be – 17.6 lbs. more than your own weight. If the weight is too low, wheel of the bicycle could lose traction. If it is too high the hitch overloaded.

MODEL AND PARAMETERS

Model	CT901M
Type	Tow
Max. Load	100lbs
Storage Bin Size	26.8*18.5*11.2inch
Wheels	Steel, 16*1.75inch
Material	Steel, Oxford cloth

CONTENTS

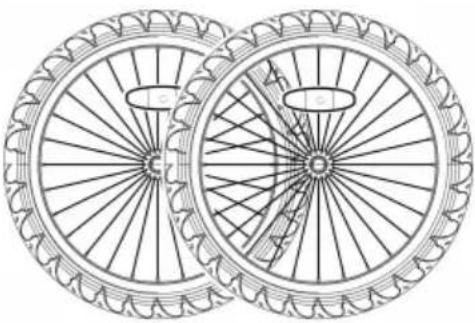

1 x Main frame	2 x Wheels
2 x Wheel axle	1 x Flag
1 x Tow bar	2 x Rear reflectors (red)
2 x Front reflectors (white)	1 x Crossbar

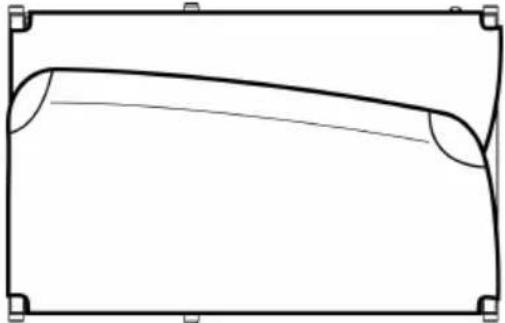

2 x Wheel guards
+
1 x 19mm Wrench +1 x 4mm Hex key+1 x User Manu

How to Assemble

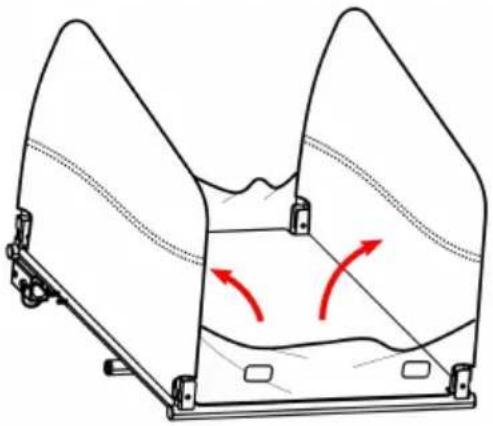

1. Opening the Main Frame

Technical line drawing of a mechanical component with red directional arrows indicating motion or movement (no text or symbols)

Figure 1

Take out the trailer's main frac and all other components from the carton. Raise both side pa to an upright position (Figure

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Figure 2

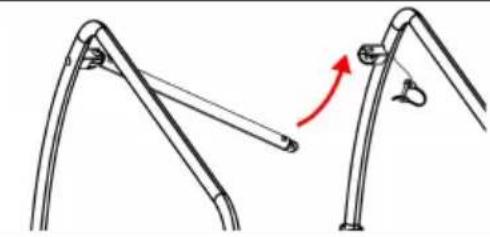

After opening the main frame, install the crossbar on the from main frame using the hex hey (Figure 2).

Fasten the crossbar to the top front part of the main frame. Rais the cross bar using the safety pin attached to the bolt (Figure 3). that safety pins are properly locked in place as shown (Figure 4).

Diagram showing two mechanical lever configurations with a red arrow indicating motion direction (no text or symbols)

Simple line drawing of a metal frame with hooks and connectors (no text or symbols)

Figure 3

Simple line drawing of a mechanical clamp or bracket with a green checkmark (no text or symbols)

Technical line drawing of a mechanical clamp or connector with a red X mark indicating cancellation (no text or symbols present)

Figure 4

2. Attaching the Wheels

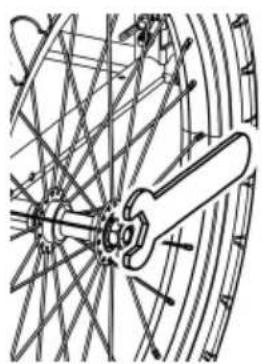

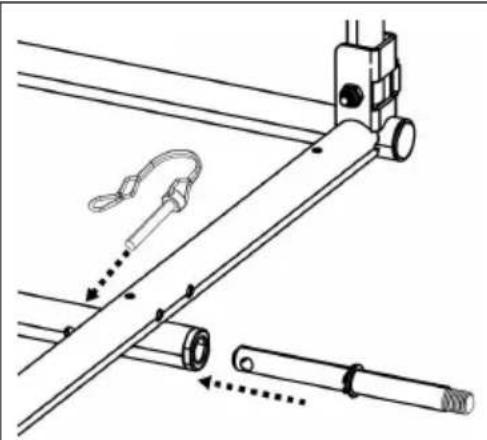

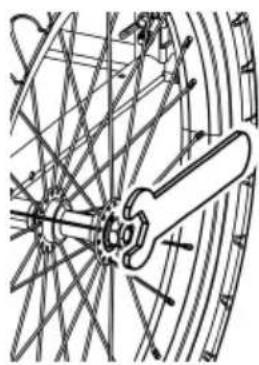

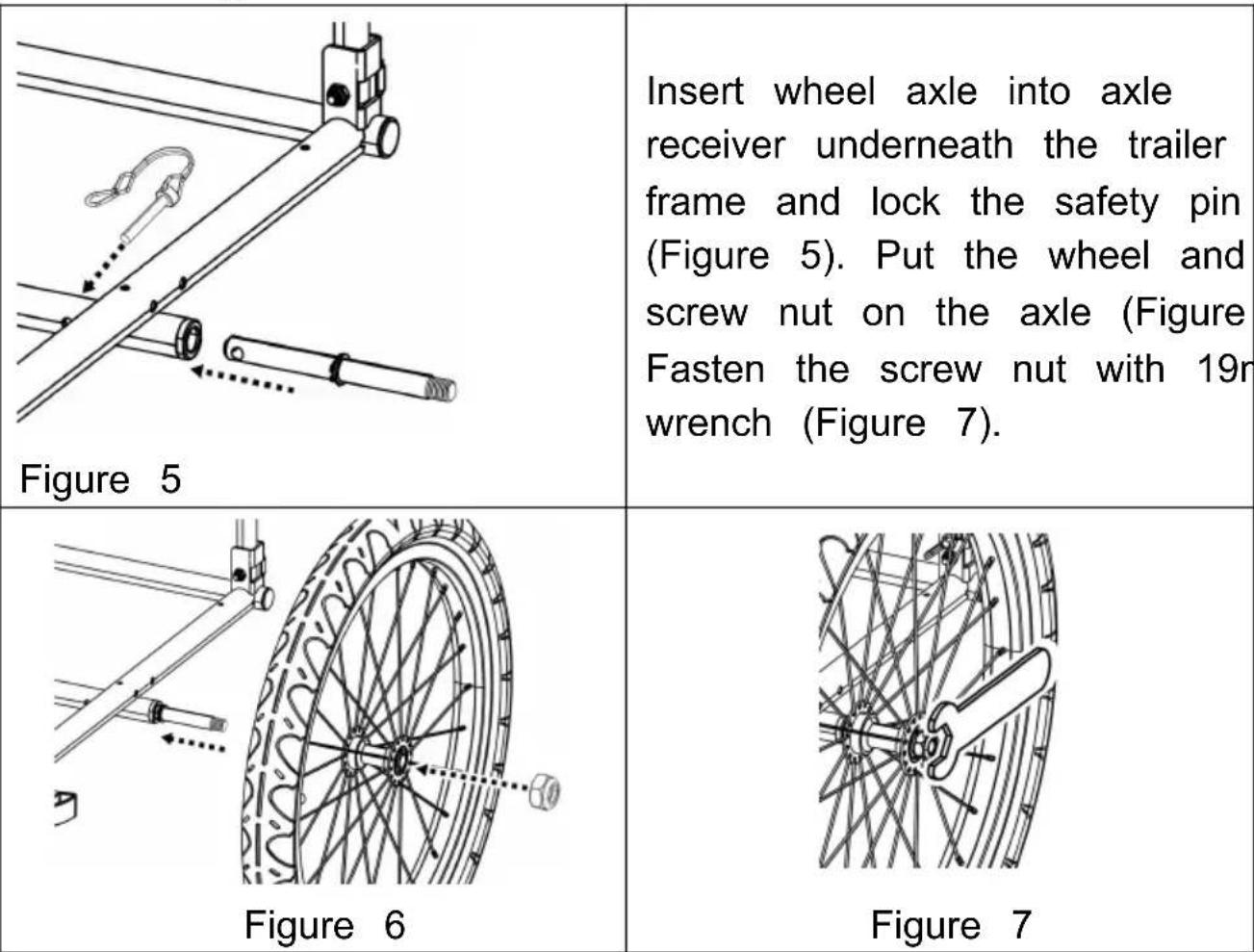

Insert wheel axle into axle receiver underneath the trailer frame and lock the safety pin (Figure 5). Put the wheel and screw nut on the axle (Figure Fasten the screw nut with 19r wrench (Figure 7).

3. Installing the Wheel Guards

Technical line drawing of a mechanical assembly with spring-loaded components and a tire-like component (no text or symbols)

Figure 8

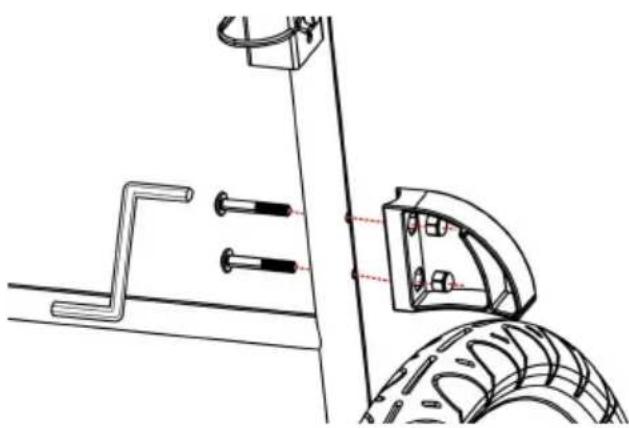

Insert wheel guard bolts through frame tube. Match holes in wh guards to bolts. Tighten secure with hex key (Figure 8). Repeat for wheel guard on other side trailer.

4. Installing the Tow Bar

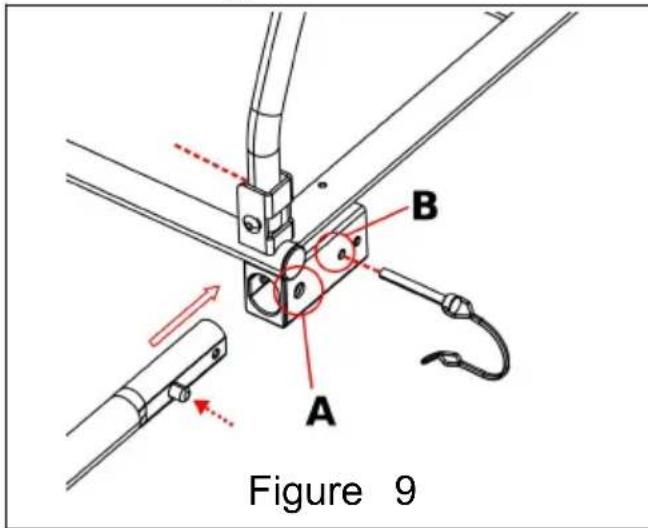

Figure 9 A B

Pressing the spring button, slid the tow bar into the tow bar receiver until the spring button comes out of the hole A. Inse safety pin from the hole B th the other side. Make sure the safety pin is properly locked in place as shown (Figure 9)

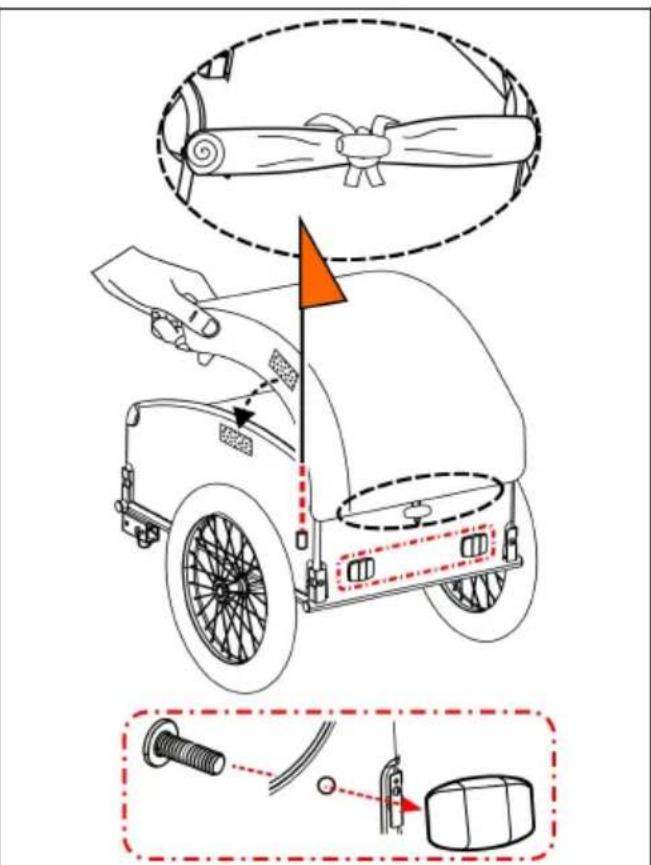

5. Attaching the Cover and Flag

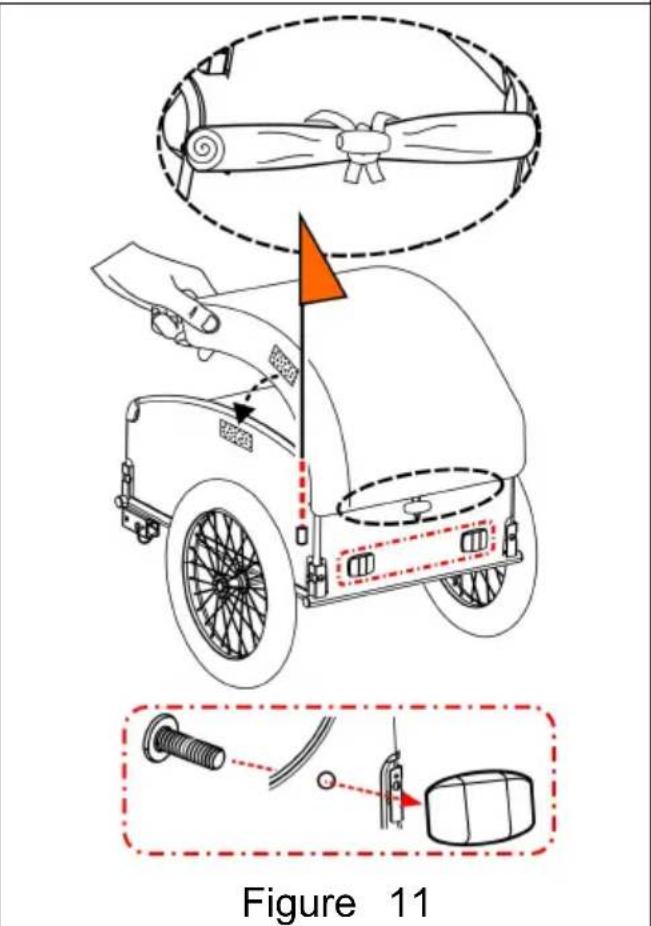

Pull out and fix the cloth with buckle. Tighten the strap to faste (Figure 10). Attach hook-and-loop fastener to corresponding position Insert the flag pole into the flagpole pocket at the left rear corn side panel (Figure 11).

You can roll up and pack the cloth when not using it (Figure 1) Insert screws into holes on the cover to fasten front (white) and reflectors. (Figure 10,11)

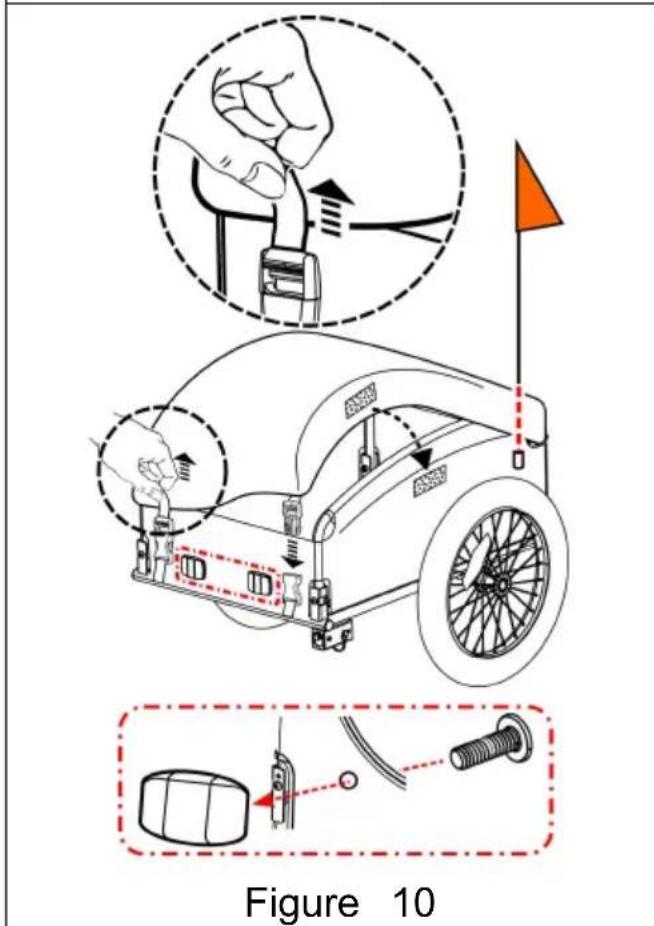

Figure 10

Figure 11

6. Attaching Trailer to Bicycle

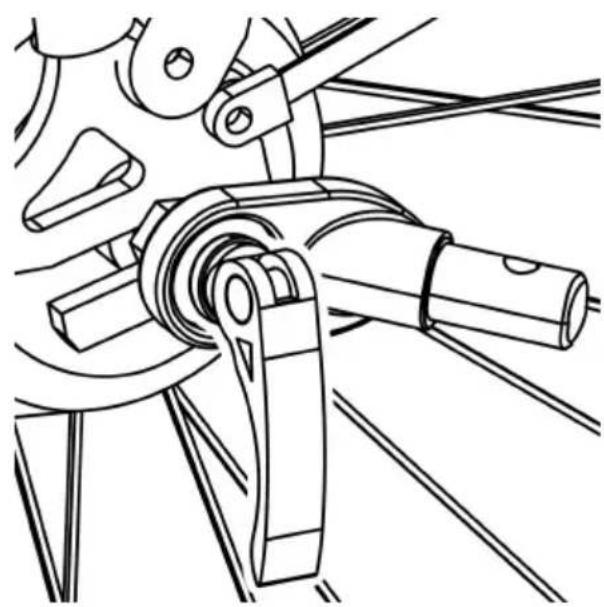

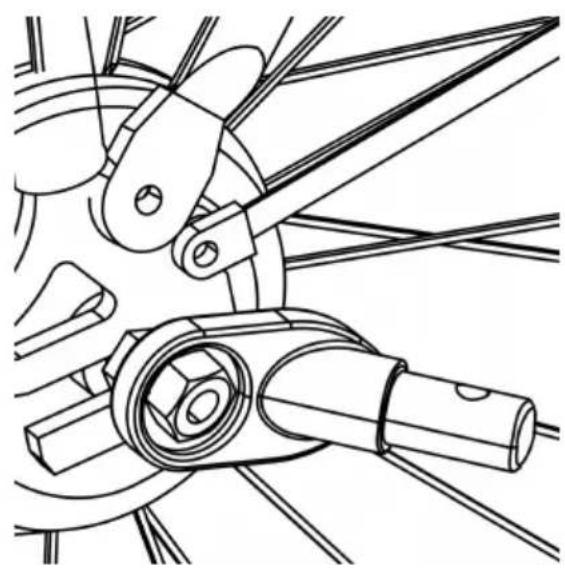

1. Quick-release Axle: Remove the quick-release from the left bike's rear axle. Install the hitch between the quick-release and Tighten the quick-release following the bike manufacturer's man Hitch can remain on the bike when the trailer is removed (Fi

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 12

WARNING

The tension-adjusting nut must engage the threads for at least five full turns in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the tension-adjusting nut fully may result in accidents with serious injury or death. If the quick-release skewer is too much it must be replaced. Consult a professional bicycle mechanic for the appropriate parts and assistance.

1. Nutted Axle: Unscrew the nut with washer from the left s bike's rear axle. Install the hitch onto the axle and screw the on with the washer(Figure 13).

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Figure 13

WARNING

The axle nut must engage the threads for at least five full tu in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the nut fully may result accidents with serious injury or death. If the axle is too short Universal Hitch cannot be used Consult a professional bicycle mechanic for the appropriate parts and assistance.

1. Thru Axle: The universal hitch doesn't fit a bike with thru Please consult the retailer for possible solution.

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Mechanical assembly diagram showing gear and shaft components with motion arrows (no text or labels)

Figure 14

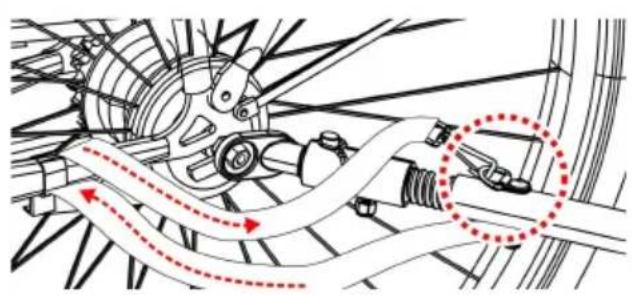

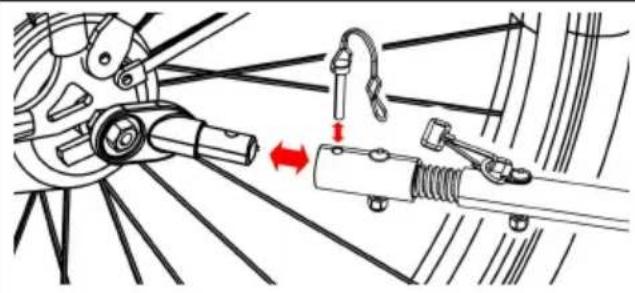

Connect the coupler on the bar and secure the safety pi (Figure 14). Once the tow bar attached, wrap safety belt arou the frame of the bike and hoo onto the D-ring on the tow ba

Before You Ride

Check before each use:

1. Wheels are properly secured to the trailer.
2. Tires are inflated to recommended pressure on the tire side wall.
3. Tow bar is properly secured to the trailer.
4. Coupler is properly secured to the bicycle.
5. Coupler and tow bar safety pins are secured.
6. Safety strap on the tow bar is properly installed.
7. Load does not exceed 30kg (66 lbs.).
8. Weight of tow bar at coupler is greater than 3 kg but does not exceed (6.6 - 17.6 lbs.) with fully loaded trailer.
9. Make sure that bicycle is in proper working order, especially brakes air tires .(refer to bicycle manufacturer's instructions)
10. Rider is wearing a helmet.
11. Safety flag is in place.
12. Cargo is properly secured with harness and lap belt.
13. Cover is installed and closed.

MAINTENANCE

Storage: For longer product life, store trailer indoors. The trailer should n stored at temperatures less than -10^ F ( -23^ C) or greater than 150^ F ( 65^

Fabric Care: Hand wash fabric parts with warm water and mild soap. Do use bleach or solvents. Wipe dry and store out of direct sunlight in a d well-ventilated area. Clean windows with a damp, soft cloth.

Check:

• Inspect tow bar, hitch, frame tubing, flex connector and hardware for damage.
• Flex Connectors need to be serviced every 3-5 years for safe operation. Check that bolts are tight.
• Inspect tires and wheels for wear and cracks - Inspect wheels for tru and cracks.
• Inspect fabric parts for rips, abrasions, and missing or damaged hardw

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

Tel: [phone] [e-mail]

UK REP: Pooledas Group Ltd.

Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Tel: [phone] [e-mail]

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE : CT901M

Line drawing of a wheeled robotic vehicle with a flagpole and connecting hoses (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ AVERTISSEMENT

Pure geometric diagram of a curved rectangular frame with corner markers (no text or symbols)

Two bicycle wheel rim designs with spokes and wheels, no text or symbols present

Technical illustration of two cylindrical mechanical components with threaded ends and separate hexagonal nuts (no text or symbols)

Simple line drawing of a right triangle and a curved line with a loop (no text or symbols)

Technical line drawing of a mechanical tool with a flanged handle and two separate views (no text or symbols)

Diagram showing two cylindrical objects with textured surfaces and two separate screw-like components (no text or symbols)

1 x barre de remorquage

Diagram of a vehicle chassis with two curved compartments and red directional arrows indicating motion (no text or symbols)

Figure 1

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Figure 2

Diagram showing two mechanical setups with a red arrow indicating motion, no text or symbols present

figure 3

Two technical line drawings of mechanical components with check and cross symbols (no text or labels)

Figure 4

Technical diagram of a mechanical assembly with rods, gears, and a hanging hook (no text or symbols)

Figure 5

Technical line drawing of a bicycle wheel assembly with guide rails and hub, showing tire alignment and wheel rim (no text or symbols)

Figure 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Figure 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 8

Diagram illustrating car wheel assembly and safety instructions with labeled components and directional arrows

Figure 10

Diagram illustrating the use of a propeller on a car, with labeled parts and wiring instructions.

Figure 11

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 12

⚠ AVERTISSEMENT

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figure 1 3

⚠ AVERTISSEMENT

Bureau 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

FAHRRAD-LASTENANHÄNGER

MODELL: CT901M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: CT901M

Line drawing of a wheeled robotic vehicle with a flagpole and connecting hoses (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ WARNING

Technical line drawing of a mechanical component with red directional arrows indicating motion or movement (no text or symbols)

Abbildung 1

Diagram illustrating car seatbelt usage and mounting mechanism with labeled parts and instructions

Abbildung 10

Diagram illustrating the use of a propeller on a motor, with labeled parts and wiring connections.

Abbildung 11

Technical line drawing of a mechanical assembly with no visible text or symbols

Abbildung 12

⚠️ WARNING

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Abbildung 1 3

⚠️ WARNING

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: CT901M

Line drawing of a wheeled robotic vehicle with a flagpole and connecting hoses (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ATTENZIONE

Two identical mechanical components with side connectors, no text or symbols visible

Technical line drawing of a mechanical component with red directional arrows indicating motion or movement (no text or symbols)

Figura 1

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

figura 2

Diagram showing two mechanical setups with a red arrow indicating motion, no text or symbols present

Figura 3

Two mechanical clamp or hook components with checkmark and cross symbols (no text or labels)

Figura 4

Technical diagram of a mechanical assembly with rods, gears, and a hanging clamp (no text or symbols)

Figura 5

Technical line drawing of a bicycle wheel assembly with mounting bracket and tire alignment (no text or symbols)

Figura 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Figura 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 8

Diagram illustrating car wheel assembly and safety instructions with labeled components and directional arrows

Figura 10

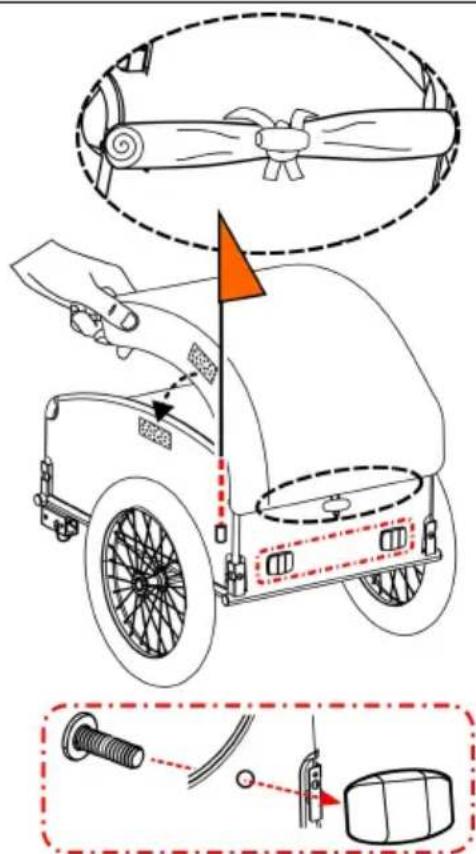

Diagram illustrating the components of a helicopter's propeller, including parts like the propeller blade, flag, and wiring.

Figura 11

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 12

ATTENZIONE

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figura 13

ATTENZIONE

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: CT901M

Line drawing of a wheeled robotic vehicle with a flagpole and connecting hoses (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ ADVERTENCIA

Two identical mechanical components with side connectors, no text or symbols visible

Technical line drawing of a mechanical component with red directional arrows indicating motion or movement (no text or symbols)

Figura 1

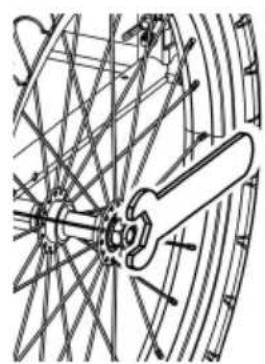

Pure mechanical diagram showing a tool interacting with a curved pipe or channel (no text or symbols)

Figura 2

Diagram showing two mechanical setups with a red arrow indicating motion, no text or symbols present

figura 3

Two mechanical clamp components with checkmark and cross symbols (no text or labels)

Figura 4

Technical diagram of a mechanical assembly with rods, gears, and a hanging clamp (no text or symbols)

Figura 5

Technical line drawing of a bicycle wheel assembly with mounting bracket and tire alignment (no text or symbols)

Figura 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Figura 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 8

Diagram illustrating car wheel assembly and safety instructions with labeled components and directional arrows

Figura 10

Diagram illustrating the components of a helicopter's propeller, including parts like the propeller blade, flag, and wiring.

Figura 11

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 12

ADVERTENCIA

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Figura 1 3

ADVERTENCIA

1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PRZYCZEPKA ROWEROWA

MODEL: CT901M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CT901M

Line drawing of a wheeled robotic vehicle with a flagpole and connecting hoses (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ OSTRZEŻENIE

Pure geometric diagram of a curved rectangular shape with corner markers, no text or symbols present

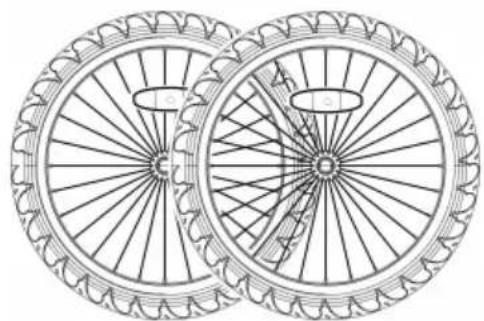

Two bicycle wheel rim designs with spokes and wheels, no text or symbols present

1 x rama główna

Technical illustration of two cylindrical mechanical components with threaded ends and separate hexagonal nuts (no text or symbols)

2x koła

Simple line drawing of a right triangle and a curved line with a loop (no text or symbols)

2 x Oś koła

Technical line drawing of a mechanical tool with a flanged handle and attached bracket (no text or symbols)

1 x flaga

Diagram showing two cylindrical objects with textured surfaces and two separate screw-like components (no text or symbols)

1 x hak holowniczy

Diagram of a vehicle chassis with two curved compartments and red directional arrows indicating motion (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing two mechanical setups with a red arrow indicating motion, no text or symbols present

Rysunek 3

Two technical line drawings of mechanical components with check and cross symbols (no text or labels)

Rysunek 4

32. Mocowanie kół

Technical diagram of a mechanical linkage system with rope and rod components (no text or labels)

Rysunek 5

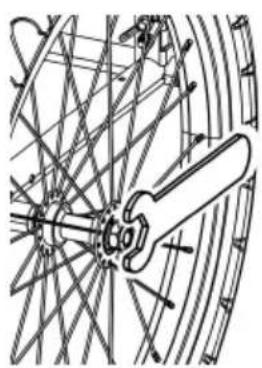

Technical line drawing of a bicycle wheel assembly with guide rails and hub, showing tire alignment and wheel rim (no text or symbols)

Rysunek 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Rysunek 7

Diagram illustrating car seatbelt usage and mounting mechanism, showing hand positioning, wheel assembly, and bolt installation steps.

Rysunek 10

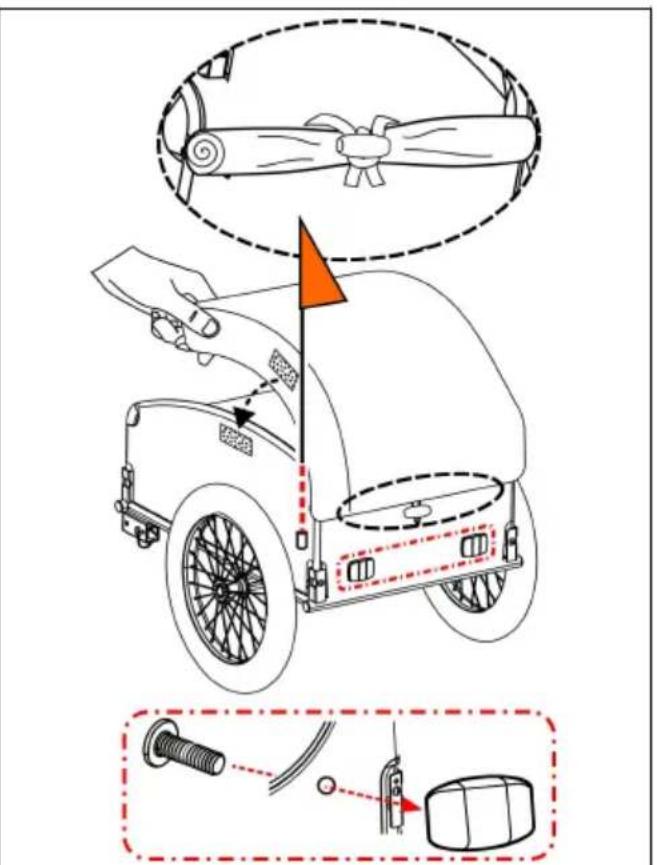

Diagram illustrating the use of a propeller on a motor, with labeled parts and wiring connections.

Rysunek 11

Technical line drawing of a mechanical assembly with no visible text or symbols

Rysunek 12

⚠ OSTRZEŻENIE

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

FIETSVRACHTWAGEN

MODEL: CT901M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CT901M

Line drawing of a wheeled robotic vehicle with a flagpole and connecting hoses (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ WAARSCHUWING

Two identical mechanical components with side connectors, no text or symbols visible

2 x wielbeschermers

+ + VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR VEVOR

1 x 19 mm sleutel + 1 x 4 mm H ex-sleutel + 1 x gebruik

How to Assemble

Technical line drawing of a mechanical component with red directional arrows indicating motion or movement (no text or symbols)

Figuur 1

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Figuur 2

Diagram showing two mechanical setups with a red arrow indicating motion, no text or symbols present

figuur 3

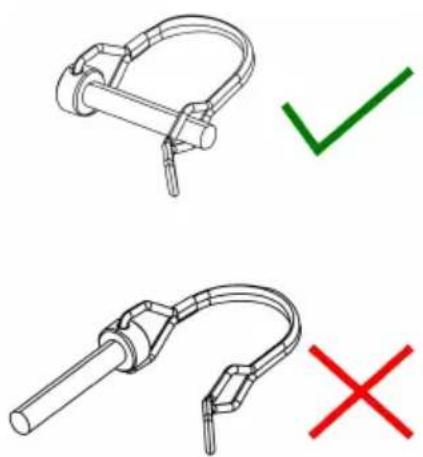

Two mechanical components with checkmark and cross symbols, no text or labels present

Figuur 4

Technical diagram of a mechanical assembly with pipes and a clamp, no text or symbols present

Figuur 5

Technical line drawing of a bicycle wheel assembly with mounting bracket and tire alignment (no text or symbols)

Figuur 6

Technical line drawing of a bicycle wheel assembly (no text or symbols)

Figuur 7

Technical line drawing of a mechanical assembly with bolts and a tire (no text or symbols)

Figuur 8

Diagram illustrating car wheel assembly and safety instructions with labeled components and directional arrows

Figuur 10

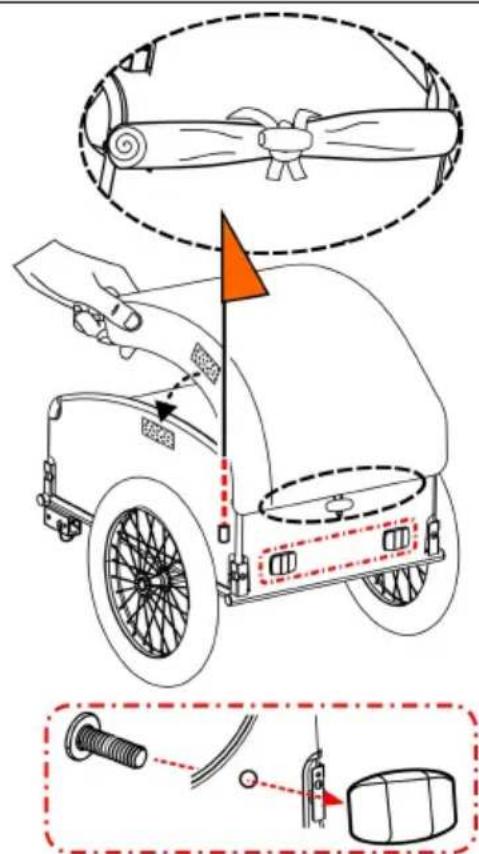

Diagram illustrating the components of a helicopter's propeller, including parts like the propeller blade, flag, and wiring.

Figuur 11

Technical line drawing of a mechanical assembly with no visible text or symbols

Figuur 12

⚠ WAARSCHUWING

Mechanical linkage diagram showing a chain with joints and rods (no text or labels)

Figuur 1 3

⚠ WAARSCHUWING

Mechanical assembly diagram showing a motor and suspension mechanism (no text or labels)

Mechanical assembly diagram showing gear and linkage components with red dotted arrows indicating motion paths (no text or labels)

Figuur 1 4

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CYKEL CARGO TRAILER

MODELL: CT901M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: CT901M

Line drawing of a wheeled robotic vehicle with a flagpole and connecting hoses (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Diagram showing a wrench and a bent pipe with accompanying text blocks labeled 'VEVOR' and 'RICH COOLER TRAVEL'

Diagram of a vehicle chassis with red directional arrows indicating motion or movement (no text or symbols)

Figur 1

Simple line drawing of a vehicle climbing a curved road with a tool inserted (no text or symbols)

figur 2

Technical line drawing of a mechanical assembly with no visible text or symbols

Figur 8

Diagram illustrating car seatbelt usage and mounting mechanism, showing hand positioning, wheel assembly, and bolt installation steps.

Bild 10

Diagram illustrating a helicopter's propeller assembly with labeled parts and wiring connections

Bild 11

Technical line drawing of a mechanical assembly with no visible text or symbols

WARNING

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
