USER MANUAL DHZJ-300/600KG Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

ELECTRIC HOIST SUPPORT ARM

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC HOIST SUPPORT ARM

Red industrial support structure with metal brackets and mounting feet (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

1. WARNING!

Please carefully review this information before using the product to en your safety.

1. The arm comprises a stable buckle and foundation bracket, featuring strong bearing capacity of 600 kg.
2. The Rocker arm can rotate 180 degrees, allowing the boom to op more flexibly with a wide operating range and high working efficie

3. When the product is working or rotating, no one is allowed to stay within the rotation radius of this product to avoid injury.

4. The hoist swing arm boasts integrated casting technology, and is in the material. And it is durable and not easy to deform.

5. The Fix rod can be fixed directly on the wall. Due to the stability of triangle bracket and the thickened steel plate, it is stable for efficient operation.

6. Do not use the tool if it is damaged to prevent serious damage tool failure.

(1) Check the overall condition of the product before each use. A the threads damaged? Are the welds broken? Are there gaps the parts?
(2) Exercise caution when troubleshooting and resolve all issues before use.

1. Procedures not specified in this manual must be performed by qualified personnel.

2. This is an accessory of the electric hoist. It is prohibited to carry on the electric hoist or on this support arm

Read and follow the instructions for safe operations. Keep this manual reference.

2. Product Description

This support arm is made of durable steel with a strong load-bearing cap. The stable triangle structure makes it firm and reliable, and the service li long. Fixed by the thick steel plate and buckles, it is reliable in use.

The support arm can rotate 180^ , and the boom is flexible. This garage arm is easy to install and perfect for workshops, garages, shopping malls docks, and other related goods lifting scenes.

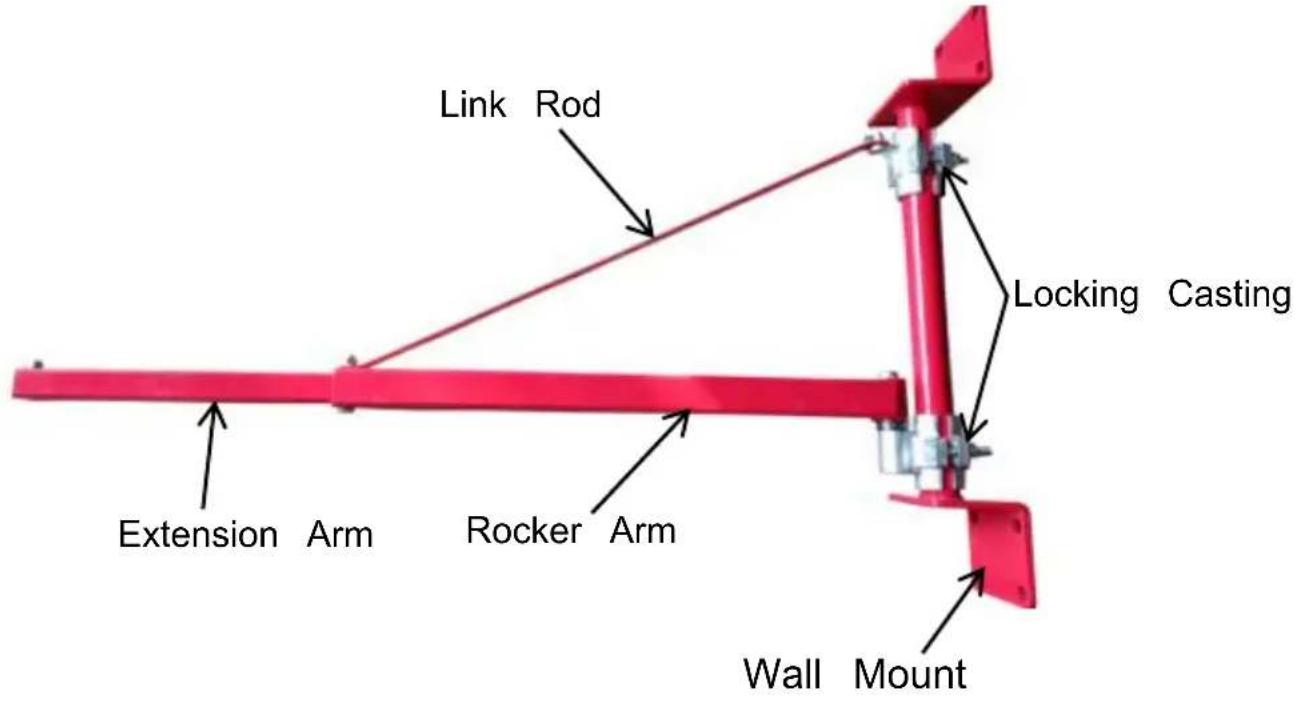

Link Rod Locking Casting Extension Arm Rocker Arm Wall Mount

3. Product Parameter

1. Name: Electric Hoist Support Arm
2. Model: DHZJ-300/600KG
3. Max. Load: 600kg (700mm arm); 300kg (1100mm arm)
4. Material: Steel
5. Rotation: 180^

4. Parts List

No.	Picture	Name	Qty
1		Wall Mount	1
2		Rocker Arm	1
3		Extension Arm	1
4		Link Rod	1
5		Locking Casting 1	1
6		Locking Casting 2	2
7		Locking Casting 3	1
8		Big Washer	1
9		Bearing	1
10		Bolts(M12x70mm)	5
11		Bolts(M12x30mm)	1
12		Split Pin	2
13		User Manual	1

5. Installation Steps

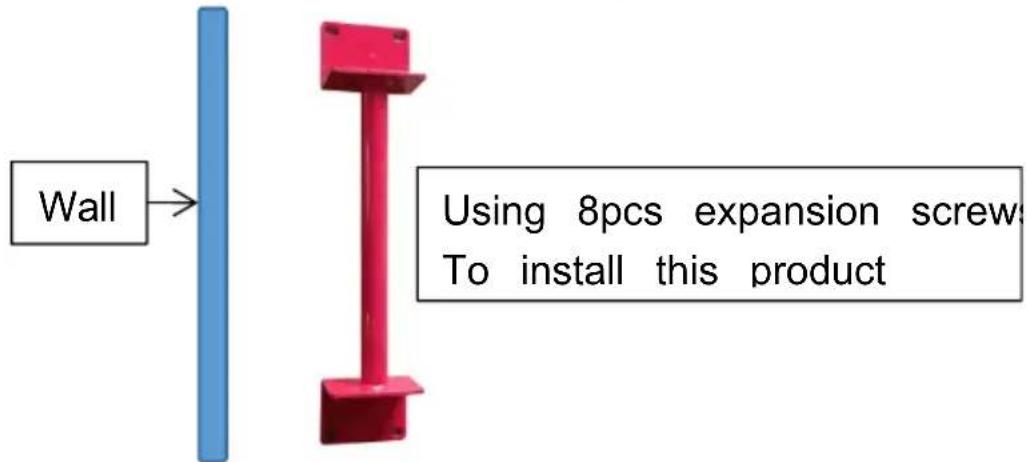

Step 1- Install the wall mount onto the wall and secure it with the appropriate expansion screws. Use the right tools to ensure the support arm is firmly tightened. Please note that expansion screws are not in the package and need to be purchased by the customer separately! Warning: The wall shall meet the load requirements!

Wall Using 8pcs expansion screw To install this product

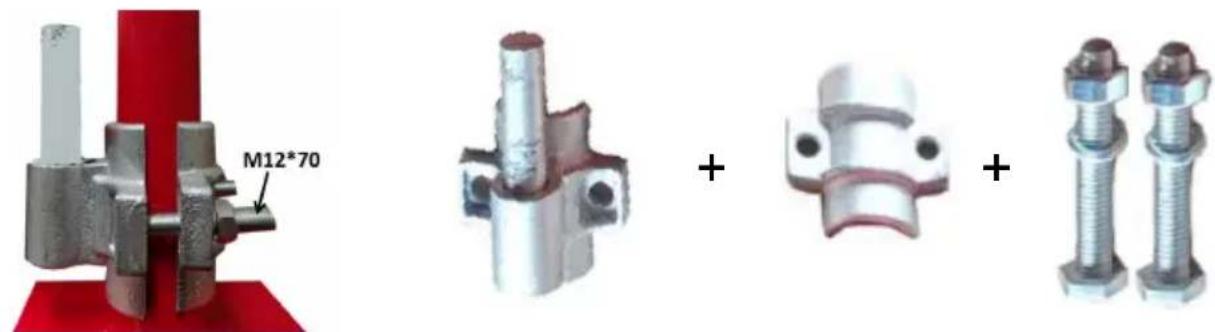

Step 2- Install the "locking casting".

1. Install the bottom locking casting.

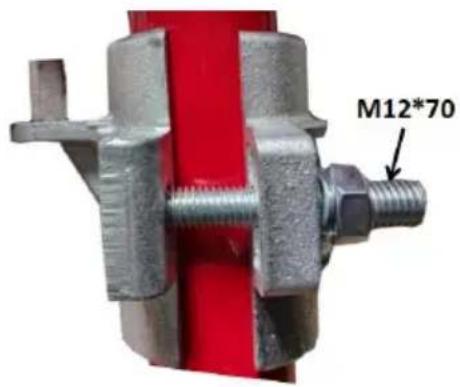

1. Install the top locking casting.

M12*70

Close-up of a metallic mechanical component with two circular holes (no visible text or symbols)

•

•

Two metallic hexagonal bolts with threaded end caps (no text or symbols visible)

NOTE: Do not tighten the bolts until all parts are installed.

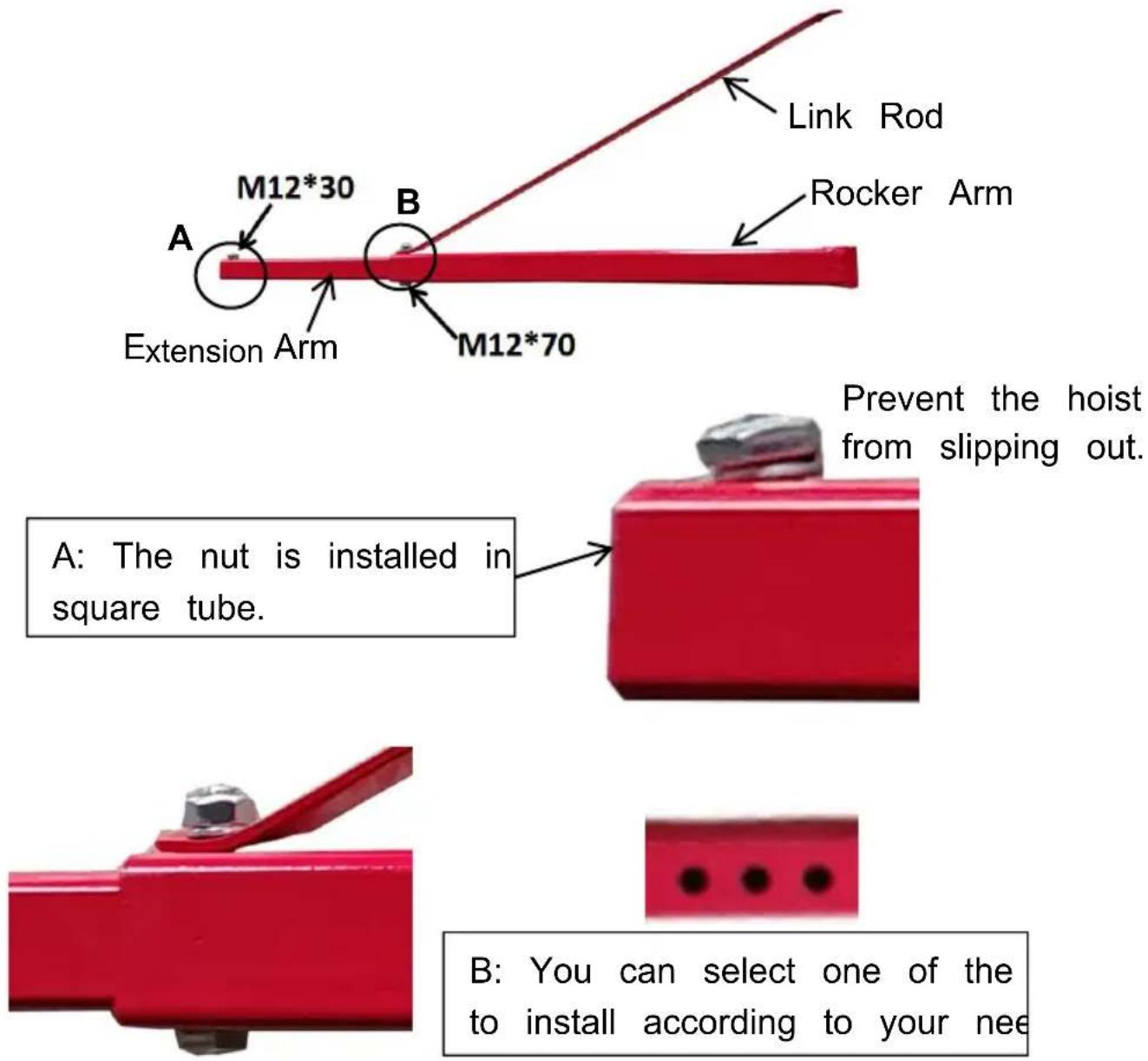

Step 3-Install the “rocker arm+extension arm+link rod”. Please make sure the bolts and nuts are tightened.

M12*30 Extension Arm B M12*70 Link Rod Rocker Arm Prevent the hoist from slipping out. A: The nut is installed in square tube. B: You can select one of the to install according to your nee

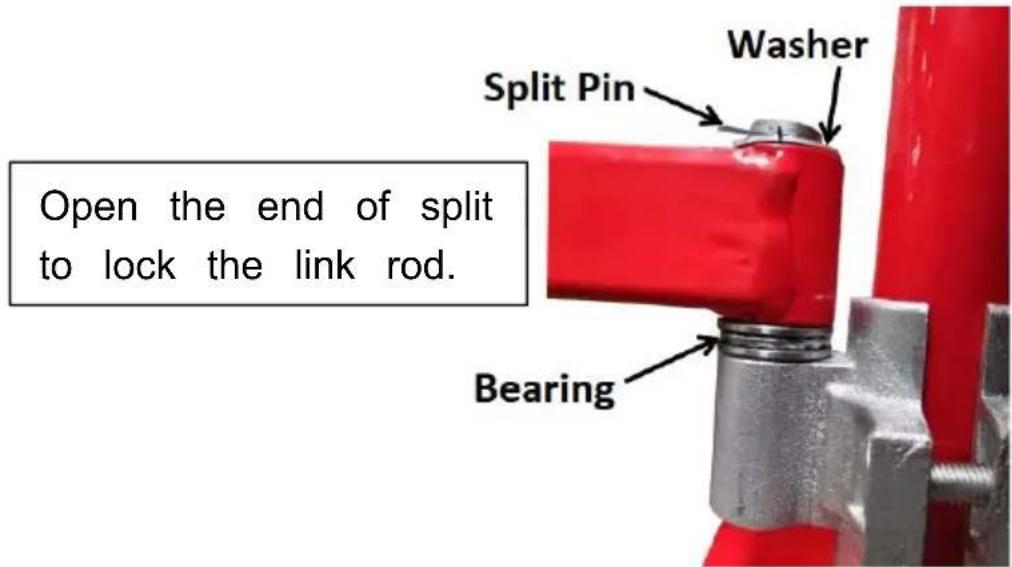

Step 4- Put the big washer into the shaft and insert the rocker arm bottom locking casting pin, then install the big washer and split pin. installing the split pin, make sure to open the end of the pin to cor the split pin cannot fall out of the lock pin hole.

Open the end of split to lock the link rod. Split Pin Washer Bearing

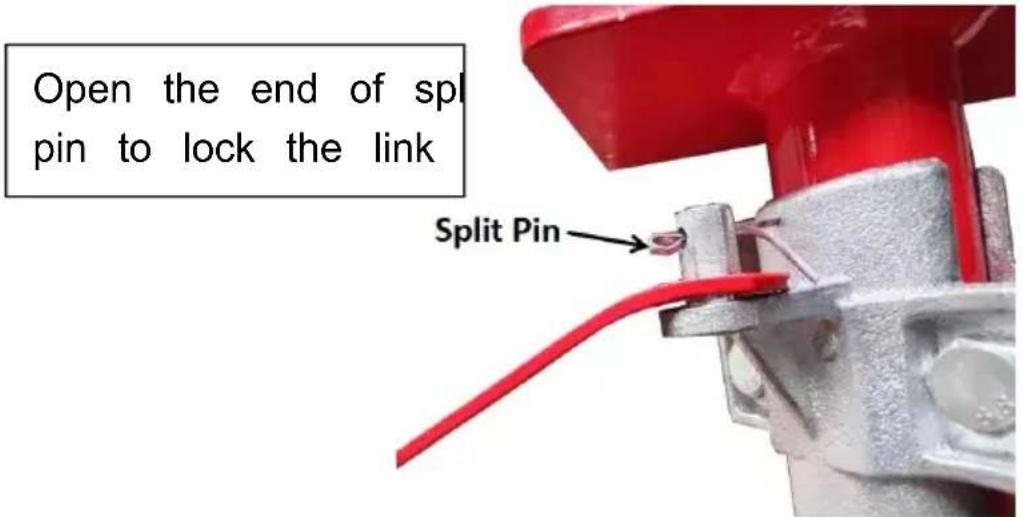

Step 5- Insert the link into the pin on the top locking casting, and install the split pin. After installing the split pin, make sure to open the pin to confirm that the split pin cannot fall out of the locking

Open the end of spl pin to lock the link Split Pin

Step 6 - After proper adjustment, lock all bolts and try to turn.

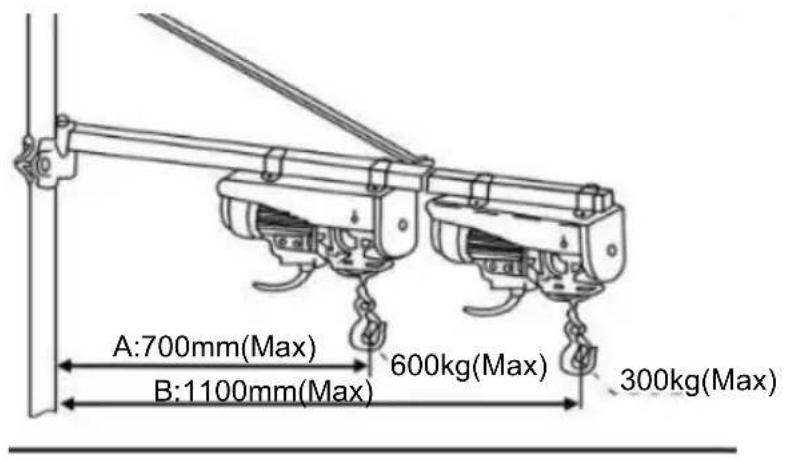

Step 7 - Install the Electric Hoist. Refer to the diagram below to change appropriate location and Electric Hoist for installation.

A:700mm(Max) B:1100mm(Max) 600kg(Max) 300kg(Max)

Location A: Load capacity: Max600kg, Arm: Max 700mm; Suitable for 2200lbs Electric Hoist

Location B: Load capacity: Max300kg, Arm: Max 1100m; Suitable for 440lbs-1800lbs Electric Hoist

6. Usage Guide

1. Unpack and check for any transit damage.
2. Please follow the instructions to limit the lifting capacity. The farther arrow indicates, the lower the lifting capacity.
3. Make sure to use the Fix rod on a stable surface and ensure st during operation.

7. Maintenance

1. After use, clean the arm with a dry cloth to remove dust and im
2. Check the screws and connections to ensure that they are tight.
3. Regularly apply rust inhibitor to extend its life.

Made In China
