Product Type	Hydraulic Truck Hoist (Truck Crane)
Brand	Vevor
Model	HXCZDJ-06
Maximum Lifting Capacity	1000 lb (approx. 453 kg)
Lifting Height	130 to 230 cm
Hydraulic Cylinder Capacity	8 tons max
Rotation Angle	360 degrees
Main Material	Steel with powder coating
Power Source	Manual (hydraulic pumping)
Main Functions	Lifting, 360° rotation, controlled lowering
Safety	Hook safety latch, hydraulic relief valve
Maintenance	Periodic lubrication of moving parts, annual hydraulic oil change
Usage	Mount on truck receiver hitch (class III/IV)
Spare Parts	Bolts, pins, hook, chain, cylinder, components listed in the manual
Repairability	Online technical support (www.vevor.com/support), replacement parts available

Frequently Asked Questions - HXCZDJ-06 Vevor

How to install the HXCZDJ-06 hoist on my truck?

Follow the steps in the manual: assemble the legs, insert the rotating head, install the vertical rod, boom, hydraulic cylinder, and hook. Attach the hitch bar to the truck's receiver hitch. Make sure all bolts and nuts are securely tightened.

What is the maximum load capacity?

The maximum load capacity is 1000 lb (approx. 453 kg) when the boom is set to the shortest position. Capacity decreases when the boom is extended.

How to lift a load safely?

Make sure the load is properly attached to the hook with suitable slings. Close the hook's safety latch. Use the hydraulic cylinder crank after closing the relief valve (turn clockwise). Pump slowly to lift the load.

How to lower the load?

Slowly turn the hydraulic relief valve counterclockwise. The load will descend gradually. Do not release too quickly to avoid a sudden drop.

Can I rotate the boom with a suspended load?

Yes, the boom can rotate 360 degrees even with a load. However, lock the boom before lifting and move the load slowly. Never leave a suspended load unattended.

What maintenance is required?

Regularly check the condition of the crane, lubricate moving parts, and replace the hydraulic oil at least once a year. Use good quality hydraulic oil without mixing brands.

How to change the hydraulic oil?

Refer to the manual for the exact procedure. Generally, drain the used oil via the drain plug, then fill with new quality hydraulic oil. Do not mix different brands.

What if the hydraulic cylinder does not lift?

Check that the relief valve is properly closed (clockwise). If the problem persists, there may be a leak or lack of oil. Contact Vevor technical support.

Can I use this crane to lift people?

No, it is strictly forbidden to lift people or animals. This crane is designed only for lifting loads and should not be used for other purposes.

Where to find spare parts?

Spare parts are available through Vevor support. Check the component list in the manual (numbers 1 to 24) and contact after-sales service at www.vevor.com/support.

USER MANUAL HXCZDJ-06 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TRUCK CRANES

USER MANUAL

MODEL: HXCZDJ-06

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

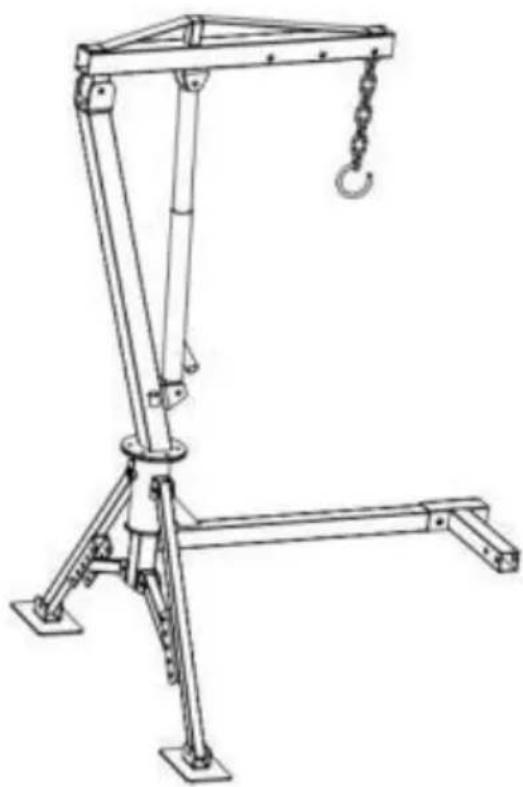

MODEL: HXCZDJ-06

Photo for reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

▲WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions can result in serious personal injury.

GENERAL SAFETY RULES

1. Never overload.
2. The load is maximum when the arm of the product is adjusted to its shortest. The load of the product decreases as the arm increases.
3. Always wear ANSI-approved safety goggles.
4. Always wear hearing protection when working in noisy environments. Prolonged exposure to high-intensity noise can cause hearing loss.
5. Use safety equipment. Safety shoes, hard hats, and work gloves should be used for applicable conditions.
6. Dress appropriately. Never wear loose clothing or long hair, and keep hair, clothing, and gloves away from moving parts.
7. Use common sense when working. Stay alert and concentrate when setting up and using this Crane. Never work while under the influence of alcohol, drugs, or medications.
8. Keep the work area clean and well-lighted while assembling and using the Crane. Keep spectators and children out of the work area.
9. This Crane is designed to be positioned outside the truck bed, attached to the vehicle via the receiver hitch. It is portable and easily adjusts to different boom positions for 500, 750, and 1,000 lbs maximum capacity. Please do not modify the Crane or use this product for purposes it was not designed for.
10. When attaching the load to the Hook with Chain, use appropriate chain rated to handle the load. Collars must be fully engaged on the Hook and the Hook's safety latch closed.
11. Never lift people or animals. Keep children and spectators clear of the area under and around the lifted cargo. When operating the Crane, stay

clear of the space between the Crane and the load.

1. Before each use, inspect the Crane, the Long Ram Jack, and the Hook for damage, corrosion, and any other condition that might affect the safe performance of this product.
2. Only set up the Crane when the pickup truck is off the highway in a clear location that is away from oncoming traffic.
3. Before lifting cargo into the truck bed, make sure the truck's engine is OFF with automatic transmission in PARK. Manual transmission vehicles should be in gear. Chock all wheels for added safety.
4. When using this product, adhere to all Department of Transportation (D.O.T.) requirements.
5. Note the position of the vehicle's exhaust pipes before setting up the Crane. Flammable goods being lifted by the Crane could come into contact with still hot exhaust pipes and catch fire.
6. Setting up the Crane and maneuvering heavy cargo on the Crane can be strenuous and dangerous. This should only be done by individuals who can physically handle the demands of these tasks.
7. The Crane is for lifting purposes only, not for supporting loads. Support the load with appropriate jack stands or equivalent if immediate loading or unloading is impossible. Do not leave a suspended load unattended.
8. Remove the Crane from the vehicle's receiver hitch when the Crane is in use.
9. Always be aware of dynamic loading. An excess load may be briefly caused by a sudden tug or weight gain, which can damage the Crane, cargo, and/or cause personal injury.
10. Keep in mind that the warnings previously discussed cannot cover all possible events and circumstances. It is important that the person setting up, loading/unloading, and using this product use common sense at all times.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	HXCZDJ-06
Bracket Capacity	Max. 1000lbs
Hoisting Height	130~230cm
Hydraulic Jack	Max. 8Ton
Rotation Angle	360 degree
Material	Powder-coated Steel

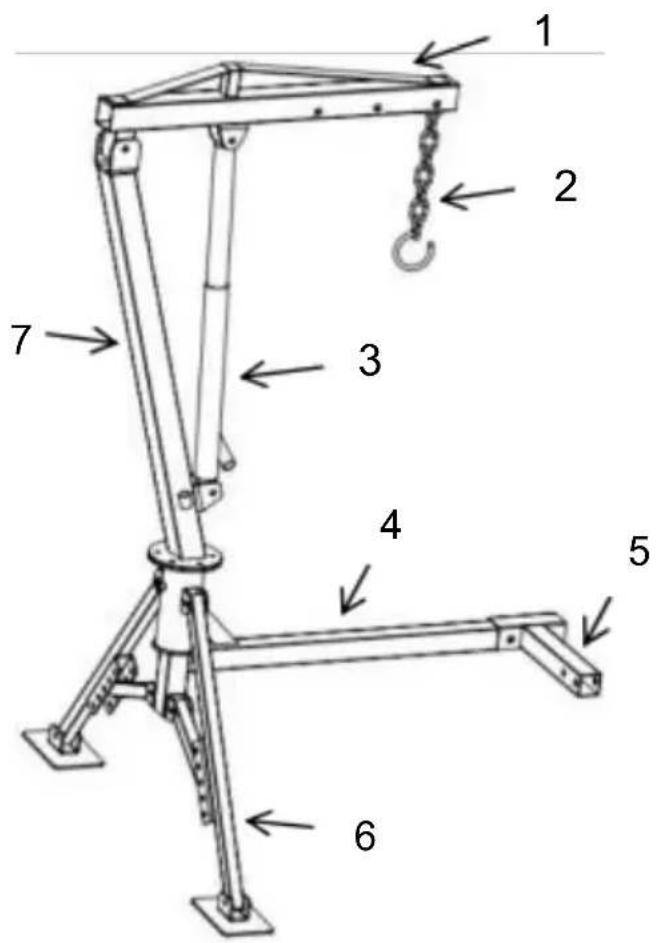

STRUCTURE DIAGRAM

1. Boom
2. Hook with Chain
3. Hydraulic Jack
4. Trailer Bar
5. Bar Connection Rod
6. Supporting Leg
7. Upright Rod

COMPONENTS

No.	Picture	Name and Q'ty	No.	Picture	Name and Q'ty
1		Trailer Bar (×1)	14		Bolt M12*80 (×3)
2		Leg(×2)	15		Bolt M12*30 (×6)
3		Upright Rod (×1)	16		Spring washer Φ10(×8)
4		Boom (×1)	17		Flat washer Φ10(×8)
5		Bar Connection Rod(×1)	18		Nut M10(×8)
6		Hook with Chain(× 1)	19		Spring washerΦ 12(×9)
7		Foot (×2)	20		Flat washer Φ12(×9)
8		Long Screw (×1)	21		Nut M12(×9)
9		Connecting rod(×2)	22		Pin Φ16*90 (×2)
10		hydraulic jack (×1)	23		Pin Φ16*100 (×1)
11		Rotating head (×1)	24		Cotton pin (Φ16×3)
12		Jack handle (×1)	25	/	User manual (×1)
13		Bolt M10*50(×8)

ASSEMBLY

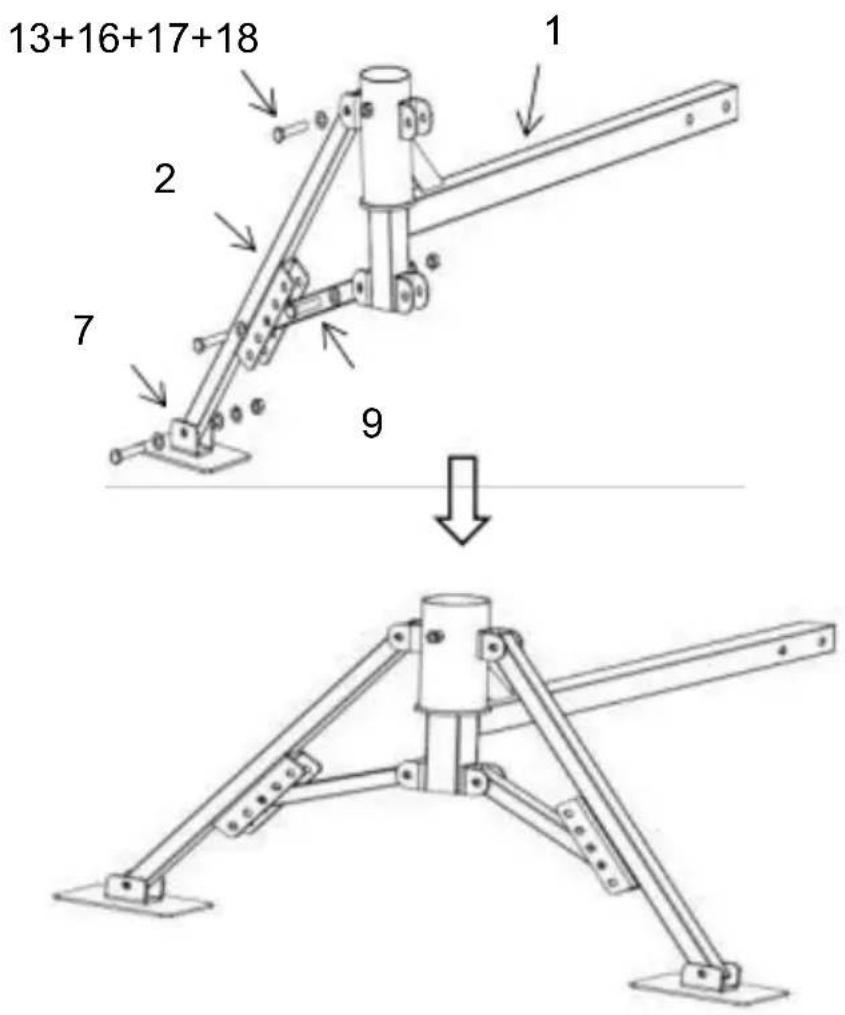

Step 1: Assemble the two support legs, and lock them with bolts. Note: Leg (2) is designed with a porous position that allows easy adjustment of the height of the support leg.

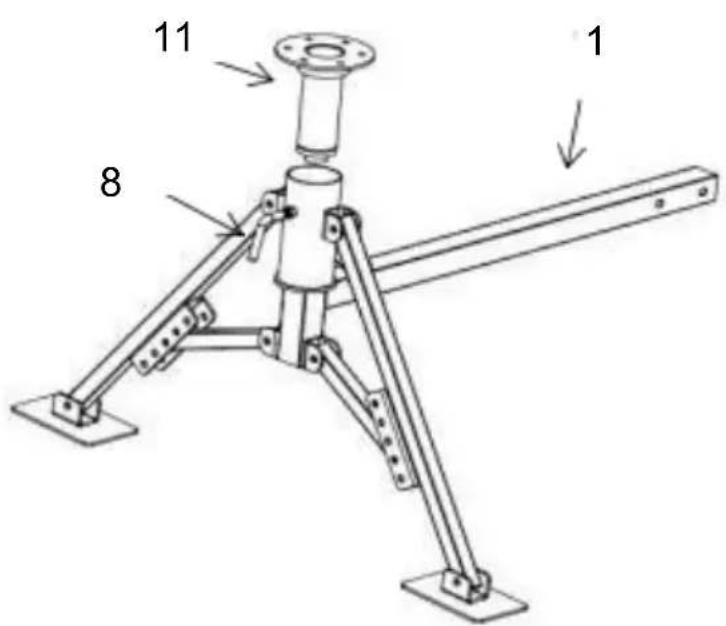

Step 2: Insert the rotating head (11) slowly into the trailer bar (1). Locking the long screw (8) can prevent the rotating head (11) from rotating.

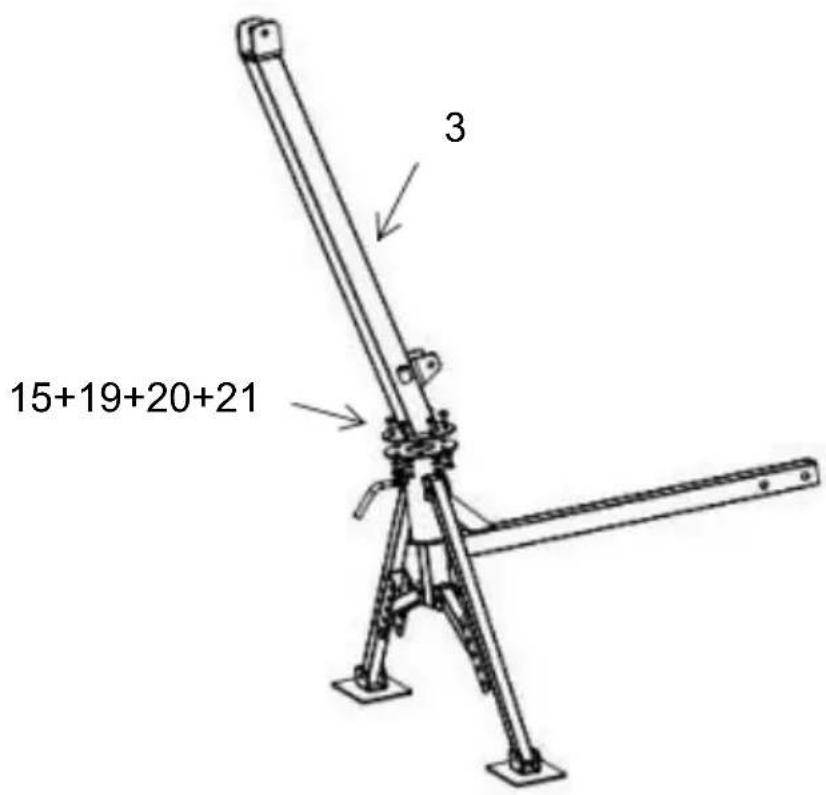

Step 3: Install the upright rod (3), and lock it with bolts and washers.

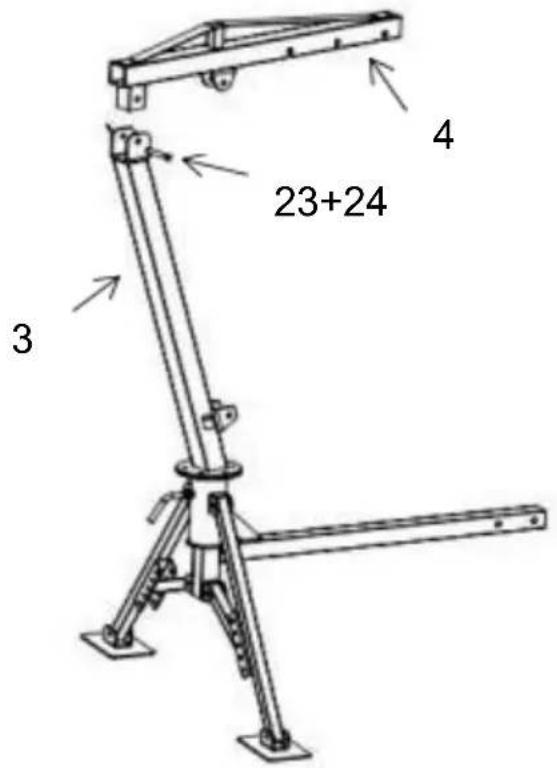

Step 4: Install the boom (4). Connect 4 and 3 with a pin (23), and the pin is secured with the cotter pin (24).

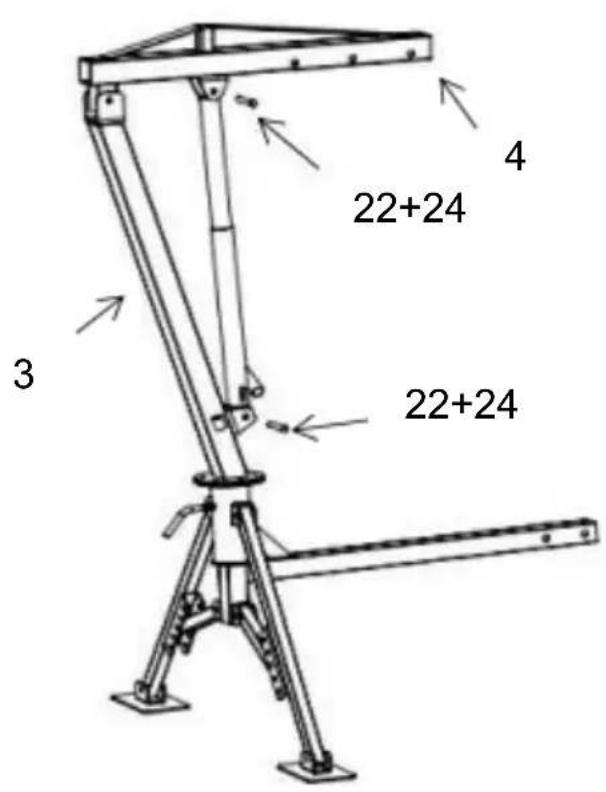

Step 5: Install the hydraulic jack. Connect 4 and 3 with two pins (22), and the pin ends are secured with cotter pins (24).

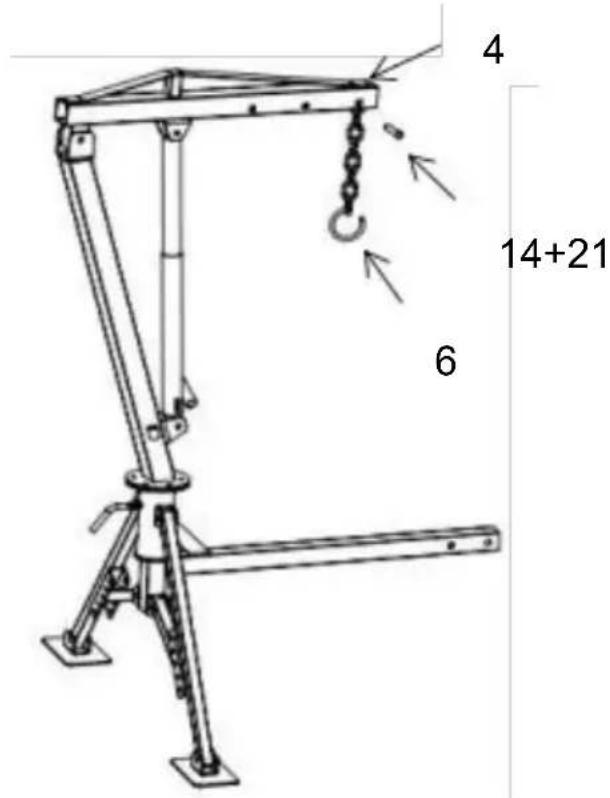

Step 6: Install the hook with chain (6). Connect 4 and 6 with a pin (1), and the pin end is secured with the cotter pin (21).

Note: It is portable and easy to adjust to different boom positions for 750 and 1,000 lbs.

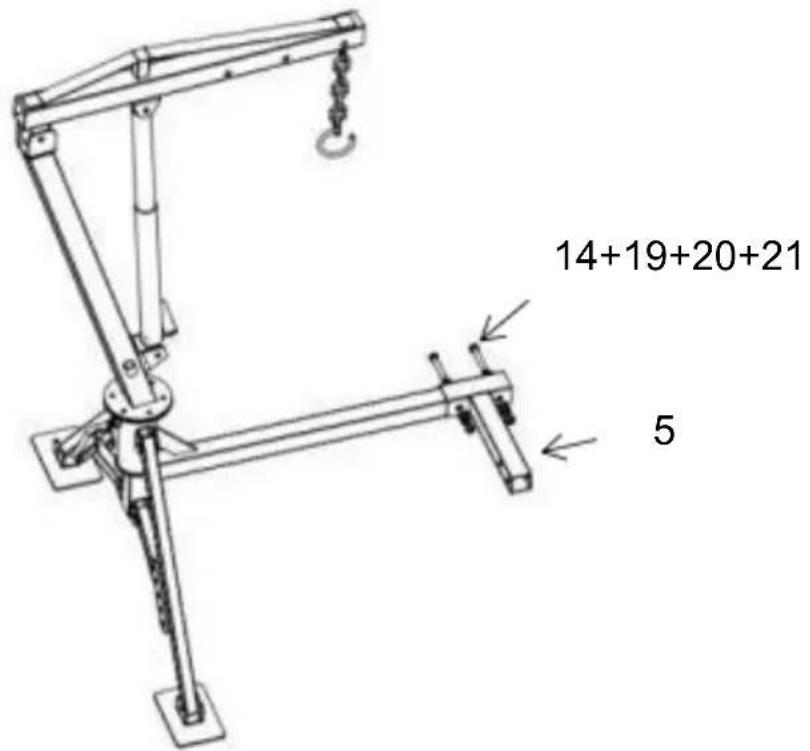

Step 7: Connect the product to the vehicle and you can use it. Note: You can also connect to your vehicle with the help of 5.

Operation:

1) Make sure the installation is correct and all parts are locked.

2) The boom can be rotated and must be locked before lifting.

3) Know the weight of the cargo to be lifted. The cargo must be properly strapped and have attachment couplings that will attach to the hook.

Attach the cargo to the hook.

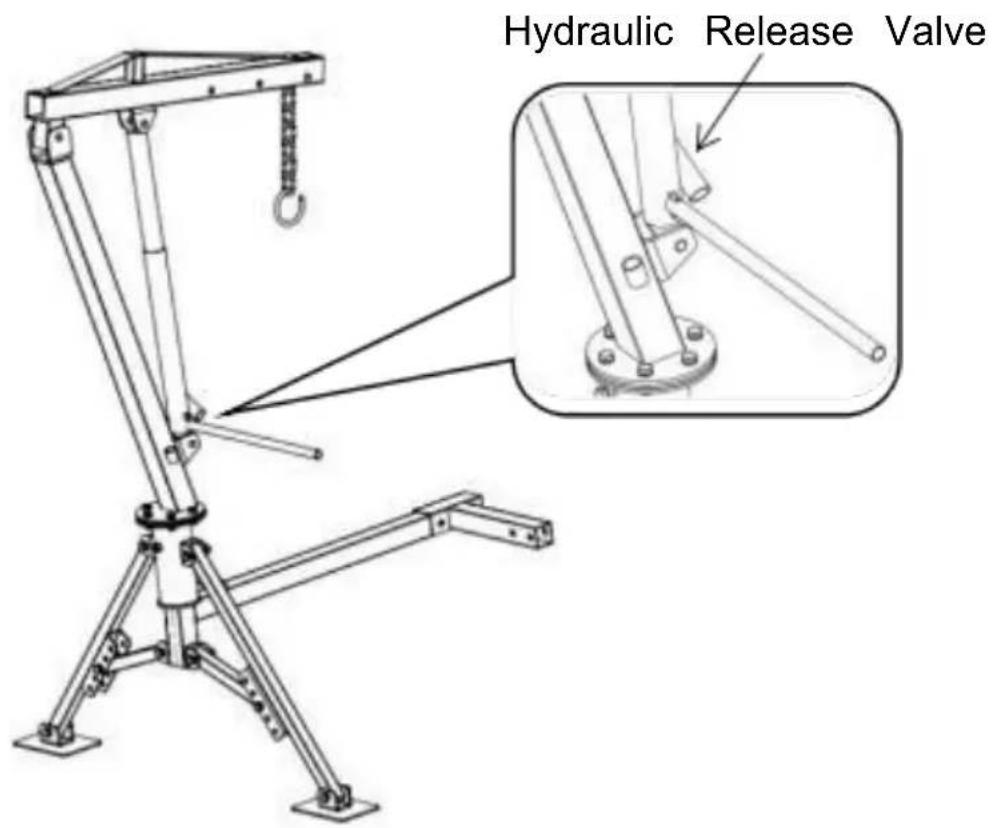

4) Use the jack handle to close the hydraulic release valve (turn close completely), and then pump the jack handle to raise the boom and the cargo slowly.

5) With the cargo raised, the upright rod can be rotated to move it into the truck bed.

6) With the cargo positioned over the truck bed, slowly turn the hydraulic release valve counterclockwise and the cargo will be lowered to the truck bed.

7) Remove the cargo's coupler from the boom hook and swing the boom back to its original position.

Note: Be alert as the boom will quickly descend to its lowest position.

MAINTENANCE

1. Frequently check the condition of the hydraulic crane hoist. Do not use a damaged crane.
2. Make sure all components are in good condition. If the crane or hitch becomes damaged by an accident or any other type of damage noted, it should be replaced.
3. Check to make sure that all hardware is tightly secured in place.
4. Keep the crane clean and periodically lubricate moving parts.
5. Replacing hydraulic oil: It is important that hydraulic oil be replaced at least once per year (or more, if the crane is frequently used). Only use quality hydraulic oil and never mix different oil brands together.

Warning - To reduce the risk of injury, user must read instructions manual carefully.
