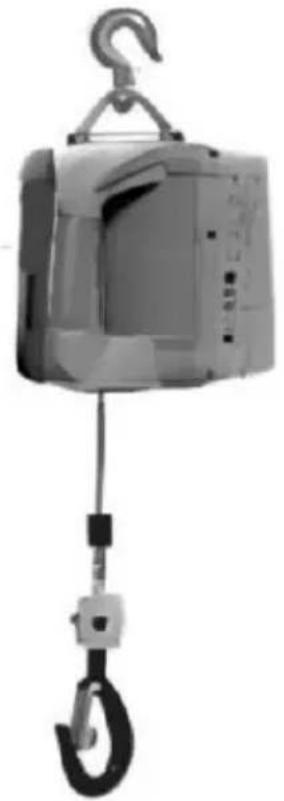

Portable Power Electric Hoist User Manual

Model: 500-A2, 500-A3, 500-B2, 500-B3, 500-C2, 500-C3

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us. are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

Model: 500-A2, 500-A3, 500-B2, 500-B3, 500-C2, 500-C3

Mechanical lifting hook with attached black hook (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precaution result in serious personal injury.

GENERAL SAFETY RULES

1. Never overload.

2. Never lift people or animals. Keep children and spectators clear of area under and around the cargo being lifted. When operating the pr stay clear of the area between the product and the load.

3. Do not contain explosive, flammable substances in the environment the use of the product.

4. Ensure that the wires and electrical terminals are insulated

5. The support structure and the load connecting device can be selected withstand the maximum traction of the product.

6. Do not use a failure, can not normally run or damaged products.

7. The service life of the steel wire rope is closely related to the use of the new products on the wire rope must be in the case of a load and evenly wound to the drum; otherwise improper winding will damage the wire rope.

8. On a regular basis wire rope oiling should use a stiff brush or w prohibited by hand directly to the working rope oiling.

9. Before the product is used, eliminate any factors or obstacles that interfere with the safe operation of the product.

10. In tension or load, do not touch the wire rope or hook.

11. Pay attention to the stability of the load during the operation. Do shake or rotate the load.

12. Do not pull the wire rope over the length of the red paint. Reser certain safe length.

13. When the product does not use, repair or replace parts, it is ne to unplug the power cord in a timely manner.

14. Do not use this product to pull other vehicles. The impact load easily causes the instantaneous carrying capacity to be more than the carrying capacity of the wire rope or products

15. This product can not be used to fix the load in the running.
16. Do not be inclined to pull in hoisting.
17. When the product does not work, it is not allowed to hang heavy objects in the air to prevent the parts from producing permanent deformation.
18. Do not put any part of the product into the water or wet enviro the use.
19. The correct use of the grounding AC socket through the leakage protection device to protect the socket.
20. Do not operate this product in a humid environment.
21. Avoid being damaged by sharp objects when pulling wires
22. Keep in mind that the warnings previously discussed cannot cover possible events and circumstances. It is important that the person set up, loading/ unloading, and using this product use common sense at times.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model SPE.	500-A2	500-A3	500-B2	500-B3	500-C2	500-C3
Load Capacity (Max.)	1100lbs	1100lbs	1100lbs	1100lbs	1100lbs	1100lbs
Lifting Height	7m	7m	7m	7m	7m	7m
Lifting Speed (Max.)	4m/min	4m/min	4m/min	4m/min	4m/min	4m/min
Input Power	1500w	1500w	1500w	1500w	1500w	1500w
Voltage	AC220~240V, 50 Hz	AC220~240V, 50Hz	AC220~240V, 50Hz	AC220~240V, 50Hz	AC220~240V, 50Hz	AC220~240V, 50Hz
Control Mode	3 IN 1(Wire Control, Wireless Remote Control, Manual Control)		Wireless Remote Control, Manual Control		Wire Control, Manual Control
Steel Wire Rope (Diameter)	Φ6mm		Φ6mm		Φ6mm

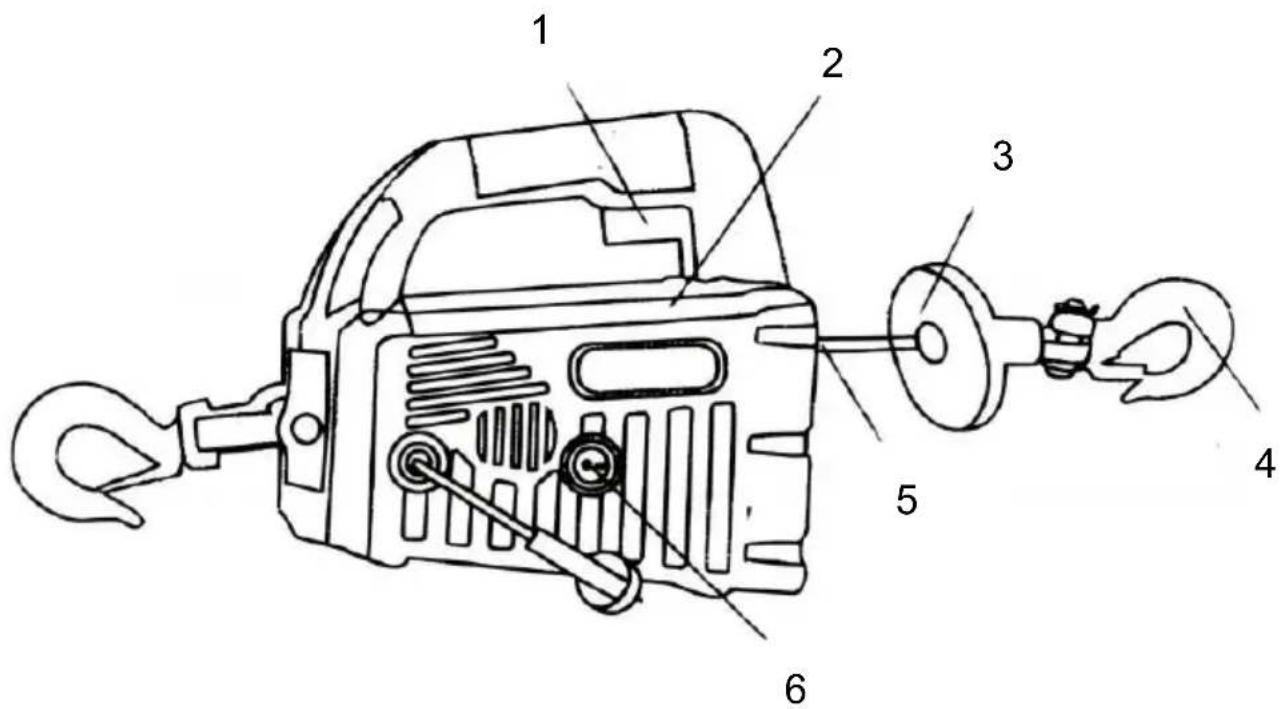

STRUCTUREDIAGRAM

Technical diagram of a mechanical device with numbered parts labeled 1 through 6

1. Positive and Negative Start Switch
2. Load Indicator
3. Bumper Block
4. Hook
5. Guide Rope
6. Power Switch

COMPONENTS

A.Electric Hoist (X1)	B.Fixed Bracket (X1)	C.Expansion Screw (X3)
D.Lifting Belt (X1)	E.Gloves (X1)	F.Carbon Brush (X2)
G.User Manual (X1)

INSTALLATIONINSTRUCTIONS

1. First of all, ensure that the Hoist is firmly suspended and reliable.
2. The suspension rod load must be greater than the weight of the and hoist.
3. It is strictly prohibited to use the Hoist with overload.
4. It is forbidden to operate with forces other than manpower.
5. Before use, carry out a safety inspection on the Hoist, carry out a no-load test on the hoist, and reasonably adjust the position of the hook according to the actual requirements.
6. Before lifting, check whether the upper and lower hooks are faster
7. When lifting heavy objects, it is strictly forbidden for personnel to do work or walk under heavy objects to avoid personal injury or accident

Remote Control Note:

1. Make sure that the remote control is within use distance and that are no obstructions around it.
2. Product remote control operation, according to the purchase of the switch, the red light from the wire rope in and out of work.
3. The remote control transmitter power shortage, more than remote control distance or serious interference, there will be a slow operation delay phenomenon, this time should stop the operation, troubleshooting, and then carry out the operation.
4. Do not put the remote control in contact with water or humidity. I signal interference, the remote control will cause leakage or damage to internal circuit. Signal interference will cause the consequences of rem control.
5. Do not use sharp objects to press the remote control to avoid ca damage to equipment.
6. If not used for a long time, please remove the battery.

The steel wire rope instruction:

1. The operator should understand the situation of the product and be familiar with the performance of the product.

2. Please check before hoisting or traction bracket structure, products, slings, and other accessories are damaged phenomenon. Replace the damaged parts before lifting.

3. Understand the load weight and ensure the rigging, hoisting apparatus and bracket capable of carrying the weight.
4. Check whether the load is under the product or in the same line product. The wire rope must not be twisted into bending, and to ensu all people standing far from the load will not be hurt.
5. Slowly relax the rope and pull up the load if there is an overload phenomenon to reduce the load in time and to adjust.
6. When lifting heavy objects, do not allow rapid lifting to avoid accident
7. Please check the wire rope before use. If the wire rope is worn, and damaged, please replace it in time
8. When the wire rope is pulled out, please keep it in light tension prevent winding and knotting.

Load Note:

1. Do not use a load limiter to stop the load running, and do not cable stop hook.
2. Do not lift or pull any deviation from the center of the load, which result in the risk of load, to ensure that the load is below the product
3. Do not swing or wrap around the load.

Overload or overheating:

1. The approximation of the motor force will be displayed on the load display. When the motor is overloaded, the product will stop running, the two red lights on the monitor will blink until the machine can be again. This happens to be removed on the wire rope tension to reduce load. If the sensor overload trips, do not attempt to load the same power as to avoid damage to the product.

2. Working for S3--25%, please do not use for a long time. Continue will increase the operating process of unsafe factors and severe damage the motor.

MAINTENANCE

1. Frequently check the condition of the product.
2. Do not use damaged products.
3. Make sure all components are in good condition. If the product or becomes damaged through accident, or if any other type of damage is noted, they should be replaced.
4. If the wire rope has become worn or is beginning to show signs of strands breaking it must be replaced before being used again.
5. keep the wire ropes and hooks from contaminants invasion. Use a towel to clean up dirt.
6. Carbon brush will wear for a long time. Please find a professional replace.
7. Place the product in a dry, clean and protected environment.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
