Product Type	Electric Hoist Support Arm
Brand	Vevor
Model	HST-750
Maximum Load Capacity	300 kg (700 mm arm); 150 kg (1100 mm arm)
Rotation	180°
Material	Steel
Maximum Arm Length	1100 mm
Minimum Recommended Arm Length	700 mm
Included Components	Wall mount, rocker arm, extension arm, link rod, locking castings, bolts (M12x70mm, M12x30mm), split pins, large washer, manual
Main Functions	Support and rotation for electric hoist, lifting loads up to 300 kg
Maintenance	Clean with a dry cloth, check screws and connections, regularly apply rust inhibitor
Safety	Do not stand within the rotation radius, do not transport people, check condition before each use
Installation	Wall mounting with 8 expansion screws (not included); wall must support the load
Electric Hoist Compatibility	Position A: 2,200 lb; Position B: 440 to 1,800 lb
Weight	Not specified
Package Dimensions	Not specified

Frequently Asked Questions - HST-750 Vevor

What is the maximum load capacity of the HST-750 support arm?

The maximum capacity is 300 kg when the arm is set to 700 mm, and 150 kg when set to 1,100 mm.

Can the support arm pivot?

Yes, the rocker arm allows 180° rotation for increased flexibility.

What types of electric hoists are compatible?

For a 300 kg load (700 mm arm), use a 2,200 lb hoist. For 150 kg (1,100 mm arm), use a 440 to 1,800 lb hoist.

How to install the wall mount?

Attach the wall mount with 8 expansion screws (not included) on a solid wall capable of supporting the load. Use suitable tools and follow the manual steps.

Are the expansion screws included?

No, the expansion screws must be purchased separately. Only M12x70 and M12x30 bolts are supplied.

What are the important safety instructions?

Never stand within the rotation radius, do not transport people, check the product condition before each use, and ensure bolts are tightened.

How to maintain the support arm?

Clean it with a dry cloth after use, check screws and connections, and regularly apply a rust inhibitor to prolong its lifespan.

Can the arm be used to lift people?

No, it is strictly forbidden to transport people on the electric hoist or the support arm.

What is the maximum arm length?

The extension arm allows a maximum length of 1,100 mm.

Where can I find spare parts?

The parts list (wall mount, rocker arm, etc.) is provided in the manual. Contact after-sales service via www.vevor.com/support to obtain parts.

USER MANUAL HST-750 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

ELECTRIC HOIST SUPPORT ARM

Model: HST-750

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

Model: HST-750

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

1. WARNING!

Please carefully review this information before using the product to ensure your safety.

1. The arm comprises a stable buckle and foundation bracket, featuring strong bearing capacity of 300 kg.
2. The rocker arm can rotate 180 degrees, allowing the boom to operate more flexibly with a wide operating range and high working efficiency.
3. When the product is working or rotating, no one is allowed to stay within the rotation radius of this product to avoid injury.
4. The hoist swing arm boasts integrated casting technology, and is made of durable material. It is durable and not easy to deform.
5. The fix rod can be fixed directly on the wall. Due to the stability of the triangle bracket and the thickened steel plate, it is stable for efficient operation.
6. Do not use the tool if it is damaged to prevent serious damage or tool failure.

(1) Check the overall condition of the product before each use. Are the threads damaged? Are the welds broken? Are there gaps in the parts? (2) Exercise caution when troubleshooting and resolve all issues before use.

1. Procedures not specified in this manual must be performed by qualified personnel.
2. This is an accessory of the electric hoist. It is prohibited to carry on the electric hoist or on this support arm.

Read and follow the instructions for safe operations. Keep this manual for reference.

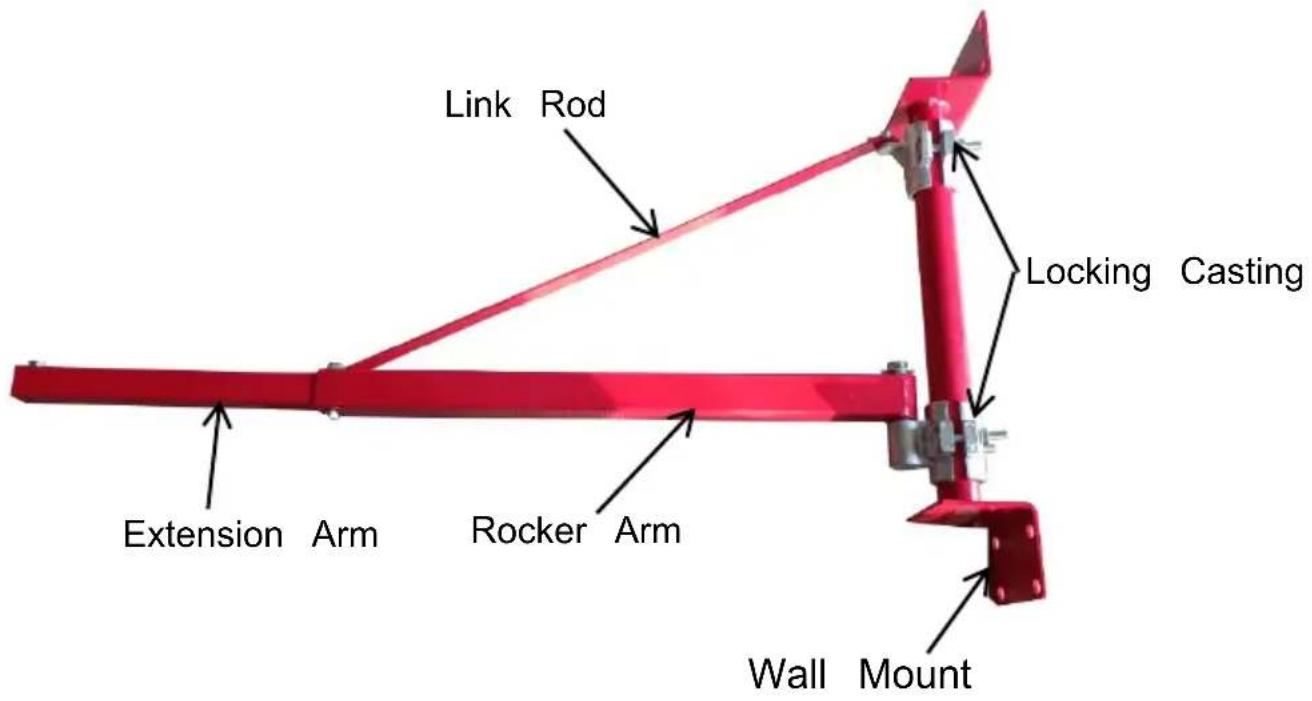

2. Product Description

This support arm is made of durable steel with a strong load-bearing capacity. The stable triangle structure makes it firm and reliable, and the service life is long. Fixed by the thick steel plate and buckles, it is reliable in use.

The support arm can rotate 180 degrees, and the boom is flexible. This garage arm is easy to install and perfect for workshops, garages, shopping malls, docks, and other related goods lifting scenes.

3. Product Parameter

1. Name: Electric Hoist Support Arm
2. Model: HST-750
3. Max. Load: 300kg (700mm arm); 150kg (1100mm arm)
4. Material: Steel
5. Rotation: 180 degrees

4. Parts List

No.	Picture	Name	Qty
1		Wall Mount	1
2		Rocker Arm	1
3		Extension Arm	1
4		Link Rod	1
5		Locking Casting 1	1
6		Locking Casting 2	2
7		Locking Casting 3	1
8		Big Washer	2
9		Bolts(M12x70mm)	5
10		Bolts(M12x30mm)	1
11		Split Pin	2
12		User Manual	1

5. Installation Steps

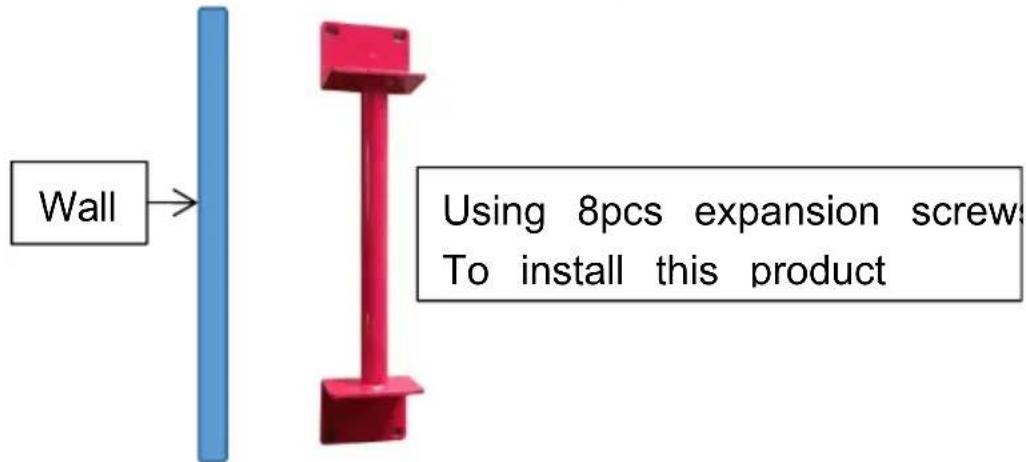

Step 1- Install the wall mount onto the wall and secure it with the appropriate expansion screws. Use the right tools to ensure the support arm is firmly tightened. Please note that expansion screws are not in the package and need to be purchased by the customer separately! Warning: The wall shall meet the load requirements!

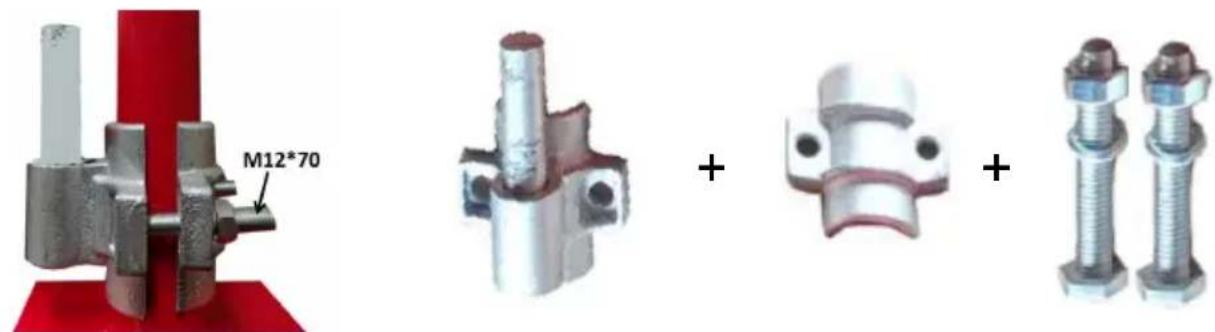

Step 2- Install the "locking casting".

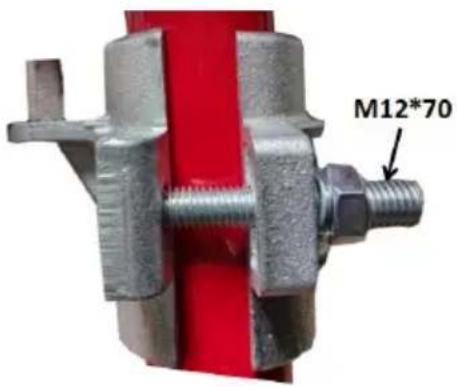

1. Install the bottom locking casting.

1. Install the top locking casting.

•

•

NOTE: Do not tighten the bolts until all parts are installed.

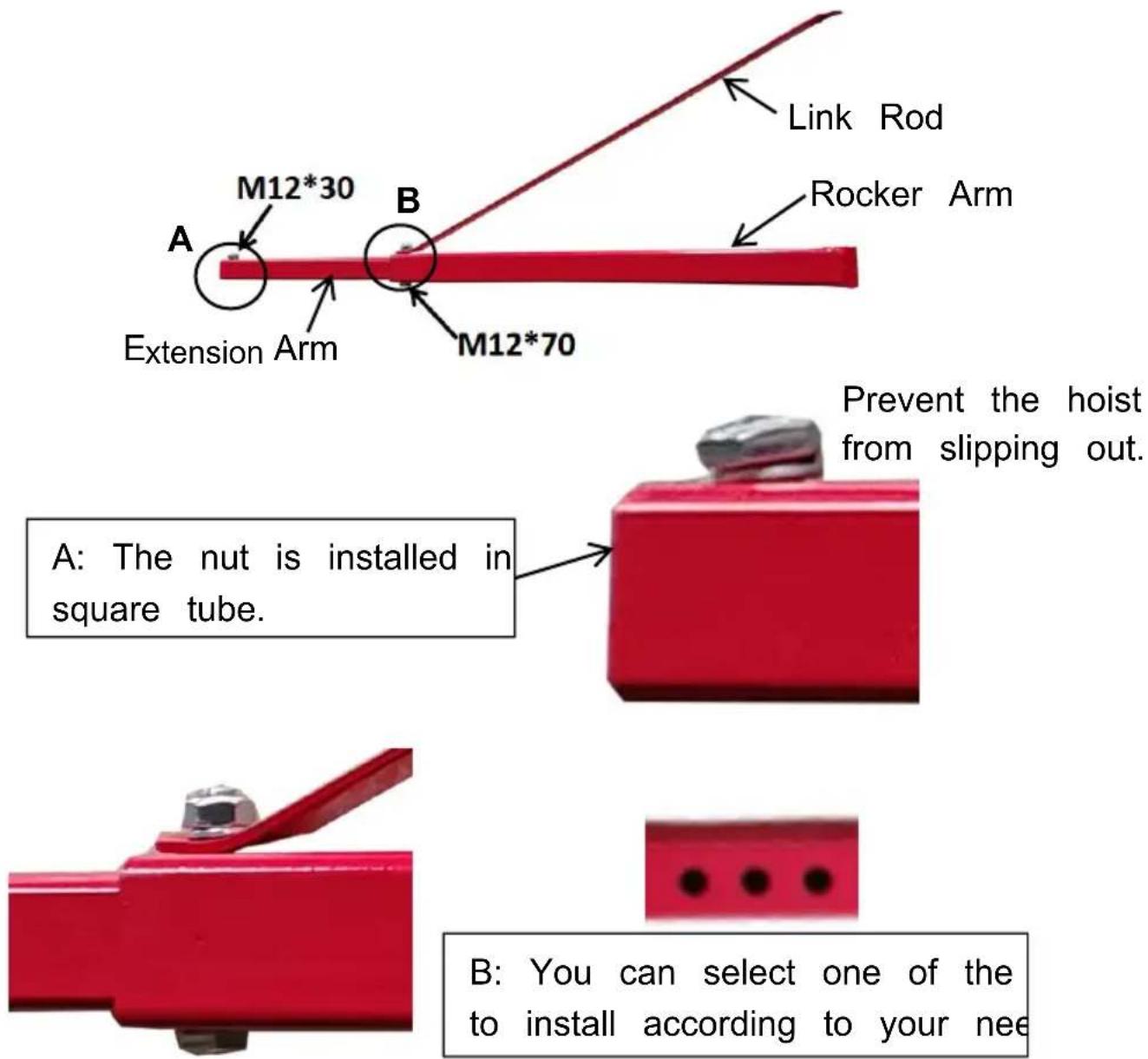

Step 3- Install the "rocker arm+extension arm+link rod". Please make sure the bolts and nuts are tightened.

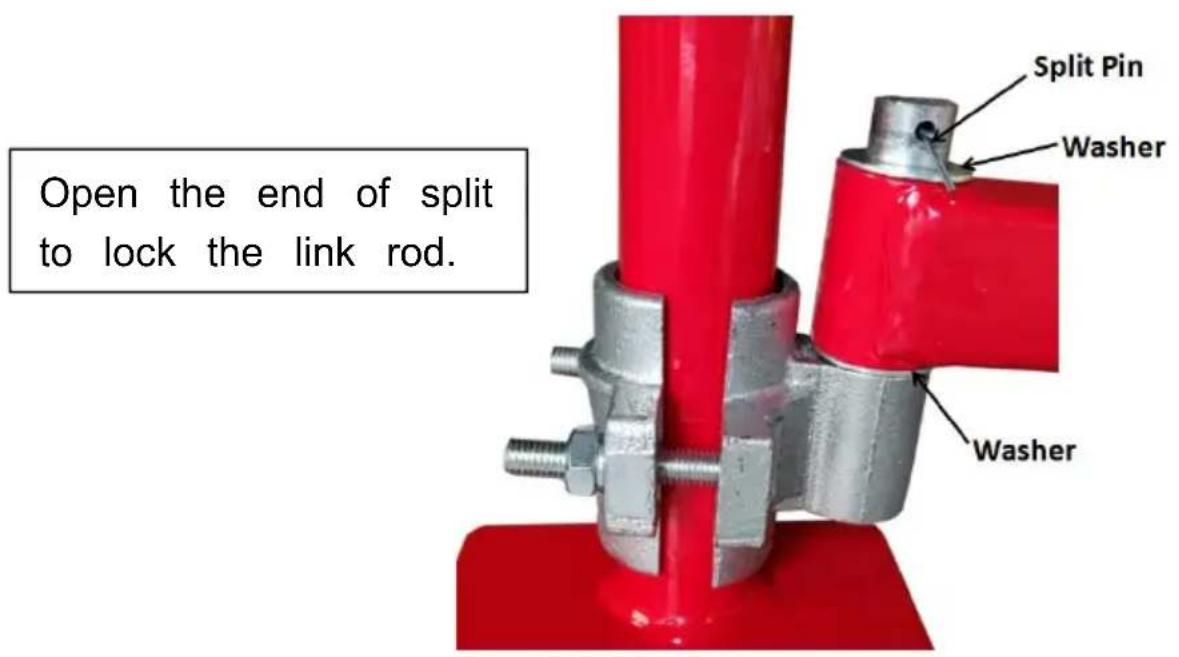

Step 4- Put the big washer into the shaft and insert the rocker arm bottom locking casting pin, then install the big washer and split pin. After installing the split pin, make sure to open the end of the pin to confirm that the split pin cannot fall out of the lock pin hole.

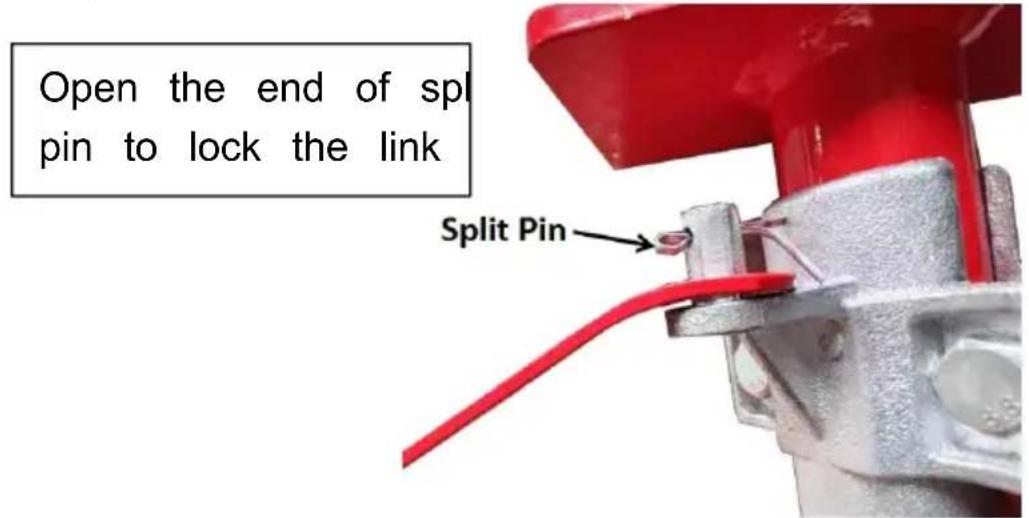

Step 5- Insert the link into the pin on the top locking casting, and install the split pin. After installing the split pin, make sure to open the pin to confirm that the split pin cannot fall out of the locking pin hole.

Step 5 - Insert the link into the pin on the top locking casting, and install the split pin. After installing the split pin, make sure to open the pin to confirm that the split pin cannot fall out of the locking.

Step 6 - After proper adjustment, lock all bolts and try to turn.

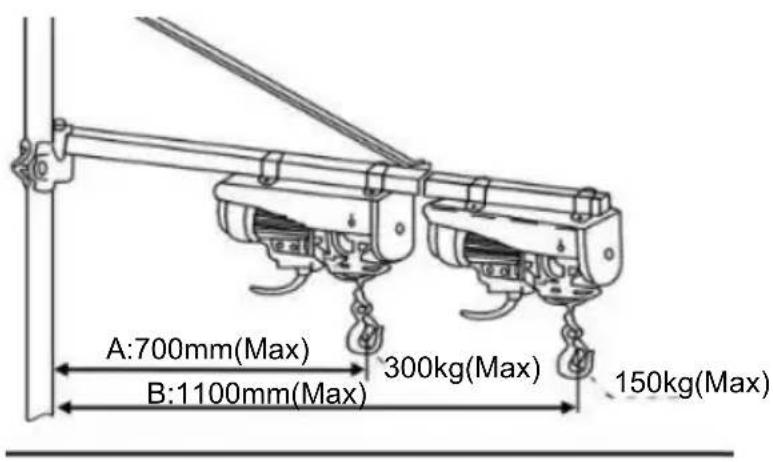

Step 7 - Install the Electric Hoist. Refer to the diagram below to change appropriate location and Electric Hoist for installation.

Location A: Load capacity: Max300kg, Arm: Max 700mm; Suitable for 2200lbs Electric Hoist

Location B: Load capacity: Max150kg, Arm: Max 1100m; Suitable for 440lbs-1800lbs Electric Hoist

6. Usage Guide

1. Unpack and check for any transit damage.
2. Please follow the instructions to limit the lifting capacity. The farther arrow indicates, the lower the lifting capacity.
3. Make sure to use the Fix rod on a stable surface and ensure st during operation.

7. Maintenance

1. After use, clean the arm with a dry cloth to remove dust and im
2. Check the screws and connections to ensure that they are tight.
3. Regularly apply rust inhibitor to extend its life.
