JZ72V3000W - Electric motor Vevor - Free user manual and instructions

USER MANUAL JZ72V3000W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Brushless DC motor

Model: JZ72V3000W

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only repeat estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: JZ72V3000W

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y there are any technology or software updates on our product.

Safety precautions

1.1 Safety advisory warning

Please read carefully before operation.

Be sure to read all safety warnings and all instructions before operating the Failure to comply with warnings and instructions may result in electric shock, serious injury.

If you encounter problems, please communicate with customer service in timesolve, your satisfaction is our service purpose.

1.2 Warning sign for safe operation of motor

1.3 Risk factor

1) Mechanical damage
2) Get an electric shock
3) Extrusion collision
4) Object impact
5) Other injuries

1.4 Operational considerations and triggers for motor non-work accidents

1) Check whether all accessories are connected tightly and not loose, check whether the pins in each plug-in are bent, and visually check whether each interface is consistent with the instructions in the wiring manual and whether connection is correct. To avoid writing errors and burning the controller.

2) It is recommended to use lead-acid batteries. Lithium batteries can also work (note that the battery voltage and battery power match the kit power). The recommended battery capacity is 12AH-20AH. The battery voltage needs to be consistent with the motor kit voltage, allowing an over-voltage range of +10% positive and negative terminals of the power supply must be connected correctly (the positive terminal is connected to the thick line of the controller in red, a negative terminal is connected to the thick line of the controller in black). On the battery and controller creates small arcing and sparks, which is normal for charging.

3) The electric door lock (orange, red) must be connected (you can use the electric door lock, or you can shorten the orange and red wires with wires), operation is the last step.
4) The accessories outside this kit, which belong to the accessories purchase you, may not match with the kit and need to be used after matching. Please contact customer service in time to match the kit with each other.

1.5 Precautions and suggestions

All machine operators should be trained and certified in electrical skills.

1) Before opening the box, check whether the package is intact, broken, and whether there is water. After removing the cover, carefully remove dust from motor.
2) Install in a dry, dust less place;
3) Install in a well-ventilated place;
4) It is installed in a wide and smooth place for easy daily operation and maintenance.

Thank you for your reading, if you still have operational problems, please cor customer service in time, before contacting customer service, please provide c photos taken by the motor and controller nameplate, provide clear photos anc clear videos of the accessory wiring connected to each plug-in of the controll you need to clearly see the color of each wire and the color of the access In order to provide you with a more convenient and faster solution.

TECHNICAL INFO

PERFORMANCE PARAMETERS OF JZ72V3000W MOTOR

Parameter	Numerical value
Rated voltage/V (DC)	72
Maximum wattage/W	3000
Rated speed/rpm	4900
Rated torque/N.m	5.5
Rated current/A	44
No-load speed/rpm	6700±10%
Motor efficiency	≥85%
Sprocket number	T8F-9T and T8F-11T
Screw thread	M8 Left-hand tighten thread *1.25*12mm (There is thread glue at the thread, and disassembly needs to be heated at 80°C for minutes
Recommended reduction gear ratio	9-tooth/11-tooth:64-tooth
Load weight/kg	≤180
Dimension/mm	134*Ø107*112
Weight/kg	4.67±5%(without footing) /4.8±5% (with footing
Scope of application	Small electric vehicles, electric bicycles, electric electric scooters...

PERFORMANCE PARAMETERS OF ZWK7244 CONTROLLER

Parameter	Numerical value
Rated voltage/V (DC)	72
Maximum wattage/W	3000
Rated current/A	44
Brake	Low level brake
Undervoltage/V	50
Operating temperature/°C	-25~60
Controller enclosure size/mm	202*107*60(error±2mm)
Controller mounting hole/mm	189*50*Ø6(error±2mm)
Weight/kg	0.98

CONFIGURATION LIST

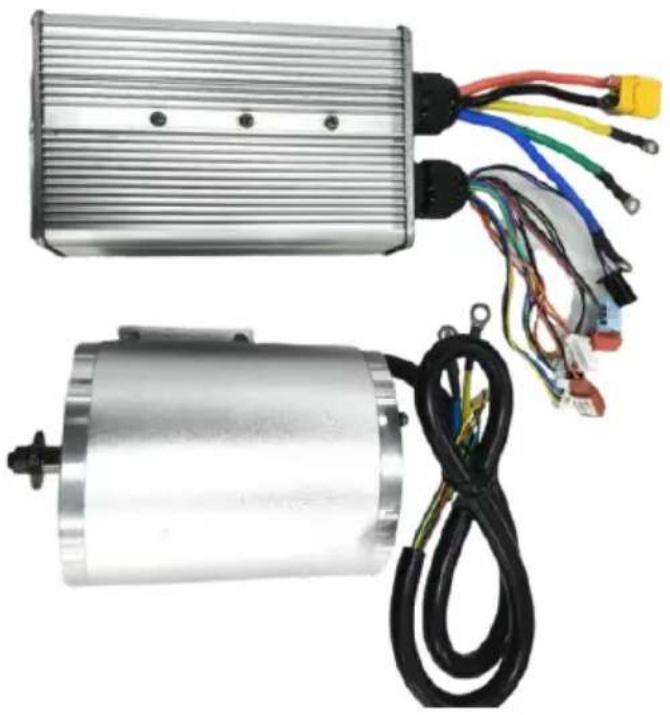

①Brushless DC motor (with footing) X1 SET	②Brushless DC motor (no footing) X1 PCS	③WK7244 Controller X1 PCS
④T8F-64T Chain disc X1 PCS	⑤ T8F-116TChain X1 PCS	⑥ Three speed + Handle with reverse X1 SET
⑦Electric door lock X1 PCS	⑧Hardware kit One X1 SET	⑨Hardware kit Two X1 SET

Table 1 Product configuration table

Product number	Product configuration
ZLWSDJTJ30000IDZCV9	②③⑨
ZLWSDJTJ3000TMJNSV9	①③④⑤⑥⑦⑧

The specific accessories are subject to the purchased products. If the accessories are not in the list, you need to purchase then yourself.

Overall dimensions and mounting dimensions

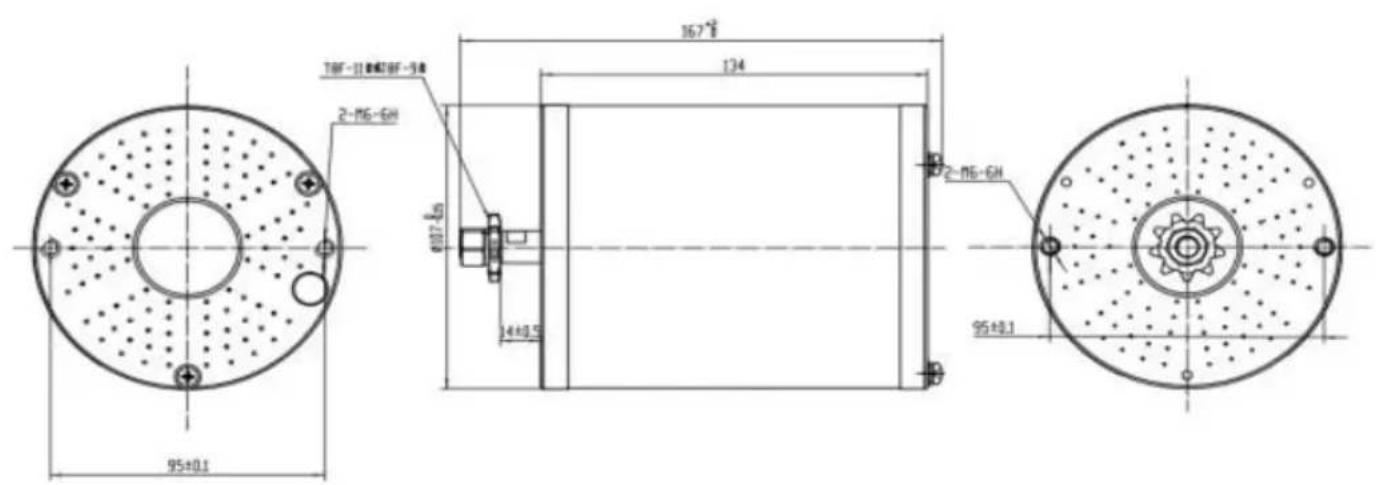

The dimensions and mounting dimensions of the motor are shown in Figure

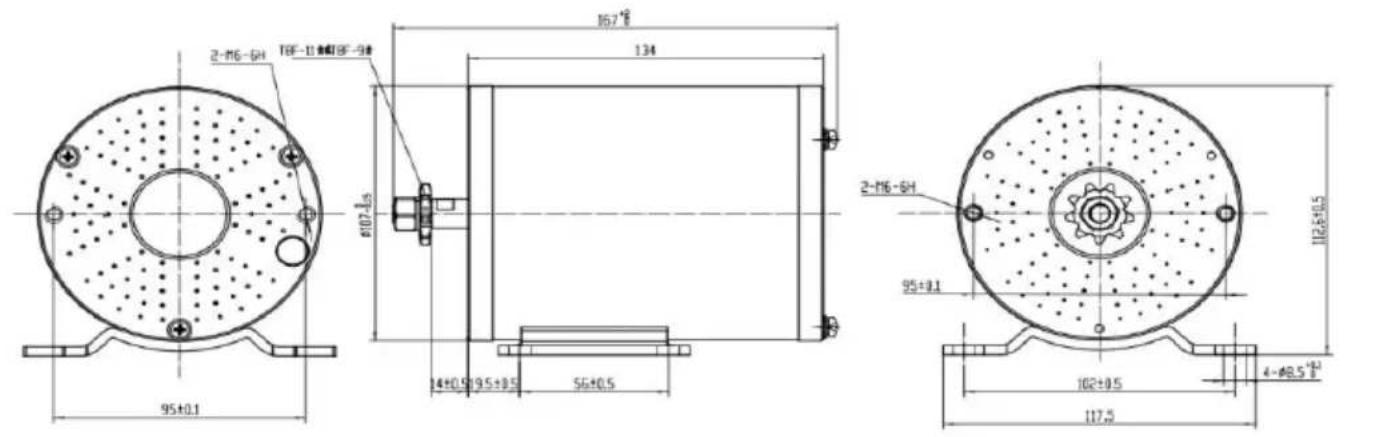

Figure 1 Motor dimensions and mounting dimensions

Install

1. Motor

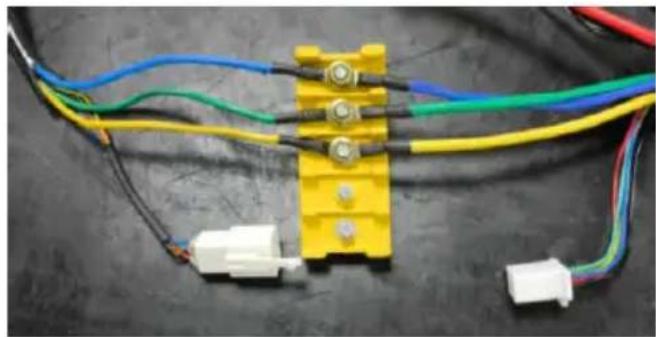

The A-phase line of the motor lead out main line is blue, the B-phase line and the C-phase line is yellow; The positive pole of the power supply in the line of the position sensor (Hall) is red, and the negative pole is black; The A-phase sensor signal line is blue, the B-phase sensor signal line is green, C-phase sensor signal line is yellow. The colors on both sides of the motor the same, and the motor wiring is shown in Figure 2.

Figure 2 Motor wiring

2. Controller

There are one types of controllers. The functions of each plug-in are shown in Figure 3 below.

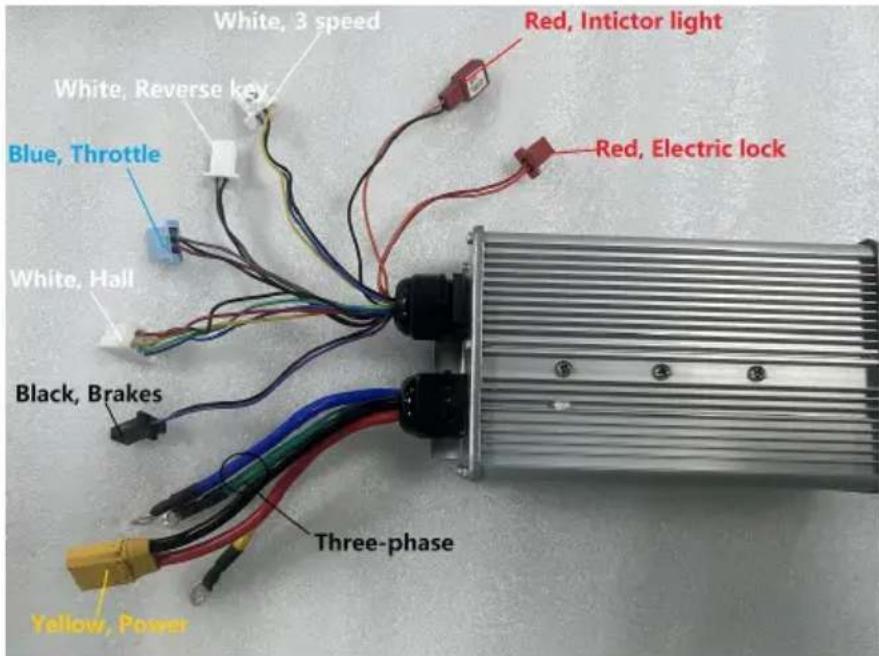

Figure 3 Controller

Controller voltage: DC72-82V

1. Red 72V+
2. Black 72V-

The positive and negative values cannot be connected incorrectly, otherwise the controller will burn out. There will be a slight spark when connected, which is normal start up phenomenon. Figure 4 shows the controller cable connections.

Figure 4 Cable connections to the controller

3. Attachment

3.1 Handle

Turn the handle line (turn the throttle).

1. Red: +4.3V
2. Black: Ground wire
3. Gray: Signal line

The handle wiring is shown in Figure 5.

Blue, Throttle	Red, Electric lock	With three speed + reverse forward handle
Handle function	Electric quantity display+ electric door lock handle

3.2 Three-speed switch

Three speed switch: default speed 2, short circuit of blue and black lines is speed, short circuit of yellow and black lines is 1 speed.

There are several ways to connect the three speed switch, as shown in Fig.

Fig.6 Three-speed switch wiring

1. Comes with 3 speed function

2. 3 foot switch controls 3 speed

3 speed switch controls 3.

3.3 Reverse

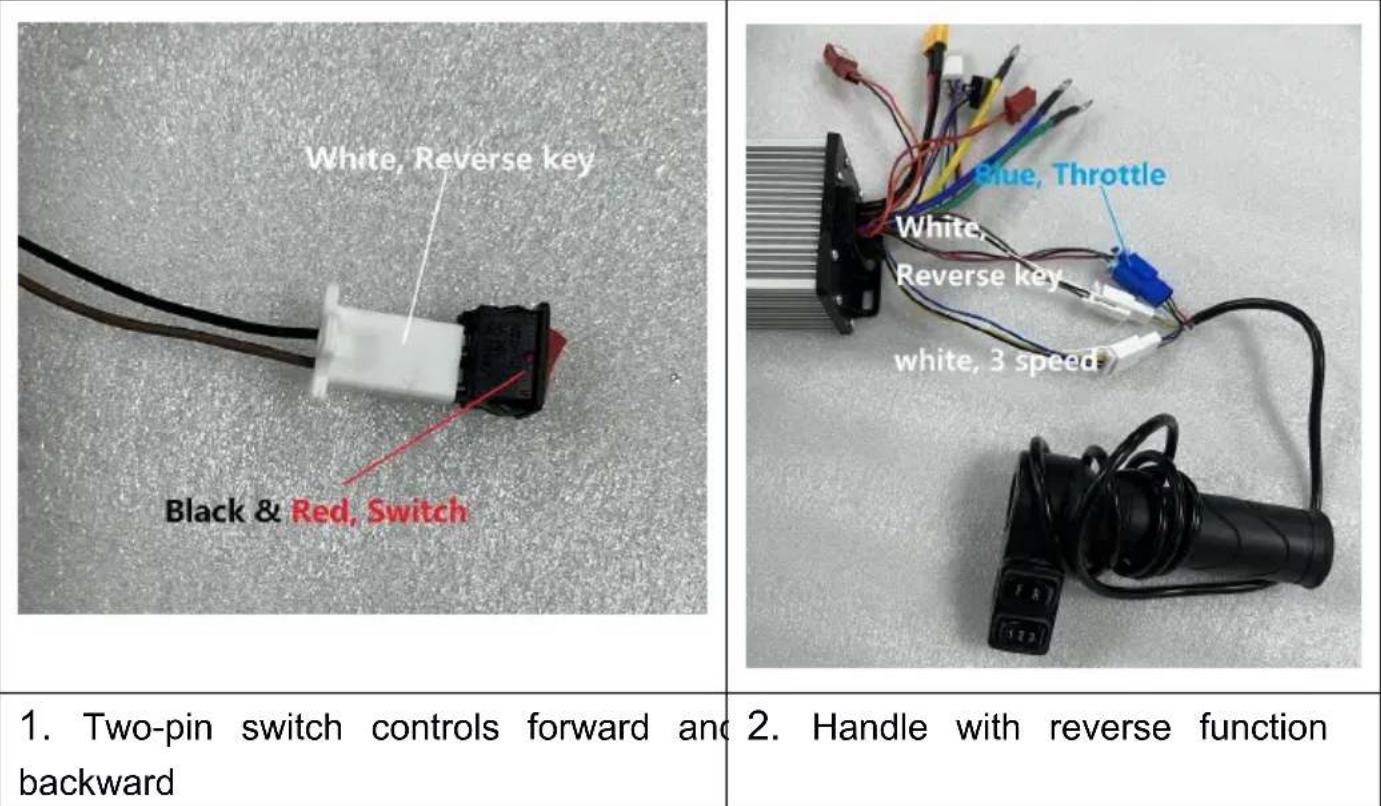

Reverse: Switch brown and black, reverse speed is 100% . There are the following types of reverse cables. Figure 7 shows the reverse cables.

Figure 7 Reverse cable connection

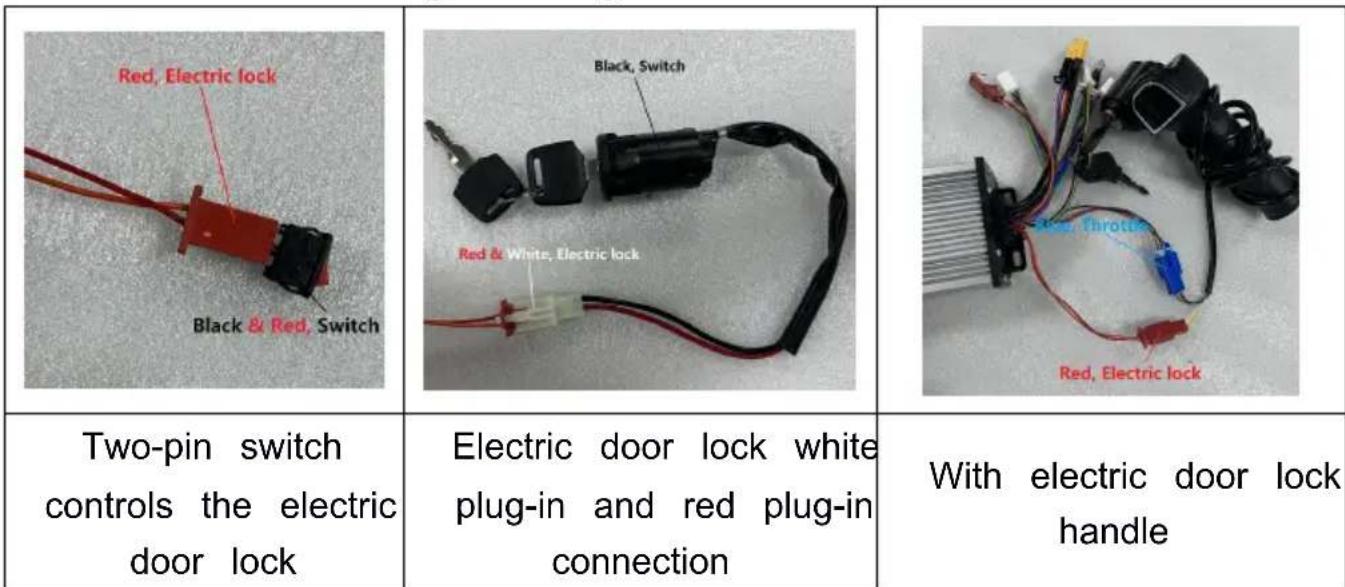

The electric door lock must be kept normally open, or the red and green lines must be connected by a short circuit.

Electric door lock wiring has the following types, electric door lock with shown in Figure 8.

Fig.8 Wiring of electric door lock

4. Other accessories installation (purchase by oneself)

4.1 Brake

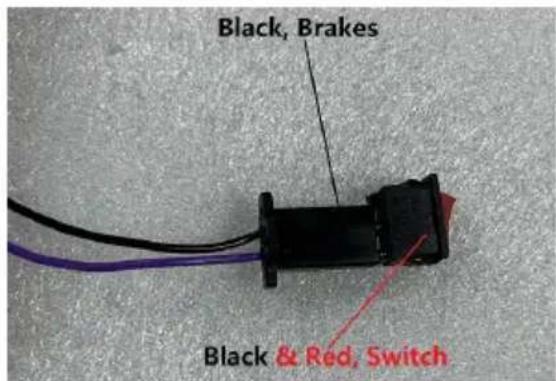

Brake: Connect the brake to realize the brake power off function. Brake wirin shown in Figure 9.

Figure 9 Brake wiring

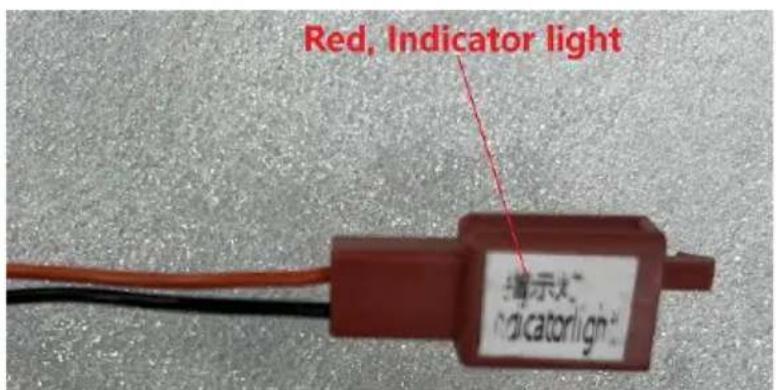

4.2 Indicator lights

Indicator light: Connected to the battery level display, it can be used as a DC voltage output for DC72V to emit light. The positive and negative terminals c be reversed. Orange is 72V+and black is 72V-. The wiring of the indicator shown in Figure 10.

Figure 10 Wiring of indicator lights

4.3Pedal/accelerator

Pedal/accelerator wire (twist throttle).

1. Red: +4.3V
2. Black: Ground wire
3. Gray: Signal line

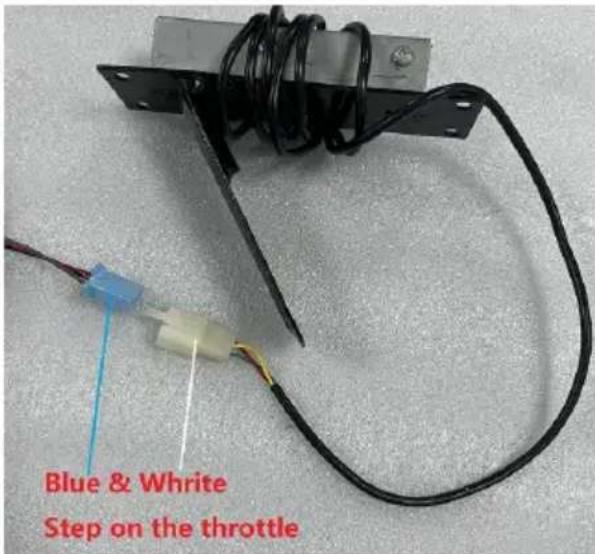

The pedal/accelerator wiring is shown in Figure 11.

Fig.11 Step on the throttle wiring

COMMON PROBLEMS AND REMEDIES

Phenomenon:

The electronic lock must be opened, When the electronic lock is opened, the throttle is turned and the motor does not work

Reason:

Battery The battery is too low and does not reach the required operating vo Solution:

1. Charging ;
2. Select a battery with the corresponding operating voltage ;
3. Check whether each plug-in is connected correctly and whether the connect terminals are connected reliably, so as to avoid failure to work normally due incorrect connection or poor contact.
