USER MANUAL Bernina 66490 Kela

Illustration of a kitchen grater with a side dish and a knife, no text or symbols present

Technical diagram of a refrigerator with labeled parts including air conditioner, heater, and tray

D

Care & safety instructions

Dear KELA customer,

We congratulate you on the purchase of your long-lasting quality product from Kela. In order to have many years of enjoyment with it, please read the following product information and instructions for use and care, as well as the safety recommendations.

With it, you can quickly and easily prepare the finest raclettes and grilled dishes with meat, sausage and fish.

This product can be used by children from the age of eight (8) years and by persons with reduced limited, sensory or

mental capabilities or a lack of experience and/or knowledge, if they are supervised or have been instructed in the safe use of the product and understood the resulting dangers. Do not allow children to play with the product. Do not allow children to clean or maintain the product without supervision.

In your own interest, please read the operating instructions before using the equipment for the first time and heed all danger warnings and safety information below. This will help to prevent accidents and technical faults. Keep the documents in a safe place near the appliance. Make sure that the documents are passed on to others with the appliance.

DANGER WARNINGS AND SAFETY INFORMATION

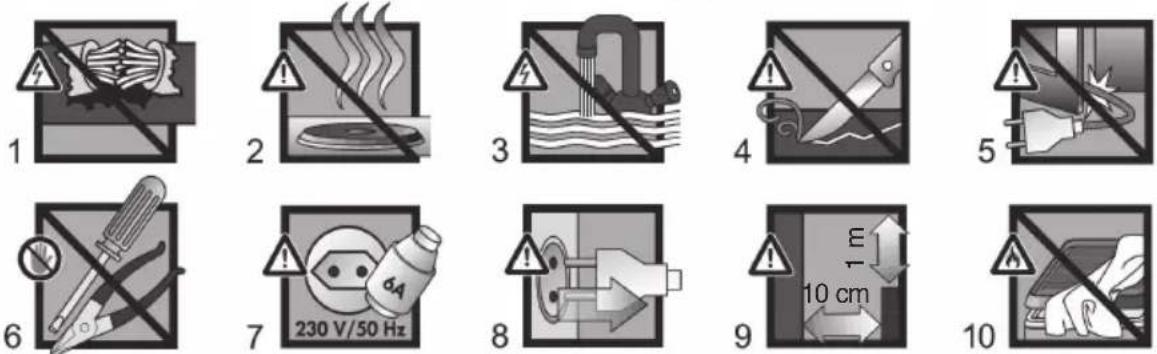

Keep the fold-in section of the cover open while reading these instructions. It contains the illustrations of components referred to in the text. The numbered warning symbols on the fold-in cover show information which is important for your safety.

1 Never put the appliance into operation if there is visible damage to the mains cable.
2 Do not place this electrical appliance on heat-sensitive, hot or flammable surfaces.
3 Do not hold the appliance under running water or immerse it in water.
4 Do not use pointed or sharp

utensils or cut on the surface of the appliance.

5 Do not pinch the mains cable.
6 Never use the appliance if it is defective or damaged, and do not try to repair it yourself. The appliance must be repaired by qualified specialist personnel.
7 The electrical appliance may only be connected to a properly installed power socket with a mains voltage corresponding to the technical data for the device.
8 Pull the mains plug out of the socket.
9 Observe the safety distances to ensure adequate ventilation of the appliance and always place it on a heat-resistant surface.
10 Never cover the appliance.

SAFETY REGULATIONS

Never bring live components into contact with water. Do not connect the device to the mains until the granite plate (a) is lying securely on the holders (e).

USE

This appliance is designed exclusively for private use. Any misuse gives rise to risks and is therefore strictly prohibited!

We can accept no liability for any damage caused if the appliance is put to any other use than that intended or if it is operated incorrectly.

Use only original accessories or accessories expressly recommended by the manufacturer. The

use of non-approved accessories may lead to damage.

USER

The appliance may only be used by persons familiar with the content of these operating instructions. Persons under the influence of alcohol or medication and children may only use the appliance under supervision.

PROTECTION OF CHILDREN

Never allow children near the electrical appliance unless they are supervised.

ELECTRIC SHOCKS (7)

Be careful never to touch live components. Electric shocks can cause serious or even fatal injury. For this reason, the electrical appliance may only be connected to a properly installed power socket with a mains voltage corresponding to the technical data for the device (see type plate on the appliance and the section Technical data in the instructions for use).

MAINS CABLE (1, 2, 5, 8)

A damaged mains cable must be replaced by the repair service, as special tools are required. Do not pinch the mains cable, and protect it against contact with hot objects. Pull the mains plug out of the socket if you are not using the appliance for some time, if malfunctions occur and before cleaning it. Never pull on the cable to pull the mains plug or pull the plug with wet hands.

LOCATION (2, 3, 9)

Place the appliance on a level, stable and heat-resistant surface and make sure that it is dry and out of the reach of children. Choose a location where heat can escape freely and where there is adequate ventilation. Never leave the mains cable hanging down. Someone could pull the appliance down and injure themselves. Do not use the appliance outdoors and keep it away from sources of heat and naked flames. Exercise particular caution when moving the electrical appliance.

RISK OF FIRE AND INJURY (10)

Never connect the appliance to the mains until it is fully assembled. Do not hang cloths etc. over the appliance to dry.

Caution: Danger of burns caused by the hot surface of the device! The hot pans (g) should only be touched at the handles, and when the device is hot, handle it only by the recessed grips on the sides

(b). Always use oven cloths or oven gloves.

CLEANING AND MAINTENANCE (3, 4, 8)

Switch the appliance off, pull the mains plug and leave the appliance to cool down before commencing cleaning. Clean the heating coil (f) and the pan rest (d) with a damp cloth. Use kitchen roll to remove the remaining cooking oil from the grill plates (a) while they are still lukewarm. Rinse the grill plates (a) with water and dry them using kitchen roll. Then brush the plates with a little cooking oil. Do not use steel wool, wire brushes or abrasive cleaning agents!

The pans (g) and raclette spatulas (g) can be cleaned using water and a little standard washing-up liquid. If they are heavily soiled, leave them to soak in cold water for about 30 minutes before cleaning them.

TECHNICAL DATA

Designation Raclette with grill plate for 2 pers.

Size (L x W x H) approx. 295 x 105 x 100 mm

Mains supply 220 - 240 V / \~ 50 - 60 Hz

Heating capacity 350 watts

Heating-up time approx. 4-5 minutes

Cable VDE cable, length: 1 m

Regulator/switch ON-OFF rocker switch with status lamp

Approval CE/GS

Conforms to EU regulations Yes

Product warranty 2 years

We reserve the right to make technical modifications without prior notice.

Caution: Never immerse the electrical appliance in water and never hold it under running water.

REPAIR (6, 8)

Pull the mains plug out of the socket immediately if you suspect a technical defect. Take the appliance to your nearest repair shop and have it checked. The manufacturer accepts no liability for damage as a result of incorrect handling of the appliance.

Caution: Tampering with the appliance can lead to serious danger for the user.

OVERVIEW OF COMPONENTS

a Non-stick coated grill plate
f Heating coil
b Recessed grip
g 2x non-stic k coated pans +
2x raclette spatulas
c Base
h Mains cable
d Pan rest
i ON-OFF rocker switch
e Holder for grill plate
k Status lamp

POWER CONNECTION (1, 6, 7) If not handled correctly, electricity can cause fatal injuries.

Connect the electrical appliance to a properly installed power socket with a mains voltage corresponding to the technical data for the device. Never use a defective mains cable. If the mains cable is damaged, please contact the repair service. Only use extension cables which are in perfect condition.

COMMISSIONING AND OPERATION

An electric shock can be fatal! Please comply with the safety regulations.

Unpack the appliance and wipe all parts off with a damp cloth. Place the base (c) on a level, stable and heat-resistant surface. Place the grill plate (a) on the holders (e) and plug the mains cable (h) into the socket.

Tip: Before using the device for the first time, heat it for approx. 4 - 5 minutes – without the pans. It will smoke a little and there will be a smell, but this is perfectly normal and no cause for concern. Make sure the room is adequately ventilated!

Switch the appliance on by pressing the rocker switch (i). The status lamp (k) lights up, showing that the device is heating up. The device is now ready for use. Fill the pans to taste. Before grilling meat with a low fat content or vegetables, brush them with a little cooking oil before placing them on the grill plate (a). Meat with a normal fat content will cook in its own juices. Enjoy your meal!

To prevent damage to the pans (g), always use the spatulas provided (g).

PACKAGING MATERIAL

Do not simply throw the packaging material away. Recycle it. Paper, cardboard and corrugated cardboard packaging belongs in the paper bank, plastic packaging components and film in the corresponding recycling bin.

DISPOSAL

At the end of their service life, appliances must be rendered unusable. Separate the mains cable from the appliance.

Do not dispose of the appliance with the household waste. Take it to a communal collection point (recycling centre) for electrical and electronic appliances, where it will be disposed of free of charge, or return it to your dealer.

WARRANTY

We offer a 2-year warranty from the date of purchase for proven technical defects in the appliance. Please refer to the purchase contract for details of the warranty terms.

This warranty does not cover

• any parts subject to normal wear and tear (e. g. seals).
  • defects arising as a result of failure to comply with the instructions for the handling, maintenance and care of the appliance.
  • defects resulting from inappropriate and improper use, failure to use original spare parts or negligent handling and the consequences of incorrect modifications or repairs to the appliance and repairs or modifications effected without our approval by the purchaser or third parties.
