USER MANUAL CR 5039 CAMRY

White and black electric iron shaver with a green handle and black buttons (no visible text or symbols)

CR 5039

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. WARNING: Before connecting the appliance to the mains socket, check the mains voltage and set the switch to the appropriate position. It is forbidden to change the position of the voltage switch while the device is operating.
   The device should only be connected to a grounded socket 220-240V \~ 50/60Hz or 100V-127V \~ 50/60Hz. To increase safety of use, do not connect multiple electrical devices to one circuit at the same time.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
7. Do not leave the device plugged into the socket unattended.
8. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
9. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
10. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
11. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

12. Never use the product close to combustibles.

13. Do not let cord hang over edge of counter or touch hot surfaces.

14. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.
15. If it is necessary to use an extension cord, use only one with a grounding pin and rated for the power load of at least the iron connected to it. The other ("weak") extension cords can overheat. The cable should be arranged to avoid accidental strokes or stumbles over it.
16. Always, before filling with water or when the steam iron is not used, unplug it from the mains.
17. Touching a hot soleplate, contact with hot steam or water may cause burns. Be careful when you rotate the iron, as in the tank, even when disconnected from the power supply iron, may still be in hot water.
18. DO NOT allow for prolonged contact hot steam iron with fabric or flammable materials.
19. Be careful that the power cord does not touch the hot soleplate. Allow the iron to cool completely before storage.
20. If you do not use iron, even for a short time, turn off the options of steam
21. Under no circumstances should be ironed clothes and fabrics that are on humans or animals.
22. Never direct the steam to humans or pets.
23. Iron must be used at a stable even surface and this can only be disposed of.
24. Do not fill the water tank with chemicals, perfumes or descaling substance.
25. Do not fill the water tank over MAX level.

DESCRIPTION OF DEVICE

A. Soleplate
B. The water inlet hole
C. Steam Control button
D. Power Cord
E. Water tank
F. Thermostat indicator light
G Thermostat knob - temperature control
H. Voltage switch 220-240V / 100V-127V

ATTENTION!!

After unpacking the device, check the mains voltage and set the voltage switch (H) to the appropriate position.

It is forbidden to change the position of the voltage switch (H) while the device is operating

For the safety of users, each iron is filled with water and tested during the quality control process. Therefore, it may happen that a few drops of water escape from the device before first use, which is normal.

IRONING

First use

When using the iron for the first time, you may notice a slight emission of smoke and hear some sounds made by the expanding plastics.

This is quite normal and it stops after a short time. We also recommend passing the iron over an ordinary cloth when using it for the first time.

Preparation

Sort the laundry to be ironed according to the international symbols on the garment label, or if this is missing, according to the type of fabric.

GARMENTLABEL	FABRICTYPE	THERMOSTATREGULATION
	synthetic	. low temperature
	silk - wool	.. medium temperature
	Cotton - linen	... high temperature
	Fabric not to be ironed

Start ironing the garments requiring a low temperature.

This reduces the waiting times (the iron takes less time to heat up than to cool down) and eliminates the risk of scorching the fabric.

STEAM IRONING

1. Check that the plug is disconnected from the socket.
2. Press the steam button (C) to the down position to turn off the steam generation.
3. Open the lid (B). Raise the tip of the iron to help the water enter the opening without overflowing. 4. Slowly pour the water into the reservoir using special measure and take care not to go over the maximum level (about 30ml) indicated by "MAX" on the reservoir. Close the lid (B).
4. Place the iron in a vertical position. Plug it into the electricity.
5. Set the thermostat knob in accordance with the international symbol on the cloth's labels.
6. The thermostat control light indicates that the iron heats up. Wait until the indicator lights off. You can then start ironing.

Warning: When you ironing, the thermostat control light turns on from time to time, this means that the selected temperature is maintained at a constant level. If you decrease the temperature, do not begin ironing again until the thermostat light does not light up.

1. Press the steam button (C) to the top position, to turn on the steam generation.

Warning: The iron gives off steam continuously only if you hold the iron horizontally. You can stop the continuous steam by placing the iron in a vertical position or pressing the steam button (C) to the down position to turn off the steam generation.

The steam ironing function can only be used at the highest temperatures. Water may drip from the iron if the temperature selected is too low.

To iron without steam, press the steam button (C) to the down position to turn off the steam generation.

PROCEDURE AFTER IRONING

Disconnect the plug of the iron from the socket. Empty the reservoir by turning the iron upside down and gently shaking it. Leave the iron to cool down completely.

ADVICE FOR GOOD IRONING

1. We recommend using the lowest temperatures with fabrics that have unusual finishes (sequins, embroidery, flush, etc.).
2. If the fabric is mixed (e.g. 40% cotton and 60% synthetics), set the thermostat to the temperature of the fibre requiring the lower temperature.
3. If you don't know the composition of the fabric, determine the suitable temperature by testing on a hidden corner of the garment. Start with a low temperature and increase it gradually until it reaches the ideal temperature.
4. Never iron areas with traces of perspiration or other marks: the heat of the plate fixes the stains on the fabric, making them irremovable.
5. The ironing is more effective if you use a dry iron at a moderate temperature: excess heat scorches it with the risk of forming a yellow mark.
6. To avoid marking silk, woolen, or synthetic garments shiny, iron them inside out.
7. To avoid marking velvet garments shiny, iron in one direction (following the fiber) and do not press down on the iron.
8. Many fabrics are easier to iron if they are not completely dry.

TECHNICAL DATA:

Voltage:100-127V \~ / 220-240V \~ 50/60Hz

Power: 260-420W / 343-408W

(DE) DEUTSCH

SFAT PENTRU CALCAT BUN

Deployment: If you want to get your attention, you want to get your attention.

GARMENTLABEL	FABRICTYPE	THERMOSTATREGULATION
	synthetic	·low temperature
	silk - wool	..medium temperature
	Cotton - linen	...high temperature
	Fabric not to be ironed

BESCHRIJVING VAN HET APPARAAT

A. Zoolplaat

OPIS PRODUKTU (rys. 1)

Glass watercolor kettle with black handle and glass body (no visible text or symbols)

ELECTRIC KETTLE CR 1290

Exterior view of a modern coffee machine (no visible text or symbols)

ESPRESSO MACHINE CR 4410

Exterior view of a modern office building (no signage)

SANDWICH MAKER CR 3054

Black electronic device with digital display and control buttons (no visible text or symbols)

RETRO RADIO CR 1182

White portable air conditioner unit with circular vent and grid grille (no visible text or symbols)

AIR CONDITIONER CR 7925

Modern kitchen mixer with digital display and control knob (no visible text or symbols)

FOOD PROCESSOR CR 4223

White kitchen hand mixer with whisk, no visible text or symbols

MIXER CR 4220

Close-up of a black and silver meat processing tool (no visible text or symbols)

MEAT MINCER CR 4812

Exterior view of a modern air fryer with digital display (no visible text or symbols)

AIR FRYER OVEN CR 6311

Exterior view of a modern office building (no signage)

BAGLESS VACUUM CLEANER CR 7046

White portable air purifier with perforated grille and control panel (no visible text or symbols)

AIR DEHUMIDIFIER CR 7851

Trimmer CR 2921

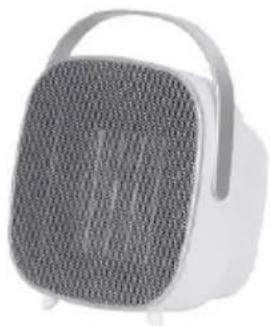

White portable electronic device with a textured gray panel and handle (no visible text or symbols)

CERAMIC FAN HEATEROIL FILLED RADIATOR CR 7732 CR 7812

Black rectangular industrial water heater with multiple cooling fans and wheels (no visible text or symbols)

Exterior view of a silver industrial machine with open lid and internal components (no visible text or symbols)

PORTABLE FRIDGE CR 8076

A gray oval-shaped pet bed with a black cable inserted, showing a small object inside (no text or symbols visible)

HEATED ANIMAL DEN CR 7431

camry

Premium

Black and red vacuum cleaner with handle and control panel (no visible text or symbols)

VACUUM CLEANER CR 7045

Exterior view of a black multi-level solar power heater with control panel and wheels (no visible text or symbols)

OIL FILLED RADIATOR CR 7814

Stand Fan CR 7306

Black and white photo of a modern kettle with textured surface and handle (no visible text or symbols)

Electric Kettle CR 1169

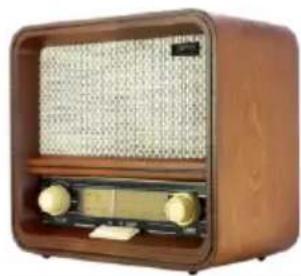

Vintage wooden radio with visible sound waves and control knobs (no text or labels)
