USER MANUAL DED8717A DEDRA

EN Manual with warranty card

Motorová kosa

Black-and-white photo of a manual grasshopper with attached tool handle (no text or symbols visible)

EN All rights reserved. This work is protected by copyright. Copying or distribution of the User Manual in parts or in full without Dedra Exim's permission is prohibited. Dedra Exim reserves the right to make design, technical and completion changes without prior notice. These changes may not constitute grounds for advertising the product. User manual available at www.dedra.pl

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

ON

OFF

B

1 2 3 4 STICK START

Technical diagram of a mechanical clamp or bracket with labeled parts 1 and 2

C

D

E

Technical diagram of a mechanical assembly with numbered components for identification

F

Exploded view diagram of a mechanical assembly with numbered components for identification

G

Opis piktogramów / Marking description / Popis použitých piktogramů / Opis použivaných piktogramov / Panaudotų piktogramų aprašymas / Lietoto piktogrammu apraksts / Az alkalmazott piktogramok magyarázata / Descrierea pictogramelor / Opis piktogramov / Описание на пиктограмите / Опис піктограм / Opis piktograma / Description des pictogrammes

Nakaz: przeczytaj instrukcję obsługi / Mandatory: read the manual instruction / Příkaz: přečtěte návod k obsluze / Príkaz: oboznámte sa s užívatel'skou príručkou / Prívaloma: perskaitykite aptarnavimo instrukciją / Norāđijums: růpīgi iepazistieties ar lietotája rokasgrámatá sniegto informáčiju / Utasítás: olvassa el az útmutató / Obligatoriu: citiți manualul de utilizare / Ukaz: preberi navodila za uporabo / Заповедта: прочетете ръководството за употреба / Заборона: прочитайте інструкцію з експлуатації / Obavezno: pročitajte korisnički priručnik / Injonction : lire le mode d'emploi

Nakaz: używać ochronników słuchu / Mandatory: use ear protective muffins / Príkaz: používejte ochranu sluchu / Príkaz: používajte chrániče słuchu / Privaloma: naudoti apsauginius akinius / Lietojiet dzirdes aizsardzības fīdzekļus / Utasītás: használjon fūlvedōt / Trebuie să folosi-ți aparate pentru protecția auzului / Obvezno: uporabljajte ščitnike za ušesa / Задължително: Използвайте предпазни средства за уши / Обов'язково: використовуйте захисні навушники / Obavezno: koristite zaštitu za sluh / Porter des protections auditives

Nakaz: stosować okulary ochronne / Mandatory: use eyes protective glasses / Příkaz: používejte ochranné brýle / Příkaz: používajte ochranné okuliare / Privaloma: naudoti apsauginius akinius / Norádíjums: nésájiet aizsargacenes / Utasítás: viseljen védőszemüveget / Obligatoriu: folosíti ochelari de protecție / Predpis: uporabljajte zaščitna ocala / Предпазни мерки: използвайте предпазни очила / Застереження: використовуйте захисні окуляри / Obavezno: nosite zaštitne naoćale / Injonction: utiliser des lunettes de protection

Nakaz: stosować kask ochronny / Mandatory: use head protection / Příkaz: používejte ochranná přilba / Príkaz: používajte ochranná prilba / Privaloma: naudoti apsauginis šalmas / Pieprasījums: lietot aizsargkiveres / Utasítás: használjon védő sisak / Obligatoriu: utilizați o cască de protecție / Obvezno: nosite zaščitno čelado / Задължително: Носете защитна каска / Обов'язково: носити захисний шолом / Obavezno: nosite kacigu / Injonction: porter un casque de protection

Nakaz: stosować rękawice ochronne / Mandatory: use protective gloves / Příkaz: používejte ochranné rukavice / Příkaz: používajte ochranné rukavice / Privaloma: naudoti apsauginius akinius / Pieprasījums: lietot aizsardzības cimdus / Utasítás: használjon védőkeszytūt / Obligatoriu: purtați manuși de protecție / Predpis: uporaba zaščitnih rokavic / Предписание: използвайте защитни ръкавици / Рецепт: використовуйте захисні рукавички / Obavezno: koristiti zaštitne rukavice / Injonction: utiliser des gants de protection

Dla kos do zarošli nos przeciwpoślizgowe obuwie / Mandatory: use protective shoes / Pro křovinořezy používejte protiskluzovou obuv / Pri kosení kríkov a vysokej trávy používajte protišmykovú obuv / Naudojant krůmapjoves, naudokite avalynę su neslidžiu padu ir pirštines / Valkăjiet neslidošus apavus un cimdus / Viseljen csúszásmentes cipôt és kesztyűt a bozótvágókhoz / Purtați încăltăminte antiderapantă și mănuși la cosirea tufișurilor / Pri krtačnih rezalníkih nosite nedrsečo obutev in rokavice / За храсторезите носете нехлъзгащи се обувки и ръкавици / Для роботи з кущорізами використовуйте неслизьке взуття та рукавички / Obavezno: nositi zaštitne cipele / Pour les débroussailleuses, porter des chaussures antidérapantes.

Zakaz: nie zbližać się z otwartym ogniem / Prohibition: do not approach with open fire / Zákaz: nepribližujte se k otevřenému ohni / Zákaz: nepribližovat sa k ohňu / Draudimas: nesiekite atviros ugnies / Aizliegums: nepieslědziet atklătu uguni / Tiltás: ne közelltsen nyílt tűzhöz / Interzicere: nu apropiąti un foc deschis / Prepoved: ne približujte se z odprtím ogniem / Забрана: не се приближавайте с открит огън / Заборона: не наближатися з відкритим вогнем / Zabрана: ne prilazite s otvorenom vatrom / Interdiction : ne pas s'approcher avec un feu ouvert

Ostrzeżenie: niebezpieczeństwo / Warning: danger / Varování: nebezpeči / Varovanie: nebezpečenstvo / Ispėjimas: pavojus / Brīdinājums: briesmas / Figyelem: veszély / Atentle: pericol / Opozorilo: nevarnost / Предупреждение: опасност / Попередження: небезпека / Upozorenje: Opasnost / Avertissement : danger

Ostrzeženie: gorące powierzchnie / Warning: hot surfaces / Varování; horké povrchy / Varovanie; horúce povrchy / Įspėjimas: karšti paviršiai / Brīdinājums: karstas virsmas / Figyelmeztetės: forró felületek / Atenție: suprafețe fierbinti / Opozorilo: vroče površine / Предупреждение: горещи повърхности / Обережно: гарячі поверхні / Upozorenje: Vruće površine / Avertissement : surfaces chaudes

Odległość miedzy maszyną a osobami postronnymi powinna wynosić co najmniej 15 m / The distance between the machine and bystanders should be at least 15 m / Vzdálenost mezi strojem a postrannimi osobami musí být alespoň 15 m / Vzdialenost' medzi zariadením a postrannými osobami musí byt minimálne 15 m / Nuotolis tarp jrenginio ir pašalinių žmonių turi būti mažiausiai 15 m / Attālumam starp ierici un nepilnvarotăm personăm jābūt vismaz 15 m / A gép és a kívülálló személyek közötti távolságnak legalább 15 m-nek kell lennie / Distanța dintre mașină și terți trebuie să fie de cel puțin 15 m / Razdalja med strojem in mimoidočimi mora biti vsaj 15 m / Разстоянието между машината и странични лица трябва да бъде най-малко 15 m / Відстань між машиною та сторонніми особами повинна бути не менше 15 m / Udaljenost između stroja i promatrača trebala bi biti najmanje 15 m / La distance entre la machine et les personnes présentes doit être d'au moins 15 m.

Uważaj na wyrzucane przedmioty / Watch out for discarded items / Dávejte pozor na vymrštěné předměty / Dávajte pozor na odhadzované (vymršťované) predměty m / Atkreipkite dėmesį j atmetamus daiktus / Uzmanieties no izmestiem priekšmetiem / Vigyázzon a kidobott tárgyakra / Atenție la obiectele aruncate / Bodite pozorni na odvržene predmete / Внимавайте за изхвърлени предмети / Слідкуйте за викинутими предметами / Pazite na odbačene predmete / Attention aux objets jetės

Uważaj na siły odpychające (w kosach do zarośli) / Beware of repulsive forces (in scrub scythes) / Dávejte pozor na odpudivou sílu (u křovinořezů) / Dávajte pozor na odstředivé sily (pri kosení kríkov a vysokej trávy) / Atkreipkite dêmesj i išstumiančias jégas (krůmapjovių atveju) / levěrojiet atgrüdošajos spěkus (ierīces krūmu griešanai) / Vigyázzon a visszalókő erőkre (a bozótvágóknál) / Atenție la forțele respingătoare (la coasele pentru tufişuri) / Pazite na odbojne sile (pri kosah za grmičevje) / Pazete ce ot obtblyckvaщи сили (при косите за храсти) / Остерігайтеся сил відштовхування (в кущових косах) / Pazite na odbojne sile (u kosama u grmlje) / Attention aux forces de répulsion (dans les faux de broussailles)

Informacja: prędkość nominalna / Information: nominal speed / Informace: jmenovità rychlost / Informacie: menovità rychlost / Informacija: vardinis greitis / Informacija: nominálais ātrums / Információ: névleges sebesség / Informatii: viteza nominală / Informacije: nazivna hitrost / Информация: номинална скорост / Інформация: номинальна швидкість / Informacije: nazivna brzina / Information : vitesse nominale

Informacja: pojemność skokowa / Information: displacement / Informace: kapacita / Informácie: kapacita / Informacija: pajégumas / Informácija: jauda / Információ: kapacitás / Informatii: capacitate / Informacije: premik / Информация: преместване / Информація: переміщення / Informacije: istisnina / Information : déplacement

PL Spis treści

EN Table of contents

1. Drawing and pictures
2. Safety precautions
3. Safety precautions for the brush cutter
4. Description of the device
5. Purpose of the device
6. Restriction on use
7. Technical data
8. Preparing for use
9. Switching on the device
10. Operation of the device
11. Ongoing maintenance
12. Spare parts and accessories
13. Trouble-shooting on your own
14. Contents of the package
15. Information for users on the disposal of the devices
16. Warranty card

The Declaration of Conformity is attached to the manual as a separate document. In the absence of a declaration of conformity, please contact Dedra Exim Sp. z o.o.

WARNING. symbol and all

Read all wa instructions.

Read all warnings marked with the instructions.

Failure to observe the following warnings and safety instructions could result in electric shock, fire or serious injury.

Keep all the manual for the future use.

2. Safety precautions

• The appliance may only be operated by an adult who is trained and familiar with these operating instructions.
• When making the combustion apparatus available, also make these operating instructions available.
• The operator must not operate the appliance when tired, ill or under the influence of alcohol or other drugs.
  • Children and persons not familiar with these operating instructions must not operate the appliance.
• The operator shall be liable to third parties who are in the vicinity of the tool and for things within the tool's operating radius.
• The manufacturer is not liable for damage resulting from improper use of the tool.
• Internal regulations in other countries may impose additional requirements, in such cases please contact the manufacturer.

3. Safety precautions for the brush cutter

• Work with the equipment must only be carried out in conditions of good visibility, daylight or strong artificial lighting.
• Use personal protective equipment when working. Always wear covered, non-slip footwear and protective clothing, long trousers, protective helmet, ear defenders, face shield, protective gloves
• Check carefully the area where the equipment will be operated. Remove all objects which can be thrown away by the rotating cutting element e.g. stones, branches, bottles etc. or which could get stuck in the machine e.g. wires, strings.

• When working with the machine, maintain a distance of at least 15 metres from third parties. No persons, animals or objects that could cause an accident or damage may be in the working area within this radius.

• When working with the machine, exercise constant caution, keep your balance, place your feet firmly on the ground, especially on slopes. Always mow across the slope, never up or down. When working, walk, never run.

• Do not mow wet grass.
• When working, hang the mower from the harness provided and hold the handles with both hands.
• A safe distance must be maintained between the operator and the cutting element during start-up and throughout operation.
• Moving parts must not be touched before they have come to a complete stop and the engine has been switched off.
• Wear protective gloves during servicing operations. Take care not to cut yourself on the line shortening blade or the cutting blades.
• In the event of an accident at work, use first aid measures appropriate to the injury and obtain medical advice.
• Always carry out a visual inspection of the machine before use and after any fall or other impact to identify any damage. If any abnormalities are found, do not operate the appliance and return it to an authorised service centre.
• Switch off the appliance if it starts to vibrate excessively, become too noisy and run unevenly.
• Do not use the unit with a damaged cover or housing.
• If a leak or fuel leak is detected, do not start the engine, as there is a risk of fire.
• Do not run the appliance in confined spaces. The engine emits exhaust fumes containing carbon dioxide. Inhalation of exhaust fumes can lead to unconsciousness and death.
• Do not touch hot engine parts with unprotected body parts during and shortly after operation. The appliance heats up considerably during operation.
• Take frequent breaks from the machine for short rests and changes in working position. Due to the effects of vibration, adhere to the specified operating times.
• Never lay the hot unit on dry grass.
• Do not smoke near the petrol brushcutter, there is a risk of fire.

Precautions when working with cutting discs

When using a metal cutting disc, the disc may come into contact with a hard object (stone, wood) and a side-to-side kickback of the scythe may occur. The recoil can be so violent and unexpected that the unit may be thrown in any direction and the operator may lose control of the unit. To avoid this, it is important to:

• Hold the device firmly with both hands.
• Take care that no obstacles are lying on the ground.
• Do not use the cutting disc near fences, metal posts.
• Use well-sharpened cutting discs.

The cutting disc may cause injury to the operator as it continues to rotate for a while after completion of work. All work may be carried out when the disc has come to a complete stop.

Do not use the machine if the disc is found to be cracked, bent or dulled. If such defects are found, replace the disc with a new one.

4. Description of the device

Fig. A: 1. - ignition cable, 2. - starter handle, 3. - engine housing, 4. - fuel tank, 5. - clutch mount, 6. - slinger, 7. - clutch housing, 8. - left handle, 9. - right handle, 10. - handlebars, 11. - handlebar mount, 12. - boom, 13. - guard mount, 14. - upper part of guard, 15. - bevel gear, 16. - lower part of guard, 17. - cutting tool, 18. - line shortener

5. Purpose of the device

The machine is designed for mowing grass or similar soft vegetation as well as cutting shrubs or young trees with stem diameters of up to 2 cm using a suitable cutting disc.

6. Restriction on use

The appliance may only be used in accordance with the 'Permitted operating conditions' below.

It is not permissible to use the appliance with the cutting tool guard removed or damaged. Do not use the appliance during bad weather conditions such as rain, especially if there is a risk of lightning.

Any unauthorised changes to the mechanical and electrical structure, modifications of any kind and maintenance operations not described in

the operating manual will be considered unlawful and will void the warranty and the declaration of conformity.

Any use which is not intended or which does not comply with the operating instructions will result in immediate loss of warranty rights.

Permitted operating conditions

The unit is designed for outdoor use

Due to the vibration involved, uninterrupted operation must not last longer than 30 min..

1. Technical data

Model	DED8717 / DED8717A
Weight of appliance [kg]	7,7
Fuel tank volume [cm3]	1250
Line cutting width [mm]	430
Cutting disc diameter [mm]	255
Engine displacement [cm3] Engine power [kW] ([hp])	43
Engine power [kW] ([hp])	1,45 (1,97)
Max. spindle speed [rpm].	7500
Idling speed [min-1].	2800
Noise emissions when mowing grass
- Sound power level LWA [dB(A)]	92,1
- Sound pressure level LpA [dB(A)]	107
- Uncertainty of measurement (KWA) (KPA) [dB(A)].	3
Noise emission during brush cutting
- Sound power level LWA [dB(A)]	82,2
- Sound pressure level LpA [dB(A)].	102,4
- Uncertainty of measurement (KWA) (KPA) [dB(A)].	3
Guaranteed noise level	112
Vibration level
- when mowing grass ah [m/s2].	8,254
- during brush-cutting ah [m/s2].	7,912
- Vibration measurement uncertainty K [m/s2]	1,5
Spark plug type	CMR7H

Information on vibrations and noise

The combined value of the vibration ah and the measurement uncertainty were determined in accordance with the standard EN ISO 11806-1 and are given in the table.

Noise emissions were determined in accordance with the standard EN ISO 11806-1, and values are given in the table above.

Noise can cause hearing damage, always wear hearing protection when working!

The declared total vibration/noise value has been measured according to a standard test method and can be used to compare one device with another. The stated vibration/noise level can also be used for a preliminary vibration/noise exposure assessment.

Vibration/noise levels during actual use of the equipment may differ from the declared values, depending on the use of the work tools, in particular the type of workpiece and the need to determine operator protection measures. To accurately estimate exposure in actual use conditions, all parts of the work cycle must be taken into account, including periods when the machine is switched off or when it is switched on but not used for work.

8. Preparing for use

Carry out all maintenance with rotating parts stationary, the engine switched off and the spark

plug wire disconnected.

Assembling the motor

Assemble the motor and boom by screwing them together with the screws provided (Fig. A, 5).

Assembly of the right handlebar

Mount the right handlebar to the handlebar as shown in figure A (Fig. A, 9). Ensure that the holes in the handlebar and handlebar are aligned. Put the locking screw through the holes and assemble with the nut on the opposite side of the handlebar (Fig. D, 4).

Mounting and adjusting the handlebar

Mount the handlebar in the handlebar holder so that the handle with the throttle trigger is on the right side. Tighten the mounting screws (Fig. A, 10; 11).

It is possible to adjust the handlebar relative to the axis of the boom and relative to the axis of the steering wheel. To adjust the handlebar setting, loosen the mounting screws, move the handlebar to the desired comfortable position. Tighten the mounting screws. After the motor and

handlebars have been screwed together, fasten the accelerator cable to the boom with cable ties.

Mounting the cowl

Screw the guard to the guard mount (Fig. A, 13) so that it is between the cutting tool and the user, below the boom, as shown in Fig. A.

Assembling and removing the lower part of the guard

The lower part of the guard is assembled with its upper part using the latches (Fig. A, 14, 16). To dismantle it, the clips must be properly levered while pulling them out of their corresponding holes. Reassembly of the lower part of the guard is carried out by pressing the snaps into the holes.

Selecting the cutting tool for the job in hand

For mowing grass, use the line head (Fig. F, 39). For mowing overgrowth or young trees, use the cutting disc (Fig. F, 35). It is forbidden to use the cutting disc in areas exposed to collision with other objects.

Assembling and removing the line head

To fit the head, interlock the spindle by inserting a screwdriver into the hole in the gearbox flange (Fig. E, 2). Then install the top stabilising ring (Fig. G, 92), the grass wrap guard around the spindle (Fig. G, 94) and screw the head with cutting line onto the spindle thread in sequence. Perform disassembly in the same manner. Use the line head with the complete guard (main part with the lower part fitted).

Assembling and removing the cutting disc

WARNING

To use the device with a metal blade, remove the lower part of the guard.

To install the cutting disc, place the upper stabilising ring (Fig. G, 92) on the spindle, then the disc so that it rotates in the direction indicated by the arrows on the disc (Fig. G, 93); then place the lower stabilising ring and guard (Fig. G 94, 95) on the spindle. Lock the spindle by inserting a screwdriver into the hole in the gear flange (Fig. E, 2), tighten the inserted components with a nut (Fig. G, 96), make sure that the disc is seated perpendicular to the spindle. Disassemble in the same way

Refuelling

WARNING

If fuel is spilled on the appliance, do not start the engine, carefully wipe up the area of flooding and then wait until the fuel has completely evaporated. Do not start the appliance where fuel has been spilled. The use of unleaded 95 petrol is recommended.

Lay the mower on a level surface, pour the previously prepared fuel into the fuel tank, no more than the maximum level of the tank. Use a mixture of petrol and diesel in a ratio of 40:1. Screw the fuel tank on, make sure the cap is tight. Store fuel only in closed canisters intended for this purpose and marked. Store fuel for no longer than 30 days in a dry and shaded place.

Use and adjustment of the shoulder strap

The shoulder strap should be worn 'over the shoulder'. The upper part of the belt should be worn on the left shoulder and the lower part (with a snap hook) should be worn around the wearer's right hip. Adjust the length of the belt so that the lowest part of the snap hook is at hip height. With experience, adjust the length of the belt to make it as comfortable as possible.

Balancing the device

To properly balance the unit, suspend it from a correctly adjusted shoulder strap or harness, loosen the sling bolt Fig. A, 6), find a position that allows the operator to sit comfortably and the cutting tool to rest lightly on the ground when the unit is not held by the handlebars. Retighten the sling bolt.

9. Switching on the device

WARNING

Before starting up the unit, it is essential to carry out the steps described in the section 'Preparing

for operation'.

WARNING

Care should be taken when starting the machine as the working tip may rotate.

To start the machine, lay it on a flat surface so that it rests on the cutting element guard and the fuel tank. Set the switch to the 'I' position (Fig. D, 1) and the suction valve lever to the appropriate position (Fig. C, 2; closed, upper lever position when the engine is cold, open, lower lever position when the engine is warm). Then press the fuel hand pump bellows (Fig. C, 3) a few times (5-8 times). Pull the starter handle vigorously, pressing the unit to the ground with the other hand. Do not press the unit to the ground with your foot. If necessary, pull the handle several times.

In the event of failure, switch the switch to the 'Start' position (it is necessary to first depress the throttle trigger safety and the trigger itself; Fig. D, 3, 2) and repeat the starter jerks. In case of further failure with a cold engine, repeat the starter jerks with the suction valve open (as for a warmed-up engine).

After starting, briefly depress the throttle trigger. When the trigger is released, the engine should be idling and the working end should not rotate. If this is not the case, switch off the unit and adjust the carburettor. To switch off the unit move the switch to the 'Stop-0' position.

10. Operation of the device

WARNING

Operation of the appliance must be carried out in accordance with all the instructions in Chapters 2

and 3 of this manual, with due care.

Select a suitable cutting tool before starting work.

Mowing of low grass (line) and young stands (cutting disc)

Hang the device from the dedicated belt. Stand straight with a slight stride to ensure a stable stance. Hold the cutting element just above the ground. Carry out mowing at full speed moving the unit from right to left, then return to the starting position and move to the next area to be mowed. Periodically ensure that there is no debris around the cutting head that could cause it to become blocked.

Mowing of tall grass (with line) and brush (with blade)

Hang the device from a dedicated belt or harness. Stand straight with a slight stride to ensure a stable stance. Work at full speed. To avoid wrapping tall plants around the cutting attachment, operate the cutting element at a height of several centimetres below the level of the tops of the plants, moving the unit from right to left, then return to the starting position. Repeat until the desired effect is achieved and move to the next area to be mowed. Do not raise the working tip above the hip line. Periodically make sure that there is no debris around the cutting head that could cause a blockage.

WARNING

The line is subject to wear during operation, check the length and wear condition of the line.

Automatic line feed

A convenient 'tap&go' system is used to unwind the cutting line.

To unwind the monofilament, tap the head against the ground so that the monofilament release button on the underside of the head releases the monofilament and allows it to unwind automatically.

Approximately 1cm of line will come out of the magazine on each side of the head.

11. Ongoing maintenance

WARNING

Carry out all maintenance with the rotating parts stationary, the engine switched off and the spark

plug wire disconnected.

For safe operation and to prolong the service life of the unit, regular servicing must be carried out under workshop conditions. Replace worn or damaged parts to maintain operational safety. Failure to carry out maintenance work or carrying it out incorrectly may result in a reduced service life of the unit and, in extreme cases, an accident.

Cleaning

Clean the unit after each use to remove any lingering plant debris. For more thorough cleaning, a slightly damp cloth can be used with a possible addition of non-aggressive cleaning agents.

Removing the line spool

On the cutting head, push in the locking latch pull off the head collar.

There is a spool of line underneath, which must be pulled out.

Winding of the line

Each time the line is topped up, the head components must be inspected. Do not continue to use a damaged head.

Remove the rest of the old monofilament from the spool, insert the centre of the monofilament about 5m in length into the fixing notch so that when it is bent 180°, it is wound in the direction of the arrows on the spool (Fig. B). Wind the two halves of the monofilament without tangling, on opposite sides of the spool baffle, until approximately 10cm of each part of the monofilament is unspooled. To prevent the line from unrolling, the ends of the line can be placed in the notches in the spool collar. It is recommended not to use line thicker than 3mm.

Fitting the monofilament spool in the cutting head

Thread the ends of the monofilament through the monofilament holes in the head drum, then place the spool in the head so that the arrows indicating the direction of winding are visible, following the order of the components i.e. washer - spring - washer - spool. Once you have ensured that the spool is well inserted, attach the head collar.

Sharpening of metal cutting tools

The cutting disc must be inspected each time the line is replenished. It is forbidden to continue using a damaged disc.

If there is a little wear, sharpen the tool with a file. Sharpen frequently by collecting a small amount of material. A few strokes of the file are sufficient to sharpen a slightly worn blade. After every 5 sharpening operations, check the balance of the tool on a special machine or have it checked by a specialist workshop. Sharpen severely worn cutting tools with a sharpening device or have them sharpened by a specialised service centre. Always check the balance of the tool after sharpening a heavily used tool.

Angle gear lubrication

To refill the grease in the bevel gear, unscrew the grease channel plug screw (Fig. E, 1), inject the grease into the centre of the gear housing in an amount such that it does not cover the thread in the grease channel. Screw in the screw. Refill the grease regularly after every 10 operating hours.

Cleaning the air filter

To clean the air filter, close the intake valve (Fig. C, 2; upper lever position), open the carburettor cover, remove the coarser dirt from around the filter and pull out the filter. Shake the filter off, blow it out or replace it with a new one, never rinse it. Insert the clean filter into the filter housing, close the cover. Clean the filter regularly, after every 10 operating hours.

Carburettor adjustment

The idle speed is adjusted by means of a screw located on the carburettor (Fig. C, 1). Turning the screw clockwise will increase the idle speed (done when the engine stalls for no reason when the user lets go of the throttle trigger), turning the screw counterclockwise will decrease the idle speed (done when the cutting element rotates even though the engine is running at idle speed).

Cleaning, replacement, adjustment of spark plugs

To remove the spark plug, disconnect the ignition cable (Fig. A, 1), unscrew the plug with the supplied spanner. Clean the spark plug with a spark plug cleaning brush and a clean cleaner (not applicable to spark plug replacement).

The gap between the electrodes should be between 0.6 and 0.7 mm. Adjust it with suitable tools.

Screw in the spark plug, connect the ignition cable. It is prohibited to remove the spark plug while the engine is hot.

Storage and transport

When the appliance is not in use, store it out of the reach of children, in a dry place, with the fuel tank emptied. The appliance and the other components mentioned in the delivery note should be transported in such a way that they are not exposed to harmful environmental conditions such as humidity, precipitation, pressure that could result in mechanical damage and other conditions that could have a negative impact on the appliance.

WARNING

When transporting the unit, always switch off the engine, disconnect the spark plug wire and empty

the fuel tank.

Store and transport metal cutting components in a dedicated guard. For short distances, carry the unit by holding the boom with one hand, at the balance point of the unit between the sling and the handlebar mount.

12. Spare parts and accessories

Use only original spare parts and accessories recommended by the manufacturer.

Accessories available for purchase:

• DED87151 - cutting head with line
• DED87152 - cutting disc
• 80Z16151 - fishing line 1,6 mm x 15 m with round cross section
• 80Z20151 - fishing line 1,6 mm x 15 m with round cross section
• 80Z24151 - fishing line 1,6 mm x 15 m in round cross section
• 80Z16152 - fishing line 1,6 mm x 15 m in square cross section
• DEGL06A, DEGL06B, DEGL06C - oils
• BHSZ30 - two-armed adjustable braces

For the purchase of spare parts and accessories, please contact the Dedra Exim service. Contact details can be found on page 1 of the manual.

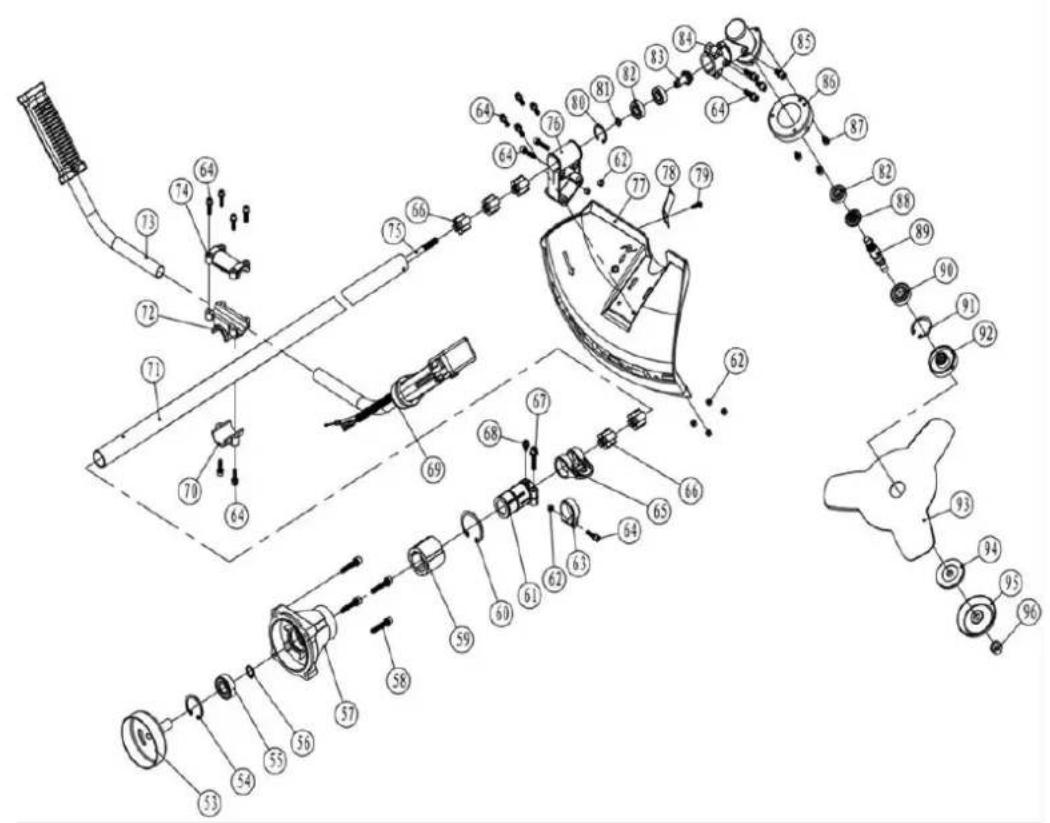

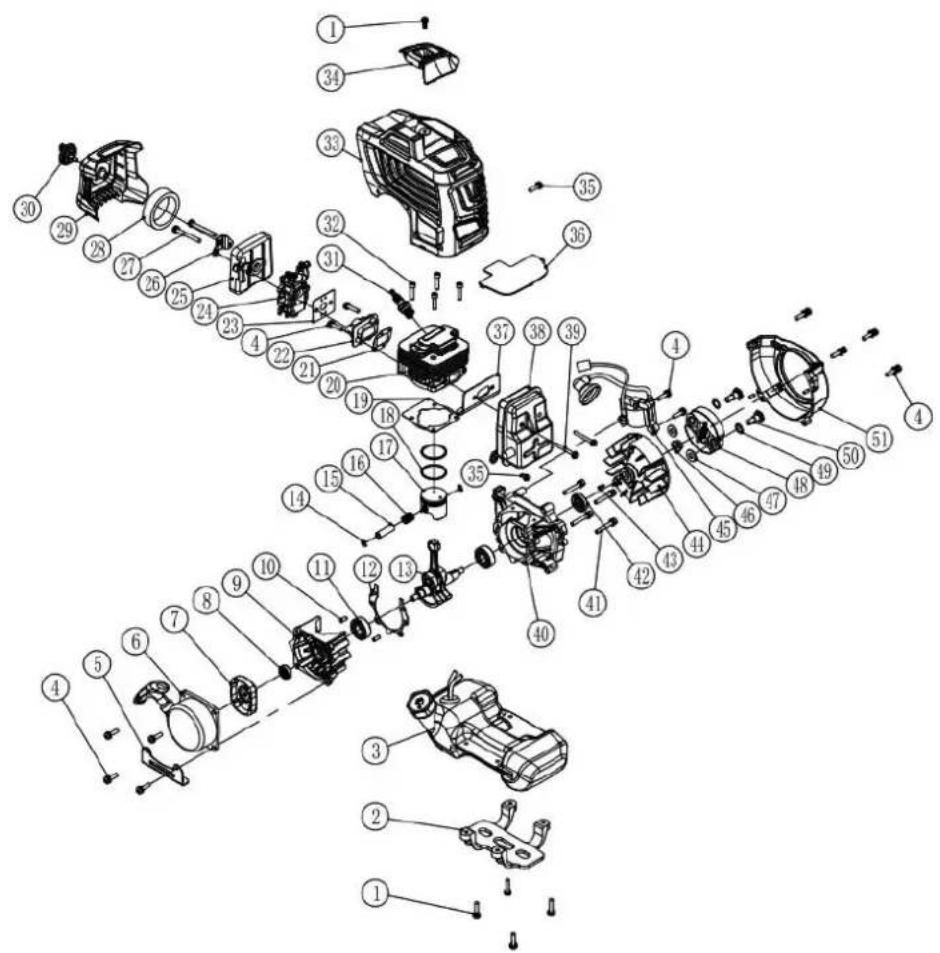

When ordering spare parts, please quote the batch number on the nameplate together with the part number from the assembly drawing.

During the warranty period, repairs are carried out in accordance with the terms of the warranty card. Return the faulty product for repair at the place of purchase (the dealer is obliged to accept the faulty product), send it to the central Dedra Exim service centre or to the service centre closest to your place of residence (list of service centres at www.dedra.pl). Kindly enclose the completed warranty card. After the warranty period has expired, repairs are carried out by the central service. Send the defective product to the service centre (shipping costs are paid by the user).

13. Trouble-shooting on your own

WARNING
Disconnect the unit from the power supply before attempting to troubleshoot the unit yourself.

Problem	Cause	Solution
Device does not start	Lack of fuel	Fill the tank with fuel
	Fouled or faulty spark plug	Clean or replace spark plug
	Damaged fuel line	Have the unit serviced
	Engine failure	Have the machine serviced
Unit goes out	Idle speed too low	Adjust carburettor
	Insufficient fuel in the tank	Fill up fuel tank
Appliance has reduced power	Spark plug dirty	Clean spark plug
	Plant debris wrapped around the cutting attachment	Secure the machine and clean the cutting attachment
Appliance makes a disturbing noise	Damaged bevel gearbox	Have the machine serviced
	Engine failure	Have the machine serviced

15. Contents of the package

DED8717: 1. Boom - pcs. 1, 2. Motor with accessories - pcs. 1, 3. steering wheel - pcs. 1, 4. Cutting element cover - pcs. 1, 5. assembly elements and accessories - pcs. 6. 2 x head with ∅2,4mm x 2,5m monofilament, 7. monofilament disc, 8. triple-tooth cutting disc, 9. double-armed carrying harness, 10. mesh face shield, 11. fuel tank, 12. monofilament 2,4m15m DED8717A: 1. boom - pcs. 1, 2. motor with accessories - pcs. 1, 3. steering wheel - pcs. 1, 4. Cutting element cover - pcs. 1, 5. assembly elements and accessories - pcs. 6. cutting head with ∅2,4mm line 7. trident cutting disc, 8. two-armed carrying braces

16. Information on disposal of waste equipment

The user of the appliance is obliged, in accordance with environmental regulations, to carry out proper waste management in accordance with national legislation.

The used or faulty appliance must not be disposed of with household waste. The appliance and its accessories consist of different types of materials, such as metal and plastic. The correct thing to do if you have to dispose of, reuse or recover parts of your appliance is to take it to a specialised collection point, where it will be accepted free of charge. Information on the location of collection points for waste equipment is provided by local authorities, e.g. on their websites.

Do not dispose of petrol, oil, used oil, oil/petrol mixtures or objects contaminated with oil, e.g. cloths, in the municipal waste bins. Dispose of used oil or items contaminated with it in accordance with local guidelines and hand them over to a recycling centre.

Recycle used packaging.

By disposing of the appliance correctly, you are conserving valuable resources and avoiding the negative effects on health and the environment resulting from the possible presence of hazardous: substances, mixtures and components in the equipment. Incorrect disposal is subject to penalties under the relevant local regulations.

Warranty card

for

(product name)

Catalogue No: .... Lot No.: ....

(hereinafter called the product)

Product purchase date : ......

Seller's stamp

Date and seller's signature:

User's statement:

I confirm that I have been informed about the warranty conditions and the consequences of non-compliance with the guidelines in the Operating Instructions and the warranty. I am aware of the conditions of this warranty, which I confirm with my handwritten signature:

Date and place

User's signature

I. Product liability

1. The Warrantor - Dedra Exim Sp. z o.o. with its registered office in Pruszków, address: ul. 3 Maja 8, 05-800 Pruszków, KRS 0000062517, District Court for the City of Warsaw in Warsaw, 14th Economic Division of the National Court Register, TIN 527-020-49-33, share capital: PLN 100,980.00.
2. The Warrantor provides the warranty for the Product from the Warrantor's distribution on the terms set out in this warranty.
3. Liability under the warranty shall only cover defects arising from causes inherent in the Product at the time of delivery to the User.
4. By virtue of the warranty, the User obtains the right to have the Product repaired free of charge, provided that the defect became apparent during the warranty period. The method of repair of the Product is at the discretion of the Warrantor. If the Warrantor finds the repair impossible, the Warrantor reserves the right to replace the defective element or the whole Product for a defect-free one, reduce the price of the Product, or withdraw from the contract.
5. In relation to the User, who is not a consumer within the meaning of the Act of April 23, 1964, on Civil Code, the Warrantor's liability for damages resulting from this warranty and/or in connection with its conclusion and performance, regardless of the legal title, is limited to the maximum of the value of the defective Product.

II. Warranty period

Product components	Duration of warranty protection
DED8717 / DED8717A	24 months from the date of purchase of the Product as shown on this warranty card
Cutting attachment cover, Cutting head with filament, Cutting disc, Assembly parts and accessories	No warranty

III. Terms and conditions of the warranty

1. Presentation by the User of a completed warranty card for the Product and substantiation by the User of the circumstances of purchase of the Product, e.g. by presenting a receipt, invoice, etc. For the purpose of efficient complaint processing, it is recommended that the User submits, together with the Product, all the components specified in "Set of the device components" contained in the operating instructions.
2. Compliance by the user with the instructions in the operating instructions and the warranty.
3. The warranty only covers the territory of the Republic of Poland and the EU.
4. The warranty does not cover any Product defects arising in particular from:

a. Failure of the user to comply with the conditions set out in the operating instructions, in particular with regard to correct operation, maintenance and cleaning;

b. Use of cleaning or maintenance products by the user which do not comply with the operating instructions;

c. Improper storage and transport of the Product by the User;

d. Unauthorised changes and/or modifications to the Product by the User which have not been agreed with the Warrantor;

e. Use of consumables by the User in the Product which do not comply with the operating instructions.

1. For the User, who is not a consumer within the meaning of the Act of April 23, 1964 of the Civil Code, the warranty becomes void for the Product where:

a. serial numbers, date indications and rating plates have been removed, altered or damaged by the user;

b. the seals have been damaged by the user or show signs of tampering by the user.

1. Note! The User shall carry out the activities connected with the daily operation of the Product, resulting, among others, from the operating instructions, themselves and at their own expense.

IV. Complaint procedure

1. If you find that the Product is not working properly, make sure that all the steps specified in the operating instructions have been carried out correctly before submitting a claim.
2. It is recommended to make a complaint immediately, preferably within 7 days of noticing a defect in the Product. The User, who is not a consumer within the meaning of the Act of April 23, 1964 Civil Code, loses rights arising from this warranty if they fail to make a complaint within 7 days.
3. Complaints can be made, among others, at the point of purchase of the Product, at the warranty service point, or in writing to the following address: Dedra Exim Sp. z o.o., ul. 3 Maja 8, 05-800 Pruszków.
4. The User can make a complaint using the form available on the website www.dedra.pl. ("Warranty Claim Form").
5. The addresses of the country-specific warranty service are available at www.dedra.pl. If no country-specific warranty service is available,

we recommend that you address warranty claims to: Dedra Exim Sp. z o.o. ul. 3 Maja 8, 05-800 Pruszków (Poland).

1. With a view to the safety of the User, the use of a defective Product is prohibited.
2. Caution: Using a defective Product is dangerous to the health and life of the User.
3. The fulfilment of the obligations under the warranty shall take place within 14 working days from the date of delivery of the defective Product by the User.
4. Before the defective Product is delivered under the complaint procedure, it is recommended to clean it. The Product under complaint is recommended to be carefully protected against damage during transport (it is recommended to deliver the Product under complaint in its original packaging).
5. The warranty period shall be extended by the time during which, due to a defect in the Product covered by the warranty, the User was not able to use it.

The warranty shall not exclude, limit or suspend the User's rights under the warranty regulations for defects of the goods sold. Pursuant to Article 13(1) and (2) of Regulation (EU) 2016/679 of the European Parliament and of the Council of 27 April 2016 on the protection of natural persons with regard to the processing of personal data and on the free movement of such data and repealing Directive 95/46/EC (hereinafter: 'RODO'), we inform you that

1. The administrator of your personal data provided in the form is DEDRA-EXIM sp. z o.o. with its registered office in Pruszków, ul. 3 Maja 8, 05-800 Pruszków (hereinafter: 'Administrator').
2. Your data will be processed exclusively for the purpose of implementing the warranty procedure for the device on the basis of Article 6(1)(b) of the General Data Protection Regulation (hereinafter: 'RODO') Provision of data is voluntary, but necessary for the implementation of the warranty procedure.
3. Your data will be processed for the period of consideration of the implementation of the guarantee procedure and for archiving purposes in case of the need to defend against possible claims against the Administrator, no longer than until they expire.
4. Your data may be disclosed only to entities processing data for the Administrator on the basis of a written agreement of entrustment of personal data processing providing, among others, technical support, hosting or maintenance of the website, IT support, courier company. The Administrator's providers are obliged to ensure data security and to comply with the requirements of the applicable law related to personal data protection and may not use the entrusted personal data for purposes other than those specified in the contract with the Administrator.
5. Your data will not be processed in an automated manner including profiling and will not be transferred to a third country/international organisation.
6. You have the right of access to the content of your data and the right to rectification, erasure, restriction of processing, the right to data portability, the right to object, at any time.
7. For all matters related to the processing of your personal data by the Controller, you can contact: [e-mail];
8. You have the right to lodge a complaint with the supervisory authority dealing with personal data protection.

CZ Obsah

When the device isn't being used, store it out of reach of children in a dry place with an empty fuel tank. Transport the device and any other items listed in the complete set in a way that protects them from harmful environmental conditions. These include moisture, precipitation, pressure that could cause mechanical damage, and anything else that might negatively affect the device. When transporting the device, always turn off the engine, disconnect the spark plug wire, and empty the fuel tank. Store and transport metal cutting elements in their dedicated cover. For short distances, carry the device by holding the boom with one hand at the device's balance point, between the suspension and the handlebar attachment.
