Product Type	Lawn Mower
Brand	DEDRA
Model	DED8722-51CSE
Power Source	Electric Corded
Power Rating	1800 W
Cutting Width	51 cm (20 inches)
Cutting Height Adjustment	Central, 25-75 mm, 7 positions
Grass Box Capacity	70 L
Mulching Function	Yes
Side Discharge	Optional
Rear Discharge	No
Drive Type	Push
Wheel Size	Front: 180 mm, Rear: 250 mm
Handle Type	Foldable, Ergonomic
Weight	31 kg
Dimensions (L x W x H)	880 x 540 x 470 mm
Cable Length	15 m
Noise Level	94 dB(A)
Vibration Level	2.5 m/s²
Safety Features	Safety switch, blade brake
Maintenance	Sharpen blades, clean underside, check oil (if applicable)
Spare Parts Availability	Blade, grass box, wheels
Certifications	CE, RoHS

Frequently Asked Questions - DED8722-51CSE DEDRA

How do I adjust the cutting height on the DED8722-51CSE lawn mower?

The cutting height is adjusted via a central lever. There are 7 positions ranging from 25 mm to 75 mm. Ensure the mower is turned off before adjusting.

What type of grass box does this mower use?

The DED8722-51CSE comes with a 70-liter fabric grass box. It has a fill indicator.

Can I use the mower without the grass box?

Yes, you can use the mulching plug to convert the mower into a mulching model. The side discharge chute can also be attached for side discharge.

How often should I sharpen the blades?

For best performance, sharpen the blades at least once a season or after 50 hours of use. Dull blades tear grass instead of cutting, leading to a brownish appearance.

What safety features does the DED8722-51CSE have?

It includes a safety switch that stops the motor when the handle is released, and a blade brake that stops the blade within 3 seconds.

Is this mower suitable for wet grass?

It is not recommended to mow wet grass as it can clog the mower and cause slipping. Always mow when the grass is dry.

How do I clean the underside of the mower?

After use, tilt the mower on its side (with the air filter facing up) and use a hose or scraper to remove grass clippings. Do not use high-pressure water.

What power source does this mower require?

It is an electric corded mower, requiring a standard 230V outlet. Use an extension cord suitable for outdoor use with a minimum cross-section of 1.5 mm².

Can the handle be folded for storage?

Yes, the handle is foldable. Loosen the knobs, fold the handle, and tighten again for compact storage.

Where can I find spare parts for this model?

Spare parts such as blades, grass boxes, and wheels are available from DEDRA service centers or authorized dealers. Use only original parts.

USER MANUAL DED8722-51CSE DEDRA

Top-down view of a black and silver DEDRA lawn mower (no visible text or symbols on the motor body)

Kontakt

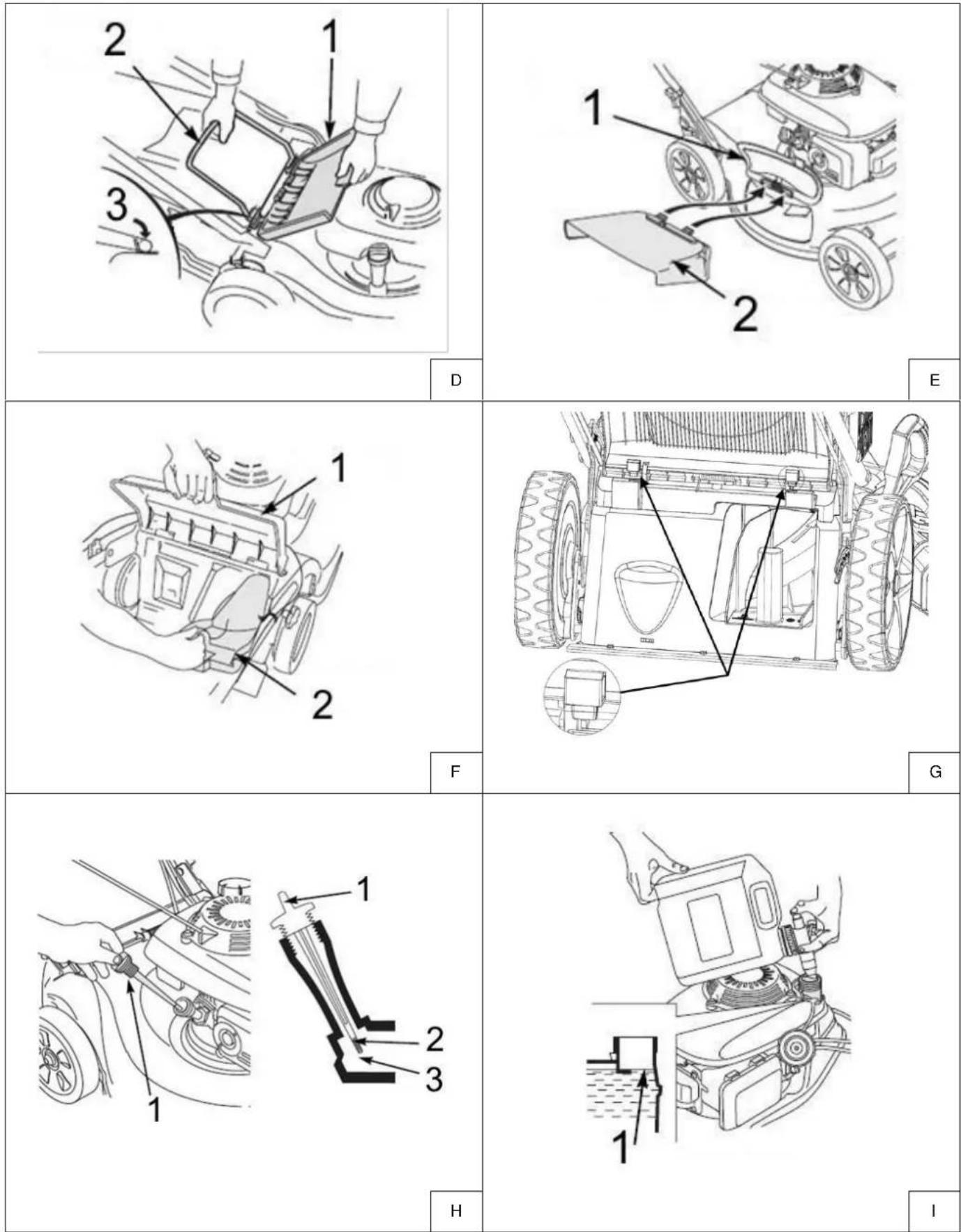

B

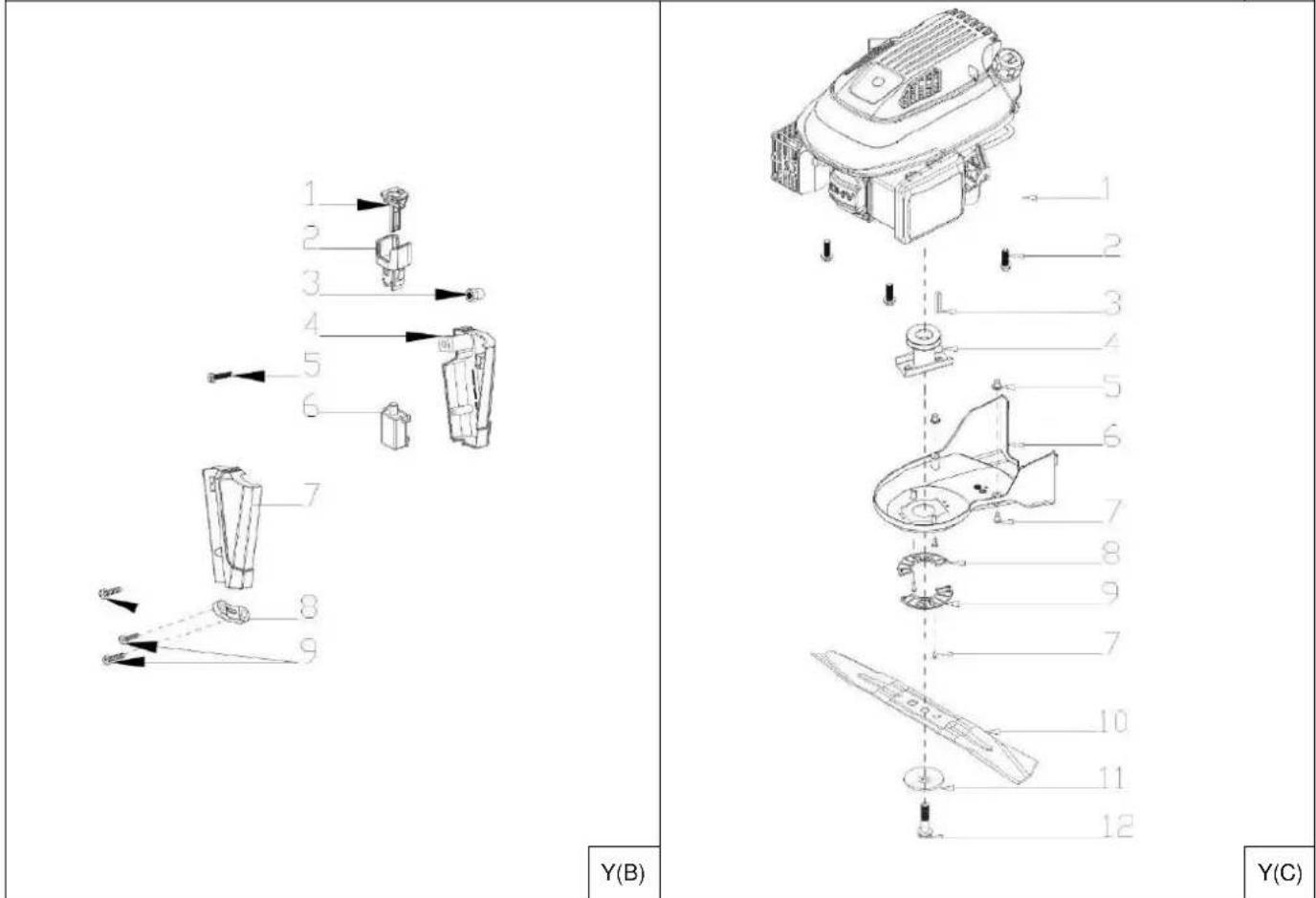

C

Y(D)

Y(E)

Y(F)

Opis piktogramów / Popis použitých piktogramů / Opis používaných piktogramov / Panaudotų piktogramų aprašymas / Lietoto piktogrammu apraksts / Az alkalmazott piktogramok magyarázata / Interpretation des pictogrammes / Descripción de los pictogramas / Descrierea pictogramelor / Omschrijving van de gebruikte pictogrammen / Beschreibung der verwendeten Piktogramme

Nakaz: przeczytaj instrukcję obsługi / Příkaz: přečěte návod k obsluze / Příkaz: oboznámte sa s užívateľskou príručkou / Privaloma: perskaitykite aptarnavimo instrukciją / Norádíjums: rúpīgi lepazístietlies ar lietolāja rokasgrāmatā sniegto informāciju / Utasítás: olvassa el az útmutatót / Ordre: avant l'usage lire le mode d'emploi / Indicación: leer el manual de instrucciones / Obilgatoriu: citiți manualul de utilizare / Bevel: lees de gebruiksaanwijzing / Gebot: die Bedienungsanleitung lesen

Nakaz: stosować rękawice ochronne / príkaz: použivejte ochranné rukavice / príkaz: použivajte ochranné rukavice / privaloma: naudoti apsauginius akinius / pieprasījums: lietot aizsardzības cimdus / utasítás; használjon védőkeszytút / ordre: utiliser les gants de protection / indicación: usar los guantes de protección / obligatoriu: purtați manuși de protecție / bevel: gebruik beschermende handschoenen / gebot: schutzhandschuhe sind zu benutzen

Nakaz: używać ochronników słuchu / poużivejte ochranu słuchu / poużivajte chránice słuchu / privaloma: naudoti apsauginius akinius / lietojiet dzirdes aizsardzības līdzekļus / utasítás: használjon fülvédót / ordre: utiliser la protection de l'ouïe / usar protección para los oldos / trebuie să folosi-ti aparate pentru protectja auzului / gehoorbescherming gebruiken / der gehörschutz ist zu benutzen

Nakaz: stosować okulary ochronne / prílkaz: použivejte ochranné bryle / prílkaz: použivajte ochranné okuliare / privaloma: naudoti apsauginius akinius / norādijums: nēsājiet aizsargacenes / utasítás: viseljen védőszemüveget / ordre: utiliser les lunettes de protection / indicación: usar las gafas de protección / obligatoriu: folositi ochelari de protecție / bevel: draag veiligheidsbril / gebot: schutzbrille tragen

Nakaz: stosować obuwie przeciwpoślizgowe / Povinnost: noste protiskluzovou obuv/ Príkaz: používajte protišmykovú obuv/ Privaloma: avěti batus neslidžiu padu/ Pavěle: valkājiet neslidošus apavus/ Utasítás: használjon csüszásgálló cipôt/ Ordin: Purtați încăltăminte antiderapantă/ Gebot: rutschhemmende Schuhe verwenden.
