USER MANUAL GNO52223MXPN BEKO

Simple line drawing of a pear and a carrot (no text or symbols)

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

EN/DE/PL/CZ/ES/FR/HR/HU/IT/MK/NL/RO/SI/SK/SQ/SR

CE

User Instruction

Combi Fridge Freezer No-Frost

Content
1. Safety Information Page 1~9
2. Overview Page 10
3. Installation	Page 11~13
4. Daily Use	Page 14~23

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children from suffering electric shock or closing themselves in it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming dangerous for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

⚠ WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not locate multiple portable portable power supplies at thence.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

• This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.

- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

- Make sure that mains plug of the appliance is accessible.

- Do not pull the mains cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

- You must not operate the appliance without the lamp.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

- Do not put hot objects on the plastic parts in the appliance.

- Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. ^1)
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
  • To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
  If the drain is blocked, water will be collected in the bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• It's recommended not to remove all accessories, such as drawers, shelves balconies, for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol ⚙ are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.

2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

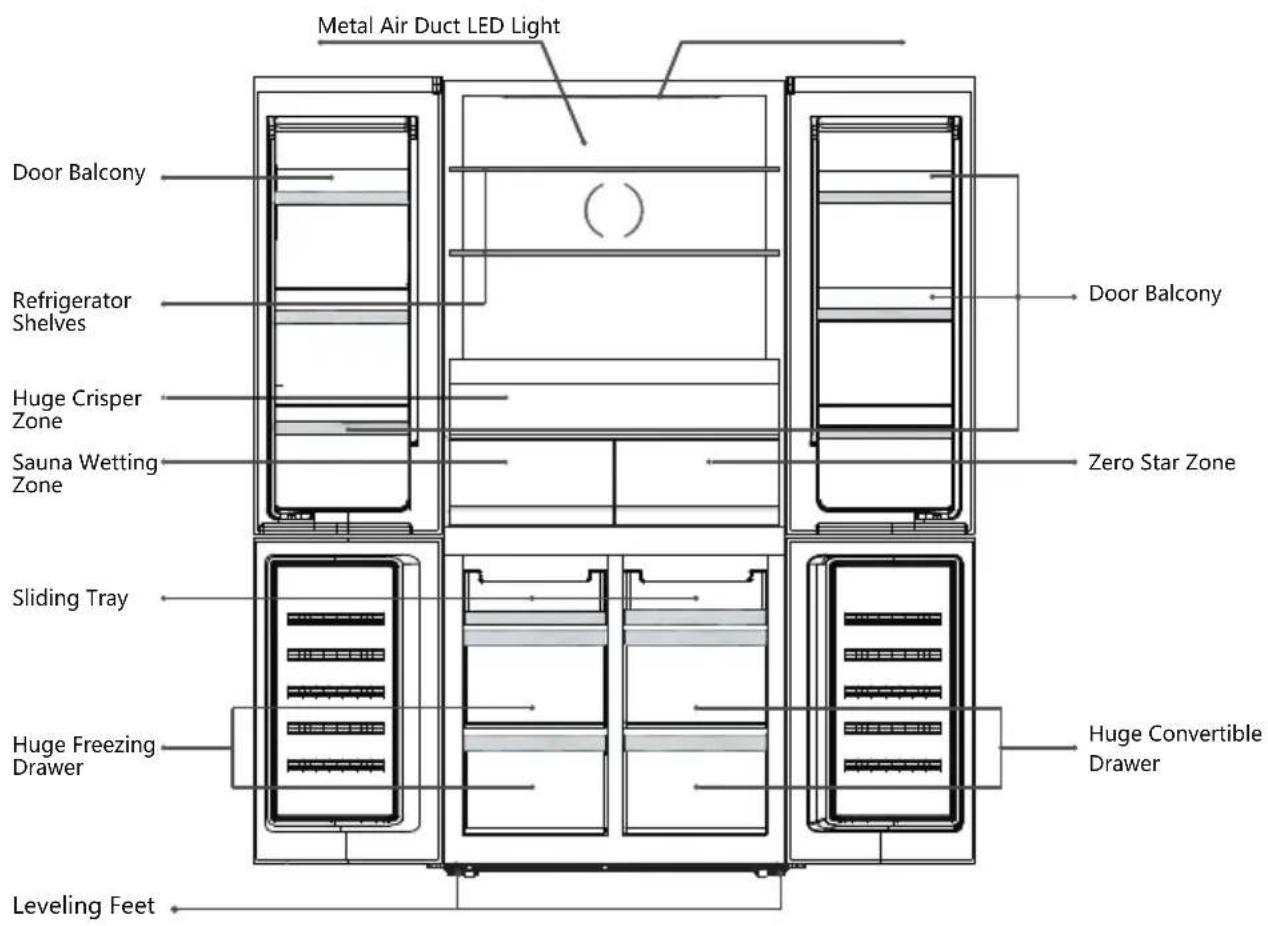

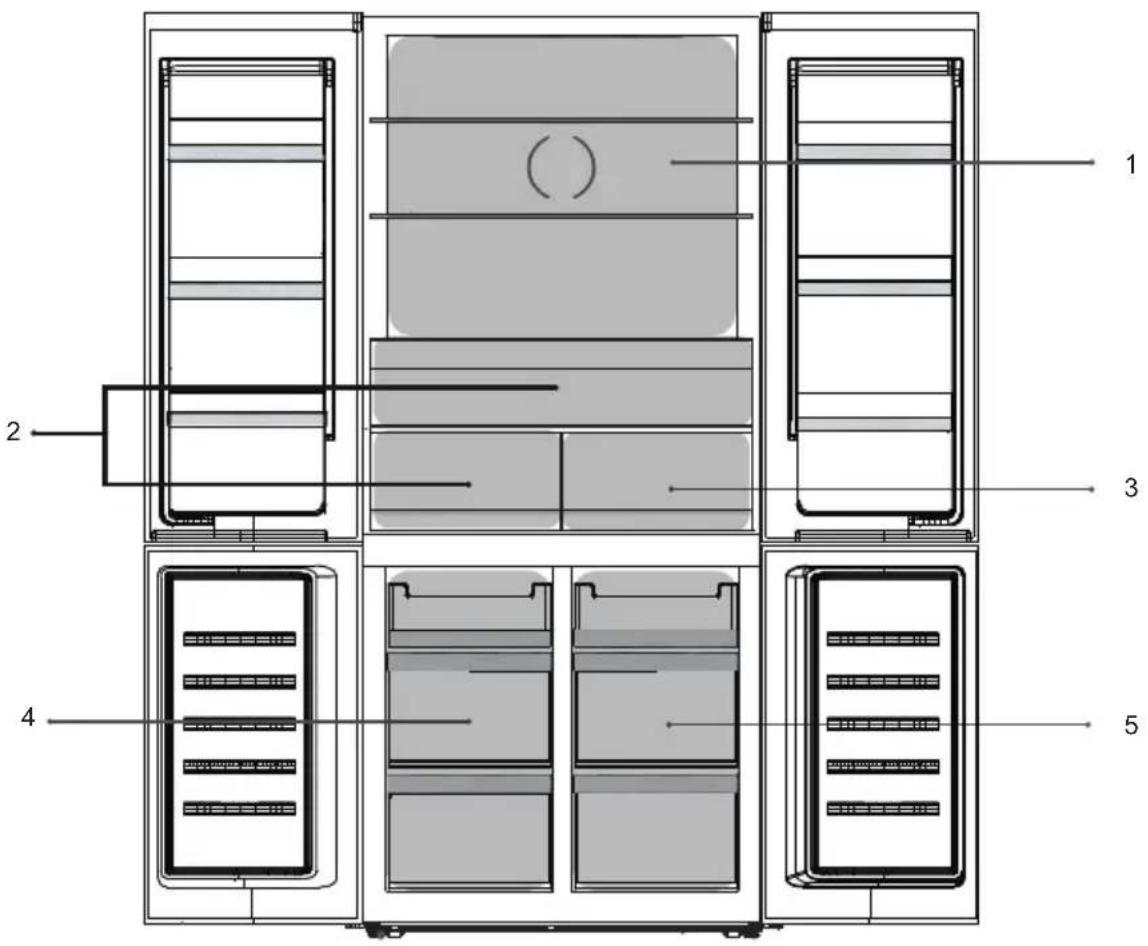

Metal Air Duct LED Light Door Balcony Refrigerator Shelves Huge Crisper Zone Sauna Wetting Zone Sliding Tray Huge Freezing Drawer Leveling Feet Door Balcony Zero Star Zone Huge Convertible Drawer

This illustration is only for hinting, the detail please check your appliance.

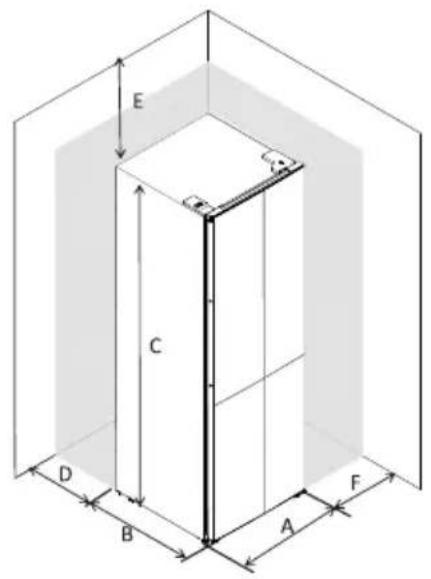

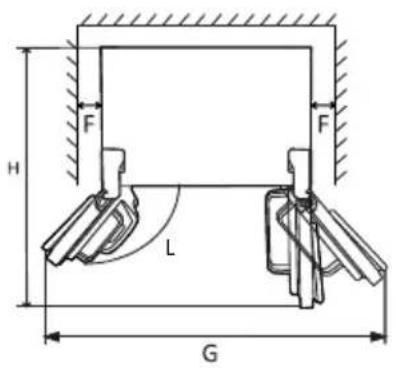

Space Requirement

- Keep enough space of door open.

E C D B A F

H F F L G

A	905
B	673
C	1900
D	min=50
E	min=50
F	min=50
G	1515
H	1062
L	130°

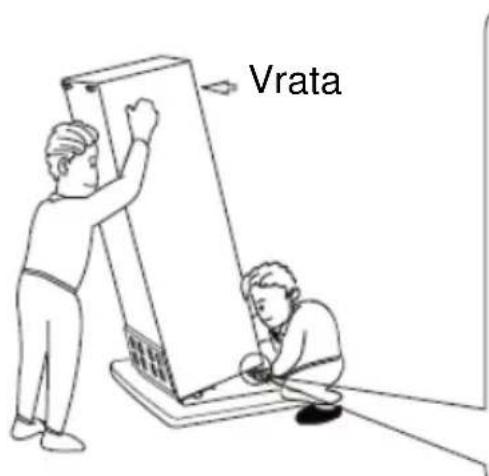

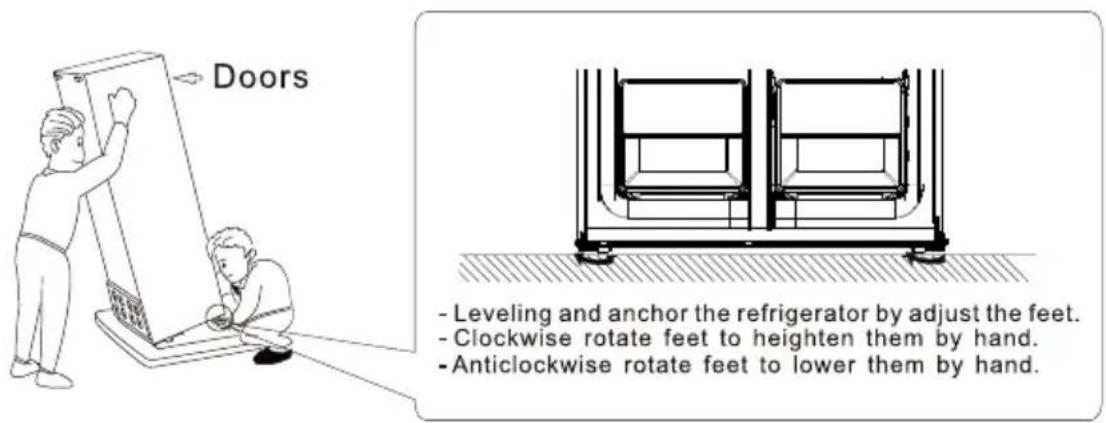

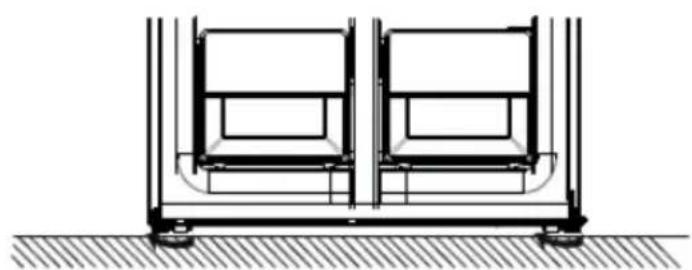

Levelling the unit

80 do this adjust the two levelling feet at front of the unit.

Doors - Leveling and anchor the refrigerator by adjust the feet. - Clockwise rotate feet to heighten them by hand. - Anticlockwise rotate feet to lower them by hand.

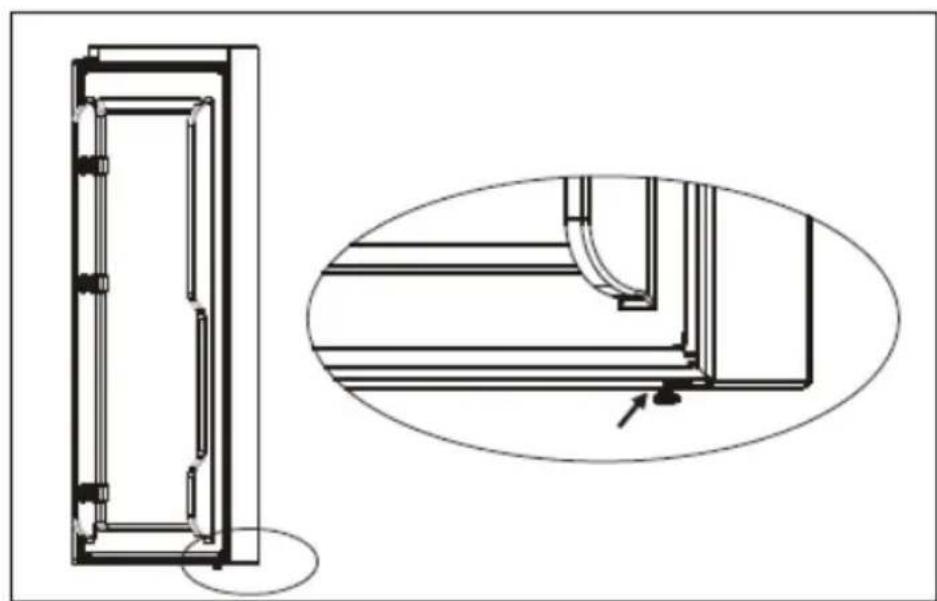

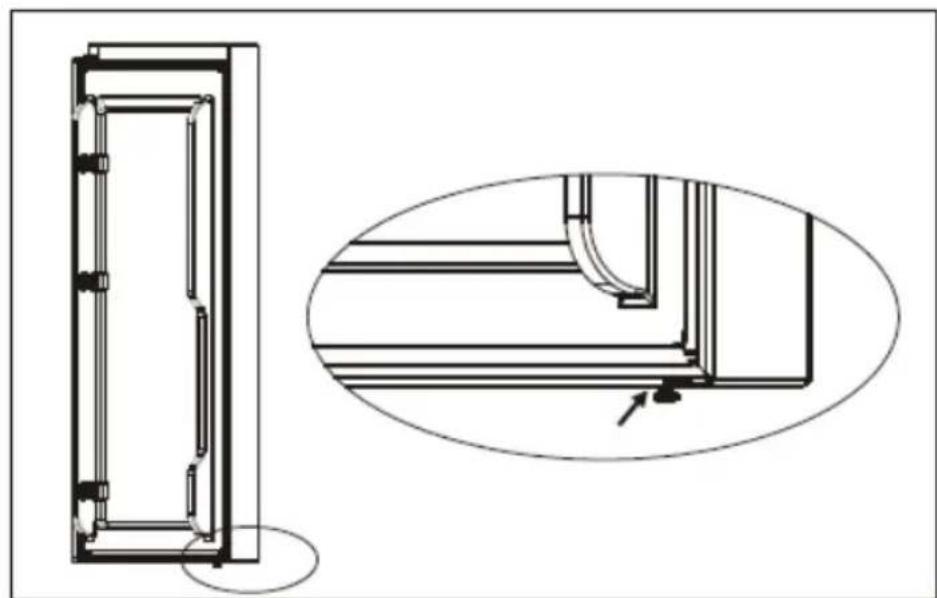

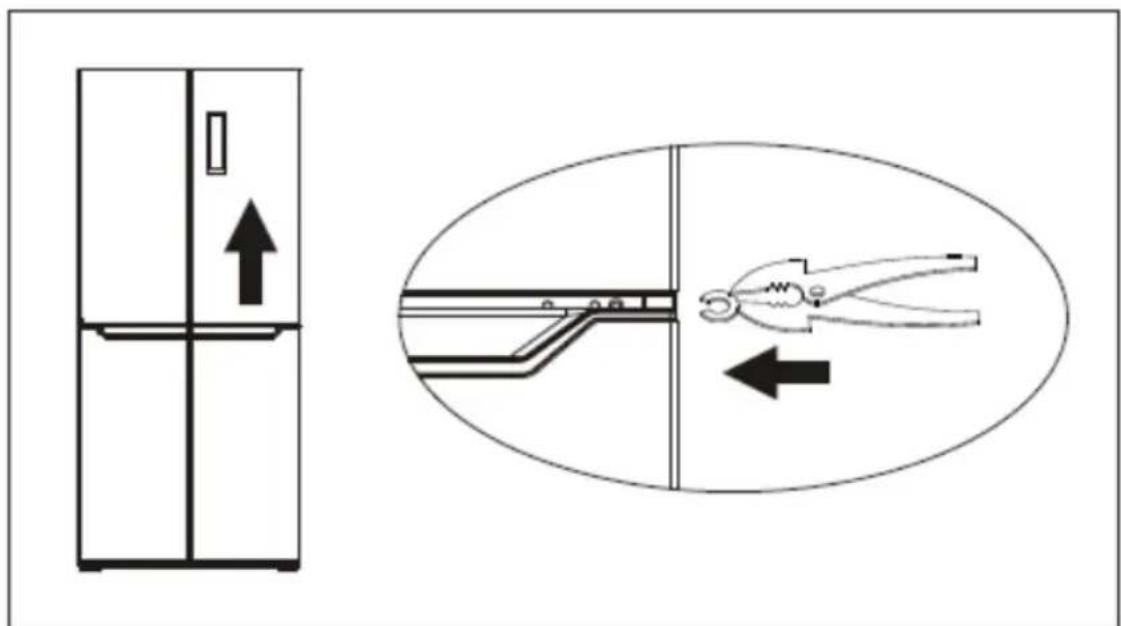

Level doors

After transportation or door balconies are loaded by food or beverage, upper two doors may not be aligned. There are 3 C type washers which are used to adjust doors. Please follow below process to level doors.

1. Before check alignment of doors, please make sure appliance stand levelly.
2. If top of upper two doors looks not in a line, please slightly lift lower door and insert a pieces of C type washer by a clip between bottom of door and middle hinge.

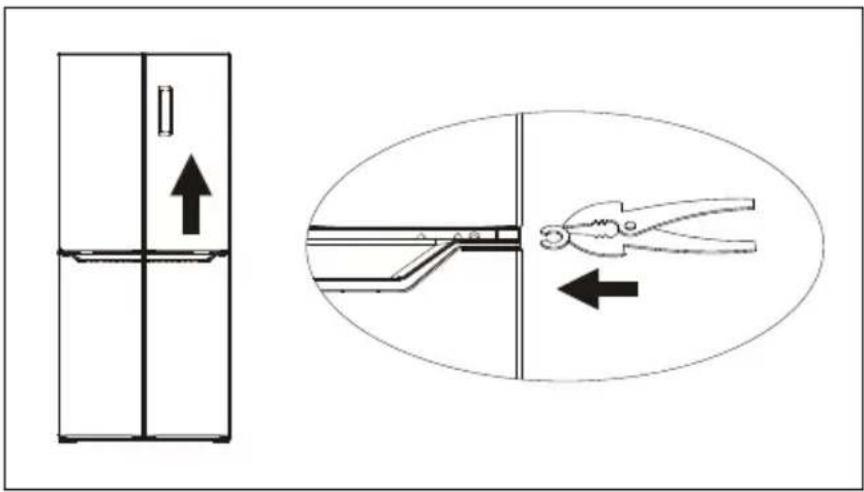

Installation

Diagram showing a refrigerator with an upward arrow and a close-up of a tool in a pan, illustrating the process of lifting or disassembly.

Warning! Please be careful to avoid fingers are clipped by door. Please use tool.

Warning! Please keep C type washers far away children to avoid them are swallowed by children. They are small parts.

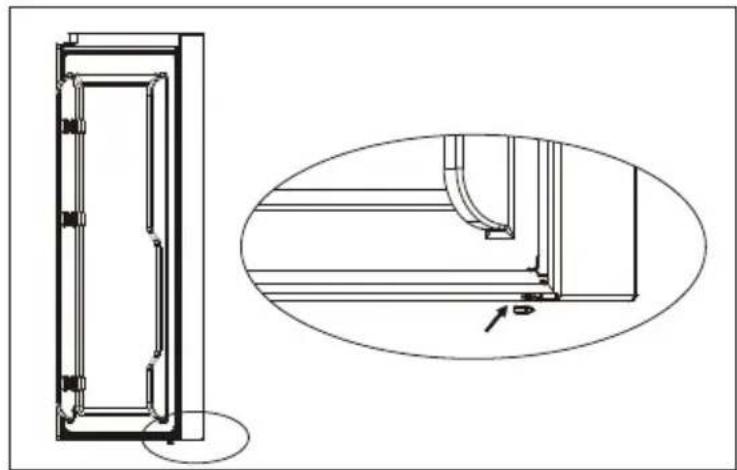

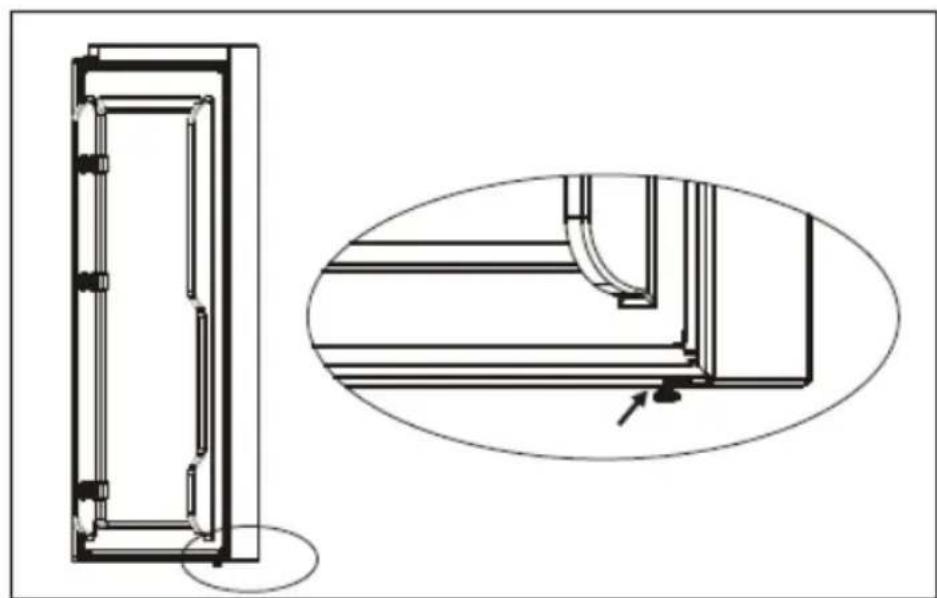

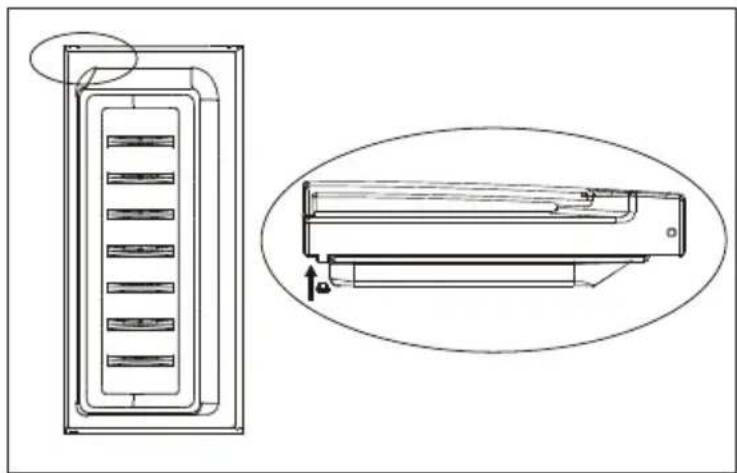

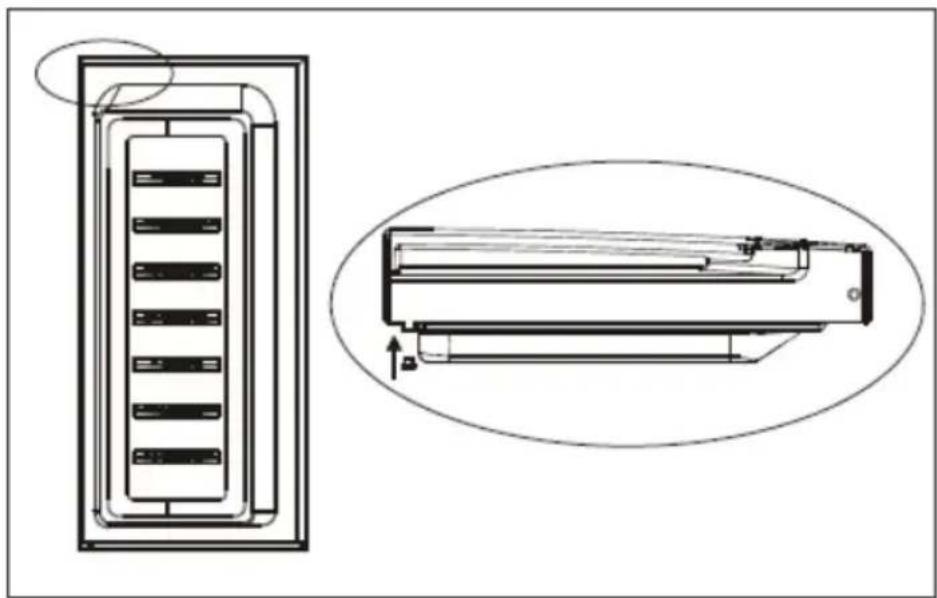

Rubber blocks

There is one rubber block on each door. They function as spring to relieve impact when door closes.

Please not pull the rubber blocks. If they absent from the doors, please take one from accessory bag and insert it to the hole of door.

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with an inset detail showing a curved bracket and mounting detail (no text or symbols)

Warning! Please keep rubber blocks far away children to avoid them are swallowed by children. They are small parts.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

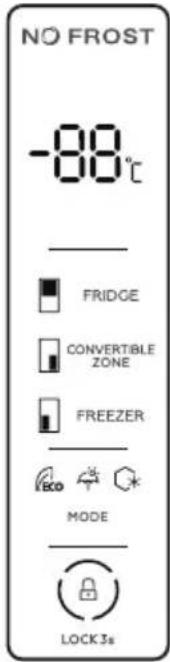

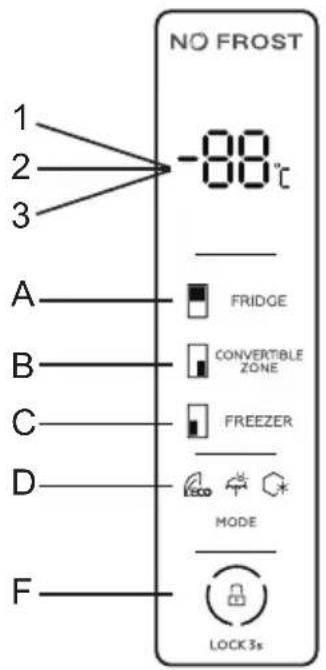

Using the Control Panel

NO FROST 1 2 3 -88°C A FRIDGE B CONVERTIBLE ZONE C FREEZER D MODE F LOCK 3s

1.1 KEY OPERATION

A.Fridge Temp.Setting
B. Convertible Zone Temp. Setting
C.Freezer Temp. Setting
D. Mode Setting (ECO、Holiday、Super freezing)
F.Locking/Unlocking Setting

1.2 LED DISP LAY

1. Temperature of Fridge Comparment
2. Temperature of Freezer Comparment
3. Temperature of Convertible Comparment

a. The control panel is 100% lit up for 3 seconds, which operates exactly as per the setting (mode and temperature) before the poweroff. The system will be automatically locked 25 seconds after the last key operation. After locking, the light of the panel would be out 120 seconds after the last key operation.
b. The Fridge/Freezer/Convertible Zone temperature will be showed Separately by setting each zone temperature.

2.1 DISPLAY

2.1.1 The panel will be lit up for 2 minutes once the door of fridge compartment or freezer compartment is opened. (one door signal is sensed at a time)

2.1.2 The panel will be lit up by any key operation whereas the light would be out 2 minutes after the last operation.

2.1.3 Display during normal operation

Temperature Display of the Fridge Compartment: Indicating the temperature of the current setting.

Temperature Display of the Freezer Compartment: Indicating the temperature of the current setting.

Temperature Display of the Convertible Compartment: Indicating the temperature of the current setting.

3.0 ILLUSTION OF THE KEY

3.1 Temperature Control of the Fridge Compartment

a. Temperature Control of the Fridge Compartment:

This key is workable both in User Defined Mode as well as Super Mode. After entering the temperature control of the fridge compartment, this key flashes. By touching the key consecutively, the temperature would change in a circle of “2°C, 3°C, 4°C, 5°C, 6°C, 7°C, 8°C, - - (off)”, after which 5-second flashing meas the selection of temperature is settled.

b. Shut off of the Fridge Compartment:

Press the key of "Temperature Control of Fridge Compartment", choose "--", a 5-second flashing means the selection of temperature is made, namely the fridge compartment would stop refrigeration.

3.2 Temperature Control of the Freezer Compartment

Temperature Control of the Freezer Compartment: This key is workable both in User Defined Mode as well as Holiday Mode. After entering the temperature control of the freezer compartment, the key flashes. By touching the key consecutively, the temperature would change in a circle of “-14°C,-15°C,-16°C,-17°C,-18°C,-19°C,-20°C,-21°C,-22°C”, after which a 5-second flashing meas the selection of temperature is settled.

3.3 Temperature Control of the Convertible Compartment

a. Temperature Control of the Convertible Compartment:

This key is workable both in User Defined Mode as well as other models. After entering the temperature control of the Convertible compartment, this key flashes. By touching the key consecutively, the temperature would change in a circle of "5°C,4°C,3°C,2°C,1°C,0°C,-1°C,-2°C,-3°C,-4°C,-5°C,-6°C,-7°C,-8°C,-9°C,-10°C,-11°C,-12°C,-13°C,-14°C,-15°C,-16°C,-17°C,-18°C,-19°C,-20°C,--(off)", after which 5-second flashing meas the selection of temperature is settled.

b. Shut off of the Fridge Convertible Compartment:

Press the key of "Temperature Control of Convertible Compartment", choose "--", a 5-second flashing means the selection of temperature is made, namely the convertible compartment would stop refrigeration.

3.4 Mode/ Locking / Unlocking

a. By touching this key consecutively, the operation mode of the refrigerator will change in a circle of "ECO Mode-Holiday Mode-Super Mode-User Defined Mode. A 5-second flashing means the selection of temperature is settled.

b.Long Press to Enter / Exit Locking Mode

Unlocking: Press for 3 seconds in the mode of locking, all the keys would be unlocked after the a beep.
- Locking: Press for 3 seconds in the mode of unlocking, all the keys would be locked after the a beep.

3.5 Press Button

Short beep after per press button

All buttons will only valid under unlock mode.

3.6 Lock Fnciton

No operation in 25 sec will lock the display automatically.

3.7 ECO Mode

Press mode to choose ECO Mode. ECO icon keeps bright after 5 sec flashing to enter ECO Mode. The temperature of Fridge and Freezer is set according the following temperature

Ambient temperature (T)	T≤13°C	13°C20°C27°CT>34°C	20°C27°CT>34°C	27°CT>34°C	T>34°C
Fridge temperature	3°C	4°C	5°C	6°C	8°C
Freezer temperature	-18°C	-18°C	-18°C	-16°C	-15°C

"Freezer"&"Fridge"button will not work in ECO Mode. The temperature of convertible compartment can be adjusted freely by operating the convertible zone temp. setting Exit Eco Mode: Choose mode, exit ECO Mode after 5 sec, entering the selected mode.

3.8 Holiday Mode

Press mode to choose Holiday Mode, the icon keeps bright after 5 sec flashing, entering holiday mode.

Temperature fix 17°C in fridge compartment, "fridge" button in vain, while Holiday icon will flash three times in alarm.

Temperature of freezer compartment and convertible compartment can be adjusted freely.

Exit Holiday Mode:

Choose mode, exit Holiday Mode after 5 sec, entering the selected mode.

3.9 Super Freezing mode

Choose mode, the icon keeps bright after 5 sec flashing, entering Freezing Mode.

Freezing mode:

Temperature fix -25°C in freezing compartment, "freezer" button in vain, while freezing icon will flash three times in alarm.

Temperature of fridge compartment and convertible compartment can be adjusted freely.

Exit Freezing Mode:

meeting below conditions.

-manually exit Freezing Mode.

-freezing period more than 50 hours

Mode remains the same before entering super freezing mode.

4.0 Door Open Alarm

If fridge (upper) door keeps open for 60 seconds, periodical alarm will be arisen until the door is closed.

Multi-Temperature Zone

1 2 3 4 5

1. Fridge temp. 2℃\~8℃/Off Controlled by operating display panel

2. Fresh temp. 2^ C \~ 8°C
   3.Zero star zone temp. -3°C\~0°C

3. Freezer temp. -22°C\~-14°C Controlled by operating display panel

4. Convertible zone temp. -20°C\~5°C/Off Controlled by operating display panel

First use

Cleaning the Interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments.·Do not store perishable foods.
Crisper zone	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf	·Dairy food,eggs,cakes,pasta,pizza·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Sanna wetting zone	·Locking humidity & fresh.Prolong preservation time.·Fresh fruit and vegetables,treasure food.
Zero star zone	·-3°C~0°C, independent storage & hyper fresh.·Chilling foods for short-term storage,such as raw meat, fish,seafood and chilling baked goods.
Covertible compartment	·-20°C~5°C, wide range variable temperature.·3°C~5°C: fresh fruit, vegetables.·0°C~2°C: drinks, beer, red wine, treasure.·-7°C~-1°C: chilling foods for short-term storage, such as raw meat, fish, seafood, dumplings.·-20°C~-8°C: chilling foods for long-term storage, such as raw meat, fish, seafood, dumplings.
Freezer compartment	·Foods for long-term storage.·Seafood, fish, meat, dumplings, forzen baked goods.

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Temperature Setting
Summer (Alov°C38)		Fridge set on 2°C
		Freezer set on -20°C
Normal		Fridge set on 4°C
		Freezer set on -18°C
Winter (Below 16°C)		Fridge set on 5°C
		Freezer set on -18°C

• Information above give users recommendation of temperature setting.

• Temperature of convertible zone setting depends on food leading.

Impact on Food Storage

• Under Recommended setting, the best storage time of fridge is no more than 3 days.

• Under Recommended setting, the best storage time of freezer is no more than 1 month.

- The best storage time may reduce under other settings.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

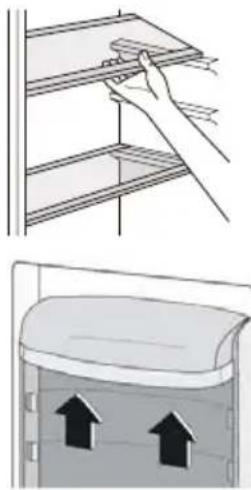

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Illustration showing a hand placing a shelf item into a rack and then to a container with upward arrows (no text or symbols)

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
  • the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
- once defrosted, food deteriorates rapidly and cannot be re-frozen;
- do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
  • Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc....: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
  • Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Defrost Description (No Frost)

It is a total no frost refrigerator-freezer which will be defrosted automatically.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance dose not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at SUPER modes.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a coo setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

beko

Simple line drawing of a pear and a carrot (no text or symbols)

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

CE

DE

Gebrauchsanweisung

H F F L G

A	905
B	673
C	1900
D	min. = 50
E	min. = 50
F	min. = 50
G	1515
H	1062
L	130°

Gerä t nivellieren

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or removing the interior wall.

Technical line drawing of a 3D rectangular block with a curved cutout (no text or symbols)

Technical line drawing of a rectangular device with internal components and an oval-sectional view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

Technical diagram of a multi-level refrigerator unit with numbered components and labeled sections

Illustration showing a hand installing or adjusting a shelf panel and a container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

CE

PL

H F F L G

A	905
B	673
C	1900
D	min = 50
E	min = 50
F	min = 50
G	1515
H	1062
L	130°

Technical line drawing of a mechanical frame assembly with two vertical supports and a base, showing no text or symbols.

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or discharging.

Line drawing of a 3D rectangular block with a curved top edge (no text or symbols)

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

Technical diagram of a multi-level storage or heating unit with numbered components and structural layout

Illustration showing a hand installing or adjusting a shelf panel and a container with upward arrows (no text or symbols)

Wskazówki i porady

Simple line drawing of a pear and a carrot (no text or symbols)

CE

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

CZ

Ná vod k použití

Kombinovaná chladnička s mrazničkou Bez namrzá ní

H F F L G

A	905
B	673
C	1 900
D	min = 50
E	min = 50
F	min = 50
G	1 515
H	1 062
L	130°

Vyrovná ní jednotky

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool inside a room, illustrating the process of lifting or removing the interior wall.

Line drawing of a 3D rectangular block with a flat top and rounded bottom (no text or symbols)

Technical line drawing of a rectangular device with internal channels and an oval-sectional view showing internal components (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

Technical diagram of a multi-level storage or refrigerator unit with numbered components labeled 1 through 5.

1. Teplota chladničky 2 °C až 8 °C / 4. vypnuto

Illustration showing a hand installing or adjusting a shelf panel above a container with two upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

CE

ES

Manual de usuario

H F F L G

A	905
B	673
C	1900
D	mí n. = 50
E	mí n. = 50
F	mí n. = 50
G	1515
H	1062
L	130°

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or discharging.

Line drawing of a 3D rectangular block with a curved top edge (no text or symbols)

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

Technical diagram of a multi-level refrigerator unit with numbered components and labeled parts

Illustration showing a hand placing insulation onto a shelf and another container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

CE

FR

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or discharging.

Line drawing of a 3D rectangular block with a curved top edge (no text or symbols)

Technical line drawing of a rectangular device with internal components and an oval-sectional view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail view (no text or symbols)

Technical diagram of a multi-level storage or refrigerator unit with numbered components labeled 1 through 5.

Illustration showing a hand placing insulation onto a shelf and another container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

CE

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

HR

Upute za korisnika

Diagram showing a refrigerator with upward arrow and a close-up of a kitchen interior with a tool, illustrating the process of lifting or removing a piece.

UPOZORENJE! Pazite da vam vrata ne priklješte prste. Molimo koristite alat.

Line drawing of a 3D rectangular block with a flat top and rounded bottom (no text or symbols)

Ugradnja

Molimo nemojte vući gumene blokove. Ako ih nema na vratima, uzmite jedan iz vrećice s priborom i umetnite ga u otvor na vratima.

Technical line drawing of a rectangular device with internal components and an oval-sectional view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a U-shaped pipe assembly with an inset detail (no text or symbols)

Technical diagram of a multi-level refrigerator unit with numbered components and labeled parts

1. Temp. hladnjaka 2 °C \~ 8 °C lsklj. Upravljanje upravljačkom pločom zaslona

2. Temp. odjeljka za svježu hranu 2 °C \~ 8 °C

3. Temp. zone s nula zvjezdica -3°C \~ 0°C

4. Temp. zamrzivača -22 °C \~ -14 °C Upravljanje upravljačkom pločom zaslona

5. Temp. konvertibilnog odjeljka -20 °C \~ 5 °C / Isklj. Upravljanje upravljačkom pločom zaslona

Prva upotreba

Čišćenje unutrašnjosti

Prije prvog korištenja uređaja, unutrašnjost i sav unutrašnji pribor operite mlakom vodom i neutralnim sapunom, kako biste uklonili tipični miris novog proizvoda, a zatim temeljito osušite.

Važno! Nemojte koristiti deterdžente ni abrazivne praškove, jer će to oštetiti završni sloj.

Svakodnevna uporaba

Postavite različite namirnice u različite odjeljke prema tablici ispod

Illustration showing a hand installing or adjusting a shelf panel above a container with two upward arrows (no text or symbols)

Korisni savjeti

Kako bismo vam pomogli da na najbolji način iskoristite postupak zamrzavanja, evo nekoliko važnih savjeta:

Simple line drawing of a pear and a carrot (no text or symbols)

CE

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

HU

H F F L G

A	905
B	673
C	1900
D	min=50
E	min=50
F	min=50
G	1515
H	1062
L	130°

Diagram showing a refrigerator with upward arrow and a close-up of a piping device with forceps, illustrating the process of lifting or discharging.

Line drawing of a 3D rectangular block with a curved top edge (no text or symbols)

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

Technical diagram of a multi-level storage or refrigerator unit with numbered components labeled 1 to 5.

Illustration showing a hand installing or adjusting a shelf panel and a container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

CE

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or removing the interior panel.

Line drawing of a 3D rectangular block with a curved top edge (no text or symbols)

Technical line drawing of a rectangular device with internal components and an oval-sectional view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail view (no text or symbols)

Technical diagram of a multi-level storage or refrigerator unit with numbered components labeled 1 to 5.

Illustration showing a hand placing insulation onto a shelf and another container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

CE

MK

H F F L G

A	905
B	673
C	1900
D	min=50
E	min=50
F	min=50
G	1515
H	1062
L	130°

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or removing the interior panel.

Line drawing of a 3D rectangular block with a folded corner (no text or symbols)

Technical line drawing of a rectangular device with internal components and an oval-sectional view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a U-shaped pipe assembly with an inset detail (no text or symbols)

Technical diagram of a multi-level refrigerator unit with numbered components and labeled parts

Illustration showing a hand placing insulation onto a shelf and another container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

CE

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

NL

Gebruiksinstructie

H F F L G

A	905
B	673
C	1900
D	min=50
E	min=50
F	min=50
G	1515
H	1062
L	130°

Diagram showing a refrigerator with upward arrow and a close-up of a hand holding a tool, illustrating the process of lifting or removing the refrigerator interior.

Line drawing of a 3D rectangular block with rounded ends and a flat top (no text or symbols)

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

Technical diagram of a multi-level refrigerator unit with numbered components and labeled sections

Illustration showing a hand installing or adjusting a shelf panel and a container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

CE

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

RO

H F F L G

A	905
B	673
C	1900
D	min=50
E	min=50
F	min=50
G	1515
H	1062
L	130°

Technical line drawing of a mechanical frame assembly with two vertical supports and a base, showing no text or symbols.

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or removing the interior panel.

Line drawing of a 3D rectangular block with a flat top and rounded bottom (no text or symbols)

Instalare

Technical line drawing of a rectangular device with internal channels and an oval-sectional view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail view (no text or symbols)

3.4 Mod/ Blocare / Deblocare

Technical diagram of a multi-level storage or heating unit with numbered components and internal layout

Illustration showing a hand installing or adjusting a wooden shelf panel and a container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

CE

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

Navodila za uporabo

Kombinirani hladilnik z zamrzovalnikom

Brez zmrzali

H F F L G

A	905
B	673
C	1900
D	min = 50
E	min = 50
F	min = 50
G	1515
H	1062
L	130°

Niveliranje enote

Technical line drawing of a mechanical assembly with two vertical supports and a base, showing no text or symbols.

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or removing the interior panel.

OPOZORILO! Prosimo, bodite previdni, da vrata ne priščipnejo prstov. Prosimo, uporabite orodje.

OPOZORILO! Podložke tipa C hranite stran od otrok, da jih otroci ne bi pogoltnili. So majhni deli.

Gumijasti bloki

Line drawing of a 3D rectangular block with a curved cutout (no text or symbols)

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

OPOZORILO! Gumijaste bloke hranite proč od otrok, da jih otroci ne bi pogoltnili. So majhni deli.

Postavitev

Napravo namestite na mesto, kjer se temperatura okolice ujema s klimatskim razredom, navedenim na tipski ploščici naprave:

za hladilne naprave s klimatskim razredom:

Technical diagram of a multi-level storage or heating unit with numbered components and structural layout

1. Temperatura hladilnika.
   2 °G-8 ° C/izklopljeno
   Upravlja se z upravljalno ploščo zaslona
2. Temperatura za svežino.
   2^ G 8^ C

3. Temperatura območja Zero
   Star -3^0^

4. Temperatura zamrzovalnika.

-22^-14^

Illustration showing a hand placing insulation onto a shelf and another container with upward arrows (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

CE

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

SK

H F F L G

A	905
B	673
C	1900
D	min. = 50
E	min. = 50
F	min. = 50
G	1515
H	1062
L	130°

Vyrovnanie jednotky

Technical line drawing of a mechanical assembly with two vertical supports and a base, showing no text or symbols.

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool inside a room, illustrating the process of lifting or removing the interior wall.

Line drawing of a 3D rectangular block with a flat top and rounded bottom (no text or symbols)

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

Vý straha! Gumené bloky uchová vajte v dostatočnej vzdialenosti od detí, aby ste zabránili ich prehltnutiu det'mi. Sú to malé časti.

Umiestnenie

Tento spotrebič nainštalujte na mieste, kde teplota okolia zodpovedá klimatickej triede uvedenej na typovom štítku spotrebiča:

pre chladiace spotrebiče s klimatickou triedou:

Technical diagram of a multi-level storage or refrigerator unit with numbered components labeled 1 through 5.

Illustration showing a hand placing a wooden shelf onto a rack, and a container with arrows indicating flow or movement (no text or symbols)

Simple line drawing of a pear and a carrot (no text or symbols)

CE

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

SQ

H F F L G

A	905
B	673
C	1900
D	min=50
E	min=50
F	min=50
G	1515
H	1062
L	130°

Nivelimi i një sisë

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool in a room, illustrating the process of lifting or discharging.

Line drawing of a 3D rectangular block with a curved top edge (no text or symbols)

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a door frame and a corner detail (no text or symbols)

Technical diagram of a multi-level storage or heating unit with numbered components and structural layout

Illustration showing a hand installing or adjusting a shelf panel and a container with upward arrows (no text or symbols)

Pozicionimi i ballkoneve te dera

Simple line drawing of a pear and a carrot (no text or symbols)

GNO52223XPN

GNO52223MXBR

GNO52223MXPN

CE

SR

Uputstvo za upotrebu

Kombinovani frižider sa zamrzivačem

Bez leda

Sadržaj
1. Informacije o bezbednosti	Stranica 1~7
2. Pregled	Stranica 8
3. Postavljanje	Stranica 9~12
4. Svakodnevna upotreba	Stranica 13~24

H F F L G

A	905
B	673
C	1900
D	min=50
E	min=50
F	min=50
G	1515
H	1062
L	130°

Nivelisanje jedinice

Da biste to uradili, podesite dva nogara za nivelisanje na prednjem delu jedinice.

Vrata

Technical line drawing of a mechanical assembly with two vertical supports and a base, showing structural details (no text or symbols)

- Poravnajte i učvrstite frižider podešavanjem nogara.

- Okrećite nogare u smeru kazaljke na satu da biste ih ručno podigli.

- Okrećite nogare u smeru suprotnom od kazaljke na satu da biste ih ručno spustili.

Nivelisana vrata

Nakon transporta ili stavljanja hrane i pića na prerade u vratima, dvoje gornjih vrata možda neće biti poravnata. Postoje 3 podloške tipa C koje se koriste za podešavanje vrata. Pratite postupak u nastavku da biste nivelisali vrata.

1. Pre provere poravnanja vrata, uverite se da uređaj stoji vodoravno.
2. Ako dvoje gornjih vrata ne stoje u liniji, lagano podignite donja vrata i umetnite podloške C tipa pomoću kopče između dna vrata i srednje šarke.

Diagram showing a refrigerator with upward arrow and a close-up of a piping tool inside an oval, illustrating the process.

UPOZORENJE! Pazite da vam vrata ne uklješte prste. Koristite alat.

UPOZORENJE! Čuvajte podloške tipa C dalje od dece da ih deca ne bi progutala. One su mali delovi.

Gumene blokade

Line drawing of a 3D rectangular block with a flat top and rounded bottom (no text or symbols)

Postavljanje

Ne izvlačite gumene blokade. Ako ih nema na vratima, uzmite jednu iz kesice sa priborom i umetnite je u otvor na vratima.

Technical line drawing of a device with internal components and an external view showing internal structure (no text or symbols)

Technical line drawing of a door frame and internal structure, showing cross-section and detail view (no text or symbols)

UPOZORENJE! Čuvajte gumene blokade dalje od dece da ih ne bi progutala. One su mali delovi.

Pozicioniranje

Technical diagram of a multi-level storage or refrigerator unit with numbered components labeled 1 to 5.

1. Temperatura frižidera. 2°C\~8°C / Isključeno
   Kontroliše se panelom operativnog ekrana
2. Sveža temperatura. 2 °C\~8 °C

3. Temperatura zone sa 0 zvezdica -3°C \~0°C

4. Temperatura zamrzivača.

-22 °C\~14 °C Kontroliše se panelom operativnog ekrana

1. Temperatura podesive zone.

-20°C \~5°C / Isključeno Kontroliše se panelom operativnog ekrana

Prva upotreba

Čišćenje unutrašnjosti

Pre prve upotrebe uređaja, operite unutrašnjost i sve unutrašnje dodatke mlakom vodom i neutralnim sapunom kako biste uklonili karakteristični miris potpuno novog proizvoda, a zatim ga dobro osušite.

Illustration showing a hand placing a wooden shelf onto a wall, and a container with upward arrows indicating flow or movement (no text or symbols)

Korisne ideje i saveti

Empty white rectangle with black border (no text or symbols)
