USER MANUAL LD 18-7 125 R Kit Flex

Illustration of a cleaning power tool with a circular base and brush, no text or symbols present.

Technical diagram of a cleaning or polishing tool with numbered parts and close-ups of components labeled a, b, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15.

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a white electric shaver with ventilation grilles and a black arrow pointing to the handle (no text or symbols visible)

Person using a power tool on a workbench (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component placement.

Person using a power tool on a workbench, no visible text or symbols

Bilks Q - r

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard Rühle Head of Quality Department (QD)

15.05.2015

Symbols used in this manual ..... 14

Important safety information ..... 14

Noise and vibration ..... 17

Technical specifications ..... 18

Overview 19

Instructions for use .... 20

Maintenance and care 23

Disposal information 24

C€-Declaration of Conformity ..... 24

Exemption from liability 24

Symbols used in this manual

WARNING!

Denotes impending danger.

Non-observance of this warning may result indeath or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation.

Non-observance of this warning may result insight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear goggles!

Disposal information for the old machine (see page 24)!

For your safety

WARNING!

Before using the power tool, please read and follow:

–these operating instructions,

–the “General safety instructions” on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),

–the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The power tool may be operated only if it is

- a s i n t e n d e d ,

-in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

The renovation sander LD 18-7 125 R/LD 18-7 150 R is designed

– for commercial use in industry and trade,

– for dry sanding and smoothing of concrete, plaster, screed, sandstone, chamotte and asphalt,

– for grinding paintwork and adhesive residue off concrete or screed,

- for use with diamond-tipped tools which FLEX offers for this power tool and which are authorised to run at a speed of at least 7,000 r.p.m.

It is not permitted to use cutting-off wheels, roughing wheels, fan-like grinding wheels or wire brushes.

When using the renovation sander LD 18-7 125 R/LD 18-7 150 R, connect a Class M dust extractor.

Safety instructions

WARNING!

Read all safety instructions and other instructions. Failure to observe the safety instructions and other instructions may result in an electric shock, fire and/or serious injuries. Keep all safety instructions and other instructions in a safe place for the future.

■ This electric power tool must be used as a sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

■ Operations such as sanding, wire brushing, or for polishing and cut-off are not recommended to be performed with this power tool.

Operations for which the power tool was not designed may create a hazard and cause personal injury.

■ Do not use accessories which are not specifically designed and recommended by the tool manufacturer.

Just because the accessory can be attached to your power tool, it does not assure safe operation.

■ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool.

Accessories running faster than their rated speed can break and fly apart.

■ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.

Incorrectly measured insertion tools cannot be adequately shielded or controlled.

■ Sanding discs, sanding pads or other accessories must fit exactly on the grinding spindle of your electric power tool.

Insertion tools, which do not fit exactly on the grinding spindle of the electric power tool, rotate unevenly, vibrate violently and may result in loss of control.

■ Do not use a damaged accessory. Before use, always check insertion tools for splinters and cracks, sanding pad for cracks, wear and severe abrasion. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute.

Damaged accessories will normally break apart during this test time.

■ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. If appropriate, wear a dust mask, hearing protection, protective gloves and/or a special apron which protect you from small sanding and material particles.

The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.

Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

■ Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.

■ Position the cord clear of the spinning accessory.

If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

■ Never lay the power tool down until the accessory has come to a complete stop.

The spinning accessory may grab the surface and pull the power tool out of your control.

■ Do not run the power tool while carrying it at your side.

Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

■ Regularly clean the power tool's air vents.

The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

■ Do not operate the power tool near flammable materials.

Sparks could ignite these materials.

■ Do not use accessories that require liquid coolants.

Using water or other liquid coolants may result in electrocution or shock.

Special safety instructions for grinding:

■ Sanding tools may be used for the recommended applications only.

For example: Never sand with the side area of a diamond sanding pad. Diamond sanding pads are designed to remove material with the underside of the sanding pad. If a lateral force is applied to these sanding tools, they may shatter.

■ Always use undamaged clamping flanges in the correct size and shape for the insertion tool you have selected.

Suitable flanges support the insertion tools and therefore reduce the risk of a break.

■ Do not use worn insertion tools from larger electric power tools.

Insertion tools for larger electric power tools are not designed for the higher speeds of smaller electric power tools and may break.

Kickback and Related Warnings:

Kickback is the sudden reaction to a pinched or snagged rotating insertion tool, such as a sanding disc, sanding pad, wire brush, etc. Pinching or snagging may cause a rotating insertion tool to stop abruptly.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out.

The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

For example, if a sanding disc is snagged or pinched by the workpiece, the edge of the sanding disc which is entering the workpiece may become caught and cause the sanding disc to break off or kick back.

The sanding disc then moves towards or away from the operator, depending on the direction in which the disc is rotating at the point of pinching. Sanding discs may also break under these conditions.

A recoil occurs if the electric power tool is used incorrectly or improperly.

A recoil can be prevented by appropriate precautions as described below.

- Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up.

The operator can control torque reactions or kickback forces, if proper precautions are taken.

■ Never place your hand near the rotating accessory.

Accessory may kickback over your hand.

■ Do not position your body in the area where power tool will move if kickback occurs.

Kickback propels the electric power tool in the direction opposite to the movement of the sanding disc at the point of pinching.

■ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory.

Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

This causes a loss of control or kickback.

■ Do not attach a saw chain woodcarving blade or toothed saw blade.

Such blades create frequent kickback and loss of control.

Additional safety instructions

■ Use only extension cables permitted for outdoor use.
It is not recommended to sand lead paint. Lead paint should be removed by a specialist only.
■ Do not work on materials which release hazardous substances (e.g. asbestos).
Take precautions if hazardous, combustible or explosive dust is likely to occur. Wear protective dust mask.
Use dust extraction system.

DAMAGE TO PROPERTY!

■ The mains voltage and the voltage specifications on the rating plate must correspond.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 60745. The A evaluated noise level of the power tool is typically:

– Sound pressure level: 91.8 dB(A);
- Sound power level: 102.8 dB(A);
- Uncertainty:

Total vibration value (when sanding concrete areas):

- Emissions value: a h = 7.4 m/s^2 - Uncertainty: ^2 K

WARNING!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool.

However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

For a precise estimation of the vibration load the times should also be considered during which the power tool is switched off or even running, but not actually in use.

This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

Technical specifications

Machine type Renovation sander		LD 18-7 125 R	LD 18-7 150 R
Mains voltage V/Hz 230/50
Protection class		☐/II
Power input W 1,800
Speed r.p.m. 7,000
Tool holder M14
Max. disc diameter mm 125	150
Weight according to “EPTA Procedure 01/2003” (without power cord)	kg	4.2	4.3

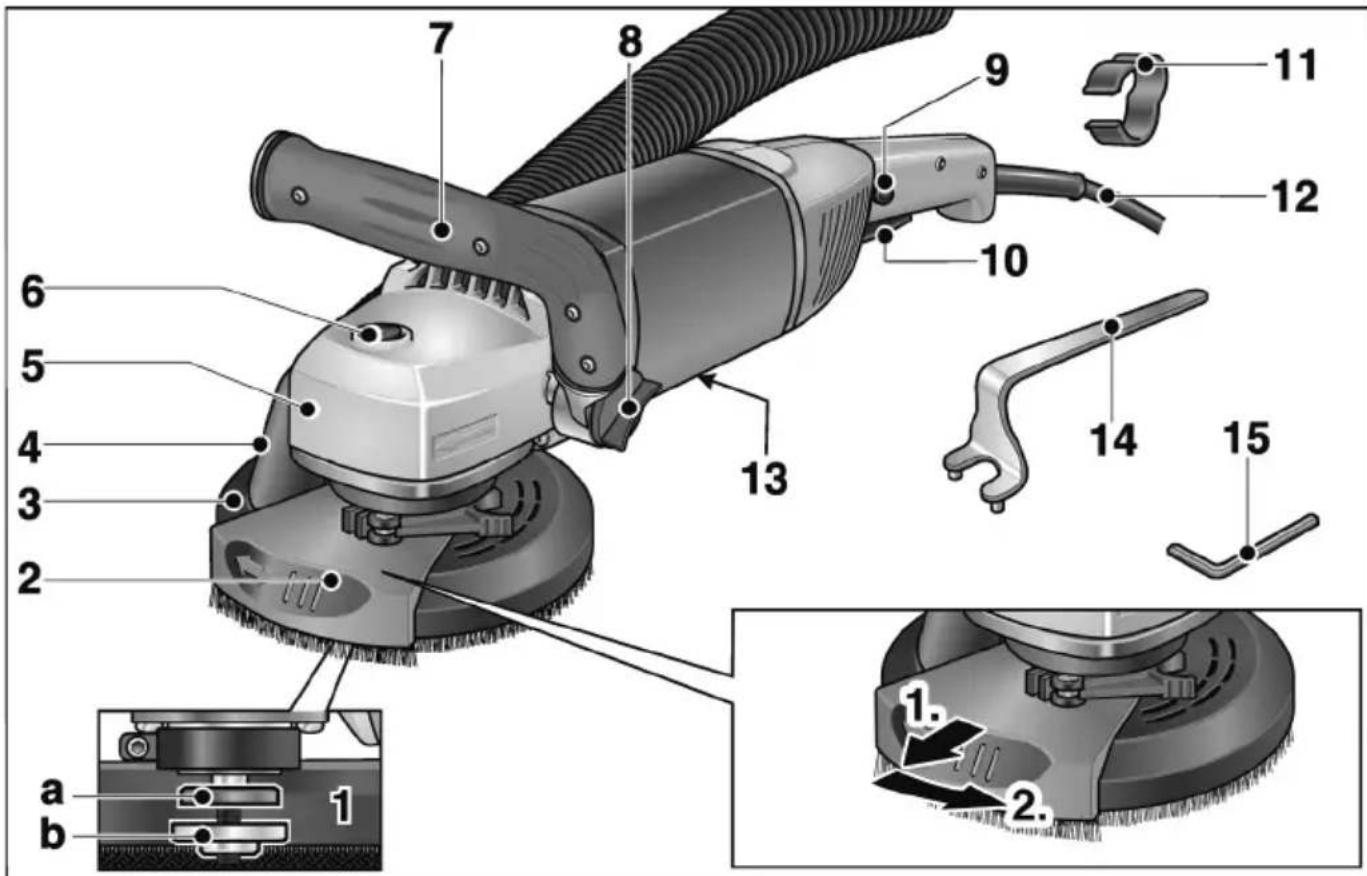

Overview

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for detail

1 Spindle with threaded flange

a	C	l	a	m	p	i	n	g
b	C	l	a	m	p	i	n	g

2 Pivoted edge segment

3 Guard hood with brush ring

a) LD 18-7 125 R: ∅ 125 mm
b) LD 18-7 150 R: ∅ 150 mm

4 Connection for extractor

5 Gear head

With air outlet and direction-of-rotation arrow.

6 S p i n d l e l

Secures the spindle when the tool is changed.

7 Handle, adjustable

8 Rotary knob for adjusting the handle

9 Starting lockout/Locking button

f Prevents the power tool from starting up unintentionally and locks the switch (9) during continuous operation.

10 Switch

Switches the power tool on and off.

11 Cable holder (3x)

For guiding the cable securely along the suction hose

12 4.0 m power cord with mains plug

13 Rating plate O C K

14 Clamping nut wrench

15 Hexagon-socket key (width across flats 4)

Instructions for use

Before switching on the power tool

■ Unpack power tool and accessories and check that no parts are missing or damaged.

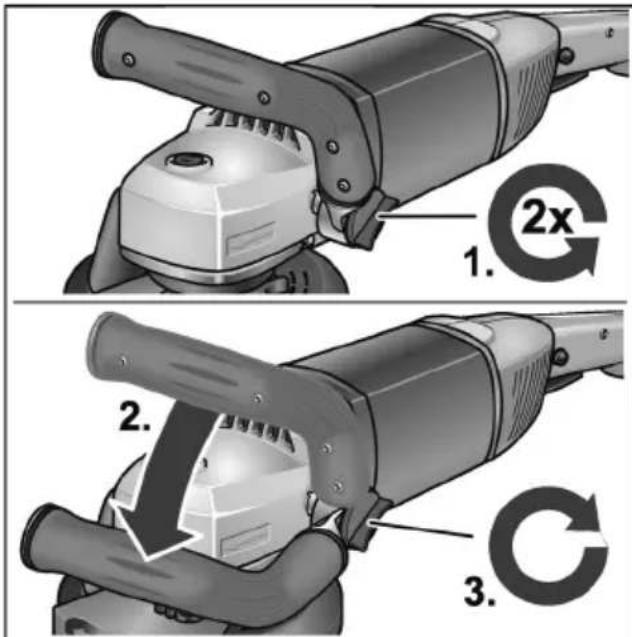

Adjusting the handle

1. 2x 2. 3.

■ Loosen rotary knob for adjusting the handle by turning it approx. 2 revolutions anti-clockwise.

■ Place handle in the required position (15° notch).

Ensure that handle engages correctly!

■ Tighten rotary knob for adjusting the handle clockwise.

i NOTE

If required, the handle can be moved to the other side of the electric power tool.

Inserting and changing the sanding tools

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

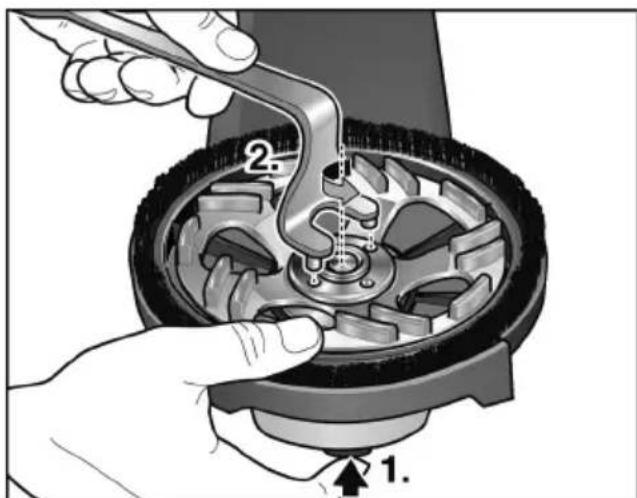

■ Press and hold down the spindle lock (1.).

■ Using the stop key, loosen the clamping nut on the spindle in an anti-clockwise direction and remove (2.).

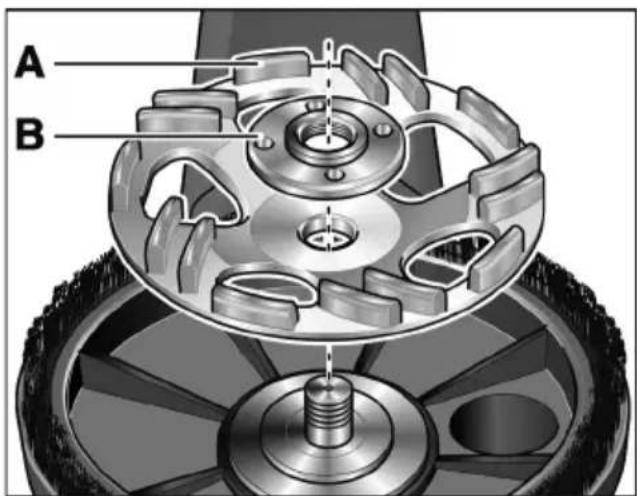

■ Insert diamond sanding pad (A) correctly.

A B

■ Screw the clamping nut (B), with flange face up, onto the spindle.

■ Press and hold down the spindle lock.

■ Tighten the clamping nut with the stop key.

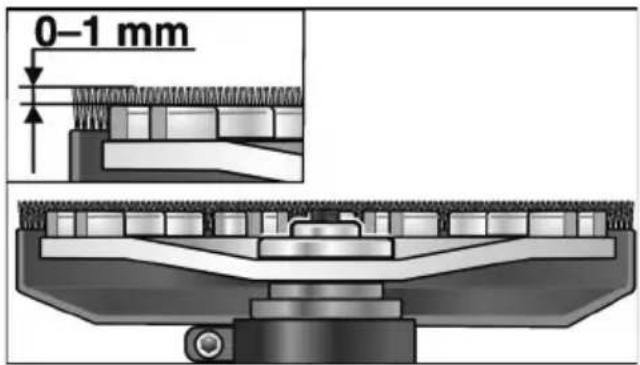

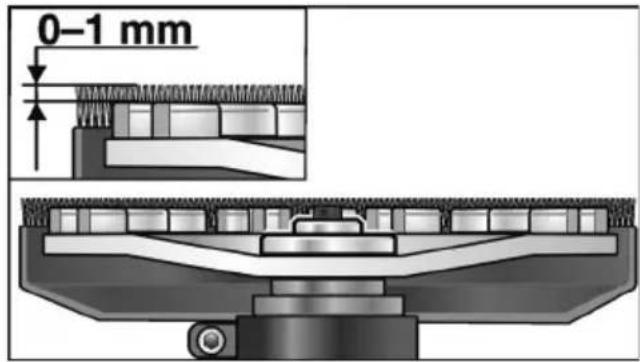

■ Check position of the guard.

0-1 mm

The brush ring should protrude over the sanding pad by approx. 0–1 mm. If required, correct (see "Adjusting the guard").

■ Insert the mains plug into the socket.
■ Switch on the electric power tool (without locking the button) and leave it running for approx. 30 seconds.
Check for imbalances and vibrations.
■ Switch off the electric power tool.

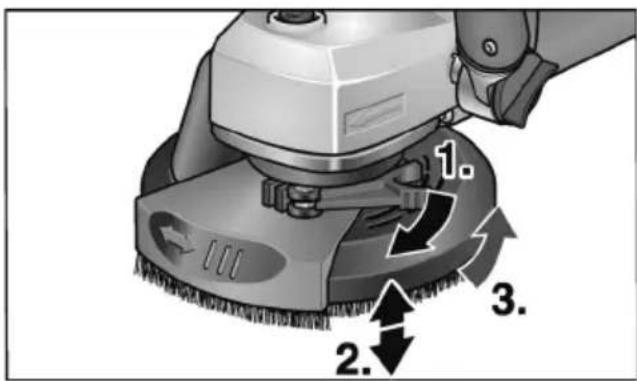

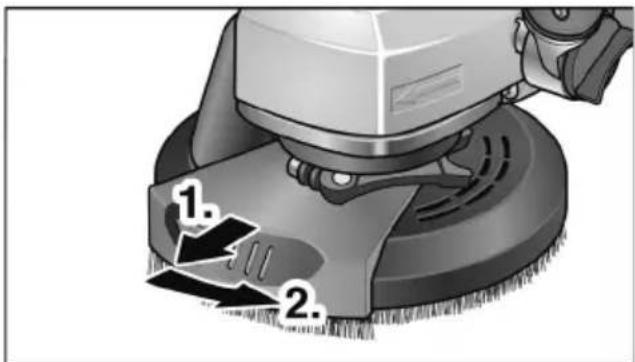

Adjusting the guard

NOTE

The brush ring should protrude over the sanding pad by approx. 0–1 mm. To compensate for wear on the diamond sanding pad, the height of the guard can be adjusted.

■ Loosen clamping lever on guard hood.
■ Set the guard hood to the required height.

1. 2. 3.

■ Tighten the clamping lever.

NOTE

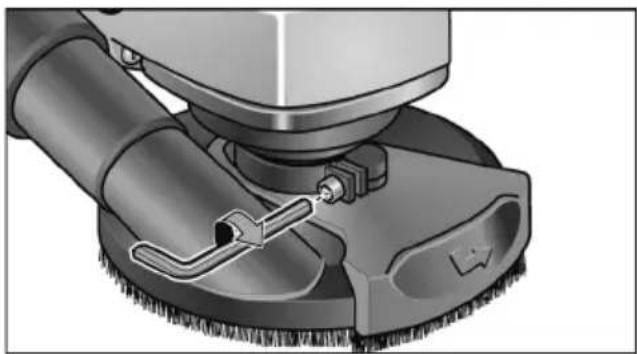

If the clamping force decreases, the clamping can be adjusted by tightening the hexagon socket screw on the clamping lever.

Close-up of a cleaning or cleaning machine component with a handle and base (no visible text or symbols)

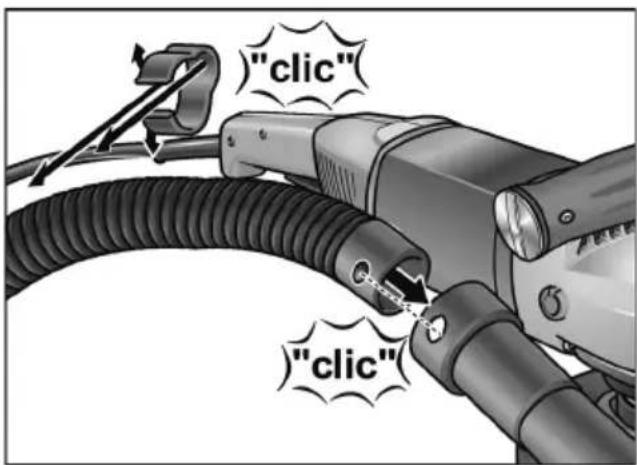

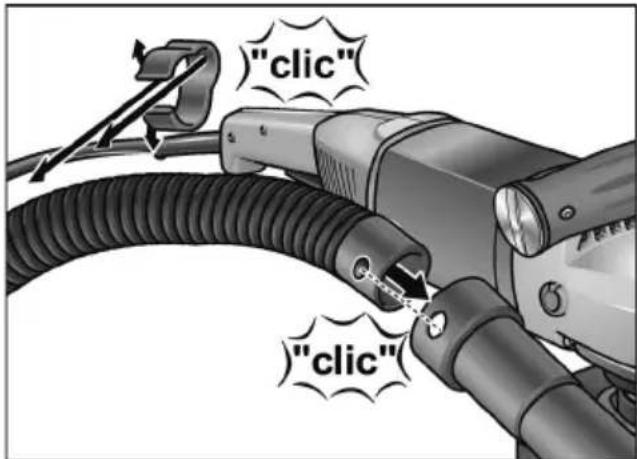

Connecting an extraction system

NOTE

It is recommended to use a FLEX Class M dust extractor.

■ Attach extraction hose to the connector on the guard hood.
■ Attach power cord to the extraction hose using the enclosed cable holders (3x).

"clic" "clic"

■ Connect extraction hose to the dust extraction system. Follow the operating instructions for the dust extraction system! Check the attachment! If required, use an appropriate adapter.

NOTE

If your dust extractor requires a special connection (i.e. a connection other than the 32 mm/36 mm standard connection which is included with the electric power tool), contact your dust extractor supplier to obtain the appropriate adapter.

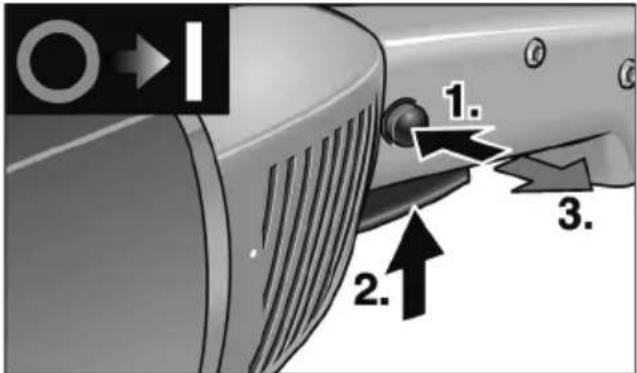

Switching the electric power tool on and off

Brief operation without engaged switch rocker:

1. 2. 3.

■ First press the starting lockout. Then press and hold down the switch. Release switch interlock.

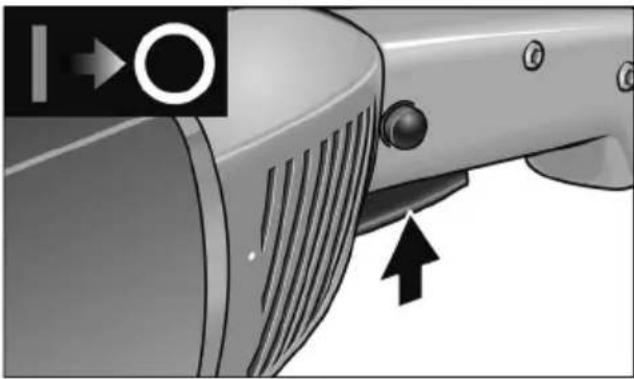

■ To switch off, release the switch.

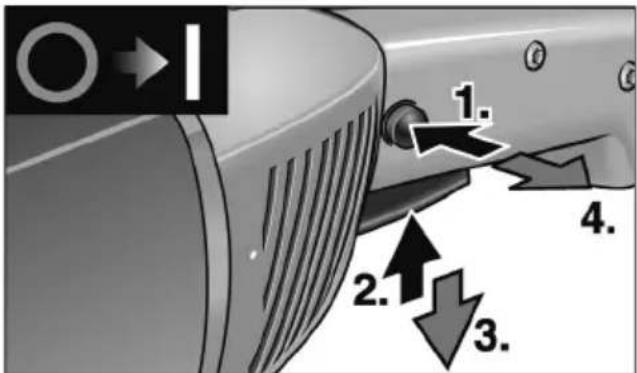

Continuous operation with engaged switch rocker:

1. 2.1 3. 4.

■ First press and hold down the starting lockout and then the switch.

■ To lock into position, hold down the locking button and release the switch. Release switch interlock.

NOTE

Following a power failure, the switched on power tool does not restart.

Switch off the machine:

Close-up of a white electric shaver with ventilation grilles and a black arrow pointing to the handle (no text or symbols visible)

■ To switch off, briefly press and release the switch.

Working with the power tool

WARNING!

The rotating sanding disc must not come intocontact with sharp projecting objects.

Danger of kickback! Damage to sanding pad. If the sanding pad is damaged or severely worn, it must be replaced.

CAUTION!

Hold the electric power tool with both hands!

1. Attach sanding tool.
2. Connect dust extraction system.
3. Insert mains plug.
4. Switch on dust extraction system.
5. Switch on the device.

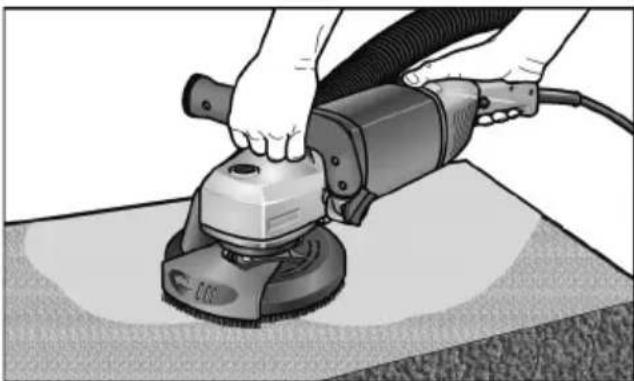

6. Place the renovation sander on the work surface. The brush ring must be flush with the work surface.

Person using a power tool on a textured surface (no text or symbols visible)

1. Increase the pressure to bring the sanding pad into contact with the work surface. In doing so, slew the renovation sander with overlapping movements.

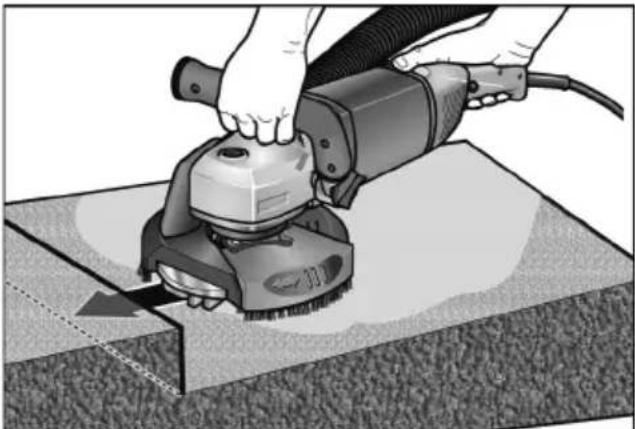

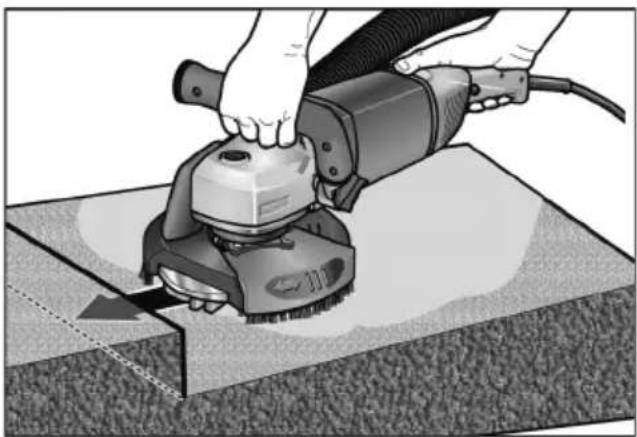

2. Sanding in corners:

3. Switch off the power tool and wait until the sanding tool has come to a standstill.

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing mechanical components and tool path.

– Pull out pivoted edge segment and swivel to left.

- Switch on power tool again.

Person using a power tool on a workbench, no visible text or symbols

1. After work, switch off the electric power tool and pull out the mains plug.

Brush ring

The guard features a brush ring. This ring has two functions:

- As the ring projects above the surface of the sanding pad, it is the ring which comes into contact with the work surface first. As a result, the sanding pad is brought parallel to the work surface before the sanding tool comes into contact with the work surface. This avoids a sickle-shaped depression caused by the edge of the sanding pad.

- The ring retains the dust until it is extracted by the dust extractor.

If the brush ring is damaged or excessively worn, it should be replaced.

A replacement brush set is available from any FLEX customer service centre.

Maintenance and care

WARNING!

Before performing any work on the electric power tool, pull out the mains plug.

Cleaning

WARNING!

Do not use water or liquid detergents.

■ Regularly blow out the housing interior and motor with dry compressed air.
■ Clean the guard and pivoted edge segment using dry compressed air.

Repairs

Repairs may be carried out by an authorised customer service centre only.

NOTE

During the warranty period do not loosen thescrews on the motor housing. Non-compliance will deem the guarantee obligations of the manufacturer null and void.

Spare parts and accessories

Other accessories, in particular insertion tools, can be found in the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable byremoving the power cord.

EU countries only

Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EC on Waste Electrical and

Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

NOTE

Please ask your dealer about disposal options!

CE-Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical specifications” conforms to the following standards or normative documents:

EN 60745 in accordance with the regulations of the directives

2004/108/EC (until 19.04.2016),

2014/30/EU (from 20.04.2016),

2006/42/EC, 2011/65/EC.

Responsible for technical documents:

Bolts Q - 1

Manager Research & Development (R & D)

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Table des matières

Technical diagram of a power tool with numbered parts and close-up insets for assembly or repair.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a white electric shaver with ventilation grilles and a black arrow pointing to the handle (no text or symbols visible)

Person using a power tool on a textured surface (no text or symbols visible)

Person using a power tool on a workbench, no visible text or symbols

Bolts Q - 1

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for detail

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a car's front bumper with ventilation grilles and adjustment knob (no text or symbols visible)

Person using a power tool on a workbench, no visible text or symbols

Person using a power tool on a workbench, no visible text or symbols

Bolts Q - r

Manager Research & Development (R & D)

Head of Quality Department (QD

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for detail

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and screwdriver (no visible text or symbols)

"clic" "clic"

Close-up of a white electric shaver with ventilation grilles and control buttons, showing no text or symbols.

Person using a power tool on a workbench (no text or symbols visible)

Person using a power tool on a workbench, no visible text or symbols

Bolts Q - r

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for detail

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning machine component with a handle and base (no visible text or symbols)

"clic" "clic"

Close-up of a car's front wheel and side panel with directional arrows (no text or symbols)

Person using a power tool on a workbench (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component placement.

Person using a power tool on a workbench, no visible text or symbols

Bhans Q - r

Manager Research &

Development (R & D)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-ups of components labeled a, b, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15.

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Diagram of a cleaning or cleaning machine with numbered components and directional arrows indicating motion or movement.

■ Draai de spanhendel vast.

LET OP

Close-up of a cleaning or cleaning tool with a brush and screwdriver (no visible text or symbols)

"clic" "clic"

Close-up of a handheld device with ventilation grille and control buttons, showing no readable text or symbols.

Person using a power tool on a textured surface (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component placement.

Person using a power tool on a workbench, no visible text or symbols

Bolts Q - r

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for detail

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a car's front bumper with ventilation grilles and a circular indicator (no text or symbols)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component placement.

Person using a power tool to cut or spread material on a workbench (no text or symbols visible)

Bhans Q - r

Manager Research & Development (R & D)

Head of Quality Department (QD)

15.05.2015

(under slipping avbetongflater):

- Emisjonsverdi:	a	_h = 7,4 m/s^2
-	Usikkerhet:	^2 K	= 1,5

ADVARSEL!

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for detail

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

■ Avsugingsslangen tilkoples til avsugingsanlegget. Ta hensyn til betjeningsveiledningen for avsugingsanlegget! Kontroller festet! Om nødvendig må det brukes en passende adapter.

i

HENVISNING

Close-up of a white electric shaver with ventilation grille and control buttons, showing no text or symbols.

Person using a power tool on a textured surface (no text or symbols visible)

Person using a power tool on a workbench, no visible text or symbols

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F

Head of Quality

Department (QD)

15.05.2015

Technical diagram of a power tool with numbered parts and close-up insets for assembly or maintenance.

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and screwdriver (no visible text or symbols)

"clic" "clic"

Close-up of a white electric shaver with ventilation grilles and a black arrow pointing to the handle (no text or symbols visible)

Person using a power tool on a workbench (no text or symbols visible)

Person using a power tool on a workbench, no visible text or symbols

B. F. O. Q.

Manager Research &

Development (R & D)

15.05.2015

Klaus Peter WeinperEckhard F

Head of Quality

Department (QD)

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for detail

1 Kara, jossa kierrelaippa

a Kiinnityslaippa

b Kiinnitysmutteri

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a mechanical device with ventilation grilles and a circular button, showing no visible text or symbols.

Person using a power tool on a workbench (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component positioning.

Person using a power tool on a workbench, no visible text or symbols

Bolts Q - 1

Manager Research &

Development (R & D)

Technical diagram of a cleaning or polishing tool with numbered parts and close-ups of components labeled a, b, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15.

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a mechanical device with ventilation grille and adjustment knob (no visible text or symbols)

Person using a power tool on a workbench (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component details.

Person using a power tool on a textured surface, no visible text or symbols

Manager Research & Development (R & D)

Bolts Q.-1

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for assembly or repair.

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a white electric shaver with ventilation grille and control buttons, showing no text or symbols.

Person using a power tool on a textured surface (no text or symbols visible)

Person using a power tool on a workbench, no visible text or symbols

2006/42/WE, 2011/65/WE.

Bolts Q - 1

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F

Head of Quality Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-ups of components labeled a, b, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15.

1 O r s ó m e n e a Szorító perem b S z o r í t ó a

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a car's front wheel and side door with a circular arrow indicator (no text or symbols)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing mechanical components and cleaning steps.

Person using a power tool on a workbench, no visible text or symbols

Bolts Q - r

Manager Research & Development (R & D)

Head of Quality Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for detail

Close-up of a cleaning or cleaning tool component with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a white electric shaver with ventilation grilles and a black arrow pointing to the handle (no text or symbols visible)

Person using a power tool on a textured surface (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component placement.

Person using a power tool on a workbench, no visible text or symbols

Manager Research & Development (R & D)

Bolts Q - r

Klaus Peter WeinperEckhard F Head of Quality Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-ups of components labeled a, b, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15.

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

■ Stlačte aretáciu vretena a držte ju stlačenú (1.).

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a car's front wheel and side-mounted air vent, showing airflow direction and component placement (no text or symbols)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing mechanical components and tool path.

Person using a power tool on a workbench, no visible text or symbols

Bolts Q - r

Manager Research &

Development (R & D)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-ups of components labeled a, b, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15.

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a mechanical device with ventilation grilles and a knob, showing no visible text or symbols.

Person using a power tool on a workbench (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component placement.

Person using a power tool on a workbench, no visible text or symbols

Bullins Q - 1

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard F

Head of Quality

Department (QD)

15.05.2015

Technical diagram of a power tool with numbered parts and close-up insets for assembly or inspection.

1 Velenas su tvirtinimo flanšu

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

Nusiurbimo jtaiso prijungimas

i NURODYMAS

"clic" "clic"

Close-up of a mechanical device with a circular button and directional arrow indicator (no text or symbols)

Person using a power tool on a textured surface (no text or symbols visible)

Person using a power tool on a workbench, no visible text or symbols

Bolts Q - 1

Manager Research & Development (R & D)

Head of Quality Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-up insets for assembly or repair.

1 Darbvarpsta ar vitnatloku

a Savilcejatloks

b Savilcejuzgrieznis

2 Grozams malas segments

3 Aizsargapvalks ar suku vainagu

4 Nosukšanas savienotajiscaurule

5 Parvada galva

Diagram showing a hand using a tool to adjust or install a mechanical component, labeled with numbers 1 and 2.

■ Nospiediet darbvarpstas aretieri un turiet nospiestu (1.).
■ Griežot aptures atslegu preteji pulkstena raditaju virzienam, noskruvejiet no darbvarpstas savilcejuzgriezni un nonemiet (2.).
■ levietojiet dimanta slipešanas škivi (A) pareiza pozicija.

A B

■ Uzskruvejiet uz darbvarpstas savilcejuzgriezni (B) ar apcilni uz augšu.

■ Nospiediet darbvarpstas aretieri un turiet nospiestu.
■ Ar aptures atslegu stingri pievelciet savilcejuzgriezni.
■ Kontrolejiet aizsargapvalka stavokli.

0-1 mm

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

Nosucejiekartas pieslegšana

i NORDIJUMS!

leteicama firmas FLEX specialnosuceja M kategorijas izmantošana.

■ Piestipriniet nosucejšluteni pie aizsargapvalka savienotajcaurules.
■ Piestipriniet piesleguma kabeli pie nosucejšlutenes ar piegades komplekta ietilpstoajiem kabela turetajiem (3x).

"clic" "clic"

■ Piesledziet uzsukšanas šluteni pie nosucejiekartas. leverojiet nosucejiekartas lietošanas pamacibas noteikumus! Parbaudiet nostiprinajuma stabilitati! Ja nepieciešams, izmantojioet piemerotu adapteri.

i NORDIJUMS!

Ja puteklu sucejam ir nepieciešama speciala savienotajcaurule (t. i. cita savienotajcaurule un nevis 32 mm/36 mm standarta savienotajcaurule, kura ieklauta elektroinstrumenta piegades komplekta), tad sazinieties ar puteklu suceja piegadataju, lai nodrošinatu piemerotu adapteri.

Elektroinstrumenta ieslegšana un izslegšana

Close-up of a white industrial machine handle with ventilation grilles and a black arrow pointing to a button (no text or symbols visible)

■ lerices izslegšanai isi nospiediet sledzi un atlaidiet.

Darbs ar elektroinstrumentu

BRIDINJUMS!

Person using a power tool on a workbench (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing mechanical components and tool path.

– Izvelciet pagriežamo malas segmentu un pagrieziet pa kreisi. – lesledziet ierici no jauna.

Person using a power tool to cut a surface, no text or symbols visible

1. Pec darba beigam izsledziet elektroinstrumentu un izvelciet tikla kontaktdakšu.

Suku vainags

Bolters Q.-1

Manager Research &

Development (R & D)

Klaus Peter WeinperEckhard F

Head of Quality

Department (QD)

15.05.2015

Technical diagram of a cleaning or polishing tool with numbered parts and close-ups of components labeled a, b, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15.

Close-up of a cleaning or cleaning tool with a brush and handle (no visible text or symbols)

"clic" "clic"

Close-up of a car's front bumper with a black arrow pointing to the nose area (no text or symbols visible)

Person using a power tool on a textured surface (no text or symbols visible)

Diagram of a cleaning or cleaning machine with labeled parts 1 and 2, showing tool path and component placement.

Person using a power tool on a textured surface, no visible text or symbols

Bolts Q - r

Manager Research & Development (R & D)

Klaus Peter WeinperEckhard Rühle Head of Quality Department (QD)
