Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear goggles!

Wear ear protection!

Disposal information for the old machine (see page 23)

For your safety

WARNING!

Before using the angle grinder, please read and follow:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This angle grinder is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The angle grinder may be operated only if it is

-as intended,
- in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

This angle grinder

– for commercial use in industry and trade,
– is designed for dry grinding and cutting metal and stone,
– for grinding surfaces, for derusting and stripping paint when used with the elastic sanding pad,
– for use with grinding tools and accessories which are indicated in these instructions or recommended by the manufacturer.

Not permitted are e.g. chain cutting wheels, saw blades.

Safety Warnings for Angle Grinder

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Safety Warnings Common for Grinding, Sanding, Wire Brushing or Abrasive Cutting-Off Operations

■ This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ Operation such as polishing is not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
■ Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
■ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
■ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
- Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
- Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the

power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

■ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

- Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

■ Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

■ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

■ Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

- Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

■ Do not operate the power tool near flammable materials. Sparks could ignite these materials.
■ Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

• Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
  ■ Never place your hand near the rotating accessory. Accessory may kickback over your hand.
• Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging.
  ■ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

■ Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations

■ Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
■ The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
■ The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
- Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter.
■ Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
■ Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings specific for Abrasive Cutting-Off Operations

• Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut.
  Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
  ■ Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
  ■ When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
  ■ Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
  ■ Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
• Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety Warnings Specific for Sanding Operations

■ Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper

extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback.

Safety Warnings Specific for Wire Brushing Operations

■ Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
■ If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional safety instructions

■ Use suitable detectors to detect concealed power supply cables or consult your local supply company. Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property or may cause an electric shock.
■ When working, hold the power tool firmly with both hands and ensure that you have a secure footing. The power tool is controlled more securely if held with both hands.
- Secure the workpiece. A workpiece is held more securely in a clamping device than by hand.
■ Dust released from materials, such as lead paints, some types of wood, minerals and metal, may be hazardous to the operator or people in the vicinity. Inhaling or touching such dust may result in respiratory diseases and/or allergic reactions.
- Ensure the workplace is well ventilated.
- If possible, use external dust extraction.
- It is recommended to wear a respirator mask belonging to filter class P2.
■ Do not work on materials which release hazardous substances (e.g. asbestos).

■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.
■ Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
■ The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.
■ The mains voltage and the voltage specifications on the rating plate must correspond.
■ Do not press the spindle lock until the grinding tool stops.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 60745. The A evaluated noise level of the power tool is typically:

– Sound pressure level: 84 dB(A);

– Sound power level: 95 dB(A);

- Uncertainty: K = 3.0 dB.

Total vibration value:

- Emission value when ...

Surface grinding: a h = 5.1 m/s^2

Cutting-off: a _h=2.8 m/s^2

- Uncertainty: K = 1.5 m/s

CAUTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main

applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

Technical specifications

	L 125 18.0-EC
Machine type	Angle grinder
Nominal voltage	V	18
Battery	AP 18.0/2.5AP 18.0/5.0
Max. grinding tool ∅ mm	125
Grinding tool thickness mm	m 1–6
Shaft thread mm 22.23
Spindle thread		M14
Speed	r.p.m.	8,500
Weight according to “EPTA Procedure 01/2003” (without battery)	kg	1.7
Weight of battery 2.5 Ah5.0 Ah	kgkg	0.420.72

Overview

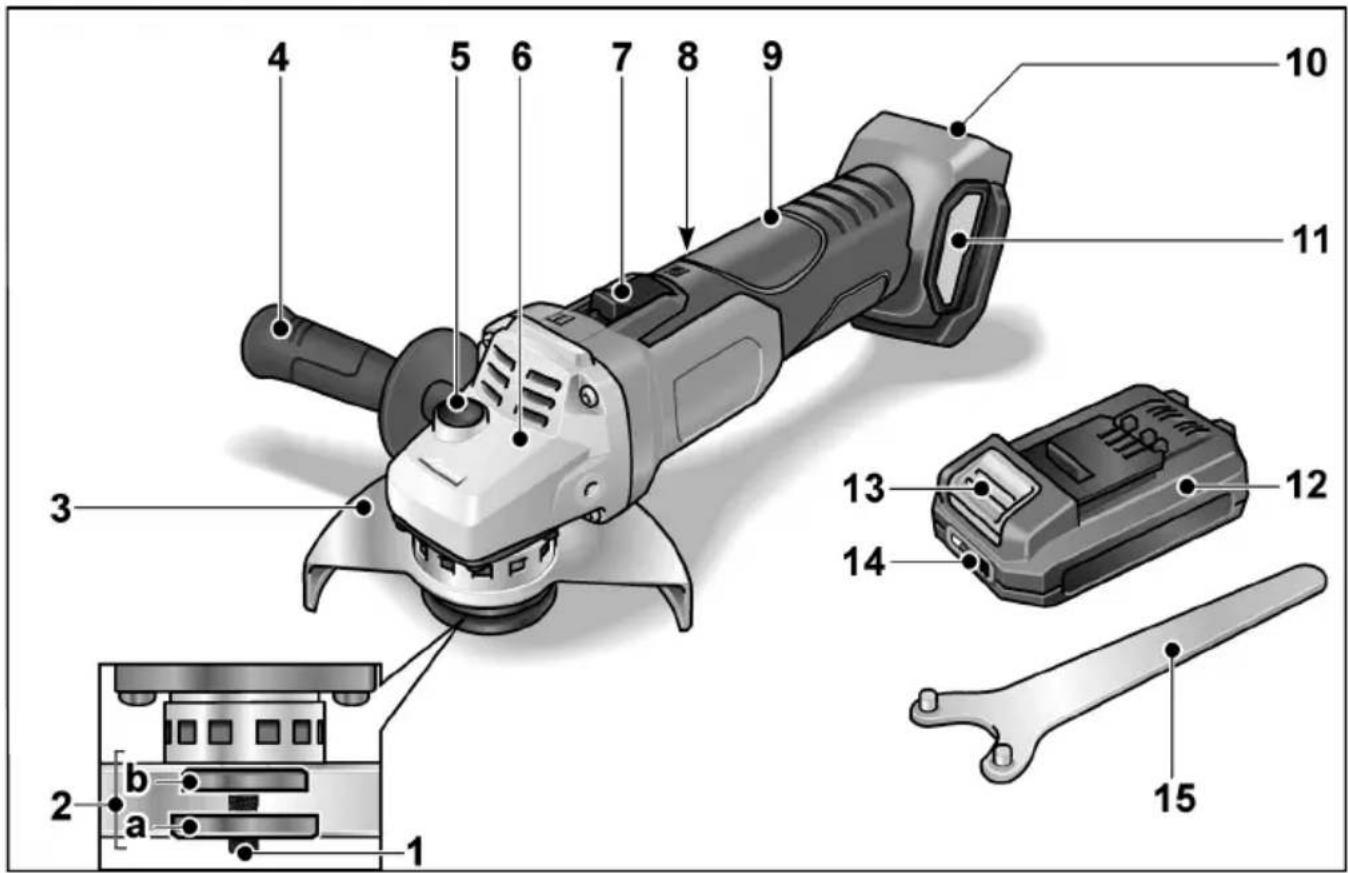

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 Spindle
2 Threaded flange

a Clamping nut

b Clamping flange

3 Guard hood

Can be adjusted without a tool through 360^ by means of 12 notches.

4 Handle

Handle can be fitted to the left or right.

5 Spindle lock

Secures the spindle when the tool is changed.

6 Gear head

With air outlet and direction-of-rotation arrow.

7 Switch rocker

Switches the power tool on and off.

With notched position for continuous operation.

8 Rating plate *
9 Rear handle
10 Slot for battery
11 Filter cover
12 Li-ion battery (2.5 Ah or 5.0 Ah)
13 Release button for battery
14 State of charge indicator
15 Pin wrench

Instructions for use

WARNING!

Remove the battery before carrying out any work on the power tool.

Before switching on the power tool

Unpack the angle grinder and check that there are no missing or damaged parts.

NOTE

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. Refer to the charger operating manual.

Inserting/replacing the battery

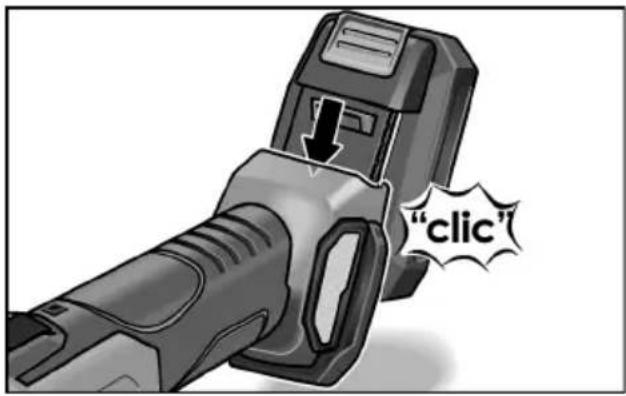

■ Press the charged battery into the power tool until it clicks into place.

"click"

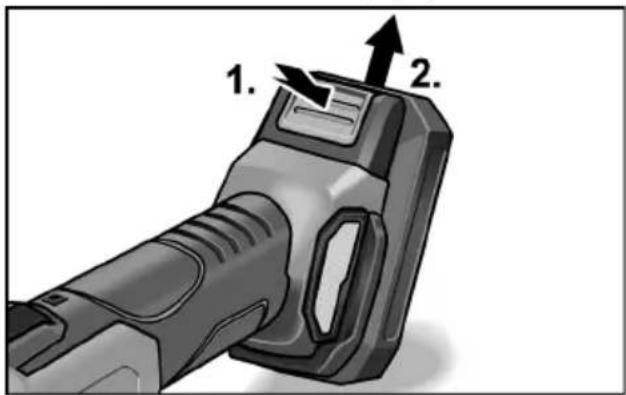

■ To remove, press the release button (1.) and pull out the battery (2.).

1. 2.

CAUTION!

When the device is not in use, protect the battery contacts. Loose metal parts may short-circuit the contacts; explosion and fire hazard!

Battery state of charge

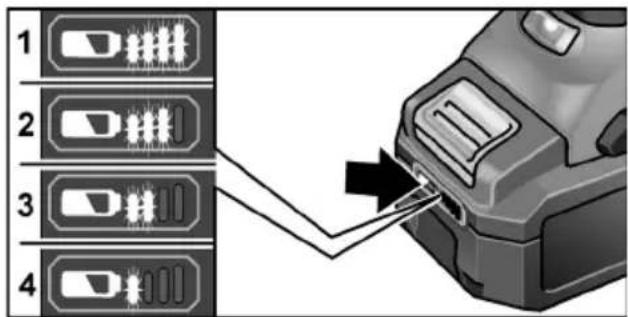

■ Press the button to check the state of charge at the state of charge indicator LEDs.

1 2 3 4

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

Attach the guard

WARNING!

When using the angle grinder for roughing or cutting, never work without the guard. A special cutting guard must be used for cutting.

■ Remove the battery.

Technical diagram showing a grinding tool and its internal components, labeled with step 1 and step 2.

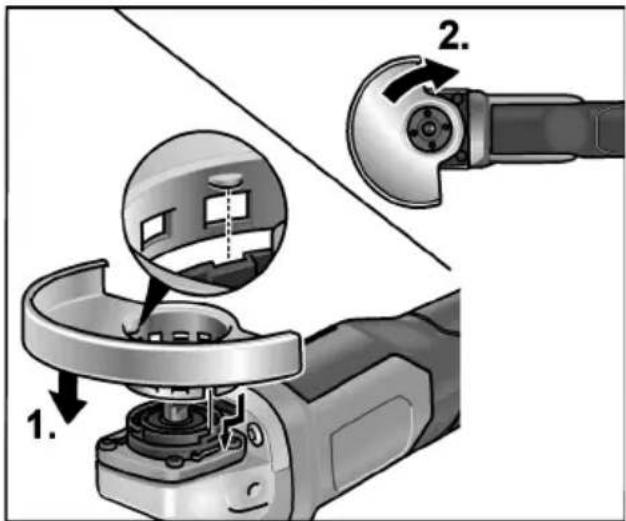

■ Attach the guard (1.). Lugs on the guard hood must be located in the flange recesses.

■ Turn guard hood clockwise (2). Rotation is possible in one direction only!

■ Remove in reverse order.

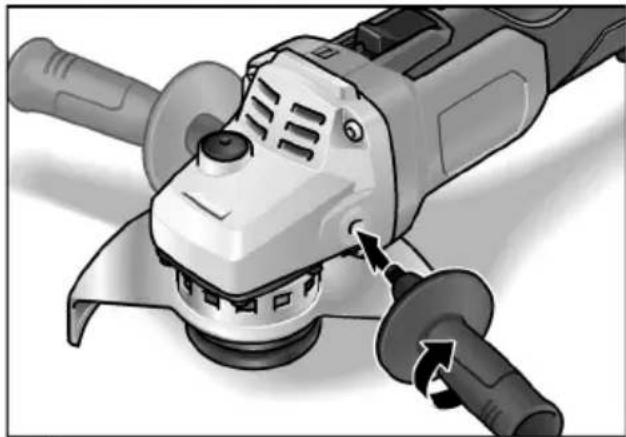

Attach the handle

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

i NOTE

It is not permitted to operate the electric power tool without the handle.

Attaching/changing the tool

■ Remove the battery.

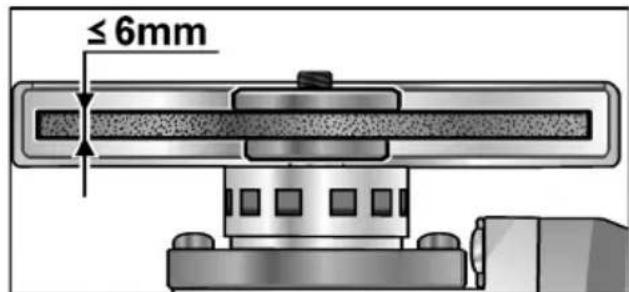

Attach the grinding wheel

Technical diagram of a power tool with labeled parts 1 and 2, showing mechanical assembly and adjustment mechanism.

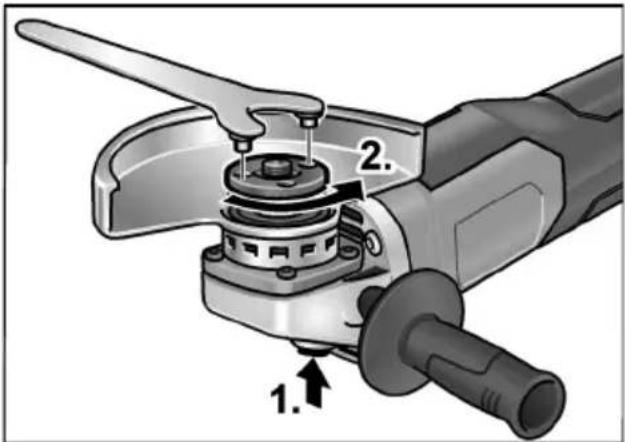

■ Press and hold down the spindle lock (1.).

■ Using the pin wrench, loosen the clamping nut on the spindle in an anticlockwise direction and remove (2.).

≤ 6mm

■ Insert the grinding wheel in the correct position.

■ Screw the clamping nut with flange face up, onto the spindle.
■ Press and hold down the spindle lock.
■ Tighten the clamping nut with the pin wrench.
- Carry out a test run to check that the tool is clamped in the centre.

Test run

■ Insert the battery.
■ Switch on the angle grinder with the switch (without engaging it) and run the angle grinder for approx. 30 seconds. Check for imbalances and vibrations.
■ Switch off the angle grinder.

Switching on and off

Brief operation without engaged switch rocker

Close-up of a mechanical device with a circular arrow and directional indicator (no readable text or symbols)

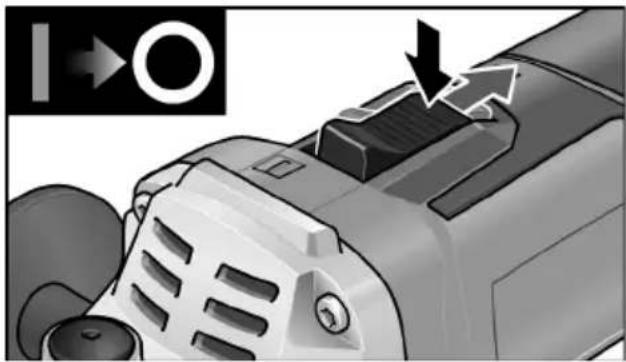

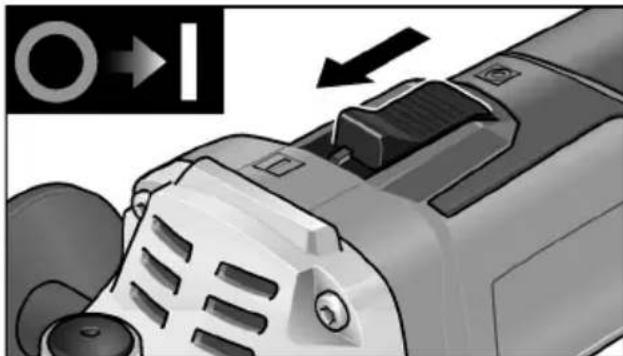

■ Push the switch rocker forwards and hold in position.
■ To switch off the power tool, release the switch rocker.

Continuous operation with engaged switch rocker

1. 2.

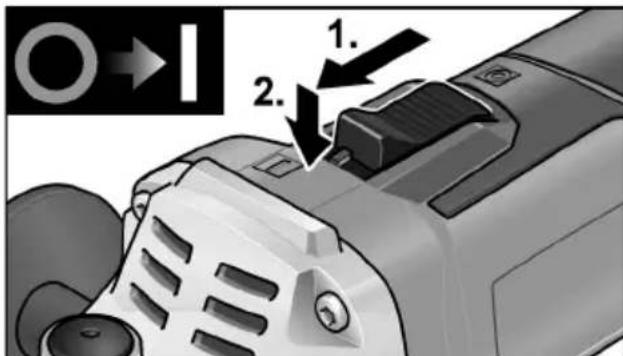

■ Push the switch rocker forwards (1.) and engage by pressing the front end (2.).

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols.

■ To switch off the power tool, release the switch rocker by pressing the rear end.

i NOTE

Following a power failure, the switched on power tool does not restart.

Adjusting the guard

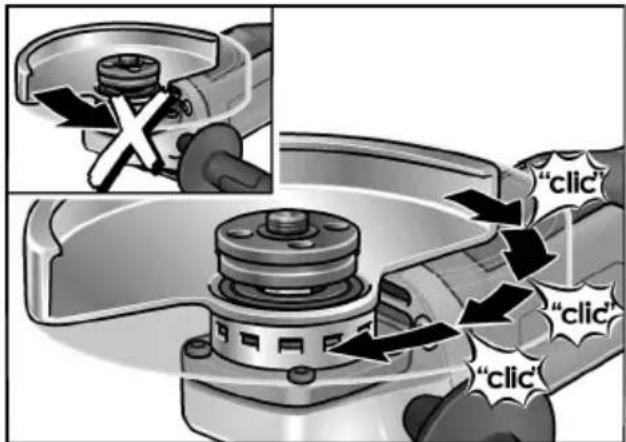

To adjust the tool to the task at hand, the guard hood can be adjusted by 12 notches on 360° without a tool.

CAUTION!

Risk of injury! Wear protective gloves.

■ Remove the battery.

"clic" "clic" "clic"

■ Turn guard hood opposite to the direction-of-rotation arrow on the gear head to the required position.

Work instructions

i NOTE

When the power tool is switched off, the grinding tool continues running briefly.

Rough-grinding

WARNING!

Never use cutting-off wheels for rough-grinding.

• Angle of wheel 20–40° for best cutting performance.
• Applying moderate pressure, move the angle grinder backwards and forwards. As a result, the workpiece will not become too hot and there will be no discoloration; nor will there be any grooves.

Cut-off grinding

WARNING!

A special cutting guard must be used for cutting.

See manufacturer's accessories catalogue.

- The angle grinder must always be operated backwards.

Illustration of hands using a cutting tool to cut a metal block with an arrow indicating rotation (no text or symbols present)

Otherwise, there is a risk of the angle grinder jumping uncontrollably out of the groove.

• Do not press, tilt or oscillate the power tool.
• Adjust the feed to the material which is to be cut: the harder the material, the slower the feed.

For further information on the manufacturer's products go to www.flex-tools.com.

Maintenance and care

WARNING!

Remove the battery before carrying out any work on the power tool.

Cleaning

■ Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use.

■ Regularly blow out the housing interior and motor with dry compressed air.
■ Regularly clean the filter cover.

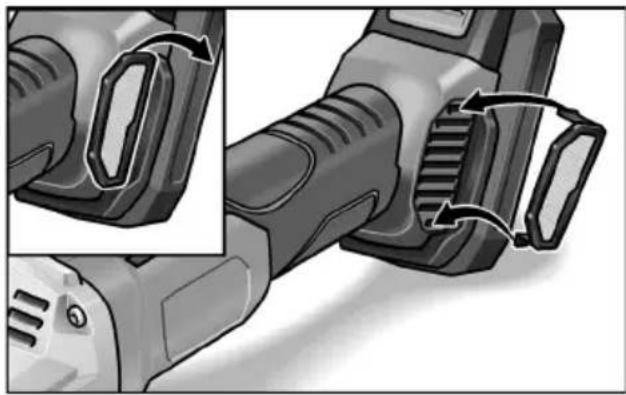

Close-up of a mechanical device with a highlighted grip and arrow indicating rotation (no text or symbols)

Remove filter cover and blow it out with dry compressed air.

Gears

i NOTE

Do not loosen the screws on the gear head during the warranty period. Non-compliance will deem the guarantee obligations of the manufacturer null and void.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

For other accessories, in particular grinding tools, see the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable:

• mains operated power tool by removing the power cord,
• battery operated power tool by removing the battery.

EU countries only Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EC on Waste Electrical and

Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open used batteries.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

i NOTE

Please ask your dealer about disposal options!

C ∈-Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical specifications” conforms to the following standards or normative documents:

EN 60745 in accordance with the regulations of the directives 2014/30/EC, 2006/42/EC, 2011/65/EC.

Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Eckhard Rühle Manager Research & Development (R & D)

Bolts Q - 1

Klaus Peter Weinper Head of Quality Department (QD)

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.

Table des matières

Labeled diagram of a power tool with numbered parts including power shaver, wrench, and internal components

1 Broche
2 Flasque taraudé

a Ecrou de serrage

b Bride de serrage

3 Capot de protection

Technical diagram showing a mechanical device with labeled parts and a magnified inset showing internal components.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

REMARQUE

Technical diagram of a mechanical power tool with numbered components and directional arrow indicating assembly or motion.

Close-up of a mechanical tool with a circular arrow indicator and directional arrow (no text or symbols)

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

"click" "clic"

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a mechanical device with a hand operating a grip, showing internal components and motion arrows (no text or symbols)

Klaus Peter Weinper Head of Quality Department (QD)

01/12/2015

Labeled diagram of a power tool with numbered parts including power shaver, wrench, and internal components

1 A l b e r i n o

2 Flangia filettata

a Dado di serraggio

Technical diagram showing a robotic arm with labeled parts and a close-up view of the mechanical component.

Close-up of a power tool with a hammer and screwdriver, showing the angle and direction of operation (no text or symbols visible)

i AVVISO

Technical diagram of a power tool with numbered components and directional arrow indicating assembly or operation

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

"click" "clic"

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a handheld device with a close-up inset showing the internal components (no text or symbols visible)

Bolts Q - 1

Klaus Peter Weinper Head of Quality Department (QD)

01/12/2015

Labeled diagram of a power tool with numbered parts including power shaver, wrench, and internal components

1 Husillo
2 Acoplamiento a rosca

a Tuerca de montaje

Technical diagram showing a grinding tool with labeled parts and a magnified view of the interior mechanism.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

NOTA

Technical diagram of a mechanical power tool with numbered components and directional arrow indicating assembly or motion.

Close-up of a mechanical device with a circular arrow pointing to a button, no visible text or symbols

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a mechanical device with a handle and lever mechanism, showing internal components and motion arrows (no text or symbols)

Manager Research & Development (R & D)

Bolts Q - 1

Klaus Peter Weinper Head of Quality Department (QD)

01/12/2015

Labeled diagram of a power tool with numbered parts including power shaver, wrench, and internal components

Technical diagram showing a grinding tool with labeled parts and a magnified view of the component being processed.

Close-up of a power tool with a hammer and screwdriver, showing the angle and cutting edge (no text or symbols visible)

i INDICAÇÃO

Technical diagram of a mechanical power tool with numbered components and directional arrow indicating assembly or motion.

Close-up of a mechanical device with a circular arrow and directional indicator (no readable text or symbols)

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

"click" "clic"

Illustration of hands using a cutting tool to cut a workpiece on a flat surface (no text or symbols visible)

Close-up of a mechanical device with a hand operating a grip, showing internal components and motion arrows (no text or symbols)

Klaus Peter Weinper Head of Quality Department (QD)

01/12/2015

Labeled diagram of a power tool with numbered parts including power shaver, wrench, and internal components

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

i LET OP

Technical diagram of a power tool with numbered components and directional arrow indicating assembly or operation

Close-up of a mechanical device with a circular arrow and directional indicator (no readable text or symbols)

Diagram showing a mechanical device with directional arrows and a circular symbol, likely illustrating a process or operation.

"click" "clic"

Illustration of hands using a cutting tool to cut a metal sheet (no text or symbols visible)

Close-up of a mechanical device with a highlighted grip and arrow indicating rotation (no text or symbols)

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 Spindel
2 Gevindflange

a Spændemøtrik

b Spændeflange

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

i BEMAERK

Technical diagram of a mechanical tool with numbered components, likely for assembly or maintenance instructions.

Close-up of a mechanical device with a circular arrow pointing to a symbol (no readable text or labels)

■ Skub vippekontakten fremad og hold den fast.
■ Slip vippekontakten for at slukke.

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

"click" "clic"

Illustration of hands using a cutting tool to cut a metal sheet (no text or symbols visible)

Close-up of a hand tool with a close-up inset showing the grip and adjustment area (no text or symbols visible)

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 Spindel
2 Gjengeflens

a Spennmutter

b Spennflens

3 Vernehette

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or transformation.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

i HENVISNING

Technical diagram of a mechanical power tool with labeled parts 1 and 2, showing internal components and motion direction.

Close-up of a mechanical device with a circular arrow pointing to the left side (no text or symbols visible)

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols.

– Bruk skråvinkel 20–40° for best sliping.

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a mechanical device with a highlighted component and directional arrows indicating motion (no text or symbols)

Bolts Q - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 Spindel

2 Gängad fläns

a Spännmutter

b Spännfläns

3 Skyddskåpa

Diagram showing a robotic arm with labeled parts, including a close-up view of the mechanical component and a numbered step indicator.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

OBS

Technical diagram of a power tool with labeled parts 1 and 2, showing mechanical assembly and adjustment mechanism.

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols.

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a mechanical device with a highlighted grip and arrow indicating rotation (no text or symbols)

Bolts Q - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

01.12.2015

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 K a r a

2 Kierrelaippa

a Kiinnitysmutteri

b Kiinnityslaippa

3 S u o j u s

Technical diagram showing a mechanical device with labeled parts and a magnified view of the component being processed.

Close-up of a power tool with a hammer and screwdriver, showing the angle and direction of work (no text or symbols visible)

i OHJE

Technical diagram of a power tool with labeled parts and directional arrow indicating assembly or motion

Close-up of a mechanical device with a circular arrow pointing to the left side (no text or symbols visible)

Close-up of a mechanical device with a directional arrow and circular symbol (no readable text or symbols)

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a mechanical device with a highlighted grip and arrow indicating rotation (no text or symbols)

Bikks Q - r

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

Technical diagram showing a mechanical device with labeled parts and a magnified view of the component being processed.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

i YΠΟΔΕΙΞΗ

Technical diagram of a mechanical power tool with numbered components and directional arrow indicating assembly or motion.

Close-up of a mechanical device with a circular arrow pointing to a symbol, no visible text or labels

Close-up of a mechanical device with a directional arrow and circular symbol (no readable text or symbols)

"click" "clic"

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a mechanical device with a close-up inset showing a component being adjusted (no text or symbols visible)

Bolts Q - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

01.12.2015

Labeled diagram of a power tool with numbered parts including power shaver, wrench, and internal components

1 W r z e c i o n o

Technical diagram showing a mechanical device with labeled parts, including a magnified view of the component being inserted.

Close-up of a power tool with a hammer and screwdriver, showing the angle and direction of operation (no text or symbols visible)

WSKAZÓWKA

Technical diagram of a mechanical tool with numbered components, likely for assembly or maintenance instructions.

Close-up of a mechanical device with a circular arrow pointing to a symbol (no readable text or labels)

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols.

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a mechanical device with a close-up inset showing a component being adjusted (no text or symbols visible)

2006/42/WE, 2011/65/WE.

B. P. Q.-y

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

01.12.2015

Labeled diagram of a power tool with numbered parts including power shaver, wrench, and internal components

1 O r s ó

2 Menetes karima

a Szorító anya

b Szorító perem

3 Védősapka

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

i MEGJEGYZÉS

Technical diagram of a mechanical tool with numbered components, likely for assembly or maintenance instructions.

Close-up of a mechanical device with a circular arrow pointing to a symbol (no readable text or labels)

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

Illustration of hands using a cutting tool to cut a metal sheet (no text or symbols visible)

Close-up of a mechanical component with arrows indicating motion or assembly (no text or symbols visible)

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 V ř e t e n o

2 Závitová příruba

a Upínací matice

b Upínací příruba

3 Ochranný kryt

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

i UPOZORNĚNÍ

Technical diagram of a mechanical power tool with numbered components and directional arrow indicating assembly or motion.

Close-up of a mechanical device with a circular arrow and directional indicator (no text or symbols on the device itself)

Close-up of a mechanical device with a black arrow pointing to a button, no visible text or symbols

"click" "clic"

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a mechanical device with a handle and lever mechanism, showing internal components and motion arrows (no text or symbols)

Bolts Q - 1

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 V r e t e n o

2 Závitová príruba

a Upínacia matica

b Upínacia príruba

3 Ochranný kryt

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating assembly or operation.

Close-up of a power tool with a hammer and screwdriver, showing the angle and direction of operation (no text or symbols visible)

i UPOZORNENIE

Technical diagram of a power tool with labeled parts and directional arrow indicating assembly or motion

■ Stlačte aretáciu vretena a držte ju stlačenú (1.).

Close-up of a mechanical device with a circular arrow and directional indicator (no readable text or symbols)

Close-up of a mechanical device with a directional arrow and circular symbol (no readable text or symbols)

Illustration of hands using a cutting tool to cut a metal block, showing motion direction (no text or symbols)

Close-up of a handheld device with a close-up inset showing the internal components (no text or symbols visible)

Bolts Q - r

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power tool with numbered parts including power shaver, wrench, and internal components

1 Spindel
2 Keermega äärik

a Kinnitusmutter

b Kinnitusäärik

3 Kaitsekate

Diagram showing a robotic arm with labeled parts, including a close-up view of the mechanical component and a numbered step indicator.

Close-up of a power tool with a hammer and screwdriver, showing the angle and direction of operation (no text or symbols visible)

i MÄRKUS

Technical diagram of a mechanical power tool with numbered components and directional arrow indicating assembly or motion.

Close-up of a mechanical device with a circular arrow and directional indicator (no text or symbols on the device itself)

Close-up of a mechanical device with a directional arrow and circular symbol, no readable text or symbols present.

"click" "clic"

Illustration of hands using a cutting tool to cut a metal block with an arrow indicating rotation (no text or symbols present)

Close-up of a mechanical device with a close-up inset showing a component being adjusted (no text or symbols visible)

Bolts Q - 1

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 Velenas
2 Srieginè jungè

a Tvirtinimo veržlé

b Tvirtinimo flanšas

3 Apsauginis gaubtas

Technical diagram showing a mechanical device with labeled parts and a magnified view of the internal structure.

Close-up of a power tool with a hammer and screwdriver, showing the angle and cutting edge (no text or symbols visible)

Technical diagram of a mechanical tool with numbered components, likely for assembly or maintenance instructions.

Close-up of a mechanical device with a circular arrow and directional indicator (no text or symbols on the device itself)

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols.

"clic" "clic"

Illustration of hands using a cutting tool to cut a metal sheet (no text or symbols visible)

Close-up of a mechanical device with a highlighted grip and arrow indicating rotation (no text or symbols)

Bolters Q.-r

Klaus Peter Weinper

Head of Quality

Department (QD)

01.12.2015

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 Darbvārpsta

2 Vītnatloks

Diagram showing a mechanical device with labeled parts, including a close-up view of the component being turned into a workpiece.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

i NORĀDĪJUMS

Lietot elektroinstrumentu bez roktura nav atlauts.

Technical diagram of a power tool with labeled parts 1 and 2, showing mechanical assembly and adjustment mechanism.

Close-up of a mechanical device with a right-hand arrow indicating direction (no text or symbols visible)

Close-up of a mechanical device with a directional arrow and circular symbol (no readable text or symbols)

Illustration of hands using a cutting tool to cut a metal block with an arrow indicating rotation (no text or symbols present)

Close-up of a handheld device with mechanical components and directional arrows indicating motion (no text or symbols)

Nonemiet puteklu filtru un izpūtiet to ar sausu saspiesto gaisu.

Pārvads

i NORĀDĪJUMS

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a power tool with numbered parts including angle, base, and wrench

1 Ш п и н д е л ь

2 Резьбовой фланец

а Зажимная гайка

b Зажимной фланец

3 Защитный кожух

Technical diagram showing a mechanical device with labeled parts and a magnified view of the component.

Close-up of a power tool with a hammer and screwdriver, showing mechanical components (no text or symbols visible)

Technical diagram of a mechanical tool with numbered components, likely for assembly or maintenance instructions.

Close-up of a mechanical tool with a circular arrow and directional indicator (no text or symbols on the tool itself)

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols.

Illustration of hands using a cutting tool to cut a workpiece on a wooden block (no text or symbols visible)

Close-up of a handheld device with a close-up inset showing the internal components (no text or symbols visible)

Bolts Q - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

01.12.2015
