USER MANUAL PARTYBTSP BIGBEN

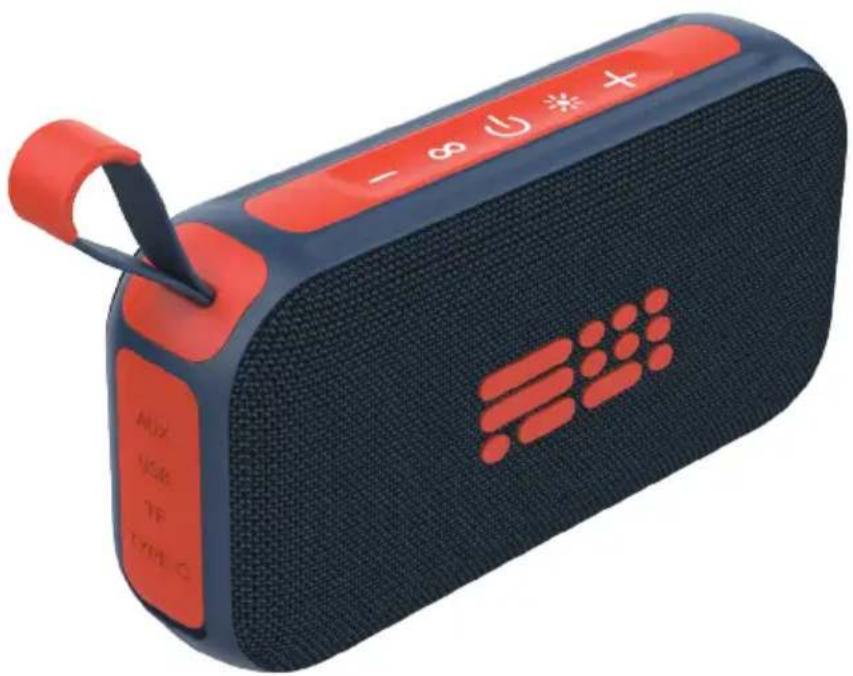

Black and red portable electronic device with a logo on its side (no visible text or symbols on body)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Line drawing of a remote control device with buttons and function icons (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm

Black and red portable electronic device with 'LED' and 'Light ✦' branding, no visible text or symbols on body

USER GUIDE

PLEASE READ THIS USER GUIDE CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 11

Safety warning and notice 11

Package contents 13

Control functions 13

Pairing mode 15

Battery warnings 15

Device technical specifications 16

Environmental protection 16

Additional information 17

Declaration of conformity 17

Getting started

• Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warning and notice

You must read and understand all the instructions before using this device. The guarantee will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device's casing.
2. Never place this device on top of other electrical equipment.
3. Protect the power cable from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cable. Ensure you have completed all the other connections before connecting the mains plug.
4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. Repair is needed when the system has been damaged in any fashion, and in particular:

6. If the power cord is damaged;

7. In the event of a liquid spill or objects being inserted into the device;
8. If the device is exposed to rain or humidity;
9. If the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean it using a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cable, plug or adapter to disconnect this device from the mains if necessary.
18. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
19. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.
20. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and understand the risks involved. Children must not play with the device or power cable (risk of strangulation). Children must not clean or maintain the device without supervision.
21. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. The device must be placed at least 20 cm from the human body when in use.
24. This device is intended for household use only; must not be used outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages inside the device that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the device.

Class II material
Direct current
Alternating current
For indoor use only

Package contents

Check and identify the contents of your box:

• Bluetooth speaker
  • USB-C charging cable
• User guide

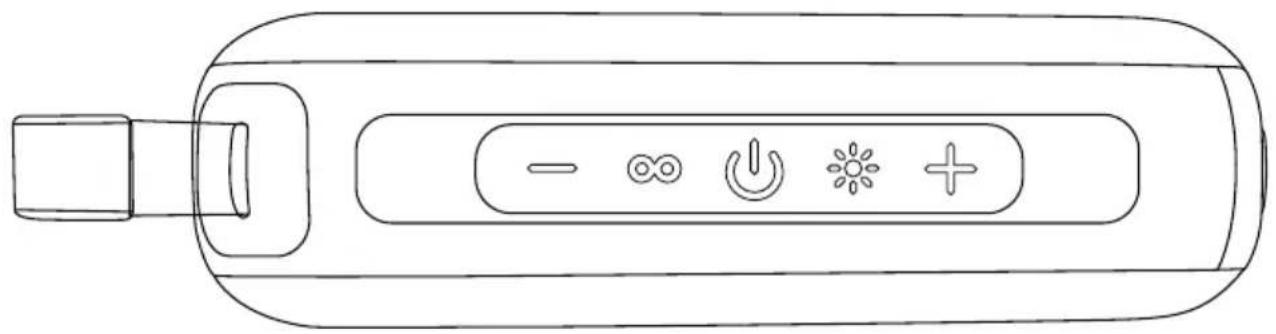

Control functions

Line drawing of a remote control device with buttons and function icons (no text or symbols)

1. 【→】: Briefly press this button to decrease the volume, press and hold it to go back to the previous track in Bluetooth mode.
2. 【◎】: Pairing mode button - Briefly press the button to enter Pairing mode. Press and hold this button to switch from one mode to another (Bluetooth/micro-SD card/USB/Aux-in).
3. 【💡】: Press and hold this button for more than 2 seconds to switch the device on/off. Briefly press to play/pause the track.

Reset button: If the speaker crashes during use, you can hold down the power button for more than 8 seconds to reset the device.

1. 【💡】: Press and hold this button for more than 2 seconds to switch the lighting on or off. Press this button twice to activate or deactivate Bluetooth mode.
   5.【+】:is rebound tes increase the volume, press and hold it to skip to the next track in Bluetooth mode.

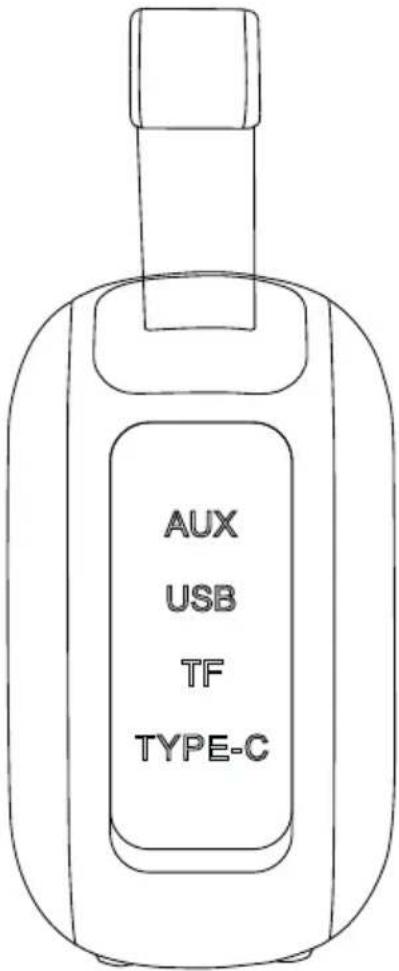

Description of parts

AUX USB TF TYPE-C

1. Aux-in input port: Use a 3.5 mm AUX input cable to connect the speaker.
2. USB port: Lets you play MP3 audio formats when USB media is inserted into the port. (The maximum capacity is 32 GB).
3. Micro-SD port: Lets you read and play the MP3 audio format when a micro-SD card is inserted into the port.
4. 5 V power port: Use a standard USB-C charging cable to charge the device. The red LED indicator lights up while charging and then turns off when the charging is complete.

Bluetooth connection

From your list of devices, select and pair with PARTYBTSP. Once paired, the white LED indicator stops flashing and remains lit.

Pairing mode

Please note: To activate Pairing mode, both speakers must be in pairing mode and disconnected from any other devices. Briefly press the Pairing button on either of the speakers to access Pairing mode. You'll hear a brief sound signal. Once paired together, you can connect them to your device.

In Pairing mode, disconnect the Bluetooth device and briefly press and the Pairing button to deactivate pairing mode.

When deactivating pairing mode, you'll hear a short sound signal to indicate that the device is no longer pairing and the speaker will return to normal Bluetooth pairing mode.

Battery warnings

Risk of fire or explosion if the original battery is replaced with the wrong type of battery.

Disposing of a battery in fire or a hot oven, crushing it or cutting it manually may cause an explosion.

Leaving a battery in an environment with an extremely high temperature may cause an explosion or a leak of battery fluid or flammable gas.

Subjecting a battery to extremely low atmospheric pressure may cause an explosion or leaking battery fluid or flammable gas.

The maximum operating temperature of the device is 45^ C

Before installing or using the device, please refer to the information on the bottom of the unit to find electrical and safety information.

0.5-5 W

Simple line drawing of a battery with two terminals and a diagonal line (no text or symbols)

The power supplied by the charger should be between a minimum of 0.5 W (required by radio equipment) and a maximum of 5 W to ensure an optimal charging speed.

Device technical specifications

Type	Technical specifications	Type	Technical specifications
Output power 8 W RMS x 2 Battery capacity		3.7 V, 2400 mAh
Playback time	3–4 hours at 50% volume	Charging time 2 to 3 hours
Input power 5 V/1	A mains power	Bluetooth version	5.3
Speaker 52mm/4	Ohms Distortion < 1%
Speaker frequency	20 Hz - 20 kHz Inputs		USB-C charging port, USB port, Aux-in port
S/B ratio ≥ 80dB		Transmission range	10 m
Bluetooth pairing name	PARTYBTSP Dimensions		192 mm x 100 mm x 56 mm
EIRP 2.68 dBm		Wireless frequency	2.402–2.480 GHz

Please note:

The product will turn off after 30 minutes if no sound is detected and the lights are off.

Please charge the device if you hear the low battery warning signal.

The maximum range is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid the connection being disrupted.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Environmental protection

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the device does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can be switched on by using the power selector again.
• If an incoming call is received while the PARTYBTSP system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call, and start again once the call is finished. Depending on the mobile phone, playback may sometimes stay paused after the end of the call.
• The word Bluetooth ^® , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
  • This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the PARTYBTSP radio equipment conforms with EU directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.bigben-interactive.co.uk/support/

Guarantee

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer guarantee period. We recommend that you keep your receipt for any claims. The guarantee covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The guarantee does not cover problems of improper use.

SUPPORT

For any technical problem, please contact [e-mail].

Our Support Team is also available by chat via www.bigben-interactive.co.uk/support/from Monday to Friday 9.00am till 6.00pm (GMT+1).

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396–466, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

EN This product can be recycled TO DROP OFF IN STORE or TO DROP OFF IN A RECYCLING CENTER
