Product Type	Portable Wireless Speaker
Brand	Bigben
Model	PARTYBTHPCUBE
Model Number	PARTYBTHPCUBE
Bluetooth Version	5.3
Peak Power	180 W
RMS Power	30 W
Frequency Response	60 Hz - 20 kHz
Speaker Impedance	Woofer: 4 Ω, Tweeter: 8 Ω
Speakers	1 x 5.25" woofer 25 W + 1 x 1.5" tweeter 5 W
Harmonic Distortion	< 1 %
Signal-to-Noise Ratio	65 dB
Bluetooth Range	Up to 10 m
Inputs	Bluetooth, AUX, USB, Micro-SD
Power Supply	5 V, 1-2 A (USB-C)
Max Power Consumption	40 W
Battery Type	Built-in rechargeable lithium-ion
Charging time (with 5V 1A adapter)	Approximately 8 hours
Battery life at 50% volume (lights on)	Approximately 7 hours
Battery life at 50% volume (lights off)	Approximately 7.5 hours
Battery life at 100% volume (lights on)	Approximately 4 hours
Battery life at 100% volume (lights off)	Approximately 4.5 hours
Dimensions (W x H x D)	264 x 255 x 302 mm
Maximum operating temperature	45°C
Intended Use	Indoor only

Frequently Asked Questions - PARTYBTHPCUBE BIGBEN

How to turn the PARTYBTHPCUBE speaker on and off?

Press and hold the power button to turn the speaker on or off.

How to connect my phone via Bluetooth?

Briefly press the M button to switch to Bluetooth mode. A 'du du' sound is heard. Look for the name PARTYBTHPCUBE in your device's Bluetooth settings and connect. A sound signal confirms the connection.

How to use TWS function to pair two speakers?

Put both speakers in Bluetooth mode. On the speaker that will serve as the right channel, press and hold the TWS button for more than 2 seconds. Once pairing is successful, a beep sounds and the blue LED lights up. The speaker connected to your phone becomes the left channel.

What are the available audio sources?

The speaker can play music via Bluetooth, AUX, USB or Micro-SD. Use the M button to switch between modes.

How to increase the bass?

Press the bass boost button (+ symbol with waves) to amplify the bass. Press and hold the same button to reset to factory settings.

What is the battery life?

At 50% volume, battery life is approximately 7 hours with lights on and 7.5 hours with lights off. At maximum volume, it is approximately 4 hours with lights on and 4.5 hours with lights off.

How to clean the speaker?

Always unplug the device before cleaning. Use a soft cloth. Do not use abrasive products or harsh cleaners. Do not lubricate any parts.

What to do if the speaker does not turn on?

Make sure it is charged. Plug in the USB-C cable and wait a few minutes before trying to turn it on. If it still does not turn on, contact Bigben support.

Can I use the speaker outdoors?

No, the PARTYBTHPCUBE speaker is designed for indoor use only. Do not expose it to rain, moisture, or excessive heat.

How to reset the speaker?

To reset to factory settings, press and hold the bass boost button (+ symbol with waves) until the speaker restarts.

USER MANUAL PARTYBTHPCUBE BIGBEN

Colorful outdoor radio speaker with purple and blue tones, no visible text or symbols on body

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Démarrage

Technical diagram of a device rear panel with labeled ports and control buttons, showing numbered annotations for identification.

1. Entrée Microphone
2. Entrée Audio Externe (AUX-in)
3. Support Carte Micro-SD
4. Support USB
5. Support de charge USB Type-C

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Colorful outdoor radio speaker with purple and blue tones, no visible text or symbols on body

INSTRUCTIONS

PLEASE READ THIS USER GUIDE CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Gettingstarted12

Safety warning and notice 12

Contents of the box 14

Description of parts 14

Controls

Control functions 16

Battery warning 17

Device technical specifications 18

Environmental protection 19

Additional information 19

15 Declaration of conformity 19

Warranty 20

Getting started

• Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warning and notice

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on top of other electrical equipment.
3. Protect the power cable from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cable. Ensure you have completed all the other connections before connecting the mains plug.
4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. Repair is needed when the issues been damaged in any fashion, and in particular:

6. if the power cable is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or dampness;
9. if the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.
15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.
16. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean

it using a soft cloth. Do not use abrasive products or harsh cleaners.

1. Ensure that you always have easy access to the power cable, plug or adapter to disconnect this device from the mains if necessary.
2. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
3. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.
4. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and understand the risks involved. Children must not play with the device or power cable (risk of strangulation). Children must not clean or maintain the device without supervision.
5. This device must only be supplied with very low safety voltage as indicated on the device.
6. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
7. The product must be at a minimal distance of 20 cm from the human body when working.
8. This device is for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the device.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

Check and identify the contents of your box:

• 1 speaker
  • 1 USB-C charging cable
• 1 AUX cable
• 1 user guide

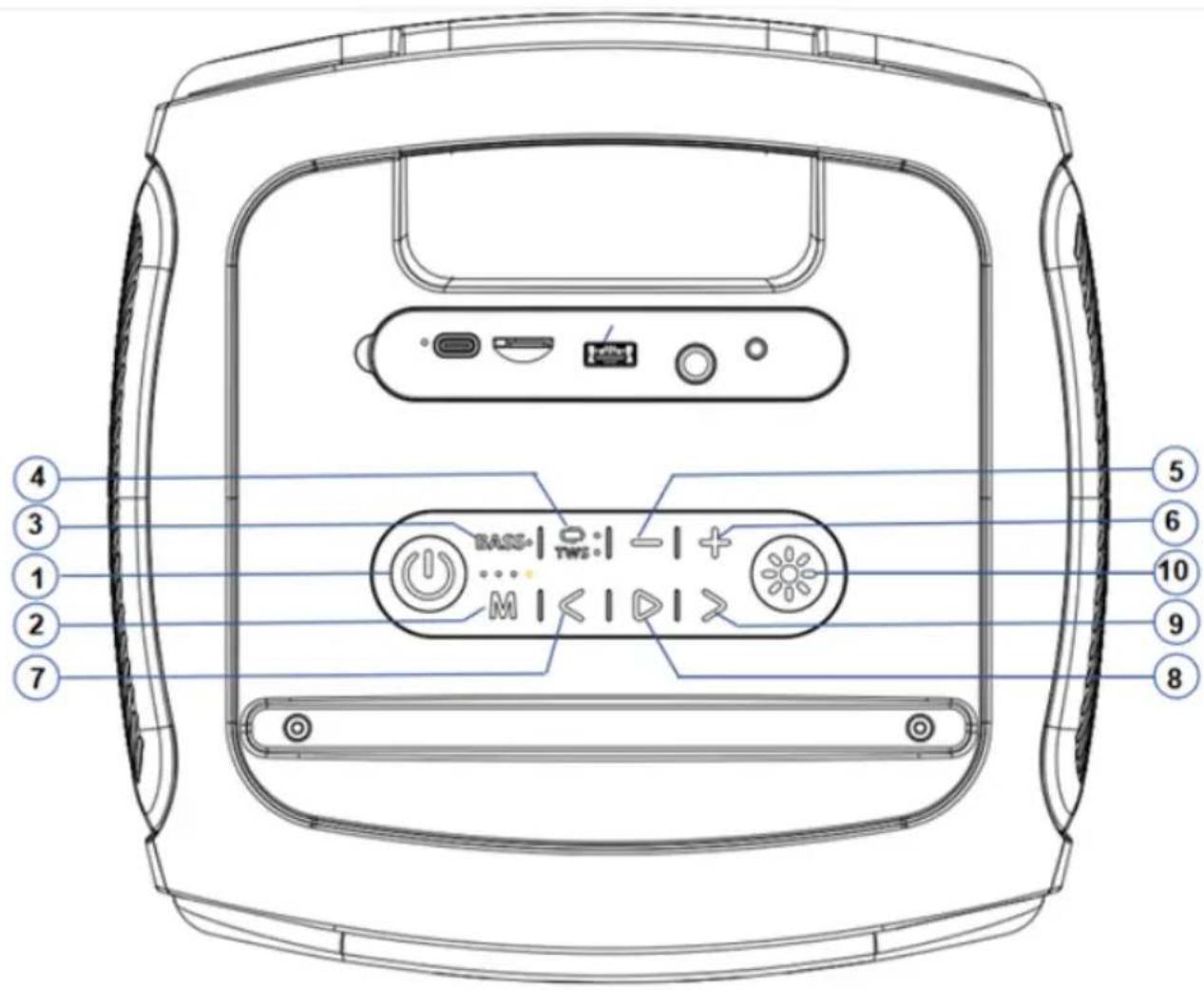

Description of parts

4 3 1 2 7 5 6 10 9 8 BASS-TW2-| M | X | D | >

Controls

1. Power button
2. Mode selector
3. Increase bass
4. Bluetooth disconnection / Play loop or repeat button / Pairing mode
5. Decrease volume
6. Increase volume
7. Previous track / Rewind
8. Play / Pause
9. Next track / Fast-forward
10. Light button / Light effects selection

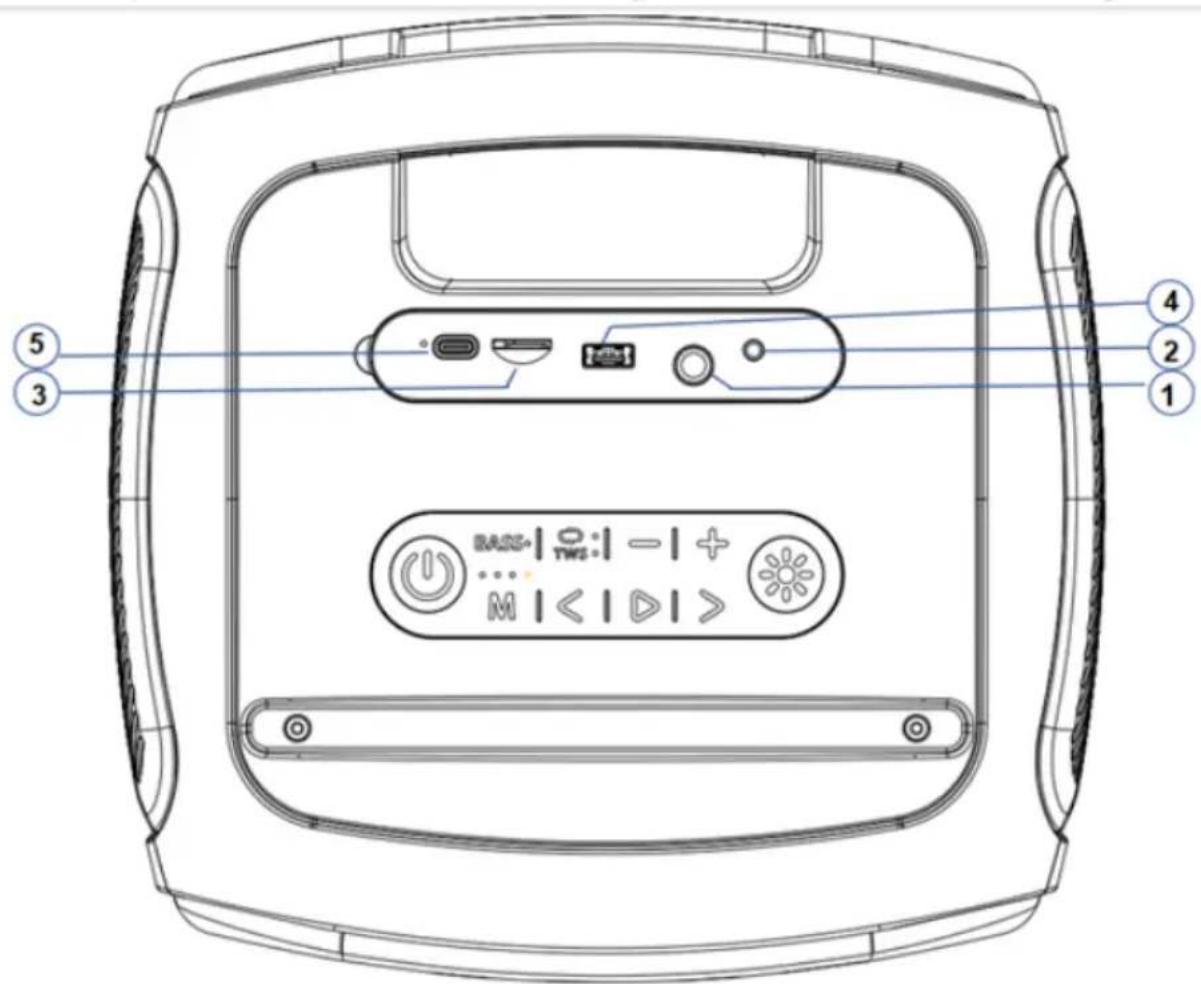

Technical diagram of a device rear panel with labeled ports and control buttons, showing numbered annotations for identification.

1. Microphone input
2. External audio input (AUX-in)
3. TF card slot
4. USB port
5. USB-C charging port

Control functions

1. "💡" button: Press and hold "💡" to switch the speaker on, and press and hold it again to switch the speaker off.

2. "M" Mode switch: Briefly press the "M" button to enter mode "Bluetooth - > USB - > TF card - > AUX IN"

Press the "M" button to switch to Bluetooth mode, you'll hear a "du-du" sound signal; select the PARTYBTHPCUBE Bluetooth name in your device to connect. Once the connection has been established, you'll hear a sound signal.

1. Increase Bass button: Press "" to increase the bass volume. Press and hold "" to reset to factory settings.

2. Bluetooth disconnection / Play in loop or repeat switch (USB and TF card mode) / Pairing mode : Switch the two speakers into Bluetooth mode, press and hold " " on one of the speakers (e.g. right channel) for more than 2 seconds to enter pairing mode. During the pairing process, the TWS indicator will flash. Once the connection is established, the device beeps and the blue indicator light on both speakers will come on. The speaker connected to your Bluetooth device acts as the main speaker (left channel). Press and hold " " for more than 2 seconds to exit pairing mode.

When the Bluetooth device is connected, press "TWS" to force disconnection from the current Bluetooth device. Another Bluetooth device can look for the name of the speaker/the model number to connect.

In USB/TF card mode: Playback change mode: press the "TWS" button to repeat the playback of a track (with the indicator light on) or to repeat the playlist (with the indicator light off).

1. "-" button: Press briefly to decrease the volume

2. "+" button: Press briefly to increase the volume

3. " " button: Previous track / Rewind. In Bluetooth mode, briefly press " " to go back to the previous track. In USB/TF card mode, briefly press " " to go to the previous track or press and hold " " to rewind.

4. Play/Pause, briefly press " " to play or pause the music.

5. " > " button: Next track / Fast-forward button. In Bluetooth mode, briefly press " > " to skip to the next track. In USB/TF card mode, briefly press " " to skip to the next track or press and hold " " to fast-forward the music;

6. Press and hold to switch the speaker lights on/off. Briefly press to select your favourite light effect.

Battery warning

Risk of fire or explosion if the battery is replaced with the wrong type of battery.

Disposing of a battery in fire or a hot oven, crushing it or cutting it manually may cause an explosion.

Leaving a battery in an ambient environment at extremely high temperatures may cause an explosion or leaks of a liquid or flammable gas.

Subjecting a battery to extremely low atmospheric pressure may cause an explosion or leaks of a liquid or flammable gas.

The maximum ambient temperature for using the product is 45^ C.

Please refer to the information on the underside of the packaging regarding safety and electrics before installing or using the device.

Type	Technical specifications	Type	Technical specifications
Broadband loudspeaker	5.25" (25 W)*1 Tweeter 1.5" (5 W)*1
Peak power 180 W		Wireless frequency	60 Hz - 20 kHz
RMS power 30 W		Bluetooth version	5.3
Power consumption	Max. 40 W	Maximum output power (EIRP)	30 W
Input power 5 V, 1-2 A Distortion < 1%
Speaker impedance	4Ω/woofer, 8Ω/tweeter	Speaker frequency	60 Hz - 20 kHz
S/B ratio 65 dB Inputs			Bluetooth, AUX-in, USB, TF card
Bluetooth pairing name	PARTYBTHPCUBE Speaker		5.25" 4Ω speaker*1, 1.5 8 Ω speaker *1
Dimensions 264*255*302 mm		Transmission range	10 m

NB: the maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection.

If you're using the 5V1A adaptor, it takes 8 hours for a full charge.

Playback time at 50% volume: approx. 7 hours with lights on, 7.5 hours with lights off.

Playback time at 100% volume: approx. 4 hours with lights on, 4.5 hours with lights off.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the device does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can then be switched back on using the power button
• If an incoming call is received while the PARTYBTHPCUBE system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call, and start again once the call is finished (depending on the type of mobile phone, playback may sometimes stay paused after the end of the call).
• The word Bluetooth®, the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the PARTYBTHPCUBE radio-electrical equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

https://www.bigben-interactive.co.uk/support/

09 69 39 79 59 – Monday to Friday, from 10 a.m. to 6 p.m. - Mainland France only

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

EN This product can be recycled TO DROP OFF IN STORE or TO DROP OFF IN A RECYCLING CENTER
