INSTRUCTIONS

PLEASE READ THIS USER GUIDE CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started

• Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warning and notice

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on top of other electrical equipment.
3. Protect the power cable from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cable. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. Repair is needed when the device has been damaged in any fashion, and in particular:

6. if the power cable is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or dampness;
9. if the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean it using a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cable, plug or adapter to disconnect this device from the mains if necessary.
18. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
19. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.
20. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and understand the risks involved. Children must not play with the device or power cable (risk of strangulation). Children must not clean or maintain the device without supervision.
21. This device must only be supplied with very low safety voltage as indicated on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. The product must be at a minimal distance of 20 cm from the human body when working.
24. This device is for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the device.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

Check and identify the contents of your box:

• Speaker
• USB-C charging cable
• Instruction manual
• Wireless microphone

Description of parts

Line drawing of a portable electronic device with a strap and control buttons (no text or symbols)

1 2 3 4 5 6

78910

Control functions

1. 【】: Long press to reduce volume, short press to return to previous track in Bluetooth/USB mode.

2. 【】: Long press to turn on/off.

3. 【】: Long press to turn the lighting on and off. Short press to scroll through the lighting modes.

4. 【】: Play / Pairing Mode button – Short press to play/pause - Press and hold for more than 2 seconds to set pairing mode.

5. 【】: Button for voice removal option. Press once to remove the original vocals from the track. Press again to include vocals normally. Long press to set the equaliser to Flat, Pop or Rock mode.

6. 【】: Long press to increase volume, short press to skip to next track in Bluetooth/USB mode.

7. 5V power port : Use a standard USB-C charging cable to charge the device.

8. LED indicator : Solid red while charging. Off when the device is fully charged. Flashes slowly when the battery is low. Blue LED for Bluetooth device. Flashes when searching, solid once pairing successful.

Comment: If the speaker accidentally jams during use, use a sharp pin in this hole to reset it. Once the device is reset, you can press and hold the power button to turn on the speaker.

1. USB port: It can play the MP3 audio format when USB media is inserted into the port. (The maximum usable capacity for the USB is 32 GB).

2. Microphone input port: Connect a 6.35mm wired microphone (not included).

Pairing mode

Note: To enable pairing mode, each speaker must be in pairing mode and disconnected from any device. Press and hold the Play/Pairing button on each speaker to enter pairing mode. A short signal sounds. Once paired together, you can connect them to your device. In pairing mode, disconnect the Bluetooth device, and press and hold the Play/Pairing button to exit pairing mode.

When unpairing, a short tone will sound to show that there is no longer pairing, and the speaker returns to normal Bluetooth pairing mode.

Bluetooth connection

From your device list, select and pair with PARTYBTLITE2. When pairing is successful, the blue LED stops flashing and turns solid blue.

Wireless microphone

Diagram of a handheld device with labeled buttons and ports, numbered 1 to 5 for identification.

6

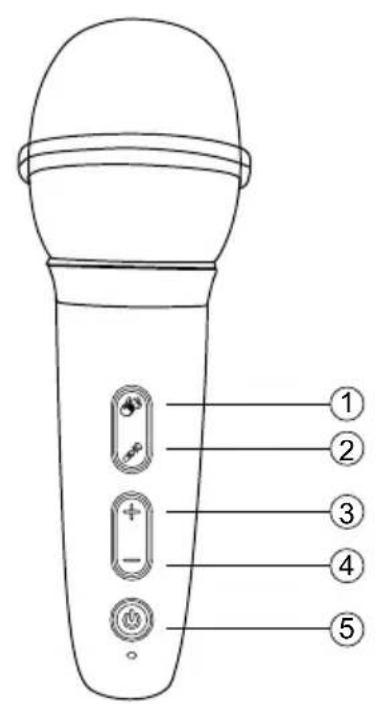

Wireless MIC functions

1. Special sounds: Short press to switch to the 3 sound loop. Applause/Kisses/Laughter.
2. Adjust the voice: Short press to loop the bass voice modifier- high-pitched - very low - off. Press and hold to turn the echo on or off.
3. Microphone volume: Short press to increase the volume.
4. Microphone volume: Short press to reduce the volume.
5. On/Off: Long press to turn the microphone on/off.
6. 5V USB-C power port for charging the wireless microphone.

Battery warning

Risk of fire or explosion if the battery is replaced with the wrong type of battery. Disposing of a battery in fire or a hot oven, crushing it or cutting it manually may cause an explosion;

Leaving a battery in an environment where the ambient temperature is extremely high can cause an explosion or leak of a liquid or flammable gas;

Subjecting a battery to extremely low atmospheric pressure may cause an explosion or leak of a liquid or flammable gas.

The maximum ambient temperature for the product to work properly is between 0^ C and 40^ C. Please refer to the information on the underside of the packaging regarding safety and electrics before installing or using the device.

Device technical specifications

Type Technical	specifications	Type Technical	specifications
Output power 8 Wx2	Battery capacity 7.4 V	1,500 mAh
Playback time approximately4 hours at 50% volume		Charging time approx.	3 hours
Input power DC 5 V/1	A Bluetooth version 5.3
Loud-speaker 66 mm	40 hms Distortion < 1%
Speaker frequency	20 Hz - 20 kHz	Inputs	Type-C charging port, USB port, wired MIC port
S/B ratio	≥ 80dB	Transmission distance	10 m
Bluetooth pairing name	PARTYBTLITE2	Size	334x133x133 mm
EIRP (Effective Isotropic Radiated Power)	2.68 dBm	Wireless frequency	2.402 - 2.480 GHz
Wireless MIC battery capacity	3.7V/500mAh.

NB:

1. The product will turn off after 30 minutes if no sound is detected and the lights are turned off.
2. The lighting defaults to mode 1 when the speaker is turned on.
3. Recharge the device after hearing the low battery warning beep.
4. the maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid the connection being disrupted.

NB: the maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Environmental protection

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the device does not transmit audio output for a certain amount of time, it will automatically go into standby mode to save energy. It can then be switched back on using the power button
• The word Bluetooth ^® , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the PARTYBTLITE2 radio-electrical equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

https://www.bigben-interactive.co.uk/support/

09 69 39 79 59 – Monday to Friday, from 10 a.m. to 6 p.m. - Mainland France only
