USER MANUAL SS-14495 Sogo

EN Instructions for use

FR Mode d'emploi

Download your manual

1. ⅢPORTANT:

2. Always read the instruction book carefully before using.
   This manual can be downloaded from our web page www.sogo.es

3. Keep these instructions for future reference.

4. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

• To avoid electric shock, make sure your hands are dry before plugging or unplugging.

• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

Instructions to follow when using the appliance

• The appliance cannot be used for blending hard and dry substance, otherwise the blades might get blunt.
  The use of attachment, including Jar, lid, or any another accessory not recommended or sold by manufacture may cause fire, electric shock or injury.

• Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.

• Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming.
  WARNING: The blades are very sharp!
• Avoid contacting moving parts of the appliance while in function.
• Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.
• Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.
• Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.
• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
• The measuring glass is not microwave safe.
• Don't use your hand blender for longer than 15 seconds for dense mixtures and food items, there are possibilities of overheating of motor. Keep the time difference of 3-4 minutes between 2 cycles.
• Do not operate the appliance for more than once at a time, and even if you need to operate it more than once, wait at least 3 minutes before the next use. Allow the appliance to cool down and use it again.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

3. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
AC 220-240V	1600W	50-60Hz

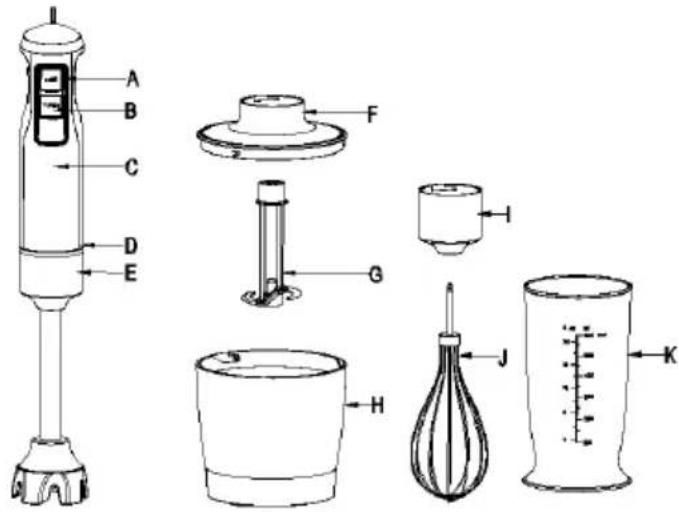

4. PARTS DESCRIPTION

A. Switch I (Variable Speed button)
B. Switch II (Turbo Speed button)
C.Motor
D. Motor and stem joint
E. Blender Stick
F. Chopping Bowl Lid
G. S-S Blade
H. Chopping Bowl
I. Whisk Holder
J. Whisk
K. Beaker

5. INSTRUCTIONS OF USE

How to use the hand blender

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

1. Insert and rotate the blender stick onto the motor unit until it locks.
2. Introduce the hand blender in the bowl. Then press the switch I or switch II.
3. While pressing the button I, hand blender start working and while pressing hard speed will increase and top LED light as well keeps extending its illuminated area.
4. When the mixing blades reaches the bottom of the bowl or container, the motor unit can be moved up and down to improve mixing efficiency.
5. After use, please remove the blender stick and clean or wash properly. You can use the hand blender in the measuring beaker as well in any other bowl.
6. Caution: Blade is very sharp!

OPERATIONAL PROCESS OF CHOPPER

The chopper included in the set is made of BPA free plastic. To make full use of chopper always try to chop smooth food ingredients cheese, vegetables, meat, herbs, bread and some kinds of nuts and dry fruits.

Don't try to chop hard foods like ice cubes, spices or chocolates etc., as it can cause Blades damage.

For some type of vegetables, meat etc if the size of the pieces are too big, cut them first to smaller sizes before putting them into the chopper bowl.

Always try to keep at least 3 minutes time difference between two cycles to make sure to assure long life of the chopper motor. Always hold the blades by upper plastic parts to avoid the fingers getting cut as the blades are quite sharp.

How to use the Chopper

1. Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.
2. Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

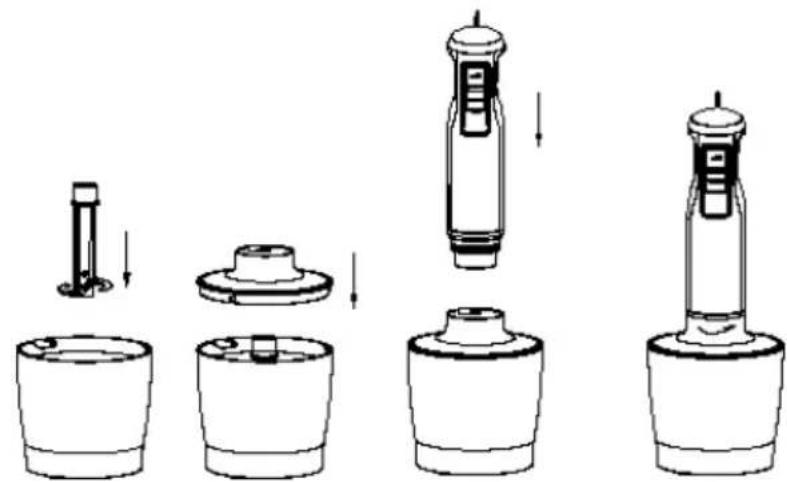

Before chopping...

1. Carefully remove the plastic cover from the blade. Caution: the blade is very sharp! Always hold it by the upper plastic part.
2. Place the blade on the centre pin of the chopper bowl. Press down the blade and lock bowl. Always place the chopper bowl on the anti-slip base.
3. Place the food in the chopper bowl.
4. Place the chopping bowl lid on the chopper bowl.
5. Place the motor unit on the chopper bowl lid until it locks.
6. Press speed button to operate the chopper. During processing, hold the motor unit with one hand and the chopper bowl by the other.
7. After use, unplug the blender, and then press the ejection button to remove the motor unit.
8. Remove the chopping bowl lid.
9. Carefully take out the blade.
10. Remove the processed food from the chopper bowl.

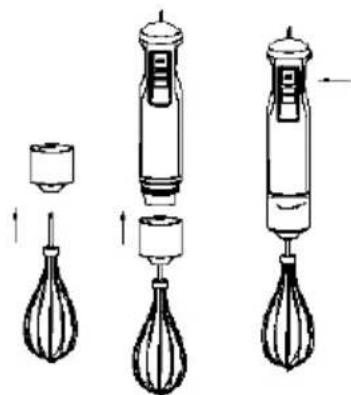

How to use your whisk

Use the whisk only for whipping cream, beating egg whites and mixing sponges and Ready-mix desserts.

1.Insert the whisk into the whisk holder, then rotate the whisk holder into the motor unit until it locks.
2. Place the whisk in a bowl or jar. Press the switch I or switch II to operate it.
3. One the task has been finished, press the ejection button to remove the gear box after use. Then pull the whisk out of the gear box.

For Sauce Pan Blending

Note: Remove the pan off the heat and let it cool slightly. Otherwise, your hand blender could overheat.

1. To assemble the metal shaft with the motor unit, place the motor on to the top of it, press it downside to attach it properly.
2. Plug in. To avoid splashing, place the blade in the food before switching on.

3. Hold the power handle steady. Then press the power button.

4. Don't let liquid pass above the joint between the power handle and blender shaft.

5. Move the blade through the food and use a stabbing action.

6. If your blender gets blocked, unplug before clearing.

7. After use, unplug and dismantle.

Functions

This Hand blender is provided with some specific functions as detailed below.

Stepless Variable speed: this hand blender is provided with Stepless variable speed feature. In this feature hand blenders provide enhanced control and power by allowing users to adjust the blending speed simply by pressing the speed button. The harder you press, the more speed you get. This feature offers precise control over texture and consistency without the need to adjust any dials or settings manually.

This intuitive feature makes it easy to switch between gentle mixing and high-speed blending on the fly, perfect for achieving the exact results you need. The Stepless variable speed offers an effortless and efficient blending experience, adapting instantly to your blending needs with just a press.

Stainless steel thin stem with Press Pro function: This hand blender is provided with super thin stainless-steel stem with plastic scratch resistance blade guard. Also, this stem features a unique function named as "PRESS PRO FUNCTION". This function involves a movable stem and blade mechanism that can be moved vertically. The up and down motion allows the blades to reach different depths within the container, ensuring thorough and even blending of ingredients. This feature is particularly useful for blending larger quantities or thicker mixtures, as it reduces the need for manually moving the blender around the container.

The vertical movement helps prevent ingredients from sticking to the sides or bottom of the container and ensures that all components are evenly mixed. When the blades reached to the bottom part of the container, then we can move the stem and blender in UP-DOWN direction with the gentle push on the motor and this increase the mixing efficiency and gives perfect results.

6. LIMPieZA Y MANTENIMIENTO

1. Unplug the appliance and remove the detachable stem.
   Note: Do not immerse the detachable stem of the blender in water because overtime the lubrication on the bearings may wash away.
2. Wash the detachable stem under running water, without the use of abrasive cleaner or detergents. After cleaning the stem, place it upright so that any water which may have got in, can drain out. As the stem is dishwasher safe so you can wash in it.
3. It is advised to clean or wash all the detachable accessories by hand after detaching from the motor.
4. The plastic beaker and all the rest of accessories which contains plastic parts are not recommended to place in dishwashing machine as the plastic component deteriorates through prolonged use of dishwasher cleaning.
5. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning as a electric shock may occur.
6. Dry thoroughly.

Caution: Blades are very sharp, handle with care.

Quick cleaning process

To make quick cleaning while processing tasks, hold the hand-held blender in the cup half filled with water and turn on for a few seconds.

PORTANT:

OPERATIVNI PROCES SJECKALA

Sjeckalica koja se nalazi u setu izraëna je od plastike bez BPA. Da biste u potpunosti iskoristili sjckalicu, uvijek pokušajte usitniti glatke sastojke hrane, sir, povrće, meso, začinsko bilje, kruh i neke vrste orasastih plodova i suhog voća.

Ne pokušavajte sjeckati tvrdu hranu poput kocki leda, začina ili Čokolade itd. jer to moze ošteti oštrice.

Za neke vrste povrca, mesa itd., aka su komadi preveliki, prvo ih narezite na manje prise nego sto ih stavite u zdjelu sjeckalice.

He 3aIIwaIte npnilad 6e3 haIy.
He po3miuTe Ta He BnKOpNCToBvIe npnilad no6n3y Dkepei BoN.
He po3miuyei He BnKOpncToByTe npuaT a noRo shHyp KINBJIeHHa rapyHx NOBepxHx (HaPnKnaI, nIITax) abo no6n3y HIX, a TAKOJ NoBn3y BiDkPntoro NOLym'
He 3aIIuHaIe IHHyp KINBJIeHn 3BnCaTn 3 roCTpIX KpaIB i TpIMaIte IoIani BID rapAunx npEdmTei nOlym'. He HAMOTyIte IHHyp HABKOJIO npIaNdy i He 3rHaIte Noro.
Hikon He BnKOpNCTOByIte akceCyapn, He peKOMeHIOBaHi BnpObHnKOM.
BnKOpncTaHnA kCeCyapiB, He peKOMeHDoBaHnx a6o He npOdaHnx BnPo6HnKOM npIaNy, MoKe npN3BeCTn Do nOjExKi, ypaXeHHa

eNeKtpnHm Ctpymom a6o TpaBMyBaHHra IIOJe.

• Κιος yινικήτην γραχενήσει Ελεκτρυγήσις ΚτργμόΜ, περεκούητες, ξίον Bαῦς ργκης κυχί, περώνις πίδκηουσας aδός Bιδκηουσας πριστρίαι Bίδ Μερεχί.
  He KopnCTyIeTc npnIaIOM MOKpIMN pykAmn, Ha BOJorI pIiNo3i abo B yMOBax NiDvIeHOI BOIOrOCTi - ICHYE PN3NK ypaXeHHReJeKTPnHm CTrpymom.
  Hikon He 3aHypoTe npnaI abo uTeNceIbHy Bnky y Body a60 ByNb-ky iHsy piInHy. Y pa3i naHHra npnaI ay y Body HeraiHo BiKIOHTb Ioro BiD MepeXi Ta BiHeciTb Do aBTOpN3OBAHO CepBicHOrO cHTpy dIpa peMOHTy nepeI NOBTOpHM BIKOPNCtAHNM.
  He BnKOpNCToBvIte npnila, kso BIn BnaB Ha nIIOry, MaC BnIMi O3HaKn N0sKOJxHHeA6o npOTiKaHH.
  He BnKOpNCToBvIe npIaI, kIIO Ka6eJIb a6o BnIka noIkoJKeHi. Y pa3i noIkoJKeHn Ihypa, 06 yHnKHyTN He6e3neKn, Ioro 3amHa NOBnHnBA NkOHyBaTnCra TIlbKn BnPo6HnKOM, Ioro cepBicHM areHTOM a6o OcO6aMn, kI MaOTb BiIDNoBIDHy KBaJIqikaio.
• Y pa3i HecnpapBHOCTI npnAdy a6o kUO BIn 6yB NOsKOJKeHn 6yDb- yKIM YINOM, NOBepHiTb npnAaD IO HaN6JIHKQHO aBTOpN3OBaHOrO cepBicHOrO ueHTpy dIra nepeBIPKN, pEmOHTy a6o HanaSTyBaHHa.

O6MeXeHNa 0do BVKOpncTaHH npnlaDy dItbMn TaJIOdbMn IOxNlOro BiKy

• Пилад He пизнayehи дя ВИКОпСТаHHЯ OCOБамn (ВКПЮчаюндITE) 3 obmexkeHIMN φi3nUHIMN, ceHCOPHIMn a6o po3yMOBIMn 3Дi6HOCTaMn, a TAKOx OCObAMn 3 HeDOCtATHim DoCBiIDom i 3HaHHaMn,Якso BOHn He nepe6ByBaIOTb πiD HarIaIOM a6o He npoiHCTpyKTOBaHI.
  -ДiTи NOBUNHnI nepe6yBaTu NiД HaraJdOM, IIOb NepeKoHaTicr, ITO BOHn He rpaIoTBcR 3 npuJaDOM.
• PnIaIOM MoKytb KOpNCTyBaTnC8 OcO6n 3 O6MeJxHIMN φi3nUHmN, CEHCOPHIMN a6o pO3ymOBHMN 3di6HOCTaMn a6o 3 HeIOCTaTHIM DOCBiDOM i 3HaHHaMn, RaIIO BOHN Ipe6yBaHTb PIId HArIaIOM a6o OTPMaII INCTpyKci II UOIO 6e3neuHoro BnKOpNCtAHnR npIaNady i pO3ymIoTb He6e3NeKy.
  LIM npinapom MOkytb KopnctybaTncd ITBikOM BID 8 pOKIB i cTAPte Ta OcO6n 3 ObmexKeHMM qI3NCHM, CehCOPHMn a6o PO3ymOBHMM 3i6HOCTaMn a6o 3 HeIOCTaTHIM DOCBiDOM i 3HaHHaMn, RaKIO BOHN Ipe6bYBaHTb Pid HargJDM o6o npoIHCTpykTOBaHi 0do 6e3neuHOro BIKOPNCtAHNpINaNy i po3yMIOTb NOB'3aHI 3 LIM He6e3NeKn.
• ChiueHn Ta oCnyroByBaHH npnaIy He NOBnHi BnKohyBaTncr DiTbMn, kso BOHn He doCraIg 8-pHoro BiKy i He nepe6yBaIbTb NiHaTnAOM DOPOcNIX.
  36epiraite npnilad i shhyp kNbIeHnB HneOCTynHomy dIteMolodwe 8 pOKIB Miczi.
  He do3BoJnTe dIyam KopnctyBaTncn npnnaom 6e3 Hargny.

IHCtpyKcii 0do BnKOpncTaHH npJaNy

• Пилад He можна викоростовыати дя 3Miшуванг Тьердnx i

CyXIX peOBOH, iHaKlwe Je3a MoKyTb 3aTyINITnCra.
BukopncTaHnJaOnaTKOBOrO o6IaHaHH, BKnIOuaOuN 6aHky, KpnUKy a6o 6yDb-IAkN iHsN akceCyap, IIO He peKOMeHDoBaHn a6o He npOdaCTbC8 BInpo6HnKOM, MoKe Iprn3BeCTn Do NoXeKi, YpaXeHHra eJeKtpnUHm CTrpymOM a6o TpaBMn.
3abKn BIDKnHouaTe 6IeHep BiMpeXi, KOJI 3aIIuAeTe NOro 6e3 Hargy, a TAKOJ npeD 3bnpaHHaM, PO3bnpaHHaM abO YIuEHHaM.
-Будъеоберекhi,якшь Кухоннkomбайн abo 6лeндер HaNTa rapya piДиHa, ockijbKn BOHa MOKe 6yTN BKNHyTa 3 npnJaIy chepe3 paTTOBe yTBOpEHЯ napi.
- NOPEDEXEHHa: JIe3a dYke roctpi!
- YHnkaite KOHTaKTy 3 pyxOMmN yactInHamn npJadny nId yac po6OTn.
BnMknHtB npnnai BID'edHaIte Ioro BiE eJeKtpomepeXi, nepH hIX 3MiHIOBAtn akcecyapn abo Ha6JInxKaTncrdo pYxOMNX qactnH, 00 BnKOpNCTOBYOTbcra.
- Bydte obepexhi nid yac po6otn 3 roctpmm Ne3amn, cnopoxHeHHaWi Ta nid Yac uHsEHHra.
He iiknoaTe npnaD do eekpomegeki,doKn BIn He 6ynde NobHicTIO 3i6paHn,i 3abKdN BiiknoaTe npnaD bId MepeXi, nepsh hix po3bnpatn a6o o6po6nTn ne3a.
-Пд часзмшувань Тримаite рукп та посд по3а контонром, соб 3мehшити ри3нК серно3нх ТраВМ abO NOшковеня 6леньда佩. Можна викорисовыbatи скpeбok, aJe tiльки тоDI, коли бленьдар He пацюс.
Mipn CTaKaH He MoXHa BnKOpNCTOByBaTn B MIKPOXBnIbOBI nei.
He BnKOpNCToBvIe pyHn 6IeHep DoBwe 15 cekyHd IJnyCTNX cyMiuei npOdyKTIB xapUyBaHHa, ce MoKe pPn3BeCTN do nepeerpiBy DnRhyHa. DOnpIMyITecb pi3HnCi B yaci 3-4 XBnInHn Mxk 2 uKnamn.
He BnKOpNCTOBuIte npnla6iNbIe OndHoro pa3y 3a OOnH pa3, i HabItb kUo Bam nOTpi6HO BnKOpNCTOBvBaTn IORo 6IbIe OndHoro pa3y, 3aueKaITe 5OHaImMeHwe 3 XBnInHn nepei HaCTynHm BnKOpNCTaHHaM. DaIte npnlaNy OxOJOnHyTu i BnKOpNCTOBuIte NOrO 3HOBy.
- Κоб ункнту перазхетеня щелктомереки пд чсВИКОПСТАНь сьOTO ппаладу, He BMИКайтЕВ ТУcamу eЛeКТРOMЕЖу iHши пOTУЖнй ппалад.
- Ido zufo Bnpooby dOdaetbca KopoTkn shHyp XNBJIeHna. IodOBkyBauch He peKOMeHdyETbcra BnKOpNCTOBByBaTN 3 cIM Bnpo6om, aJe yKIO BIn Heo6xIDHNI, Ioro MoXHa BnKOpNCTOBByBaTN:
3a3naueHn eNeKtpnHn HomiHaI shHypa nobHHeN 6yTu IooHaMHeHse TaKIM camM, k i y cboRo Bnpo6y.
- Po3TaIIOByIe NOIOBkyBaU TaKIM YINOM, IIO6 BiH He 3BnCAB y MicIax, De npo HbOro MoXHa CNIKHyTnCra a60 HeHaBMnCHO NOTAHyTN 3a HbOro.

CHIeHHaTATEXHlYHeObCJyROByBAHHa

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
