Brand	Sogo
Model	SS-14490
Product Type	Immersion blender
Power	1500 W
Voltage	220-240 V AC
Frequency	50 Hz
Body Material	Stainless steel
Shaft Material	Stainless steel with titanium-coated blades
Mixing beaker capacity	800 ml (BPA-free)
Chopper capacity	650 ml (BPA-free)
Included accessories	Mixing beaker, chopper, whisk
Main functions	Mixing, chopping, whisking, making sauces, soups, milkshakes, baby food
Speed control	Continuous speed control and Turbo button
Safety	Overheat protection, automatic shut-off if jammed, very sharp blades
Maintenance and cleaning	Removable shaft dishwasher-safe, other accessories hand wash recommended, motor wipe with damp cloth
Repairability	After-sales service via www.sogosat.com, repair by authorized center
General information	Domestic indoor use; do not use for hard and dry substances; respect rest times

Frequently Asked Questions - SS-14490 Sogo

What types of preparations can be made with the SS-14490 immersion blender?

This blender is ideal for preparing soups, sauces, mayonnaises, milkshakes, baby food, as well as for blending directly in a pot.

How to use the speed control?

Press the start button and simultaneously turn the speed control dial on top to select the desired speed, from low to high.

What is the Turbo button for?

The Turbo button allows you to quickly overcome difficult mixing parts. Use it only for a few seconds to avoid motor overheating.

What is the recommended maximum continuous use time?

For dense mixtures, do not use the blender for more than 15 seconds at a time. Allow an interval of 3 to 4 minutes between cycles to let the motor cool down.

How to use the chopper?

Place the blades in the center axis of the bowl, add food, close the lid by turning clockwise, then attach the motor. Use normal or turbo speeds. Unplug before removing the blades.

Which foods should not be chopped?

Do not attempt to chop hard foods like ice cubes, spices, or chocolate as this could damage the blades.

How to use the whisk?

Attach the whisk to the motor unit. For meringue, place egg whites with sugar in the beaker, then whisk at the desired speed until frothy.

Can you blend directly in a pot?

Yes, but first remove the pot from the heat and let it cool slightly. Immerse the blade in the food before turning on to avoid splashes. Do not exceed the junction between the handle and shaft.

How to clean the blender?

Unplug and remove the removable shaft. Wash it under running water or in the dishwasher. The other accessories (beaker, chopper, whisk) are best washed by hand. Wipe the motor with a damp cloth, never immerse it.

What to do if the blender jams?

If the blender jams, unplug it immediately before attempting to free the blades. Wait for the motor to cool down before reusing.

USER MANUAL SS-14490 Sogo

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using. This manual can be downloaded from our web page www.sogo.es
• Keep these instructions for future reference.

2. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord being damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

Instructions to follow when using the appliance

• The appliance cannot be used for blending hard and dry substance, otherwise the blades might get blunt. The use of attachment, including Jar, lid, or any another accessory not recommended or sold by manufacture may cause fire, electric shock or injury.
• Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.
• Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming. WARNING: The blades are very sharp!
• Avoid contacting moving parts of the appliance while in function.
• Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.
• Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.
• Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.
• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
• The measuring glass is not microwave safe.
• Don't use your hand blender for longer than 15 seconds for dense mixtures and food items, there are possibilities of overheating of motor. Keep the time difference of 3-4 minutes between 2 cycles.
• Do not operate the appliance for more than once at a time, and even if you need to operate it more than once, wait at least 3 minutes before the next use. Allow the appliance to cool down and use it again.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

3. TECHNICAL SPECIFICATIONS

Voltage Power	Frequency
AC 220-240V	1500W 50Hz

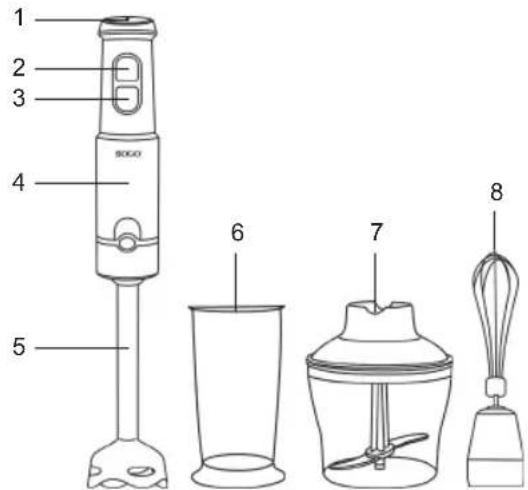

4. PARTS DESCRIPTION

1. Variable speed control switch
2. Normal speed working switch
3. Turbo speed working switch
4. Stainless steel body
5. Stainless steel stem with titanium coated blades for strength and durability
6. Mixing cup with measurement markings (BPA free) of 800ml
7. Chopper with detachable titanium coated blades (BPA free) of 650ml
8. Whisk

5. INSTRUCTIONS FOR USE

1. The hand mixer is ideal for preparing mojitos, sauces, soups, mayonnaise, and baby food, as well as for mixing and making milkshakes.
2. Connect the detachable shaft to the motor unit by aligning the two side locks with an easy click.
3. Simply plug the hand blender into a power outlet. (Always make sure the sharp cutting blades are away from your body and the other hand when doing this).
4. Press the button to switch on, and at the same time, you can use the variable speed switch at the top to select the desired speed setting, from low to high.
5. Use the "Turbo" switch to get through some difficult parts of the blending quickly. It must be used only for a few seconds to avoid overheating or burning out the motor.
6. To stop the hand blender, release the push button switch.

OPERATIONAL PROCESS OF CHOPPER

The chopper included in the set is made of BPA-free plastic and titanium-coated blades to ensure that the chopping functions are fine and smooth. To make full use of the chopper, always try to chop smooth food ingredients such as cheese, vegetables, meat, herbs, bread, and some kinds of nuts and dry fruits.

Do not try to chop hard foods like ice cubes, spices, or chocolates, as this can cause blade damage.

For some types of vegetables, meat, etc., if the pieces are too big, cut them into smaller sizes before putting them into the chopper bowl.

Always try to keep at least a 3-minute time difference between two cycles to ensure a long life for the chopper motor. Always hold the blades by the upper plastic parts to avoid cutting your fingers, as the blades are quite sharp.

HOW TO USE YOUR CHOPPER?

• Place the blades into the center pin of the chopper bowl and press them down.
• Put the food ingredients you want to chop inside the chopper bowl.
• Place the lid on the chopping bowl and lock it by turning it clockwise; to unlock, do the reverse action.
• Place the motor unit on the chopper and connect it to the power supply. To switch it on, use the normal and turbo speed switches and press the push button as required. You can use the variable speed control dial for the desired speed. Always keep one hand on the motor and the other on the bowl.
• Once the chopping process is done, disconnect the plug from the wall outlet, take out the motor by pressing the detachable push buttons, and remove the lid.
• Carefully take out the blades and remove the chopped food.

HOW TO USE THE WHISK?

The whisk or egg beater can usually be used to beat eggs, make whipping creams, meringue, and instant desserts using eggs, sugar, and fruit marmalade.

To assemble the whisk with the motor unit, place the motor on top of it and press it downward to attach it properly.

Plug in the blender to power outlet.

To make meringue:

Place egg whites into the cup and add the desired sugar. Press the switch button. You can use the variable speed control dial to select the desired speed from low to high. The egg whites will start to get thicker. Keep whisking until the egg whites turn into a foam-like texture, which means the meringue is now ready.

After finishing the use of this attachment, unplug it from the wall outlet and detach the accessory by removing the beater with the use of the detachable push buttons.

For Sauce Pan Blending

Note: Take the pan off the heat and let it cool slightly. Otherwise, your hand blender could overheat.

1. To assemble the metal shaft with the motor unit, place the motor on top of it and press it down to attach it properly.
2. Plug in. To avoid splashing, place the blade in the food before switching on.
3. Hold the power handle steady. Then press the power button.
4. Don't let liquid pass above the joint between the power handle and blender shaft.
5. Move the blade through the food and use a stabbing action. If your blender gets blocked, unplug before clearing.
6. After use, unplug and dismantle.

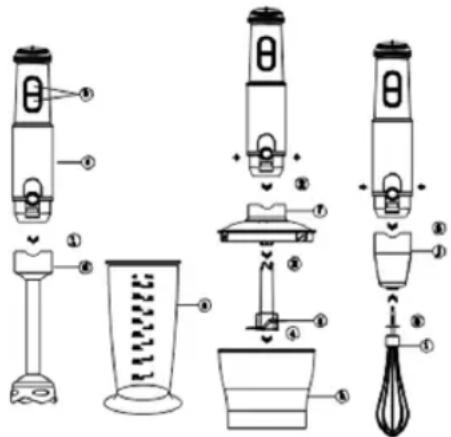

How to connect the motor part to the accessories?

The pictures below help you to understand how to connect the motor unit to all kinds of accessories.

6. CLEANING AND MAINTENANCE

1. Unplug the appliance and remove the detachable stem. Note: Do not immerse the detachable stem of the blender in water because over time the lubrication on the bearings may wash away.
2. Wash the detachable stem under running water, without using abrasive cleaners or detergents. After cleaning, place the stem upright so that any water that may have entered can drain out. The stem is dishwasher safe, so you can wash it in the dishwasher.
3. It is advised to clean or wash all detachable accessories by hand after detaching them from the motor.
4. The plastic beaker and all other accessories containing plastic parts are not recommended for placement in the dishwasher, as the plastic components deteriorate with prolonged dishwasher use.
5. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning, as an electric shock may occur.
6. Dry thoroughly.

Caution: Blades are very sharp; handle with care.

Quick cleaning process

For quick cleaning during processing tasks, hold the hand-held blender in a cup half filled with water and turn it on for a few seconds.

1. IMPORTANT:

OPERATING PROCESS OF THE CHOPPER

The chopper included in the set is made of BPA-free plastic and titanium-coated blades to ensure that chopping functions are fine and smooth. To fully utilize the chopper, always try to chop smooth food ingredients, cheese, vegetables, meat, herbs, bread, and some types of nuts and dried fruits.

Do not attempt to chop hard foods such as ice cubes, spices, or chocolates, etc., as this may damage the blades.

Do not use the device without supervision. Do not disassemble or use the device near water sources. Do not disassemble or use the device near sources of ignition or flammable surfaces (e.g., stoves) or near them, as well as near open flames. Do not hang the power cord over sharp edges and keep it away from hot objects and flames. Do not wind the cord around the device and do not bend it. Never use accessories not recommended by the manufacturer. Use of accessories not recommended or not sold by the manufacturer may lead to damage or injury.

electric shock or injury to persons.

• To avoid electric shock, make sure your hands are dry before plugging or unplugging the device from the mains. Do not use the device with wet hands, on a wet surface, or in conditions of high humidity - there is a risk of electric shock. Never immerse the device or the plug in water or any other liquid. If the device falls into water, immediately unplug it from the mains and take it to an authorized service center for repair before using it again. Do not use the device if it has fallen, shows signs of damage, or has been dropped. Do not use the device if the cord or plug is damaged. In case of damage to the cord, to avoid danger, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons.
• If the device is faulty or has been damaged in any way, return it to the nearest authorized service center for inspection, repair, or adjustment.

OPERATING PROCESS OF THE GRATER

The grater included in the set is made of stainless steel and has a non-stick coating, which guarantees accurate and smooth grating. To use the grater most effectively, grate the following products: cheese, vegetables, meat, greens, bread, and also nuts and dried fruits.

Do not try to grate hard products such as ice cubes, spices, chocolate, etc., as this may damage the blade.

If there are too many vegetables or meat, or they are too large, first cut them into smaller pieces, then place them in the grater bowl.

Always keep the blades sharp by not using them for more than 10 minutes at a time, to ensure a long service life of the grater blade. Always hold the blade by the upper plastic parts to avoid cuts, as the blade is quite sharp.

HOW TO USE THE GRATER?

Insert the knife into the central hole of the grater and press it. - Place the ingredients you want to grate into the grater bowl. Install the lid on the bowl for grating and secure it by turning it clockwise, and you can unlock it by turning it counterclockwise. Install the motor unit on the grater and plug it into the mains. For pulsed operation, use the pulse mode switch and press as needed. You can use the speed regulator to select the required speed. For

Turn off the device and unplug it from the outlet. After completing the chopping process, unplug the device from the outlet, turn off the motor, press the release button, and remove the lid. Carefully remove the blade and pour out the chopped products.

HOW TO USE THE BLENDER?

The blender or its attachments are usually used for making smoothies, preparing creams, sauces, and low-calorie desserts using milk, juice, and cottage cheese.

To assemble the blender with the motor block, place the motor on the top part of the blender, press it down to secure it firmly in place.

Plug the blender into the outlet.

Make a smoothie:

Place the ingredients into the bowl and add sugar, press the switch. You can use the speed control to select the desired speed from low to high, and the blender will start mixing. Continue blending until the ingredients are completely pureed, which indicates that the smoothie is ready.

After using the blender, turn it off, unplug it from the outlet, disconnect the accessories, and remove the bowl with the help of the release buttons.

FOR BLENDING SOUPS

Note: Remove the pot from the heat and let it cool slightly. Otherwise, your hand blender may overheat.

1. To assemble the metal shaft with the drive block, place the drive on top of it, press it down to secure it firmly in place. 2. Plug into the outlet. To avoid splashing, immerse the shaft into the mixture before turning it on.
2. Hold the handle steadily. Then press the switch. Do not lower the blending shaft below the level of the connected parts of the handle and the blender bowl.
3. Run the blade through the mixture and apply pressure. If the blender has blocked, unplug it from the outlet before cleaning.
4. After use, unplug the blender from the outlet and clean it.

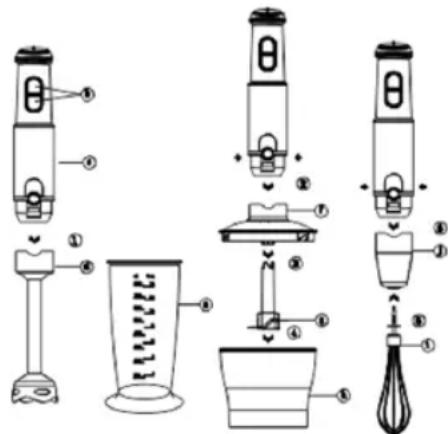

How to detach the motor part from the accessories?

This manual will help you get to know the motor part and all its accessories.

6. MAINTENANCE AND CARE

1. Disconnect the appliance from the mains and remove the removable parts. NOTE: Do not immerse the blender jug in water, as over time the oil on the bearings may be washed away. 2. Wash the removable jug under running water, without using abrasive agents or detergents. After washing, place the jug vertically so that the water that may have entered the inside can drain out. The jug can be washed in a dishwasher, so you can wash it in the dishwasher.
2. It is recommended to wash all removable accessories immediately after use. 4. For the plastic bowl and all other accessories, wash the plastic parts; it is not recommended to wash them in the dishwasher, as plastic components may deform with prolonged washing in the dishwasher.
3. Check the blender block with a damp cloth. Never immerse it in water or any other liquid, as this could lead to electric shock.
4. Dry thoroughly.

Caution: The blades are very sharp, handle them with care.

Blender operation

Put the blender into the jug, half filled with water, and run it for a few seconds.

1. IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical. Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DECLARATION OF CONFORMITY

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards. Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain. Product manufactured in CHINA. After-sales service: www.sogosat.com, [e-mail] / 0034 902 222 161
