USER MANUAL SS-16175 Sogo

Caution: please read and preserve these important instructions

This instruction manual can also be downloaded from our web page www.sogo.es

PRODUCT INTRODUCTION

This products uses lithium-ion battery for power.its very convenience for using.

OPERATION SAFTY AND NOTICE

The SS-16175 vacuum cleaner is electrical appliance, so it must be used under normal conditions, it should not be operated without supervision.

1. It may cause fire and damaging people if the cleaner vacuum the following items:
   a. Heat source: Charcoal fire, cigarette ends
   b. Large sharp fragment: broken glass piece
   c. Liquid: hazardous artical (solvent, corrodent), acid agent, cleanser and water.
   d. Inflammable and explosive goods: gasoline and alcohol products
   e. Construction waste and cement

2. Cut off the power when cleaning, maintainance and not using in a while.

3. Recommended using the supplied charger,checking the voltage the machine and the charger,making sure its consistent
4. Do not immerse the body of the unit into water
5. The children should not play or operate the vacuum cleaner in case any accidents happens.
6. Do not operate cleaner under such

circumstance:

a. Falling down with apparent damage or out of order
b. Damage charger
7. Do not operate for a long period of time when the suction inlet was blocked, in case the motor was damaged or machine was deformed.

SPECIAL INSTRUCTION:

The vacuum cleaner should not be used by children, reduced physical,mental and sensory capabilities, or anyone who lack of experience, this product is not a toy,Chil- dren should be supervised to ensure they do not paly with this vacuum cleaner.

IMPORTANT SAFEGUARDS:

1. Please read these instructions carefully before use.
2. This manual can also be downloaded from our website www.sogo.es.
3. Check that your mains voltage corresponds to that stated on the appliance.
4. Only use the appliance for domestic purposes and household or similar applications such as: - Staff kitchen areas, in shops, offices and other working environments. - By clients in hotels, motels and other residential type environments. - Environment type like: Farm Houses, Bed and Breakfast.
5. Only use the appliance in the way indicated in these instructions.
6. Never use this unit near bathtub, shower, wash-hand basins or other containers with water.
7. Never use this apparatus near water projections.
8. Never use this apparatus with the wet hands.
9. If, unfortunately the apparatus is wet, immediately withdraw the cord of the socket-outlet.
10. Inform potential users of these instructions.
11. Never leave the appliance unsupervised when in use.
12. The appliance must be used only for its intended purpose. No responsibility can be taken for any possible damage caused by incorrect use or improper handling.

13. Children and persons with disabilities are not always aware of the danger posed by the use of appliances.

14. This device can be used by children aged 8 years and older and adults, with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

15. Children shall not play with the appliance.
16. Cleaning and user maintenance shall not be made by children unless they are supervised.
17. Keep the appliance and its cord out of reach of children aged less than 8 years of age when it is energized or cooling down.
18. This device is not a toy, do not leave small children or people with disabilities to play with.
19. In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
20. Caution! Do not allow small children to play with the foil: THERE IS A DANGER OF SUFFOCATION!
21. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
22. Never immerse the appliance in water or any other liquid for any reason whatsoever.
23. Never place it into the dishwasher.
24. Never use the appliance near hot surfaces.
25. Do not operate the appliance with a damaged cord or plug, or after the appliance has been damaged in any manner.

26. If the supply cord or appliance is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

27. Disconnect the power source cable before any operation of cleaning of maintenance and accessories assembly.

28. Never use the appliance outside and always place it in a dry environment.
29. Never use accessories, which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
30. Never use any other connector than the one provided.
31. 'Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.
32. Never wind the cord around the appliance and do not bend it.
33. Ensure that the power cord does not come into contact with hot parts of this unit.
34. Make sure the appliance has cooled down before cleaning and storing it.
35. The temperature of accessible surfaces may be very high when the appliance is operating. Never touch these parts, of apparatus, to avoid burning itself.
36. Make sure the appliance never comes into contact with flammable materials, such as curtains, cloth, etc...& the power cord and plug do not come in contact with water.
37. Before cleaning, always unplug the appliance from the power supply and let it cool down.
38. This appliance is not intended to be operated by means of an external timer or separate remote control system.
39. Always place the unit on a flat surface. Ensure, also, not to cover the device and not to put

anything on it.
40. Always remove the plug from the wall socket when the appliance is not in use.
41. When using an extension lead always makes sure that the entire cable is unwound from the reel. Use solely CE approved extension leads.
42. Incorrect operation and improper use can damage the appliance and cause injury to the user.
43. This device, designed for home use, complies with standards relating to this type of product.
44. The appliance must be used and rested on a table or flat & stable surface.
45. The item must not be left unattended when it is connected to main supply.
46. The item is not to be used, if it has been dropped or if there are visible signs of damage or if it is leaking.
47. This appliance is only intended for household use.

SAFETY ADVICES & CAUTIONS

Read all the instructions carefully before using the vacuum cleaner

• This vacuum cleaner can only be used on dry purpose only. Water, liquid and other wet objects are prohibited to be sucked into the product. Do not water or spill liquid onto the vacuum cleaner. If that happens, it will increase the risk of electric shock.
• Do not use the vacuum cleaner to suck powders such as flour, cement or other big objects, or the motor can be broken or make the vacuum cleaner blocked.
• Please use dry cloth to clean the vacuum cleaner. Please do not use gas or liquid that can make the surface cracked or color faded such.
• Please do not use or store the vacuum cleaner under high or low temperature, suggested using temperature is 0^ - 40^ indoor. Please store the product under cool and dry environment. Please avoid long-time sunshine on the product.
• Please fully recharge the battery, when first used or used after long time storage. If the product is not used for long time, please make sure the battery is recharged and used each three months at least.
• When the vacuum cleaner fully recharged, please unplug the adaptor. Please do not pull the power cord directly.

• When working time goes shorter, caused by low battery capacity, please buy new battery

• unit to replace it.

• Do not litter the battery unit and it should be safely recycled.
• Battery unit can only used for this vacuum cleaner, please do not use it on other purposes, and can only charged with the adaptor with the vacuum cleaner in the package, do not disassemble the battery unit in case of damaging or short circuit. Do not place the battery unit close to the high temperature objects or fire, do not insert the battery unit with sharpen objects or break the battery in case of electric shock.
• If the vacuum cleaner cannot work or some parts broken, in order to avoid dangers, please do not disassemble it privately, sent it to the appointed maintenance or service centre and get it repaired by professional after sales
• Please make sure the child can not touch or use the vacuum cleaner and charge the battery unit in case of dangers.

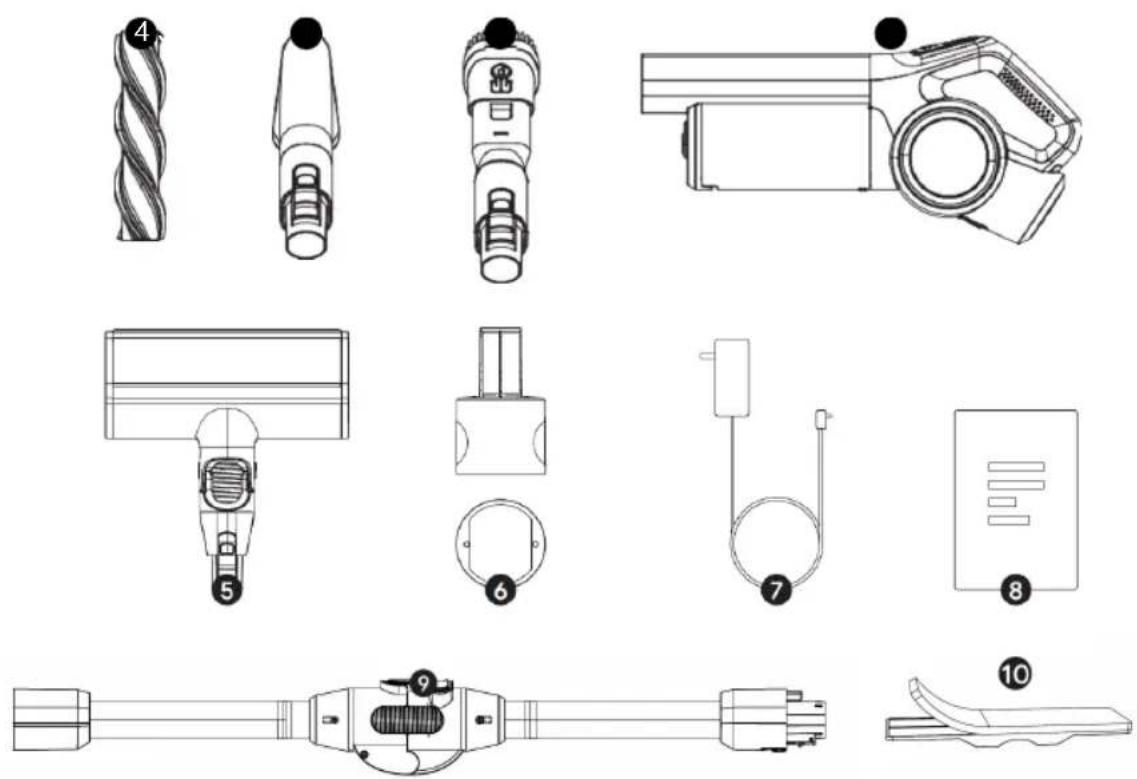

PRODUCT PARTS NAME AND DIAGRAM

1. Vacuum cleaner
   2.2 in 1 combination brush
2. Sofa brush
3. Brush Roller for carpe

4. Brush

5. Hanger

6. Charger
7. Instruction manual
8. Flex tube
9. Mop and mop board

Type Handhold vacuum	cleaner	Dust Capacity 0.65L
Machine power 350W V	vacuum ≥21kPa
Voltage 29.6V Charger 35V 500mA			= =
Size 432 x 120 x 196 mm	noise ≤78dB

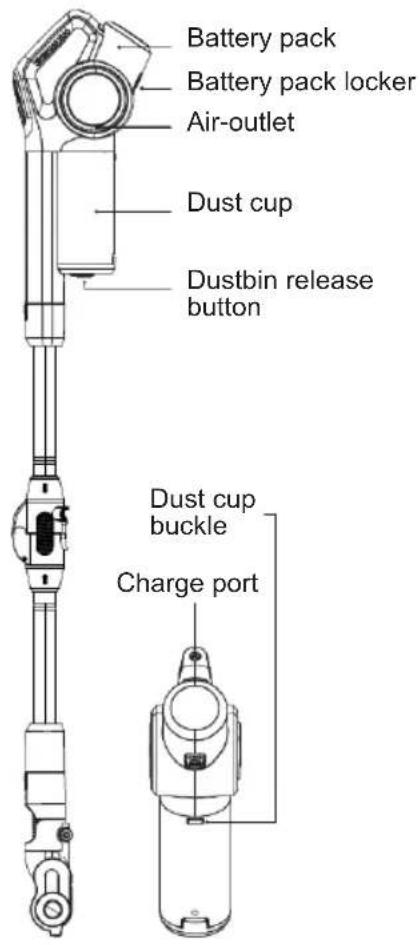

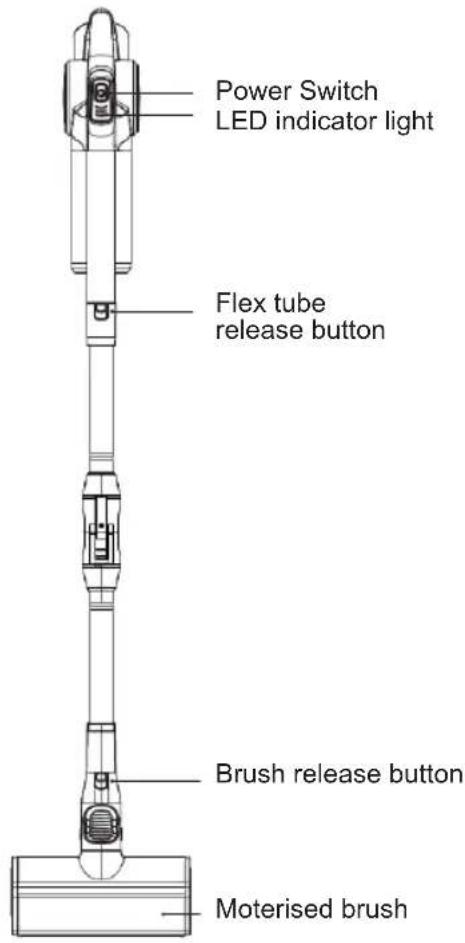

PRODUCT COMPONENT DESCRIPTION

BATTERY AND CHARGE

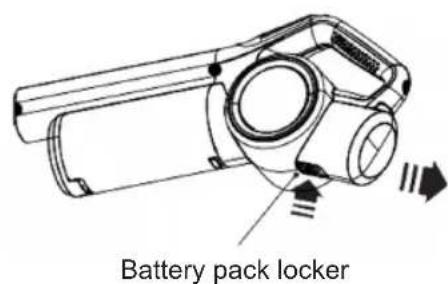

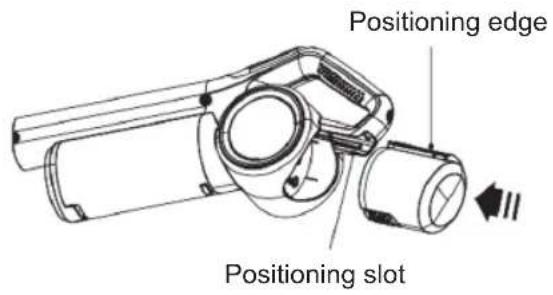

Install battery

Hold the machine with one hand and the battery pack with the other, align the positioning edge of the battery pack with the positioning slot on the machine, push the battery pack components to the bottom along the direction of the arrow, and then pull them out by pressing the lock button when it needs to be removed.

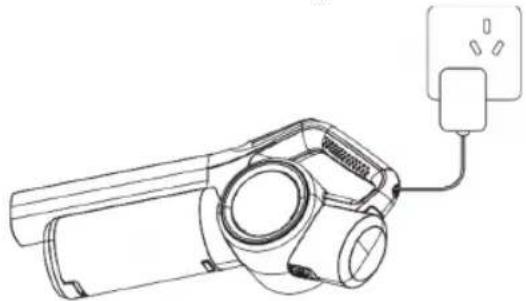

Charge

The charge the machine tail, keep the vacuum cleaner in the closed position, put cleaner configuration power adapter plug one end into the power supply, the region round plug end insert the charging jack on the vacuum cleaner battery pack, when connected to the vacuum cleaner on the LED will become a ladder lights flashing, when light into three blue lights all, don't blink after said vacuum cleaner battery has been charged, can pull out the power adapter plug, the vacuum cleaner can be used again.

Note: The power adapter must use the adapter configured by this machine. After charging, the power adapter should be connected to the power supply line in time

OPERATION INSTRUCTIONS

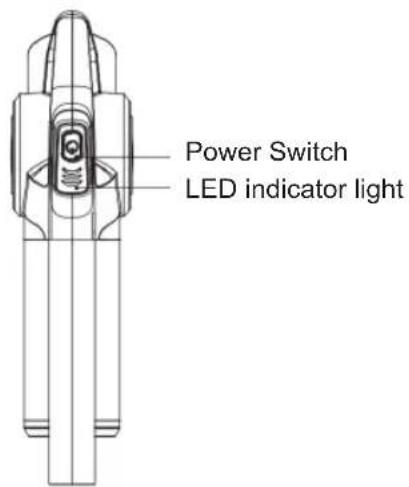

How to start

Press the power switch, the whole machine is in low gear, need high gear, press the power switch again, press the power switch again, the whole machine is shut down.Shutdown, low, high three state cycle.

Note: The LED indicator light display power after machine work, will with the power to reduce gradually extinguished.Until it's all out. The machine has stopped working and needs recharging.

Brush roll body dismantling and replacing

Can be chosen to brush brush roller and floor carpet nap roller, which takes place to brush on the ground, along the arrow press roll end cover body, end cover will automatically pop up, roll body, can be hand took the roll body end cover will roll out the body, with the hand hold another roller end cover, inside the body along the direction of arrow will load to brush, aim the roll groove on the end cover body to brush on a raised, then along the direction of the arrow with the hand press roll body end cover, the roll body automatically installed.

ACCESSORIES INSTALLING

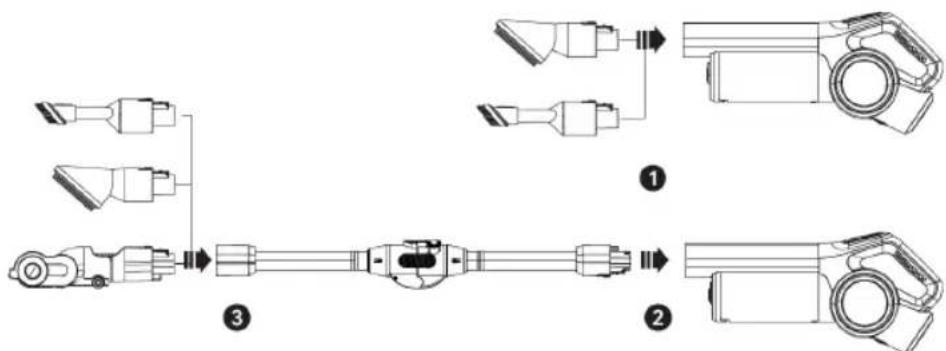

How to Install Accessories

1. According to the figure in the portable machine dust cup front insert sofa or combination of flat absorption, absorption of the current lock up, brush a head in place, you can use
2. According to the figure in the portable machine the front air intakes inserted over components. The current lock up after, to take over the installed, you can use the link to brush accessories like
3. According to the figure in the takeover of brush components and ground connection, local brush the front of the lock up, The floor brush can be used when installed in place, with various accessories as needed, for cleaning floors/curtains and other items

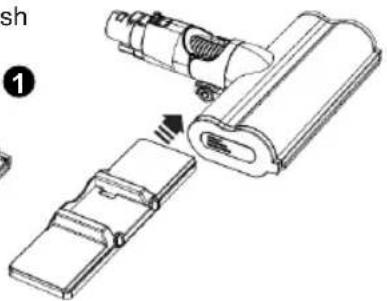

The use and cleaning of the mop

As shown in Figure 1, align the concave hole in the bottom of the floor brush with the 2 points on the mop board and press it firmly, then you can scrub the floor. If you need to replace the mop, you can remove the mop in the opposite direction of the arrow shown in Figure 1, and use a little force to remove the mop directly by hand as shown in Figure 2 to clean and replace that.

Note: You can get the mop a little wet, but not too wet to avoid excess water from the mop. From being sucked into the vacuum cleaner and causing a malfunction.

Align the concave hole on the bottom of the floor brush with the 2 raised points

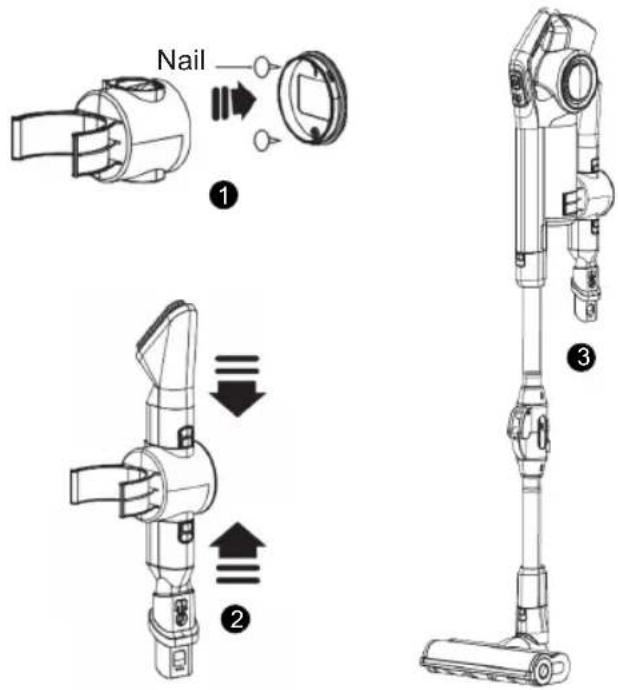

Hanger installation

1. Fix the hanger base on the wall according to the arrow direction at the appropriate height, mount the hanger base along the arrow direction, then rotate the hanger to the bottom according to the arrow direction, and the installation of the wall mount is finished.
2. After the base is installed, sofa suction and combination flat suction can be carried out. Common accessories such as adapter line can be installed on the rack for centralized storage as shown in the figure.
3. Hold the handle position of the whole machine by hand, place the ground brush on the ground, and draw the whole machine towards the hanger along the direction of arrow. The dust cup assembly should aim at the hanger, overcome the slight tension of the hanger, assemble the whole machine as shown in the picture on the right, and the installation is finished. If vacuum cleaner is needed, hold the handle position directly and take it directly in the opposite direction.

MACHINE CLEANING

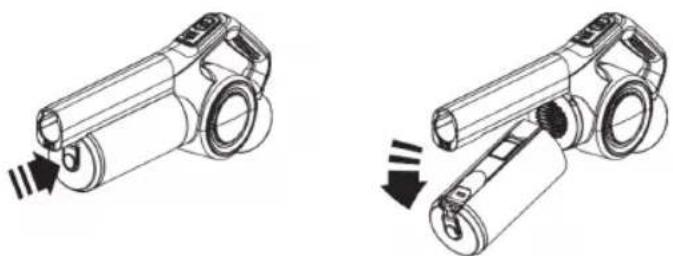

Cleaning the dustbin

Note: Clean the filter components regularly, because the mites in the adsorbed cotton wool may not be killed, and will continue to breed. In order to avoid secondary pollution, the filter components should be cleaned after cleaning, or replace with new filter components.

1. Power off, As shown in the picture below, press the release button of the dust cup to rotate it out along the arrow direction.

1. Hold the dust cup, aim the dust cup lid at the trash can, and dig the dust cup lid with a key to clean the dust.

Dust cup locker

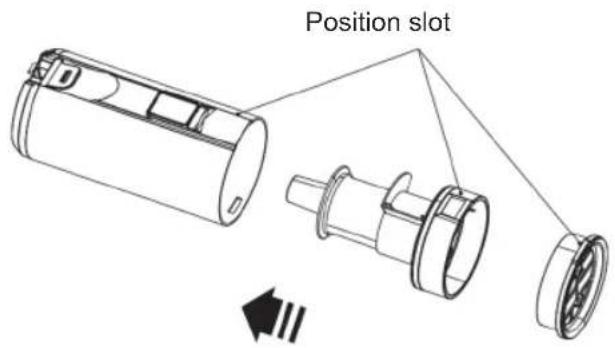

Remove and reset filter

1. If you want to clean the filter assembly and dust cup, just take out the filter assembly and the inner filter element in turn along the arrow direction. Rinse the filter assembly, inner filter element and dust cup with water and let them dry.
2. Reset: Position the inner filter element on the inner filter element in the direction of the dust cup position- ing slot, then push the inner filter element down into the dust cup. At the same time, position the filter component in the dust cup position- ing slot and install it into the inner filter element.

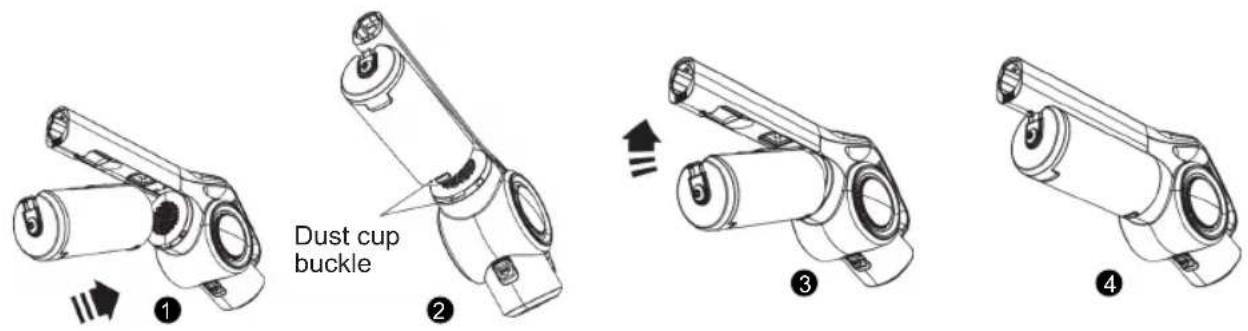

Dust bin reset

Hold the machine body with the left hand and the dust cup with the right hand, install the dust cup to the machine body along the arrow direction as shown in (1), as shown in (2), the raised machine body shall be aligned with the internal groove of the dust cup, and then as shown in (3), rotate the dust cup along the arrow direction into the machine body, until "click" sound is heard and the dust cup is installed in place. Check the lock button of the dust cup as shown in (4).

MAINTENANCE AND STORAGE

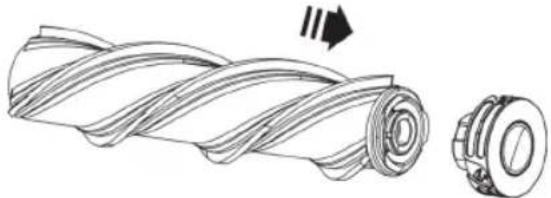

Brush roll body clean

Brush on the ground work for a long time, is likely to be objects, adsorption winding some hair and large particles to brush to clean, such as the operation method of operation instructions, remove the brush roll body, after the roller cover along the arrow direction can be pulled up, such as the roll body can be washed clean, dry, after the roller end cover along the arrows reverse pushing into the body. Then load the ground brush roller body into the ground brush as described in the operation instructions and it can be used normally.

Maintenance

1. All daily maintenance and maintenance work must be carried out after the vacuum cleaner has turned off the power.
2. Frequently clean up the garbage in the dust bucket to avoid the failure of the
   vacuum cleaner.
3. Vacuum cleaner surface cannot be swabbed with gasoline-like or oily appearance, apply soft cloth or neuter dishwashing essence is swabbed, scrub cloth when swabbing must twist dry, cannot infiltrate water inside vacuum cleaner electric appliance element.
4. Keep the storage area dry.
5. Heavy objects should not be piled above the machine.

TROUBLE SHOOTING

Note: Please turn off the machine to avoid any damage or accident.

Problem Reason Solutions
Could not turn on	Power off Recharge
	Did not switch the button Turn on the switch
	Without battery pack Put back the battery pack
	Spare parts damage Change the vacuum cleaner
Noise	Dustbin is full or the vent is blocked	Remove and clean the dustbin
The suction has reduced	Dustbin is full Remove and clean the filter
	Battery is low Recharge
Dust come out during using	Hepa is broken	Turn off the machine and change the hepa
	Forgetting put back the hepa Stop using, put back the hepa
Could not recharge	The adaptor unplugged Plug the adaptor
	The adaptor did not connect the vacuum	Connect the adaptor
	The adaptor damaged Change the adaptor
	Spare parts in vacuum cleaner damaged	Change the vacuum cleaner

INSTALLATION D'ACCESSIONS

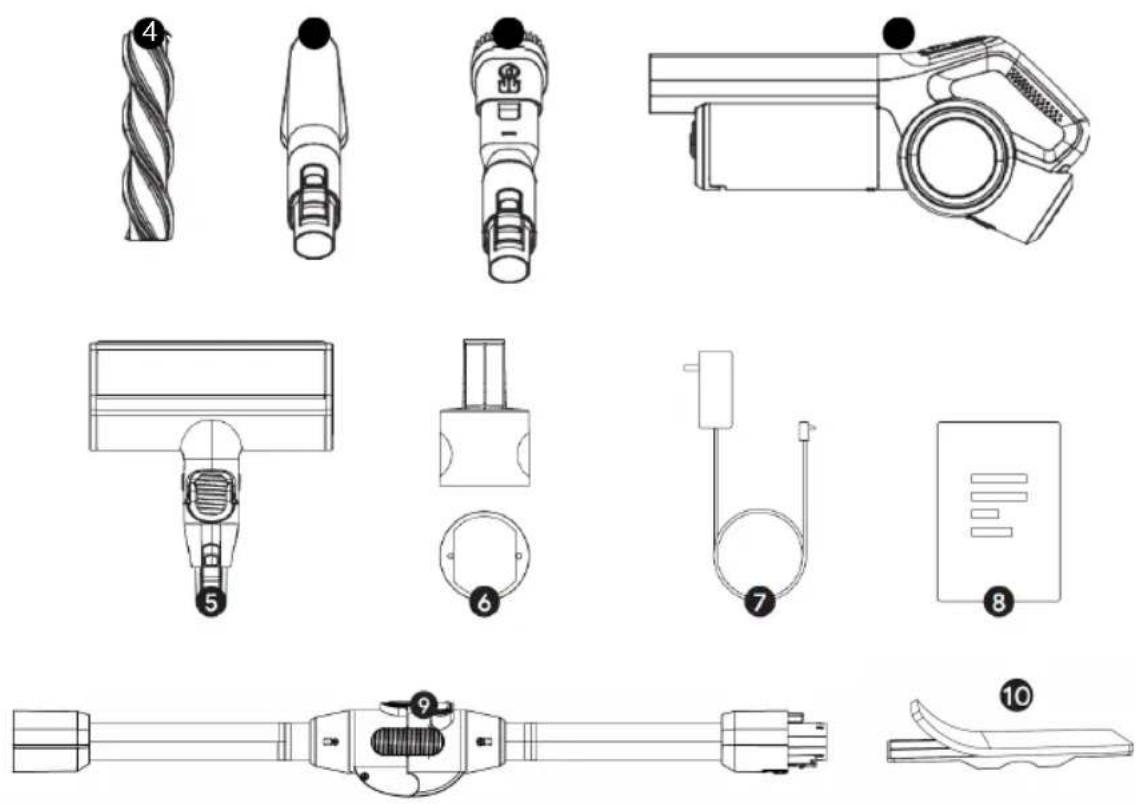

NOME DAS PEÇAS DO PRODUCTO E DIAGRAMA

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain Product made in P.R.C. -Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
