USER MANUAL BP16SF BLUEPALM

THANK YOU FOR CHOOSING A PRODUCT FROM BLUEPALM.

BLUEPALM

Current operating instructions and other languages

Download the current operating instructions in different languages using the link www.bluepalm.at/downloads or scan the QR code shown. Follow the instructions on the website.

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE!

IMPORTANT SAFETY, LOCATION AND ELECTRICAL CONNECTION INFORMATION.

Intended use

The fan is designed exclusively for the ventilation of dry rooms.

BLUEPALM

It is intended for private use only and is not suitable for commercial use.

Only use the fan as described in these operating instructions.

1. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
2. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact the service centre or your dealer.
3. Keep children away from packaging materials. There is a danger of choking if swallowed!
4. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre in order to avoid all possible risks.
5. Before connecting the appliance to the mains, check that the type of current and mains voltage correspond to the specifications on the appliance type plate.
6. The electrical socket in which you connect the unit must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.
7. Avoid using an extension cord as it could overheat and cause a fire.
8. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).
9. If the unit has a defect, switch it off and contact your dealer or the customer hotline.

BLUEPALM

1. Always and only contact customer service centres authorised by the manufacturer for any repairs to the appliance, mains plug or cable. You can find the service centres online at www.bluepalm.at.
2. Children under the age of 8 and persons with reduced physical, mental, sensory or spiritual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Do not operate the unit unattended. If you leave the room, always switch off the unit.
4. Children must not play with the appliance.
5. Do not twist or bend the mains cable.
6. Do not use the appliance with wet hands.
7. Do not use the unit outdoors.
8. Never operate the unit in rooms where gas, oil or sulphur are present.
9. Do not use the unit near water or high humidity, e.g. in damp basements, next to swimming pools, bathtubs or showers. Make sure that no water enters the unit.
10. Do not place any objects on the unit.
11. Place the unit on a stable and level surface.
12. Never cover the unit.
13. Never insert fingers, pens or other objects into the unit and make sure that the air inlet and outlet are never blocked.
14. Always switch off the appliance before unplugging it from the mains.

BLUEPALM

1. Do not pull on the mains cable to disconnect the appliance from the mains power. Always pull on the plug to unplug the mains cable.
2. Do not handle the plug with wet hands to avoid electric shock.
3. Unplug the appliance when you are not using it, before cleaning it, when it needs maintenance or when it is moved from one place to another.
4. Keep the unit in good condition by maintaining and cleaning the unit. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.
5. Keep and store the appliance in a safe, dry place out of reach of children when not in use.

BLUEPALM

Recycling, disposal, declaration of conformity

RECYCLING The packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.

DISPOSAL The symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or the local authorities. Directive 2012/19/EU

DECLARATION OF CONFORMITY We hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link: https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BLUEPALM

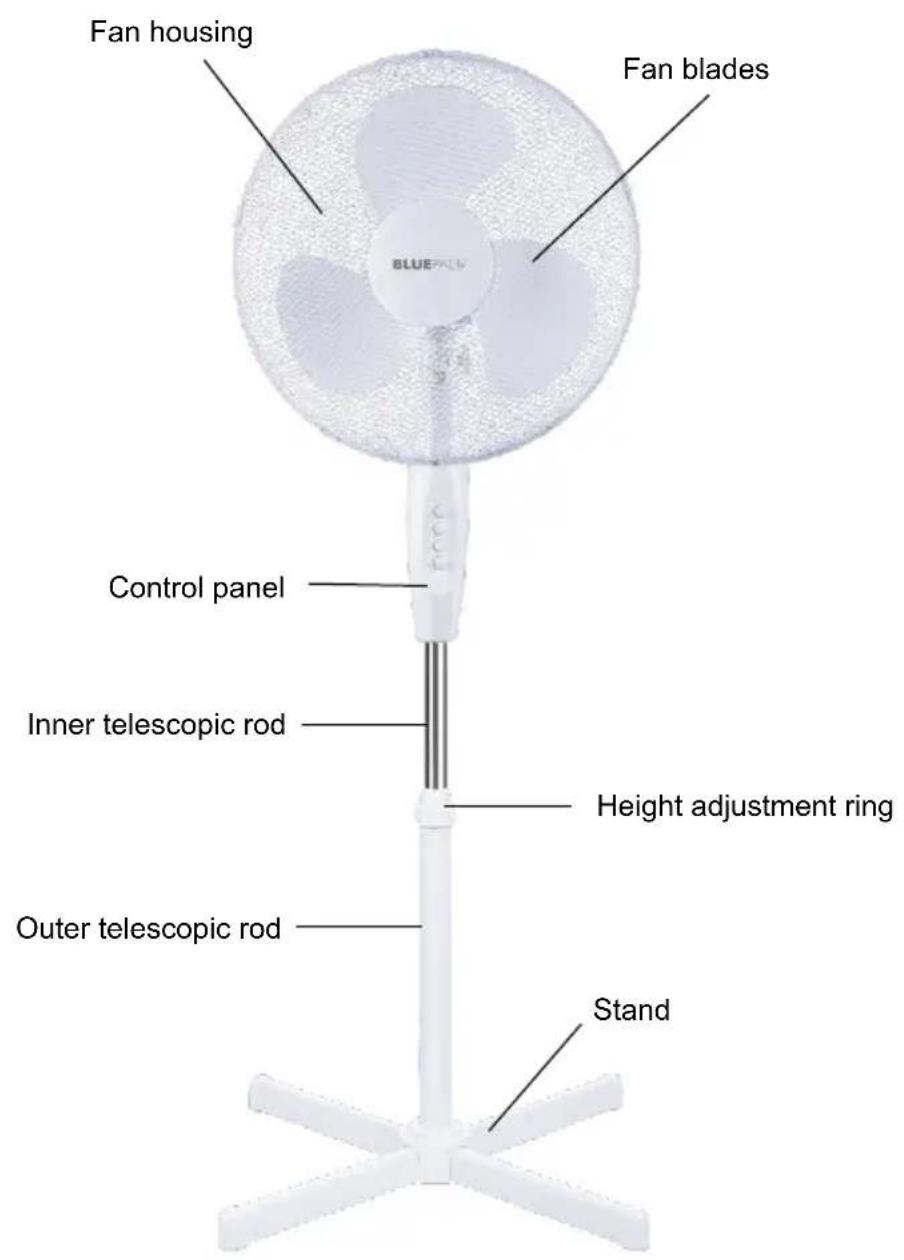

DESIGNATION OF THE INDIVIDUAL PARTS

BLUEPALM

ASSEMBLY INSTRUCTIONS

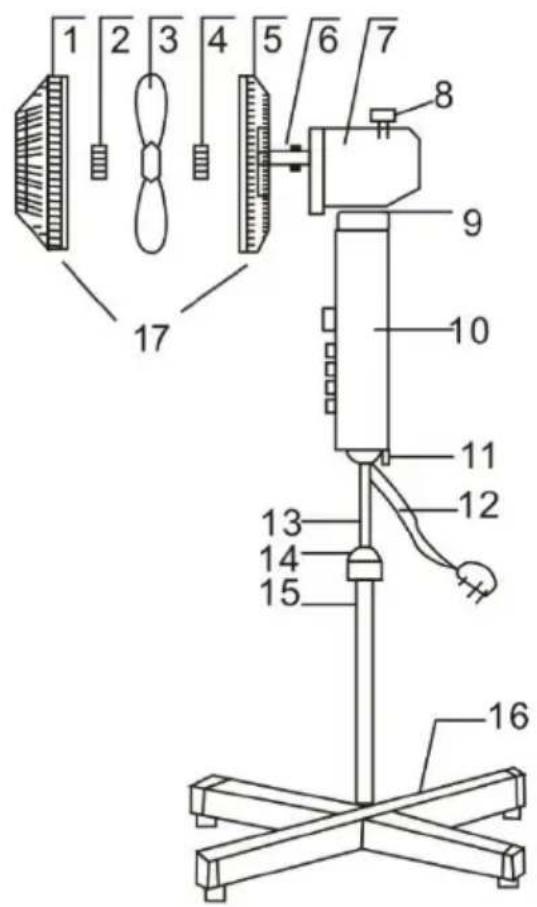

1	Front protective grille
2	Rotor blade screw
3	Fan blades
4	Threaded nut
5	Rear protective grille
6	Motor shaft
7	Motor housing
8	Oscillation button
9	Locking screw
10	Control element
11	Locking screw
12	Electric cable
13	Inner telescopic rod
14	Height adjustment ring
15	Outer telescopic rod
16	Stand
17	Holes + fixing screw

1. Mount the two feet (16) crosswise.
2. Place the outer telescopic pole (15) on the stand legs and mount it firmly with the four screws supplied and a screwdriver.
3. Remove the height adjustment ring (14) from the outer telescopic rod by turning it anticlockwise.
4. Slide the stand cover over the telescopic rod (15) with the openings pointing downwards until it is down over the already tightened screws.

BLUEPALM

1. Pull the inner (13) telescopic rod out of the outer (15) one and mount the height adjustment ring (14) back by turning it clockwise.
2. Place the entire motor (8 + 10) on the inner telescopic rod at the upper end and tighten the locking screw (9).
3. Disassemble the threaded nut (4) and the rotor blade screw (2) from the motor shaft (6) by turning counterclockwise.
4. Place the rear guard grille (5) against the motor housing by sliding it over the motor shaft (6).
5. Now screw on the threaded nut (4) again by turning it clockwise to fix the rear protective grille.
6. Slide the fan blades (3) over the motor shaft (6) and secure them by putting on the rotor blade screw (2) and tightening it. You can check the correctness by turning the blades by hand. The blades and the threaded nut must not touch each other - if they do, please repeat from point 8 of the assembly instructions.
7. Open the clips of the front protective grille (1) and unscrew the fixing screw (17) from the hole.
8. Now place the front protective grille on the rear one. Make sure that the two lower holes (17) of the protective grille are on top of each other. Now close all the clamps and insert the fixing screw from the front through the two holes and screw it tight.
9. Finally, put the cover caps on the ends of the feet.

COMMISSIONING

1. Place the unit on a flat and dry surface.
2. Insert the plug into a standard 220-230V socket.
3. Set the desired speed.

You can choose between:

0	OFF
1	Low speed
2	Medium speed
3	High speed

1. To switch off the unit, press "0".
2. For the swivel function, press the oscillation button on the motor housing in. If you want to switch off the function, pull the button upwards.
3. To change the angle of the airflow, move the head forward or backward.

BLUEPALM

CLEANING INSTRUCTIONS

1. Caution! Before cleaning, allow the appliance to come to a complete standstill and disconnect it from the power socket.
2. Use a soft cloth for cleaning. If dirt or contamination is not easily removed, use warm soapy water.
3. Do not use solvents or scouring agents (thinners), metal cutlery or hard brushes for cleaning, as these may damage the plastic housing.
4. Do not immerse the fan in water or other liquids. Do not allow water to drip onto or into the motor housing of the fan.
5. Dry all components thoroughly before storing them.
6. Store the unit in a cool, dry and clean environment.
7. Keep the appliance out of the reach of children and animals.

BLUEPALM

Technical information
Rated voltage	220V-240V~
Frequency	50 Hz
Nominal power	40 Watt
Sound level	49 dB(A)
Dimensions	600×1250×600 mm
Weight	2,20 kg
Information requirements of Regulation (EU) No. 206/2012
Article	BP16SF
Rated	220 – 240V
Protection	II
Power consumption when switched off (POFF)	0
Seasonal power consumption (Q)	12.1 kWh/a
Designation	Symbol	Value	Unit
Maximum volume flow	F	35.83	m³/min
Fan power consumption	P	37.8	W
Service ratio	SV	0.95	(m³/min)/W
Power consumption in standby mode	PSB	0	W
Fan sound power level	LWA	55.8	dB(A)
Maximum air velocity	c	2.31	m/s
measurement standard for determining the service ratio	IEC 60879:2019
Contact addresses for further information and service line:	Schuss Home Electronic GmbH Scheringgasse 3, A-1140 Vienna Tel: [phone] - 0 www.bluepalm.at FB-No: 236974 t / FB-Court: Vienna

BLUEPALM

GUARANTEE

With this quality product from BLUEPALM, you have made a decision for innovation, durability and reliability.

For this BLUEPALM unit, we grant a warranty period of 2 years from the date of purchase, valid in Austria! If, contrary to expectations, service work should nevertheless be necessary on your unit during this period, we hereby guarantee to repair it free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a current value credit note.

In the case of air conditioners, please contact the customer hotline as a first step (see sticker on the unit or title page of the operating instructions), in the case of fans, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

We do not accept any liability for consequential damage in the event of improper use.
Repair or replacement of parts due to normal wear and tear
- Damage due to non-observance of the operating instructions
Devices that are used - even only partially - for commercial purposes
- equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
Equipment that has been improperly handled
- Units that have not been opened by our authorised service workshop.
- Damage caused as a result of improperly closed condensation drain valves of air conditioners or improperly inserted water tank.
- Consumer expectations not met.
- Damage caused by force majeure, water, lightning, overvoltage.
Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the warranty certificate, only the legal warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case.

Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We wish you much pleasure with your BLUEPALM appliance!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:

In the event of a warranty claim, this warranty certificate must be handed over to the authorised service centre together with the unit.
