Product Type	Pedestal or table fan
Brand	BLUEPALM
Model	BP40STTI26V1, BP40STTI26V2
Dimensions (L x W x H)	390 x 390 x 1250 mm
Weight	5.4 kg
Power supply	220-240 V, 50 Hz, 50 W
Number of speeds	3 (low, medium, high)
Oscillation	Yes, via oscillation button
Maximum air flow	41.4 m³/min
Sound power level	64 dB(A)
Service value	1.0 (m³/min)/W
Maximum air speed	3.1 m/s
Protection class	II
Standby consumption	0 W
Blade material	Plastic
Protective grille	Front and rear (metal)
Adjustable height	Yes, with support tube and extension
Usage	Indoor only
Cleaning	Dry or slightly damp cloth; do not immerse
Warranty	2 years (valid in Austria)

Frequently Asked Questions - BP40STTI26V1 BLUEPALM

How to assemble the fan in table mode?

Insert the short or long support tube into the base, secure it with the sealing ring and screw. Mount the motor support, rear grille, blades (secured with the ring), then the front grille with the grille ring.

How to use the fan in pedestal mode?

Use the long support tube + the tube extension. Attach the extension to the tube, then the motor support. The rest of the assembly is identical to the table mode.

How to adjust the fan speed?

Turn the speed knob: position 0 = off, 1 = low, 2 = medium, 3 = high. The same knob also controls oscillation.

How to activate oscillation?

Press the oscillation button on the motor to make the fan automatically swing left and right.

How to clean the fan?

Always unplug the appliance. Clean the exterior with a dry or slightly damp cloth. Do not use solvents or aggressive cleaners. Do not immerse the fan.

Can the fan be used outdoors?

No, the fan is designed for indoor use only. Do not expose it to water, humidity, or outdoor environments.

What to do if the fan does not work at all?

Check that the plug is connected and power is present. Make sure the speed knob is not on 0. If the problem persists, contact customer service.

How to replace the fan blades?

Unplug the appliance. Remove the retaining ring and the defective blades. Mount the new blades on the motor shaft and secure them with the ring. Follow the assembly instructions to reposition the grilles.

What is the warranty for the BLUEPALM fan?

The warranty is 2 years from the date of purchase, valid in Austria. It covers manufacturing defects. Keep the invoice and warranty certificate.

Where to find the full manual and updates?

Download the latest manual from www.bluepalm.at/downloads or scan the QR code on the device. The manual is available in multiple languages.

USER MANUAL BP40STTI26V1 BLUEPALM

Diagram showing three different types of air condition fans, illustrating the equivalence between one and the other.

HERZLICHEN GLÜCKWUNSCH!

VIELEN DANK DASS SIE SICH FÜR EIN PRODUKT VON BLUEPALM ENTSCHIEDEN HABEN.

QR code image containing encoded data, no visible human-readable text

Three black-and-white warning symbols: no hand, warning triangle with exclamation mark, and lightning bolt symbol.

Exploded view diagram of a mechanical assembly with numbered parts and labeled 'or' section

Diagram showing three different types of outdoor fans with a plus sign and equals sign, illustrating the equivalence between fan count and quantity.

FÉLICITATIONS!

MERCI D'AVOIR CHOISI UN PRODUIT BLUEPALM.

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT CE MANUEL D'INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON- RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES OU DES DOMMAGES AUX PERSONNES ET/OU AUX BIENS ET/OU INVALIDER LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT ET LA CONNEXION ÉLECTRIQUE

Three black-and-white warning symbols: no hand, warning triangle with exclamation mark, and triangular hazard symbol.

BLUEPALM

Exploded view diagram of a mechanical assembly with numbered parts and labeled 'or' section

Diagram showing three different types of outdoor fan setups with a plus sign and equals sign, illustrating the equivalence between one and the other.

CONGRATULAZIONI!

LA RINGRAZIAMO MOLTO PER AVER SCELTO UN PRODOTTO BLUEPALM.

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE IL PRESENTE MANUALE DI ISTRUZIONI PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI O DANNI A PERSONE E/O COSE E/O INVALIDARE LA GARANZIA!

INFORMAZIONI IMPORTANTI SULLA SICUREZZA, L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

A !

Exploded view diagram of a mechanical assembly with numbered parts and labeled 'or' section

Diagram showing three different types of electric fans on stands, illustrating the addition of a vertical line to the total value.

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BLUEPALM.

QR code image containing encoded data, no visible human-readable text

LEES DEZE GEBRUIKSAANWIJZING ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT LETSEL OF SCHADE AAN PERSONEN EN/OF EIGENDOMMEN EN/OF HET VERVALLEN VAN DE GARANTIE!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

Warning symbols including a hand holding a prohibition sign, a warning triangle with an exclamation mark, and a triangular warning symbol.

Exploded view diagram of a mechanical assembly with numbered parts and labeled 'or' section

Diagram showing three different types of outdoor fans with a plus sign and equals sign, illustrating the equivalence between fan count and total quantity.

GRATULERAR!

TACK FÖR ATT DU VALT EN PRODUKT FRÅN BLUEPALM.

QR code image containing encoded data, no visible human-readable text

INNAN DU PÅBÖRJAR INSTALLATION, DRIFT ELLER UNDERHÅLL. SKYDDA DIG SJÄLV OCH ANDRA GENOM ATT FÖLJA SÄKERHETSANVISNINGARNA. OM ANVISNINGARNA INTE FÖLJS KAN DET LEDA TILL PERSON- OCH/ELLER EGENDOMSSKADOR OCH/ELLER ATT GARANTIN UPPHÖR ATT GÄLLA!

VIKTIG INFORMATION OM SÄKERHET, PLACERING OCH ELEKTRISK ANSLUTNING.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Exploded view diagram of a car's internal components with numbered parts and labeled parts

Diagram showing three different types of outdoor fans with a plus sign and equals sign, illustrating the equivalence between fan count and quantity.

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BLUEPALM.

BLUEPALM

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE TENTO NÁVOD K POUŽITÍ. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE VÉST KE ZRANĚNÍ NEBO POŠKOZENÍ OSOB A/NEBO MAJETKU A/NEBO KE ZTRÁTĚ ZÁRUKY!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Exploded view diagram of a mechanical assembly with numbered parts and labeled 'or' section

Diagram showing three different types of air condition fans on stands, with a plus sign and equals sign indicating equivalence.

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BLUEPALM.

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE TENTO NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE VIESŤ K ZRANENIU ALEBO POŠKODENIU OSÔB A/ALEBO MAJETKU A/ALEBO K STRATE PLATNOSTI ZÁRUKY!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

Three black-and-white warning symbols: no hand, exclamation mark, and lightning bolt symbol.

Exploded view diagram of a mechanical assembly with numbered parts and labeled 'or' section

Diagram illustrating a circular system with numbered segments and directional arrows, possibly representing a physical or mathematical concept.

Diagram showing three different types of outdoor fans with a plus sign and equals sign, illustrating the equivalence between fan count and total quantity.

FELICITĂRI!

VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS DE LA BLUEPALM.

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACEST MANUAL DE INSTRUCTIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTREȚINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR POATE DUCE LA RĂNIREA SAU LA DETERIORAREA PERSOANELOR ȘI/SAU A BUNURILOR ȘI/SAU LA INVALIDAREA GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA ŞI CONECTAREA ELECTRICĂ.

Warning symbols including a hand holding a prohibition, an exclamation mark, and a lightning bolt symbol

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Diagram showing three different types of outdoor fans with a plus sign and equals sign, illustrating the equivalence between fan count and total quantity.

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BLUEPALM.

Current operating instructions and other languages

Download the current operating instructions in different languages using the link www.bluepalm.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS MAY LEAD TO INJURY OR DAMAGE TO PERSONS AND/OR PROPERTY AND/OR INVALIDATE THE WARRANTY!

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELETRICAL CONNECTION.

Three black-and-white warning symbols: no hand, warning triangle with exclamation mark, and triangular hazard symbol.

1. Use this device exclusively in accordance with the guidelines in the instruction manual. Any use other than that recommended by the manufacturer, may result in fire, electrical shock or injury to persons.

2. Remove the packaging and ensure the device is not

BLUEPALM

damaged. In case of any doubt do not use the device and contact the service point or your dealer.

1. Keep packaging material out of the reach of children. There is a risk of choking if swallowed!

2. If the power cable is damaged it must be replaced by the manufacturer or an authorised service point, in order to avoid all potential risks.

3. Before connecting to the mains power supply, you must check if the type of mains current and voltage comply with the details given on the rating plate of the device.

4. The electrical plug socket, into which the device is connected, must not be defective or loose, must be suitable for the required current load and, above all, must be properly earthed.

5. Avoid the use of an extension cable, as this may overheat and cause a fire.

6. It is strictly forbidden to modify the properties of this device in any form or manner and you must only use replacement parts or accessories recommended by the manufacturer (failure to do so will invalidate the warranty and guarantee).

7. If the device has a defect, switch it off and contact your dealer or the customer hotline.

8. For any possible repairs to the device and the mains plug or power cable you must always refer exclusively to the customer service points recommended by the manufacturer. You can view our customer service points online at www.bluepalm.at.

9. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities and lack of experience and knowledge may only use this device under appropriate supervision and if comprehensively briefed on the safe use of the device and

BLUEPALM

the associated hazards.

1. Do not use the device without supervision. Always switch the device off when leaving the room.
2. Children must not be allowed to play with the device.
3. Do not twist or kink the power cable.
4. Do not use the device with wet hands.
5. Do not use the device outdoors.
6. Never use the device in rooms in which gas, oil or sulphur are present.
7. Do not use the device in the proximity of water or strong moisture, e.g. in damp cellars, close to pools, bathtubs or showers. Make sure no water can enter the device.
8. Do not place any objects on the device.
9. Place the device on a stable and level subsurface.
10. Never cover the device.
11. Never put fingers, pens or other items into the device and make sure that air in- and outlets are never blocked.
12. Always switch the device off before pulling the power plug.
13. Do not pull on the power cable to unplug the device. Always pull on the plug to unplug the device.
14. Do not touch the plug with wet hands to avoid electrical shocks.
15. Pull the plug if you are not using the device, if you want to clean it, if it has to be serviced or if it is moved from one location to another.
16. Keep the device in good shape by cleaning and maintaining it. If you have any questions regarding maintenance you can contact the manufacturer's authorised customer hotline / service point.
17. Keep and store the device at a safe and dry place out of reach for children when you are not using it.

BLUEPALM

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BLUEPALM

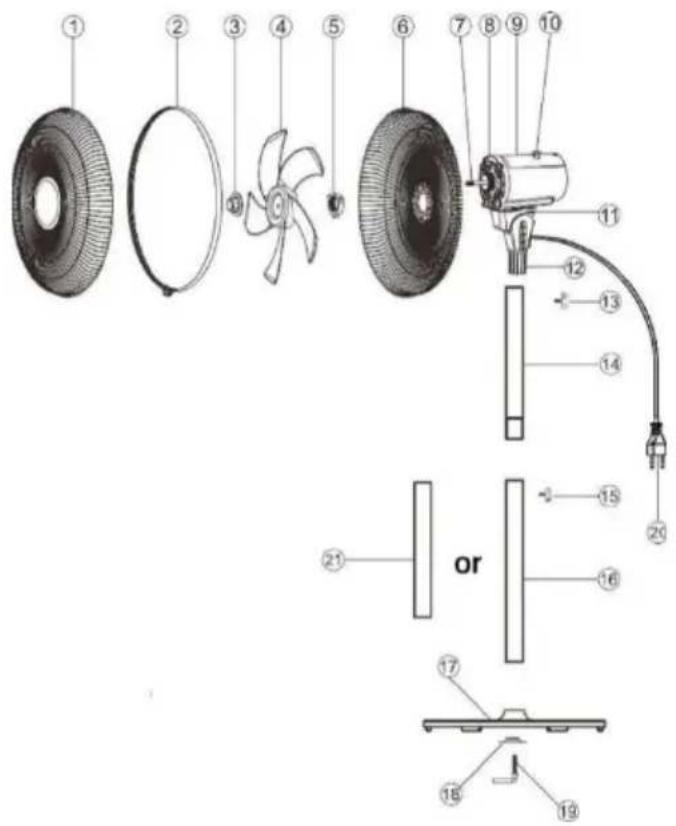

OVERVIEW THE FAN

1. Front safety grill
2. Grill ring
3. Fixing ring
4. Fan blade
5. Threaded nut
6. Rear safety grill
7. Motor shaft
8. Front motor cover
9. Motor cover
10. Oscillation button
11. Motor bracket
12. Connection bracket
13. Fixing screw
14. Extension tube
15. Fixing screw
16. Long stand tube
17. Base
18. Sealing ring
19. Mounting screw
20. Power cord
21. Short stand tube

Exploded view diagram of a car showing parts from tire assembly to motor control panel

(Attention: Short stand tube (21) cannot be used together with the support pipe extension (14)!)

ASSEMBLING THE FAN

Remove all parts of the device from the packaging and discard all packing materials.

For use as a table fan:

• Insert the stand tube (16) or (21), depending on the desired height, into the base (17) and secure it with the sealing ring (18) and fastening screw (19).
• Attach the motor bracket to the stand tube (16) or (21) and secure it with the locking screw (13).
• Place the rear protective grille (6) onto the motor shaft (7) and secure it with the threaded nut (5).
• Attach the fan blades (4) onto the motor shaft (7) and secure them with the fastening ring (3).
• Fit the front protective grille (1) to align with the rear grille (6) and secure it with the grille ring (2).

BLUEPALM

For use as a pedestal fan:

• Insert the stand tube (16) into the base (17) and secure it with the sealing ring (18) and fastening screw (19). Then attach the stand tube extension (14) to the stand tube (16) and secure it with the locking screw (15).
• Attach the motor bracket to the stand tube extension (14) and secure it with the locking screw (13).
• Place the rear protective grille (6) onto the motor shaft (7) and secure it with the threaded nut (5).
• Attach the fan blades (4) onto the motor shaft (7) and secure them with the fastening ring (3).
• Fit the front protective grille (1) to align with the rear grille (6) and secure it with the grille ring (2).

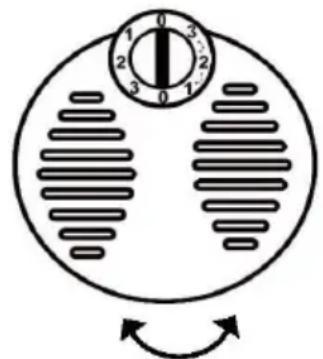

SPEED FUNCTION

There's 3 speed to select:

0- It's the power off button to stop

1- Low speed
2- Mid speed
3- High speed

Switch

Diagram illustrating a circular system with numbered segments and directional arrows, possibly representing a physical or mathematical concept.

Speed button with oscillation

CLEANING AND MAINTENANCE

Before cleaning the appliance always disconnect the power plug from the receptacle.

• The appliance, the power cord and the power plug should not be immersed in water or other liquids when you are cleaning them. Clean them with a dry cloth.
• If it is very dirty, the outside of the appliance can be wiped carefully with a moist cloth and then dried carefully. Make sure that no moisture penetrates into the interior of the appliance.
• Do not use any harsh cleaners, steel brushes, scouring powder or other hard objects to clean the appliance as these can cause scratches on the surfaces.
• Clean the appliance regularly.

BLUEPALM

• Never use solvents, benzene or oil-based cleaners as these can damage the housing.
- Re-tighten visible screw connections on the appliance regularly in order to ensure that the device is functioning properly.

Technical information
Rated voltage	220 – 240 V
Frequency	50 Hz
Rated input power	50 W
Dimensions	390 x 390 x 1250 mm
Weight	5.4 kg

Information requirements under Regulation (EU) No. 206/2012

Article number	BP40STTI26V1, BP40STTI26V2
Nominal	220 – 240 V
Protection	II
Power consumption when switched off (POFF)	0 W
Seasonal power consumption (Q)	14 kWh/a
Designation	Symbol	Value	Unit
Maximum volume flow	F	41.4	m3/min
Fan power consumption	P	40.7	W
Service ratio	SV	1.0	(m3/min)/W
Power consumption in standby mode	PSB	0	W
Fan sound power level	LWA	64	dB(A)
Maximum air velocity	c	3.1	m/s
Measurement standard for determining the service ratio	IEC 60879:2019
Contact address for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0www.bluepalm.atCommercial register no.: 236974 t /Commercial register court: Vienna

BLUEPALM

WARRANTY

By purchasing a BLUEPALM quality product you have acquired an innovative, long lasting and reliable item.

For this BLUEPALM device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value. When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
• Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
• Devices that have been used improperly
• Devices that were not opened by our authorised workshop.
- Damages caused by improperly closed condensation drains on air conditioning devices or improperly inserted water container.
• Unfulfilled customer expectations.
• Damage caused by force majeure, water, lightning and overvoltage.
• Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.
• Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BLUEPALM device!

ADDRESS

Schuss Home Electronic GmbH

Scheringgasse 3 A-1140 Vienna

Tel.: [phone]

Type designation: ....

Serial number: ....

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!
